TOYOTA TACOMA 2006 Owners Manual (in English)

2412006 TACOMA from Jan.’06 Prod. (OM35871U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Accessory meter242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Clock 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Cigarette lighter 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Power outlet 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Storage boxes 260
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Flashlight holder 260
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Seatback table 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cargo net hooks 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Deck hooks 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Deck rails 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Floor mat 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

2422006 TACOMA from Jan.’06 Prod. (OM35871U)
Accessory meter—
LS10034
1. “E/M” button
2. Compass
3. Outside temperature displayOperate the accessory meter with the
ignition switch on.
When the ignition switch is turned to
“ON”, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
“E/M” button
This button is used to switch between
English/U.S. Customary System and
metric units of the outside temperature
display.
Every time you push this button, the dis-
play toggles through the following informa-
tion.
1. Compass and outside temperature ( F)
2. Compass and outside temperature ( C)
3. Display off (no compass)
The display variations are as follows;
IndicationOutside
temperature
English/U.S. Customary
System (E) F
Metric (M)C
The initial mode will be English/U.S. Cus-
tomary System units, however, if the unit
is switched to metric and the ignition
switch is off, it will display metric units
when the ignition switch is turned to “ON”.
—Before using the accessory
meter

2432006 TACOMA from Jan.’06 Prod. (OM35871U)
LS10035
The outside temperature display indi-
cates the outside air temperature. The
displayed value is updated.
To set the unit, push the “E/M” button
until the desired unit display appears.
The displayed temperature ranges from
−30 C ( −22 F) up to 50 C (122 F).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −− C” (“ −−F”) will appear on the display.
If “ −−C” (“ −−F”) appears on the display,
contact your Toyota dealer.
There may be a case that “−− C” (“ −−F”)
appears momentarily when the ignition is
quickly turned to “ON”. It is normal if it
goes out soon.
—Compass
LS10036
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading west.
The direction display is updated every 2
seconds.
Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the roof.)
The battery has been disconnected.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
—Outside temperature display

2442006 TACOMA from Jan.’06 Prod. (OM35871U)
If the direction is not indicated or the
system does not operate properly, contact
your Toyota dealer.

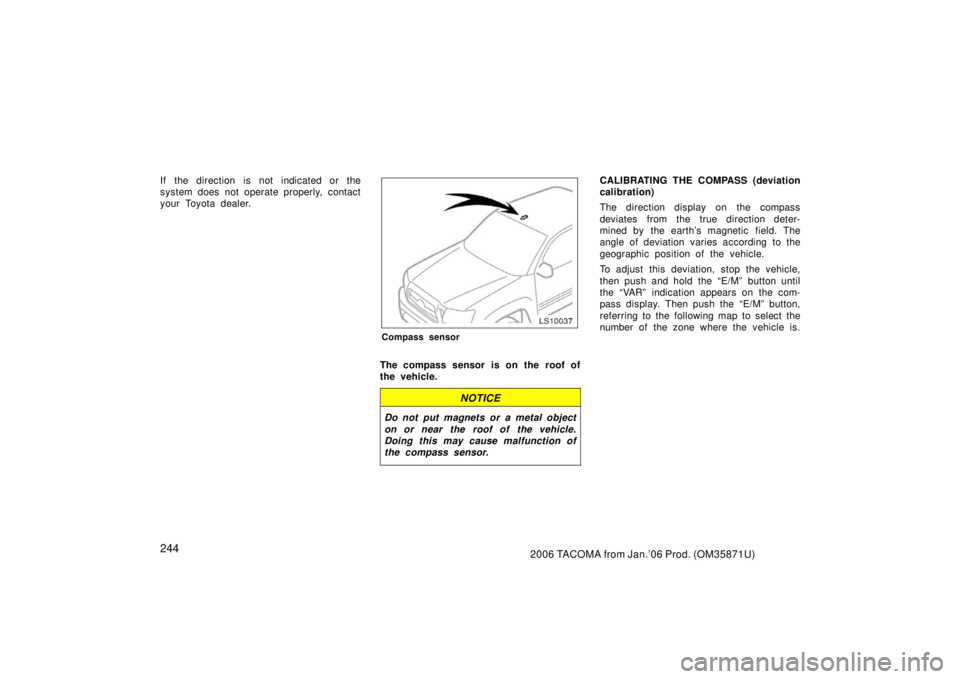

LS10037
Compass sensor
The compass sensor is on the roof of
the vehicle.
NOTICE
Do not put magnets or a metal object
on or near the roof of the vehicle.
Doing this may cause malfunction of
the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “E/M” button until
the “VAR” indication appears on the com-
pass display. Then push the “E/M” button,
referring to the following map to select the
number of the zone where the vehicle is.

2452006 TACOMA from Jan.’06 Prod. (OM35871U)

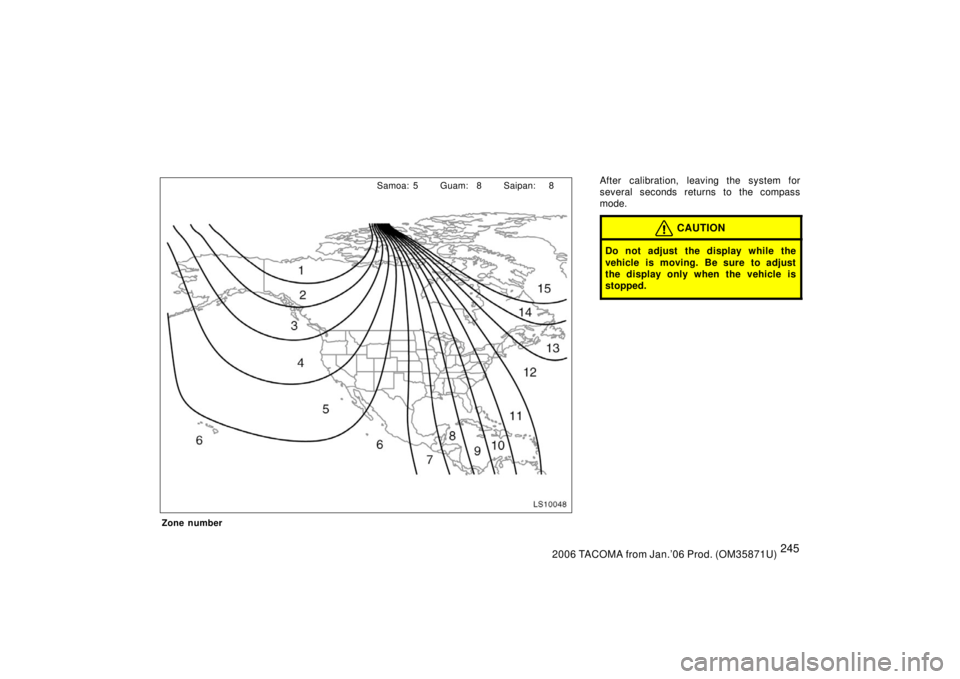

Zone number
After calibration, leaving the system for
several seconds returns to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
LS10048
Samoa: 5 Guam: 8 Saipan: 8

2462006 TACOMA from Jan.’06 Prod. (OM35871U)

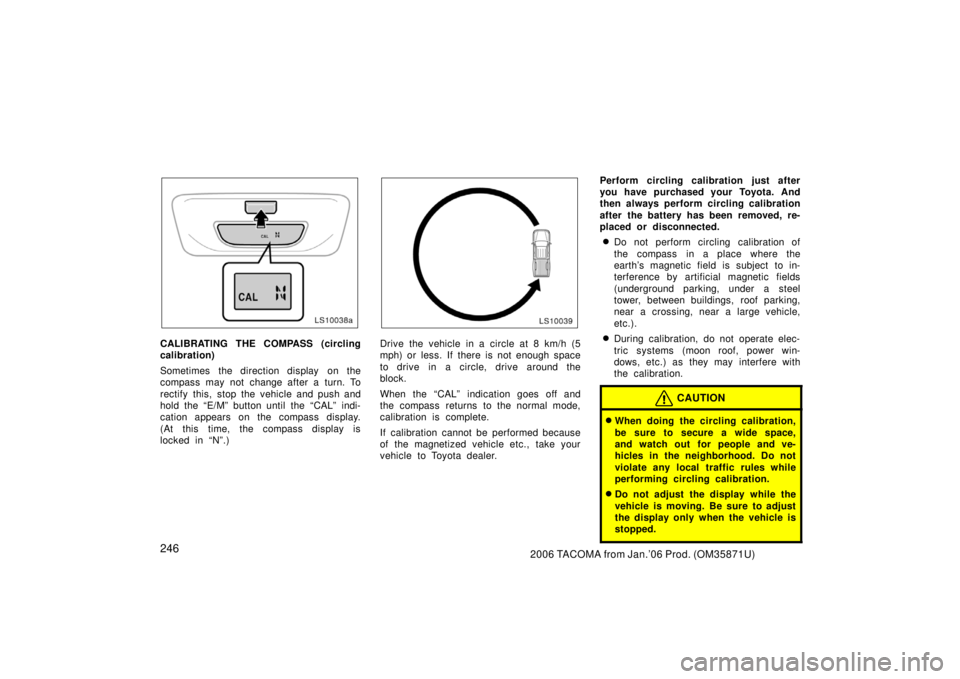

LS10038a
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “E/M” button until the “CAL” indi-
cation appears on the compass display.
(At this time, the compass display is
locked in “N”.)
LS10039
Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
When the “CAL” indication goes off and
the compass returns to the normal mode,
calibration is complete.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

2472006 TACOMA from Jan.’06 Prod. (OM35871U)

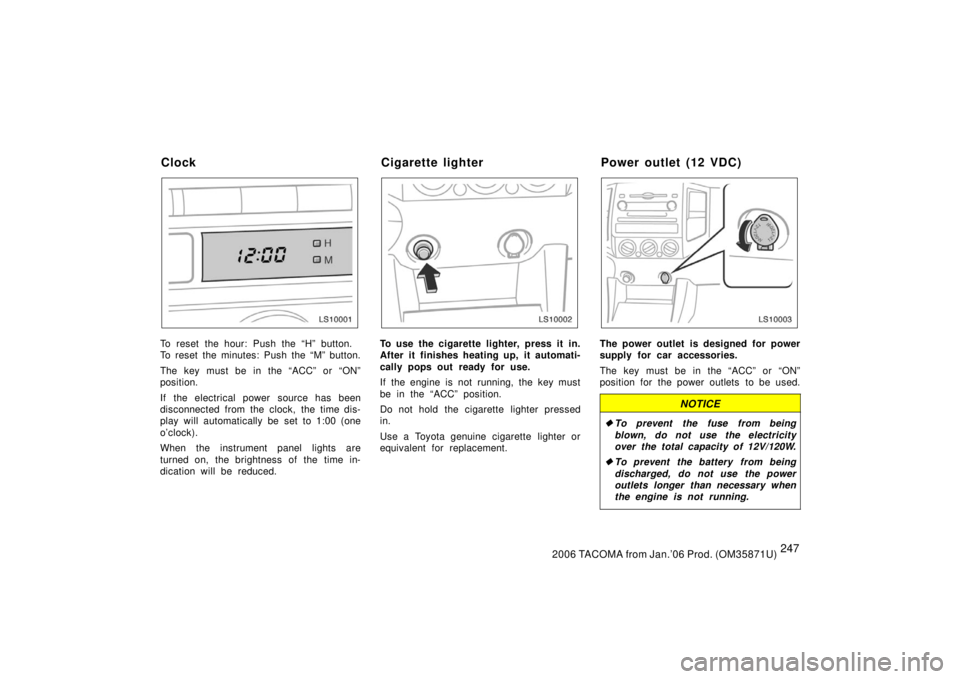

LS10001
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
LS10002
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
LS10003
The power outlet is designed for power
supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlets to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total capacity of 12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Clock Cigarette lighterPower outlet (12 VDC)

2482006 TACOMA from Jan.’06 Prod. (OM35871U)

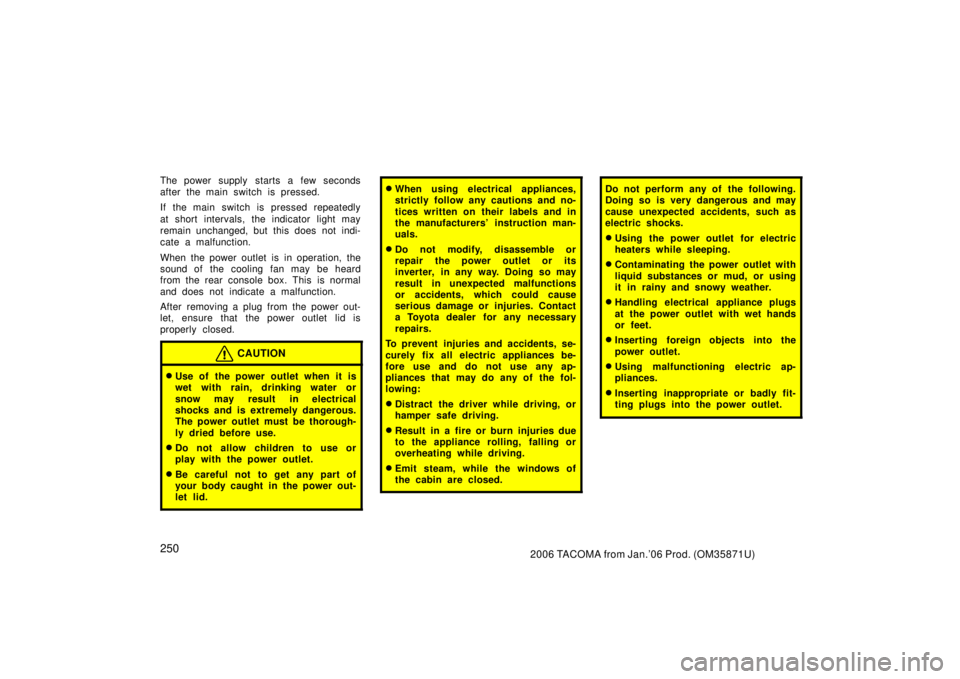

Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.

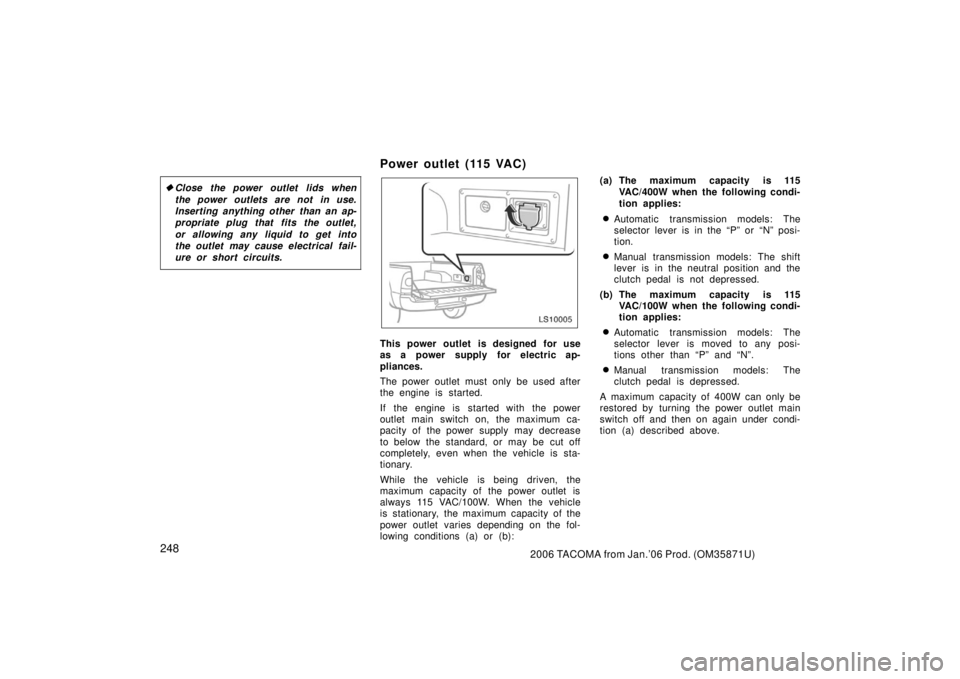

Power outlet (115 VAC)
LS10005
This power outlet is designed for use
as a power supply for electric ap-
pliances.
The power outlet must only be used after
the engine is started.
If the engine is started with the power
outlet main switch on, the maximum ca-
pacity of the power supply may decrease
to below the standard, or may be cut off
completely, even when the vehicle is sta-
tionary.
While the vehicle is being driven, the
maximum capacity of the power outlet is
always 115 VAC/100W. When the vehicle
is stationary, the maximum capacity of the
power outlet varies depending on the fol-
lowing conditions (a) or (b): (a) The maximum capacity is 115
VAC/400W when the following condi-
tion applies:
Automatic transmission models: The
selector lever is in the “P” or “N” posi-
tion.
Manual transmission models: The shift
lever is in the neutral position and the
clutch pedal is not depressed.
(b) The maximum capacity is 115 VAC/100W when the following condi-
tion applies:
Automatic transmission models: The
selector lever is moved to any posi-
tions other than “P” and “N”.
Manual transmission models: The
clutch pedal is depressed.
A maximum capacity of 400W can only be
restored by turning the power outlet main
switch off and then on again under condi-
tion (a) described above.

2492006 TACOMA from Jan.’06 Prod. (OM35871U)
The protection circuit may be activated to
cut the power supply if any of the follow-
ing conditions apply:
The engine is started with the power
outlet switch on.
Use of electrical appliances exceeding
the maximum capacity is attempted.
A sound may be heard when the
protection circuit is activated. This is
normal and does not indicate a mal-
function.
Electrical appliances, which consume
power exceeding 100W, have been
used continuously for a long time per-
iod.
The total power usage by all electrical
features (headlights, air conditioning,
etc.) has exceeded the total vehicle
maximum for an extended period of
time.
If the protection circuit is activated and
the power supply is cut, conduct the fol-
lowing procedure: 1. Park the vehicle in a safe area, and then securely apply the parking brake.
2. Check and ensure the following condi- tions: Automatic transmission models: The
selector lever is in the “P” or “N” posi-
tion.
Manual transmission models: The shift
lever is in the neutral position and the
clutch pedal is not depressed.
3. Make sure that the power consumption of the electric appliance is within the
maximum capacity of the power outlet
and the appliance is not broken.
4. Push the power outlet main switch again.
When the cabin temperature is high, open
the windows to cool the temperature
down. Once it reaches the normal temper-
ature, turn the power outlet main switch
on again.
If the power supply is not resumed even
after performing the above procedure,
have the vehicle inspected by a Toyota
dealer.
LS10004
Indicator light
(green)
Indicator light
(yellow)
To use the power outlet, push the main
switch located on the instrument panel.
The color of the indicator light changes
according the maximum available capacity,
as follows: Illumination color
Maximum capacity
Green and yellow115 VAC/400W
Ye l l o w115 VAC/100W
To turn the power outlet off, push the
main switch again. When the power outlet
is not in use, make sure that the main
switch is off and that the indicator light is
not illuminated.

2502006 TACOMA from Jan.’06 Prod. (OM35871U)
The power supply starts a few seconds
after the main switch is pressed.
If the main switch is pressed repeatedly
at short intervals, the indicator light may
remain unchanged, but this does not indi-
cate a malfunction.
When the power outlet is in operation, the
sound of the cooling fan may be heard
from the rear console box. This is normal
and does not indicate a malfunction.
After removing a plug from the power out-
let, ensure that the power outlet lid is
properly closed.
CAUTION
Use of the power outlet when it is
wet with rain, drinking water or
snow may result in electrical
shocks and is extremely dangerous.
The power outlet must be thorough-
ly dried before use.
Do not allow children to use or
play with the power outlet.
Be careful not to get any part of
your body caught in the power out-
let lid.
When using electrical appliances,
strictly follow any cautions and no-
tices written on their labels and in
the manufacturers’ instruction man-
uals.
Do not modify, disassemble or
repair the power outlet or its
inverter, in any way. Doing so may
result in unexpected malfunctions
or accidents, which could cause
serious damage or injuries. Contact
a Toyota dealer for any necessary
repairs.
To prevent injuries and accidents, se-
curely fix all electric appliances be-
fore use and do not use any ap-
pliances that may do any of the fol-
lowing:
Distract the driver while driving, or
hamper safe driving.
Result in a fire or burn injuries due
to the appliance rolling, falling or
overheating while driving.
Emit steam, while the windows of
the cabin are closed.
Do not perform any of the following.
Doing so is very dangerous and may
cause unexpected accidents, such as
electric shocks.
Using the power outlet for electric
heaters while sleeping.
Contaminating the power outlet with
liquid substances or mud, or using
it in rainy and snowy weather.
Handling electrical appliance plugs
at the power outlet with wet hands
or feet.
Inserting foreign objects into the
power outlet.
Using malfunctioning electric ap-
pliances.
Inserting inappropriate or badly fit-
ting plugs into the power outlet.
