TOYOTA TACOMA 2007 Owners Manual (in English)

912007 TACOMA from Sep. ’06 Prod. (OM35877U)
Condition and operation in the front passenger occupant classification systemCondition detected bythe front passenger
occupant classification system
∗1
Indicator/warning lightDevices
Front
passenger occupant
classification
indicator light
SRS warning light
Front
passenger ’s seat belt
reminder lightFront
passenger airbagSide airbag
on the front passenger seatCurtain shield
airbag in the front
passenger
sideFront
passenger ’s seat belt
pretensioner
1. Adult∗ 2“ON”OffFlashing∗5Activated
2. Child∗3 or child
restraint system∗ 4“OFF”∗6OffFlashing∗5Deactivated
Activated
Activated
3. UnoccupiedNot
illuminatedOffOffDeactivatedDeactivated
4. There is a malfunction in the
system
“OFF”OnOffDeactivatedActivated
∗1: Regular cab models with bench seat—The right front passenger on the bench seat.
∗2: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗3: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.
∗ 4: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” on page 95 in this Section as for installi ng the
child restraint system.)
∗ 5: In the event the front passenger does not wear a seat belt.
∗6: In case indicator is not illuminated, see “Child restraint” on page 95 as for installing the child restraint system properly.

922007 TACOMA from Sep. ’06 Prod. (OM35877U)

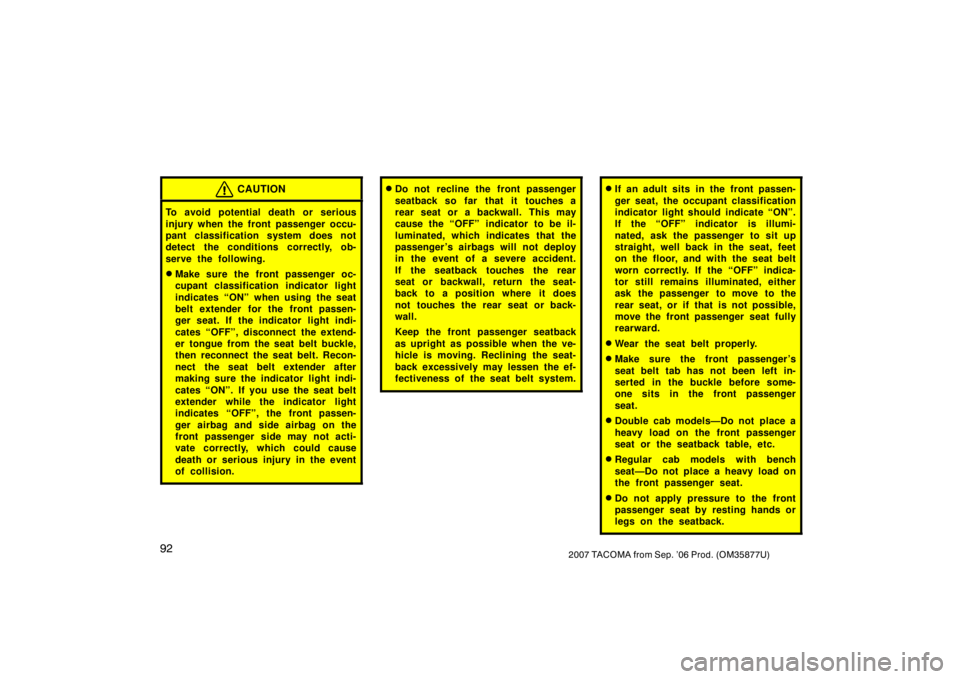

CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Make sure the front passenger oc-
cupant classification indicator light
indicates “ON” when using the seat
belt extender for the front passen-
ger seat. If the indicator light indi-
cates “OFF”, disconnect the extend-
er tongue from the seat belt buckle,
then reconnect the seat belt. Recon-
nect the seat belt extender after
making sure the indicator light indi-
cates “ON”. If you use the seat belt
extender while the indicator light
indicates “OFF”, the front passen-
ger airbag and side airbag on the
front passenger side may not acti-
vate correctly, which could cause
death or serious injury in the event
of collision.
Do not recline the front passenger
seatback so far that it touches a
rear seat or a backwall. This may
cause the “OFF” indicator to be il-
luminated, which indicates that the
passenger ’s airbags will not deploy
in the event of a severe accident.
If the seatback touches the rear
seat or backwall, return the seat-
back to a position where it does
not touches the rear seat or back-
wall.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.If an adult sits in the front passen-
ger seat, the occupant classification
indicator light should indicate “ON”.
If the “OFF” indicator is illumi-
nated, ask the passenger to sit up
straight, well back in the seat, feet
on the floor, and with the seat belt
worn correctly. If the “OFF” indica-
tor still remains illuminated, either
ask the passenger to move to the
rear seat, or if that is not possible,
move the front passenger seat fully
rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted in the buckle before some-
one sits in the front passenger
seat.
Double cab models—Do not place a
heavy load on the front passenger
seat or the seatback table, etc.
Regular cab models with bench
seat—Do not place a heavy load on
the front passenger seat.
Do not apply pressure to the front
passenger seat by resting hands or
legs on the seatback.

932007 TACOMA from Sep. ’06 Prod. (OM35877U)

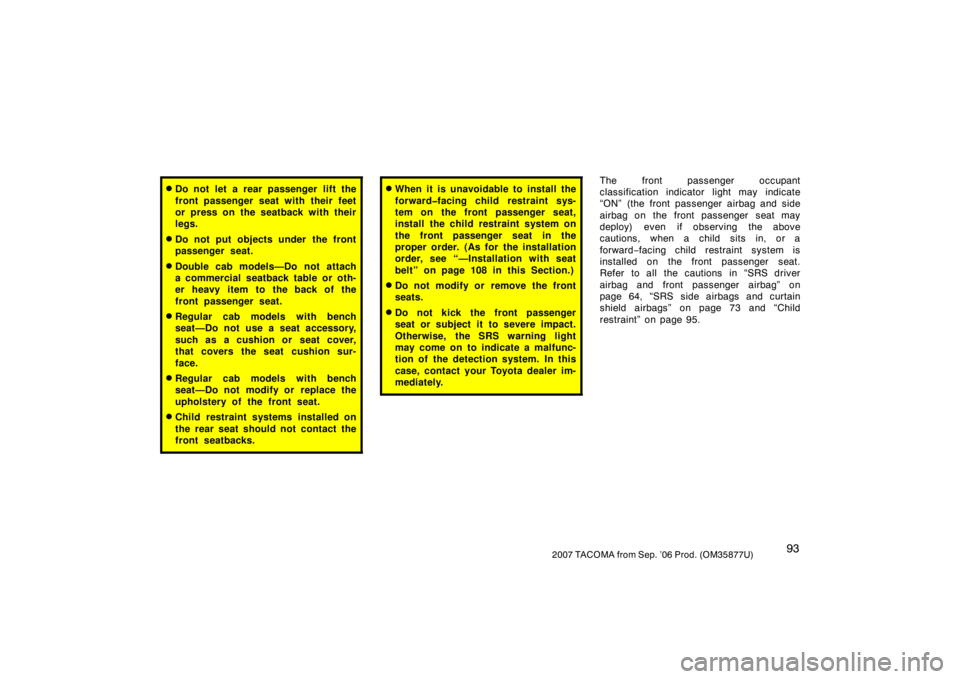

Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Double cab models—Do not attach
a commercial seatback table or oth-
er heavy item to the back of the
front passenger seat.
Regular cab models with bench
seat—Do not use a seat accessory,
such as a cushion or seat cover,
that covers the seat cushion sur-
face.
Regular cab models with bench
seat—Do not modify or replace the
upholstery of the front seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” on page 108 in this Section.)
Do not modify or remove the front
seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The front passenger occupant
classification indicator light may indicate
“ON” (the front passenger airbag and side
airbag on the front passenger seat may
deploy) even if observing the above
cautions, when a child sits in, or a
forward−facing child restraint system is
installed on the front passenger seat.
Refer to all the cautions in “SRS driver
airbag and front passenger airbag” on
page 64, “SRS side airbags and curtain
shield airbags” on page 73 and “Child
restraint” on page 95.

942007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS13192
The roll sensing of curtain shield air-
bags off switch (“RSCA OFF” switch)
can turn off the curtain shield airbags
and seat belt pretensioners in a vehicle
rollover. This switch should only be
used if inflation is not desired (such as
extreme offroad driving).When you push the “RSCA OFF” switch
for a few seconds with the ignition switch
on, the “RSCA OFF” indicator light comes
on and the roll sensing function is turned
off. When you push the switch again, the
indicator light goes off and the roll sens-
ing function is turned on. (For details
about the roll sensing function, see “SRS
side airbags and curtain shield airbags” on
page 73 in this Section.)
In a severe side impact, the curtain shield
airbags on impacted side will inflate even
if the roll sensing function is turned off.
(For details about the curtain shield air-
bags, see “SRS side airbags and curtain
shield airbags” on page 73 in this Sec-
tion.)
In a severe frontal impact, the seat belt
pretensioners will work even if the roll
sensing function is turned off. (For details
about the seat belt pretensioners, see
“—Seat belt pretensioners” on page 51 in
this Section.)
If the ignition switch is turned to “ACC” or
“LOCK” with the roll sensing function off
and then the ignition switch is turned back
to “ON”, the roll sensing function will turn
back on automatically.
CAUTION
Before normal driving, make sure
the “RSCA OFF” indicator light is
off.
When the roll sensing function is
turned off (and the “RSCA OFF”
indicator light is on), the curtain
shield airbags and seat belt preten-
sioners will not work in a vehicle
rollover. Turning off the curtain
shield airbags and seat belt preten-
sioners reduces occupant protection
which your vehicle safety systems
can provide in accidents and in-
crease the likelihood of death or
serious injuries.
Roll sensing of curtain shield
airbags off switch

952007 TACOMA from Sep. ’06 Prod. (OM35877U)
Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 43 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Regular cab models with separate
seats and access cab models—
Regular cab models with separate
seats—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child.
Access cab models—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed in the rear of the cabin
per the instructions in this manual.
According to accident statistics, the
child is safer when properly re-
strained in the rear of the vehicle
cabin than in the front.
Never put infant or child age 1 to
12 in a passenger risk group on the
right front passenger seat with the
passenger airbag off switch in the
“AUTO” position. In the event of an
accident, the force of the rapid
inflation of the front passenger air-
bag can cause death or serious in-
jury to the child.
If you must put infant or child age
1 to 12 in a passenger risk group
on the right front seat, make sure
that the passenger airbag off switch
is in the “OFF” position with the
key removed and that the indicator
light is on. (For details, see “SRS
driver airbag and front passenger
airbag” on page 55 in this Section.)
Do not use the seat belt extender
when installing a child restraint
system on the front passenger seat
or in the rear of the cabin. If instal-
ling a child restraint system with
the seat belt extender connected to
the seat belt, the seat belt will not
securely hold the child restraint
system, which could cause death or
serious injury to the child or other
passengers in the event of colli-
sion.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
Child restraint—
—Child restraint precautions

962007 TACOMA from Sep. ’06 Prod. (OM35877U)

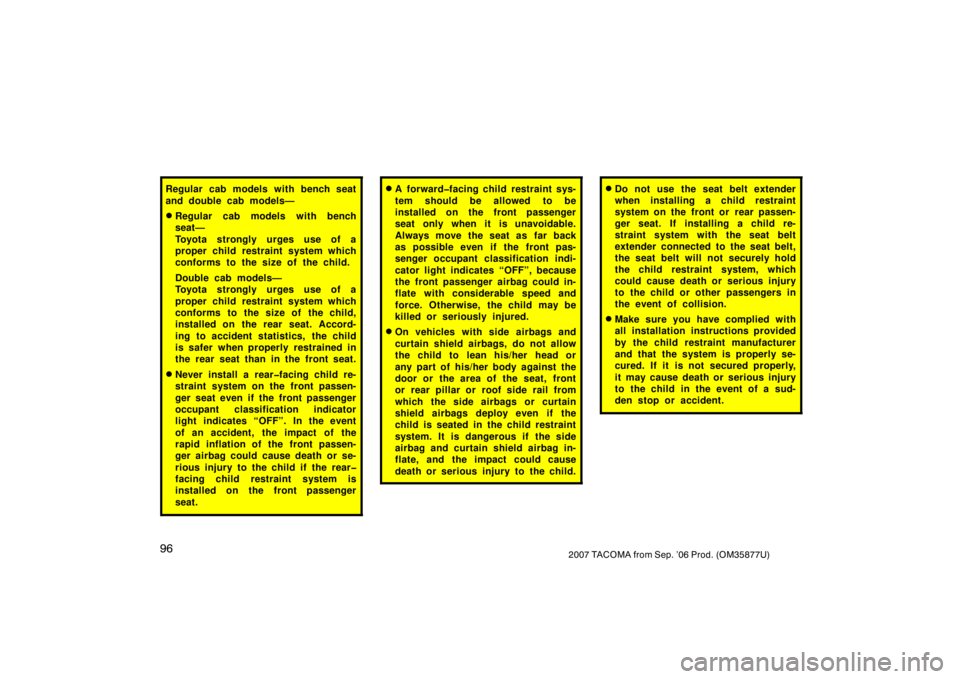

Regular cab models with bench seat
and double cab models—
Regular cab models with bench
seat—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child.
Double cab models—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the impact of the
rapid inflation of the front passen-
ger airbag could cause death or se-
rious injury to the child if the rear
facing child restraint system is
installed on the front passenger
seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the front pas-
senger occupant classification indi-
cator light indicates “OFF”, because
the front passenger airbag could in-
flate with considerable speed and
force. Otherwise, the child may be
killed or seriously injured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.

972007 TACOMA from Sep. ’06 Prod. (OM35877U)
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed in the rear seat if your vehicle
is equipped with rear seats. According to
accident statistics, the child is safer when
properly restrained in the rear of the ve-
hicle cabin than in the front.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 118, 121 or 124 in this Section.
The child restraint lower anchorages
approved for your vehicle may also be
used. See “—Installation with child
restraint lower anchorages” on page 126,
128 or 133 in this Section.
LS13001
(A) Infant seat
LS13002
(B) Convertible seat
—Child restraint system
—Types of child restraint
system

982007 TACOMA from Sep. ’06 Prod. (OM35877U)

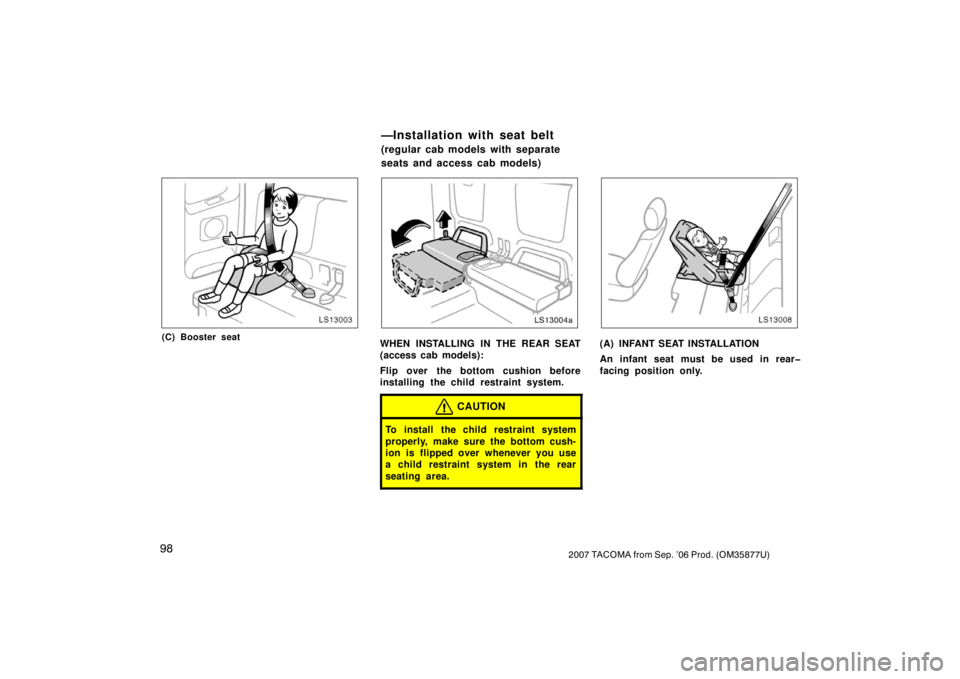

LS13003
(C) Booster seat
LS13004a
WHEN INSTALLING IN THE REAR SEAT
(access cab models):
Flip over the bottom cushion before
installing the child restraint system.
CAUTION
To install the child restraint system
properly, make sure the bottom cush-
ion is flipped over whenever you use
a child restraint system in the rear
seating area.
LS13008
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
—Installation with seat belt
(regular cab models with separate
seats and access cab models)

992007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS13005
CAUTION
Never install a rearfacing child re-
straint system on the front seat with
the passenger airbag off switch in the
“AUTO” position. In the event of an
accident, the force of the rapid infla-
tion of the front passenger airbag can
cause death or serious injury to the
child if the rearfacing child restraint
system is installed on the front pas-
senger seat.
LS13006a
When you install a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the front passen-
ger seat, turn the passenger airbag off
switch counterclockwise to the “OFF”
position and remove the key. (For de-
tails, see “SRS driver airbag and front
passenger airbag” on page 55 in this
Section.)
The indicator light comes on when the
system is off.
CAUTION
If you must install a rearfacing child
restraint system on the front passen-
ger seat, make sure that the front
passenger airbag off switch is in the
“OFF” position with the key removed
and that the indicator light is on.

1002007 TACOMA from Sep. ’06 Prod. (OM35877U)

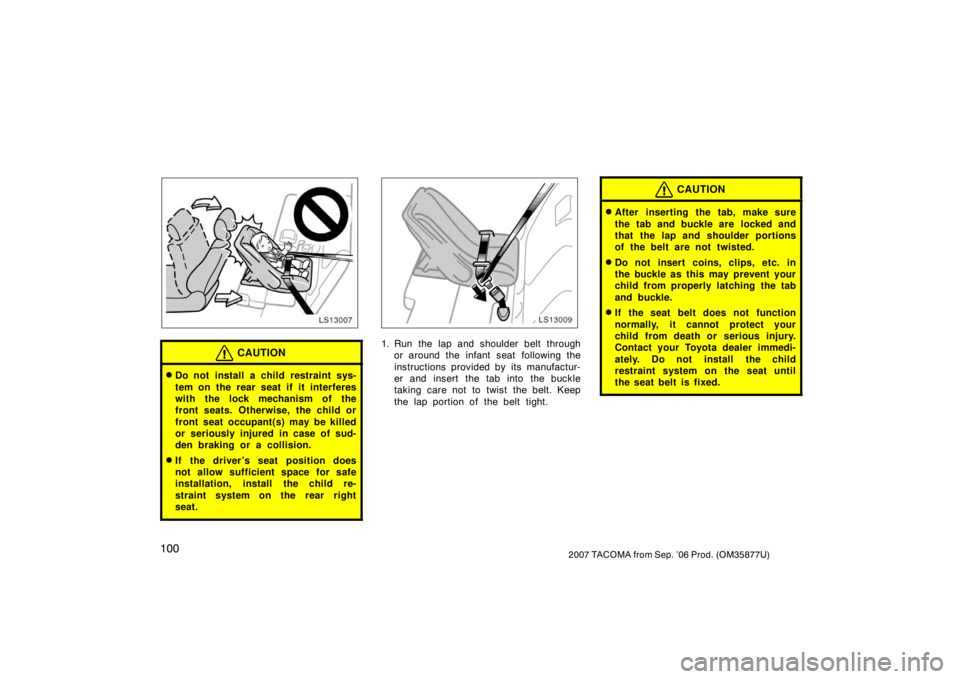

LS13007
CAUTION
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
LS13009
1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
