OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 8
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

22007 TACOMA from Sep. ’06 Prod. (OM35877U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Glove box
5. Automatic transmission selector leveror manual transmission gear shift lever
6. Cup holders
7. Tire pressure warning reset switch
8. Auxiliary box
9. Hood lock release lever
10. Parking brake pedal (automatic transmission)
Instrument panel overview
Bench seat
LS11001b

32007 TACOMA from Sep. ’06 Prod. (OM35877U)

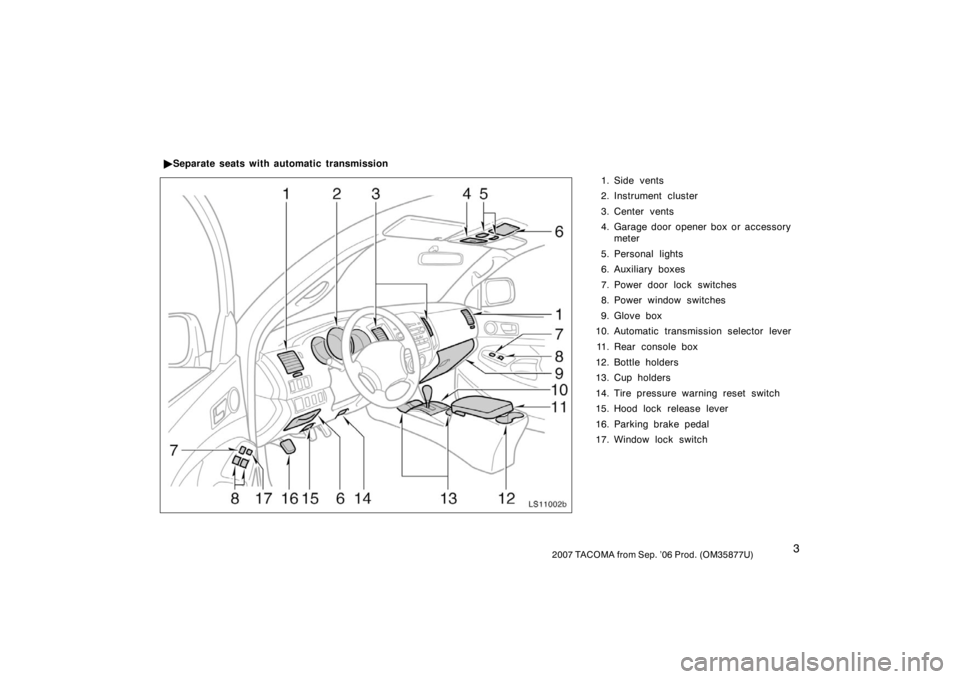

1. Side vents
2. Instrument cluster
3. Center vents
4. Garage door opener box or accessorymeter
5. Personal lights
6. Auxiliary boxes
7. Power door lock switches
8. Power window switches
9. Glove box
10. Automatic transmission selector lever
11. Rear console box
12. Bottle holders
13. Cup holders
14. Tire pressure warning reset switch
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch

Separate seats with automatic transmission
LS11002b

42007 TACOMA from Sep. ’06 Prod. (OM35877U)

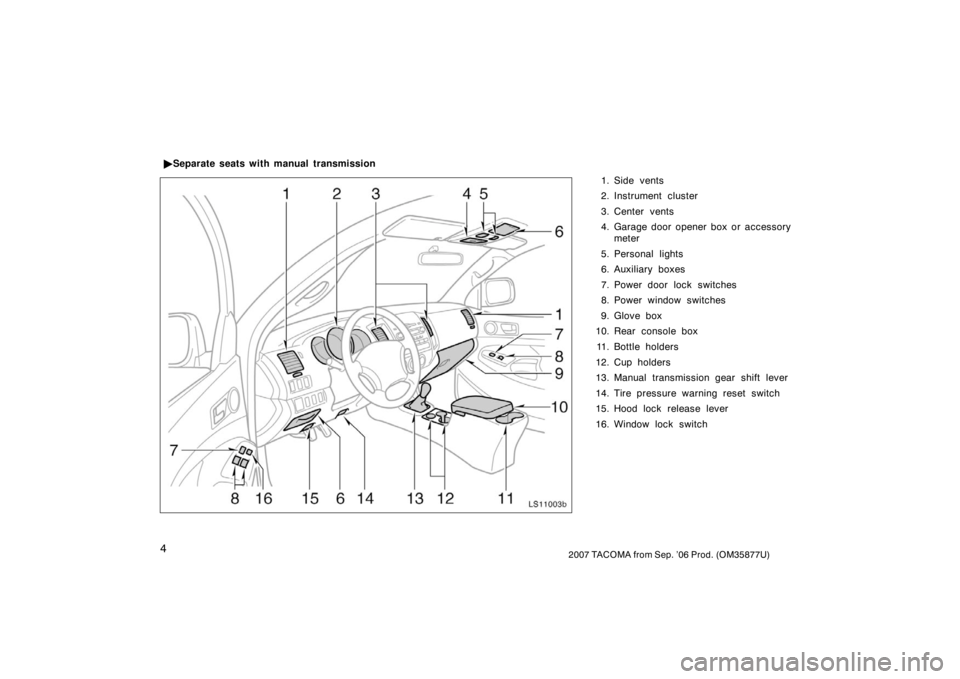

1. Side vents
2. Instrument cluster
3. Center vents
4. Garage door opener box or accessorymeter
5. Personal lights
6. Auxiliary boxes
7. Power door lock switches
8. Power window switches
9. Glove box
10. Rear console box
11. Bottle holders
12. Cup holders
13. Manual transmission gear shift lever
14. Tire pressure warning reset switch
15. Hood lock release lever
16. Window lock switch

Separate seats with manual transmission
LS11003b

52007 TACOMA from Sep. ’06 Prod. (OM35877U)

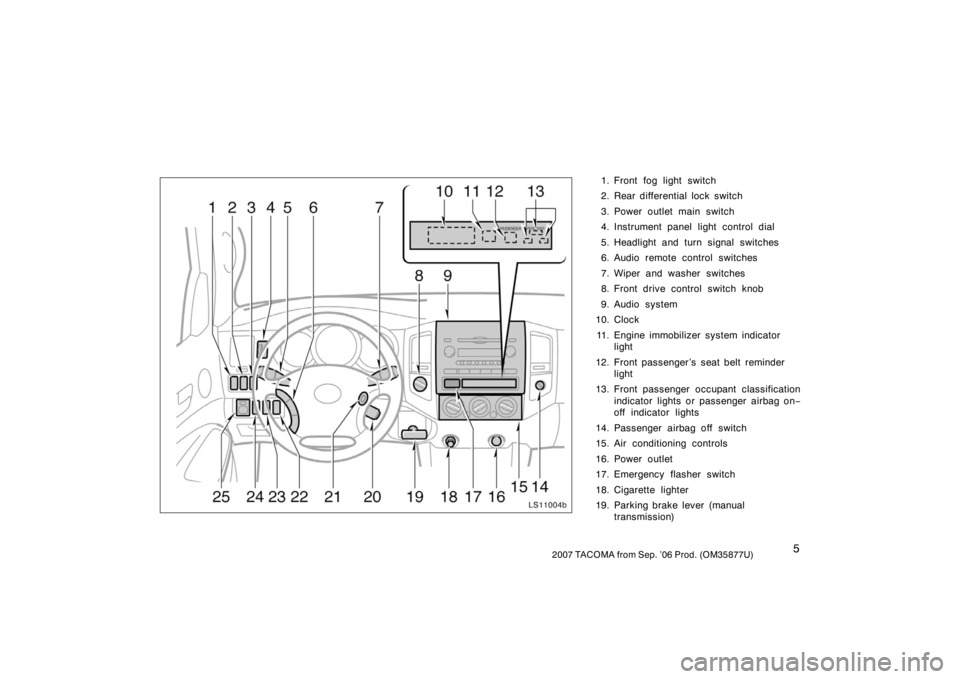

1. Front fog light switch
2. Rear differential lock switch
3. Power outlet main switch
4. Instrument panel light control dial
5. Headlight and turn signal switches
6. Audio remote control switches
7. Wiper and washer switches
8. Front drive control switch knob
9. Audio system
10. Clock
11. Engine immobilizer system indicator light
12. Front passenger ’s seat belt reminder light
13. Front passenger occupant classification indicator lights or passenger airbag on −
off indicator lights
14. Passenger airbag off switch
15. Air conditioning controls
16. Power outlet
17. Emergency flasher switch
18. Cigarette lighter
19. Parking brake lever (manual transmission)
LS11004b

62007 TACOMA from Sep. ’06 Prod. (OM35877U)
20. Cruise control switch
21. Ignition switch
22. Roll sensing of curtain shield airbagsoff switch
23. “DAC” switch or clutch start cancel switch
24. “VSC OFF” switch
25. Power rear view mirror control switches

72007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS11005b
1. Tachometer
2. Speedometer
3. Odometer and two trip meters4. Service reminder indicators and
indicator lights
5. Engine coolant temperature gauge
6. Fuel gauge 7. Trip meter reset knob
8. Shift position indicator lights (automatic
transmission)
Instrument cluster overview

82007 TACOMA from Sep. ’06 Prod. (OM35877U)
Driver ’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Brake system warning light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
or
Front passenger ’s seat belt reminder light∗1
Front passenger occupant classification
indicator light or passenger airbag on −off
indicator light
Engine oil replacement reminder light∗ 1
(for vehicles sold in U.S.A.)
Open door warning light∗ 1
Tire pressure warning light∗1
Automatic transmission fluid temperature
warning light∗1
(four −wheel drive models only)
Engine immobilizer system indicator light
∗ 1
Roll sensing of curtain shield airbags off
indicator light∗5
Indicator symbols on the instrument panel

92007 TACOMA from Sep. ’06 Prod. (OM35877U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 156 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 205 in
Section 1 −7.
∗
3: If this light flashes, see “Four −wheel drive system” on page
180 in Section 1− 7.
∗
4: If this light flashes, see “Rear differential lock system” on
page 197 in Section 1 −7.
∗
5: For details, see “Roll sensing of curtain shield airbags off
switch” on page 94 in Section 1 −3.
Cruise control indicator light
∗
2
Rear differential lock indicator light∗4
Four −wheel drive indicator light∗
3
Slip indicator light
Vehicle stability control system off
indicator/warning light
∗ 1
“AUTO LSD” indicator light
Headlight high beam indicator light
Turn signal indicator lights
Tail light indicator light
Automatic transmission indicator lights
(5 −speed)
Automatic transmission indicator lights
(4 −speed)
Low speed four −wheel drive indicator light∗
3
Downhill assist control system indicator light
Headlight low beam indicator light
