TOYOTA TACOMA 2007 (in English) Owner's Manual

112007 TACOMA from Sep. ’06 Prod. (OM35877U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Access doors 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Power windows 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Rear window 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tailgate 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Hood 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 2

122007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS12001
These keys work in every lock.
Since the doors can be locked without a
key, you should always carry a spare key
in case you accidentally lock your key
inside the vehicle.
LS12002
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
LS12039
Your vehicle is supplied with the two
kinds of keys.1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key works in ev- ery lock.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)

132007 TACOMA from Sep. ’06 Prod. (OM35877U)
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
LS12040
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
LS12041
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

142007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS12042
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
LS12043
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

152007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS12044
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
LS12003a
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built
−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
Engine immobilizer system

162007 TACOMA from Sep. ’06 Prod. (OM35877U)
For vehicles sold in U.S.A.
FCCID:MOZRI−21BTY
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

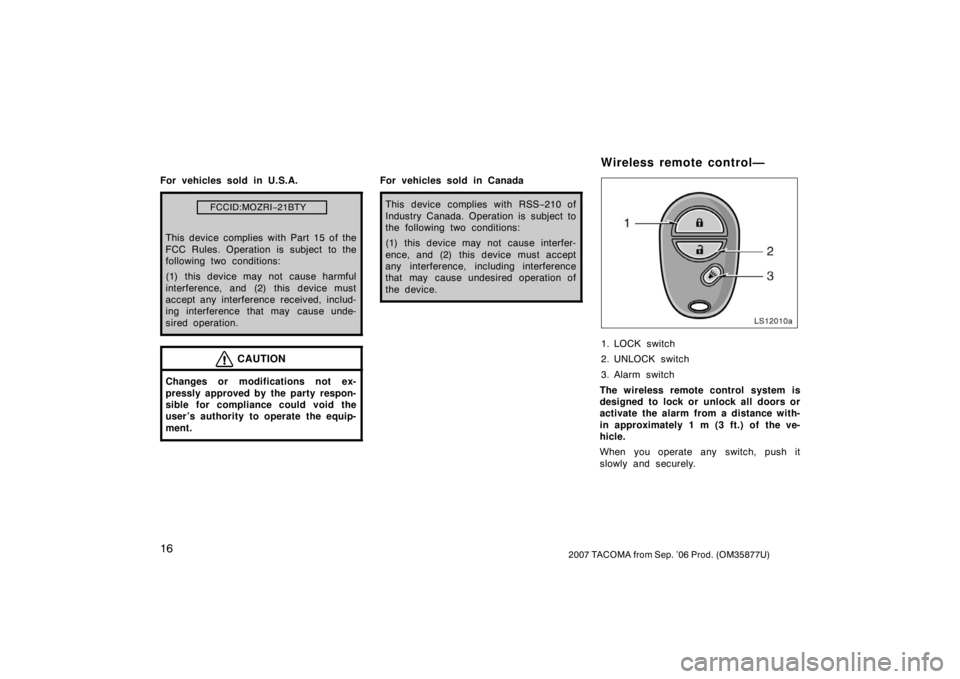

LS12010a
1. LOCK switch
2. UNLOCK switch
3. Alarm switch
The wireless remote control system is
designed to lock or unlock all doors or
activate the alarm from a distance with-
in approximately 1 m (3 ft.) of the ve-
hicle.
When you operate any switch, push it
slowly and securely.
Wireless remote control—

172007 TACOMA from Sep. ’06 Prod. (OM35877U)
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may be depleted. Check
the battery in the transmitter. To
replace the battery, see “—Replacing
battery” on page 19. If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an
accident. (See “If you lose your wireless
remote control transmitter” on page 345 in
Section 4.)

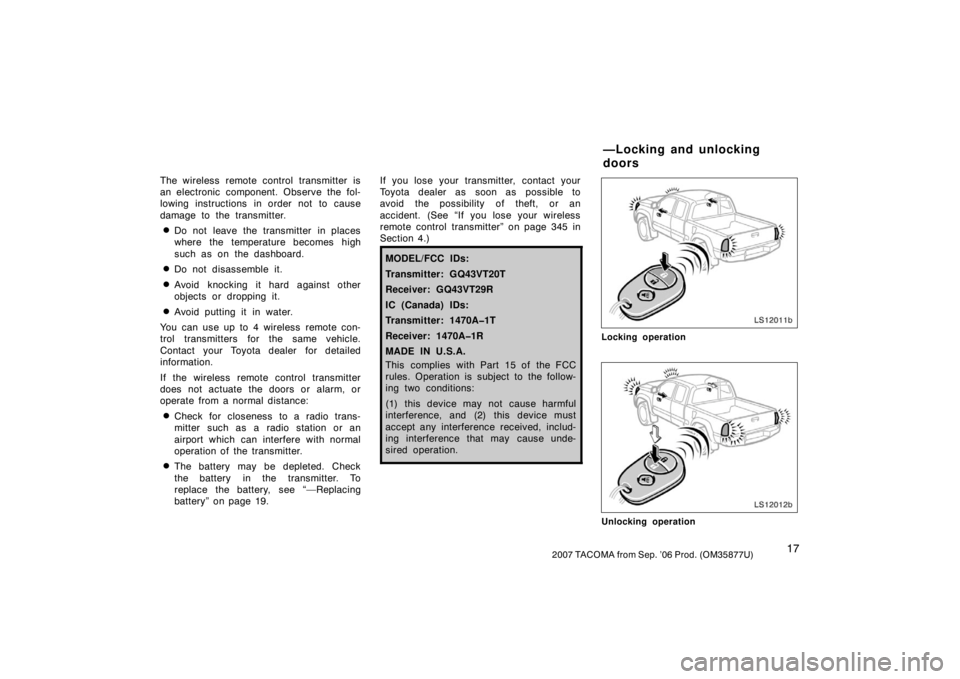

MODEL/FCC IDs:
Transmitter: GQ43VT20T
Receiver: GQ43VT29R
IC (Canada) IDs:
Transmitter: 1470A1T
Receiver: 1470A1R
MADE IN U.S.A.
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.LS12011b
Locking operation
LS12012b
Unlocking operation
—Locking and unlocking
doors

182007 TACOMA from Sep. ’06 Prod. (OM35877U)
To lock and unlock all doors, push the
switches of the transmitter slowly and
securely.
To lock: Push the “
” (lock) switch. All
the doors are locked simultaneously. At
this time, the turn signal lights flash once.
Check to see that the doors are securely
locked.
If any door is not securely closed, or if
the key is in the ignition switch, locking
cannot be performed by the “
” switch.
To unlock: Push the “
” switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the doors simultaneously. At this time,
the turn signal lights will flash twice. When unlocking a door when all the doors
are locked, the interior light comes on.
The lights remain on for about 15 seconds
unless either door is opened and closed.
(For further information, see “Interior light”
on page 148 in Section 1
−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the “
” or “” switch is kept pushed
in, the locking or unlocking operation is
not repeated. Release the switch and then
push again.
LS12015a
Pushing the “” (alarm) switch blows
the horn intermittently and flashes the
headlights, tail lights, turn signal lights,
and interior light.
The “
” switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “
” switch once
again, lock or unlock a door with transmit-
ter, or turn the ignition key from the
“LOCK” to “ON” position.
The alarm does not work when the ignition
key is in the “ON” position.
—Activating alarm

192007 TACOMA from Sep. ’06 Prod. (OM35877U)
For replacement, use a CR2032 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
LS12017
1. Using a coin or equivalent, open the
transmitter case.
LS12018
2. Remove the circuit board, then removethe discharged transmitter battery.
NOTICE
Take care not to damage the circuit
board.
 Do not bend the terminals.
—Replacing battery

202007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS12019
3. Put in a new transmitter battery withpositive (+) side up. Install the circuit
board into the transmitter case.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
 Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
LS12004
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the door simulta-
neously.
Side doors
