TOYOTA TACOMA 2007 Owners Manual (in English)

1912007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS17028a
When getting the vehicle out of mud or
newly fallen snow, etc., turn off the
vehicle stability control system. This
system that controls engine perfor-
mance interferes with the process of
freeing rear wheels (twowheel drive
models) or 4 wheels (fourwheel drive
models).
To turn off: First, push the “VSC OFF”
switch to turn off the traction control
system and check that the “AUTO LSD”
and slip indicator lights come on. Then,
push and hold the “VSC OFF” switch
for 3 seconds or more with the vehicle
stopped.
The “VSC OFF” and slip indicator lights
will come on.To turn on: Briefly push the “VSC OFF”
switch once again.
The “VSC OFF” and slip indicator lights
will go off.
If the engine is turned off while the “VSC
OFF” and slip indicator lights are on and
then restarted, the indicator lights will turn
off automatically.
When you briefly push the “VSC OFF”
switch, turn off the vehicle stability control
system. See “Traction control system” on
page 184 in this Section.
The “VSC OFF” and slip indicator lights
come on for a few seconds when the
ignition key is turned to “ON”. If the indi-
cator lights do not come on when the
ignition key is turned to “ON”, contact
your Toyota dealer.
CAUTION
Do not drive with the vehicle stability
control system continuously turned
off.
LS17010
“VSC OFF” warning light
The light flashing warns that there is a
problem somewhere in the following.
Vehicle stability control system
Traction control system
“AUTO LSD” system
Hill
−start assist control system
Downhill assist control system
The light comes on when the ignition key
is turned to “ON”, and will go off after a
few seconds.

1922007 TACOMA from Sep. ’06 Prod. (OM35877U)
The light may come on for 60 seconds
after the ignition key is turned to “ON”. It
is normal if they go out after a while.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if they
go out after a few seconds.
If the light flashes while driving, the ve-
hicle stability control system does not
work. However, if the brakes operate nor-
mally when applied, it is no problem to
continue your driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light flashes while driving.The downhill assist control system is a
system that assists the deceleration of
the engine brake when you drive down
a steep hill. When you are driving down
a hill with the front drive control switch
knob in the “L4” position, push the
“DAC” switch to limit the vehicle’s ac-
celeration. If the vehicle is traveling at
a speed of 25 km/h (15 mph) or less,
you can descend at a constant speed.
CAUTION
Do not rely excessively on the down-
hill assist control system. It may not
be able to maintain a low speed over
road surfaces or offroad surfaces on
which sliding can easily occur, such
as extremely steep slopes or icy or
muddy roads.
TO ACTIVATE THE DOWNHILL ASSIST
CONTROL SYSTEM
1. Turn the front drive control switch knob to the “L4” position.
The system does not operate when the
front drive control switch knob is in the
“H2” or “H4” position, or the rear differen-
tial is locked.
2. In order to make full use of the en- gine brake, putting the transmission
in “L” or “2” is recommended.
The system will operate even if the trans-
mission selector lever is in “D”, “4”, “3”
or “N”. However, when it is in “L” or “2”
the engine brake can also be utilized en-
abling the system to operate more effec-
tively.
Downhill assist control system

1932007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS17016a
3. Push the “DAC” switch to turn thesystem on. The downhill assist con-
trol system indicator light on the in-
strument panel will come on.
If the downhill assist control system indi-
cator light flashes, one of the following
may be the cause:
The selector lever is in the “N” posi-
tion.
The front drive control switch knob is
in the “H2” or “H4” position.
The rear differential is locked.
If the indicator light does not come on
when the switch is pushed, contact your
Toyota dealer.
LS17007b
With the vehicle traveling at a speed of
25 km/h (15 mph) or less, release your
foot from the accelerator or brake pedal
to activate the system. The vehicle will
descend the hill at a low speed. While the
system is operating, the slip indicator light
on the instrument panel will flash and the
stop lights and high mounted stoplight will
be lit.
If you push the “DAC” switch to turn the
system off while it is in operation, the
system will stop operating gr adually. The
downhill assist control system indicator
light will flash to alert the driver. To con-
tinue driving at a low speed, push the
“DAC” switch to turn the system on. The slip indicator light and downhill assist
control system indicator light come on for
a few seconds when the ignition key is
turned to “ON”. If any of the indicator
lights does not come on when the ignition
is turned on, contact your Toyota dealer.
If the system is used frequently, the
brake actuator temperature may become
too high and a buzzer will sound inter-
mittently.
If this happens, the downhill assist control
system indicator light will flash and a
buzzer will sound intermittently. When the
temperature of the brake actuator de-
creases, the system will begin to operate
again. Until it restarts, the traction control
system and hill
−start assist control system
will not operate; however, the conventional
brake can be operated.
The brake actuator temperature increases
during continuous operation of the follow-
ing systems under conditions such as on
slippery roads.
Downhill assist control system
Hill −start assist control system
Traction control system

1942007 TACOMA from Sep. ’06 Prod. (OM35877U)
If the brake actuator temperature becomes
too high while any of the systems is oper-
ating, a buzzer will start to sound intermit-
tently to indicate that the downhill assist
control system can no longer operate. In
this case, stop your vehicle immediately at
a safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.)
At this time, the slip indicator light will
come on and the downhill assist control
system stops operating temporarily in or-
der to protect the brake actuator. (Al-
though the downhill assist control system
does not operate, it is no problem to con-
tinue your driving.) The system will be
automatically restored after a short time
and the slip indicator light goes out.
LS17010
If there is any abnormality in the sys-
tem, the “VSC OFF” warning light will
flash. When the “DAC” switch is
pushed, the downhill assist control sys-
tem indicator light also flash.
If the “VSC OFF” warning light flashes,
there may be an abnormality in any of the
following system in addition to the down-
hill assist control system.
Hill−start assist control system
Traction control system
Vehicle stability control system
Downhill assist control system “VSC OFF” warning light
When the system is normal and the igni-
tion key is turned to “ON”, the warning
light will come on and will go off after a
few seconds.
It is not a malfunction that the warning
light may stay on for 60 seconds after the
ignition key is turned to the “ON” position.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
goes out after a few seconds.
If the warning light flashes while driving,
the system does not work. However, if the
brakes operate normally when applied, it
is no problem to continue your driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light flashes while driving.

1952007 TACOMA from Sep. ’06 Prod. (OM35877U)
The hillstart assist control system as-
sists you in starting to move up a
steep or slippery hill. When you start
to move up the hill slope, the system
helps to prevent the vehicle from roll-
ing backward in the interval while you
move your foot from the brake pedal to
the accelerator pedal.

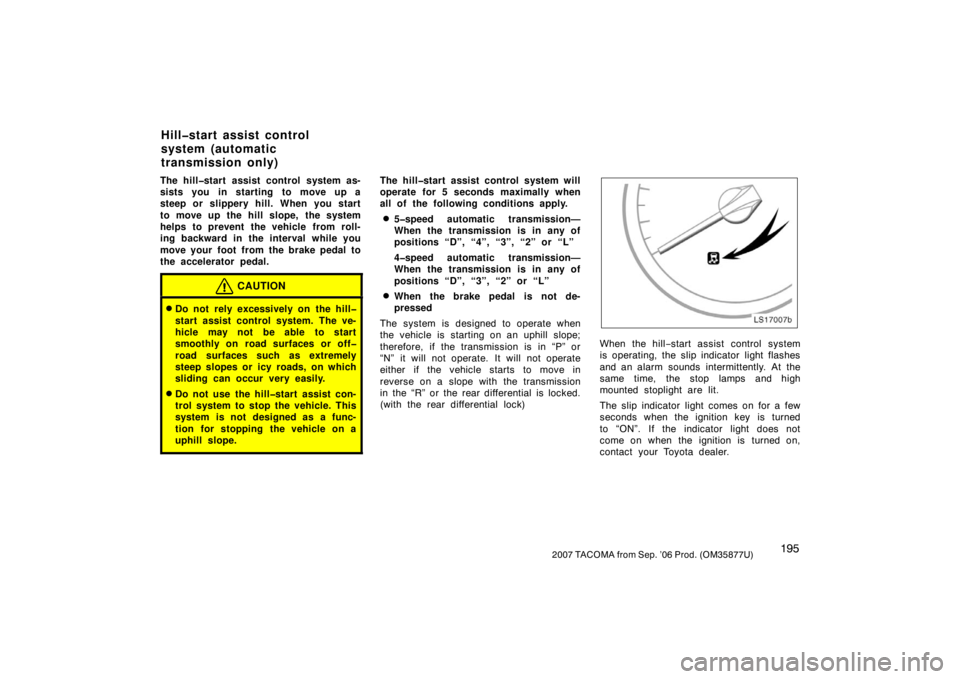

CAUTION
Do not rely excessively on the hill
start assist control system. The ve-
hicle may not be able to start
smoothly on road surfaces or off
road surfaces such as extremely
steep slopes or icy roads, on which
sliding can occur very easily.
Do not use the hillstart assist con-
trol system to stop the vehicle. This
system is not designed as a func-
tion for stopping the vehicle on a
uphill slope.
The hillstart assist control system will
operate for 5 seconds maximally when
all of the following conditions apply.
5speed automatic transmission—
When the transmission is in any of
positions “D”, “4”, “3”, “2” or “L”
4speed automatic transmission—
When the transmission is in any of
positions “D”, “3”, “2” or “L”
When the brake pedal is not de-
pressed
The system is designed to operate when
the vehicle is starting on an uphill slope;
therefore, if the transmission is in “P” or
“N” it will not operate. It will not operate
either if the vehicle starts to move in
reverse on a slope with the transmission
in the “R” or the rear differential is locked.
(with the rear differential lock)
LS17007b
When the hill −start assist control system
is operating, the slip indicator light flashes
and an alarm sounds intermittently. At the
same time, the stop lamps and high
mounted stoplight are lit.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Hillstart assist control
system (automatic
transmission only)

1962007 TACOMA from Sep. ’06 Prod. (OM35877U)
Keep in mind the following when driv-
ing.
The hill−start assist control system op-
erates for 5 seconds maximally. If both
the brake and accelerator pedals re-
main unexpressed for longer than 5
seconds, the buzzer will sound at more
frequent intervals and the system will
gradually stop operating.
The hill −start assist control system is
not designed as a function for stopping
the vehicle on a uphill slope. When
stopping the vehicle, be sure to de-
press the brake pedal.
If the system is used frequently, the
brake actuator temperature may become
too high and a buzzer will sound inter-
mittently.
In this case, a buzzer will sound intermit-
tently. When the temperature of the brake
actuator goes down, the system will begin
to operate again. Until it restarts, the trac-
tion control system, “AUTO LSD” system,
hill −start assist control system and down-
hill assist control system will not operate;
however, the conventional brake can be
operated. The brake actuator temperature increases
during continuous operation of the follow-
ing systems under conditions such as on
slippery roads.
Hill−
start assist control system
Downhill assist control system
Traction control system
“AUTO LSD” system
If the brake actuator temperature becomes
too high while any of the systems is oper-
ating, a buzzer will start to sound intermit-
tently to indicate that the hill −start assist
control system can no longer operate. In
this case, stop your vehicle immediately at
a safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.)
At this time, the slip indicator light will
come on and the hill −start assist control
system stops operating temporarily in or-
der to protect the brake actuator. (Al-
though the hill −start assist control system
does not operate, it is no problem to con-
tinue your driving.) The system will be
automatically restored after a short time
and the slip indicator light goes out.
LS17010
If there is any abnormality in the sys-
tem, the “VSC OFF” warning light will
flash.
If the system malfunctions, the “VSC OFF”
warning light will flash.
If the “VSC OFF” warning light flashes,
there may be an abnormality in any of the
following systems in addition to the hill −
start assist control system.
Downhill assist control system
Traction control system
“AUTO LSD” system
Vehicle stability control system

1972007 TACOMA from Sep. ’06 Prod. (OM35877U)
“VSC OFF” warning light
When the system is normal and the igni-
tion key is turned to “ON”, the warning
light will come on and will go off after a
few seconds.
It is not a malfunction that the warning
light may stay on for 60 seconds after the
ignition key is turned to “ON”.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
goes out after a few seconds.
If the warning light flashes while driving,
the system does not work. However, if the
brakes operate normally when applied, it
is no problem to continue your driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light flashes while driving.

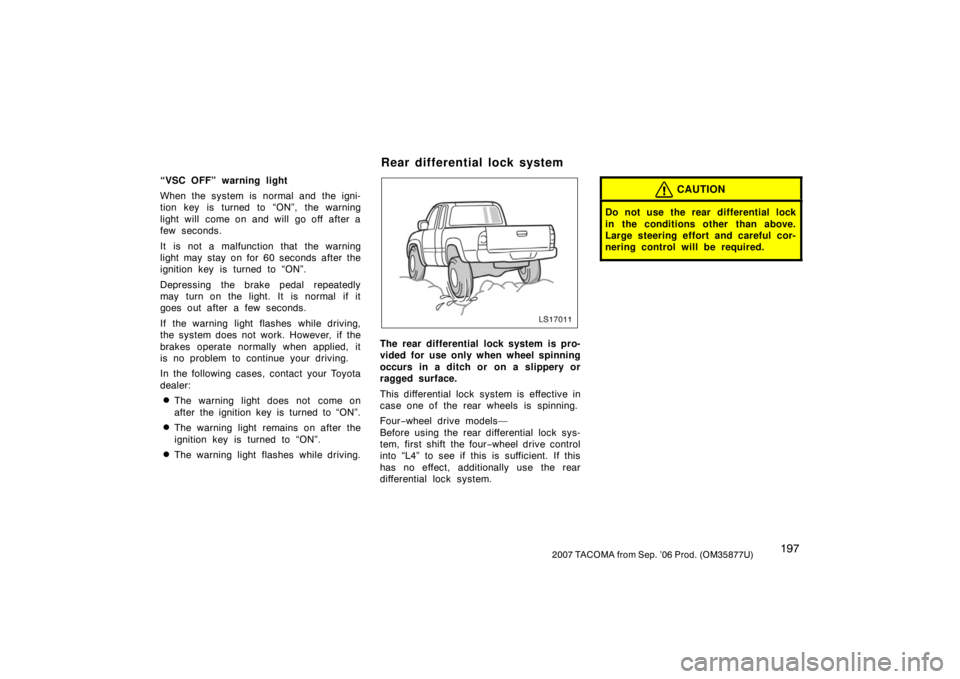

LS17011
The rear differential lock system is pro-
vided for use only when wheel spinning
occurs in a ditch or on a slippery or
ragged surface.
This differential lock system is effective in
case one of the rear wheels is spinning.
Four−wheel drive models—
Before using the rear differential lock sys-
tem, first shift the four −wheel drive control
into “L4” to see if this is sufficient. If this
has no effect, additionally use the rear
differential lock system.
CAUTION
Do not use the rear differential lock
in the conditions other than above.
Large steering effort and careful cor-
nering control will be required.
Rear differential lock system

1982007 TACOMA from Sep. ’06 Prod. (OM35877U)

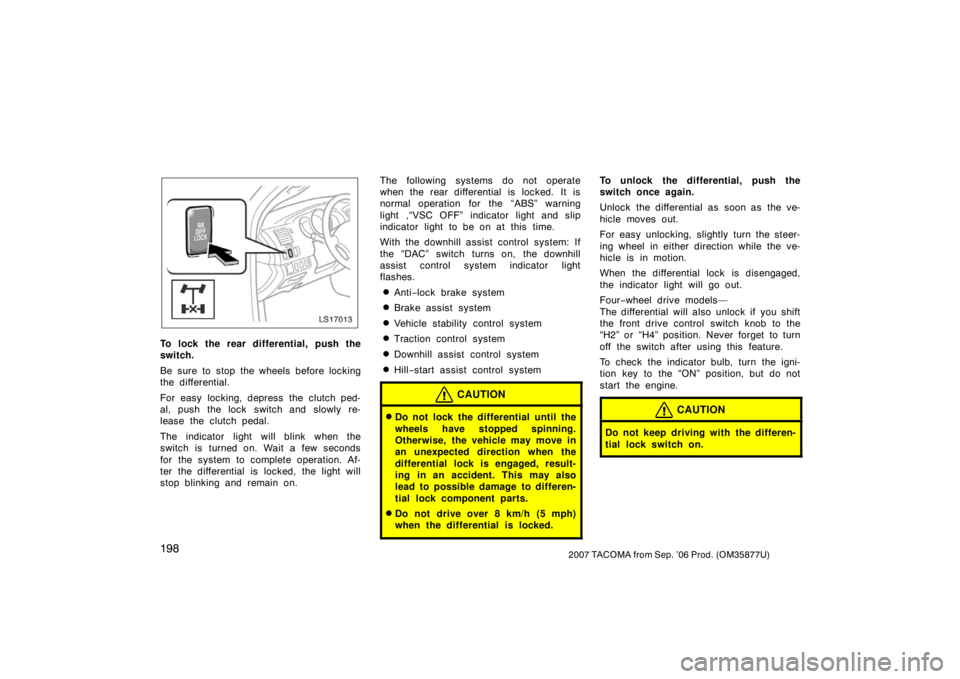

LS17013
To lock the rear differential, push the
switch.
Be sure to stop the wheels before locking
the differential.
For easy locking, depress the clutch ped-
al, push the lock switch and slowly re-
lease the clutch pedal.
The indicator light will blink when the
switch is turned on. Wait a few seconds
for the system to complete operation. Af-
ter the differential is locked, the light will
stop blinking and remain on.The following systems do not operate
when the rear differential is locked. It is
normal operation for the “ABS” warning
light ,“VSC OFF” indicator light and slip
indicator light to be on at this time.
With the downhill assist control system: If
the “DAC” switch turns on, the downhill
assist control system indicator light
flashes.
Anti
−lock brake system
Brake assist system
Vehicle stability control system
Traction control system
Downhill assist control system
Hill− start assist control system
CAUTION
Do not lock the differential until the
wheels have stopped spinning.
Otherwise, the vehicle may move in
an unexpected direction when the
differential lock is engaged, result-
ing in an accident. This may also
lead to possible damage to differen-
tial lock component parts.
Do not drive over 8 km/h (5 mph)
when the differential is locked.
To unlock the differential, push the
switch once again.
Unlock the differential as soon as the ve-
hicle moves out.
For easy unlocking, slightly turn the steer-
ing wheel in either direction while the ve-
hicle is in motion.
When the differential lock is disengaged,
the indicator light will go out.
Four −wheel drive models—
The differential will also unlock if you shift
the front drive control switch knob to the
“H2” or “H4” position. Never forget to turn
off the switch after using this feature.
To check the indicator bulb, turn the igni-
tion key to the “ON” position, but do not
start the engine.
CAUTION
Do not keep driving with the differen-
tial lock switch on.

1992007 TACOMA from Sep. ’06 Prod. (OM35877U)
The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if blowout or sudden air
loss should occur.

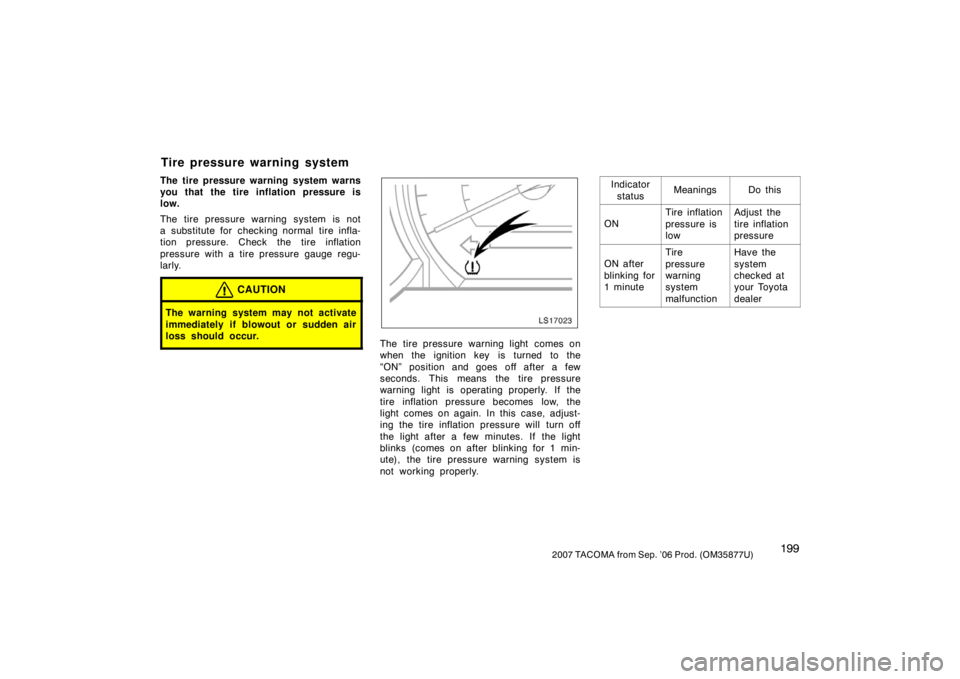

LS17023
The tire pressure warning light comes on
when the ignition key is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning light is operating properly. If the
tire inflation pressure becomes low, the
light comes on again. In this case, adjust-
ing the tire inflation pressure will turn off
the light after a few minutes. If the light
blinks (comes on after blinking for 1 min-
ute), the tire pressure warning system is
not working properly.Indicator
status
MeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the
tire inflation
pressure
ON after
blinking for
1 minute
Tire
pressure
warning
system
malfunctionHave the
system
checked at
your Toyota
dealer
Tire pressure warning system

2002007 TACOMA from Sep. ’06 Prod. (OM35877U)

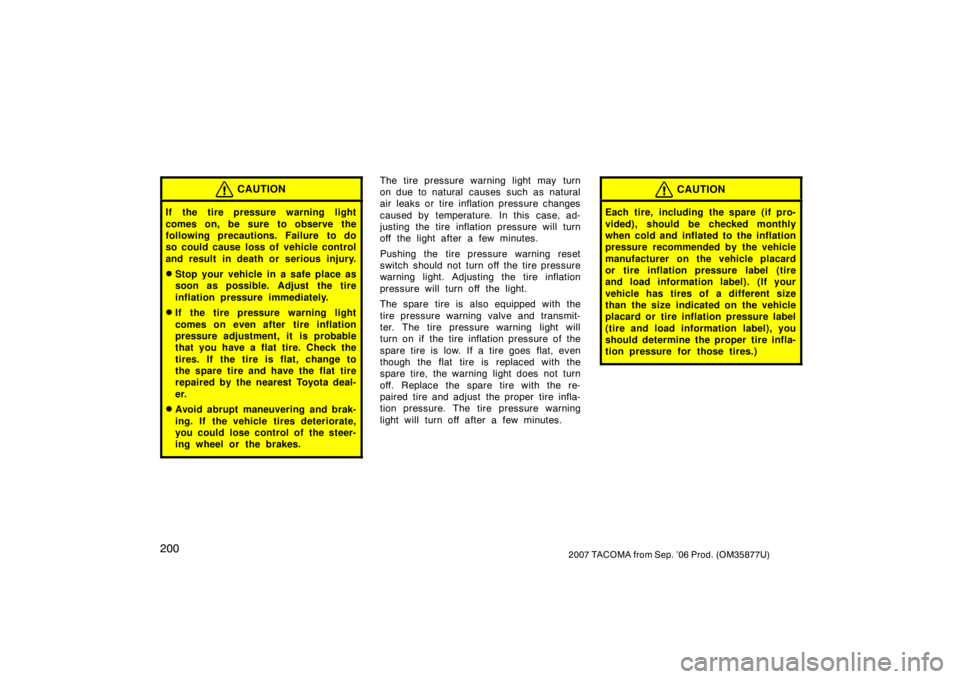

CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Avoid abrupt maneuvering and brak-
ing. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after a few minutes.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The spare tire is also equipped with the
tire pressure warning valve and transmit-
ter. The tire pressure warning light will
turn on if the tire inflation pressure of the
spare tire is low. If a tire goes flat, even
though the flat tire is replaced with the
spare tire, the warning light does not turn
off. Replace the spare tire with the re-
paired tire and adjust the proper tire infla-
tion pressure. The tire pressure warning
light will turn off after a few minutes.CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
