TOYOTA TACOMA 2007 Owners Manual (in English)

2412007 TACOMA from Sep. ’06 Prod. (OM35877U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For most effective cooling, move the
air intake selector to recirculate.
Ventilation
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF

2422007 TACOMA from Sep. ’06 Prod. (OM35877U)
Defogging
Condition: Moisture is on the inside of the
windshield.
For best results, set controls to:Fan speed— Any setting except “OFF”
Temperature— Towards red zone to heat;
blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the windshield.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clear the windshield
quickly. If you want to return the setting
to RECIRCULATE mode, press the air in-
take selector button once again. However,
if the air flow selector is in the windshield
position, it is not possible to return to
RECIRCULATE.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
When side windows fog up, turn the
side vents toward the windows.
Defrosting
Condition: Moisture is on the outside of
the windshield.
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function with the purpose of
clearing the windshield.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clear the windshield
quickly. If you want to return the setting
to RECIRCULATE mode, press the air in-
take selector button once again. However,
if the air flow selector is in the windshield
position, it is not possible to return to
RECIRCULATE. Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.

2432007 TACOMA from Sep. ’06 Prod. (OM35877U)

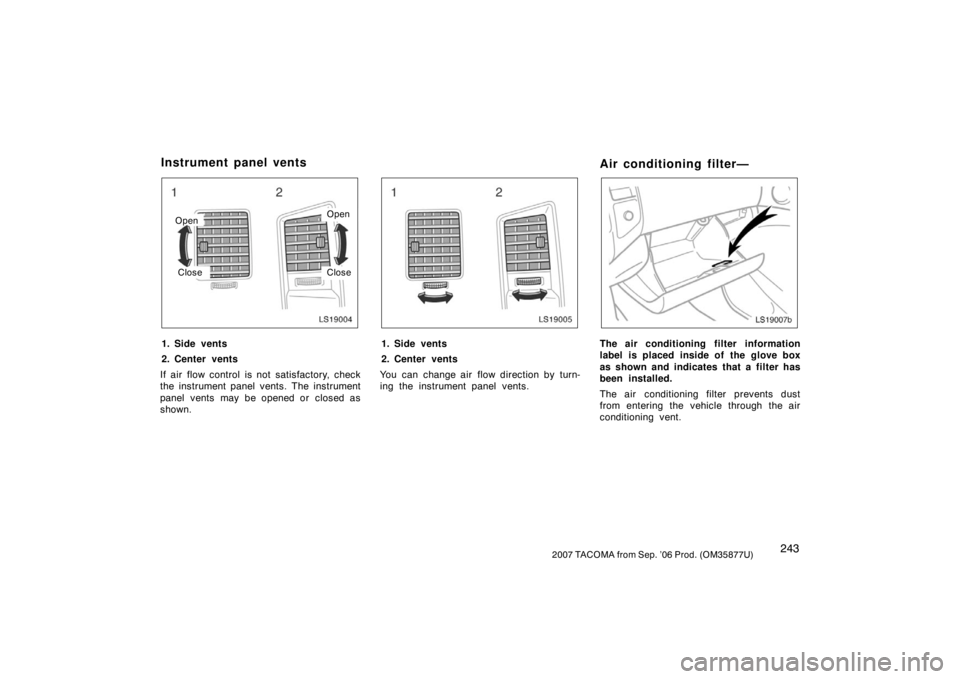

LS19004
OpenCloseOpen
Close
1. Side vents
2. Center vents
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
LS19005
1. Side vents
2. Center vents
You can change air flow direction by turn-
ing the instrument panel vents.
Air conditioning filter—
LS19007b
The air conditioning filter information
label is placed inside of the glove box
as shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
Instrument panel vents

2442007 TACOMA from Sep. ’06 Prod. (OM35877U)

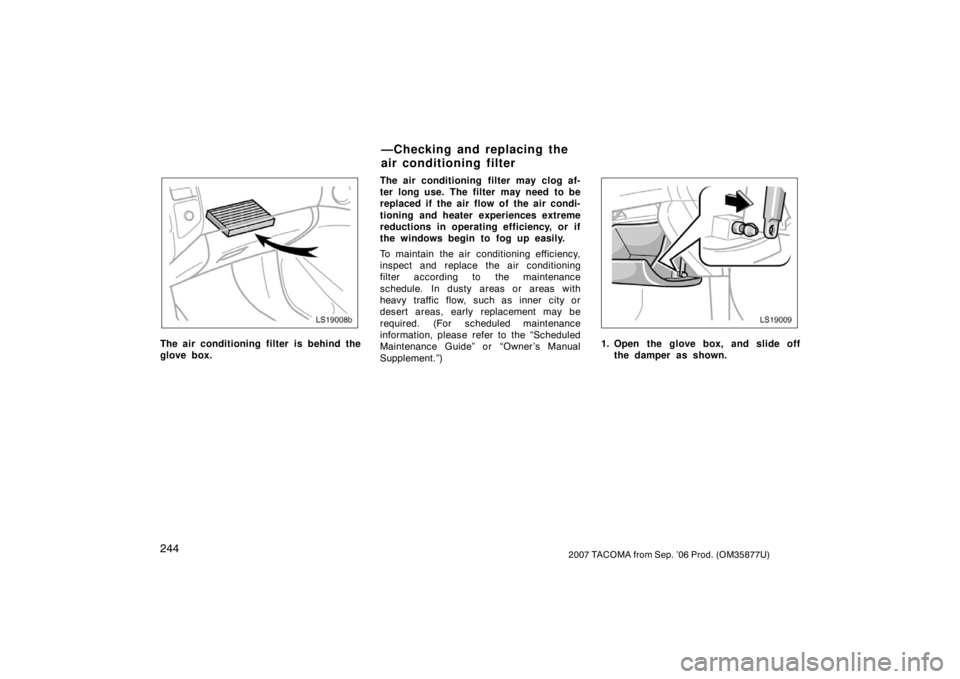

LS19008b
The air conditioning filter is behind the
glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance
schedule. In dusty areas or areas with
heavy traffic flow, such as inner city or
desert areas, early replacement may be
required. (For scheduled maintenance
information, please refer to the “Scheduled
Maintenance Guide” or “Owner ’s Manual
Supplement.”)
LS19009
1. Open the glove box, and slide off
the damper as shown.
—Checking and replacing the
air conditioning filter

2452007 TACOMA from Sep. ’06 Prod. (OM35877U)

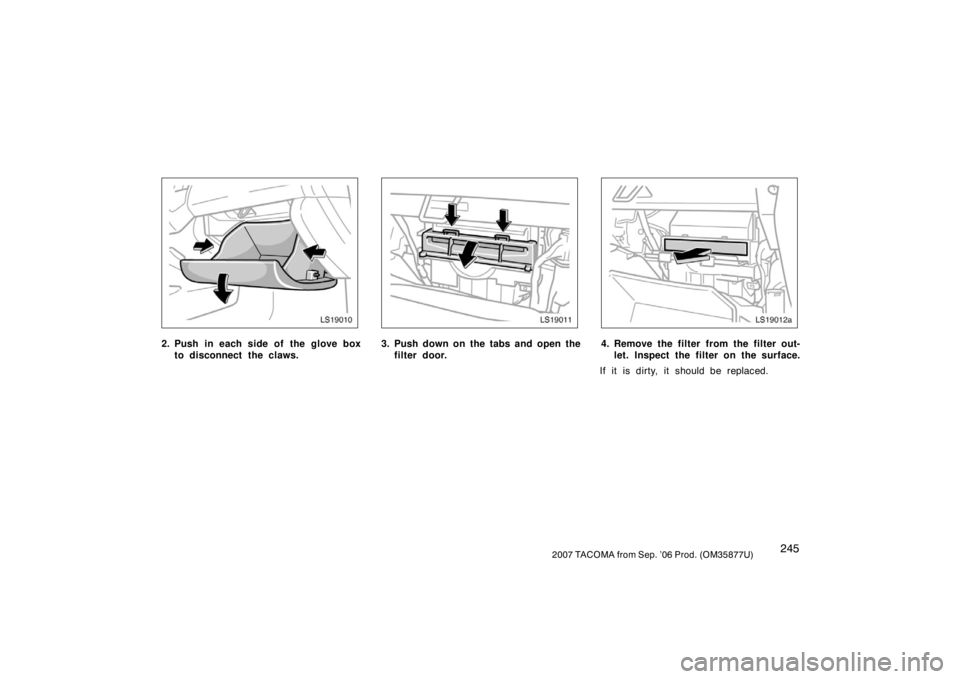

LS19010
2. Push in each side of the glove boxto disconnect the claws.
LS19011
3. Push down on the tabs and open thefilter door.
LS19012a
4. Remove the filter from the filter out-let. Inspect the filter on the surface.
If it is dirty, it should be replaced.

2462007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS19013a
When installing the filter in the filter
outlet, follow the instructions indicated
on the label.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

2472007 TACOMA from Sep. ’06 Prod. (OM35877U)

2482007 TACOMA from Sep. ’06 Prod. (OM35877U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Accessory meter249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Clock 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Cigarette lighter 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Power outlet 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 264
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 264
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 266
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Storage boxes 267
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Flashlight holder 267
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Seatback table 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cargo net hooks 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Deck hooks 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Deck rails 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Floor mat 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

2492007 TACOMA from Sep. ’06 Prod. (OM35877U)
Accessory meter—
LS10034
1. “E/M” button
2. Compass
3. Outside temperature displayOperate the accessory meter with the
ignition switch on.
When the ignition switch is turned to
“ON”, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
“E/M” button
This button is used to switch between
English/U.S. Customary System and
metric units of the outside temperature
display.
Every time you push this button, the dis-
play toggles through the following informa-
tion.
1. Compass and outside temperature ( F)
2. Compass and outside temperature ( C)
3. Display off (no compass)
The display variations are as follows;
IndicationOutside
temperature
English/U.S. Customary
System (E) F
Metric (M)C
The initial mode will be English/U.S. Cus-
tomary System units, however, if the unit
is switched to metric and the ignition
switch is off, it will display metric units
when the ignition switch is turned to “ON”.
—Before using the accessory
meter

2502007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS10035
The outside temperature display indi-
cates the outside air temperature. The
displayed value is updated.
To set the unit, push the “E/M” button
until the desired unit display appears.
The displayed temperature ranges from
−30 C ( −22 F) up to 50 C (122 F).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −− C” (“ −−F”) will appear on the display.
If “ −−C” (“ −−F”) appears on the display,
contact your Toyota dealer.
There may be a case that “−− C” (“ −−F”)
appears momentarily when the ignition is
quickly turned to “ON”. It is normal if it
goes out soon.
—Compass
LS10036
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading west.
The direction display is updated every 2
seconds.
Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the roof.)
The battery has been disconnected.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
—Outside temperature display
