TOYOTA TACOMA 2007 Owners Manual (in English)

2512007 TACOMA from Sep. ’06 Prod. (OM35877U)
If the direction is not indicated or the
system does not operate properly, contact
your Toyota dealer.
LS10037

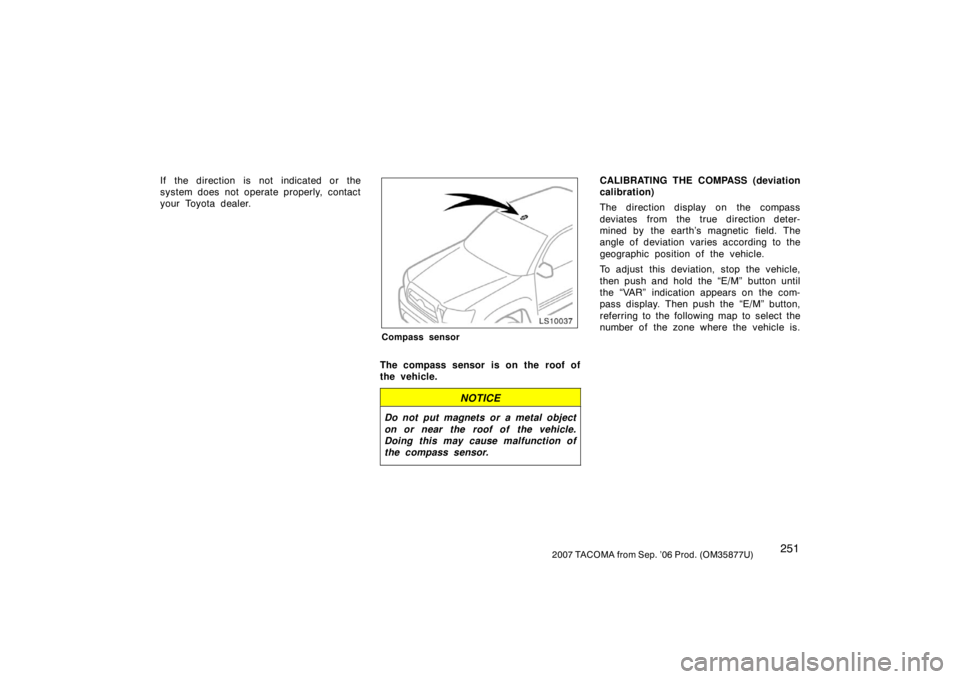

Compass sensor
The compass sensor is on the roof of
the vehicle.
NOTICE
Do not put magnets or a metal object
on or near the roof of the vehicle.
Doing this may cause malfunction of
the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “E/M” button until
the “VAR” indication appears on the com-
pass display. Then push the “E/M” button,

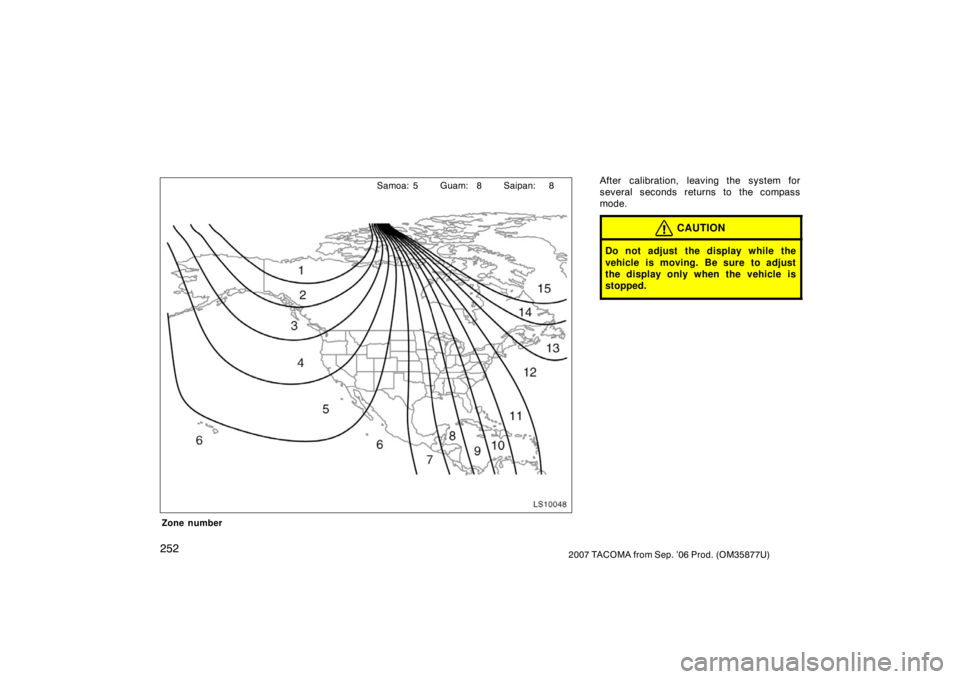

referring to the following map to select the
number of the zone where the vehicle is.

2522007 TACOMA from Sep. ’06 Prod. (OM35877U)
Zone number
After calibration, leaving the system for
several seconds returns to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
LS10048
Samoa: 5 Guam: 8 Saipan: 8

2532007 TACOMA from Sep. ’06 Prod. (OM35877U)
LS10038a

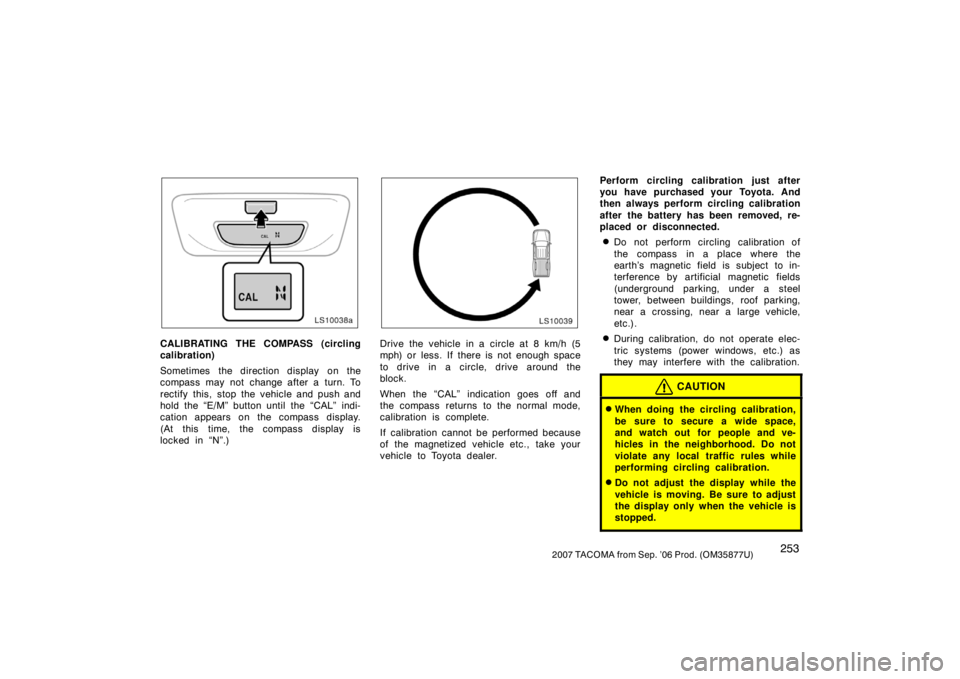

CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “E/M” button until the “CAL” indi-
cation appears on the compass display.
(At this time, the compass display is
locked in “N”.)
LS10039
Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
When the “CAL” indication goes off and
the compass returns to the normal mode,
calibration is complete.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (power windows, etc.) as
they may interfere with the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

2542007 TACOMA from Sep. ’06 Prod. (OM35877U)

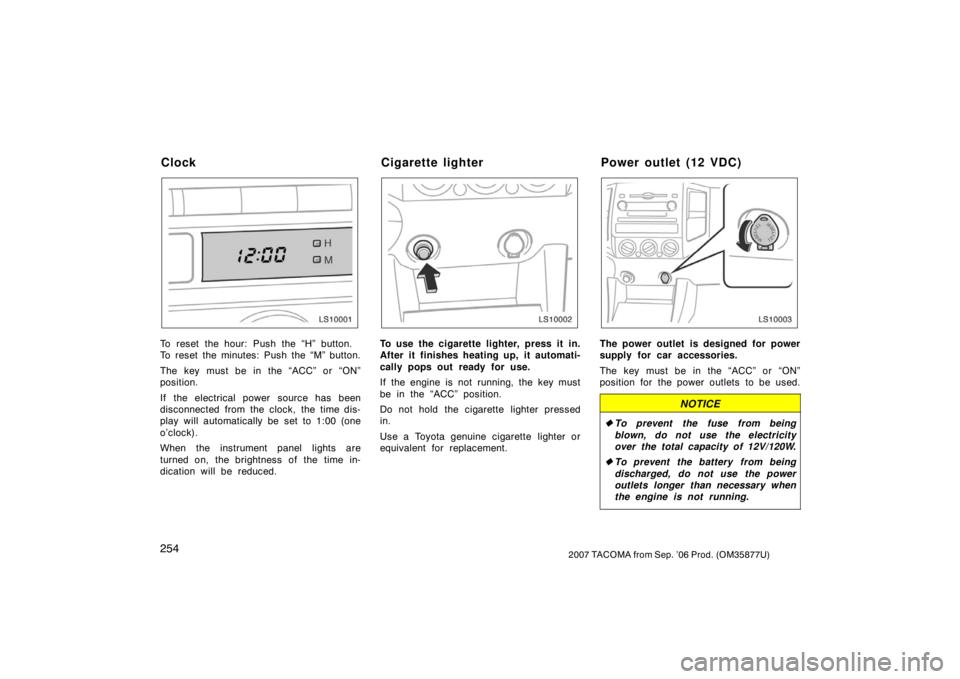

LS10001
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
LS10002
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
LS10003
The power outlet is designed for power
supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlets to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total capacity of 12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Clock Cigarette lighterPower outlet (12 VDC)

2552007 TACOMA from Sep. ’06 Prod. (OM35877U)
Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.

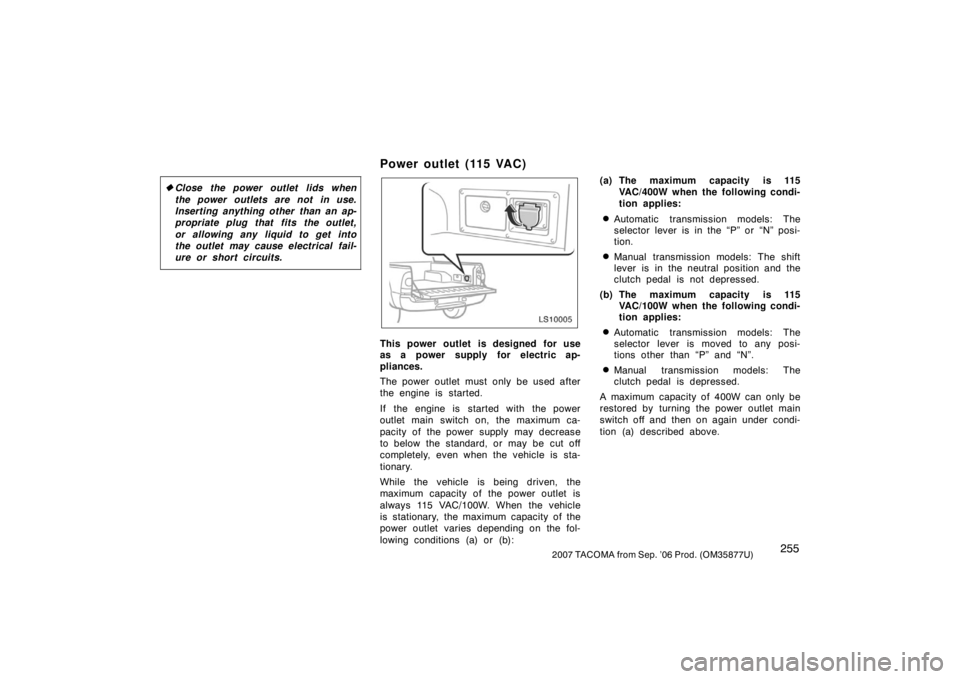

Power outlet (115 VAC)
LS10005
This power outlet is designed for use
as a power supply for electric ap-
pliances.
The power outlet must only be used after
the engine is started.
If the engine is started with the power
outlet main switch on, the maximum ca-
pacity of the power supply may decrease
to below the standard, or may be cut off
completely, even when the vehicle is sta-
tionary.
While the vehicle is being driven, the
maximum capacity of the power outlet is
always 115 VAC/100W. When the vehicle
is stationary, the maximum capacity of the
power outlet varies depending on the fol-
lowing conditions (a) or (b): (a) The maximum capacity is 115
VAC/400W when the following condi-
tion applies:
Automatic transmission models: The
selector lever is in the “P” or “N” posi-
tion.
Manual transmission models: The shift
lever is in the neutral position and the
clutch pedal is not depressed.
(b) The maximum capacity is 115 VAC/100W when the following condi-
tion applies:
Automatic transmission models: The
selector lever is moved to any posi-
tions other than “P” and “N”.
Manual transmission models: The
clutch pedal is depressed.
A maximum capacity of 400W can only be
restored by turning the power outlet main
switch off and then on again under condi-
tion (a) described above.

2562007 TACOMA from Sep. ’06 Prod. (OM35877U)
The protection circuit may be activated to
cut the power supply if any of the follow-
ing conditions apply:
The engine is started with the power
outlet switch on.
Use of electrical appliances exceeding
the maximum capacity is attempted.
A sound may be heard when the
protection circuit is activated. This is
normal and does not indicate a mal-
function.
Electrical appliances, which consume
power exceeding 100W, have been
used continuously for a long time per-
iod.
The total power usage by all electrical
features (headlights, air conditioning,
etc.) has exceeded the total vehicle
maximum for an extended period of
time.
If the protection circuit is activated and
the power supply is cut, conduct the fol-
lowing procedure:
1. Park the vehicle in a safe area, and then securely apply the parking brake.
2. Check and ensure the following condi- tions: Automatic transmission models: The
selector lever is in the “P” or “N” posi-
tion.
Manual transmission models: The shift
lever is in the neutral position and the
clutch pedal is not depressed.
3. Make sure that the power consumption of the electric appliance is within the
maximum capacity of the power outlet
and the appliance is not broken.
4. Push the power outlet main switch again.
When the cabin temperature is high, open
the windows to cool the temperature
down. Once it reaches the normal temper-
ature, turn the power outlet main switch
on again.
If the power supply is not resumed even
after performing the above procedure,
have the vehicle inspected by a Toyota
dealer.
LS10004
Indicator light
(green)
Indicator light
(yellow)
To use the power outlet, push the main
switch located on the instrument panel.
The color of the indicator light changes
according the maximum available capacity,
as follows: Illumination color
Maximum capacity
Green and yellow115 VAC/400W
Ye l l o w115 VAC/100W
To turn the power outlet off, push the
main switch again. When the power outlet
is not in use, make sure that the main
switch is off and that the indicator light is
not illuminated.

2572007 TACOMA from Sep. ’06 Prod. (OM35877U)
The power supply starts a few seconds
after the main switch is pressed.
If the main switch is pressed repeatedly
at short intervals, the indicator light may
remain unchanged, but this does not indi-
cate a malfunction.
When the power outlet is in operation, the
sound of the cooling fan may be heard
from the rear console box. This is normal
and does not indicate a malfunction.
After removing a plug from the power out-
let, ensure that the power outlet lid is
properly closed.

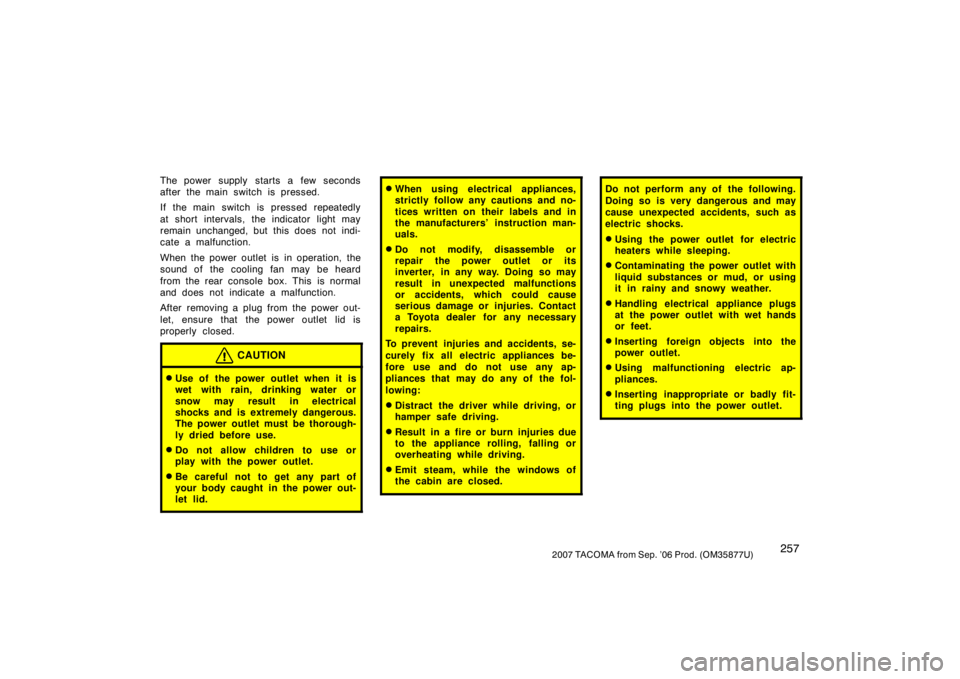

CAUTION
Use of the power outlet when it is
wet with rain, drinking water or
snow may result in electrical
shocks and is extremely dangerous.
The power outlet must be thorough-
ly dried before use.
Do not allow children to use or
play with the power outlet.
Be careful not to get any part of
your body caught in the power out-
let lid.
When using electrical appliances,
strictly follow any cautions and no-
tices written on their labels and in
the manufacturers’ instruction man-
uals.
Do not modify, disassemble or
repair the power outlet or its
inverter, in any way. Doing so may
result in unexpected malfunctions
or accidents, which could cause
serious damage or injuries. Contact
a Toyota dealer for any necessary
repairs.
To prevent injuries and accidents, se-
curely fix all electric appliances be-
fore use and do not use any ap-
pliances that may do any of the fol-
lowing:
Distract the driver while driving, or
hamper safe driving.
Result in a fire or burn injuries due
to the appliance rolling, falling or
overheating while driving.
Emit steam, while the windows of
the cabin are closed.
Do not perform any of the following.
Doing so is very dangerous and may
cause unexpected accidents, such as
electric shocks.
Using the power outlet for electric
heaters while sleeping.
Contaminating the power outlet with
liquid substances or mud, or using
it in rainy and snowy weather.
Handling electrical appliance plugs
at the power outlet with wet hands
or feet.
Inserting foreign objects into the
power outlet.
Using malfunctioning electric ap-
pliances.
Inserting inappropriate or badly fit-
ting plugs into the power outlet.

2582007 TACOMA from Sep. ’06 Prod. (OM35877U)
NOTICE
To prevent the battery from being
discharged, turn off all the vehicle’s
electronic equipment and accesso-
ries, such as the headlights, fog
lights and air conditioner, when
electrical appliances that consume
in excess of 100W are used contin-
uously for long periods of time.
 To prevent any damage caused by
heat, do not use any electrical ap-
pliances that give off intense heat
such as toasters, in any locations
including the internal or external
trim, seats and deck.
 Do not use any electrical ap-
pliances, which are easily affected
by vibration or heat, inside the ve-
hicle. Vibration while driving, or the
heat of the sun while parking, may
result in damage to those electrical
appliances.
 Keep the lid closed when the power
outlet is not in use. Do not insert
any items other than appropriate
plugs, as this may cause electrical
failure or short circuits.
After inserting a plug, gently close
the power outlet lid. Failure to do
so may cause damage to the plug.
 If any electrical appliances are to
be used while driving, securely fas-
ten both the appliances and their
cables to prevent them from falling
or getting caught any of the power-
train components.
 Do not use plug adaptors to con-
nect too many plugs to the power
outlet.
 If the power outlet is loose when an
electrical appliance plug is con-
nected, replace the outlet. Contact
a Toyota dealer for any necessary
replacements.
 If the power outlet gets dirty, turn
the main switch off and use a soft,
clean, drywet cloth to wipe it gent-
ly. Do not use any cleansing materi-
als, such as organic solvents, wax,
or compound cleaners, as these
may damage the power outlet or
cause it to malfunction.Keep the power outlet free from
dust and foreign materials and
clean it regularly.
The power outlet is not designed for
the following electric appliances even if
their power consumption is below the
maximum capacity. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode− ray tube type televisions,
compressor −driven refrigerators, electric
tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc.
Use of the power outlet may not be
possible if the vehicle battery voltage is
low due to decreased battery capacity.
The integrated timers of electrical ap-
pliances may not function properly
when the power supply is cut by the
protection circuit.

2592007 TACOMA from Sep. ’06 Prod. (OM35877U)
Some electrical appliances may not op-
erate properly unless they are installed
on a level place.
The precise power outlet voltage cannot
be measured using commercial testers.
If necessary, contact a Toyota dealer.
Certain electrical appliances may cause
radio noise.

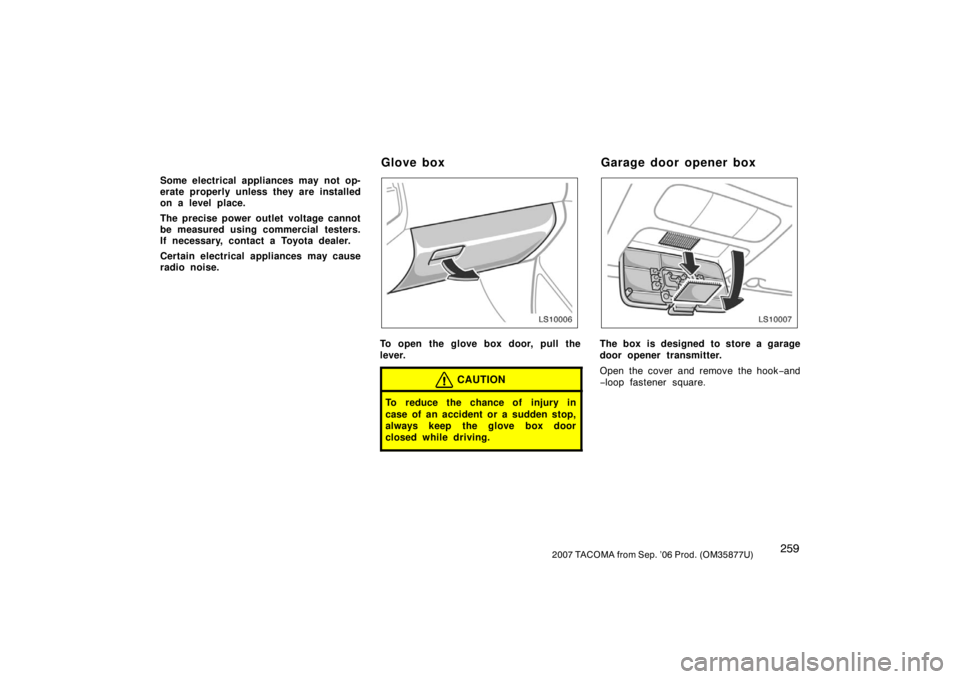

LS10006
To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
LS10007
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the hook−and
− loop fastener square.
Glove box Garage door opener box

2602007 TACOMA from Sep. ’06 Prod. (OM35877U)

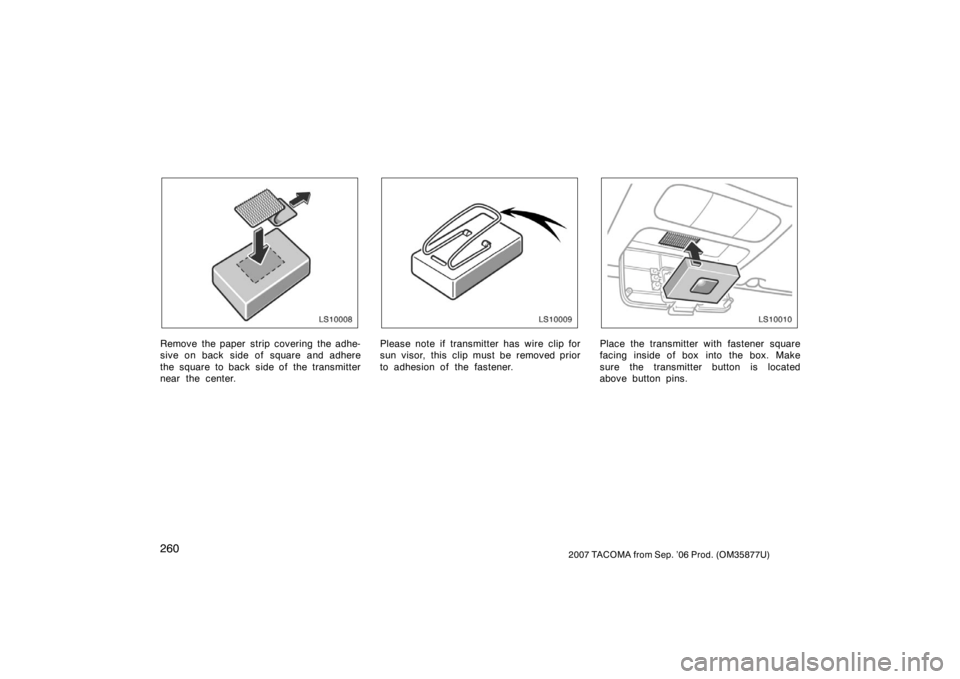

LS10008
Remove the paper strip covering the adhe-
sive on back side of square and adhere
the square to back side of the transmitter
near the center.
LS10009
Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the fastener.
LS10010
Place the transmitter with fastener square
facing inside of box into the box. Make
sure the transmitter button is located
above button pins.
