TOYOTA TACOMA 2009 Owners Manual (in English)

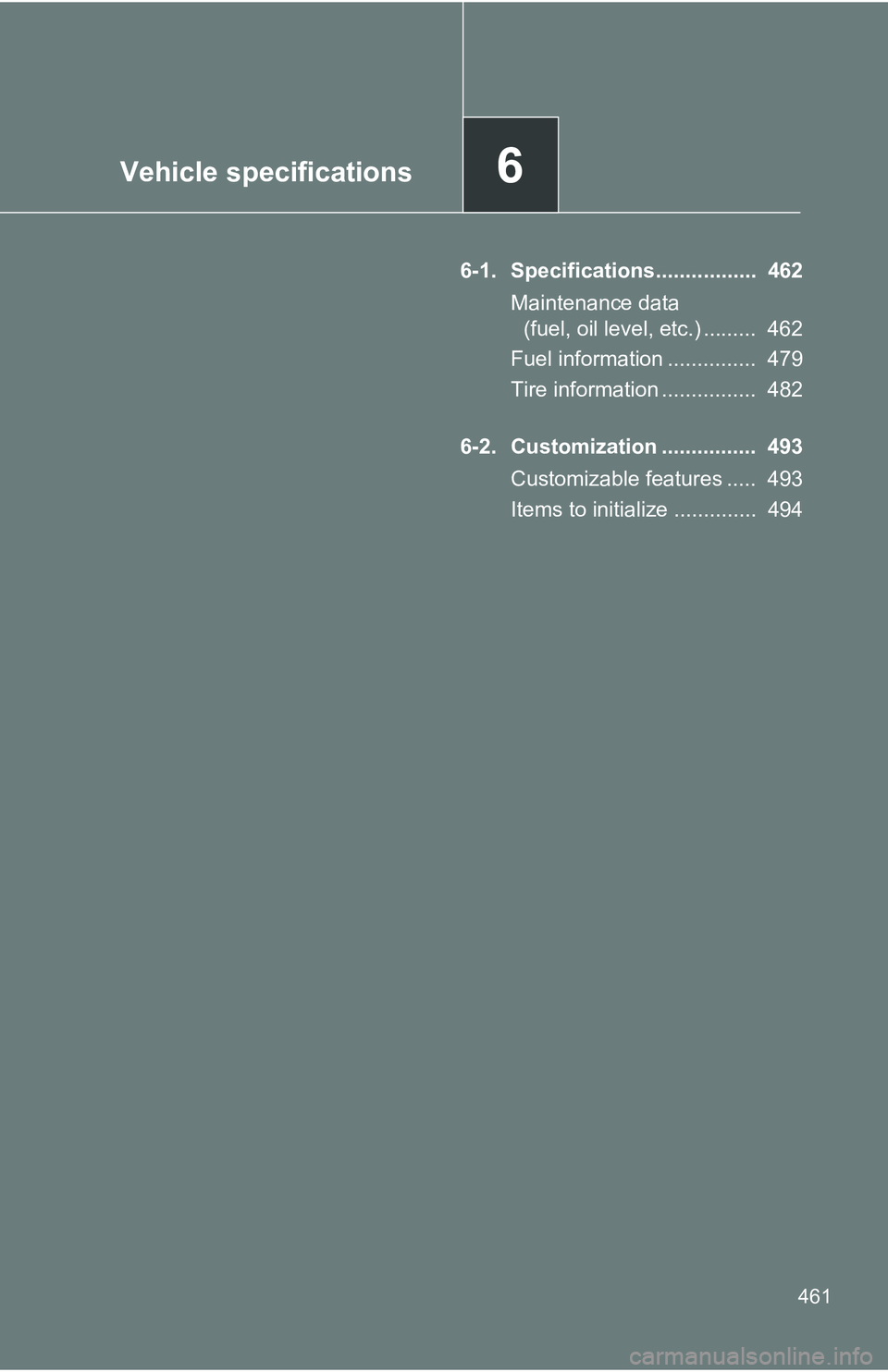

Vehicle specifications6
461
6-1. Specifications................. 462Maintenance data (fuel, oil level, etc.) ......... 462
Fuel information ............... 479
Tire information ................ 482
6-2. Customization ................ 493 Customizable features ..... 493
Items to initialize .............. 494

462

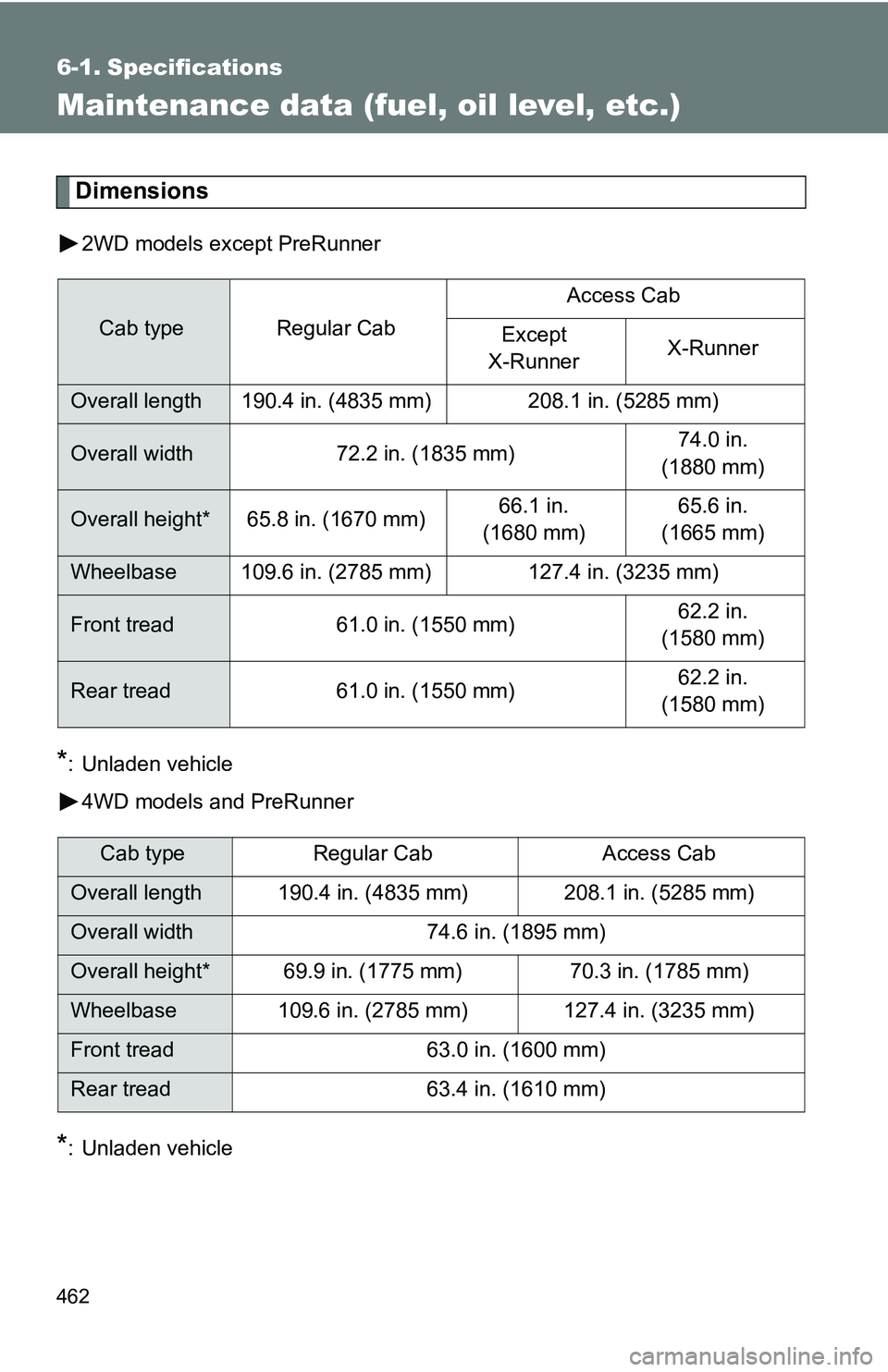

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions
2WD models except PreRunner
*: Unladen vehicle4WD models and PreRunner
*: Unladen vehicle
Cab typeRegular Cab
Access Cab
Except
X-RunnerX-Runner
Overall length 190.4 in. (4835 mm) 208.1 in. (5285 mm)
Overall width 72.2 in. (1835 mm) 74.0 in.
(1880 mm)
Overall height* 65.8 in. (1670 mm) 66.1 in.
(1680 mm) 65.6 in.
(1665 mm)
Wheelbase 109.6 in. (2785 mm) 127.4 in. (3235 mm)
Front tread 61.0 in. (1550 mm) 62.2 in.
(1580 mm)
Rear tread 61.0 in. (1550 mm) 62.2 in.
(1580 mm)
Cab typeRegular CabAccess Cab
Overall length 190.4 in. (4835 mm) 208.1 in. (5285 mm)
Overall width 74.6 in. (1895 mm)
Overall height* 69.9 in. (1775 mm) 70.3 in. (1785 mm)
Wheelbase 109.6 in. (2785 mm) 127.4 in. (3235 mm)
Front tread63.0 in. (1600 mm)
Rear tread 63.4 in. (1610 mm)

463
6-1. Specifications
6
Vehicle specifications
*: Unladen vehicle

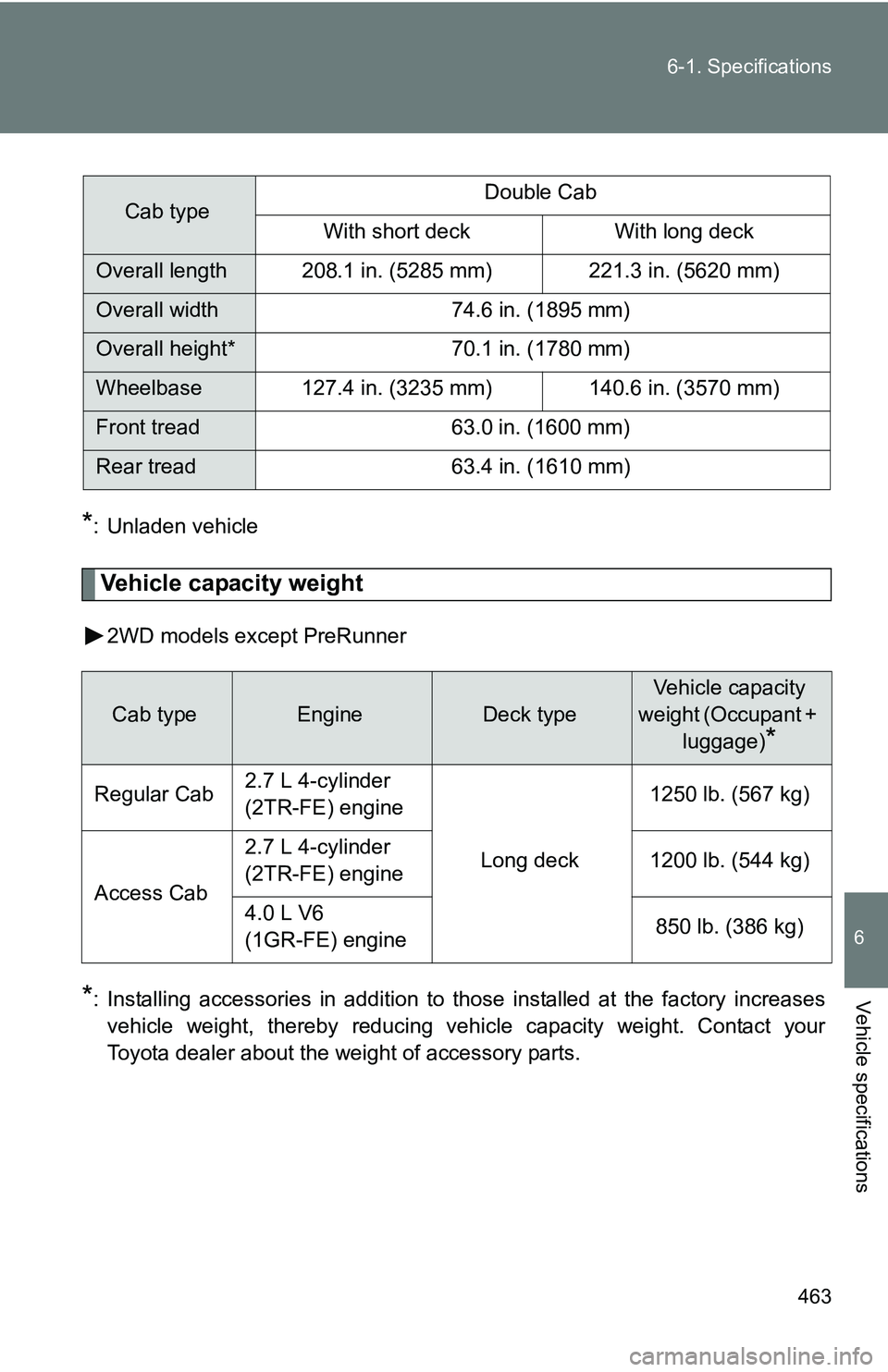

Vehicle capacity weight
2WD models except PreRunner
*: Installing accessories in addition to those installed at the factory increases
vehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeDouble Cab
With short deckWith long deck
Overall length 208.1 in. (5285 mm) 221.3 in. (5620 mm)
Overall width 74.6 in. (1895 mm)
Overall height* 70.1 in. (1780 mm)
Wheelbase 127.4 in. (3235 mm) 140.6 in. (3570 mm)
Front tread63.0 in. (1600 mm)
Rear tread 63.4 in. (1610 mm)
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck
1250 lb. (567 kg)
Access Cab
2.7 L 4-cylinder
(2TR-FE) engine1200 lb. (544 kg)
4.0 L V6
(1GR-FE) engine850 lb. (386 kg)

464 6-1. Specifications

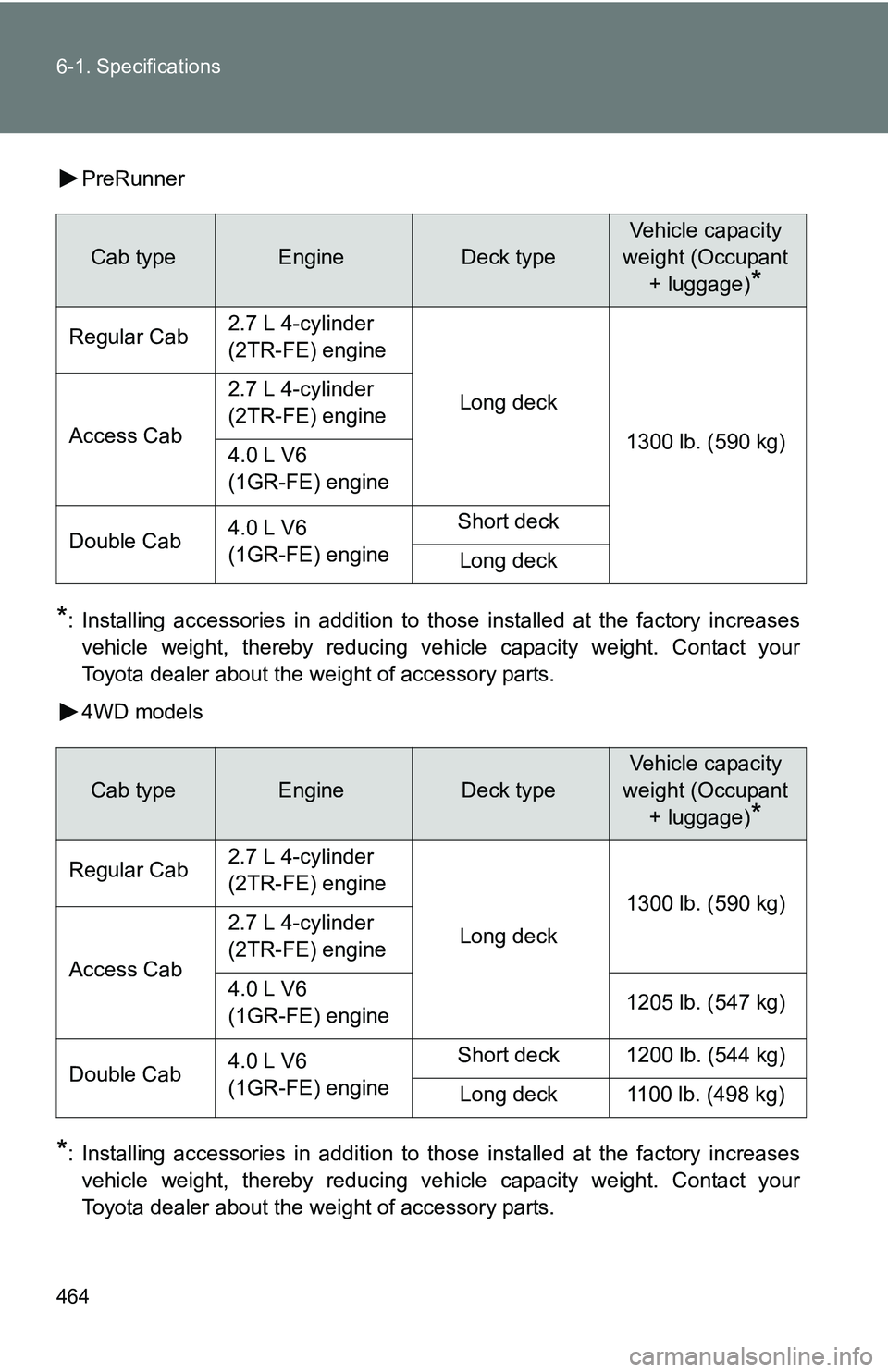

PreRunner
*: Installing accessories in addition to those installed at the factory increasesvehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
4WD models
*: Installing accessories in addition to those installed at the factory increasesvehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck
1300 lb. (590 kg)
Access Cab2.7 L 4-cylinder
(2TR-FE) engine
4.0 L V6
(1GR-FE) engine
Double Cab
4.0 L V6
(1GR-FE) engineShort deck
Long deck
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck 1300 lb. (590 kg)
Access Cab2.7 L 4-cylinder
(2TR-FE) engine
4.0 L V6
(1GR-FE) engine 1205 lb. (547 kg)
Double Cab
4.0 L V6
(1GR-FE) engineShort deck 1200 lb. (544 kg)
Long deck 1100 lb. (498 kg)

465
6-1. Specifications
6
Vehicle specifications

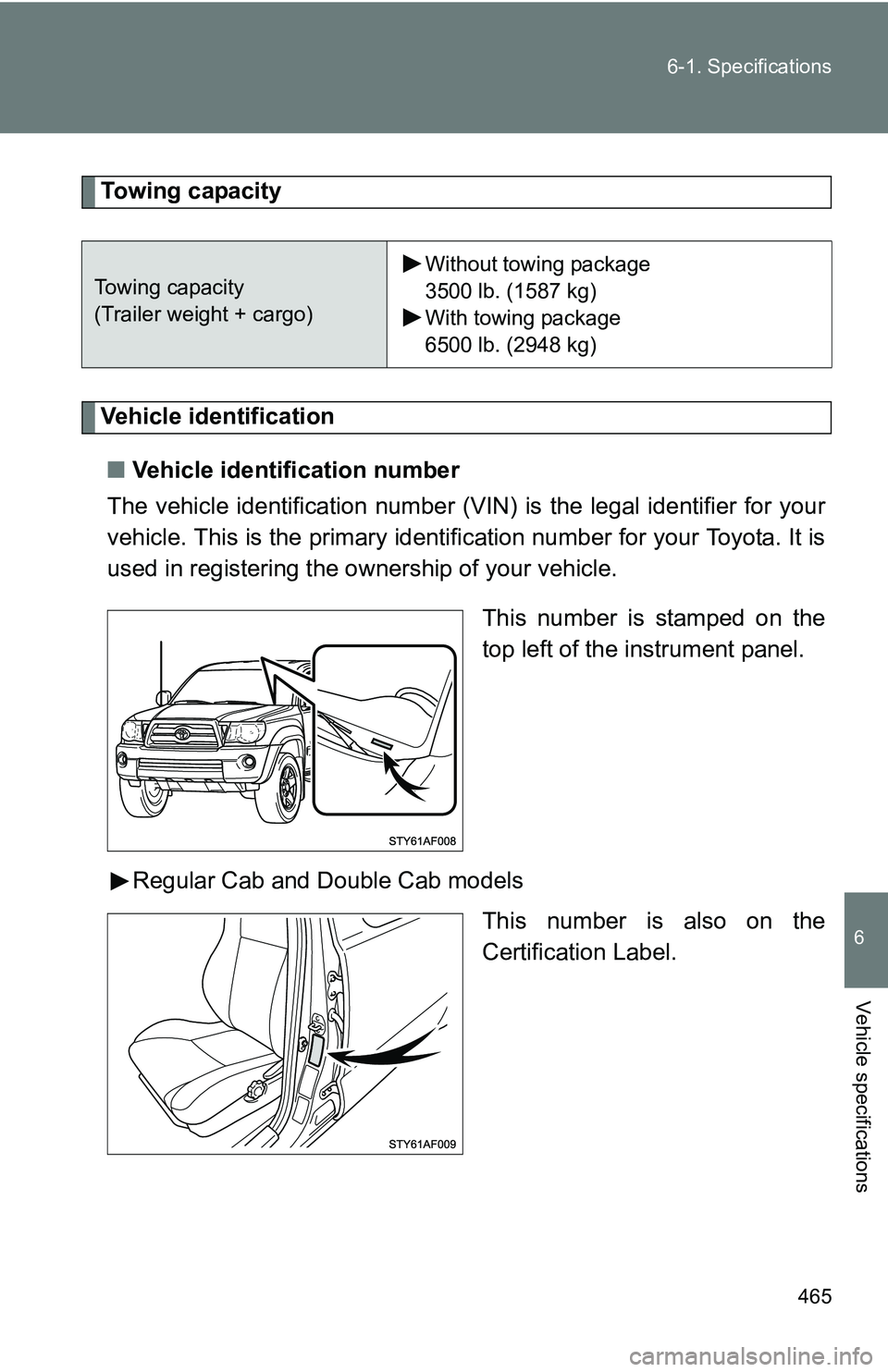

Towing capacity
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Regular Cab and Double Cab models This number is also on the
Certification Label.
Towing capacity
(Trailer weight + cargo) Without towing package
3500 lb. (1587 kg)
With towing package
6500 lb. (2948 kg)

466 6-1. Specifications

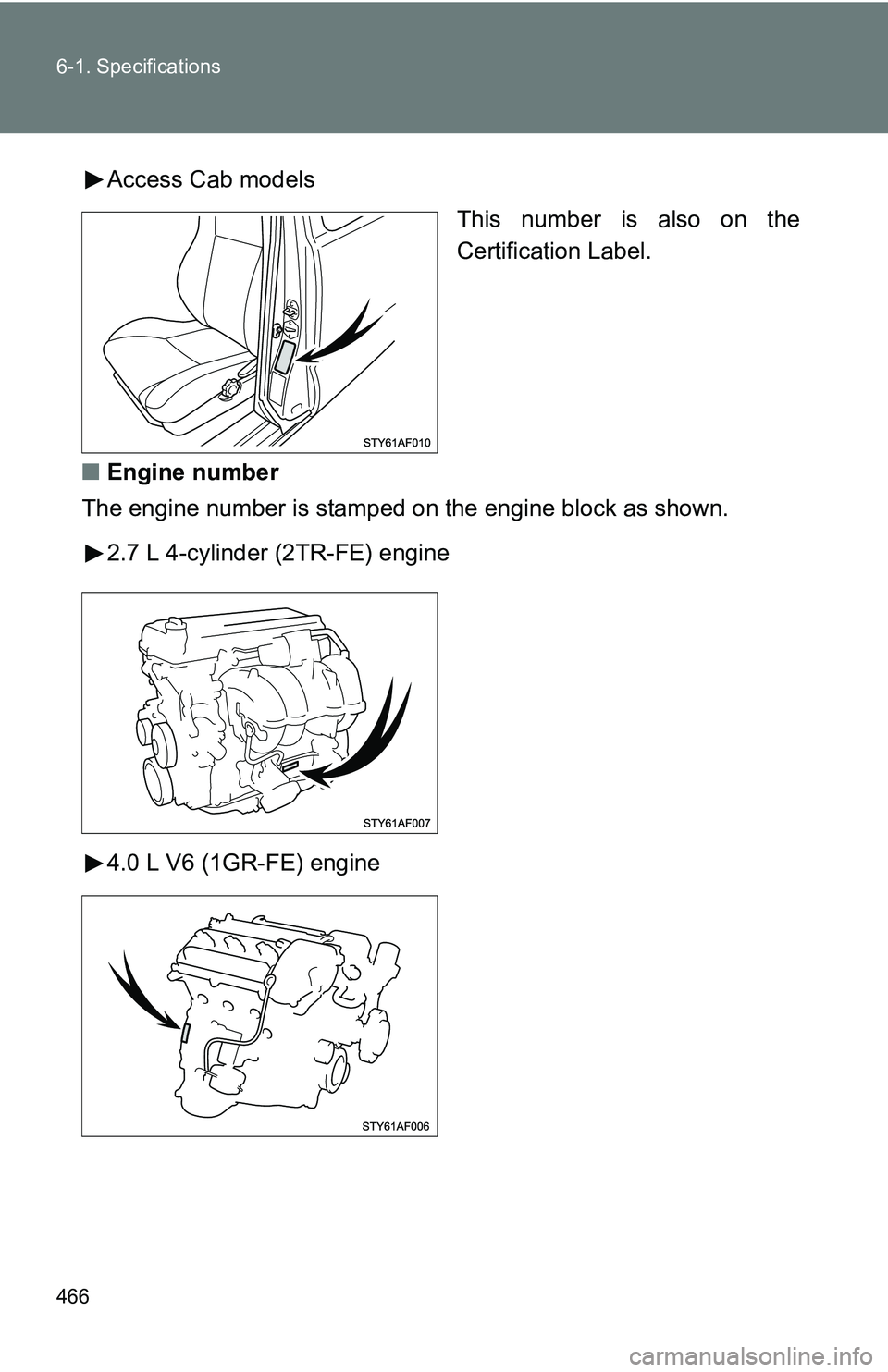

Access Cab modelsThis number is also on the
Certification Label.
■ Engine number
The engine number is stamped on the engine bl ock as shown.
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine

467
6-1. Specifications
6
Vehicle specifications

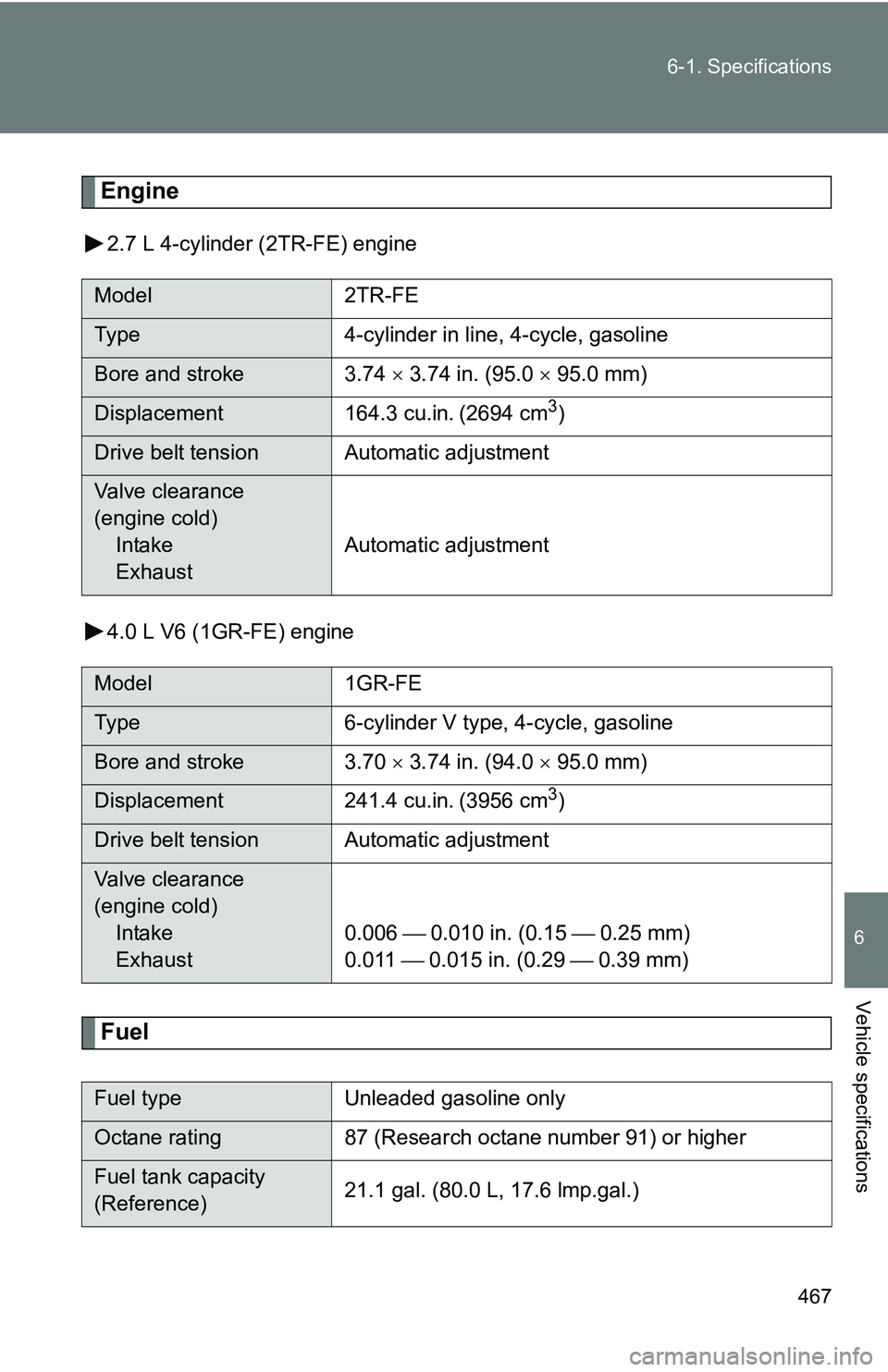

Engine
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine
Fuel
Model
2TR-FE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.74  3.74 in. (95.0  95.0 mm)
Displacement 164.3 cu.in. (2694 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
 Intake
 Exhaust Automatic adjustment
Model
1GR-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.74 in. (94.0  95.0 mm)
Displacement 241.4 cu.in. (3956 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
 Intake
 Exhaust 0.006  0.010 in. (0.15  0.25 mm)
0.011  0.015 in. (0.29
 0.39 mm)
Fuel type Unleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference) 21.1 gal. (80.0 L, 17.6 lmp.gal.)

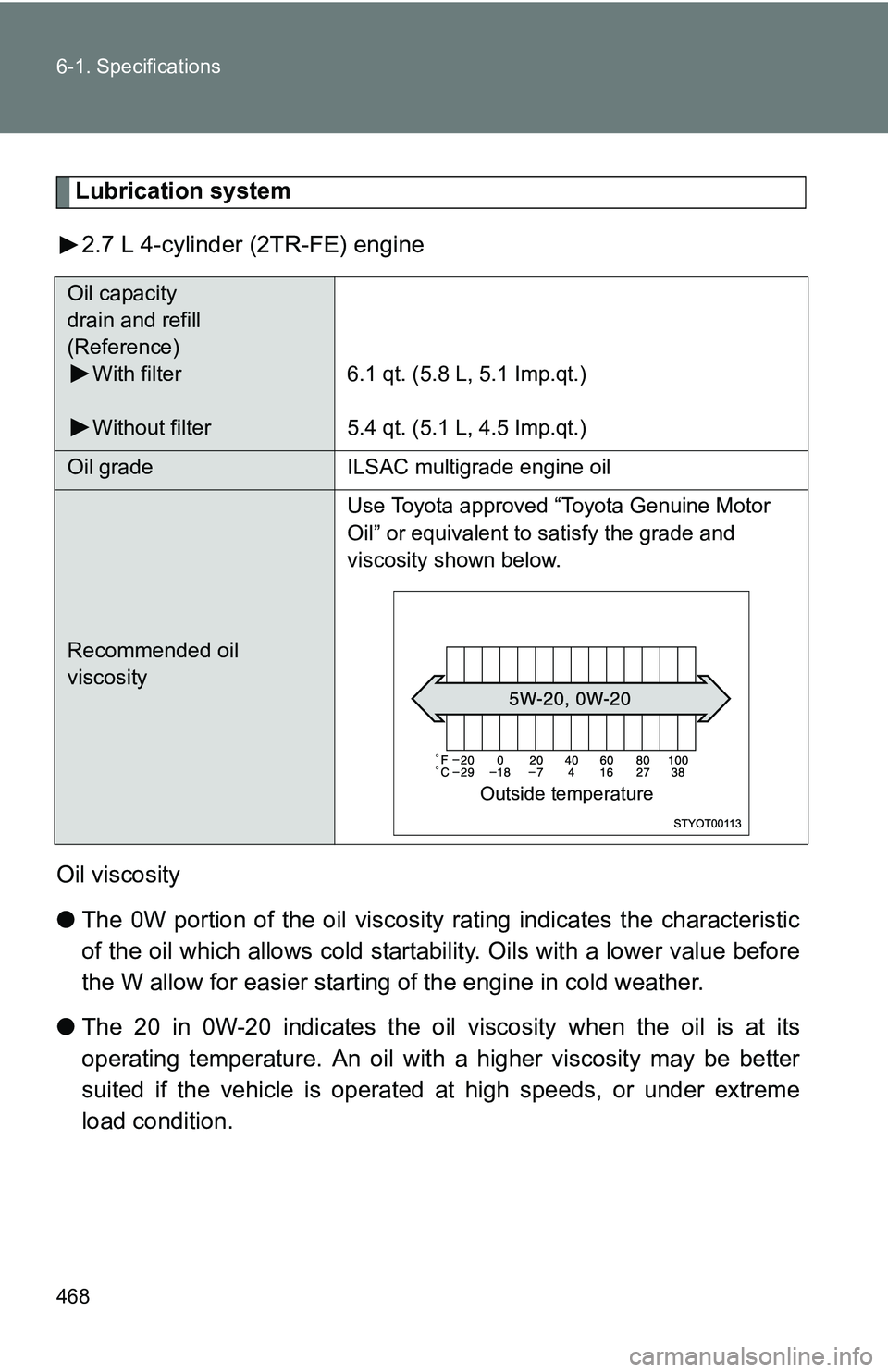

468 6-1. Specifications
Lubrication system2.7 L 4-cylinder (2TR-FE) engine
Oil viscosity
● The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
Oil capacity
drain and refill
(Reference)
With filter
Without filter 6.1 qt. (5.8 L, 5.1 Imp.qt.)
5.4 qt. (5.1 L, 4.5 Imp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and
viscosity shown below.
Outside temperature

469
6-1. Specifications
6
Vehicle specifications

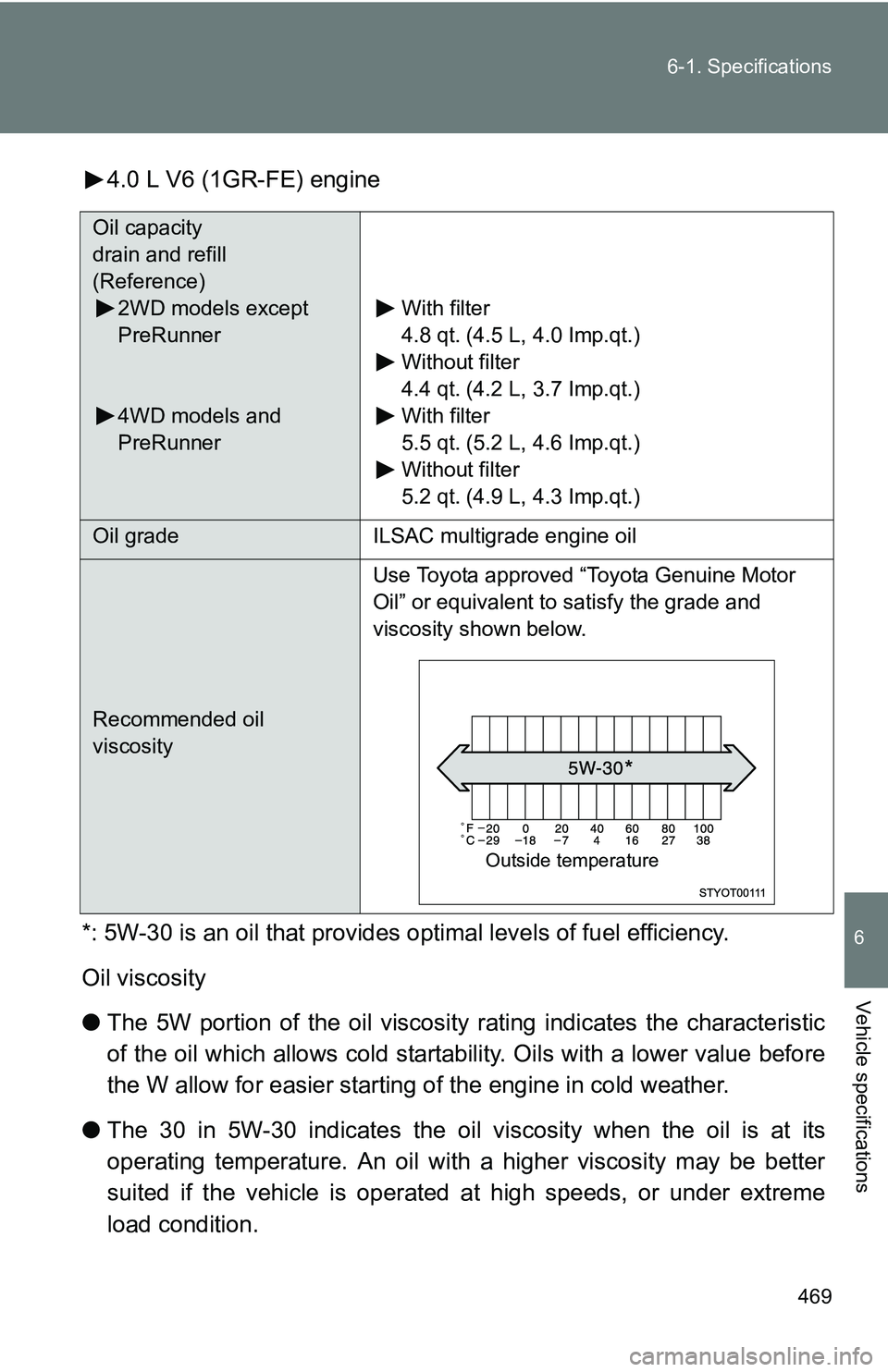

4.0 L V6 (1GR-FE) engine
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity
● The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
Oil capacity
drain and refill
(Reference) 2WD models except
PreRunner
4WD models and
PreRunner With filter
4.8 qt. (4.5 L, 4.0 Imp.qt.)
Without filter
4.4 qt. (4.2 L, 3.7 Imp.qt.)
With filter
5.5 qt. (5.2 L, 4.6 Imp.qt.)
Without filter
5.2 qt. (4.9 L, 4.3 Imp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and
viscosity shown below.
Outside temperature

470 6-1. Specifications
Cooling system
Ignition system
Capacity2.7 L 4-cylinder (2TR-FE)
engine
4.0 L V6 (1GR-FE) engine Vehicles with an automatic transmission
9.1 qt. (8.6 L, 7.6 Imp.qt.)
Vehicles with a manual transmission
9.1 qt. (8.7 L, 7.6 Imp.qt.)
Vehicles with an automatic transmission
10.1 qt. (9.6 L, 8.5 Imp.qt.)
Vehicles with a manual transmission
10.3 qt. (9.7 L, 8.5 Imp.qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug 2.7 L 4-cylinder (2TR-FE)
engine
Make DENSO NGK
Gap 4.0 L V6 (1GR-FE) engine
Make DENSO NGK
Gap SK20HR11
ILFR6C11
0.043 in. (1.1 mm)
K20HR-U11
LFR6C11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs (2.7 L 4-cylinder [2TR-FE] engine only)
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
