TOYOTA TACOMA 2010 Owners Manual (in English)

501 6-1. Specifications
6
Vehicle specifications
*:Table 1  Occupant loading and distribution for vehicle normal load
for various designated seating capacities
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear
indicators(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Designated seating
capacity, Number of
occupants Vehicle normal load,
Number of occupantsOccupant distribution
in a normally loaded
vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat
Tire related termMeaning

502
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Wireless
remote con-
trol
(
P. 32)Operation signal
(Buzzer)ON OFF
Seat Belt
Reminder
Buzzer
(
P. 434)Vehicle speed linked
seat belt reminder
buzzerON OFF
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by an autho-
rized Toyota dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

503
6-2. Customization
6
Vehicle specifications

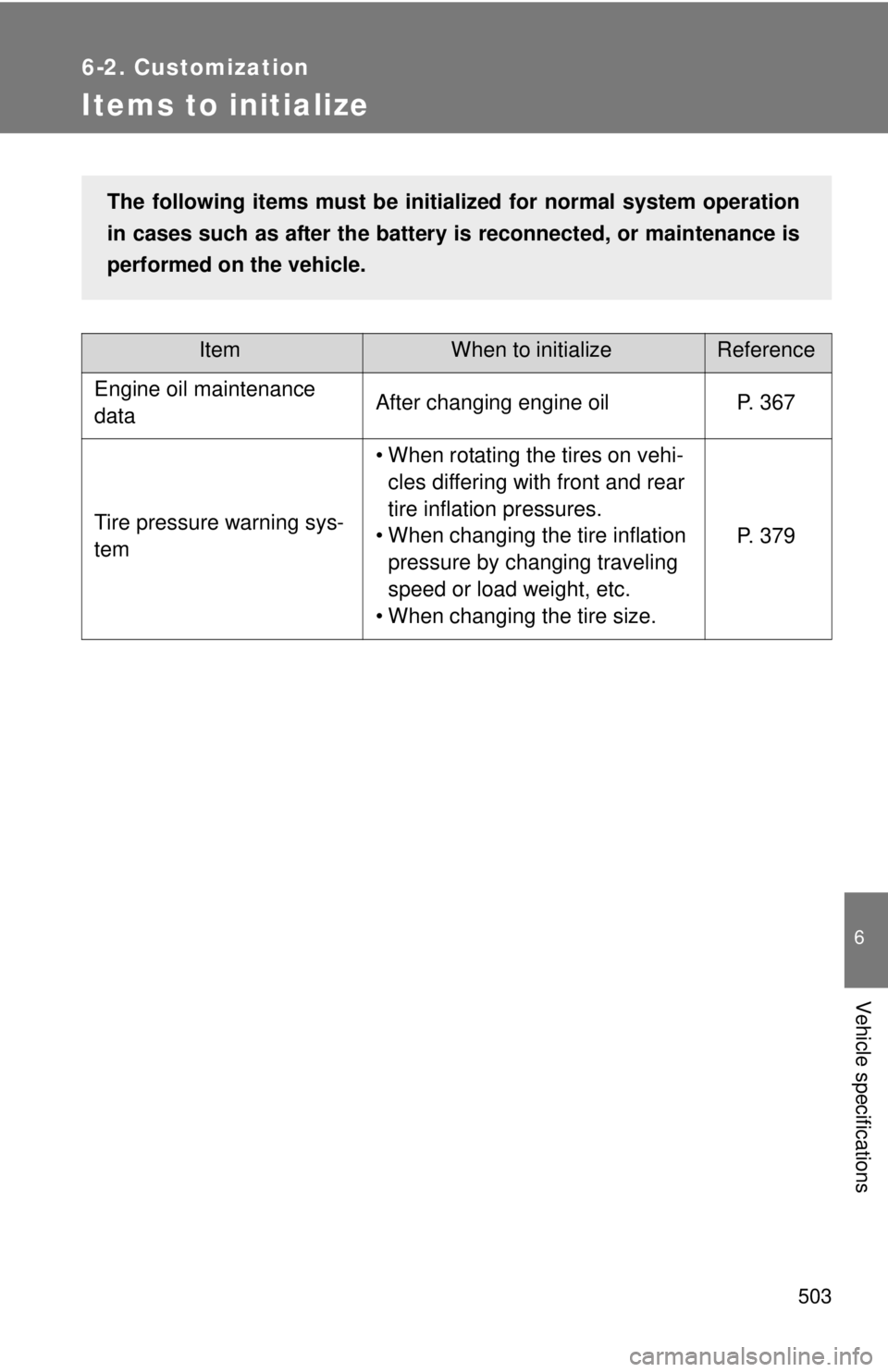

Items to initialize
ItemWhen to initializeReference
Engine oil maintenance
dataAfter changing engine oilP. 367
Tire pressure warning sys-
tem
• When rotating the tires on vehi-
cles differing with front and rear
tire inflation pressures.
• When changing the tire inflation
pressure by changing traveling
speed or load weight, etc.
• When changing the tire size.
P. 379
The following items must be initialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

504 6-2. Customization

For owners7
505
Reporting safety defects for
U.S. owners ................... 506
Seat belt instructions for
Canadian owners
(in French) ..................... 507
Camper information ......... 509

506
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safer-
car.gov; or write to: Administrator, NHTSA, 1200 New Jersey Ave,
S.E., Washington, DC 20590. You can also obtain other informa-
tion about motor vehicle safety from http://www.safercar.gov.

507
7
For owners

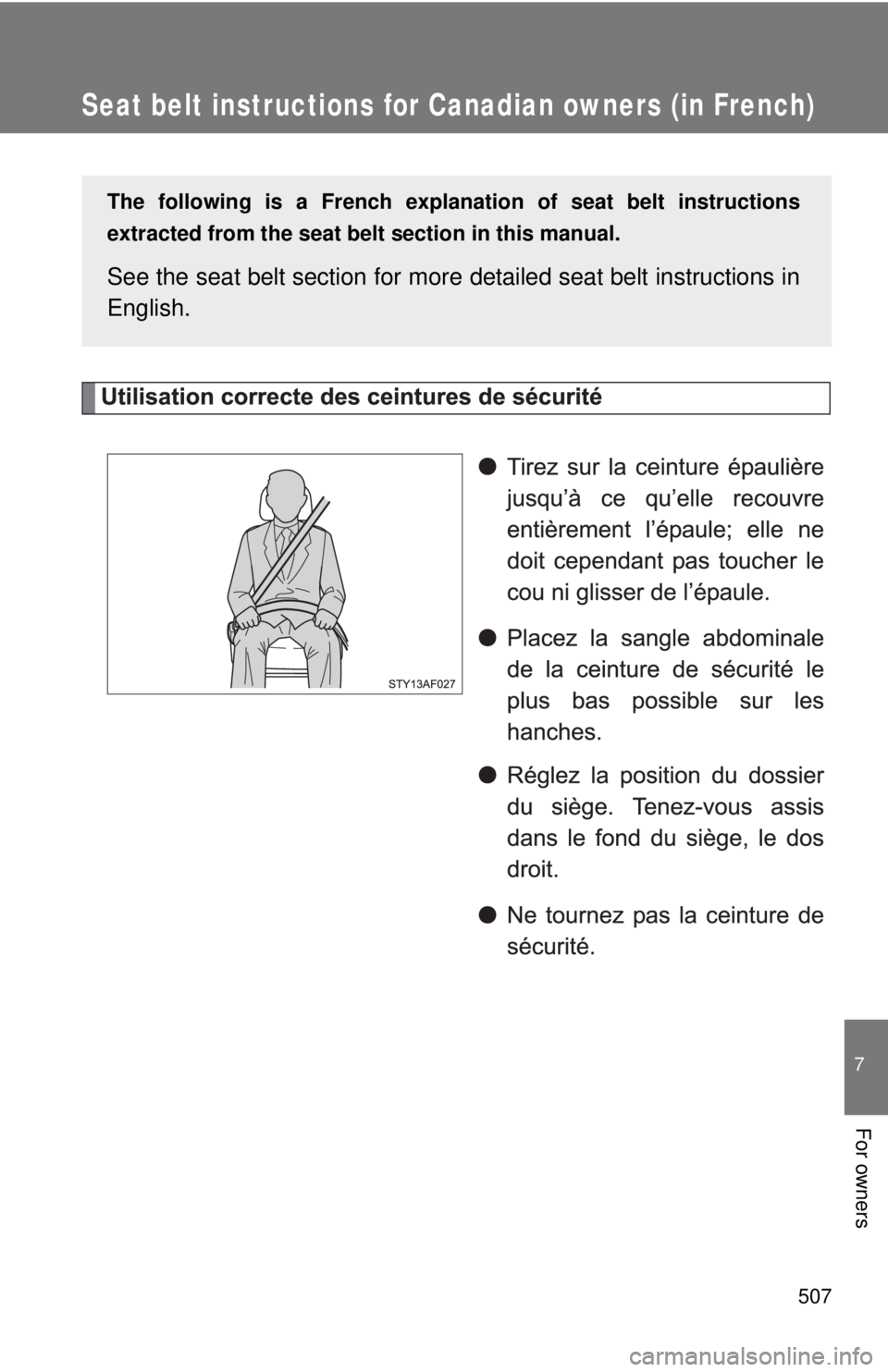

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.

508

509
7
For owners
Camper information
Center of gravity location
The figures given in the illustration indicate the recommended center
of gravity zone.
Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
*: Truck-campers cannot be used with the X-Runner since it is not
designed for them.
This information has been prepared in accordance with regula-
tion issued by the National Highway Traffic Safety Administration
of the U.S. Department of Transportation. It provides the purchas-
ers and/or prospective purchasers of Toyota vehicles with infor-
mation on truck-camper loading. Your Toyota dealer will help
answer any questions you may have as you read this informa-
tion.
Regular Cab models 49.9 in. (1267 mm) 36.1 in. (917 mm)
Access Cab models
Except X-Runner
X-Runner
*49.9 in. (1267 mm)
—36.1 in. (917 mm)
—
Double Cab models
With short deck
With long deck45.6 in. (1157 mm)
35.9 in. (911 mm)31.8 in. (807 mm)
27.8 in. (706 mm)

510
Cargo weight rating and proper matching
When the truck is used to carry a slide-in camper, the total cargo load
of the truck consists of the manufacturer’s camper weight figure, the
weight of installed additional camper equipment not included in the
manufacturer’s camper weight figure, the weight of camper cargo,
and the weight of passengers in the camper.
The total cargo load should not exceed the truck’s cargo weight rating
and the camper’s center of gravity should fall within the truck’s rec-
ommended center of gravity zone when installed.
Camper center of gravity
Recommended center of grav-
ity location zone
■Cargo weight rating
Regular Cab models
2 people, 2TR-FE engine, 2WD except PreRunner:
950 lb. (430 kg)
3 people, 2TR-FE engine, 2WD except PreRunner:
800 lb. (362 kg)
2 people, 2TR-FE engine, PreRunner: 1000 lb. (453 kg)
3 people, 2TR-FE engine, PreRunner: 850 lb. (385 kg)
CAUTION
■Loading precaution
If a load is too far back, it can cause dangerous handling. If it is too far
forward, the front axle may be overloaded.
