471 6-1. Specifications
6
Vehicle specifications
*: Unladen vehicle
Vehicle capacity weight
2WD models except PreRunner
*: Installing accessories in addition to those installed at the factory increases
vehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeDouble Cab
With short deckWith long deck
Overall length 208.1 in. (5285 mm) 221.3 in. (5620 mm)
Overall width 74.6 in. (1895 mm)
Overall height* 70.1 in. (1780 mm)
Wheelbase 127.4 in. (3235 mm) 140.6 in. (3570 mm)
Front tread 63.0 in. (1600 mm)
Rear tread 63.4 in. (1610 mm)
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant +
luggage
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck
1250 lb. (567 kg)
Access Cab
2.7 L 4-cylinder
(2TR-FE) engine1200 lb. (544 kg)
4.0 L V6
(1GR-FE) engine850 lb. (386 kg)

472 6-1. Specifications
PreRunner
*: Installing accessories in addition to those installed at the factory increases
vehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
4WD models
*: Installing accessories in addition to those installed at the factory increases
vehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant
+ luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck
1300 lb. (590 kg) Access Cab2.7 L 4-cylinder
(2TR-FE) engine
4.0 L V6
(1GR-FE) engine
Double Cab
4.0 L V6
(1GR-FE) engineShort deck
Long deck
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant
+ luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck1300 lb. (590 kg)
Access Cab2.7 L 4-cylinder
(2TR-FE) engine
4.0 L V6
(1GR-FE) engine1205 lb. (547 kg)
Double Cab
4.0 L V6
(1GR-FE) engineShort deck 1200 lb. (544 kg)
Long deck 1100 lb. (498 kg)

473 6-1. Specifications
6
Vehicle specifications
Towing capacity
Vehicle identification
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Regular Cab and Double Cab models
This number is also on the
Certification Label.
Towing capacity
(Trailer weight + cargo)Without towing package
3500 lb. (1587 kg)
With towing package
6500 lb. (2948 kg)

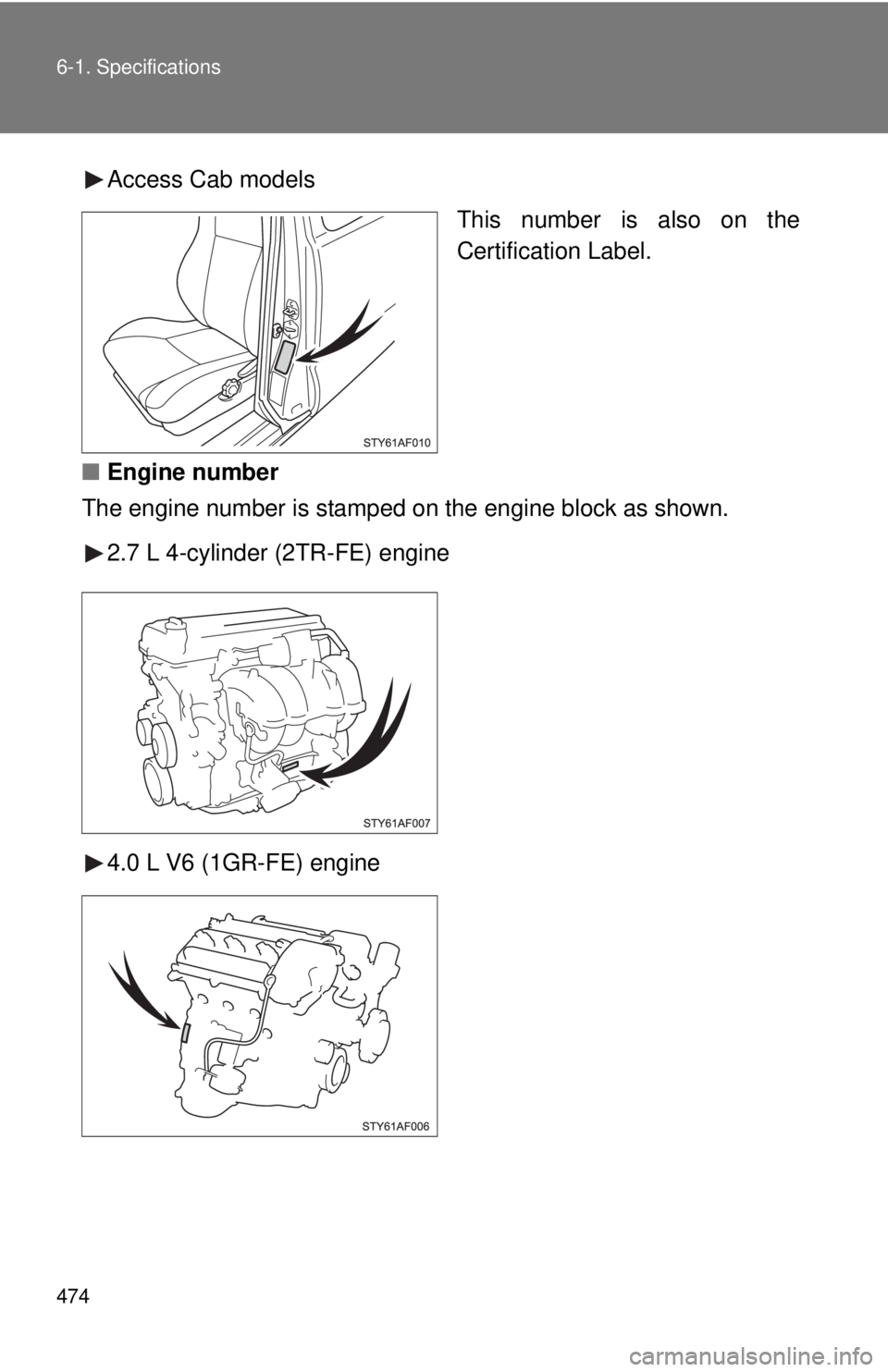

474 6-1. Specifications
Access Cab models
This number is also on the
Certification Label.
■Engine number
The engine number is stamped on the engine block as shown.
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine

475 6-1. Specifications
6
Vehicle specifications
Engine
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine
Fuel
Model 2TR-FE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.74  3.74 in. (95.0  95.0 mm)
Displacement 164.3 cu.in. (2694 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
 Intake
 ExhaustAutomatic adjustment
Model 1GR-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.74 in. (94.0  95.0 mm)
Displacement 241.4 cu.in. (3956 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
 Intake
 Exhaust0.006  0.010 in. (0.15  0.25 mm)
0.011  0.015 in. (0.29  0.39 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)21.1 gal. (80.0 L, 17.6 lmp.gal.)

476 6-1. Specifications
Lubrication system
2.7 L 4-cylinder (2TR-FE) engine
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
Oil capacity
Drain and refill
(Reference)With filter
6.1 qt. (5.8 L, 5.1 Imp.qt.)
Without filter
5.4 qt. (5.1 L, 4.5 Imp.qt.)
Outside temperature

477 6-1. Specifications
6
Vehicle specifications
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
4.0 L V6 (1GR-FE) engine
Oil capacity
drain and refill
(Reference)
2WD models except
PreRunner
4WD models and
PreRunnerWith filter
4.8 qt. (4.5 L, 4.0 Imp.qt.)
Without filter
4.4 qt. (4.2 L, 3.7 Imp.qt.)
With filter
5.5 qt. (5.2 L, 4.6 Imp.qt.)
Without filter
5.2 qt. (4.9 L, 4.3 Imp.qt.)

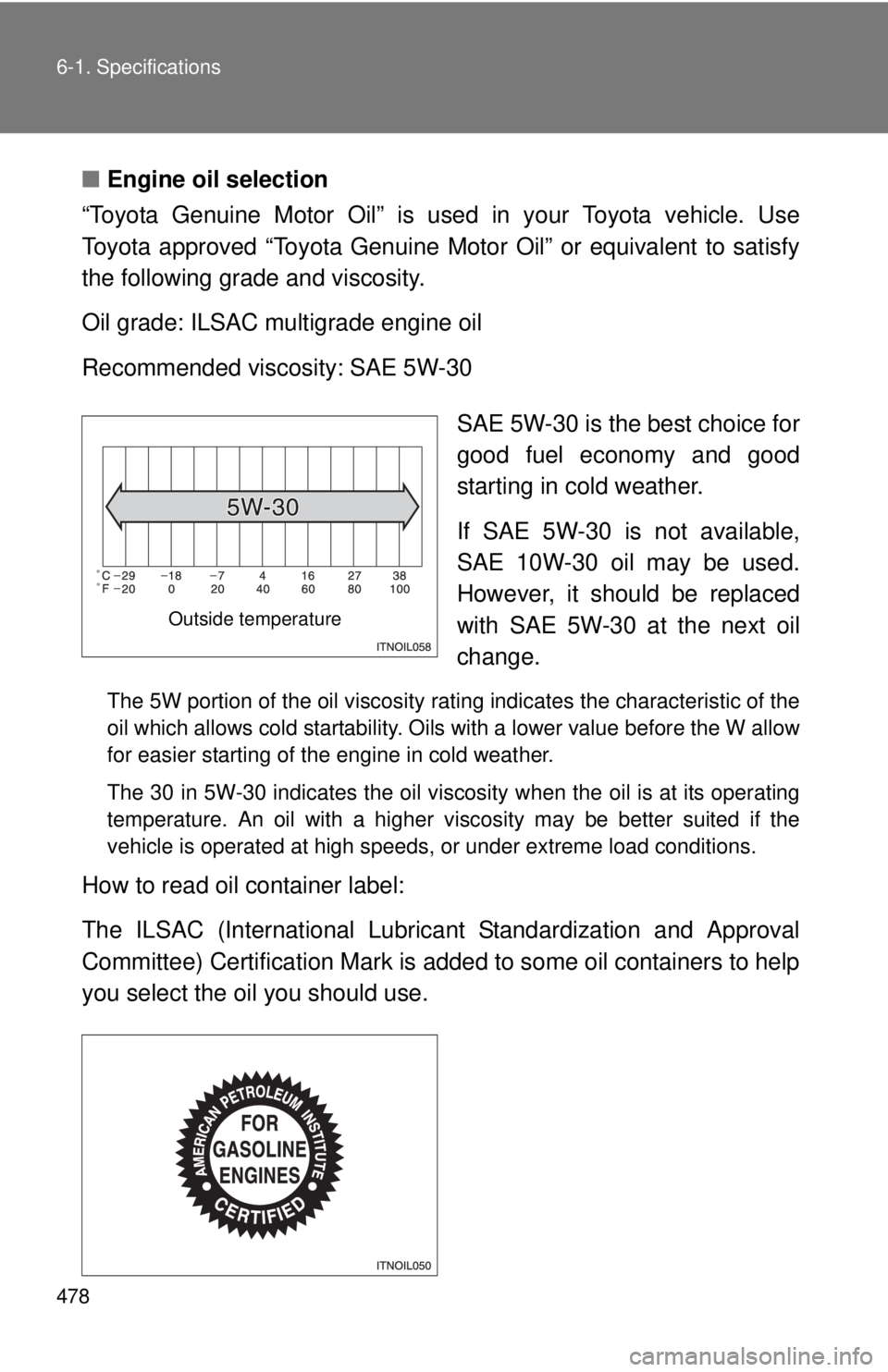

478 6-1. Specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
The 5W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 30 in 5W-30 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Outside temperature

479 6-1. Specifications
6
Vehicle specifications
Cooling system
Ignition system
Capacity
2.7 L 4-cylinder (2TR-FE)
engine
4.0 L V6 (1GR-FE) engineVehicles with an automatic transmission
9.1 qt. (8.6 L, 7.6 Imp.qt.)
Vehicles with a manual transmission
9.2 qt. (8.7 L, 7.7 Imp.qt.)
Vehicles with an automatic transmission
10.1 qt. (9.6 L, 8.4 Imp.qt.)
Vehicles with a manual transmission
10.3 qt. (9.7 L, 8.5 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
2.7 L 4-cylinder (2TR-FE)
engine
Make DENSO
NGK
Gap
4.0 L V6 (1GR-FE) engine
Make DENSO
NGK
GapSK20HR11
ILFR6C11
0.043 in. (1.1 mm)
K20HR-U11
LFR6C11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs (2.7 L 4-cylinder [2TR-FE] engine only)
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

480 6-1. Specifications
Electrical system
Differential
Battery
Open voltage at
68F (20C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage checked 20 minutes after the key
is removed with all the lights turned off)
Charging rates 5 A max.
Oil capacity
Front
(4WD models)1.59 qt. (1.50 L, 1.32 Imp.qt.)
Rear2WD models except PreRunner
3.66 qt. (3.46 L, 3.04 Imp.qt.)
4WD models and PreRunner
3.12 qt. (2.95 L, 2.60 Imp.qt.)
Oil type and viscosityToyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
“Toyota Genuine Differential Gear Oil” is
filled in your Toyota vehicle at factory fill.
Use Toyota approved “Toyota Genuine
Differential Gear Oil” or an equivalent of
matching quality to satisfy the above
specification. Please contact your Toyota
dealer for further details.
