TOYOTA TACOMA 2012 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2012, Model line: TACOMA, Model: TOYOTA TACOMA 2012Pages: 28, PDF Size: 1.96 MB
Page 1 of 28
QUICK RE F ERENCE GUIDE
CUSTOME R EXPE RIENCE CENTE R
1- 8 0 0 - 3 31- 4 3 31
00505-QRG12- TAC
P
rinted in U.S .A. 9 / 11
11 - TCS- 04990
TACOMA
2 0 1 2
4883_11-TCS-04990_QRG_Tacoma_COV.indd 18/24/11 2:51 PM
Page 2 of 28
!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Tacoma.
This Quick Reference Guideis not a full description of Tacoma
operations. Every Tacoma owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual . Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2012
Tacoma
4883_2012Tacoma_TEXT.qxd 8/24/11 1:56 PM Page IFC2

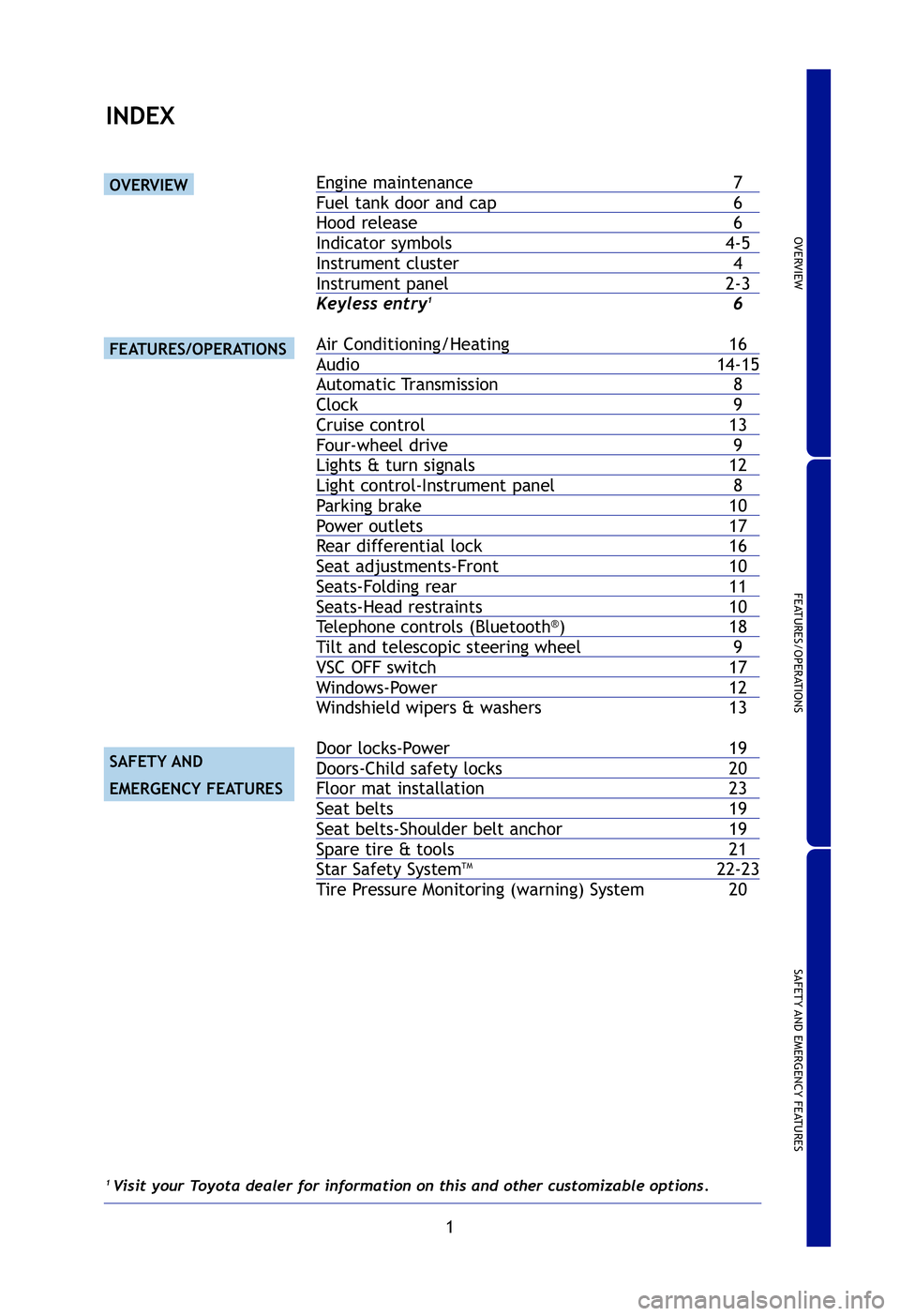

Page 3 of 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
1
INDEX
Engine maintenance 7
Fuel tank door and cap 6
Hood release 6
Indicator symbols4-5
Instrument cluster 4
Instrument panel2-3
Keyless entry16
Air Conditioning/Heating 16
Audio14-15
Automatic Transmission 8
Clock 9
Cruise control13
Four-wheel drive 9
Lights & turn signals12
Light control-Instrument panel 8
Parking brake10
Power outlets 17
Rear differential lock16
Seat adjustments-Front10
Seats-Folding rear 11
Seats-Head restraints10
Telephone controls (Bluetooth®)18
Tilt and telescopic steering wheel 9
VSC OFF switch17
Windows-Power 12
Windshield wipers & washers 13
Door locks-Power 19
Doors-Child safety locks20
Floor mat installation23
Seat belts19
Seat belts-Shoulder belt anchor19
Spare tire & tools 21
Star Safety SystemTM22-23
Tire Pressure Monitoring (warning) System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on this and other customizable options.
4883_2012Tacoma_TEXT.qxd 8/24/11 1:56 PM Page 1

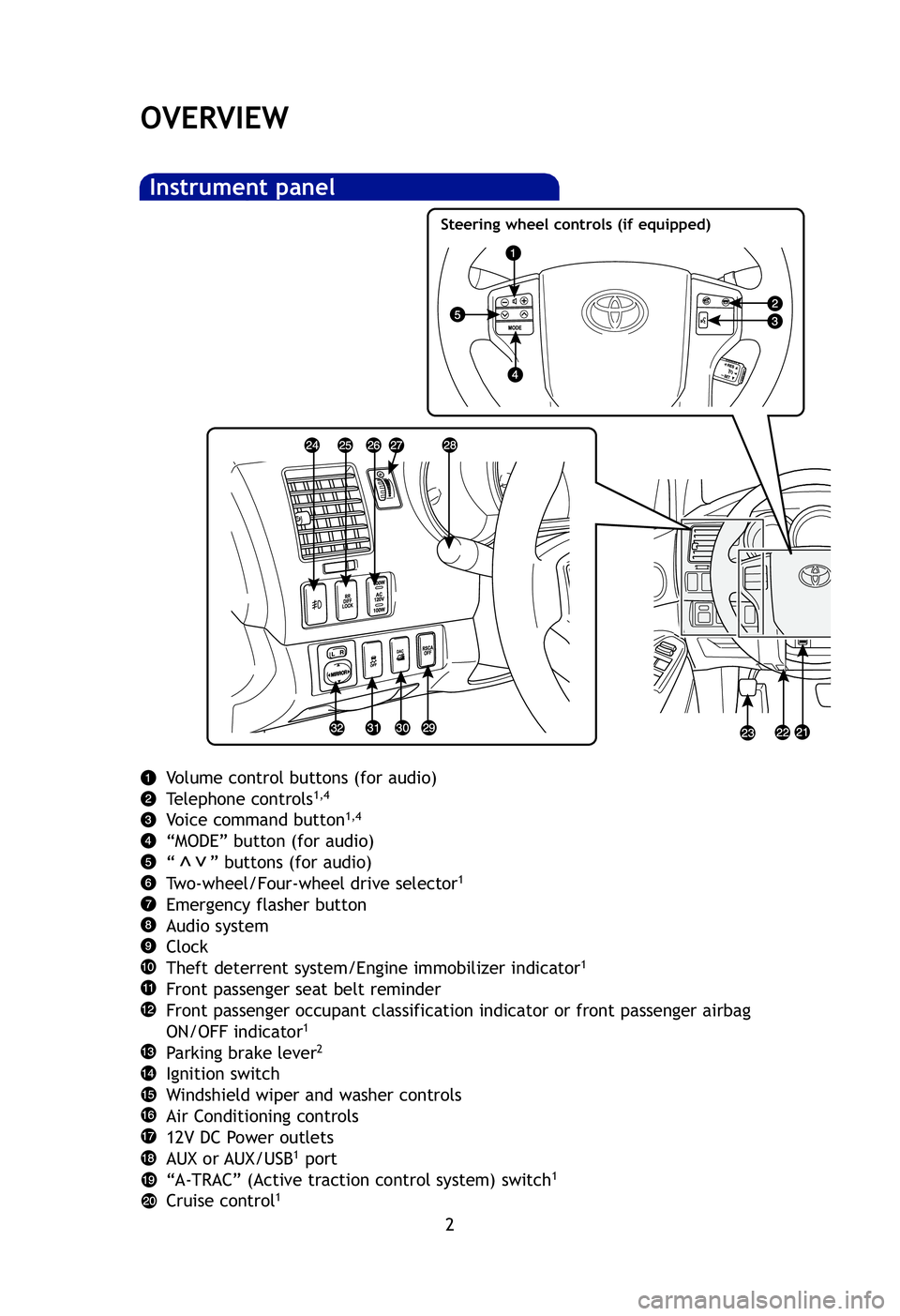

Page 4 of 28
2
OVERVIEW
Volume control buttons (for audio)
Telephone controls1,4
Voice command button1,4
“MODE” button (for audio)
“ ” buttons (for audio)
Two-wheel/Four-wheel drive selector
1
Emergency flasher button
Audio system
Clock
Theft deterrent system/Engine immobilizer indicator
1
Front passenger seat belt reminder
Front passenger occupant classification indicator or front passenger air\
bag
ON/OFF indicator
1
Parking brake lever2
Ignition switch
Windshield wiper and washer controls
Air Conditioning controls
12V DC Power outlets
AUX or AUX/USB
1port
“A-TRAC” (Active traction control system) switch1
Cruise control1
Instrument panel
Steering wheel controls (if equipped)
>>
4883_2012Tacoma_TEXT.qxd 8/24/11 1:57 PM Page 2

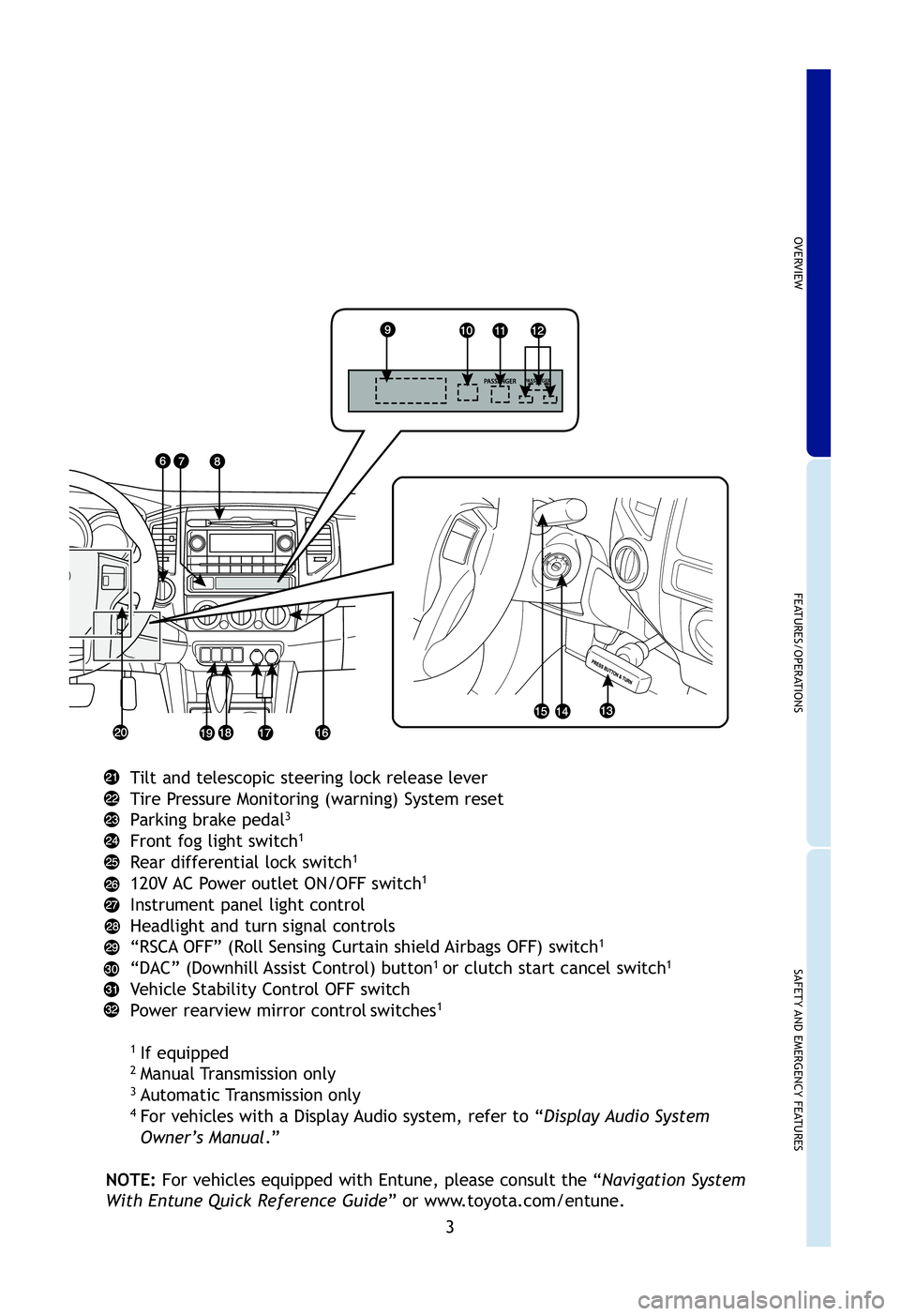

Page 5 of 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Tilt and telescopic steering lock release lever
Tire Pressure Monitoring (warning) System reset
Parking brake pedal
3
Front fog light switch1
Rear differential lock switch1
120V AC Power outlet ON/OFF switch1
Instrument panel light control
Headlight and turn signal controls
“RSCA OFF” (Roll Sensing Curtain shield Airbags OFF) switch
1
“DAC” (Downhill Assist Control) button1or clutch start cancel switch1
Vehicle Stability Control OFF switch
Power rearview mirror control switches1
1
If equipped2Manual Transmission only3 Automatic Transmission only4 For vehicles with a Display Audio system, refer to “ Display Audio System
Owner’s Manual .”
NOTE: For vehicles equipped with Entune, please consult the “ Navigation System
With Entune Quick Reference Guide ” or www.toyota.com/entune.
4883_2012Tacoma_TEXT.qxd 8/24/11 2:17 PM Page 3

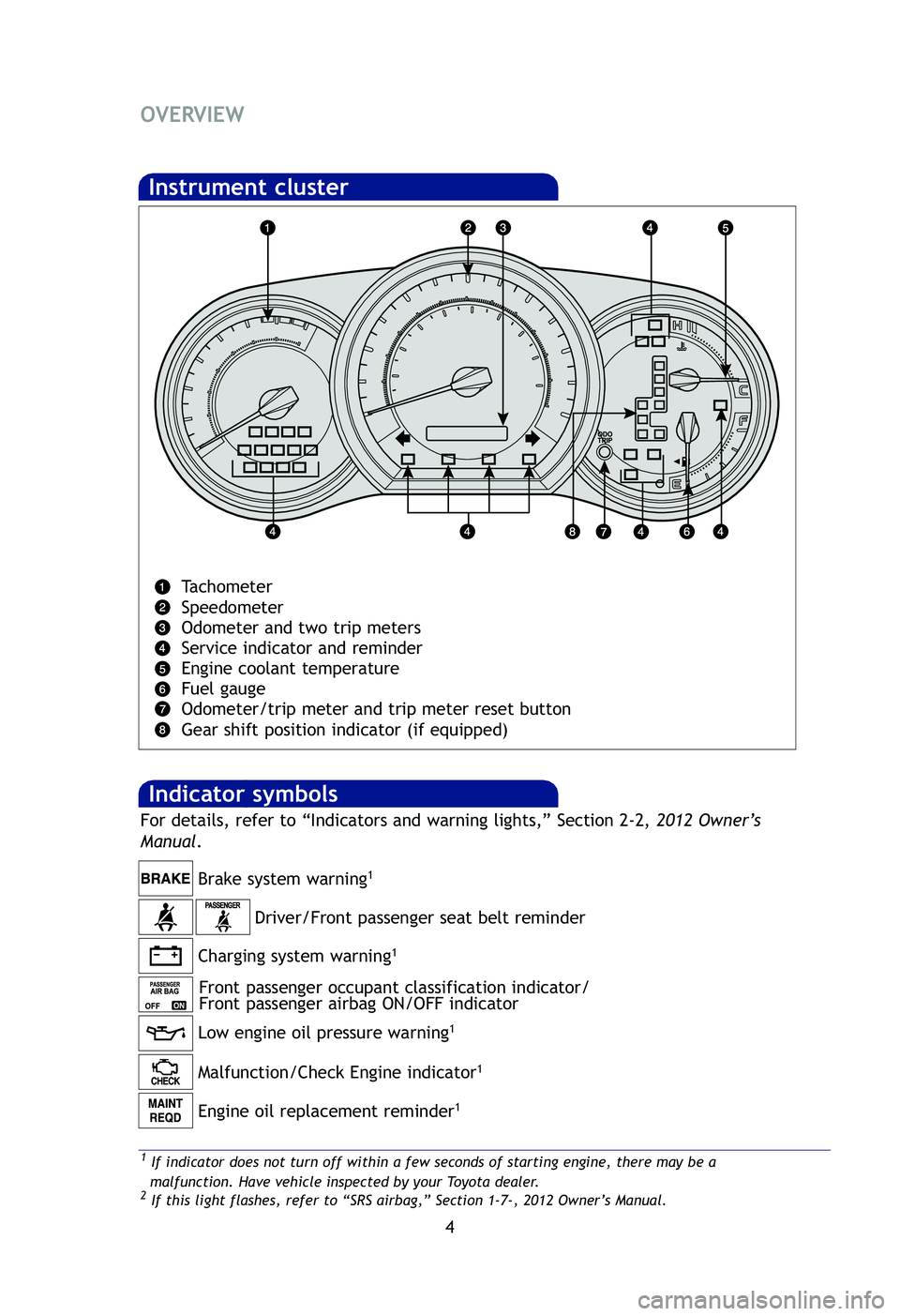

Page 6 of 28
4
OVERVIEW
Tachometer
Speedometer
Odometer and two trip meters
Service indicator and reminder
Engine coolant temperature
Fuel gauge
Odometer/trip meter and trip meter reset button
Gear shift position indicator (if equipped)
Instrument cluster
Driver/Front passenger seat belt reminder
Charging system warning
1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Front passenger occupant classification indicator/
Front passenger airbag ON/OFF indicator
Indicator symbols
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “SRS airbag,” Section 1-7-, 2012 O\
wner’s Manual.
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2012 Owner’s
Manual .
4883_2012Tacoma_TEXT.qxd 8/24/11 1:57 PM Page 4

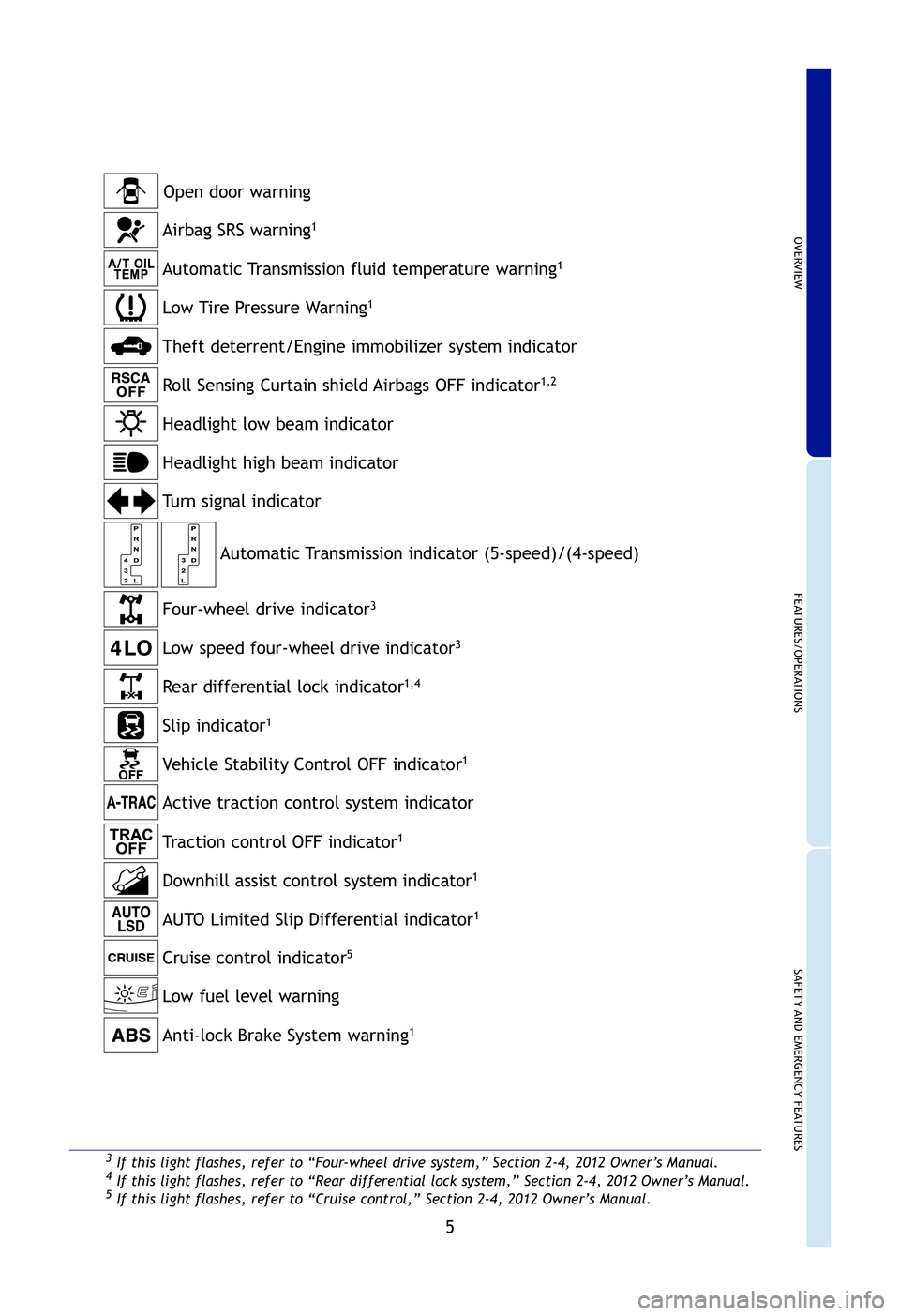

Page 7 of 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
Open door warningAutomatic Transmission indicator (5-speed)/(4-speed)
Low fuel level warning
Headlight low beam indicator
Headlight high beam indicator
Turn signal indicator
Four-wheel drive indicator
3
Low speed four-wheel drive indicator3
Rear differential lock indicator1,4
Slip indicator1
Vehicle Stability Control OFF indicator1
Downhill assist control system indicator1
AUTO Limited Slip Differential indicator1
Cruise control indicator5
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Airbag SRS warning1
Roll Sensing Curtain shield Airbags OFF indicator1,2
3
If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2012 Owner’s Manual.4If this light flashes, refer to “Rear differential lock system,” S\
ection 2-4, 2012 Owner’s Manual.5If this light flashes, refer to “Cruise control,” Section 2-4, 201\
2 Owner’s Manual.
Active traction control system indicator
Anti-lock Brake System warning
1
Traction control OFF indicator1
4883_2012Tacoma_TEXT.qxd 8/24/11 1:58 PM Page 5
Page 8 of 28
6
OVERVIEW
Fuel tank door and cap
Hood release
NOTE:Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “ ” indicator may illuminate.
Pull up latch and
raise hood Turn to open
Keyless entry (if equipped)
Pull
Panic button
Push and hold
Push
Push ONCE: Driver door
TWICE: All doors
Locking operationUnlocking operation
NOTE:If a door is not opened within 30
seconds of unlocking, all doors will relock
for safety.
Pull
4883_2012Tacoma_TEXT.qxd 8/24/11 2:20 PM Page 6
Page 9 of 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Power steering fluid reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
4 cylinder (2TR-FE) engine
6 cylinder (1GR-FE) engine
4883_2012Tacoma_TEXT.qxd 8/24/11 1:58 PM Page 7

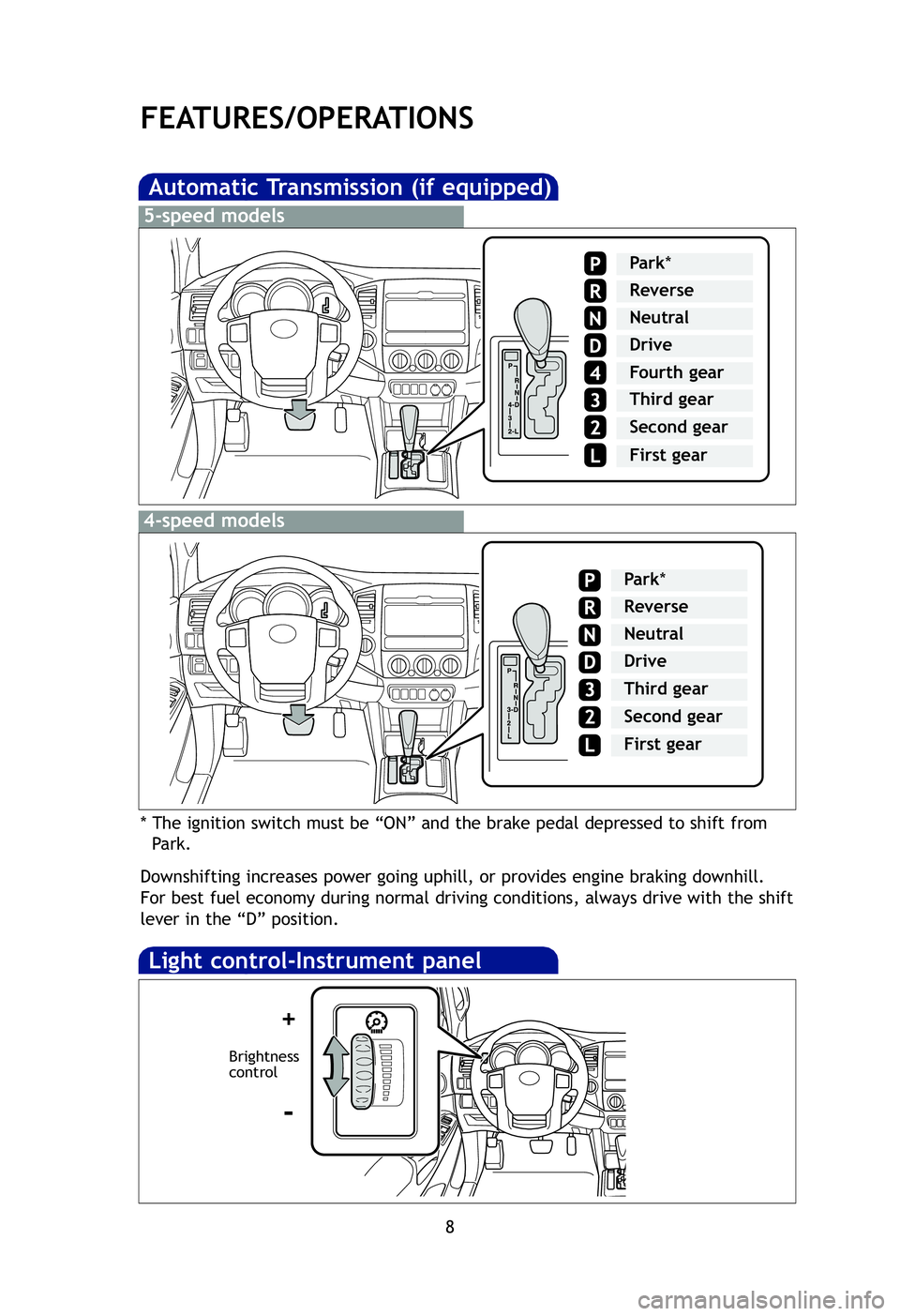

Page 10 of 28
8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to \
shift from Park.
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the shift
lever in the “D” position.
5-speed models
4-speed models
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Light control-Instrument panel
Brightness
control
-
+
4883_2012Tacoma_TEXT.qxd 8/24/11 1:59 PM Page 8
