TOYOTA TACOMA 2013 Owners Manual (in English)

521

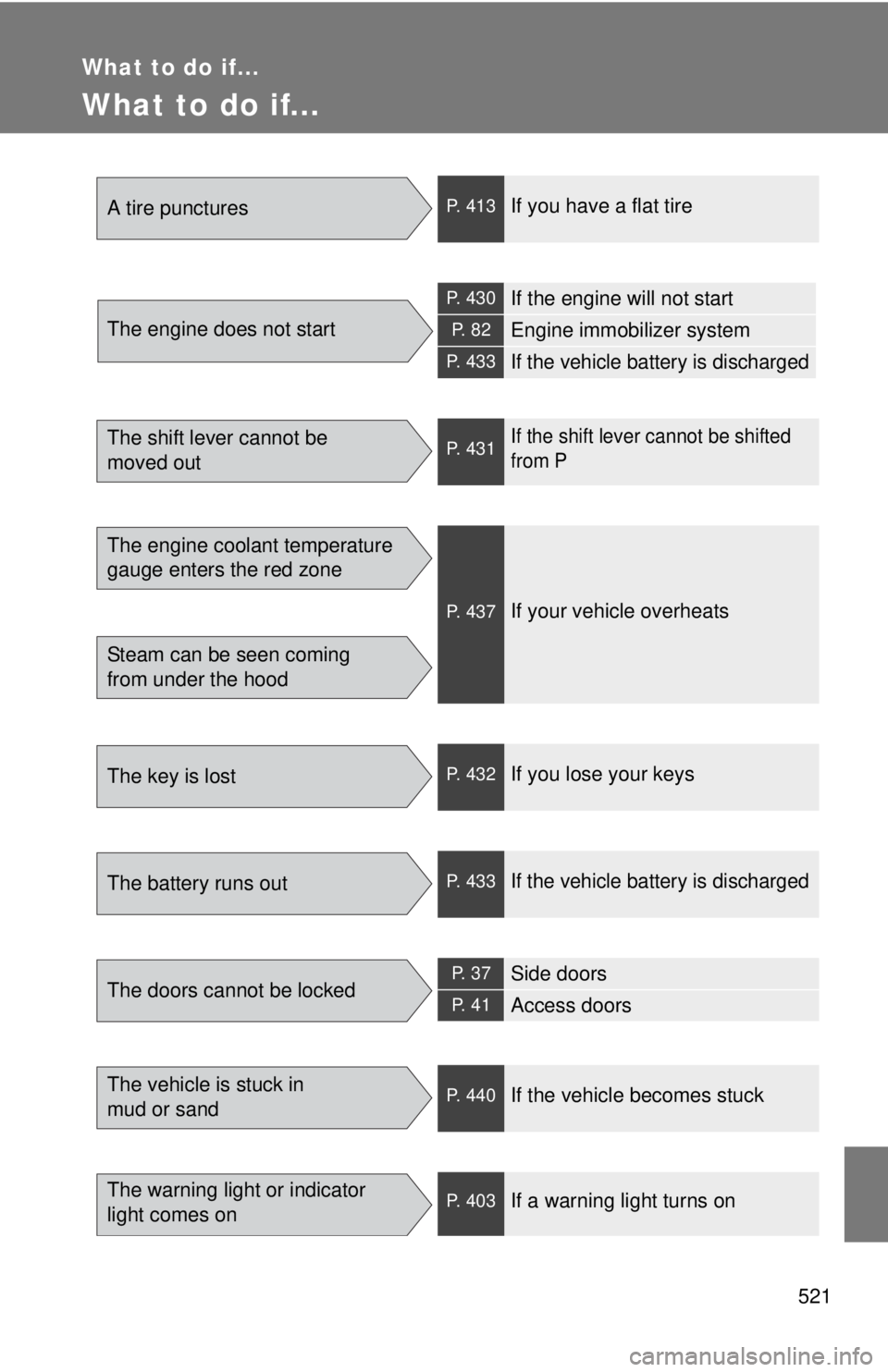

What to do if...
What to do if...
A tire puncturesP. 413If you have a flat tire
The engine does not start
P. 430If the engine will not start
P. 8 2Engine immobilizer system
P. 433If the vehicle battery is discharged
The shift lever cannot be
moved outP. 431If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 437If your vehicle overheats
The key is lostP. 432If you lose your keys
The battery runs outP. 433If the vehicle battery is discharged
The doors cannot be lockedP. 3 7Side doors
P. 4 1Access doors
The vehicle is stuck in
mud or sandP. 440If the vehicle becomes stuck
The warning light or indicator
light comes onP. 403If a warning light turns on

522 What to do if...
■Instrument cluster
■ Center panel

523
What to do if...
■
Warning lights
P. 405
or
P. 403 P. 405
P. 404 P. 405
P. 404 P. 406
P. 406
or
P. 404 P. 406
P. 4 0 5P. 407
P. 407
or
P. 4 0 5P. 408
*1:Slip indicator comes on.
*2:The indicator flashes to indicate a malfunction.
Brake system warning
lightSlip indicator*1
Charging system warning
light
Low engine oil pressure
warning lightOpen door warning light
Malfunction indicator
lampDriver’s seat belt reminder
light
Front passenger’s seat belt
reminder light
SRS warning lightTire pressure warning
light
ABS warning lightLow fuel level warning
light
Maintenance required
reminder light
Automatic transmission
fluid temperature
warning light
Cruise control indicator
light*2

524
GAS STATION INFORMATION
Auxiliary catch leverP. 332Fuel filler doorP. 7 9
Tire inflation pressure
P. 462
Hood lock release lever P. 3 3 2
Fuel tank capacity
(Reference) 21.1 gal. (80.0 L, 17.6 Imp.gal.)
Fuel typeUnleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Cold tire inflation
pressure
P. 4 6 2
Engine oil capacity
(Drain and refill
-reference) P. 4 5 4
Engine oil type
P. 454
