Page 581 of 601
580
Access Cab models
2 people, 2TR-FE engine, 2WD except PreRunner:750 lb. (340 kg)
4 people, 2TR-FE engine, 2WD except PreRunner: 450 lb. (204 kg)
2 people, 2TR-FE engine, PreRunner: 1000 lb. (453 kg)
4 people, 2TR-FE engine, PreRunner: 700 lb. (317 kg)
2 people, 1GR-FE engine, PreRunner: 950 lb. (430 kg)
4 people, 1GR-FE engine, PreRunner: 650 lb. (294 kg)
2 people, 2TR-FE engine, 4WD: 900 lb. (408 kg)
4 people, 2TR-FE engine, 4WD: 600 lb. (272 kg)
2 people, 1GR-FE engine, 4WD: 840 lb. (381 kg)
4 people, 1GR-FE engine, 4WD: 540 lb. (244 kg)
Double Cab models with short deck
2 people, 2TR-FE engine, 2WD except PreRunner: 650 lb. (294 kg)
5 people, 2TR-FE engine, 2WD except PreRunner: 200 lb. (90 kg)
2 people, 1GR-FE engine, PreRunner: 850 lb. (385 kg)
5 people, 1GR-FE engine, PreRunner: 400 lb. (181 kg)
2 people, 1GR-FE engine, 4WD: 740 lb. (335 kg)
5 people, 1GR-FE engine, 4WD: 290 lb. (131 kg)
Double Cab models with long deck
2 people, 1GR-FE engine, PreRunner: 850 lb. (385 kg)
5 people, 1GR-FE engine, PreRunner: 400 lb. (181 kg)
2 people, 1GR-FE engine, 4WD: 740 lb. (335 kg)
5 people, 1GR-FE engine, 4WD: 290 lb. (131 kg)
CAUTION
■Overloading
Be careful — overloading can cause dangerous braking and handling
problems, and can damage your vehicle and its tires.
Page 582 of 601
581
7
For owners
Gross axle and vehicle weight ratingsSecure loose items to prevent weight shifts that could affect the bal-
ance of your vehicle. When the truck camper is loaded, drive to a
scale and weigh on the front and on the rear wheels separately to
determine axle loads. Individual ax le loads should not exceed either
of the Gross Axle Weight Ratings (GAWR). The total of the axle loads
should not exceed the Gross Vehicl e Weight Rating (GVWR). These
ratings are given on the vehicle cert ification label which is located on
the door latch post on the left side of the vehicle. ( P. 531) If weight
ratings are exceeded, move or remove items to bring all weights
below the ratings.
Gross axle weight rating Front GAWR
Rear GAWR
Gross vehicle weight rating Not exceed GVWR
Page 583 of 601
582
■GAWR
■ GVWR
2WD models except PreRunner
GAWR
Front Rear
2WD models
except PreRun-
ner
Vehicles with 2.7L
4-cylinder (2TR-FE)
engine
2380 lb. (1075 kg)
Vehicles with 4.0 L
V6 (1GR-FE) engine
2400 lb. (1085 kg)
2650 lb. (1200 kg)
4WD models and
PreRunner
PreRunner
2755 lb. (1245 kg)
4WD models
2775 lb. (1255 kg)Regular Cab models
3000 lb. (1360 kg)
Access Cab and
Double Cab models
3110 lb. (1410 kg)
Cab type GVWR
Regular Cab 4650 lb. (2105 kg)
Access Cab Vehicles with 2.7 L 4-cylinder (2TR-FE)
engine
4900 lb. (2220 kg)
Vehicles with 4.0 L V6 (1GR-FE) engine
4700 lb. (2130 kg)
Double Cab 4900 lb. (2220 kg)
Page 584 of 601
583
7
For owners
PreRunner
4WD models
Cab typeGVWR
Access Cab and
Double Cab Vehicles with 2.7 L 4-cylinder (2TR-FE)
engine
5250 lb. (2380 kg)
Vehicles with 4.0 L V6 (1GR-FE) engine
5400 lb. (2445 kg)
Cab type GVWR
Regular Cab 5100 lb. (2310 kg)
Access Cab Vehicles with 2.7 L 4-cylinder (2TR-FE)
engine
5350 lb. (2425 kg)
Vehicles with 4.0 L V6 (1GR-FE) engine
5500 lb. (2490 kg)
Double Cab 5500 lb. (2490 kg)
Page 585 of 601
584
Page 586 of 601

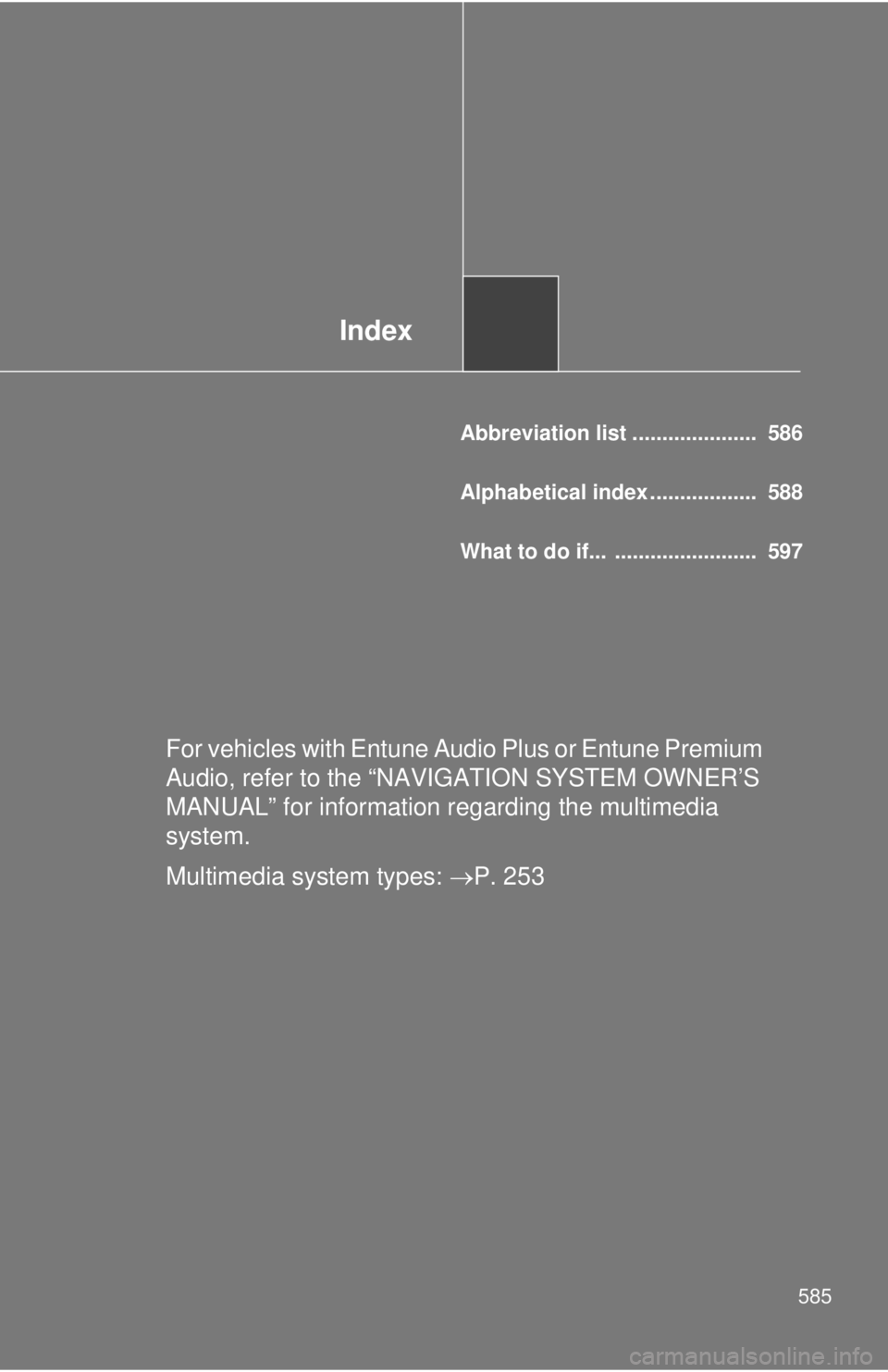

Index
585
Abbreviation list ..................... 586
Alphabetical index .................. 588
What to do if... ........................ 597
For vehicles with Entune Audio Plus or Entune Premium
Audio, refer to the “NAVIGATION SYSTEM OWNER’S
MANUAL” for information regarding the multimedia
system.
Multimedia system types: P. 253
Page 587 of 601
586
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
2WDTwo Wheel Drive
4WD Four Wheel Drive ABS Anti-Lock Brake System
ACC Accessory ALR Automatic Locking Retractor
A-TRAC Active Traction Control
AUTO LSD Automatic Limited Slip Differential CRS Child Restraint System
DAC Downhill assist control
ECU Electronic Control Unit
EDR Event Data RecorderELR Emergency Locking Retractor
GAWR Gross Axle Weight Rating
GCWR Gross Combination Weight Rating GVWR Gross Vehicle Weight Rating I/M Emission inspection and maintenance
LATCH Lower Anchors and Tethers for Children LED Light Emitting DiodeLT Light truck
M + S Mud + Snow MMT Methylcy clopentadienyl Manganese Tricarbonyl
MTBE Methyl Tertiary Butyl Ether
OBD On Board Diagnostics
RR DIFF LOCK Rear differential lock RSCA Roll sensing of curtain shield airbag
SRS Supplemental Restraint SystemTIN Tire Identification Number
Page 588 of 601
587
Abbreviation list
TPMS Tire Pressure Warning System
TRAC Traction Control TWI Treadwear indicators
TWR Trailer Weight Rating VIN Vehicle Identification Number
VSC Vehicle Stability Control
ABBREVIATIONSMEANING
Page 589 of 601
588
Alphabetical index
Alphabetical index
A/C ............................................. 246
AAC disc ................................... 272
ABS ........................................... 201
Access doors .............................41
Active traction control system .................................... 191
Air conditioning filter............... 447
Air conditioning system
Air conditioning filter .............. 447
Manual air conditioning system ................................ 246
Airbags Airbag operating conditions.....89
Airbag precautions for your
child ......................................94
Airbag warning light............... 485
Curtain shield airbag
operating conditions..............90
Curtain shield airbag
precautions ...........................94
Front passenger occupant classification system ........... 100
General airbag precautions .....94
Locations of airbags ................86
Modification and disposal of airbags ..............................98
Proper driving posture .......84, 94
Roll sensing of curtain shield airbag off switch .................... 99
Side airbag operating conditions..............................90
Side airbag precautions ..........94
SRS airbags ............................86
Antenna..................... 344, 396, 398
Anti-lock brake system ABS warning light .................. 485
Anti-lock brake system .......... 201 Audio input ............................... 259
Audio system
Antenna................. 344, 396, 398
Audio input ............................ 259
AUX port ............................... 259
CD player .............................. 272
iPod ....................................... 279
MP3/WMA/AAC disc ............. 272
Portable music player .................................. 259
Steering wheel audio switch
*
Sub woofer ............................ 343
Type ...................................... 253
USB memory......................... 285
AUTO LSD system ................... 193
Automatic light off system...... 164
Automatic limited slip differential .............................. 193
Automatic transmission
Automatic transmission ......... 144
If the shift lever cannot be shifted from P ..................... 512
AUX port ................................... 259
Auxiliary box .... 349, 354, 372, 373
Back-up lights Replacing light bulbs ............. 468
Wattage................................. 546
Back window .............................. 77
Battery Charging system warning light ..................................... 485
Checking ............................... 426
If the vehicle battery is discharged .......................... 514
Preparing and checking before winter ....................... 219
Bluetooth
® audio ..................... 313
Bluetooth® phone .................... 314
A
B
Page 590 of 601
589
Alphabetical index
Bottle holders .................. 349, 353
Brake assist ............................. 201
Brakes
Brake system warning buzzer........... 192, 194, 199, 205, 484
Brake system warning light .................................... 484
Fluid...................................... 422
Parking brake ....................... 152
Break-in tips ............................ 132
Camper information ................ 578
Care Exterior ................................. 396
Interior .................................. 399
Seat belts ............................. 400
Cargo capacity ................ 212, 527
Cargo net hook ................ 372, 380
CD player ................................. 272
Certification label ............ 227, 531
Chains ...................................... 220
Child restraint system Booster seats, definition ....... 105
Booster seats, installation .... 119
Convertible seats, definition............................. 105
Convertible seats, installation .......................... 116
Front passenger occupant classification system .......... 100
Infant seat, definition ............ 105
Infant seats, installation ........ 116
Installing CRS with LATCH system........................ 113, 115
Installing CRS with seat belts ................................... 116
Installing CRS with top
tether straps ....... 120, 123, 124 Child safety
Airbag precautions ..................94
Battery precautions .......427, 517
Child restraint system............105
Child-protectors .......................39
How your child should wear
the seat belt ..........................63
Installing child restraints ........109
Power window lock switch.......75
Power window precautions .....76
Removed wireless remote
control battery
precautions .........................451
Seat belt extender
precautions ...........................66
Seat belt precautions ..............64
Seat heater precautions ........368
Child-protectors .........................39
Cleaning Exterior ..................................396
Interior ...................................399
Seat belts ..............................400
Clock ........................................ 359
Clutch start cancel switch.......200
Compass ...................................389
Condenser ................................422
Console box .....................349, 350
Cooling system Engine overheating ...............518
CRS ...........................................105
Cruise control...........................172
Cup holders ......................349, 351
Curtain shield airbags ...............86
Customizable features.............561
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
C
