TOYOTA TACOMA 2016 (in English) User Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Power steering fluid reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”

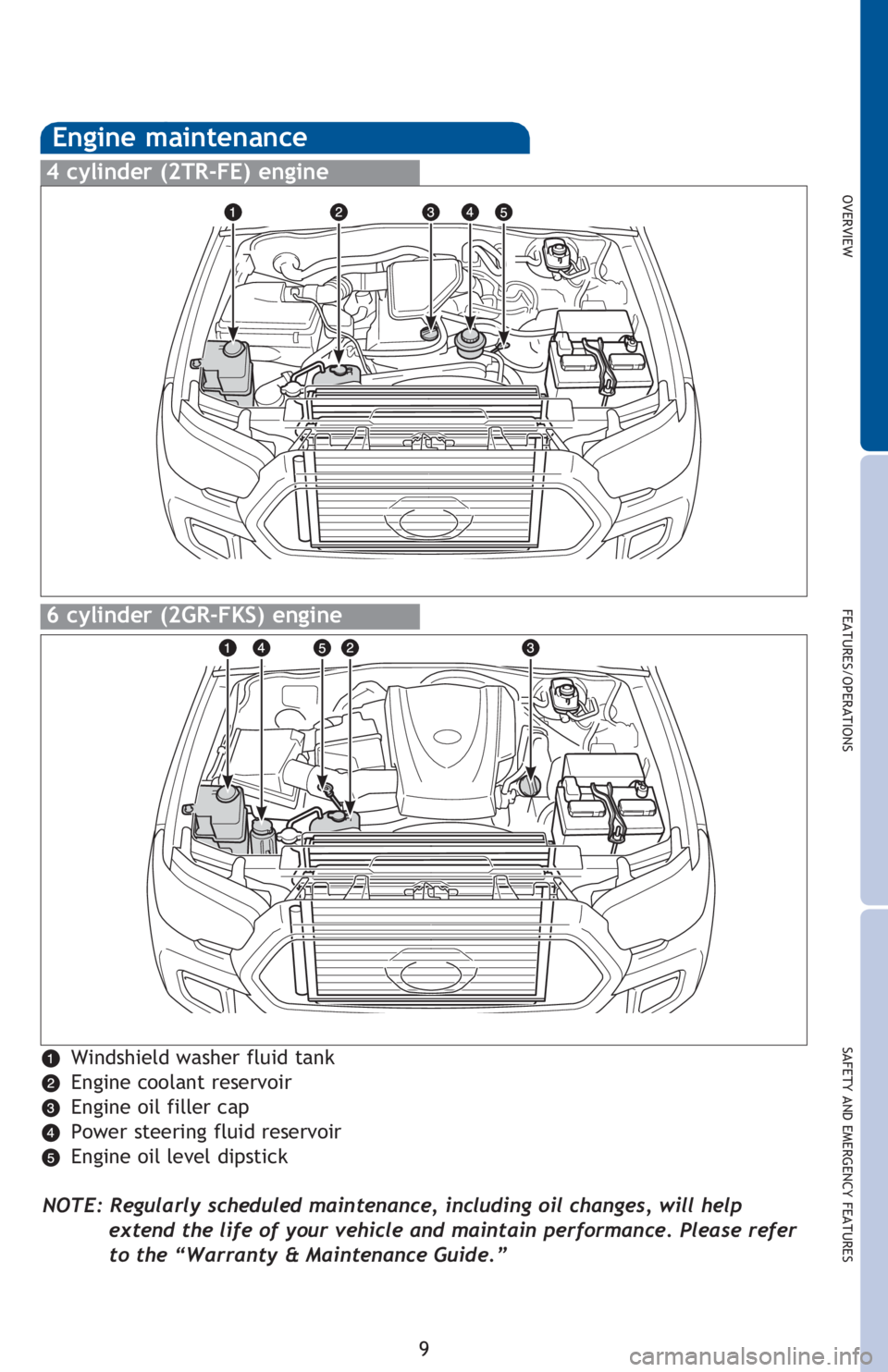

Engine maintenance
4 cylinder (2TR-FE) engine
6 cylinder (2GR-FKS) engine

10
FEATURES/OPERATIONS
Automatic transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
The initial shift range in “S” mode is set automatically to 5 or 4 according
to vehicle speed.
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Park*
Reverse
Neutral
Drive
“S” mode- (“S” mode)
+ (“S” mode)
Use when high levels of response and feeling are desirable, such as when driving in
mountainous regions or when pulling a trailer.
Power mode
Type A Type B
Selecting shift ranges using “S” mode restricts the upper limit of the possible gear
ranges, controls engine braking forces and prevents unnecessary upshifting.
“S” mode
+(upshifting)
(downshifting)-

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

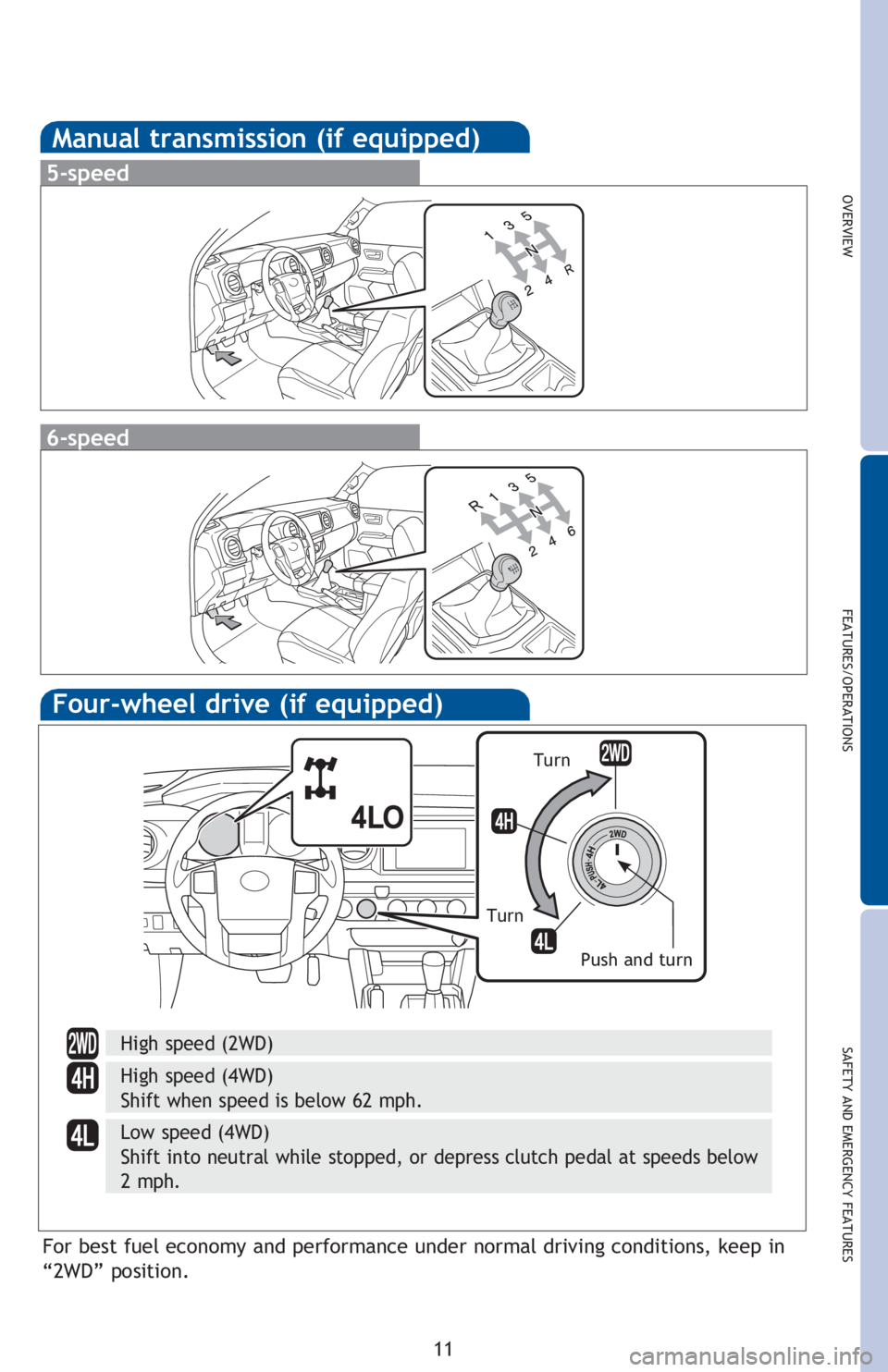

Manual transmission (if equipped)
5-speed
6-speed
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Shift when speed is below 62 mph.
Low speed (4WD)
Shift into neutral while stopped, or depress clutch pedal at speeds below
2 mph.
For best fuel economy and performance under normal driving conditions, keep in
“2WD” position.
Turn
Push and turn
Turn

12
FEATURES/OPERATIONS

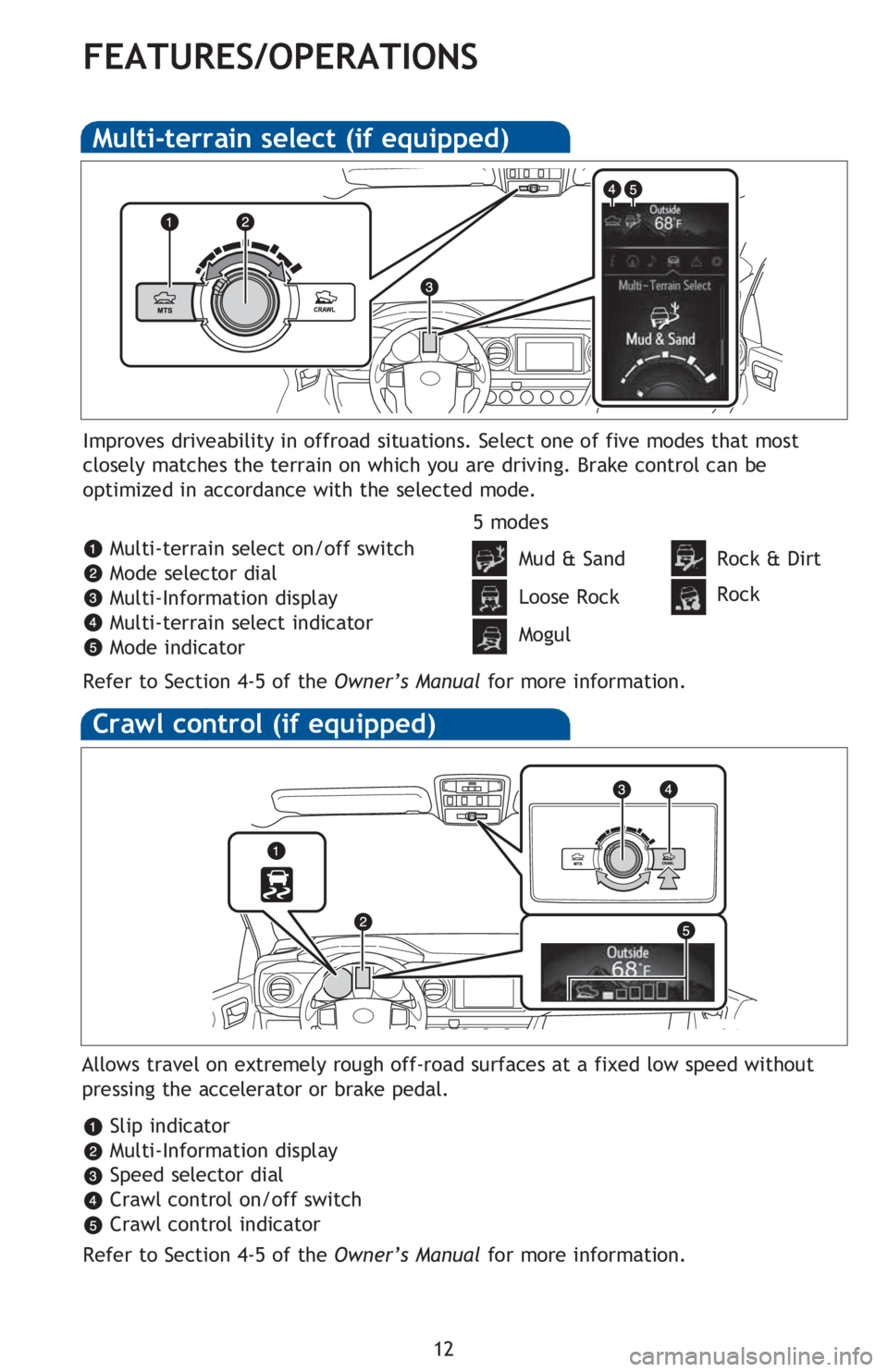

Crawl control (if equipped)
Allows travel on extremely rough off-road surfaces at a fixed low speed without
pressing the accelerator or brake pedal.
Refer to Section 4-5 of the Owner’s Manual for more information. Refer to Section 4-5 of the Owner’s Manual for more information. Improves driveability in offroad situations. Select one of five modes that most
closely matches the terrain on which you are driving. Brake control can be
optimized in accordance with the selected mode.
Multi-terrain select on/off switch
Mode selector dial
Multi-Information display
Multi-terrain select indicator
Mode indicator
5 modes
Mud & Sand
Loose Rock
Mogul
Rock & Dirt
Rock
Multi-terrain select (if equipped)
Slip indicator
Multi-Information display
Speed selector dial
Crawl control on/off switch
Crawl control indicator

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

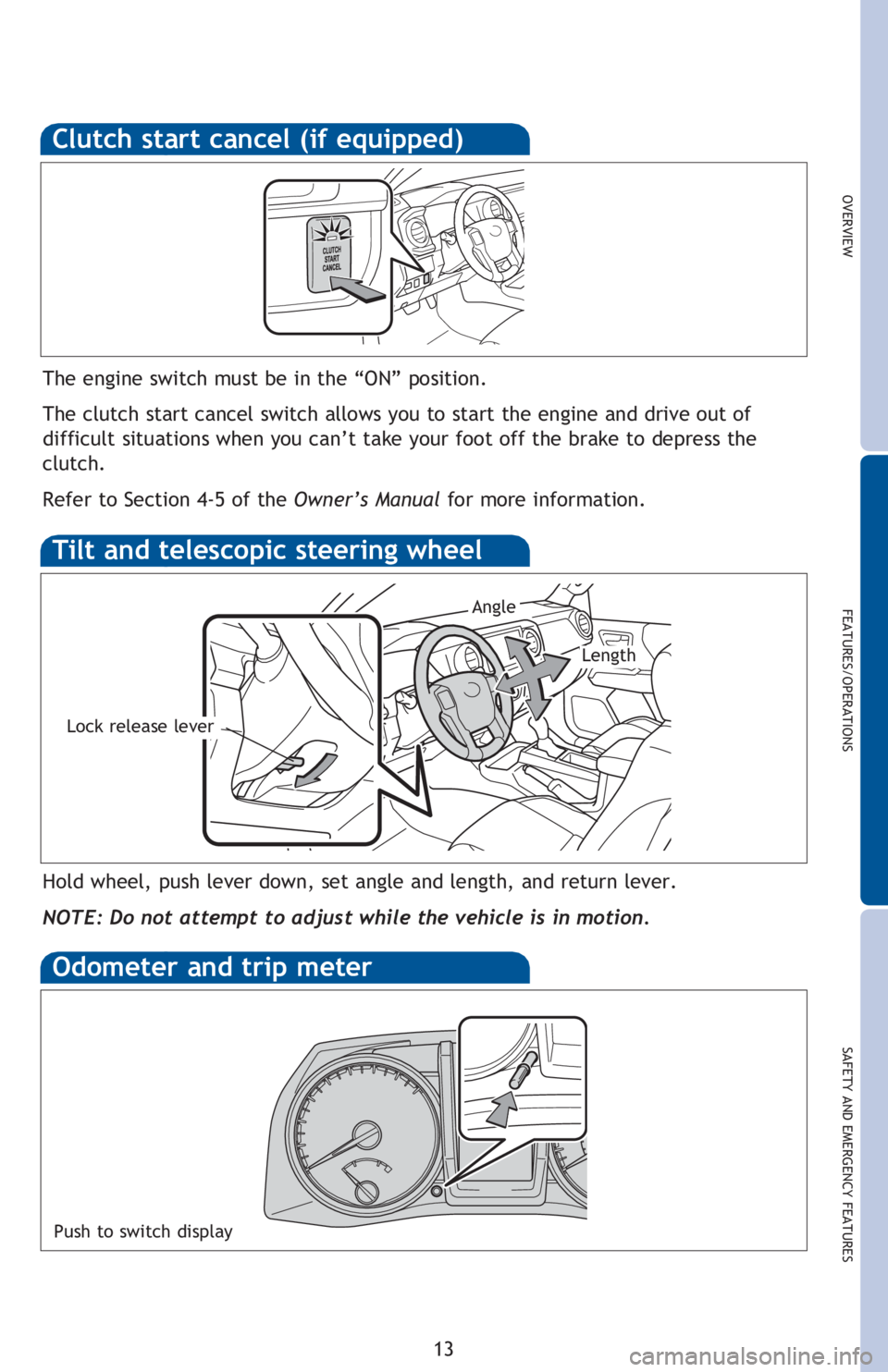

Odometer and trip meter
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Angle
Lock release lever
Clutch start cancel (if equipped)
The engine switch must be in the “ON” position.
The clutch start cancel switch allows you to start the engine and drive out of
difficult situations when you can’t take your foot off the brake to depress the
clutch.
Refer to Section 4-5 of the Owner’s Manual for more information.
Push to switch display

14
FEATURES/OPERATIONS

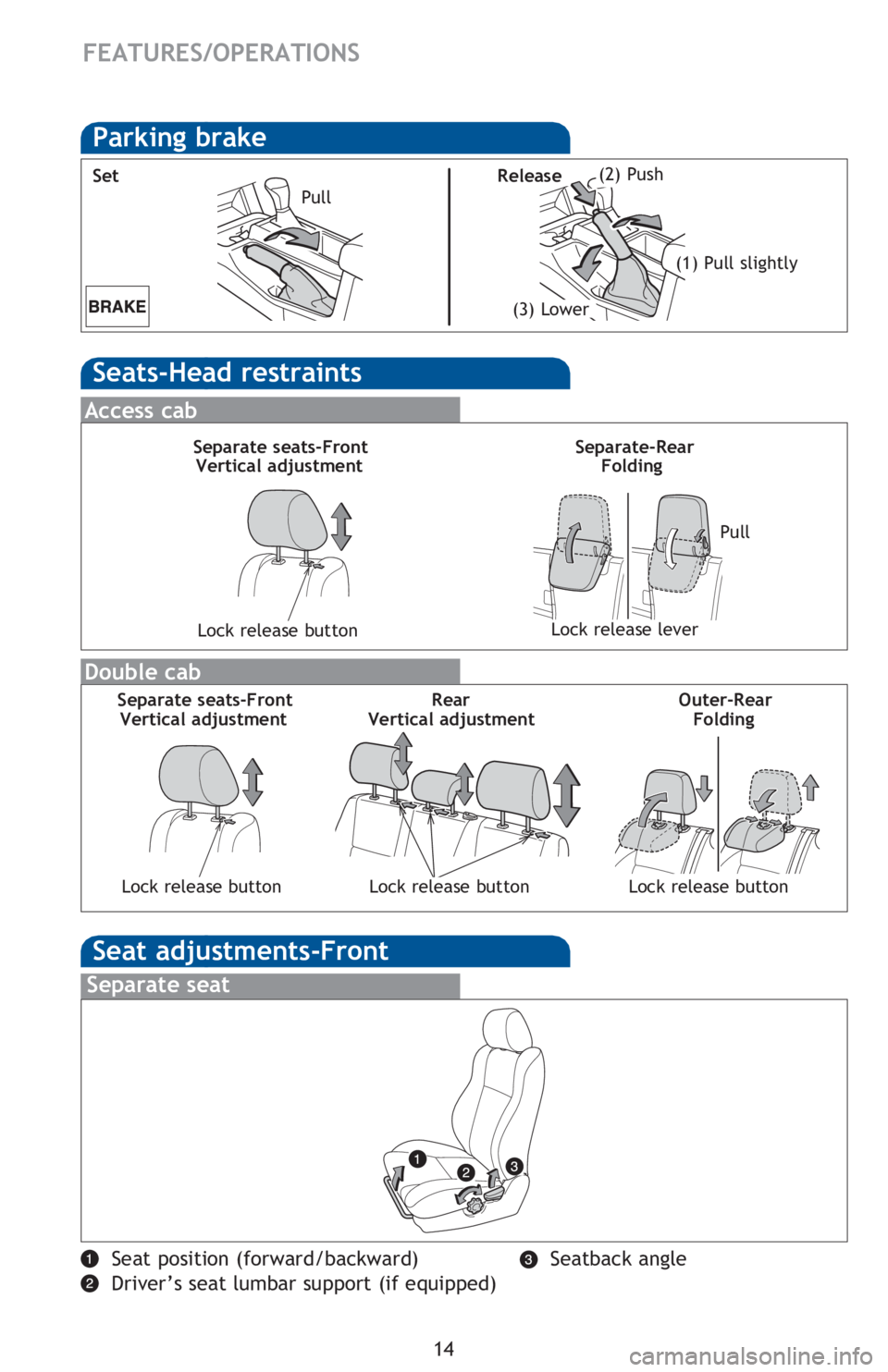

Seat adjustments-Front
Separate seat
Seatback angleSeat position (forward/backward)
Driver’s seat lumbar support (if equipped)
Seats-Head restraints
Parking brake
(1) Pull slightly
(3) Lower
SetRelease(2) Push
Pull
Access cab
Separate seats-Front
Lock release button
Separate-Rear
Lock release lever
Pull Vertical adjustment Folding
Outer-Rear
Folding
Lock release button
Separate seats-Front
Lock release button
Rear
Vertical adjustment
Lock release button
Double cab
Vertical adjustment

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15Pull lock release strap and fold
down the seatback.

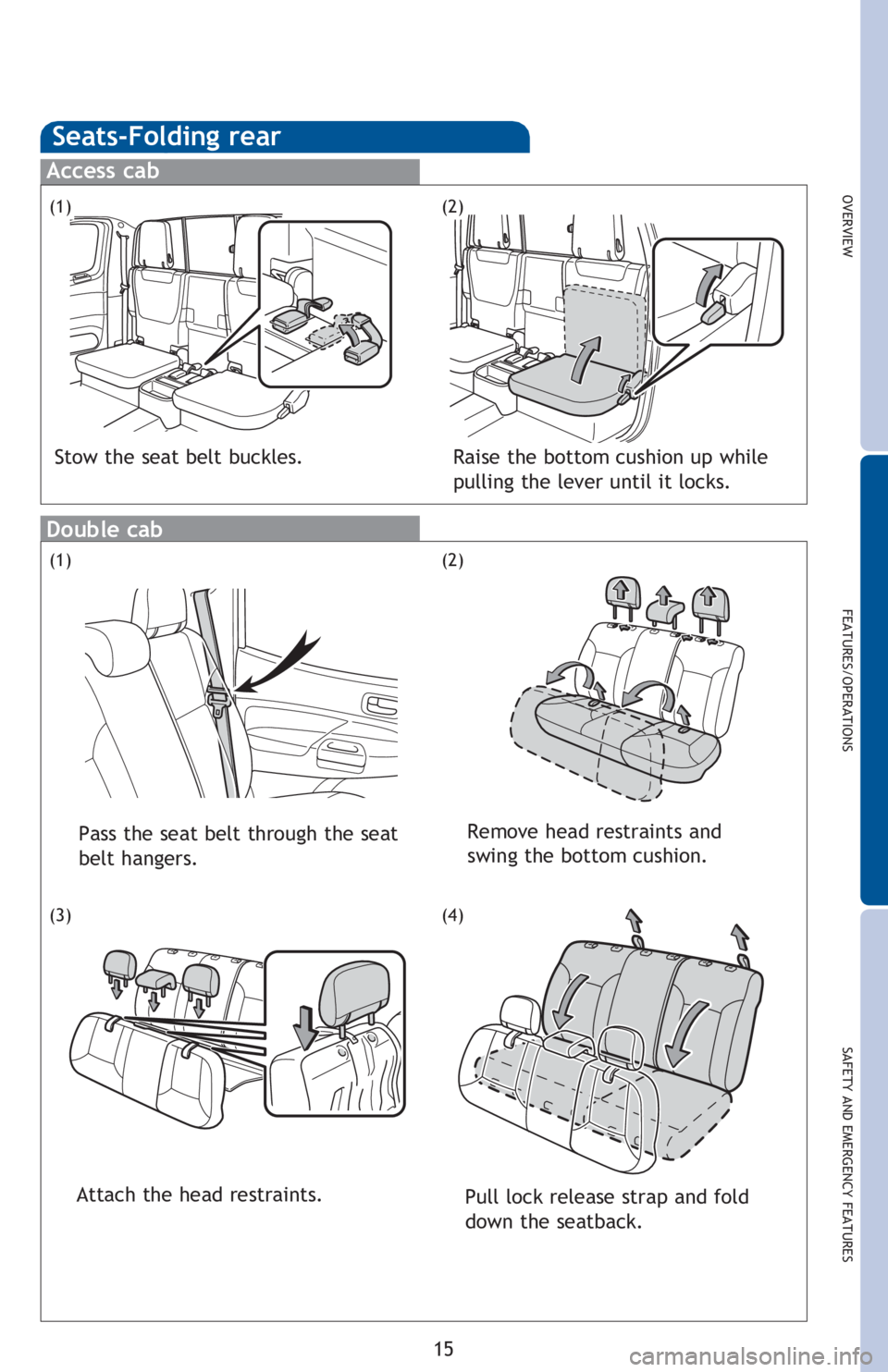

Seats-Folding rear
Access cab
Double cab
Stow the seat belt buckles.
Pass the seat belt through the seat
belt hangers.Raise the bottom cushion up while
pulling the lever until it locks.
(1)
(1)
(3)
(2)
(2)
(4)
Remove head restraints and
swing the bottom cushion.
Attach the head restraints.

16
FEATURES/OPERATIONS

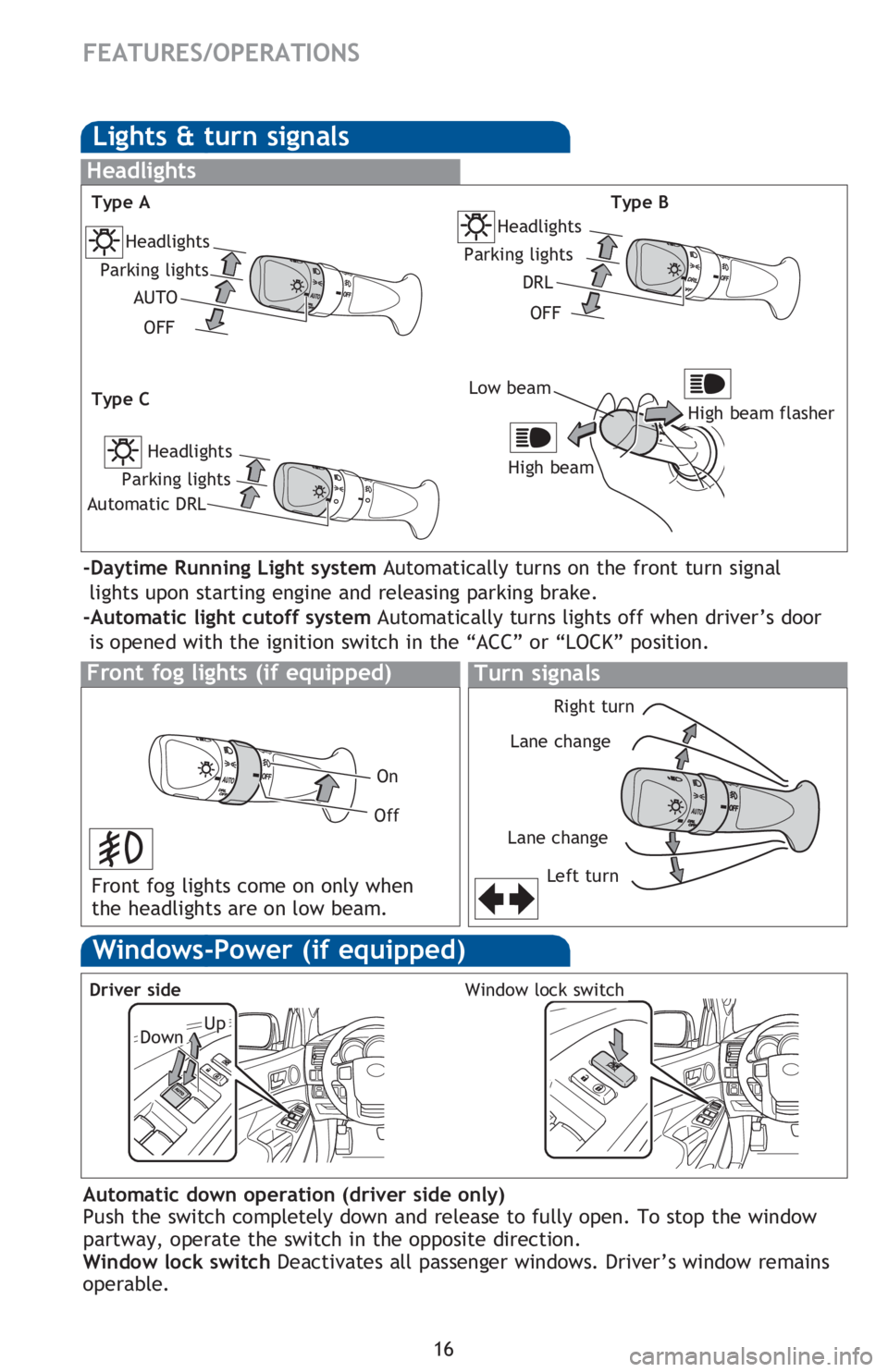

Lights & turn signals
Headlights
-Daytime Running Light system Automatically turns on the front turn signal
lights upon starting engine and releasing parking brake.
-Automatic light cutoff system Automatically turns lights off when driver’s door
is opened with the ignition switch in the “ACC” or “LOCK” position.
High beam flasher Low beam
High beam
Windows-Power (if equipped)
UpDown
Driver sideWindow lock switch
Automatic down operation (driver side only)
Push the switch completely down and release to fully open. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Turn signalsFront fog lights (if equipped)
Front fog lights come on only when
the headlights are on low beam.
Right turn
On
OffLane change
Lane change
Left turn Headlights
Parking lights
AUTO
OFF
Type A
Automatic DRL
Parking lights
Headlights
Type CHeadlights
Parking lights
DRL
OFF
Type B

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
Resume2/Increase speed
Set/Decrease speed
Cancel1
Windshield wipers & washers
With intermittent wiper
Without intermittent wiper
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Interval wipe Single wipe
Slow
FastPull to wash and wipeAdjust frequency*
Pull to wash and wipeSingle wipe
Slow
Fast
System ON/OFF

18
FEATURES/OPERATIONS

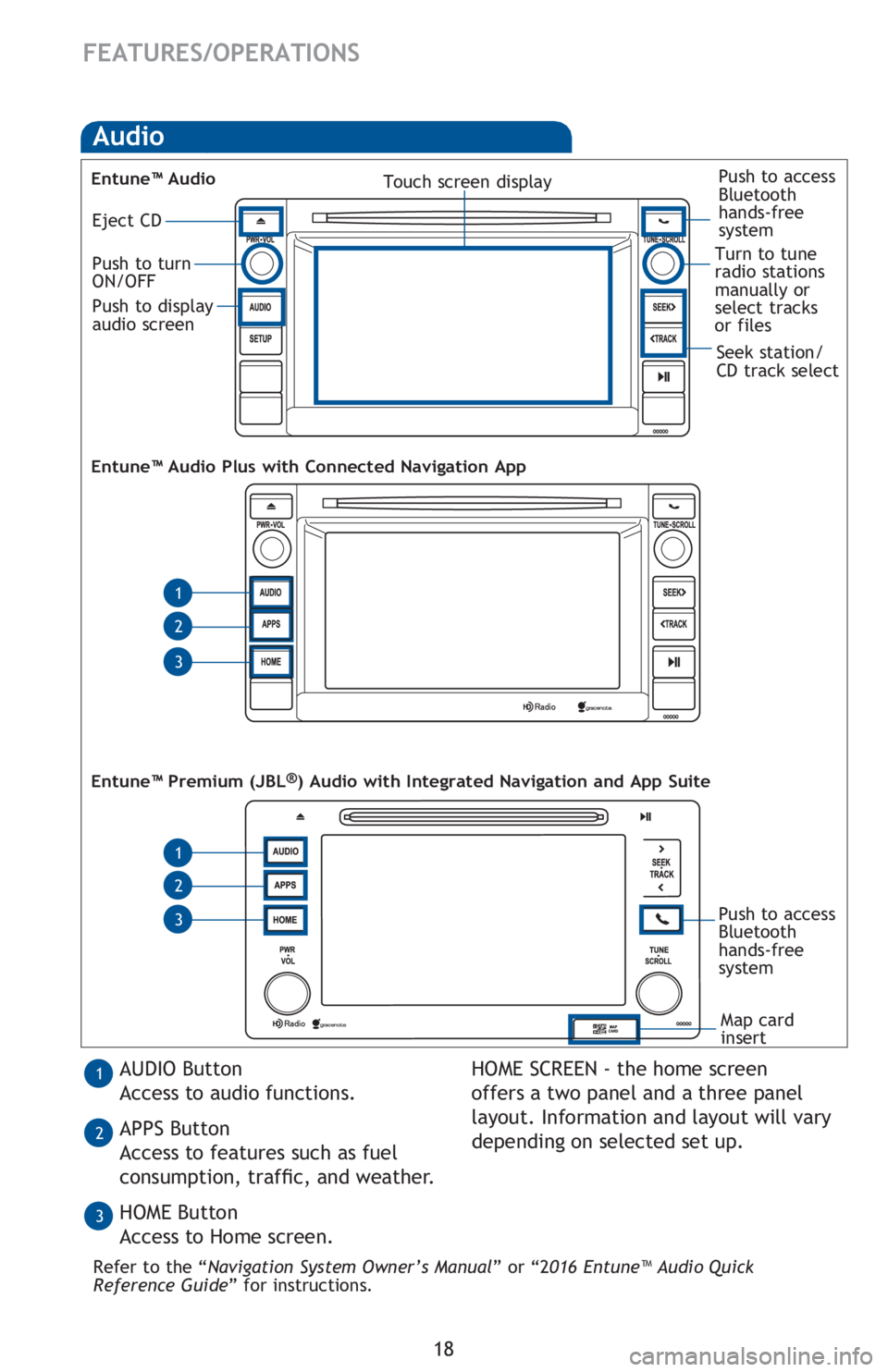

Audio
Refer to the “Navigation System Owner’s Manual” or “2016 Entune™ Audio Quick
Reference Guide” for instructions.
AUDIO Button
Access to audio functions.
APPS Button
Access to features such as fuel
FRQVXPSWLRQWUDI
