TOYOTA TACOMA 2016 (in English) Owner's Manual

OVERVIEWFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19 “ ”
Use to search within the selected audio medium (radio, CD, etc.).
“
”
Push to increase or decrease volume.
“
”
Push to access voice command features.
“
”
Push to change audio source or push and hold to mute or pause current
operation.

>>
Steering wheel switches
USB/AUX port
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Type AType B

20
FEATURES/OPERATIONS
Multi-Information Display
(if equipped)
Push Multi-Information control switches to change information in the
following:
Drive information
Navigation system linked display (if equipped)
Audio system linked display
Vehicle information (if equipped)
Warning messages
Settings display Select: To select an item/change pages
Enter/Set: Press to enter/set, press and hold to resets
Menu/Display: Switch the top screen
Return: To previous
Moon roof (if equipped)
Sliding operationTilting operation
OpenTilt
CloseClose
Recommended driving position
to minimize wind noise.
Push once to open; moon roof will automatically stop at the recommended
position. Push again to open completely.
Push once to open partway;
again to open completely.

21 Selectors and switches
Temperature setting (Driver and passenger*)
Windshield defogger (outside air only)
Airflow vent adjuster
In “
/” or “” mode, use outside air (“” indicator OFF) to reduce
window fogging.
Recirculate cabin air (outside air when OFF)
“SYNC” button
Indicator ON: Synchronized temperature settings for driver, front passenger.
Indicator OFF: Separate temperature settings for driver, front passenger.
Air Conditioning ON/OFF
Use outside air to quickly cool interior, then change to recirculate for cooler
air.
Airflow vent mode select
Fan OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Outside rear view mirror defogger.
OVERVIEWFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
*If equipped
Air Conditioning/Heating
Automatic Air Conditioning
Display
Temperature (Driver and passenger*)
Fan speed
Air flow vent
Manual Air Conditioning

22
Seat heaters
To find your system, refer to the Audio section of this guide,
For Entune™Audio
Push “SETUP” button next to the screen
then select “General” in the touch screen to access clock setting.
For Entune™ Audio Plus with Connected Navigation App and Entune™ Premium
(JBL®) Audio with Integrated Navigation and App Suite
Push “APPS” button next to the screen, then select “General” in the touch screen
to access clock setting.Press to ON>Hi>Mid>Lo>OFF
Clock
FEATURES/OPERATIONS
Hi
Mid
Lo

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Power outlets
Trailer lights (if equipped)
12V DC
Key must be in the “ACC” or “ON” position to be used.
Refer to the Owner’s Manual for more details. Use wire harness to connect
trailer lights.Use service connector for the
trailer brake controller.
120V AC (if equipped)
120 V AC/100 W
120 V AC/400 W
The power outlet can be used when the engine is running.
Refer to the Owner’s Manual for more details.

24
FEATURES/OPERATIONS
Active traction control (if equipped)
The active traction control system automatically helps prevent the spinning of 4
wheels when the vehicle is started or accelerated on slippery road surfaces.
Refer to the Owner’s Manual for more information.
Use ONLY when wheel spinning occurs in a ditch, or on slippery or unpaved
surfaces. DO NOT USE THE REAR DIFFERENTIAL LOCK IN CONDITIONS OTHER
THAN THOSE SPECIFIED IN THE OWNER’S MANUAL. UNLOCK THE DIFFERENTIAL
ONCE THE VEHICLE MOVES OUT OF THE TROUBLE SPOT.
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
Rear differential lock (if equipped)
The TRAC OFF switch is used to switch between modes related to the TRAC, VSC
and Auto LSD functions.
Refer to the Owner’s Manual for more information.
TRAC/VSC OFF switch

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
B l i n d S p o t M o n i t o r (BSM) w i t h R e a r C r o s s
Traffic Alert (RCTA) (if equipped)
BSM main switch
Outside rear view mirror indicators
Rear Cross Traffic Alert buzzer*
Drivers can change lanes and back up with enhanced confidence and safety by
using the available Blind Spot Monitor (BSM) with Rear Cross Traffic Alert (RCTA).

Blind Spot Monitor brings an additional visual layer of confidence when changing
lanes with illuminated side mirror indicators.
Rear Cross Traffic Alert works best for detecting oncoming cross traffic, helping
the driver avoid unexpected collisions when backing up.
*Rear Cross Traffic Alert function only.
Refer to the Owner’s Manual for more information.

26
FEATURES/OPERATIONS
The distance from your vehicle to nearby obstacles when parallel parking or
maneuvering into a garage is measured by the sensors and communicated via the
Multi-Information display and buzzer. Always check the surrounding area when
using this system.
Refer to the Owner’s Manual for more information.
Park assist (if equipped)
Push
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
integrated in the tailgate handle.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for more details on this system.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27
SAFETY AND EMERGENCY FEATURES
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Seat belts-Shoulder belt anchor
Push up, or squeeze lock
release to lower
Door locks-Power (if equipped)
LockUnlock

28

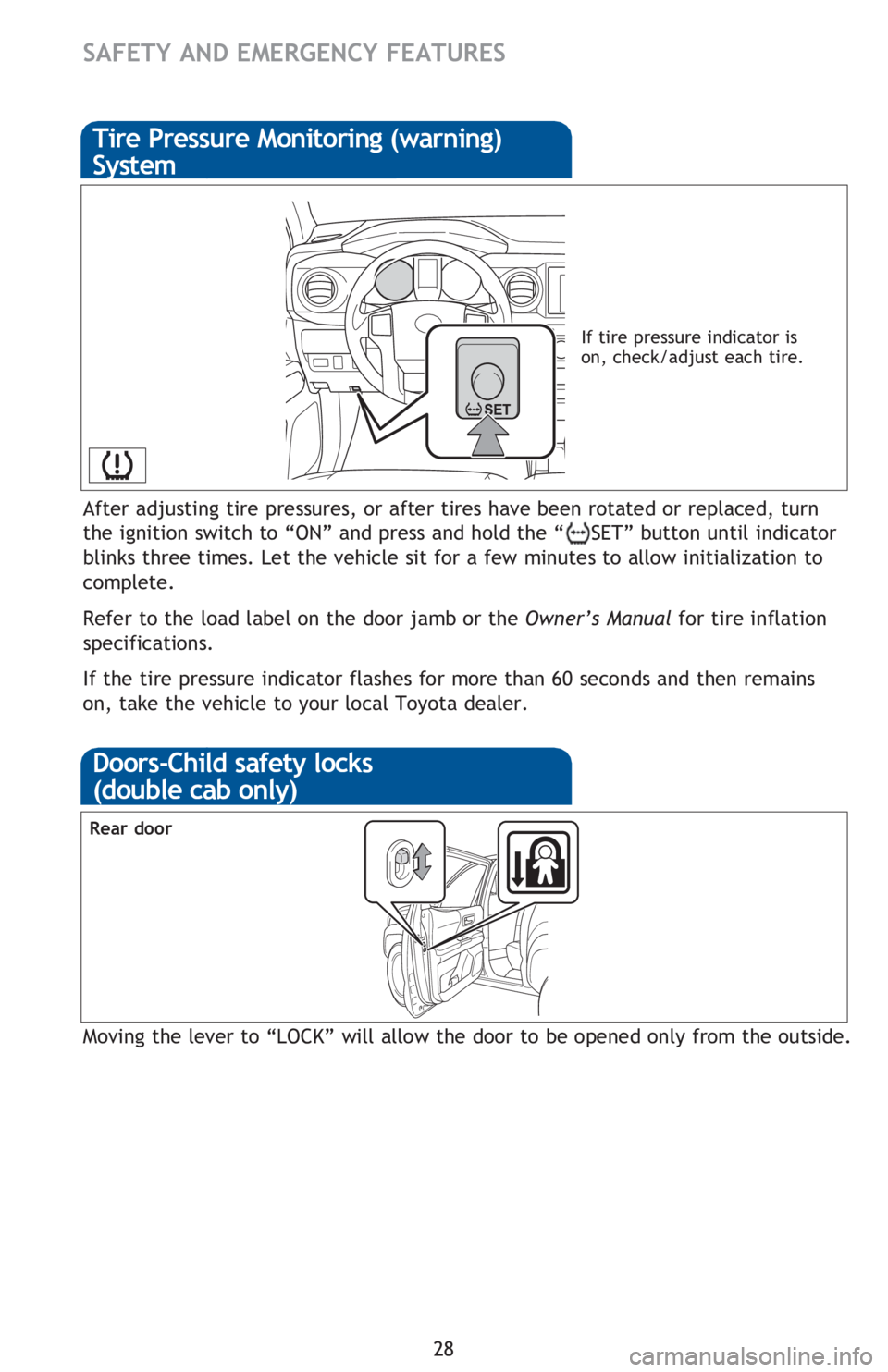

After adjusting tire pressures, or after tires have been rotated or replaced, turn
the ignition switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
Tire Pressure Monitoring (warning)
System
SAFETY AND EMERGENCY FEATURES
If tire pressure indicator is
on, check/adjust each tire.
Doors-Child safety locks
(double cab only)
Moving the lever to “LOCK” will allow the door to be opened only from the outside.
Rear door
