TOYOTA TACOMA 2017 (in English) User Guide

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
9
Windshield washer fluid tank
Windshield washer fluid tank
Engine coolant reservoirEngine oil filler cap
Engine oil filler cap
Power steering fluid reservoir
Power steering fluid reservoir
Engine oil level dipstick

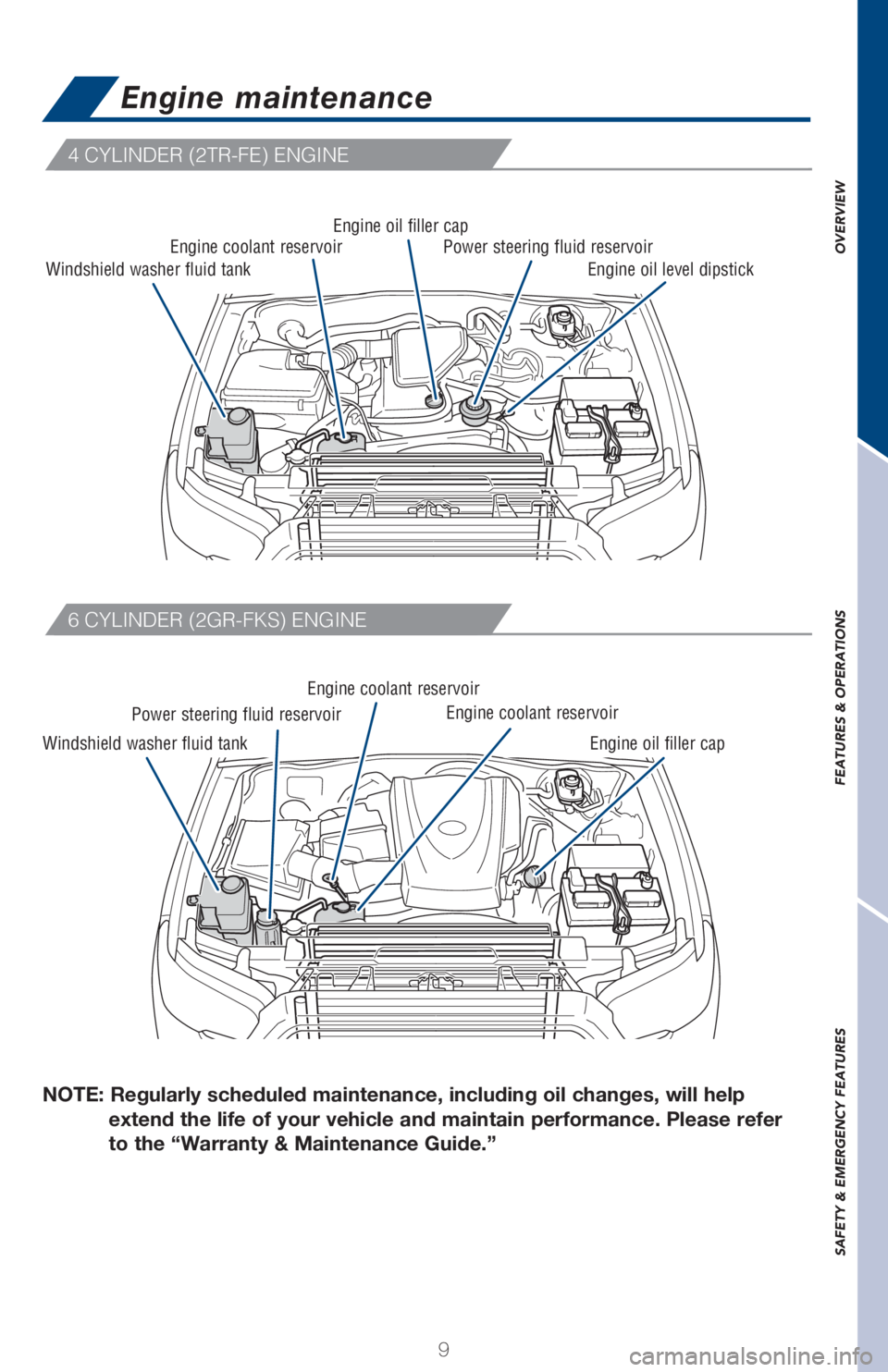

4 CYLINDER (2TR-FE) ENGINE
6 CYLINDER (2GR-FKS) ENGINE
Engine maintenance
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine coolant reservoir
Engine coolant reservoir

10

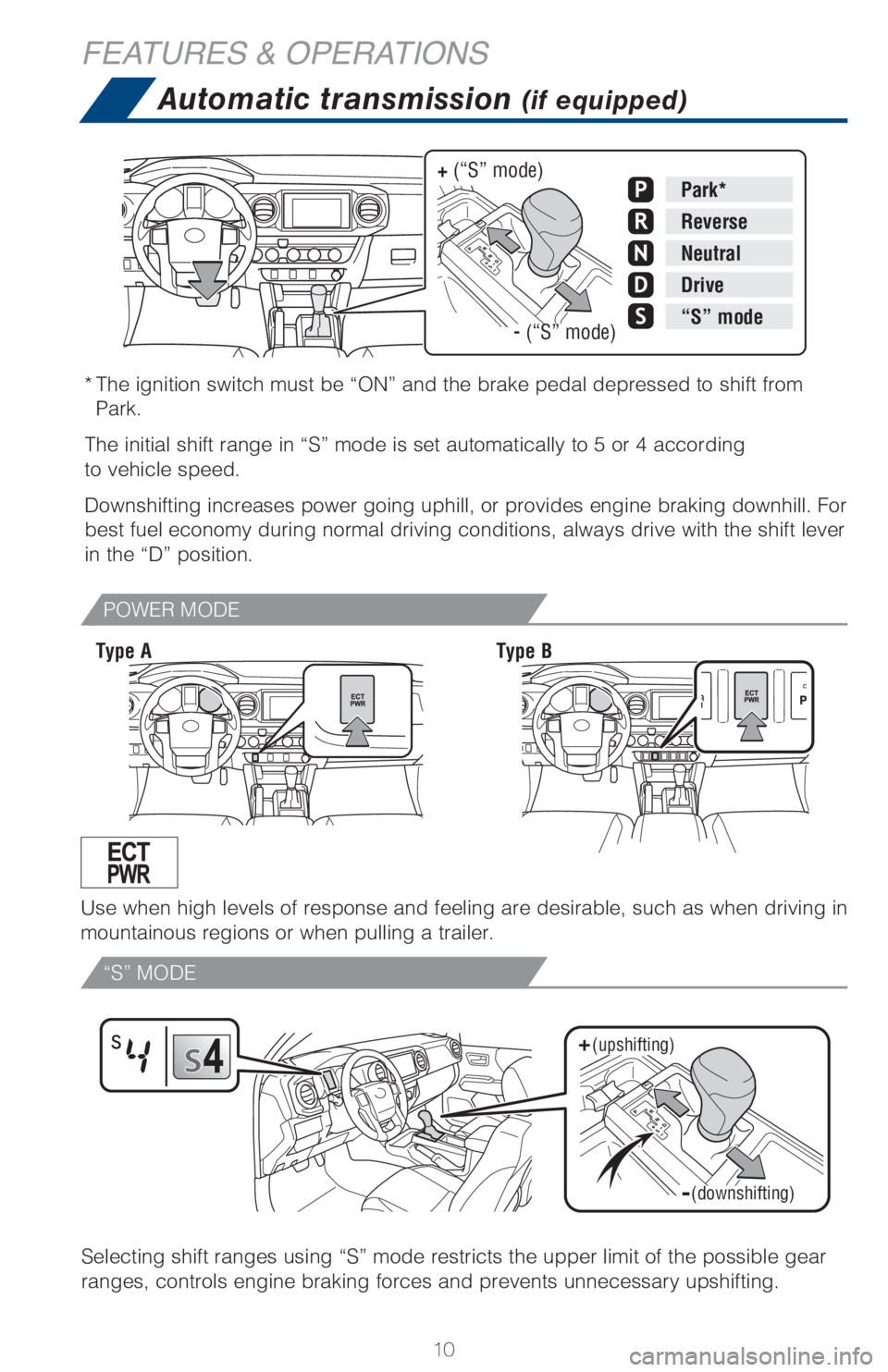

Automatic transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
The initial shift range in “S” mode is set automatically to 5 or 4 according
to vehicle speed.
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Park*
Reverse
Neutral
Drive
“S” mode- (“S” mode) + (“S” mode)
Use when high levels of response and feeling are desirable, such as when driving in
mountainous regions or when pulling a trailer.
Type AType B
Selecting shift ranges using “S” mode restricts the upper limit of the possible gear
ranges, controls engine braking forces and prevents unnecessary upshifting.
+(upshifting)
(downshifting)-
FEATURES & OPERATIONS
POWER MODE
“S” MODE

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
11

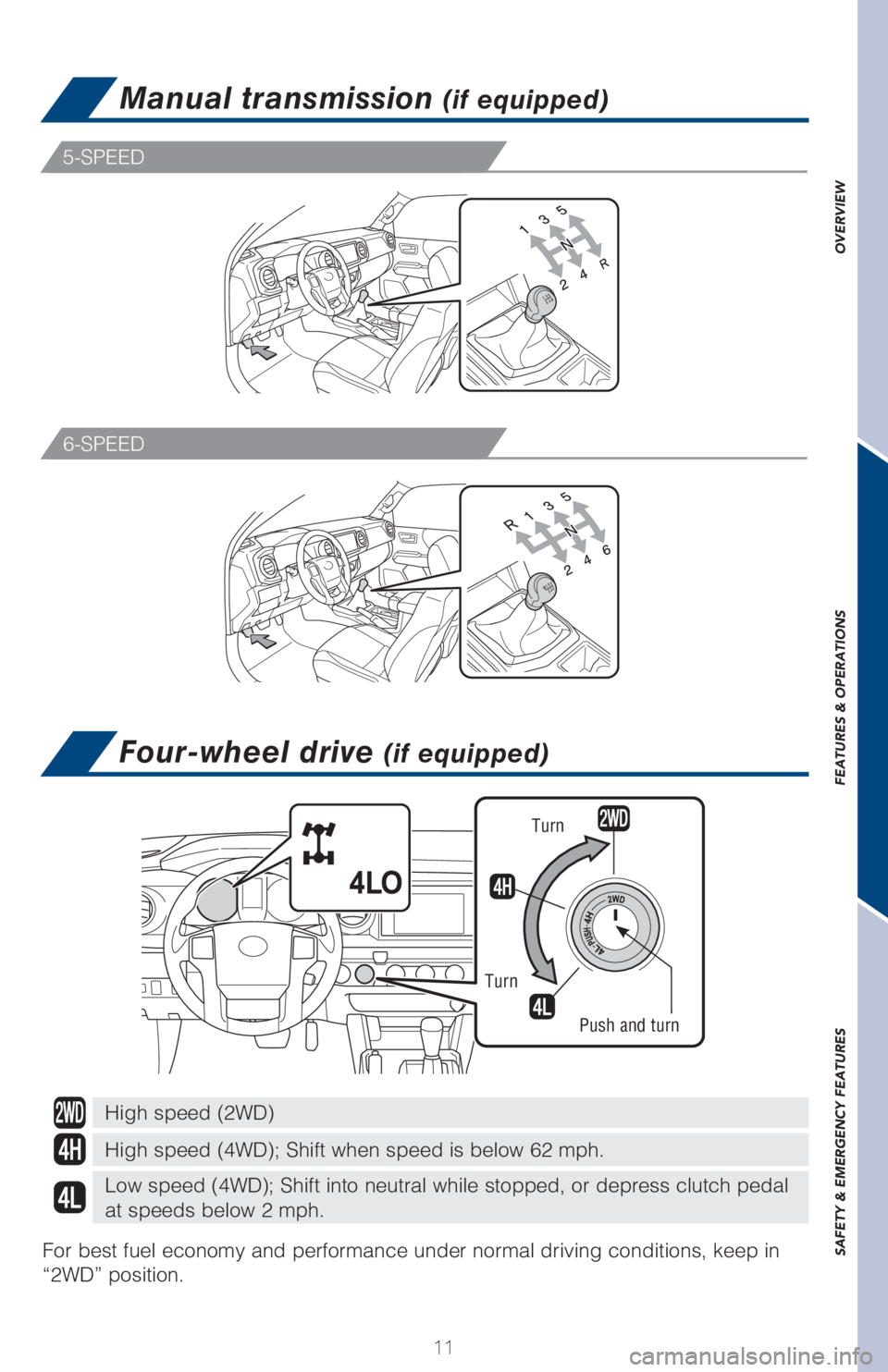

Manual transmission (if equipped)
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD); Shift when speed is below 62 mph.
Low speed (4WD); Shift into neutral while stopped, or depress clutch pedal
at speeds below 2 mph.
For best fuel economy and performance under normal driving conditions, keep in
“2WD” position.
Turn
Push and turn
Turn
5-SPEED
6-SPEED

12

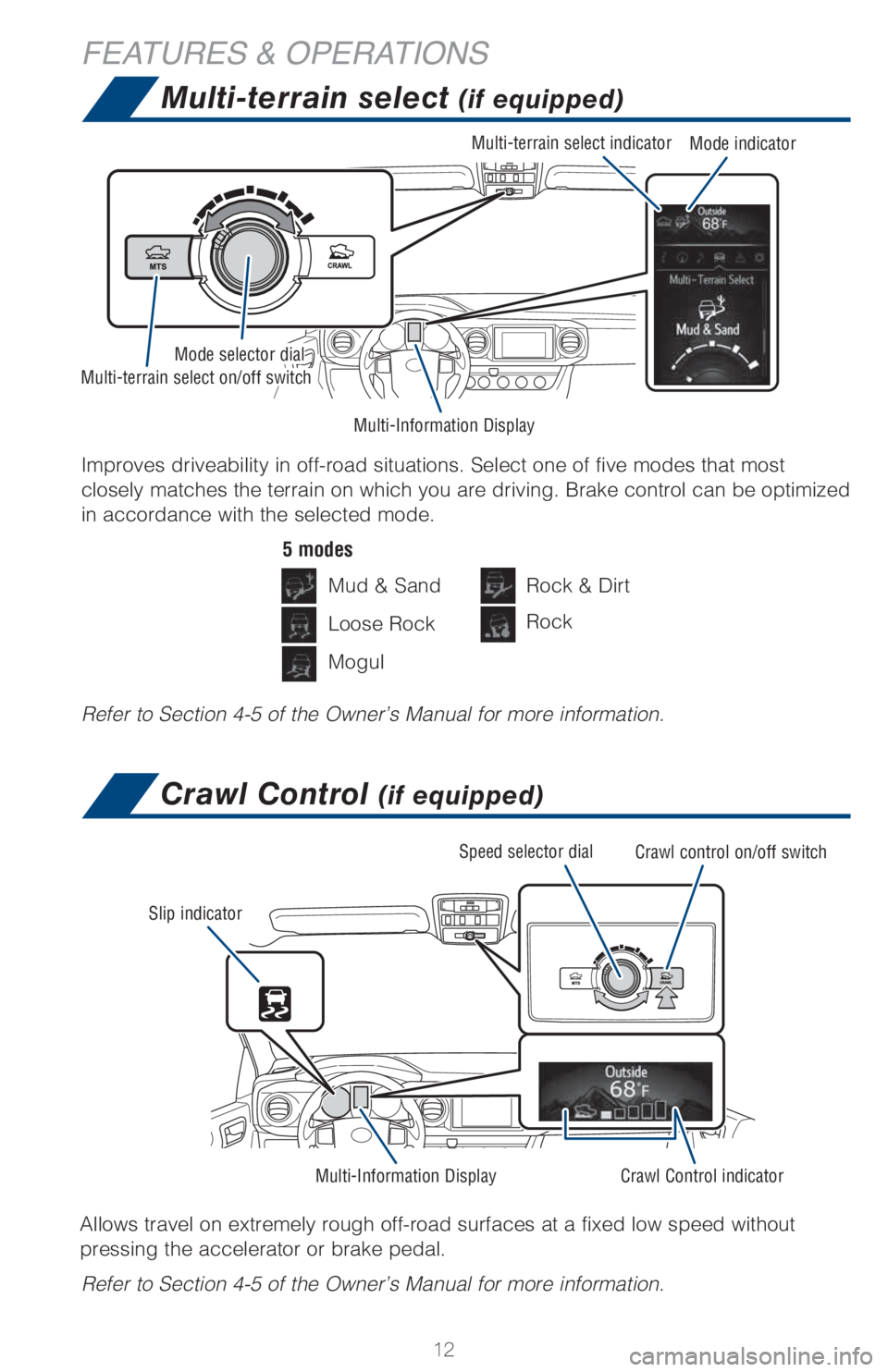

Multi-terrain select (if equipped)
Crawl Control (if equipped)
FEATURES & OPERATIONS
Allows travel on extremely rough off-road surfaces at a fixed low speed without
pressing the accelerator or brake pedal.
3FGFSUP4FDUJPOPGUIF0XOFST.BOVBMGPSNPSFJOGPSNBUJPO 3FGFSUP4FDUJPOPGUIF0XOFST.BOVBMGPSNPSFJOGPSNBUJPO Improves driveability in off-road situations. Select one of five modes that most
closely matches the terrain on which you are driving. Brake control can be optimized
in accordance with the selected mode.
5 modes
Mud & Sand
Loose Rock
Mogul
Rock & Dirt
Rock
Multi-Information DisplayMulti-terrain select indicator
Mode indicator
Multi-terrain select on/off switch
Mode selector dial
Slip indicator
Multi-Information Display Crawl Control indicatorSpeed selector dial
Crawl control on/off switch

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
13

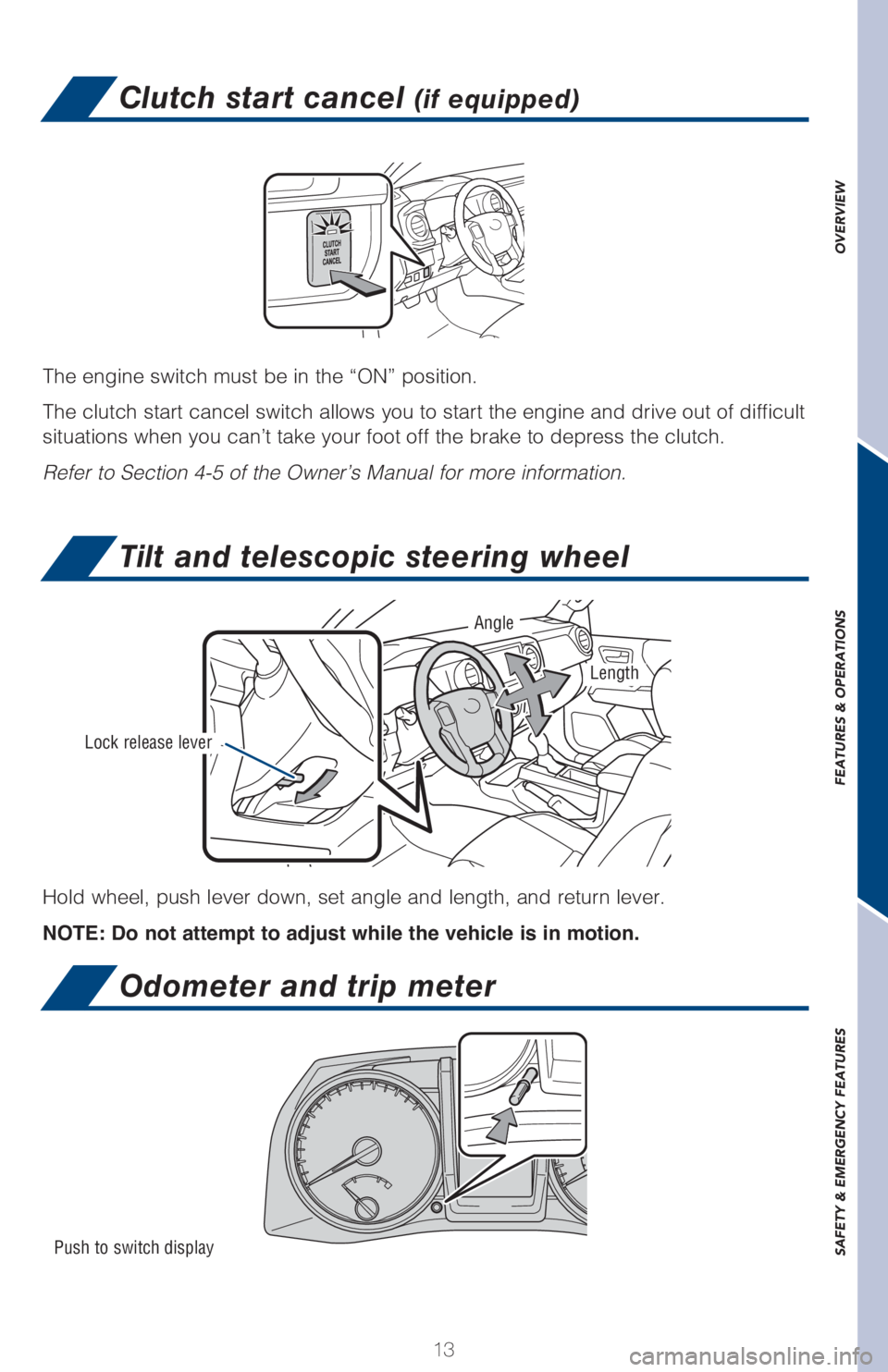

Clutch start cancel (if equipped)
Tilt and telescopic steering wheel
Odometer and trip meter
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Angle
Lock release lever
The engine switch must be in the “ON” position.
The clutch start cancel switch allows you to start the engine and drive out of difficult
situations when you can’t take your foot off the brake to depress the clutch.
3FGFSUP4FDUJPOPGUIF0XOFST.BOVBMGPSNPSFJOGPSNBUJPO
Push to switch display

14

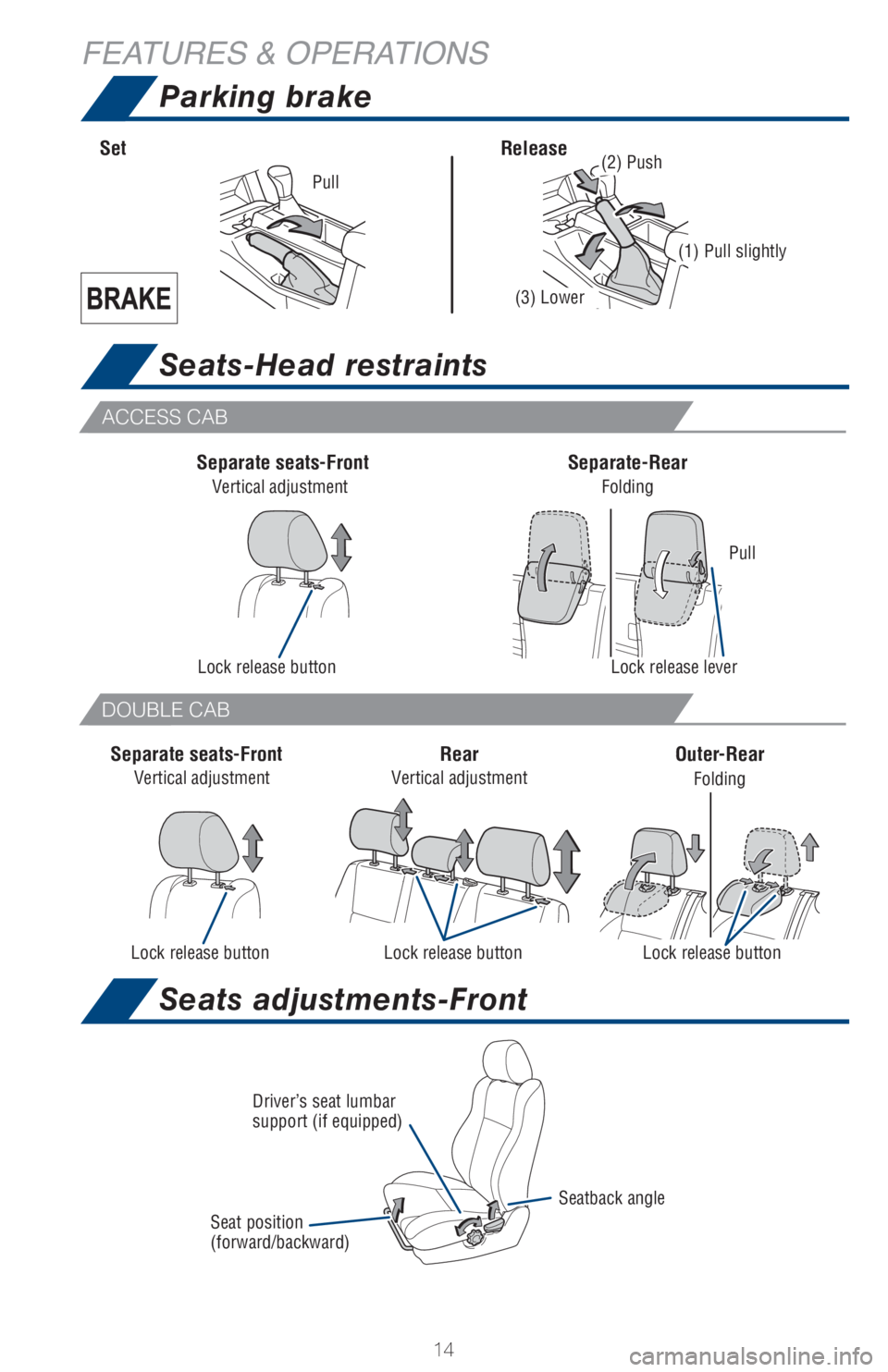

Parking brake
Seats-Head restraints
Seats adjustments-Front
FEATURES & OPERATIONS
(1) Pull slightly
(3) Lower
SetRelease(2) PushPull
Lock release buttonLock release lever
Pull
Separate seats-Front
Vertical adjustment
Separate-Rear
Folding
Folding
Outer-Rear
Lock release button
Seatback angle
Lock release buttonLock release button
Separate seats-FrontRear
Vertical adjustment Vertical adjustment
Seat position
(forward/backward)Driver’s seat lumbar
support (if equipped)
ACCESS CAB
DOUBLE CAB

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
15

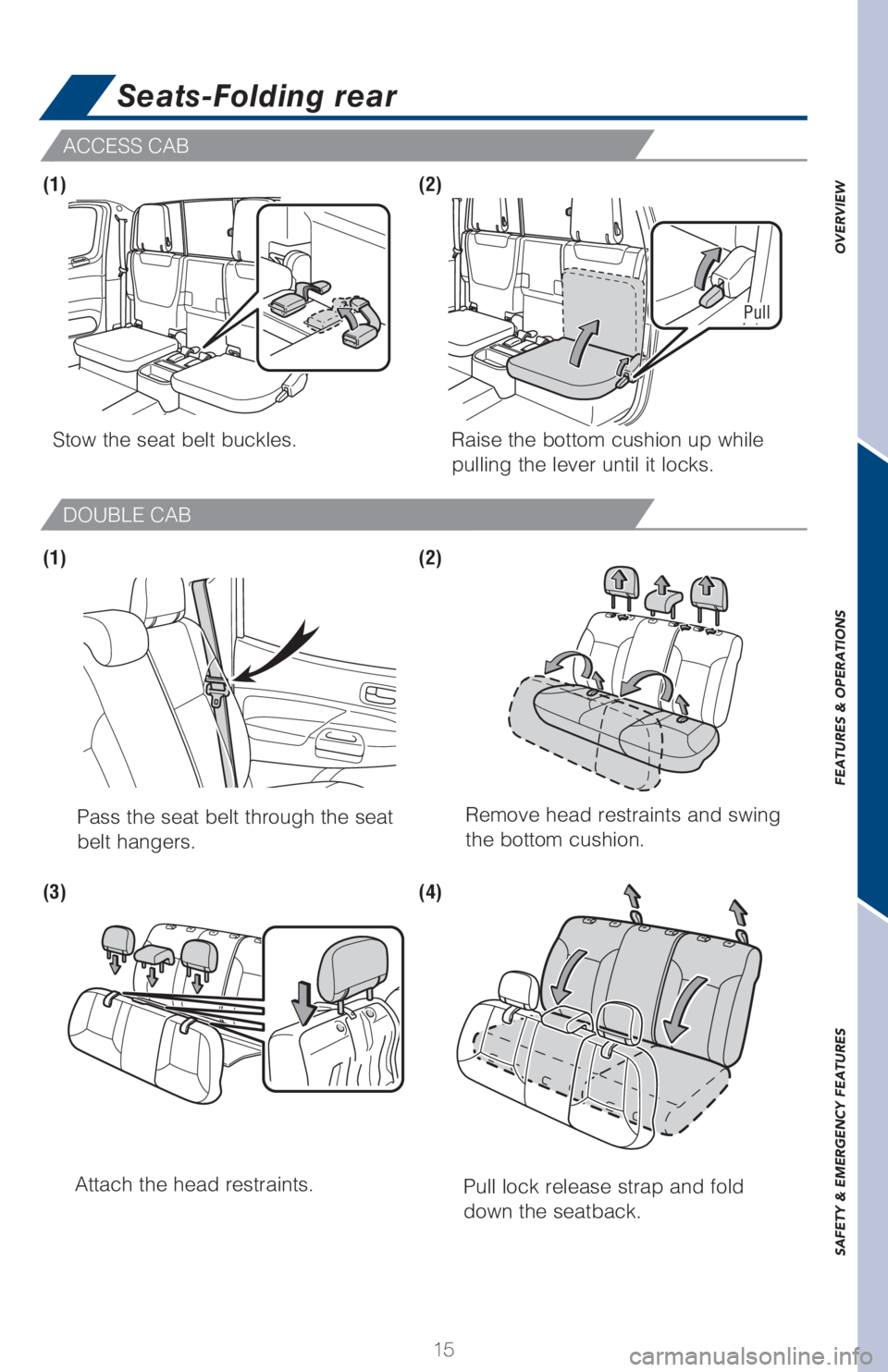

ACCESS CAB
DOUBLE CAB
Pull lock release strap and fold
down the seatback.
Stow the seat belt buckles.
Pass the seat belt through the seat
belt hangers.Raise the bottom cushion up while
pulling the lever until it locks.
(1)
(1)
(3)
(2)
(2)
(4)
Remove head restraints and swing
the bottom cushion.
Attach the head restraints.
Pull
Seats-Folding rear

16

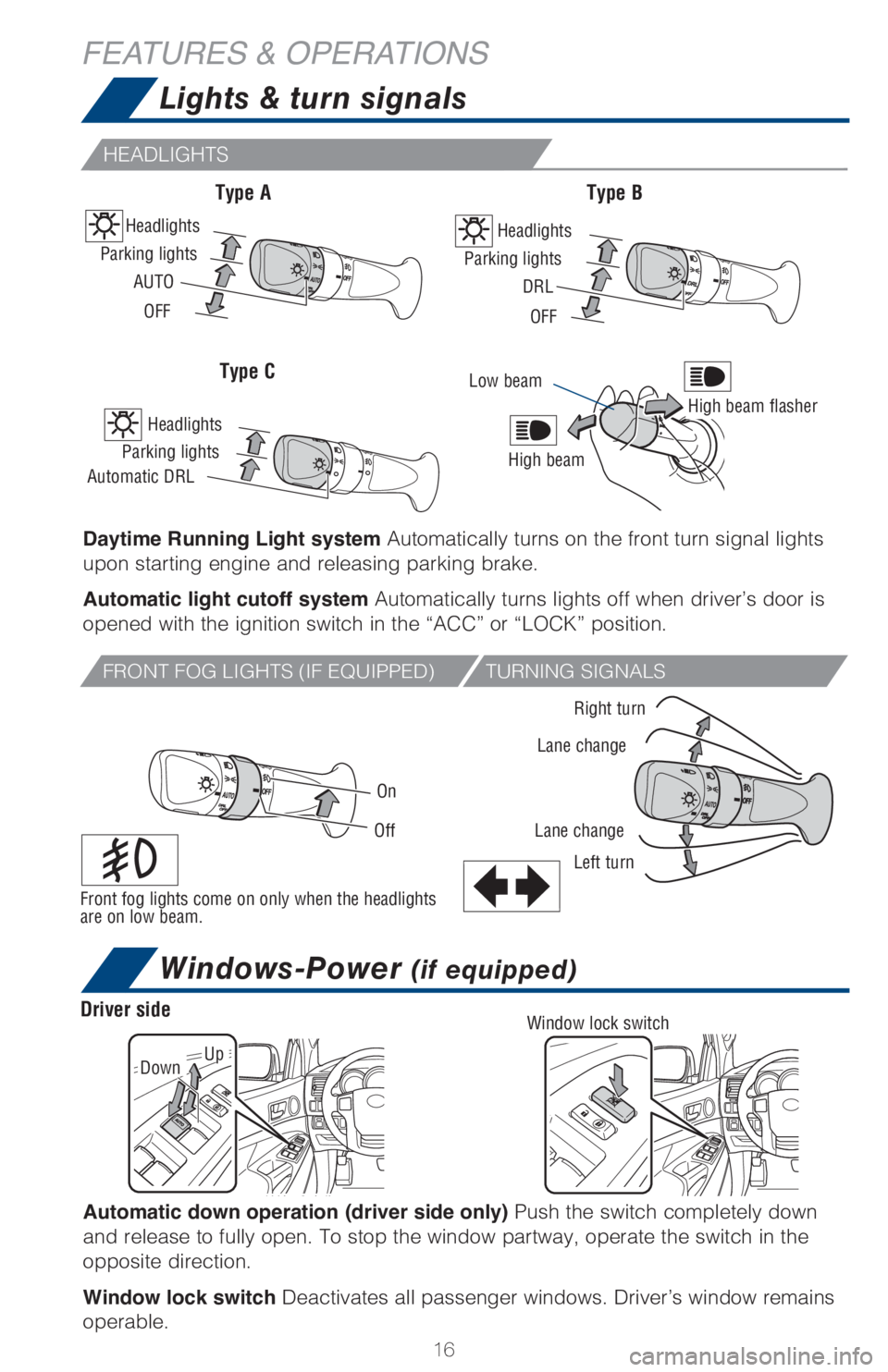

Lights & turn signals
Windows-Power (if equipped)
HEADLIGHTS
FEATURES & OPERATIONS
Daytime Running Light system Automatically turns on the front turn signal lights
upon starting engine and releasing parking brake.
Automatic light cutoff system Automatically turns lights off when driver’s door is
opened with the ignition switch in the “ACC” or “LOCK” position.
High beam flasher Low beam
High beam
UpDown
Driver sideWindow lock switch
Automatic down operation (driver side only) Push the switch completely down
and release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Front fog lights come on only when the headlights
are on low beam.
On
Off
Right turn
Lane change
Lane change
Left turn Headlights
Parking lights
AUTO
OFF
Type A
Automatic DRL
Parking lights
Headlights
Type C
Headlights
Parking lights
DRL
OFF
Type B
TURNING SIGNALSFRONT FOG LIGHTS (IF EQUIPPED)

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
17

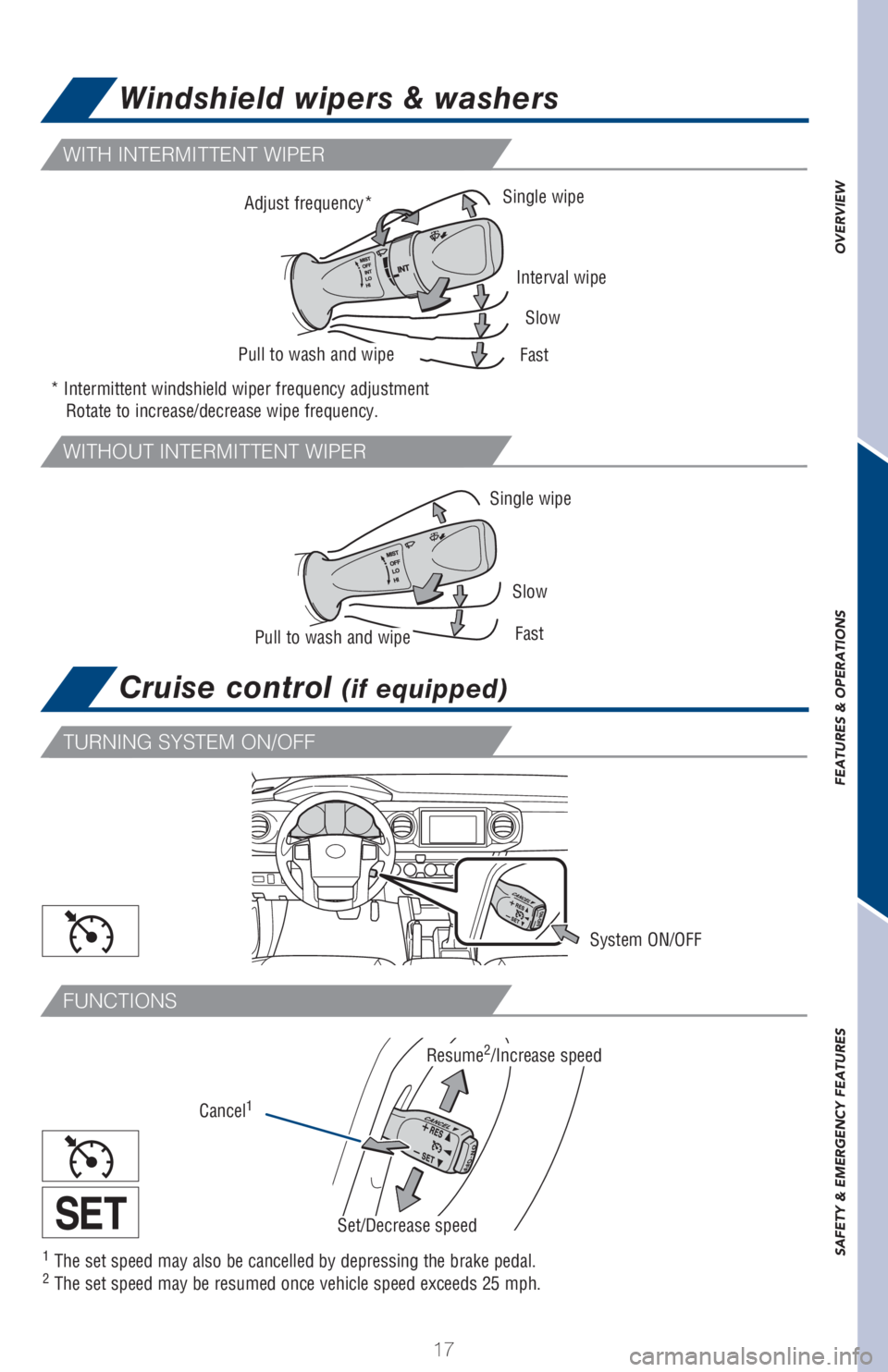

Windshield wipers & washers
Cruise control (if equipped)
WITH INTERMITTENT WIPER
WITHOUT INTERMITTENT WIPER
TURNING SYSTEM ON/OFF
FUNCTIONS
1
The set speed may also be cancelled by depressing the brake pedal.
2
The set speed may be resumed once vehicle speed exceeds 25 mph.
Resume2/Increase speed
Set/Decrease speed
Cancel1
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Interval wipe Single wipe
Slow
FastPull to wash and wipeAdjust frequency*
Pull to wash and wipeSingle wipe
Slow
Fast
System ON/OFF

18
FEATURES & OPERATIONS
1 Refer to the “Navigation System Owner’s Manual” and “2017 Entune™ Audio Quick Reference
Guide.” NOTE: Concentrating on the road should always be your first priority while driving. Do not
use the Entune system if it will distract you.

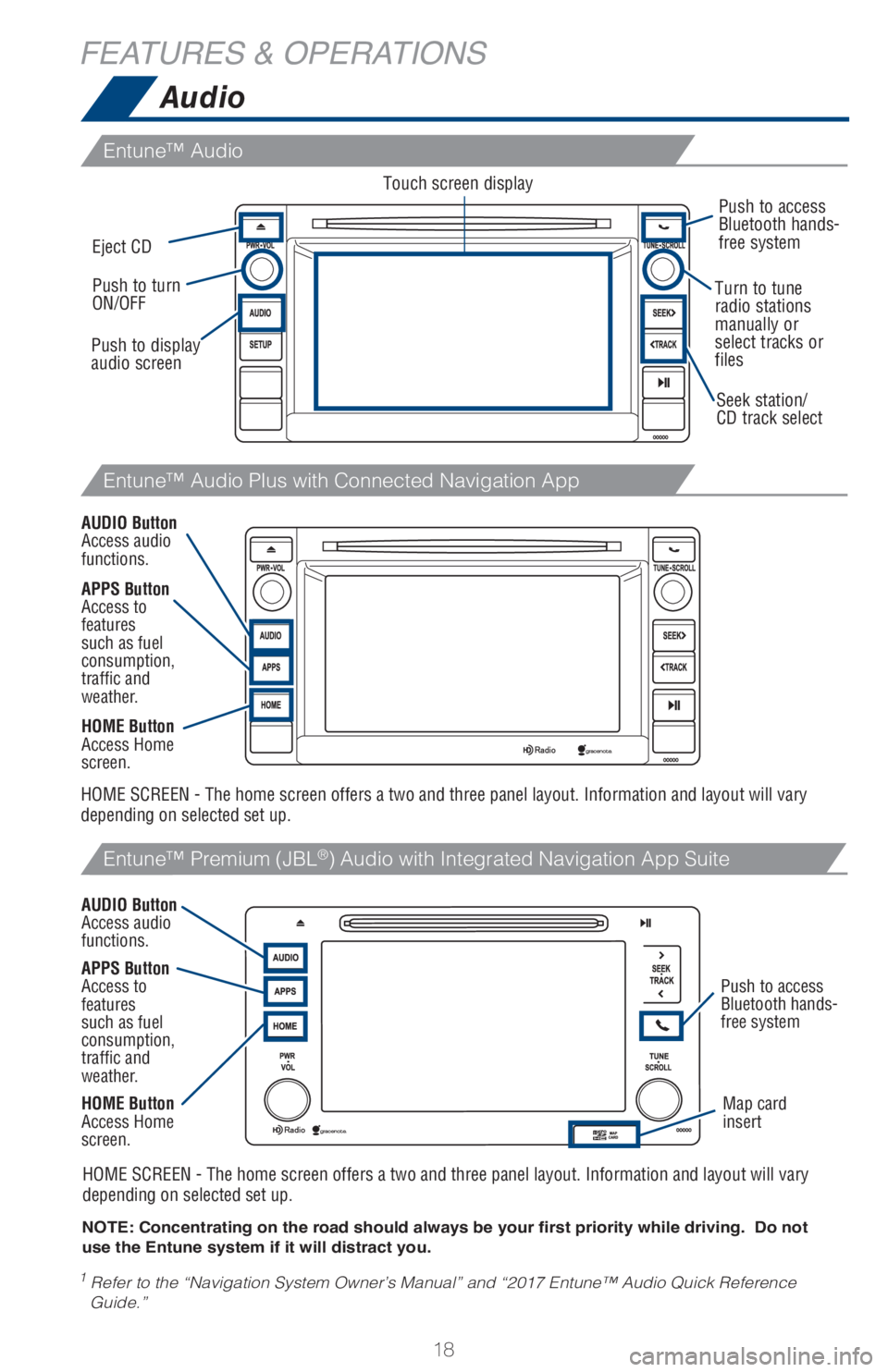

HOME SCREEN - The home screen offers a two and three panel layout. Information and layout will vary
depending on selected set up.
HOME SCREEN - The home screen offers a two and three panel layout. Information and layout will vary
depending on selected set up.
Map card
insert Push to access
Bluetooth hands-
free system AUDIO Button
Access audio
functions.
AUDIO Button
Access audio
functions. HOME Button
Access Home
screen.
HOME Button
Access Home
screen. APPS Button
Access to
features
such as fuel
consumption,
traffic and
weather.
APPS Button
Access to
features
such as fuel
consumption,
traffic and
weather.
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select Push to display
audio screenTurn to tune
radio stations
manually or
select tracks or
files Touch screen display
Push to access
Bluetooth hands-
free system
Audio
Entune™ Audio
Entune™ Audio Plus with Connected Navigation App
Entune™ Premium (JBL®) Audio with Integrated Navigation App Suite
