TOYOTA TACOMA 2017 (in English) Owner's Manual

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES

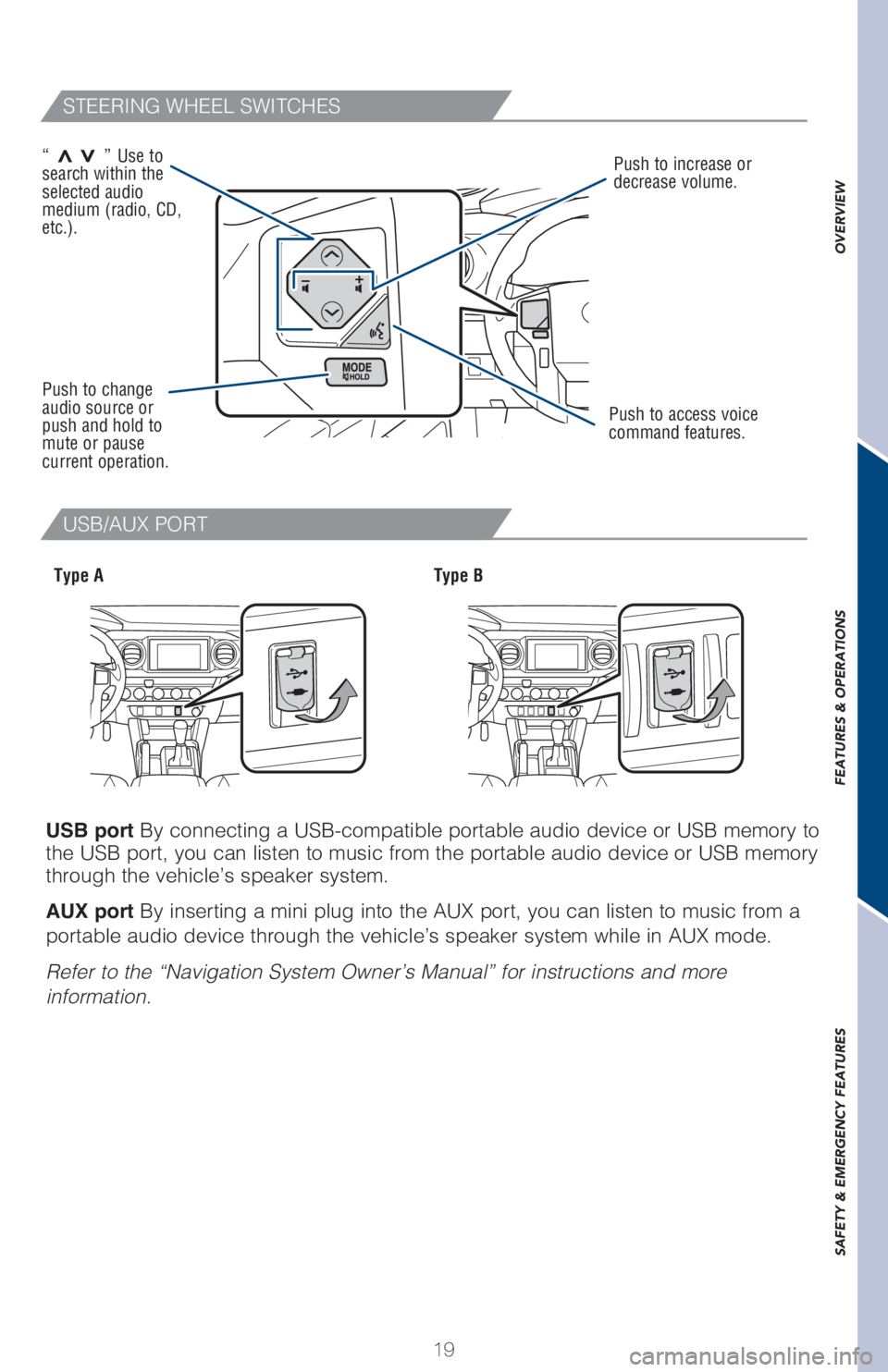

19 USB port By connecting a USB-compatible portable audio device or USB memory to
the USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port By inserting a mini plug into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Type AType B
STEERING WHEEL SWITCHES
USB/AUX PORT
Push to change
audio source or
push and hold to
mute or pause
current operation.
“>>” Use to
search within the
selected audio
medium (radio, CD,
etc.).
Push to access voice
command features.
Push to increase or
decrease volume.

20

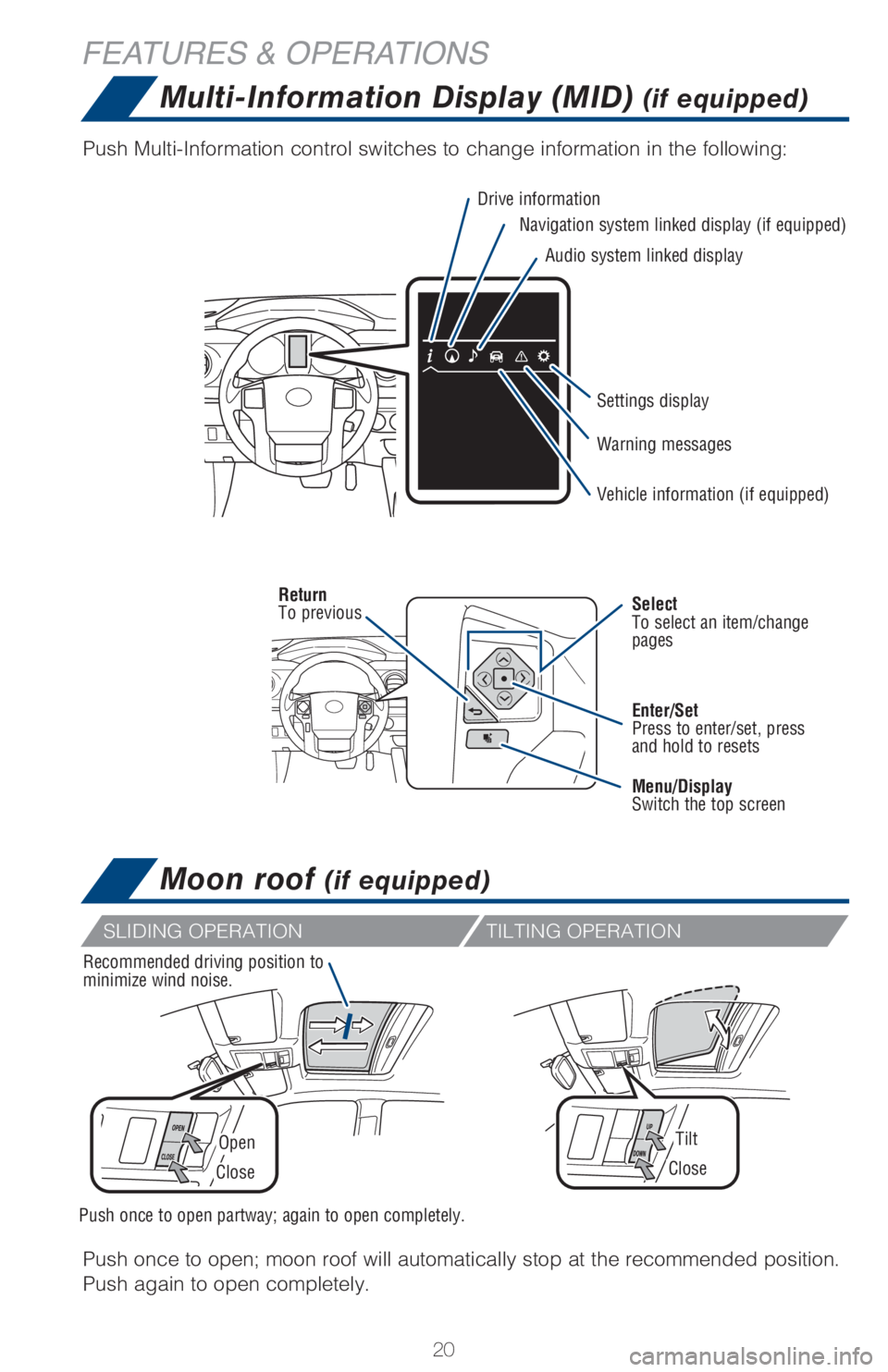

Multi-Information Display (MID) (if equipped)
Moon roof (if equipped)
FEATURES & OPERATIONS
Drive information
Navigation system linked display (if equipped)
Audio system linked display
Vehicle information (if equipped)
Menu/Display
Switch the top screen Enter/Set
Press to enter/set, press
and hold to resets Return
To previousSelect
To select an item/change
pages Warning messages Settings display
OpenTilt
CloseClose
Recommended driving position to
minimize wind noise.
Push once to open; moon roof will automatically stop at the recommended position.
Push again to open completely. Push Multi-Information control switches to change information in the following:
Push once to open partway; again to open completely.
TILTING OPERATIONSLIDING OPERATION

21
OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES

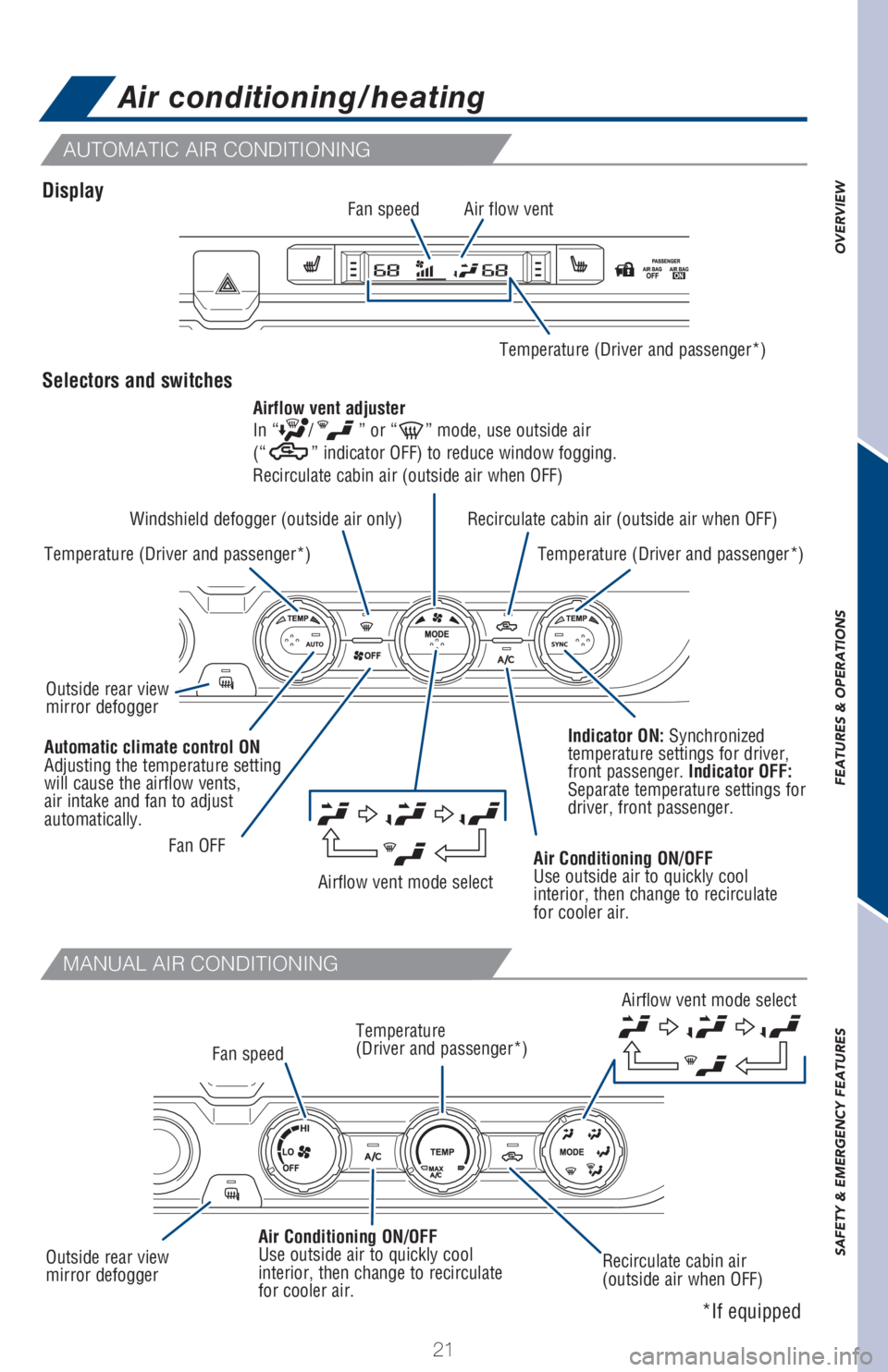

Air conditioning/heating
*If equipped
AUTOMATIC AIR CONDITIONING
MANUAL AIR CONDITIONING
Display
Selectors and switches
Temperature (Driver and passenger*)
Temperature (Driver and passenger*)
Outside rear view
mirror defogger
Outside rear view
mirror defogger Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically.Indicator ON: Synchronized
temperature settings for driver,
front passenger. Indicator OFF:
Separate temperature settings for
driver, front passenger.
Air Conditioning ON/OFF
Use outside air to quickly cool
interior, then change to recirculate
for cooler air.
Air Conditioning ON/OFF
Use outside air to quickly cool
interior, then change to recirculate
for cooler air.Temperature (Driver and passenger*)
Temperature
(Driver and passenger*) Airflow vent mode select
Airflow vent mode select Windshield defogger (outside air only) Recirculate cabin air (outside air when OFF)
Recirculate cabin air
(outside air when OFF) Airflow vent adjuster
In “
/” or “” mode, use outside air
(“” indicator OFF) to reduce window fogging.
Recirculate cabin air (outside air when OFF)Fan speed
Fan speed Fan OFFAir flow vent

22

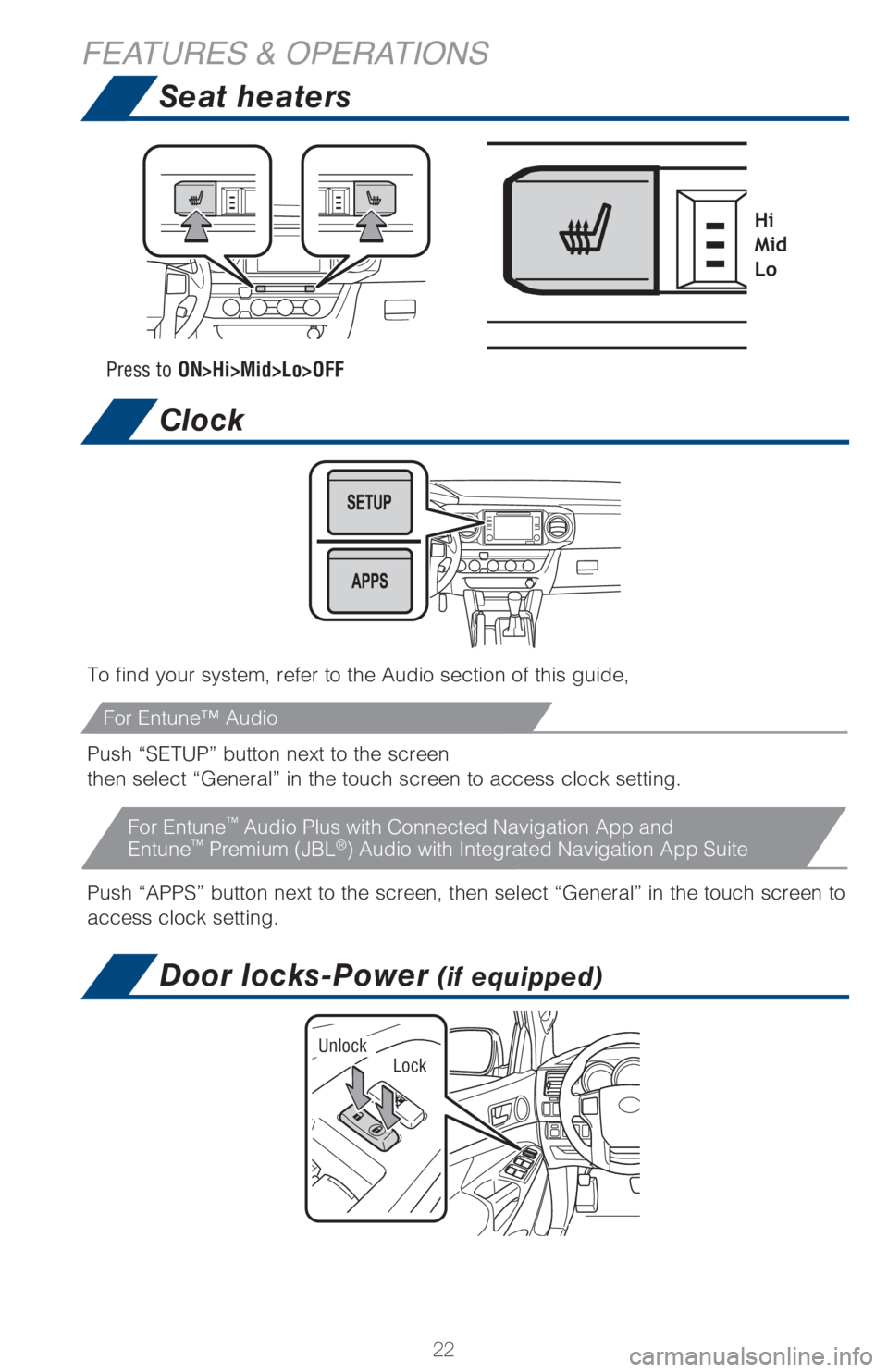

Seat heaters
Clock
FEATURES & OPERATIONS
To find your system, refer to the Audio section of this guide,
Push “SETUP” button next to the screen
then select “General” in the touch screen to access clock setting.
Push “APPS” button next to the screen, then select “General” in the touch screen to
access clock setting.Press to ON>Hi>Mid>Lo>OFF
Hi
Mid
Lo
For Entune™ Audio
Door locks-Power (if equipped)
LockUnlock
For Entune™ Audio Plus with Connected Navigation App and
Entune™ Premium (JBL®) Audio with Integrated Navigation App Suite

23
OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES

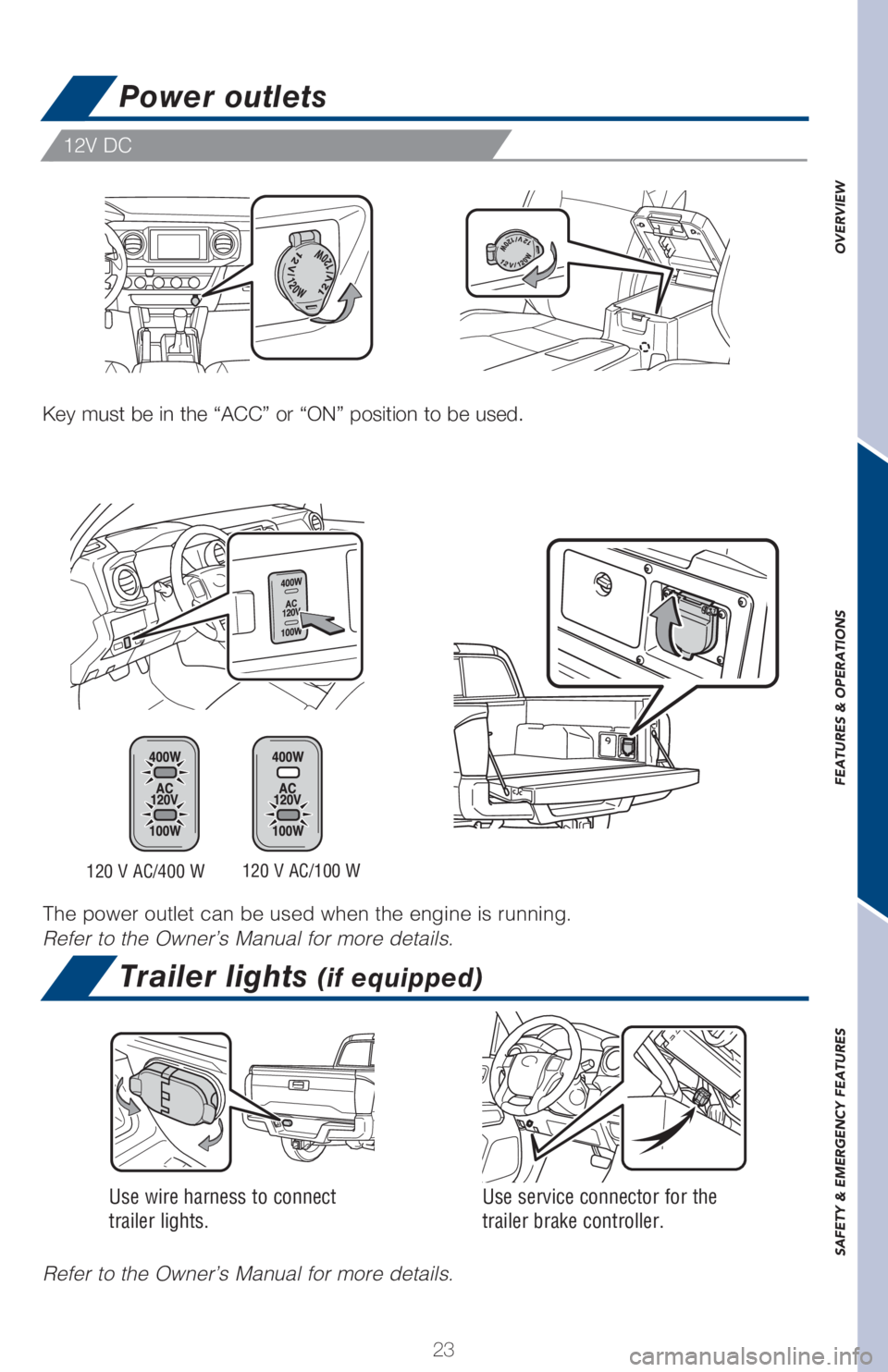

Power outlets
Trailer lights (if equipped)
Key must be in the “ACC” or “ON” position to be used.
Refer to the Owner’s Manual for more details.Use wire harness to connect
trailer lights.Use service connector for the
trailer brake controller.
120 V AC/100 W
120 V AC/400 W
The power outlet can be used when the engine is running.
Refer to the Owner’s Manual for more details.
12V DC

24

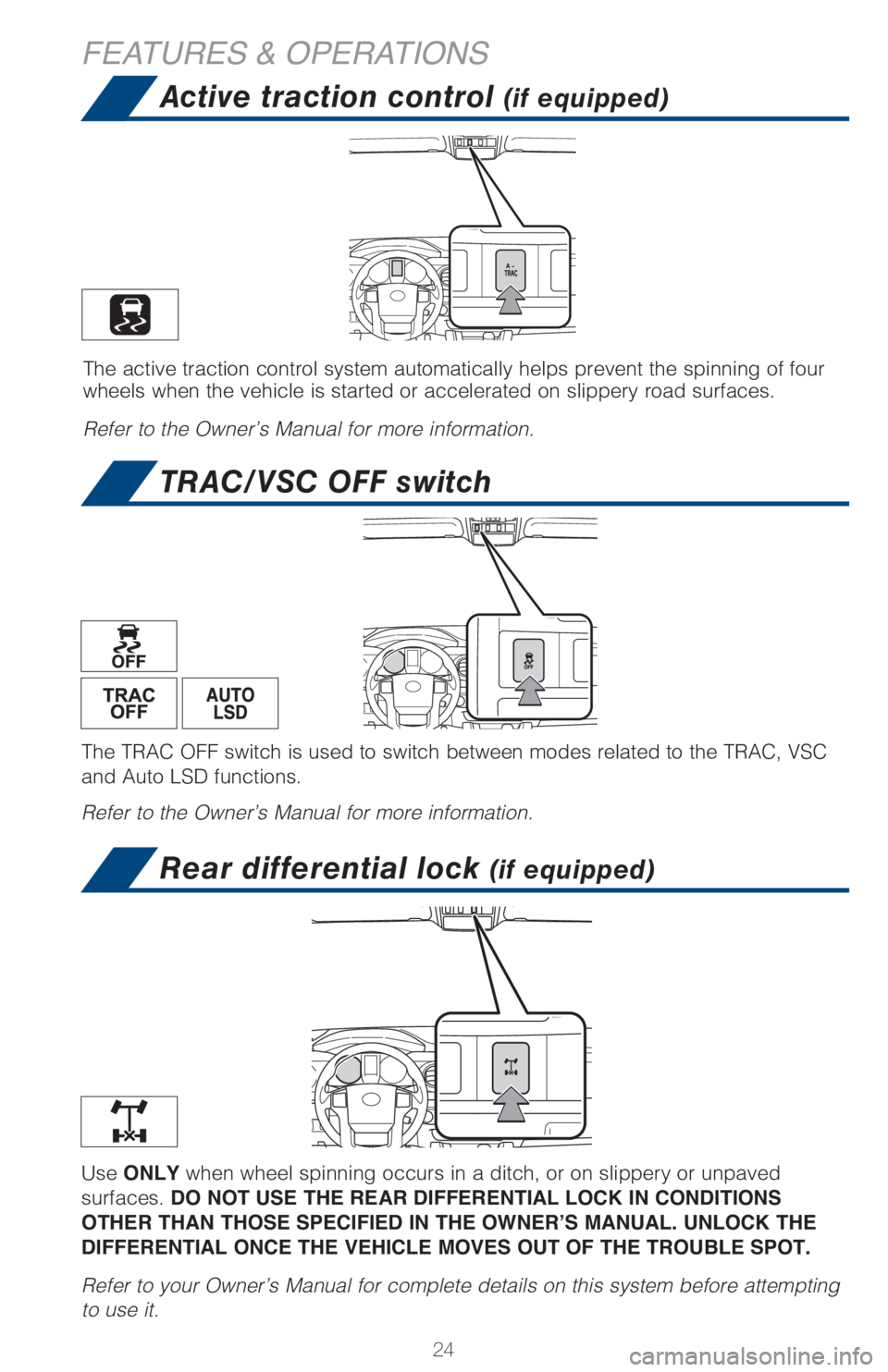

Active traction control (if equipped)
TRAC/VSC OFF switch
Rear differential lock (if equipped)
FEATURES & OPERATIONS
The active traction control system automatically helps prevent the spinning of four
wheels when the vehicle is started or accelerated on slippery road surfaces.
Refer to the Owner’s Manual for more information.
Use ONLY when wheel spinning occurs in a ditch, or on slippery or unpaved
surfaces. DO NOT USE THE REAR DIFFERENTIAL LOCK IN CONDITIONS
27+(57+$17+26(63(&,),(',17+(2:1(5

25
OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES

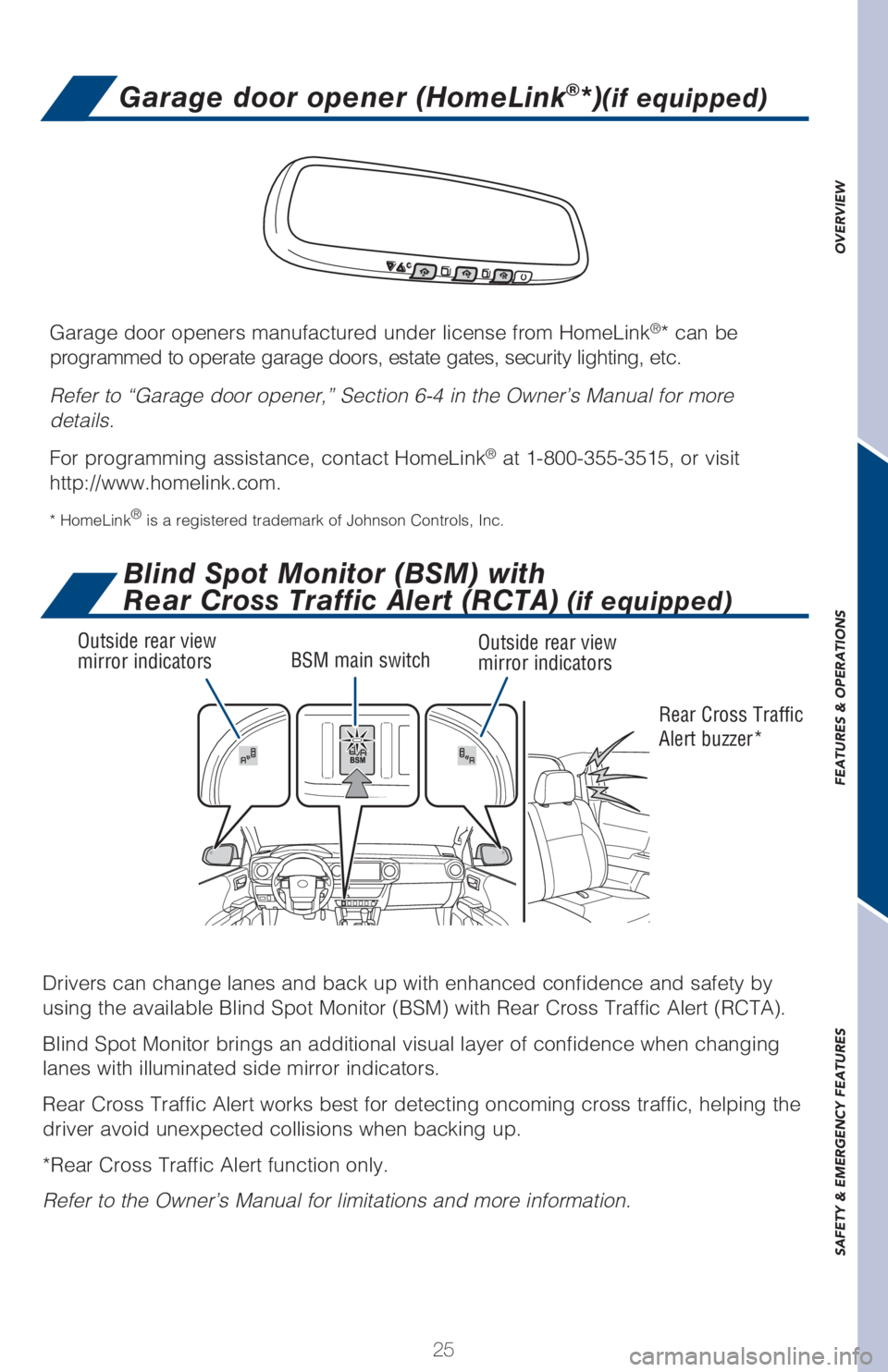

Garage door opener (HomeLink®*)(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section JOUIFOwner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Drivers can change lanes and back up with enhanced confidence and safety by
using the available Blind Spot Monitor (BSM) with Rear Cross Traffic Alert (RCTA).

Blind Spot Monitor brings an additional visual layer of confidence when changing
lanes with illuminated side mirror indicators.
Rear Cross Traffic Alert works best for detecting oncoming cross traffic, helping the
driver avoid unexpected collisions when backing up.
*Rear Cross Traffic Alert function only.
Refer to the Owner’s Manual for limitations and more information.
Blind Spot Monitor (BSM) with
Rear Cross Traffic Alert (RCTA)
(if equipped)
BSM main switchOutside rear view
mirror indicators
Rear Cross Traffic
Alert buzzer* Outside rear view
mirror indicators

26

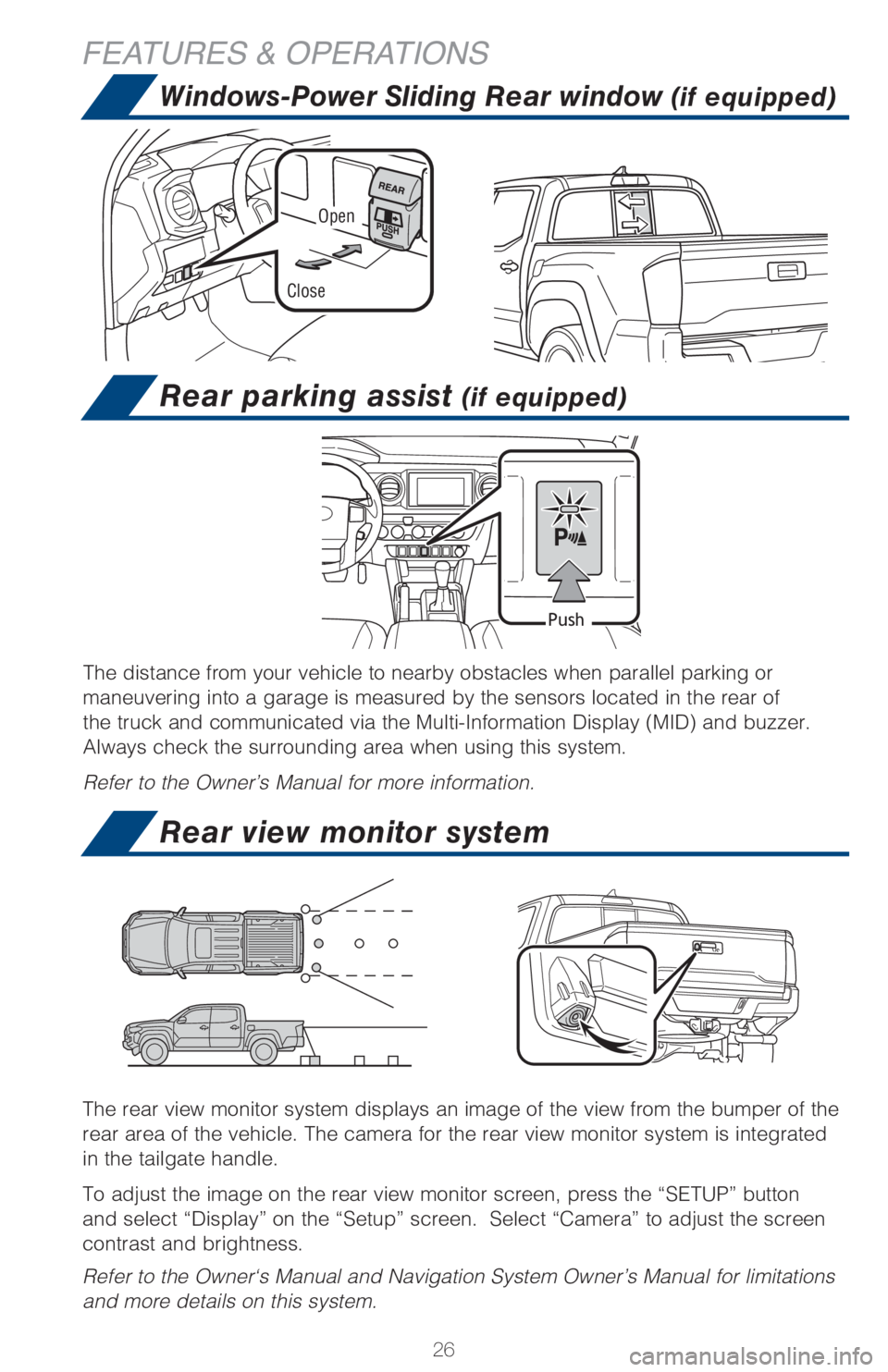

Rear parking assist (if equipped)
Rear view monitor system
Windows-Power Sliding Rear window (if equipped)
FEATURES & OPERATIONS
The distance from your vehicle to nearby obstacles when parallel parking or
maneuvering into a garage is measured by the sensors located in the rear of
the truck and communicated via the Multi-Information Display (MID) and buzzer.
Always check the surrounding area when using this system.
Refer to the Owner’s Manual for more information.
Push
The rear view monitor system displays an image of the view from the bumper of the
rear area of the vehicle. The camera for the rear view monitor system is integrated
in the tailgate handle.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual and Navigation System Owner’s Manual for limitations
and more details on this system.
Open
Close

27
OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES

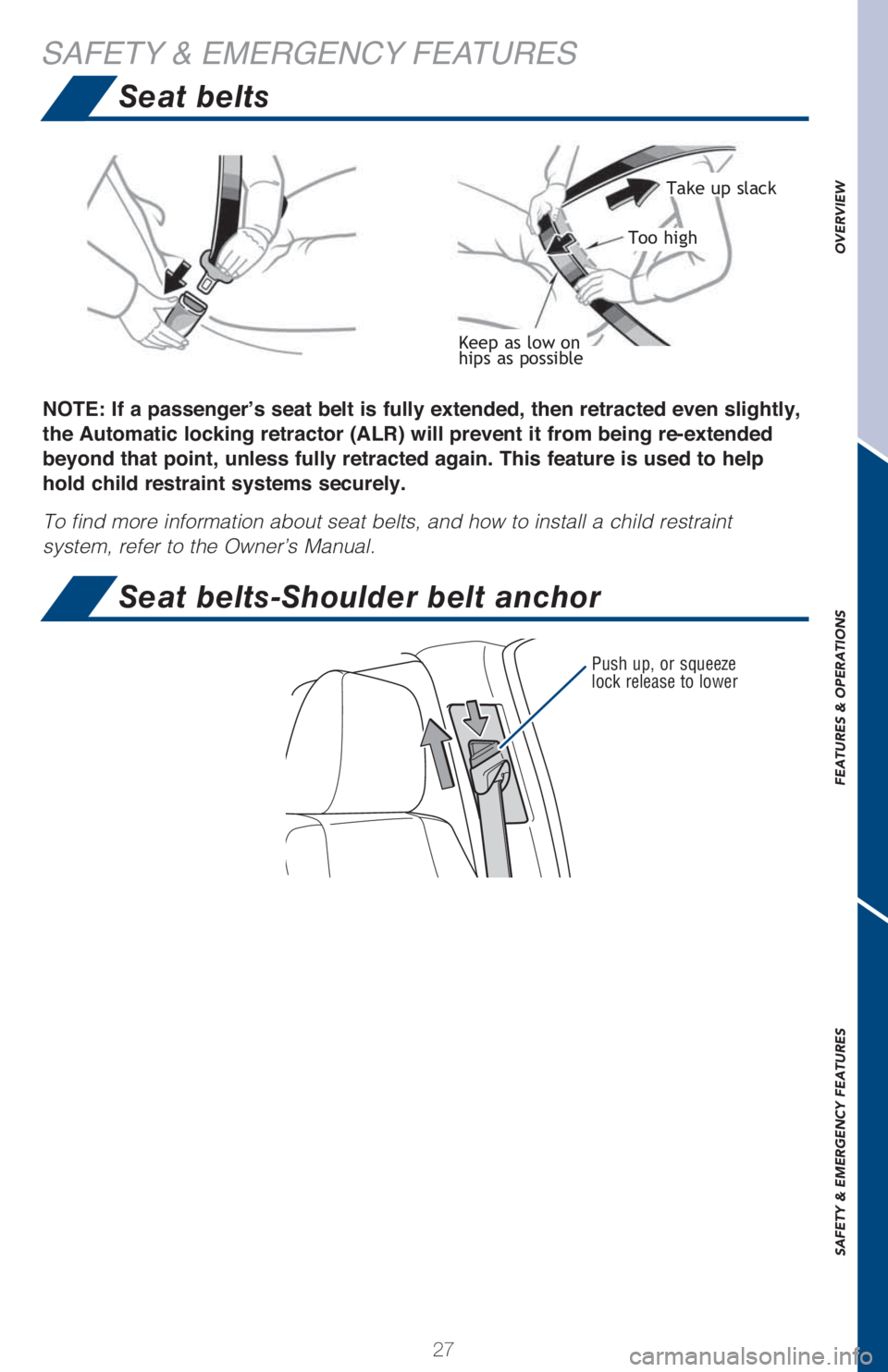

Seat belts
Seat belts-Shoulder belt anchor
SAFETY & EMERGENCY FEATURES
127(,IDSDVVHQJHU

28

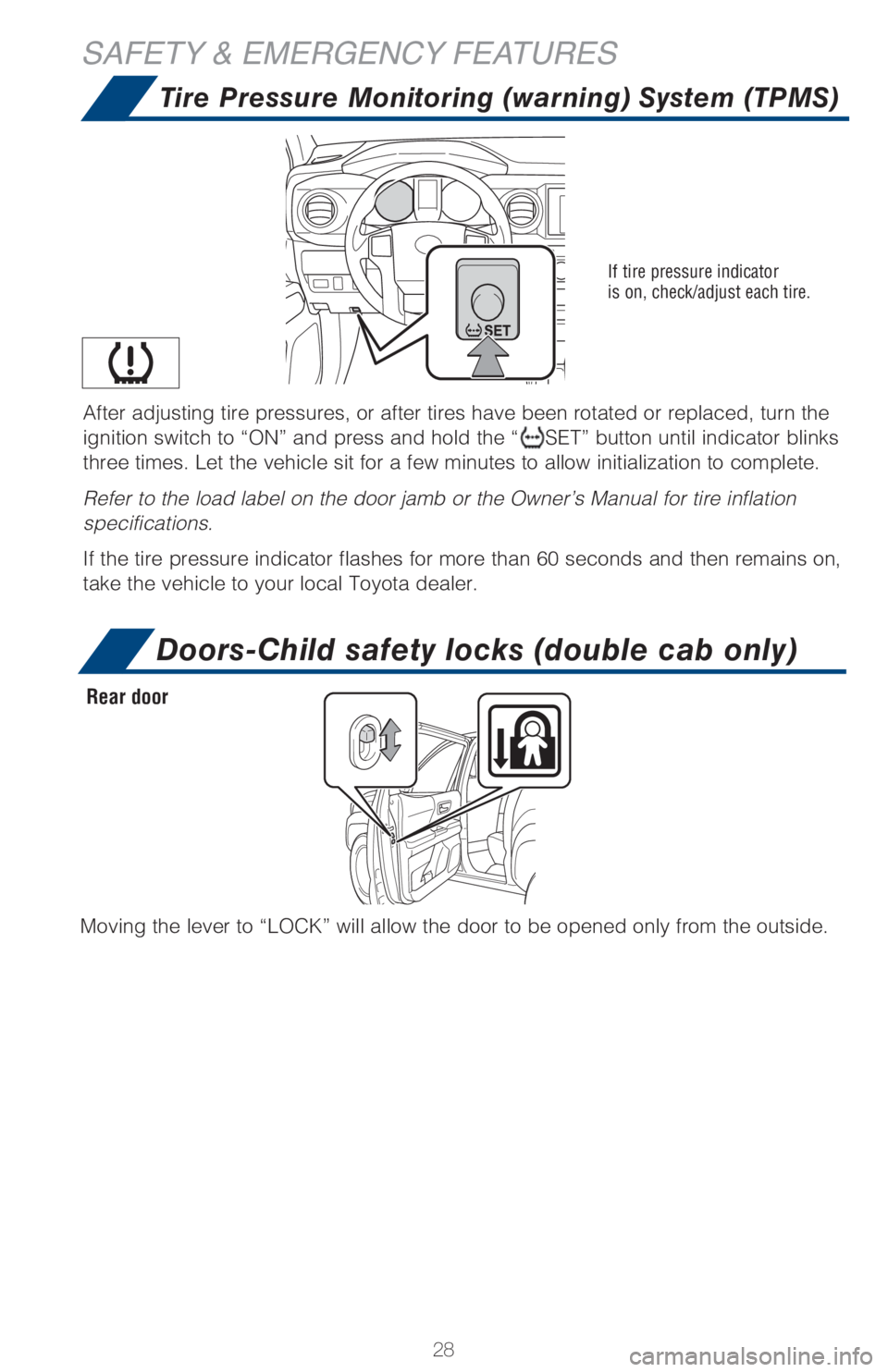

Tire Pressure Monitoring (warning) System (TPMS)
SAFETY & EMERGENCY FEATURES
After adjusting tire pressures, or after tires have been rotated or replaced, turn the
ignition switch to “ON” and press and hold the “
SET” button until indicator blinks
three times. Let the vehicle sit for a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
If tire pressure indicator
is on, check/adjust each tire.
Doors-Child safety locks (double cab only)
Moving the lever to “LOCK” will allow the door to be opened only from the outside.
Rear door
