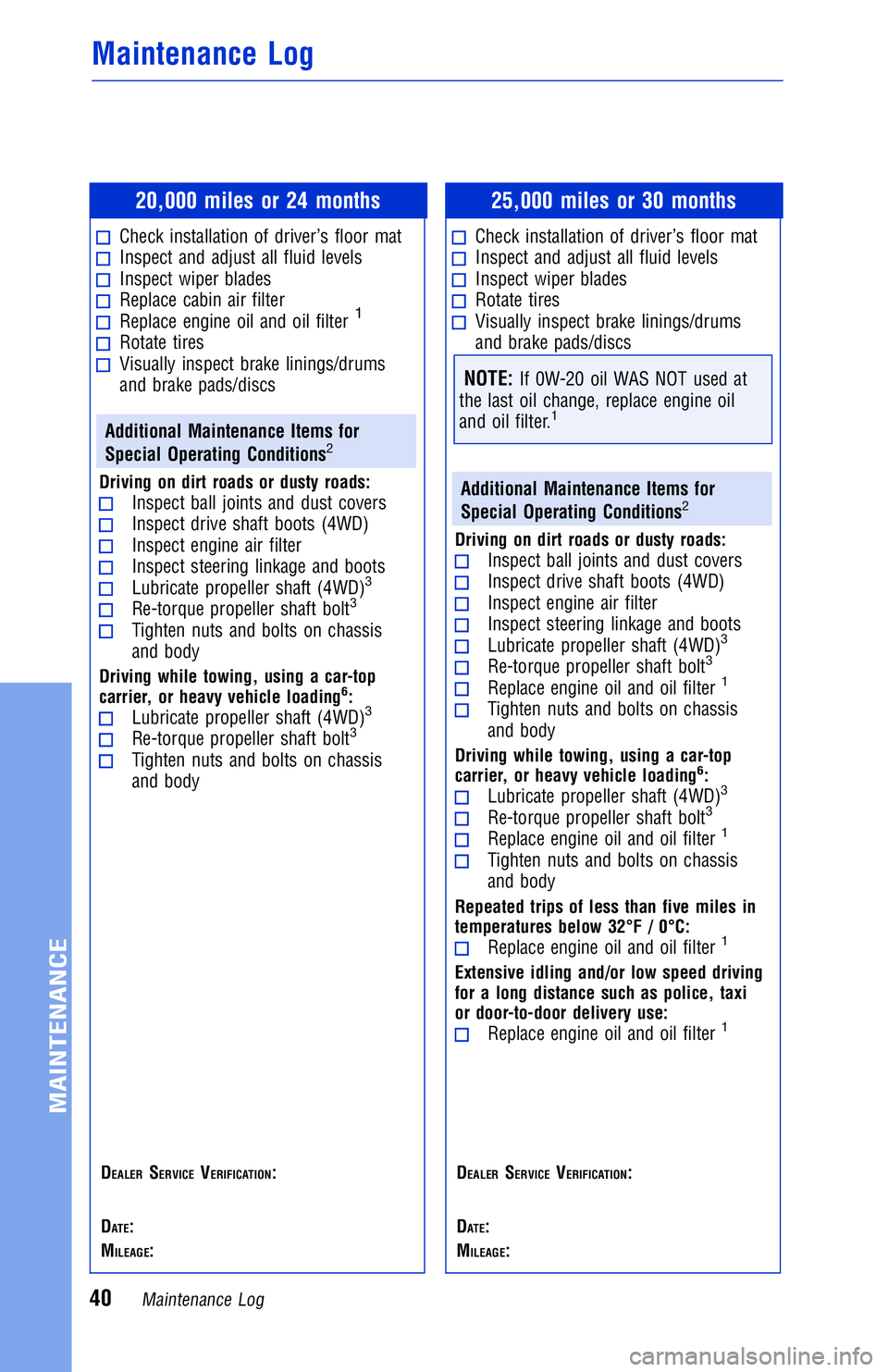

20,000 miles or 24 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log40

JOBNAME: 2372852-en-2017_TACO PAGE: 41 SESS: 3 OUTPUT: Wed Jul 13 07:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1

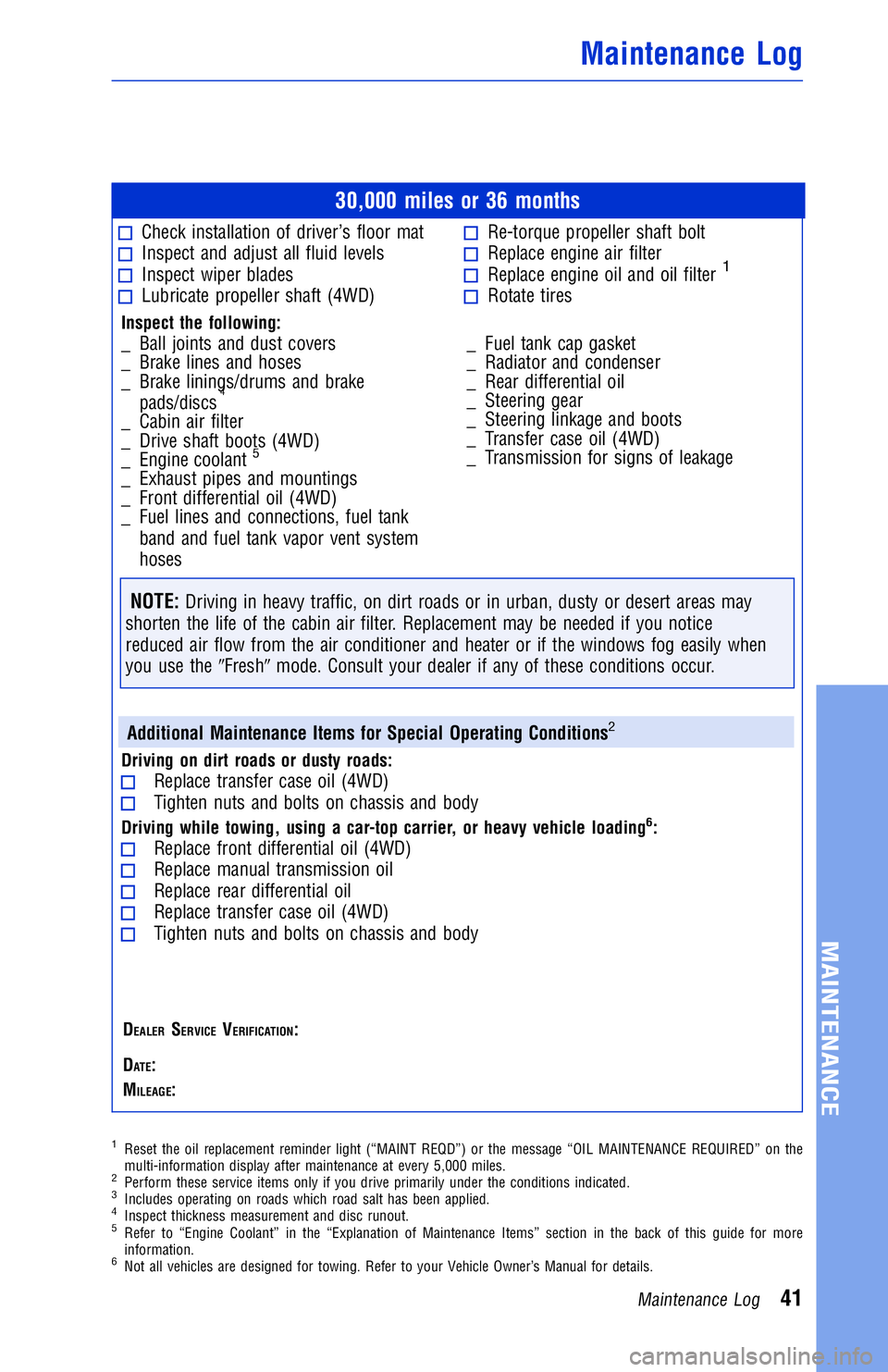

30,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)
Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Rotate tires
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and brakepads/discs
4
_ Cabin air filter
_ Drive shaft boots (4WD)
_ Engine coolant
5
_ Exhaust pipes and mountings
_ Front differential oil (4WD)
_ Fuel lines and connections, fuel tankband and fuel tank vapor vent system
hoses _ Fuel tank cap gasket
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
_ Transfer case oil (4WD)
_ Transmission for signs of leakage
NOTE:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log41

JOBNAME: 2372852-en-2017_TACO PAGE: 42 SESS: 3 OUTPUT: Wed Jul 13 07:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1

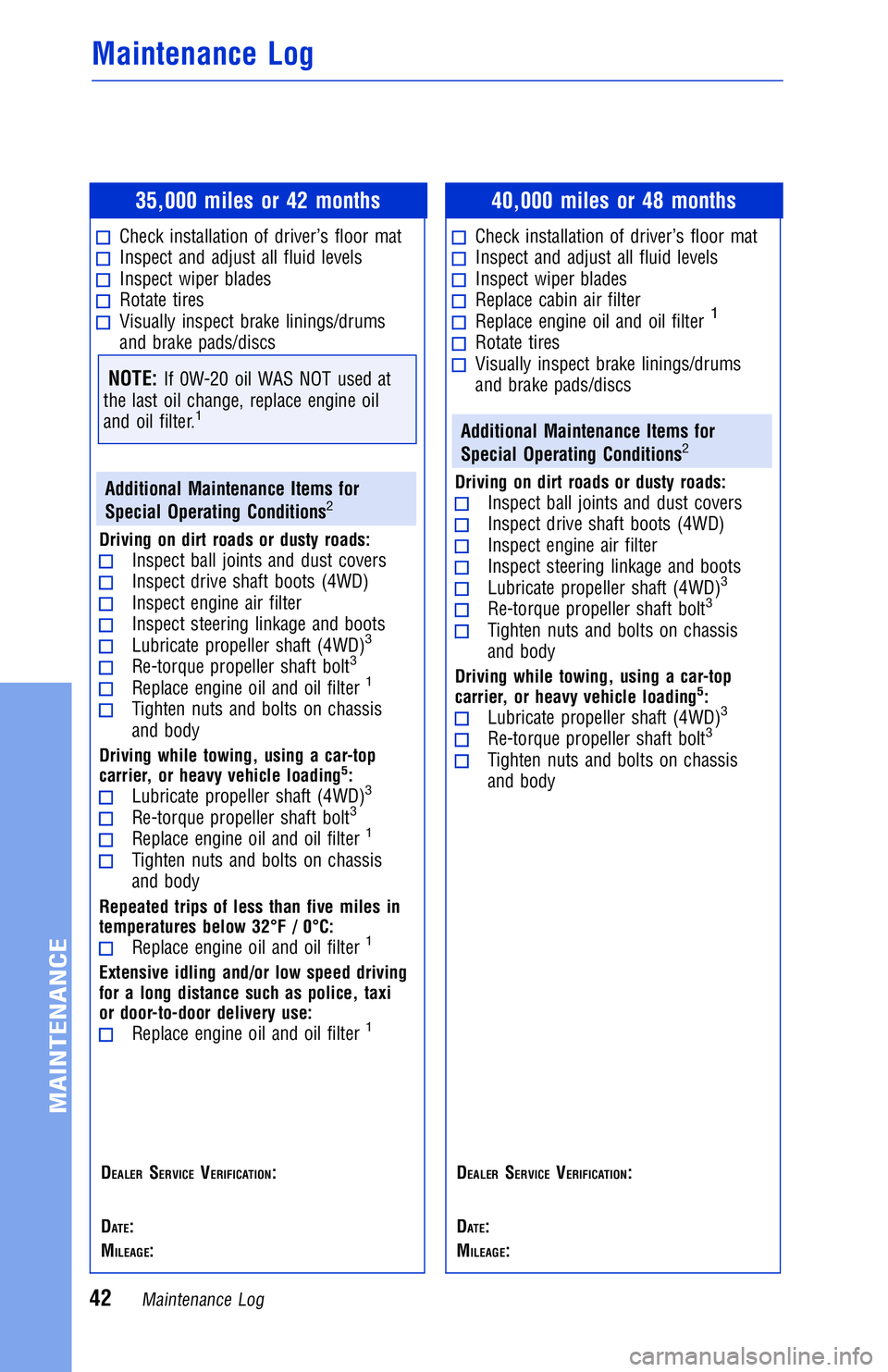

35,000 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log42

JOBNAME: 2372852-en-2017_TACO PAGE: 43 SESS: 3 OUTPUT: Wed Jul 13 07:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1

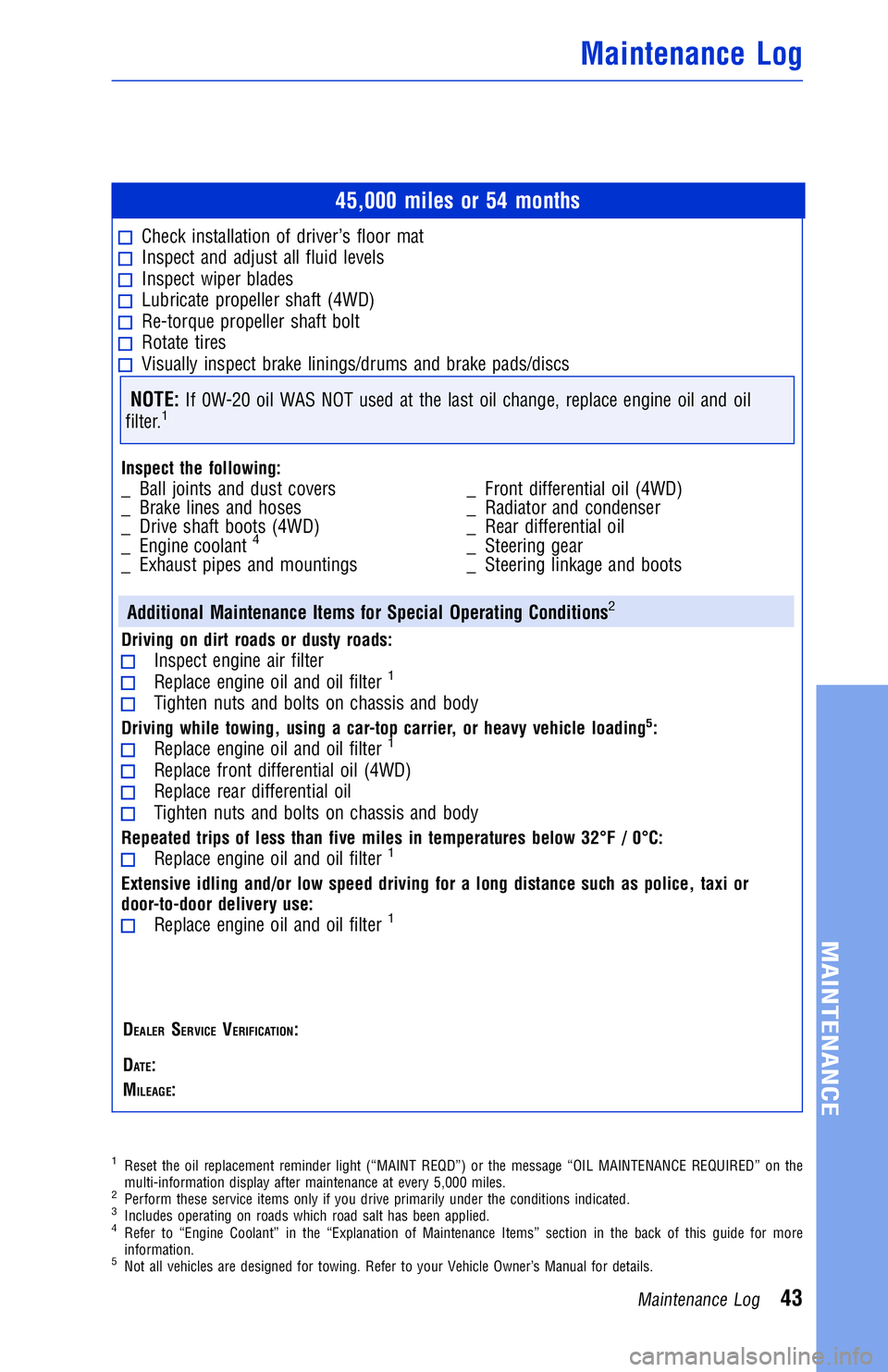

45,000 miles or 54 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil
filter.1
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Drive shaft boots (4WD)
_ Engine coolant
4
_ Exhaust pipes and mountings _ Front differential oil (4WD)
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log43

JOBNAME: 2372852-en-2017_TACO PAGE: 44 SESS: 3 OUTPUT: Wed Jul 13 07:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1

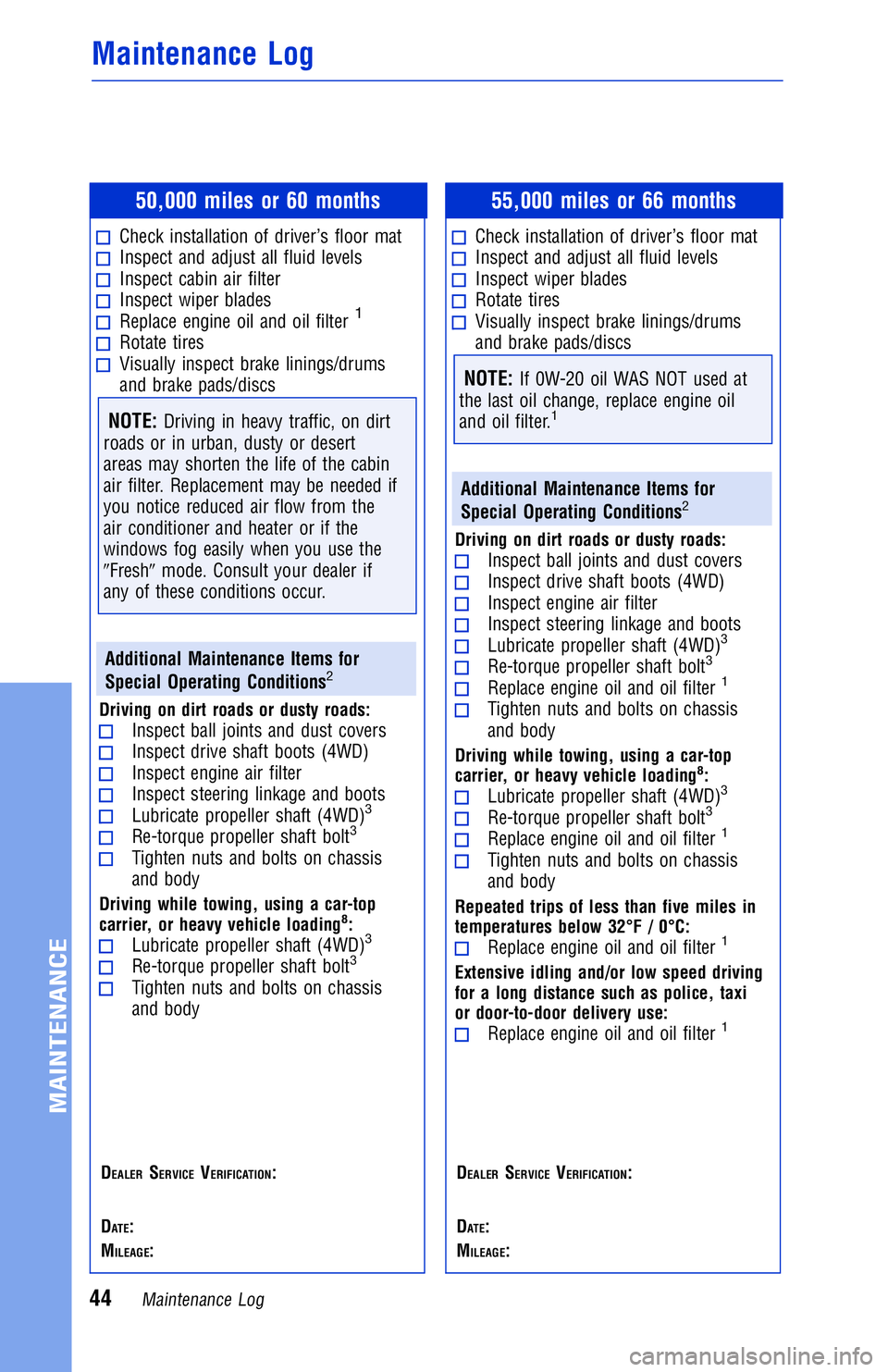

50,000 miles or 60 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect cabin air filterInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Fresh mode. Consult your dealer if
any of these conditions occur.
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading8:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
55,000 miles or 66 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading8:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log44

JOBNAME:2372852-en-2017_TACO PAGE:45SESS: 3OUTPUT: WedJul1307:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1

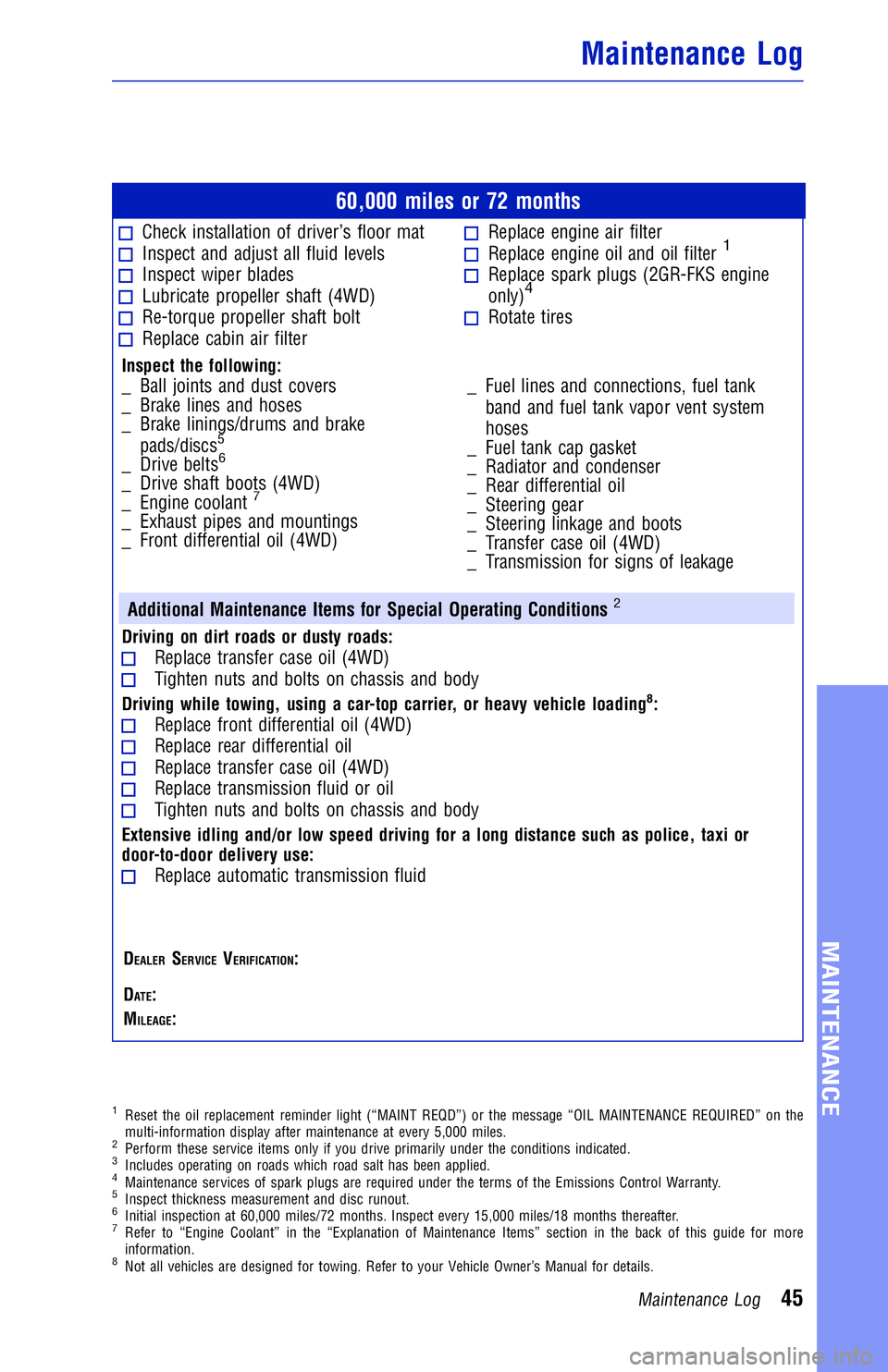

60,000 milesor72 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsInspect wiperbladesLubricate propellershaft(4WD)Re-torque propellershaftboltReplace cabinairfilter
Replace engineairfilterReplace engineoiland oilfilter1
Replace sparkplugs (2GR-FKS engine
only)4
Rotate tires
Inspect thefollowing:_Ball joints anddust covers
_ Brake linesandhoses
_ Brake linings/drums andbrake
pads/discs
5
_ Drive belts6
_Drive shaftboots (4WD)
_ Engine coolant7
_Exhaust pipesandmountings
_ Front differential oil(4WD) _
Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
_ Fuel tank capgasket
_ Radiator andcondenser
_ Rear differential oil
_ Steering gear
_ Steering linkageandboots
_ Transfer caseoil(4WD)
_ Transmission forsigns ofleakage
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Replace transfercaseoil(4WD)Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading8:Replace frontdifferential oil(4WD)Replace reardifferential oilReplacetransfercaseoil(4WD)Replace transmission fluidoroilTighten nutsandbolts onchassis andbody
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceautomatic transmission fluid
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Includesoperating onroads which roadsalthasbeen applied.4Maintenance servicesofspark plugs arerequired undertheterms ofthe Emissions ControlWarranty.5Inspectthickness measurement anddisc runout.6Initial inspection at60,000 miles/72 months.Inspectevery15,000 miles/18 monthsthereafter.7Referto“Engine Coolant” inthe “Explanation ofMaintenance Items”section inthe back ofthis guide formore
information.
8Not allvehicles aredesigned fortowing. RefertoyourVehicle Owner’ sManual fordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog45
JOBNAME:2372852-en-2017_TACO PAGE:45SESS: 3OUTPUT: WedJul1307:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1
60,000 milesor72 months
Check installation ofdriver’s floormat
Inspect andadjust allfluid levels
Inspect wiperblades
Lubricate propellershaft(4WD)
Re-torque propellershaftbolt
Replace cabinairfilter Replace
engineairfilter
Replace engineoiland oilfilter1
Replace sparkplugs (2GR-FKS engine
only)4
Rotate tires
Inspect thefollowing:_Ball joints anddust covers
_ Brake linesandhoses
_ Brake linings/drums andbrake
pads/discs
5
_ Drive belts6
_Drive shaftboots (4WD)
_ Engine coolant7
_Exhaust pipesandmountings
_ Front differential oil(4WD) _
Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
_ Fuel tank capgasket
_ Radiator andcondenser
_ Rear
differential oil
_ Steering gear
_ Steering linkageandboots
_ Transfer caseoil(4WD)
_ T

ransmissionforsigns ofleakage
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Replace transfercaseoil(4WD)
Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading8:Replace frontdifferential oil(4WD)
Replace reardifferential oil
Replace transfercaseoil(4WD)
Replace transmission fluidoroil
Tighten nutsandbolts onchassis andbody
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceautomatic transmission fluid
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Includesoperating onroads which roadsalthasbeen applied.4Maintenance servicesofspark plugs arerequired undertheterms ofthe Emissions ControlWarranty.5Inspectthickness measurement anddisc runout.6Initial inspection at60,000 miles/72 months.Inspectevery15,000 miles/18 monthsthereafter.7Referto“Engine Coolant” inthe “Explanation ofMaintenance Items”section inthe back ofthis guide formore
information.
8Not allvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog45
JOBNAME:2372852-en-2017_TACO PAGE:45SESS: 3OUTPUT: WedJul1307:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1
60,000 milesor72 months
Check installation ofdriver’s floormat
Inspect andadjust allfluid levels
Inspect wiperblades
Lubricate propellershaft(4WD)
Re-torque propellershaftbolt
Replace cabinairfilter Replace
engineairfilter
Replace engineoiland oilfilter1
Replace sparkplugs (2GR-FKS engine
only)4
Rotate tires
Inspect thefollowing:_Ball joints anddust covers
_ Brake linesandhoses
_ Brake linings/drums andbrake
pads/discs
5
_ Drive belts6
_Drive shaftboots (4WD)
_ Engine coolant7
_Exhaust pipesandmountings
_ Front differential oil(4WD) _
Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
_ Fuel tank capgasket
_ Radiator andcondenser
_ Rear
differential oil
_ Steering gear
_ Steering linkageandboots
_ Transfer caseoil(4WD)
_ T

ransmissionforsigns ofleakage
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Replace transfercaseoil(4WD)
Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading8:Replace frontdifferential oil(4WD)
Replace reardifferential oil
Replace transfercaseoil(4WD)
Replace transmission fluidoroil
Tighten nutsandbolts onchassis andbody
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceautomatic transmission fluid
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
MaintenanceLog45
137077_WMG_Tacoma_x-tions.indd 457/19/16 3:23 PM

JOBNAME: 2372852-en-2017_TACO PAGE: 46 SESS: 3 OUTPUT: Wed Jul 13 07:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1

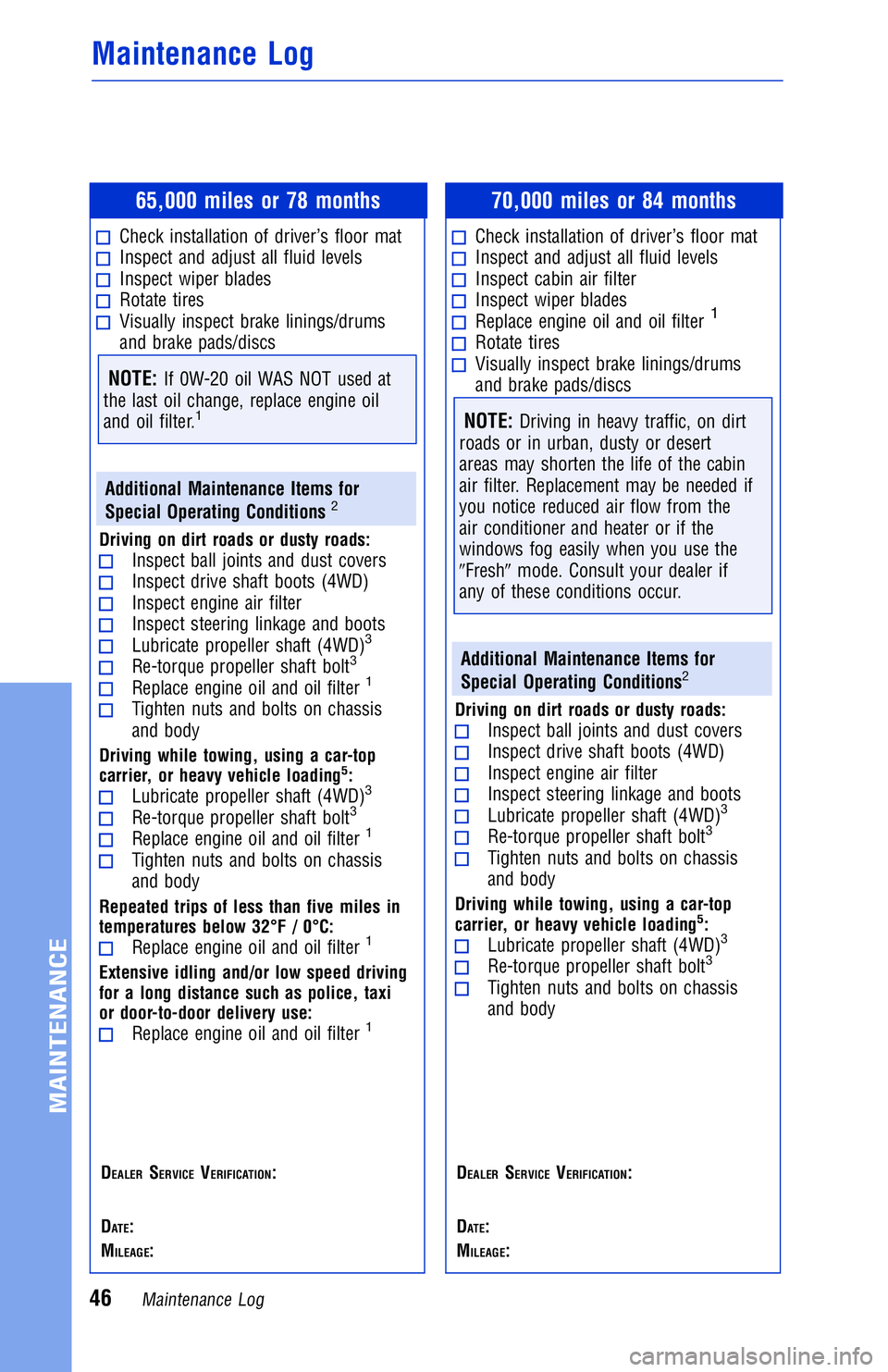

65,000 miles or 78 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
70,000 miles or 84 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect cabin air filterInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Fresh mode. Consult your dealer if
any of these conditions occur.
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log46

JOBNAME: 2372852-en-2017_TACO PAGE: 47 SESS: 3 OUTPUT: Wed Jul 13 07:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1

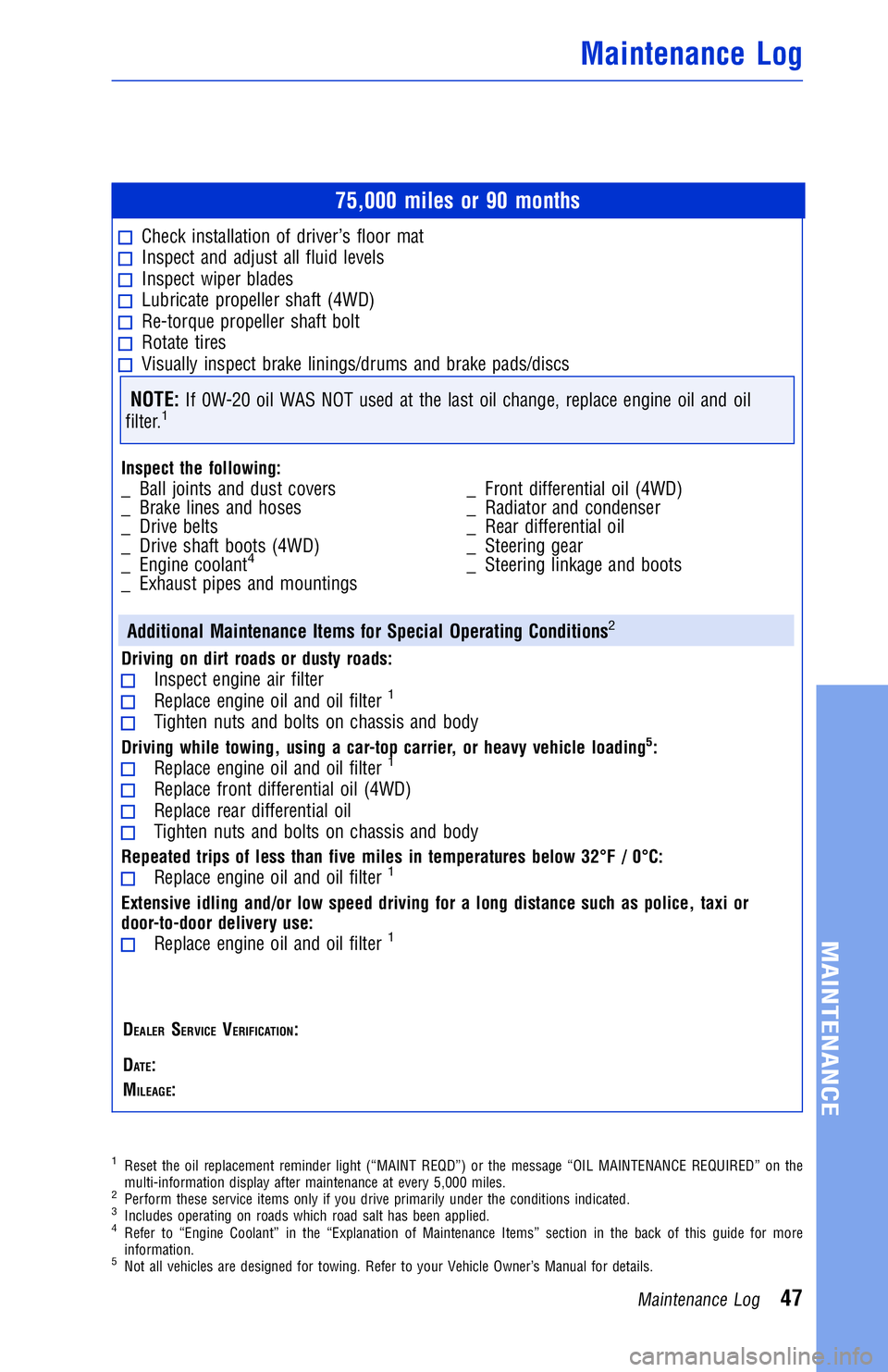

75,000 miles or 90 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil
filter.1
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Drive belts
_ Drive shaft boots (4WD)
_ Engine coolant
4
_ Exhaust pipes and mountings _ Front differential oil (4WD)
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log47

JOBNAME: 2372852-en-2017_TACO PAGE: 48 SESS: 3 OUTPUT: Wed Jul 13 07:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1
80,000 miles or 96 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
85,000 miles or 102 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log48

JOBNAME: 2372852-en-2017_TACO PAGE: 49 SESS: 3 OUTPUT: Wed Jul 13 07:48:07 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372852-en-2017_T\
ACOMA.00505-17WMG-TAC_/TS_Warr_Maint_v1

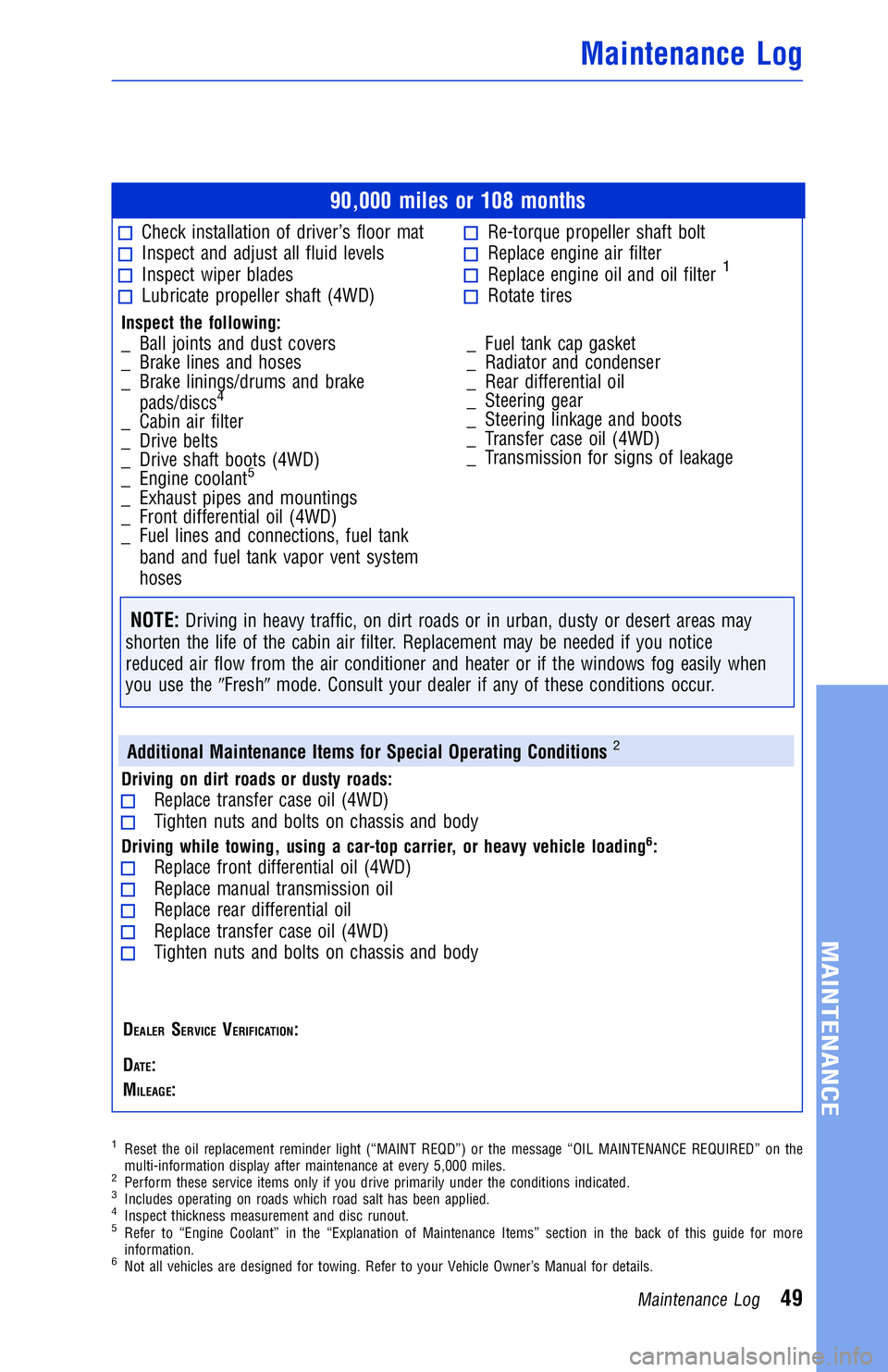

90,000 miles or 108 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)
Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Rotate tires
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and brakepads/discs
4
_ Cabin air filter
_ Drive belts
_ Drive shaft boots (4WD)
_ Engine coolant
5
_ Exhaust pipes and mountings
_ Front differential oil (4WD)
_ Fuel lines and connections, fuel tankband and fuel tank vapor vent system
hoses _ Fuel tank cap gasket
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
_ Transfer case oil (4WD)
_ Transmission for signs of leakage
NOTE:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log49
