TOYOTA TACOMA 2019 (in English) User Guide

9
Windshield washer fluid tank
Windshield washer fluid tank
Engine coolant reservoirEngine oil filler cap
Engine oil filler cap
Power steering fluid reservoir
Power steering fluid reservoir
Engine oil level dipstick
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Pull up latch and
raise hood
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “
” indicator may illuminate.
Turn to open4 CYLINDER (2TR-FE) ENGINE
6 CYLINDER (2GR-FKS) ENGINE

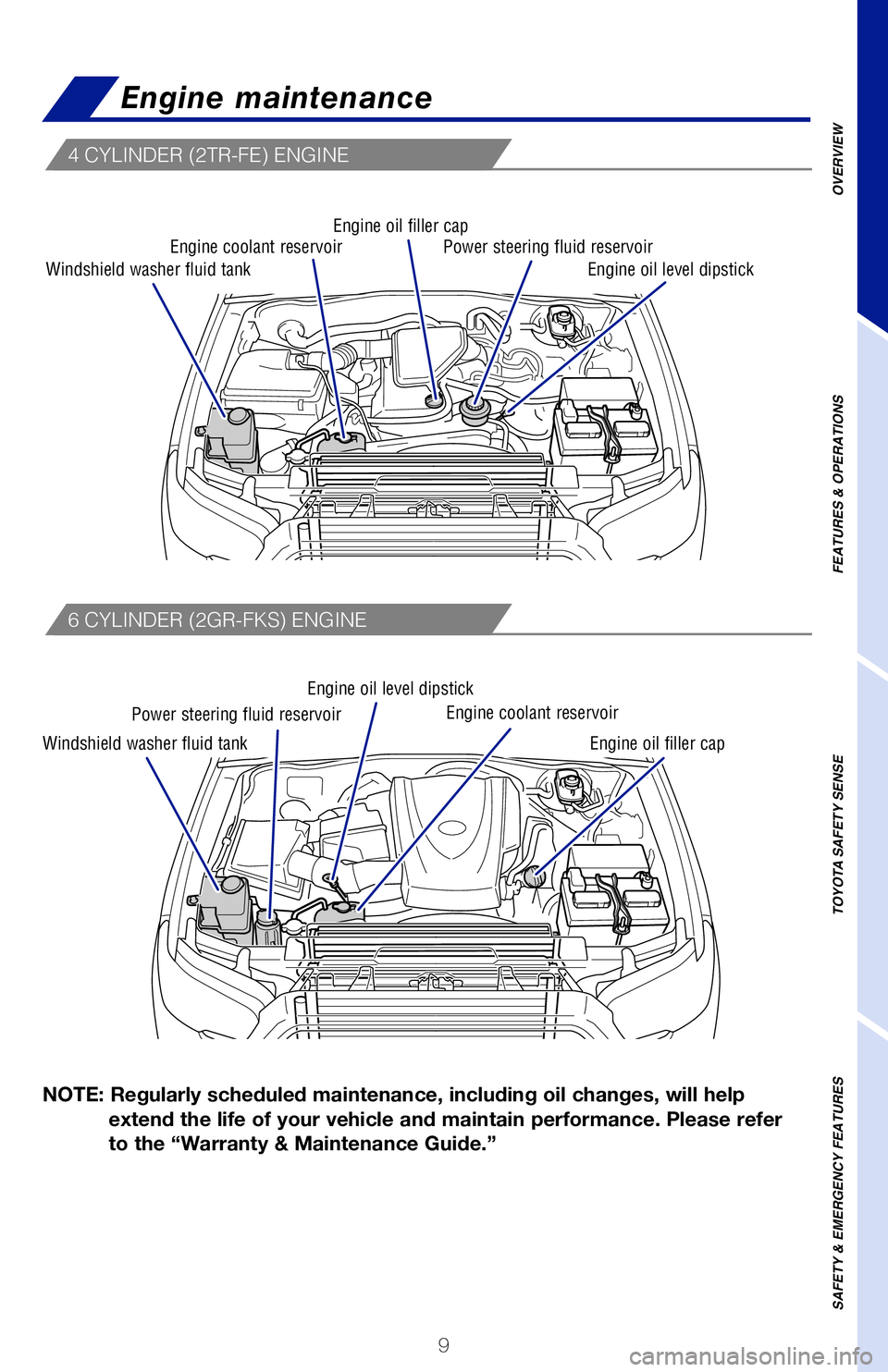

Engine maintenance
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine oil level dipstick
Engine coolant reservoir
142230_MY19_Tacoma_QRG_GUTS.indd 98/13/18 4:03 PM

10

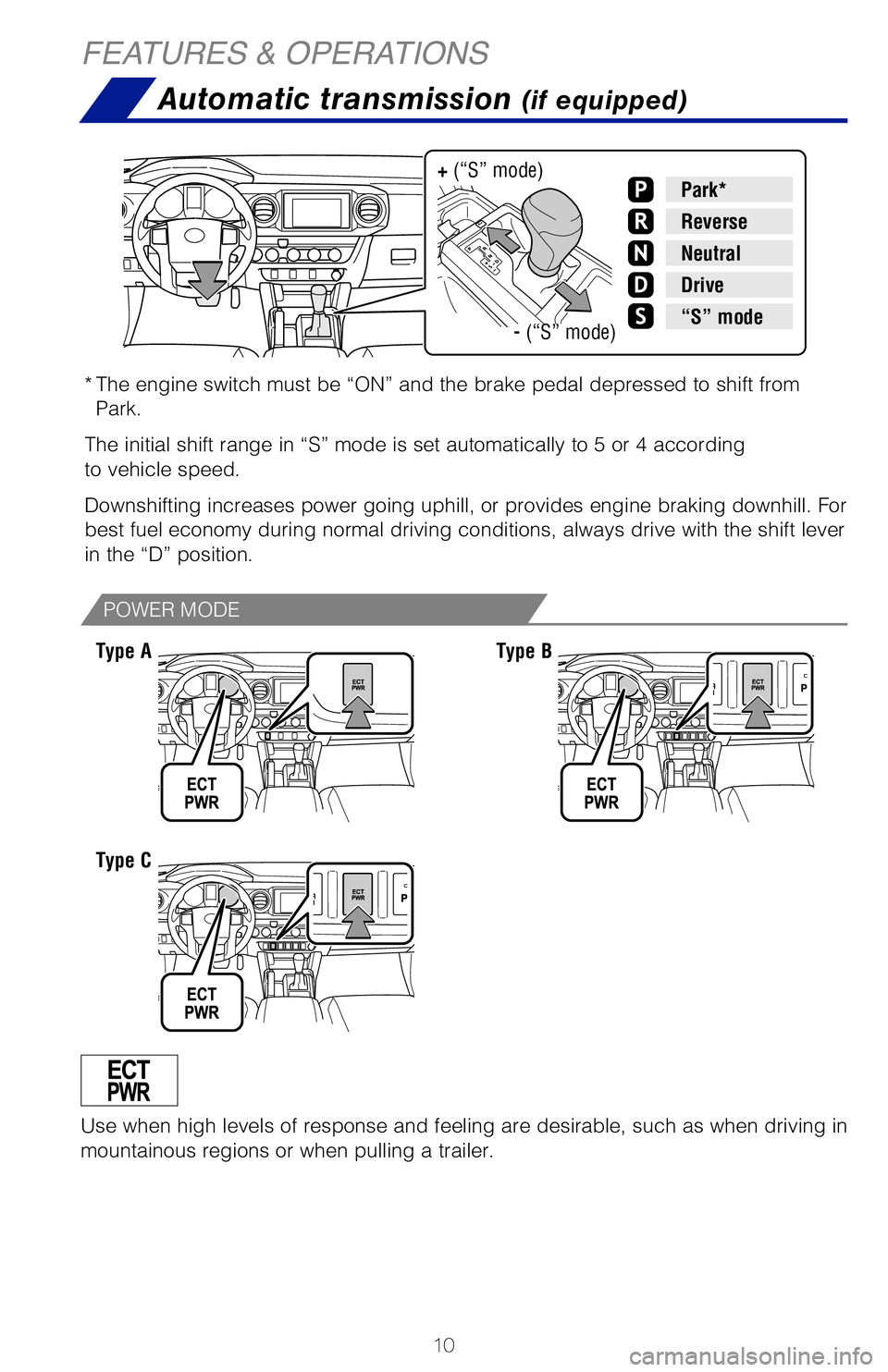

Automatic transmission (if equipped)
* The engine switch must be “ON” and the brake pedal depressed to sh\
ift from
Park.
The initial shift range in “S” mode is set automatically to 5 or 4\
according
to vehicle speed.
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Park*
Reverse
Neutral
Drive
N
“S” mode- (“S” mode)
+ (“S” mode)
Use when high levels of response and feeling are desirable, such as when\
driving in
mountainous regions or when pulling a trailer.
Type A
Type C
Type B
Selecting shift ranges using “S” mode restricts the upper limit of\
the possible gear
ranges, controls engine braking forces and prevents unnecessary upshifti\
ng.
For best fuel economy and performance under normal driving conditions, k\
eep in
“2WD” position.
FEATURES & OPERATIONS
POWER MODE
“S” MODE
142230_MY19_Tacoma_QRG_GUTS.indd 108/13/18 4:03 PM

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

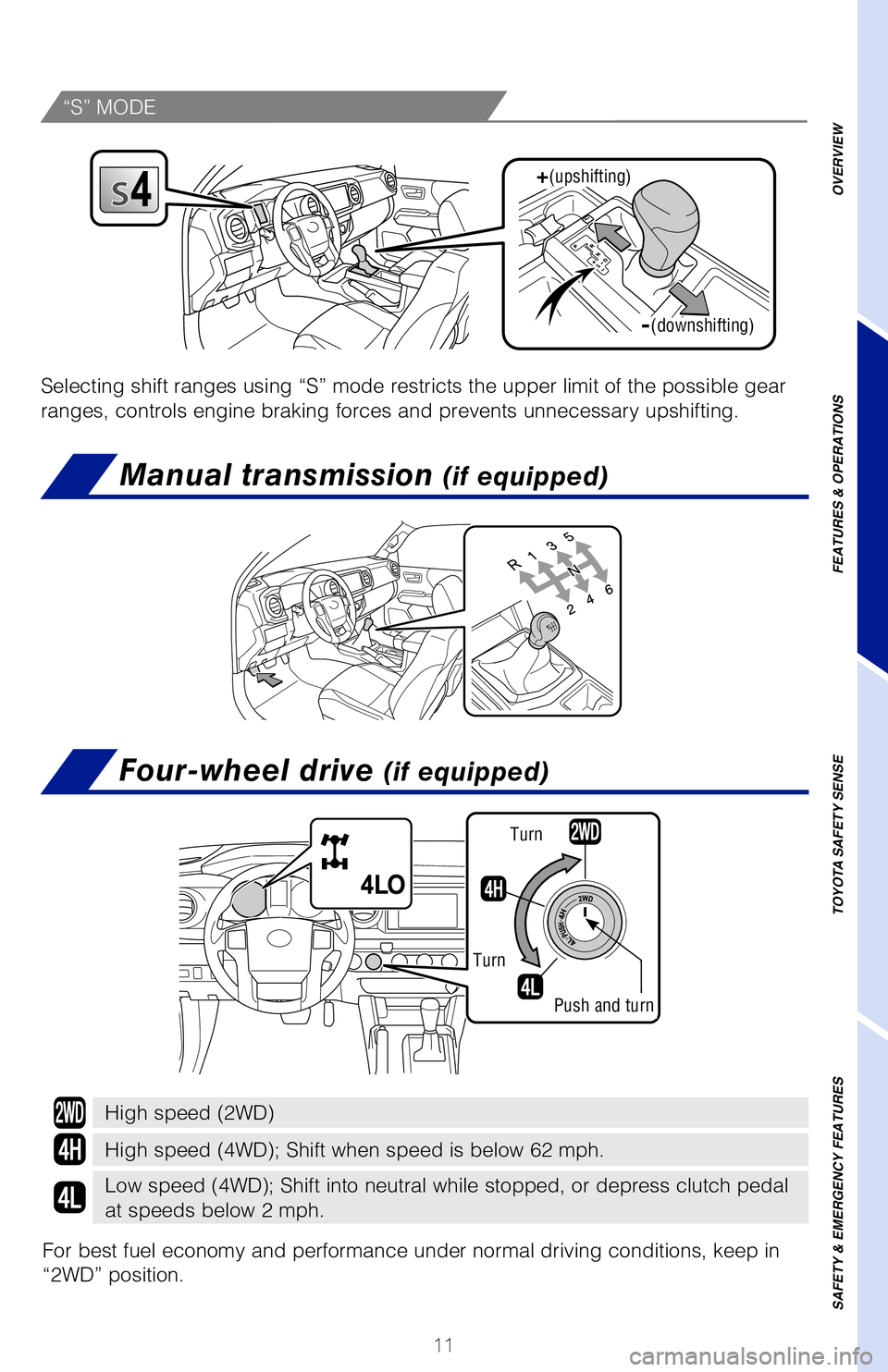

Manual transmission (if equipped)
Four-wheel drive (if equipped)
Automatic transmission (if equipped)
* The engine switch must be “ON” and the brake pedal depressed to sh\
ift from
Park.
The initial shift range in “S” mode is set automatically to 5 or 4\
according
to vehicle speed.
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Use when high levels of response and feeling are desirable, such as when\
driving in
mountainous regions or when pulling a trailer.
Selecting shift ranges using “S” mode restricts the upper limit of\
the possible gear
ranges, controls engine braking forces and prevents unnecessary upshifti\
ng.
+(upshifting)
(downshifting)-
High speed (2WD)
High speed (4WD); Shift when speed is below 62 mph.
Low speed (4WD); Shift into neutral while stopped, or depress clutch p\
edal
at speeds below 2 mph.
For best fuel economy and performance under normal driving conditions, k\
eep in
“2WD” position.
Turn
Push and turn
Turn
“S” MODE
142230_MY19_Tacoma_QRG_GUTS.indd 118/13/18 4:04 PM

12

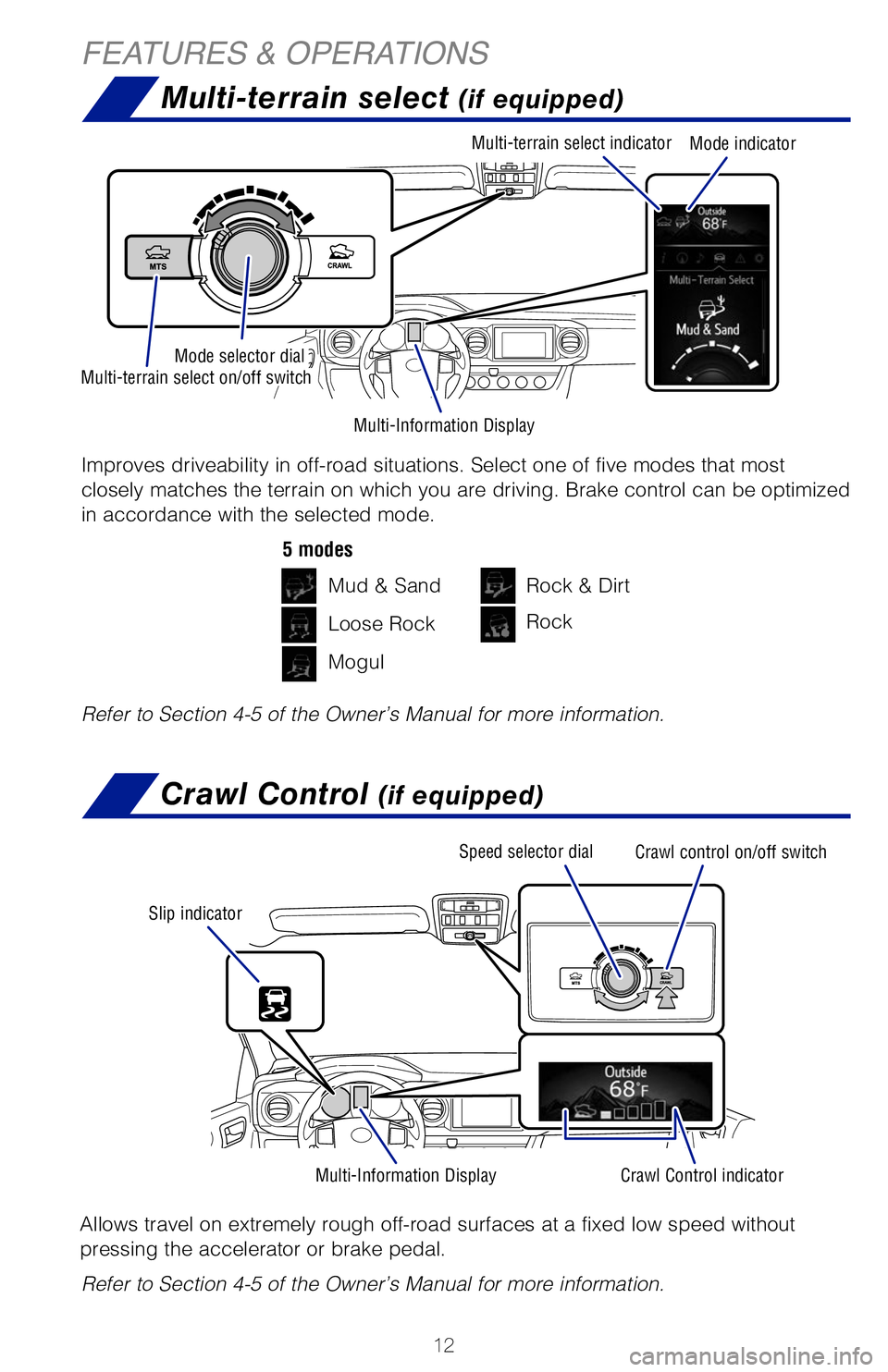

Multi-terrain select (if equipped)
Crawl Control (if equipped)
FEATURES & OPERATIONS
Allows travel on extremely rough off-road surfaces at a fixed low speed \
without
pressing the accelerator or brake pedal.
Refer to Section 4-5 of the Owner’s Manual for more information. Refer to Section 4-5 of the Owner’s Manual for more information. Improves driveability in off-road situations. Select one of five modes t\
hat most
closely matches the terrain on which you are driving. Brake control can \
be optimized
in accordance with the selected mode.5 modes
Mud & Sand
Loose Rock
Mogul
Rock & Dirt
Rock
Multi-Information Display Multi-terrain select indicator
Mode indicator
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion. The engine switch must be in the “ON” position.
The clutch start cancel switch allows you to start the engine and drive \
out of difficult
situations where the vehicle should not be allowed to roll backwards.
Refer to Section 4-5 of the Owner’s Manual for more information.
Push to switch display
Multi-terrain select on/off switchMode selector dial
Slip indicator Multi-Information Display Crawl Control indicator
Speed selector dial
Crawl control on/off switch
142230_MY19_Tacoma_QRG_GUTS.indd 128/13/18 4:04 PM

13

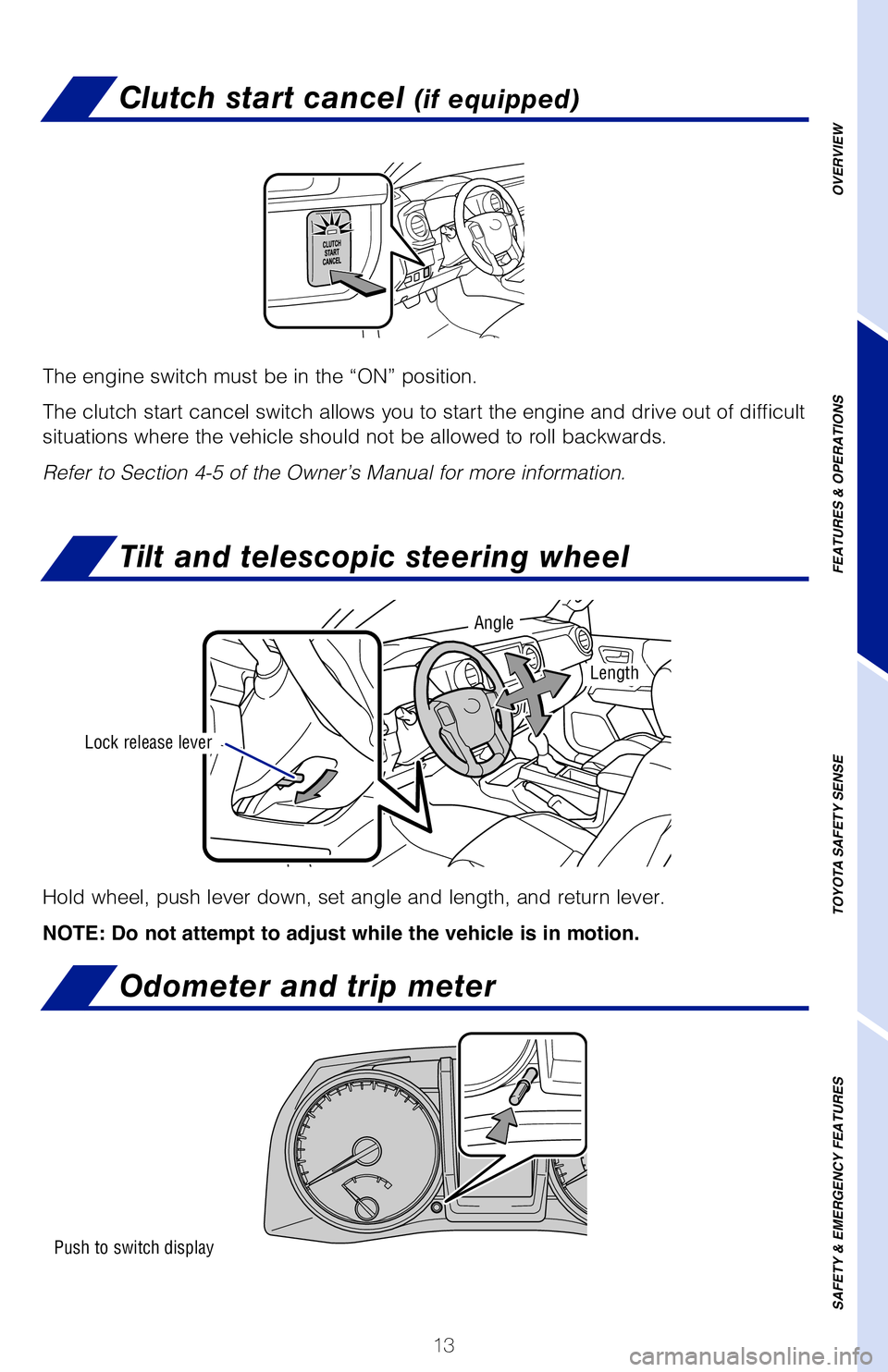

Clutch start cancel (if equipped)
Tilt and telescopic steering wheel
Odometer and trip meter
Allows travel on extremely rough off-road surfaces at a fixed low speed \
without
pressing the accelerator or brake pedal.Refer to Section 4-5 of the Owner’s Manual for more information. Refer to Section 4-5 of the Owner’s Manual for more information. Improves driveability in off-road situations. Select one of five modes t\
hat most
closely matches the terrain on which you are driving. Brake control can \
be optimized
in accordance with the selected mode.
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Angle
Lock release lever
The engine switch must be in the “ON” position.
The clutch start cancel switch allows you to start the engine and drive \
out of difficult
situations where the vehicle should not be allowed to roll backwards.
Refer to Section 4-5 of the Owner’s Manual for more information.
Push to switch display
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Crawl control on/off switch
142230_MY19_Tacoma_QRG_GUTS.indd 138/13/18 4:04 PM

14

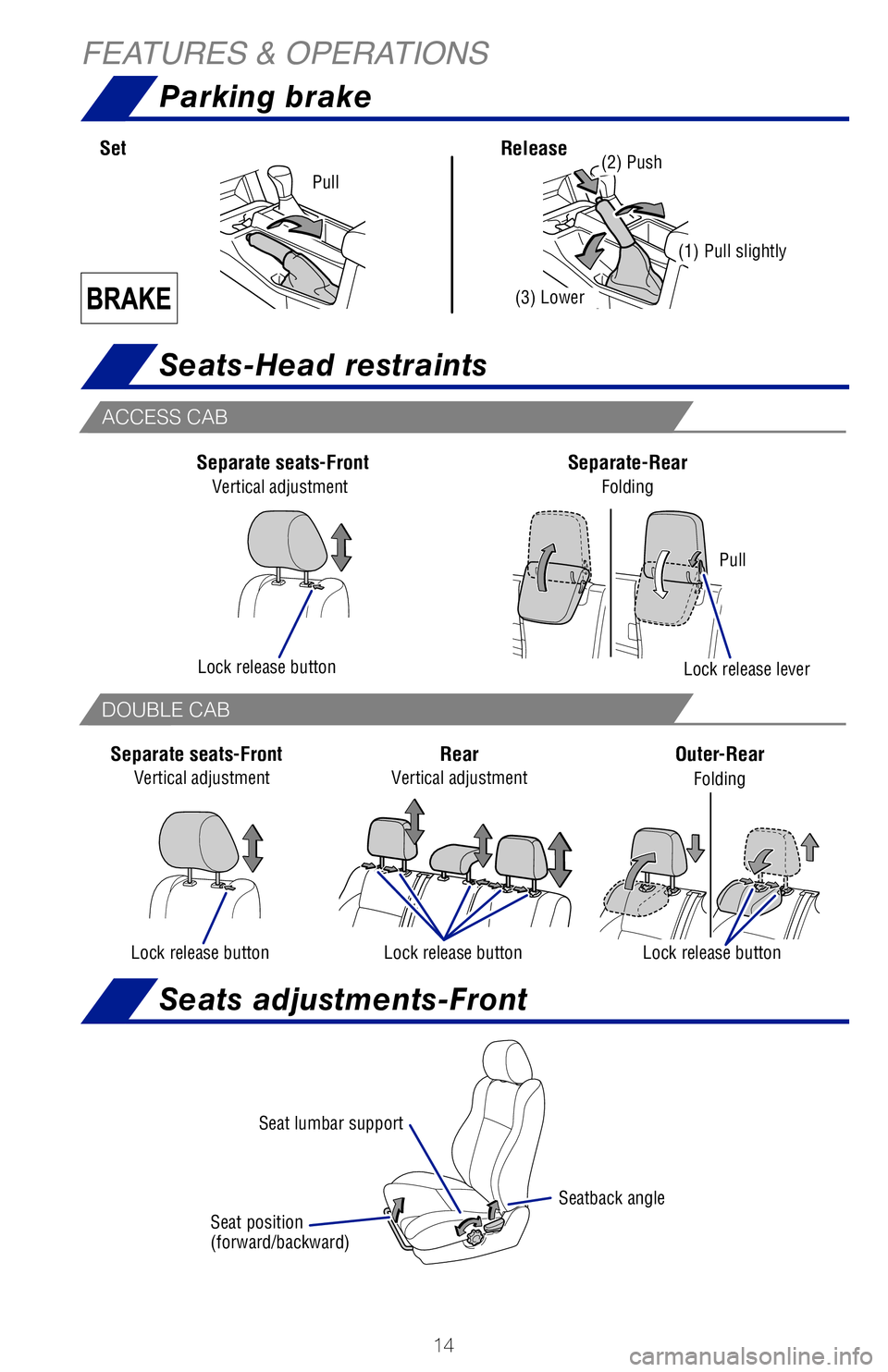

Parking brake
Seats-Head restraints
Seats adjustments-Front
FEATURES & OPERATIONS
(1) Pull slightly
(3) Lower
SetRelease(2) PushPull
Lock release buttonLock release lever
Pull
Separate seats-Front
Vertical adjustment
Separate-Rear
FoldingFolding
Outer-Rear
Lock release button
Seatback angle
Lock release buttonLock release button
Separate seats-FrontRear
Vertical adjustment Vertical adjustment
Seat position
(forward/backward) Seat lumbar support
ACCESS CAB
ACCESS CAB
DOUBLE CAB
DOUBLE CAB
Stow the seat belt buckles.
Pass the seat belt through the seat
belt hangers.
(1)
(1)
(3)
Attach the head restraints.
142230_MY19_Tacoma_QRG_GUTS.indd 148/13/18 4:04 PM

15
(1) Pull slightly
Lock release lever
ACCESS CAB
DOUBLE CAB
Pull lock release strap and fold
down the seatback.
Stow the seat belt buckles.Pass the seat belt through the seat
belt hangers. Raise the bottom cushion up while
pulling the lever until it locks.
(1)
(1)
(3)
(2)
(2)
(4)
Remove head restraints and swing
the bottom cushion.
Attach the head restraints.
Pull
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

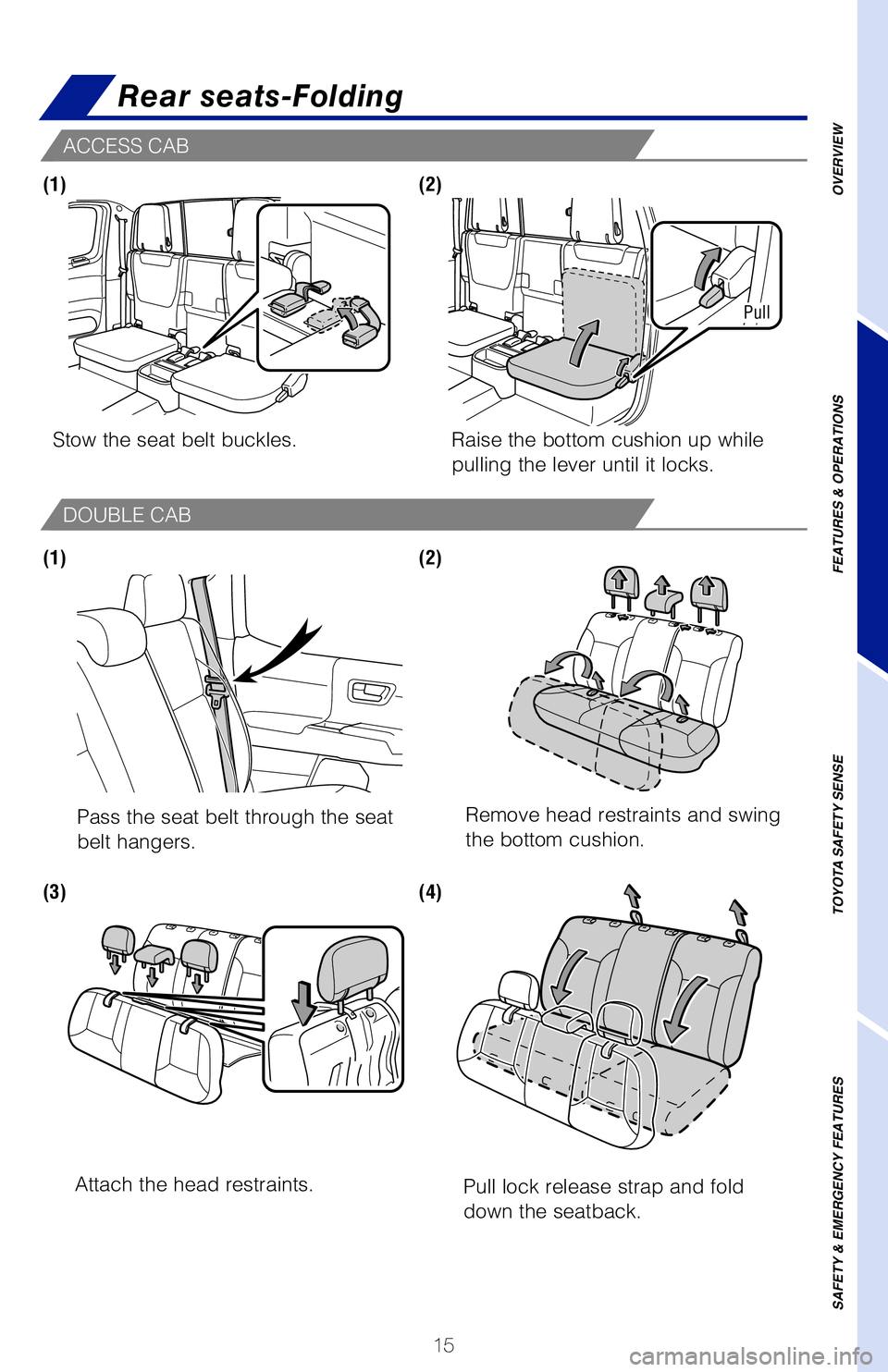

Rear seats-Folding
142230_MY19_Tacoma_QRG_GUTS.indd 158/13/18 4:04 PM

16

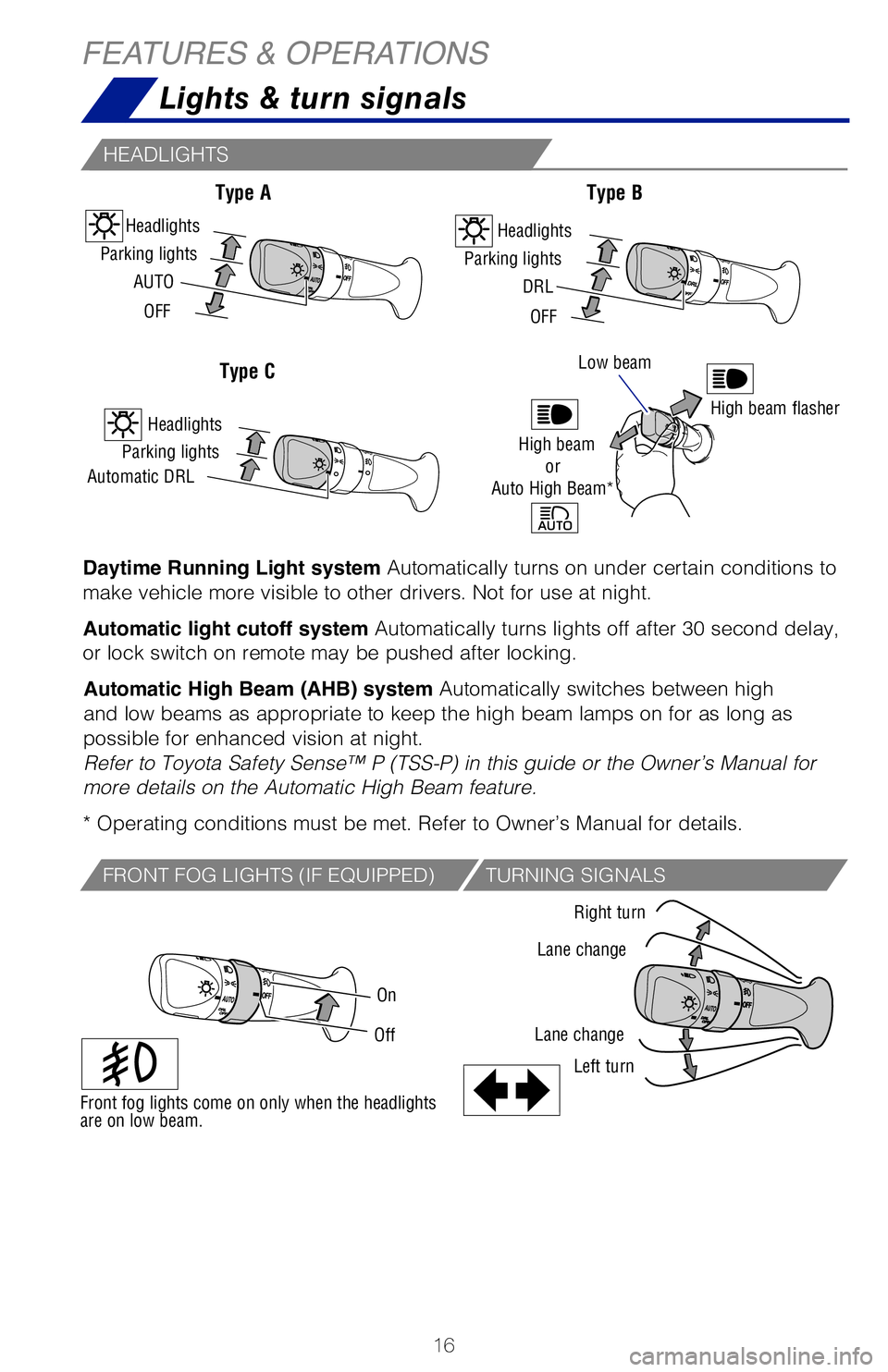

Lights & turn signals
HEADLIGHTS
WITH INTERMITTENT WIPER
WITHOUT INTERMITTENT WIPER
FEATURES & OPERATIONS
Daytime Running Light system Automatically turns on under certain conditions to
make vehicle more visible to other drivers. Not for use at night.
Automatic light cutoff system Automatically turns lights off after 30 second delay,
or lock switch on remote may be pushed after locking.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to keep the high beam lamps on for as long \
as
possible for enhanced vision at night. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for detai\
ls.
High beam flasher
Low beam
High beam
Driver side
Type A (driver’s side only)
Window lock switch
Automatic down (type A)/up or down (type B) operation Push the switch
completely down or pull it completely up and release to fully open or cl\
ose. To stop
the window partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Front fog lights come on only when the headlights
are on low beam.
On
Off
Right turn
Lane change
Lane change Left turn
Headlights
Parking lights
AUTO
OFF
Type A
Automatic DRL
Parking lights
Headlights
Type C
Headlights
Parking lights
DRL
OFF
Type B
TURNING SIGNALSFRONT FOG LIGHTS (IF EQUIPPED)
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
Auto High Beam*or
142230_MY19_Tacoma_QRG_GUTS.indd 168/13/18 4:04 PM

17
Lights & turn signals

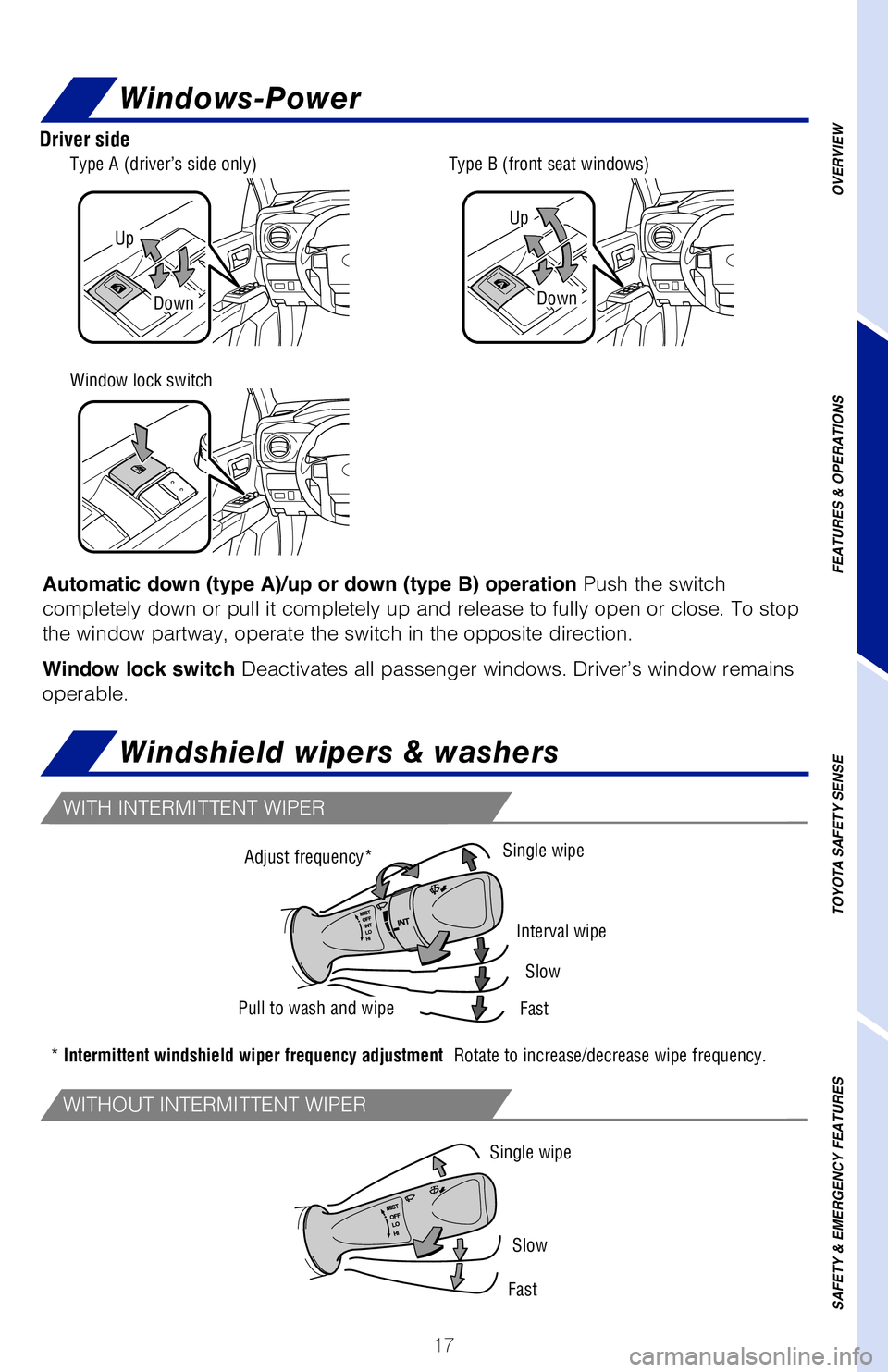

Windshield wipers & washers
Windows-Power
WITH INTERMITTENT WIPER
WITHOUT INTERMITTENT WIPER
Daytime Running Light system Automatically turns on under certain conditions to
make vehicle more visible to other drivers. Not for use at night.
Automatic light cutoff system Automatically turns lights off after 30 second delay,
or lock switch on remote may be pushed after locking.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to keep the high beam lamps on for as long \
as
possible for enhanced vision at night. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for detai\
ls.
High beam flasher
UpUp
DownDown
Driver side
Type A (driver’s side only)
Window lock switch Type B (front seat windows)
Automatic down (type A)/up or down (type B) operation
Push the switch
completely down or pull it completely up and release to fully open or cl\
ose. To stop
the window partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
Interval wipe
Single wipe
Slow
FastPull to wash and wipe Adjust frequency*
Single wipe
Slow
Fast
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
142230_MY19_Tacoma_QRG_GUTS.indd 178/13/18 4:05 PM

18
FEATURES & OPERATIONS

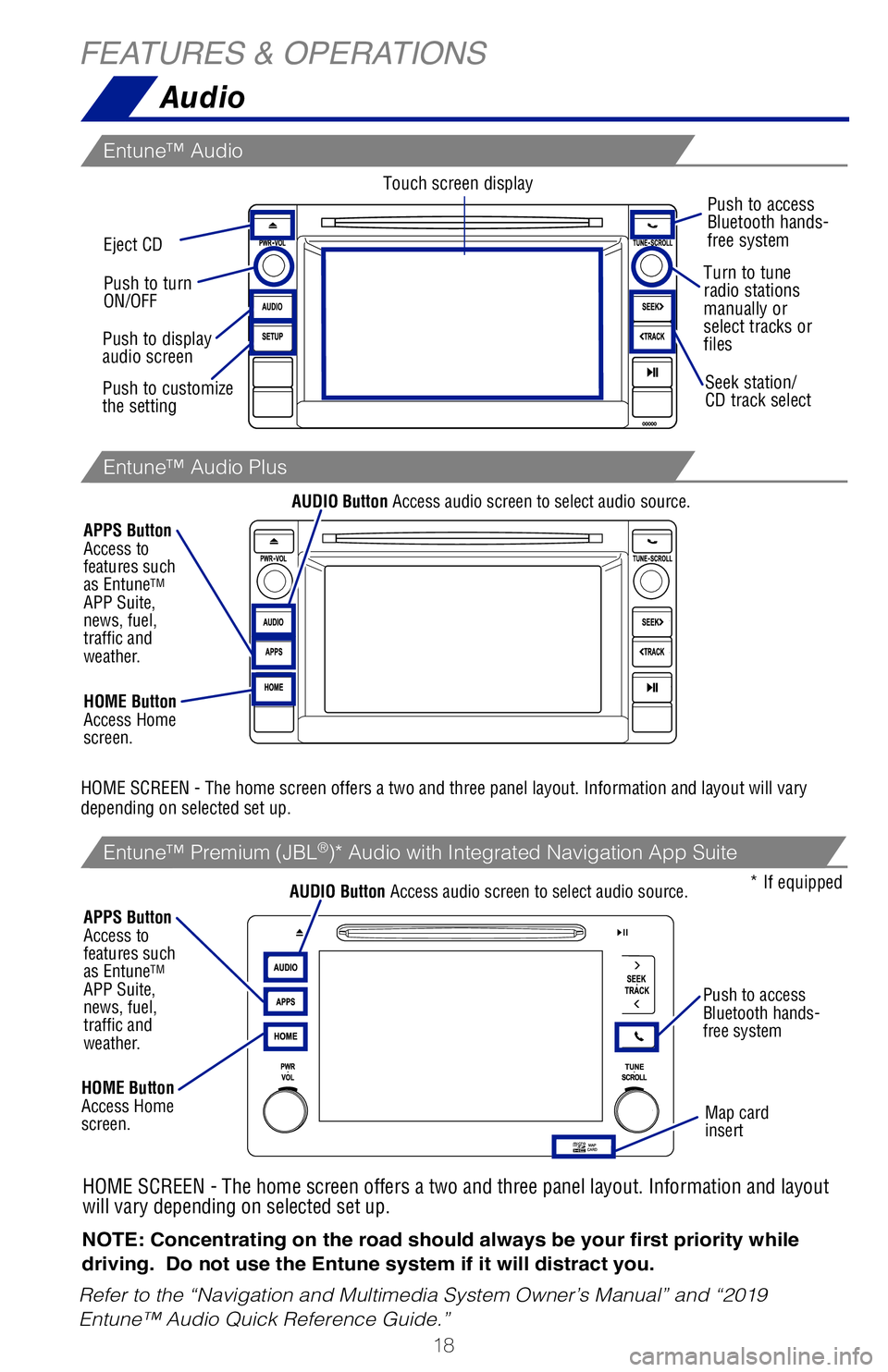

Refer to the “Navigation and Multimedia System Owner’s Manual” \
and “2019 Entune™ Audio Quick Reference Guide.” NOTE: Concentrating on the road should always be your first priority whi\
le
driving. Do not use the Entune system if it will distract you.
“MODE/HOLD”
Push to change
audio source or
push and hold to
mute or pause
current operation.
Start call/
Mobile Assistant
access*
“>>” Use to
search within the
selected audio
medium (radio, CD,
etc.).
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel or using a cable to connect the compatible telephone\
and
the system.
* Push and hold to access Mobile Assistant. When a compatible smartphone \
is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to the “Bluetooth® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Owner’s Manual” or the “Navigation and Multimedia S\
ystem Owner’s
Manual” for more details.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Microphone
Type A (without moonroof)
HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout will vary
depending on selected set up.
HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout
will vary depending on selected set up.
Map card
insert
Push to access
Bluetooth hands-
free system
AUDIO Button Access audio screen to select audio source.
AUDIO Button Access audio screen to select audio source.
HOME Button
Access Home
screen.
HOME Button
Access Home
screen. APPS Button
Access to
features such
as Entune
TM
APP Suite,
news, fuel,
traffic and
weather.
APPS Button
Access to
features such
as Entune
TM
APP Suite,
news, fuel,
traffic and
weather.
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Push to display
audio screen
Push to customize
the setting Turn to tune
radio stations
manually or
select tracks or
files
Touch screen display
Push to access
Bluetooth hands-
free system
* If equipped
Audio
Entune™ Audio
Entune™ Audio Plus
Entune™ Premium (JBL®)* Audio with Integrated Navigation App Suite
142230_MY19_Tacoma_QRG_GUTS.indd 188/13/18 4:05 PM
