TOYOTA TACOMA 2019 (in English) Owner's Manual

19
NOTE: Concentrating on the road should always be your first priority whi\
le
driving. Do not use the Entune system if it will distract you.
“MODE/HOLD”
Push to change
audio source or
push and hold to
mute or pause
current operation.
Start call/
Mobile Assistant
access*
End call
“>>” Use to
search within the
selected audio
medium (radio, CD,
etc.).
Voice command switch
VolumeOVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

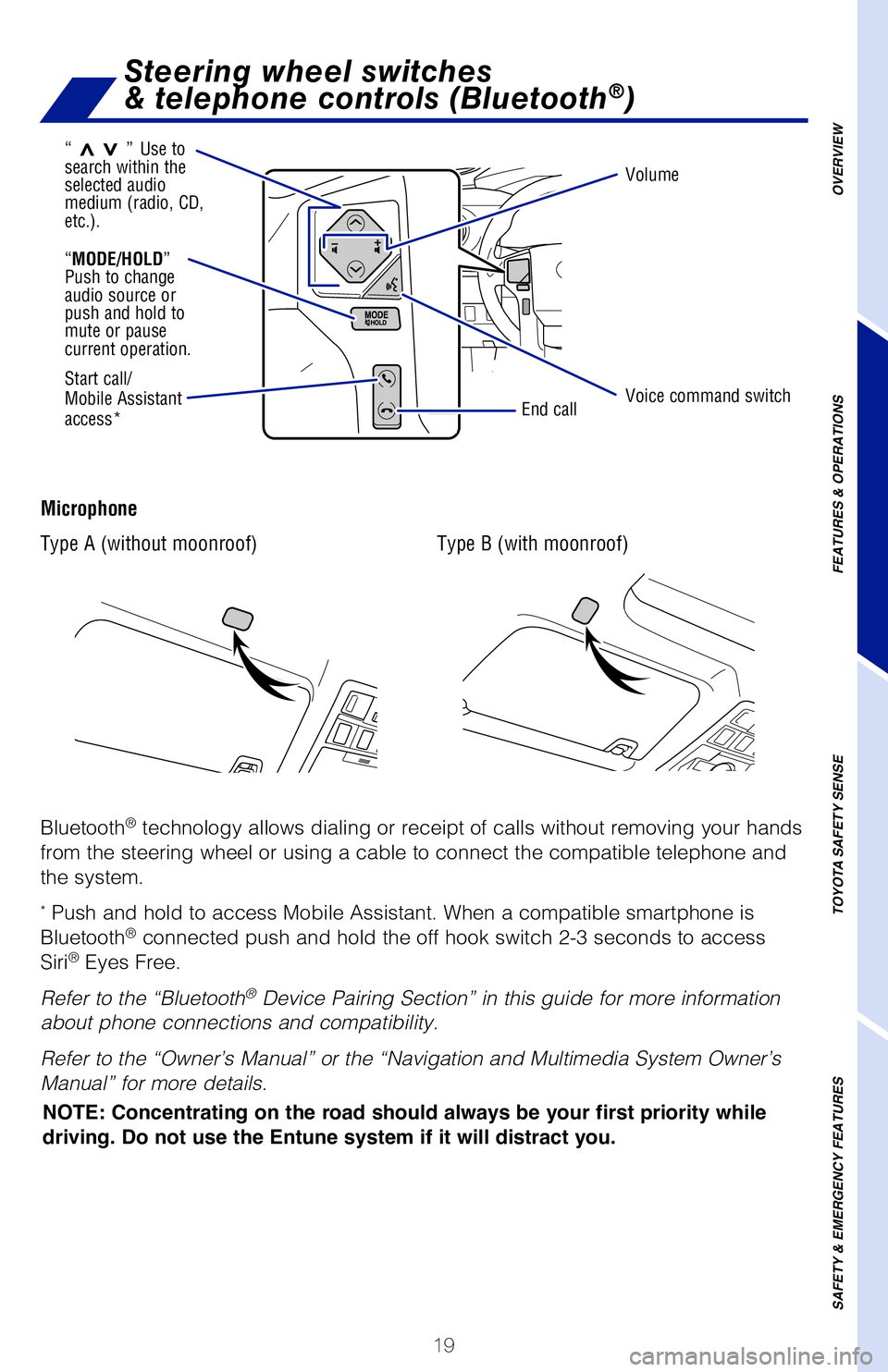

Steering wheel switches
& telephone controls (Bluetooth®)
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel or using a cable to connect the compatible telep\
hone and
the system.
* Push and hold to access Mobile Assistant. When a compatible smartphone \
is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.

Refer to the “Bluetooth
® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Owner’s Manual” or the “Navigation and Multime\
dia System Owner’s
Manual” for more details.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Microphone
Type A (without moonroof)Type B (with moonroof)
HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout will vary
depending on selected set up.
HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout
will vary depending on selected set up.
Push to access
Bluetooth hands-
free system
Seek station/
CD track select
Turn to tune
radio stations
manually or
select tracks or
files Push to access
Bluetooth hands-
free system
* If equipped
Audio
Entune™ Premium (JBL®)* Audio with Integrated Navigation App Suite
142230_MY19_Tacoma_QRG_GUTS.indd 198/13/18 4:05 PM

20
FEATURES & OPERATIONS

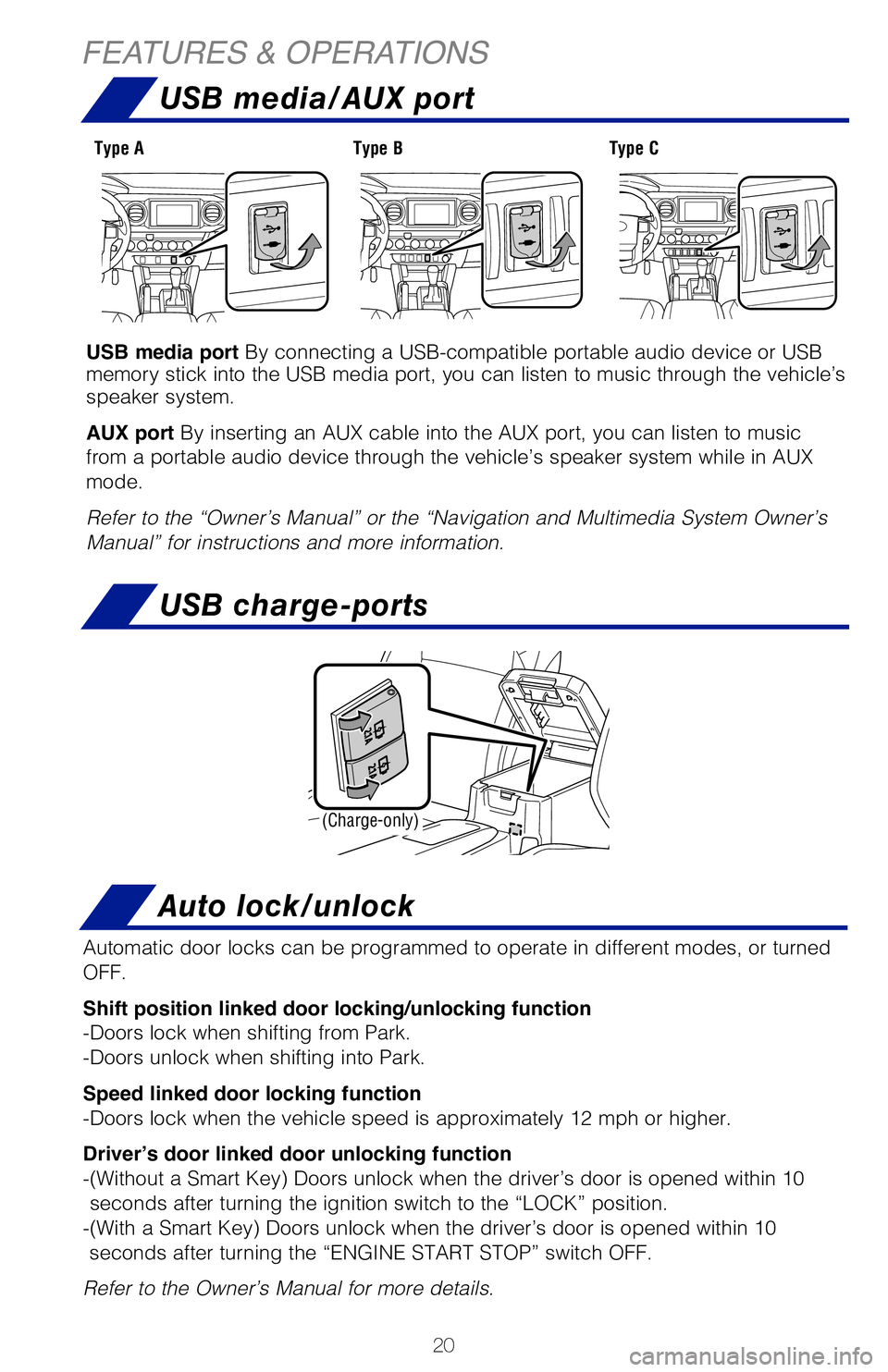

USB media port By connecting a USB-compatible portable audio device or USB
memory stick into the USB media port, you can listen to music through th\
e vehicle’s
speaker system.
AUX port By inserting an AUX cable into the AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system whi\
le in AUX
mode.
Refer to the “Owner’s Manual” or the “Navigation and Multime\
dia System Owner’s
Manual” for instructions and more information.
Type AType BType C
USB media/AUX port
USB charge-ports
(Charge-only)
A mobile device can be charged wirelessly on the tray. (1) Press the w\
ireless
charger power switch. (2) Place a mobile device on the tray as shown i\
n the
illustration. An amber indicator illuminates while charging is in progre\
ss. When
charging is complete, the indicator illuminates green. Some phones, case\
s or cover
type wireless chargers may not cause the green indicator to illuminate e\
ven though
it is fully charged.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Charging can only be performed with the engine switch in the “ACC”\
or “ON”
position (without Smart Key)/ ACCESSORY or IGNITION ON mode (with Sma\
rt Key)
and only on mobile devices with the “
” logo.
(1)
(2)
Type A
Type C
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
Driver’s door linked door unlocking function
-(Without a Smart Key) Doors unlock when the driver’s door is opened\
within 10 seconds after turning the ignition switch to the “LOCK” position. \
-(With a Smart Key) Doors unlock when the driver’s door is opened w\
ithin 10 seconds after turning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
142230_MY19_Tacoma_QRG_GUTS.indd 208/13/18 4:05 PM

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
USB media port By connecting a USB-compatible portable audio device or USB
memory stick into the USB media port, you can listen to music through th\
e vehicle’s
speaker system.
AUX port By inserting an AUX cable into the AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system whi\
le in AUX
mode.
Refer to the “Owner’s Manual” or the “Navigation and Multime\
dia System Owner’s
Manual” for instructions and more information.

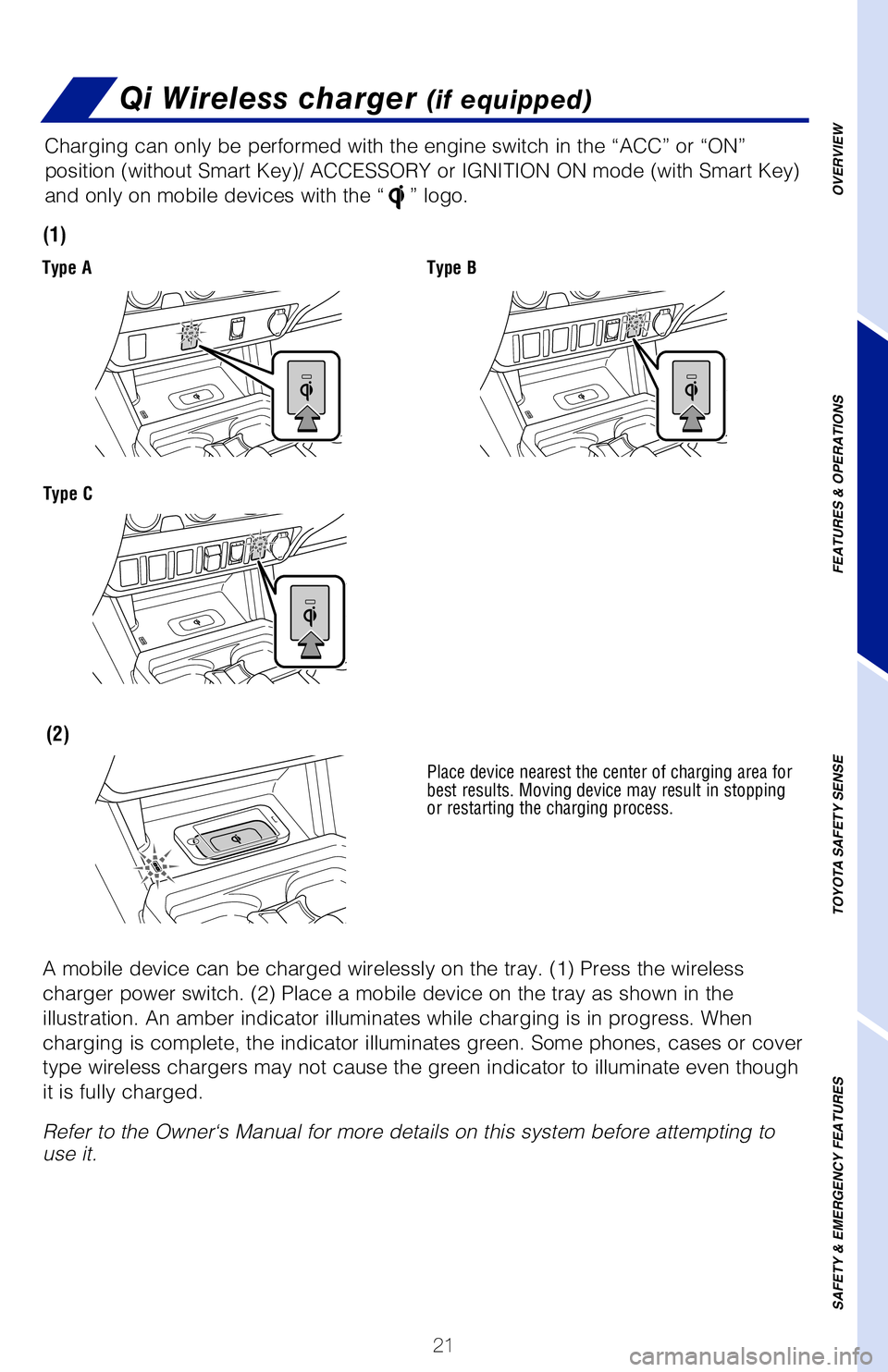

USB media/AUX portQi Wireless charger (if equipped)
USB charge-ports
A mobile device can be charged wirelessly on the tray. (1) Press the w\
ireless
charger power switch. (2) Place a mobile device on the tray as shown i\
n the
illustration. An amber indicator illuminates while charging is in progre\
ss. When
charging is complete, the indicator illuminates green. Some phones, case\
s or cover
type wireless chargers may not cause the green indicator to illuminate e\
ven though
it is fully charged.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Charging can only be performed with the engine switch in the “ACC”\
or “ON”
position (without Smart Key)/ ACCESSORY or IGNITION ON mode (with Sma\
rt Key)
and only on mobile devices with the “
” logo.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
(1)
(2)
Type A
Type C
Type B
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
Driver’s door linked door unlocking function
-(Without a Smart Key) Doors unlock when the driver’s door is opened\
within 10 seconds after turning the ignition switch to the “LOCK” position. \
-(With a Smart Key) Doors unlock when the driver’s door is opened w\
ithin 10 seconds after turning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
142230_MY19_Tacoma_QRG_GUTS.indd 218/13/18 4:06 PM

22

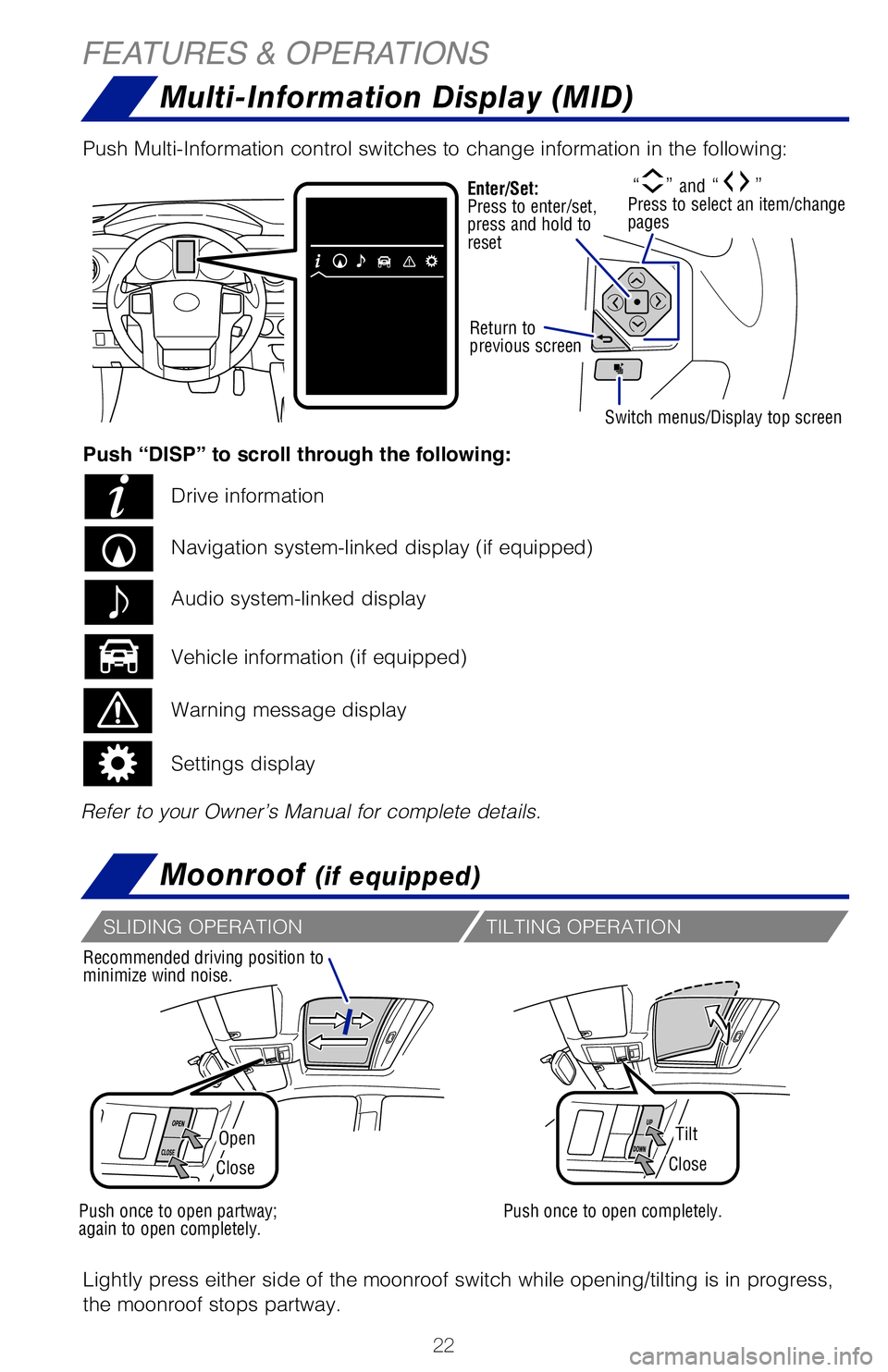

Multi-Information Display (MID)
Moonroof (if equipped)
FEATURES & OPERATIONS
OpenTilt
CloseClose
Recommended driving position to
minimize wind noise.
Lightly press either side of the moonroof switch while opening/tilting is in pr\
ogress,
the moonroof stops partway. Push Multi-Information control switches to change information in the followi\
ng:
Push once to open partway;
again to open completely.Push once to open completely.
TILTING OPERATIONSLIDING OPERATION
AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
MANUAL AIR CONDITIONING (IF EQUIPPED)
Display
Selectors and switches
“” and “” Press to select an item/change
pagesEnter/Set:
Press to enter/set,
press and hold to
reset
Return to
previous screen
Switch menus/Display top screen
Refer to your Owner’s Manual for complete details.Push “DISP” to scroll through the following:
Drive information
Navigation system-linked display (if equipped)
Vehicle information (if equipped) Audio system-linked display
Warning message display
Settings display
Temperature (driver’s side)
Outside rear view
mirror defogger
Outside rear view
mirror defogger
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents, air intake and fan to adjust
automatically.
142230_MY19_Tacoma_QRG_GUTS.indd 228/13/18 4:06 PM

23
Multi-Information Display (MID)
Moonroof (if equipped)

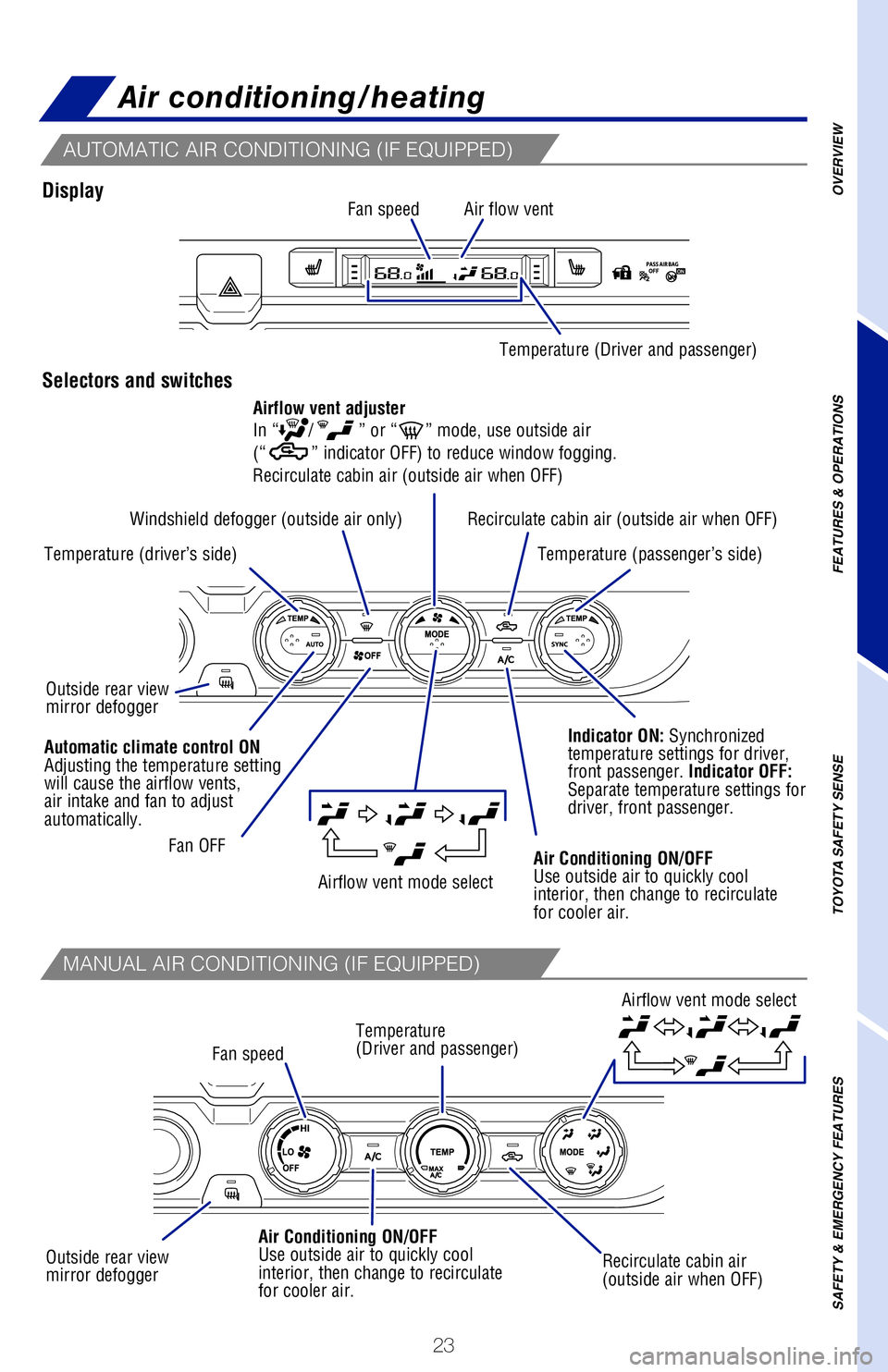

Air conditioning/heating
Lightly press either side of the moonroof switch while opening/tilting i\
s in progress,
the moonroof stops partway. Push Multi-Information control switches to change information in the fol\
lowing:
AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
MANUAL AIR CONDITIONING (IF EQUIPPED)
Display
Selectors and switches
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES “ ” and “ ” Press to select an item/change
pages
Switch menus/Display top screen
Refer to your Owner’s Manual for complete details. Drive information
Navigation system-linked display (if equipped)
Temperature (Driver and passenger)
Temperature (driver’s side) Outside rear view
mirror defogger
Outside rear view
mirror defogger
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically.
Indicator ON: Synchronized
temperature settings for driver,
front passenger. Indicator OFF:
Separate temperature settings for
driver, front passenger.
Air Conditioning ON/OFF
Use outside air to quickly cool
interior, then change to recirculate
for cooler air.
Air Conditioning ON/OFF
Use outside air to quickly cool
interior, then change to recirculate
for cooler air. Temperature (passenger’s side)
Temperature
(Driver and passenger)
Airflow vent mode select
Airflow vent mode select
Windshield defogger (outside air only) Recirculate cabin air (outside air when OFF)
Recirculate cabin air
(outside air when OFF)
Airflow vent adjuster
In “
/” or “” mode, use outside air
(“” indicator OFF) to reduce window fogging.
Recirculate cabin air (outside air when OFF) Fan speed
Fan speed
Fan OFF Air flow vent
142230_MY19_Tacoma_QRG_GUTS.indd 238/13/18 4:06 PM

24

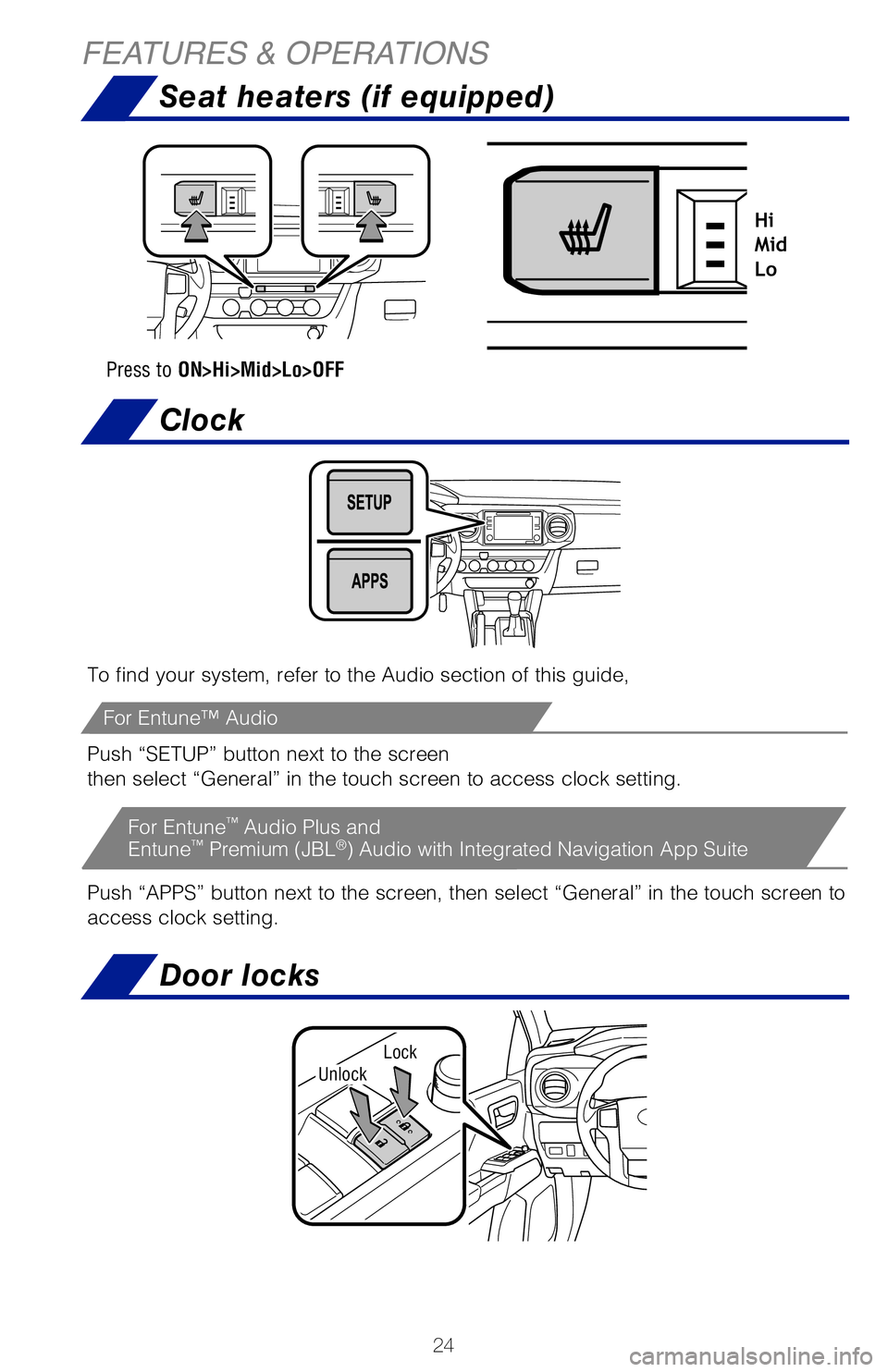

Seat heaters (if equipped)
Clock
FEATURES & OPERATIONS
To find your system, refer to the Audio section of this guide,
Push “SETUP” button next to the screen
then select “General” in the touch screen to access clock setting.\
Push “APPS” button next to the screen, then select “General”\
in the touch screen to
access clock setting.Press to ON>Hi>Mid>Lo>OFF
Hi
Mid
Lo
Key must be in the “ACC” or “ON” position to be used.
Refer to the Owner’s Manual for more details.
The power outlet can be used when the engine is running.
Refer to the Owner’s Manual for more details.
For Entune™ Audio
Door locks
LockUnlock
For Entune™ Audio Plus and
Entune™ Premium (JBL®) Audio with Integrated Navigation App Suite
142230_MY19_Tacoma_QRG_GUTS.indd 248/13/18 4:06 PM

25

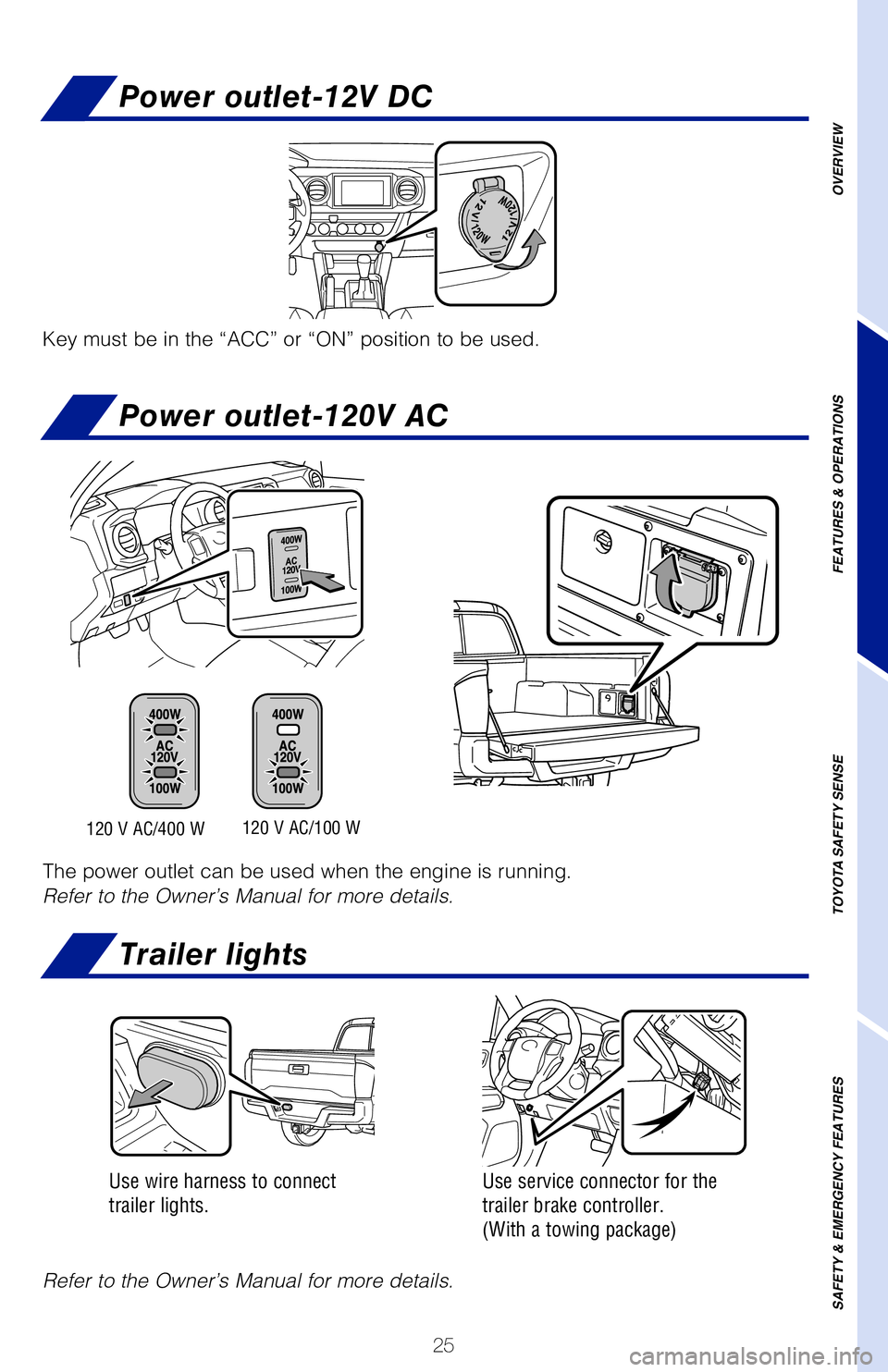

Power outlet-12V DC
Power outlet-120V AC
Trailer lights
To find your system, refer to the Audio section of this guide,
Push “SETUP” button next to the screen
then select “General” in the touch screen to access clock setting.\
Push “APPS” button next to the screen, then select “General”\
in the touch screen to
access clock setting.
Hi
Mid
Lo
Key must be in the “ACC” or “ON” position to be used.
Refer to the Owner’s Manual for more details.Use wire harness to connect
trailer lights.
Use service connector for the
trailer brake controller.
(With a towing package)
120 V AC/100 W
120 V AC/400 W
The power outlet can be used when the engine is running.
Refer to the Owner’s Manual for more details.
Door locks
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
142230_MY19_Tacoma_QRG_GUTS.indd 258/13/18 4:06 PM

26

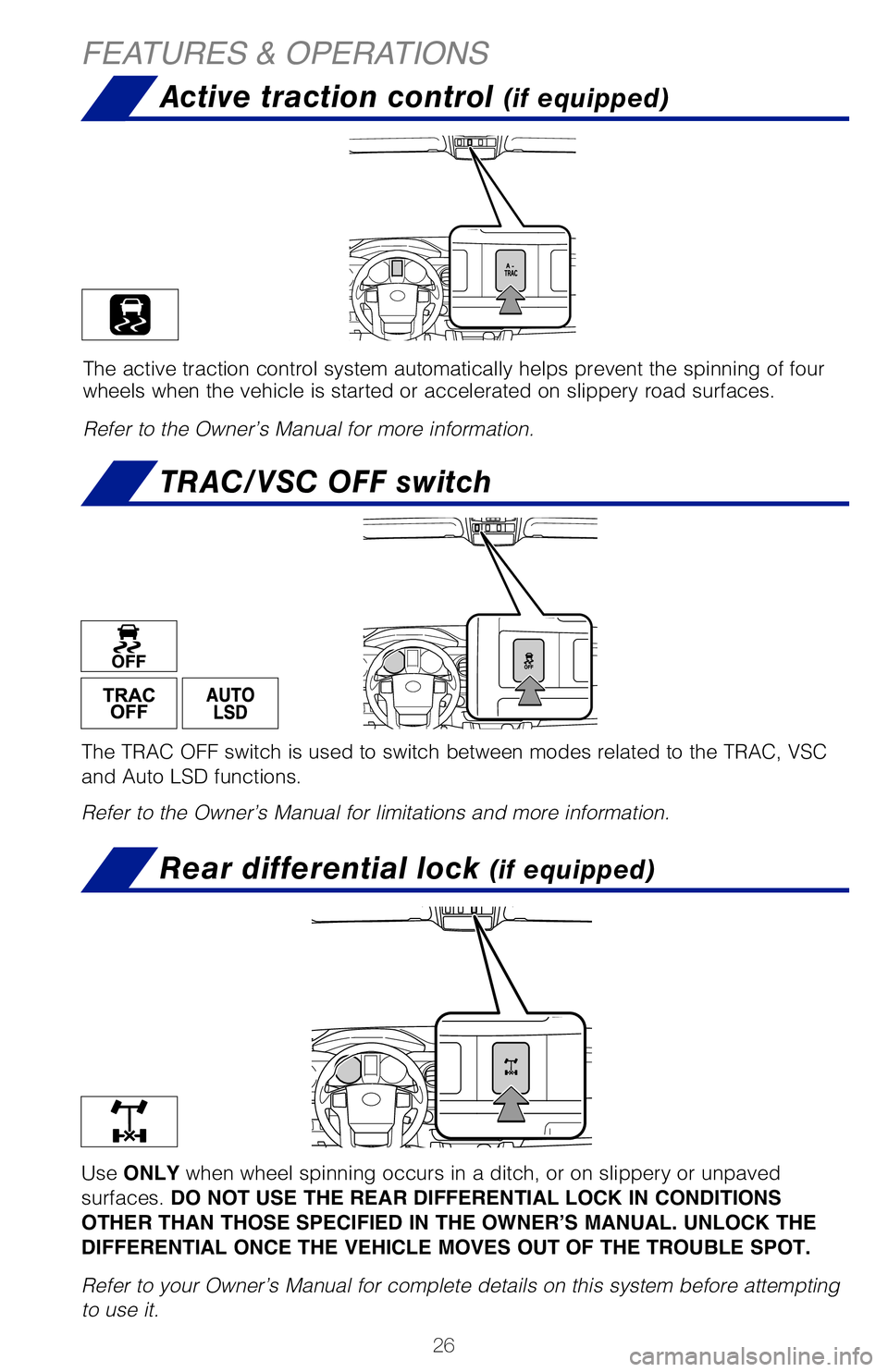

Active traction control (if equipped)
TRAC/VSC OFF switch
Rear differential lock (if equipped)
FEATURES & OPERATIONS
The active traction control system automatically helps prevent the spinning\
of four
wheels when the vehicle is started or accelerated on slippery road surfaces.
Refer to the Owner’s Manual for more information.
Use ONLY when wheel spinning occurs in a ditch, or on slippery or unpaved
surfaces. DO NOT USE THE REAR DIFFERENTIAL LOCK IN CONDITIONS
OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL. UNLOCK THE
DIFFERENTIAL ONCE THE VEHICLE MOVES OUT OF THE TROUBLE SPOT.
Refer to your Owner’s Manual for complete details on this system before at\
tempting
to use it.
The TRAC OFF switch is used to switch between modes related to the TRAC, VS\
C
and Auto LSD functions.
Refer to the Owner’s Manual for limitations and more information.
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the deci\
sion when changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing\
up)
The system is designed to use radar sensors to detect vehicles traveling in\
the
Tacoma’s blind spot and advises the driver of the vehicles’ presence via the
outside rear view mirror indicators.
*Rear Cross Traffic Alert function only.
Refer to the Owner‘s Manual for limitations and more details on this syste\
m before
attempting to use it.
Outside rear view
mirror indicators
142230_MY19_Tacoma_QRG_GUTS.indd 268/13/18 4:06 PM

27

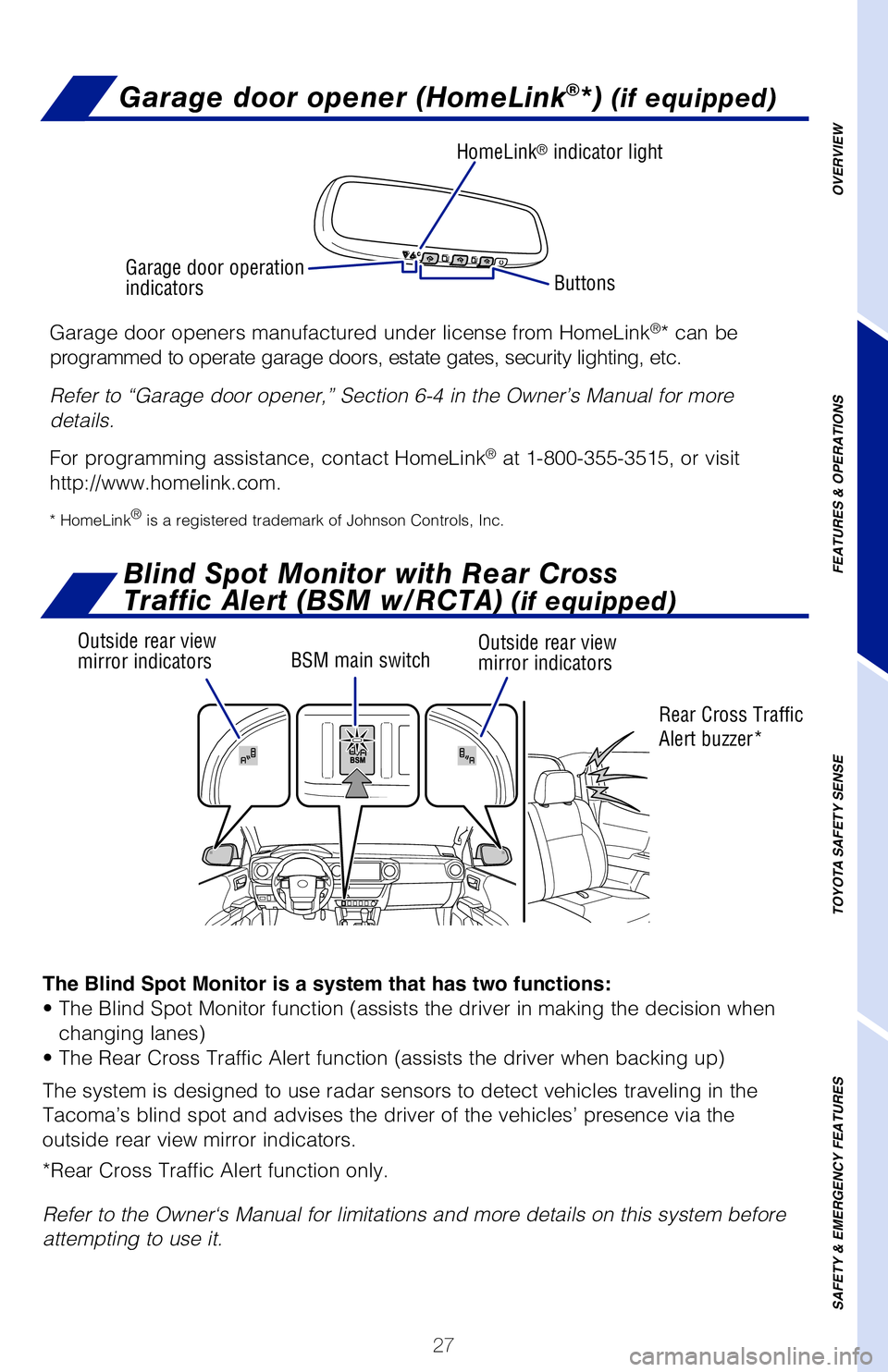

Garage door opener (HomeLink®*) (if equipped)
The active traction control system automatically helps prevent the spinning\
of four wheels when the vehicle is started or accelerated on slippery road surfaces.
Refer to the Owner’s Manual for more information.
Use ONLY when wheel spinning occurs in a ditch, or on slippery or unpaved
surfaces. DO NOT USE THE REAR DIFFERENTIAL LOCK IN CONDITIONS
OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL. UNLOCK THE
DIFFERENTIAL ONCE THE VEHICLE MOVES OUT OF THE TROUBLE SPOT.
Refer to your Owner’s Manual for complete details on this system before at\
tempting

to use it.
The TRAC OFF switch is used to switch between modes related to the TRAC, VS\
C

and Auto LSD functions.
Refer to the Owner’s Manual for limitations and more information.
Garage door openers manufactured under license from HomeLink®* can be

programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the deci\
sion when changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing\
up)
The system is designed to use radar sensors to detect vehicles traveling in\
the
Tacoma’s blind spot and advises the driver of the vehicles’ presence via the
outside rear view mirror indicators.
*Rear Cross Traffic Alert function only.
Refer to the Owner‘s Manual for limitations and more details on this syste\
m before
attempting to use it.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
BSM main switch HomeLink
® indicator light
Garage door operation
indicators Buttons
Outside rear view
mirror indicators Rear Cross Traffic
Alert buzzer*
Outside rear view
mirror indicators
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
142230_MY19_Tacoma_QRG_GUTS.indd 278/13/18 4:07 PM

28

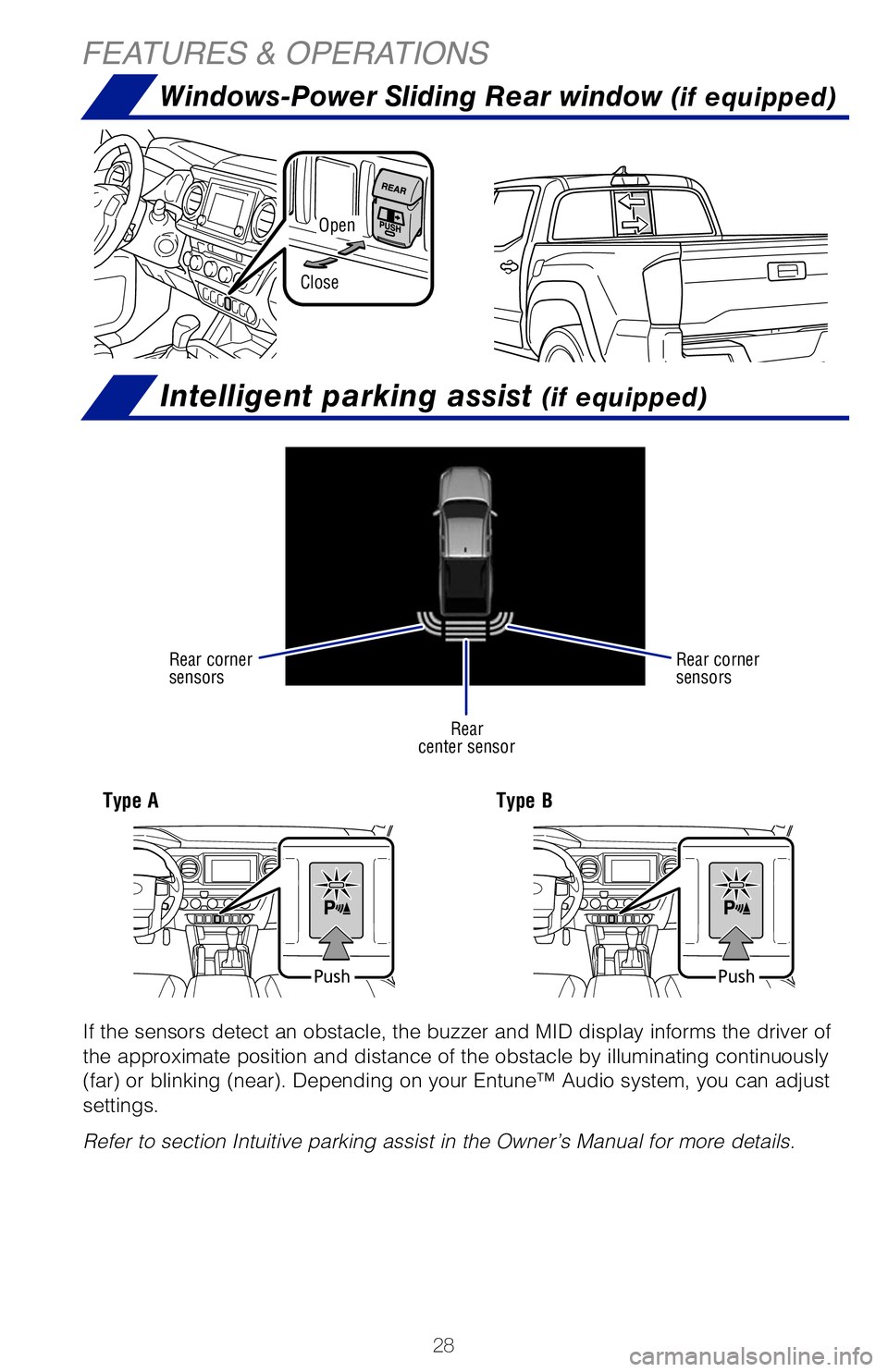

Intelligent parking assist (if equipped)
Windows-Power Sliding Rear window (if equipped)
FEATURES & OPERATIONS
If the sensors detect an obstacle, the buzzer and MID display informs th\
e driver of
the approximate position and distance of the obstacle by illuminating co\
ntinuously
(far) or blinking (near). Depending on your Entune™ Audio system,\
you can adjust
settings.
Refer to section Intuitive parking assist in the Owner’s Manual for m\
ore details.
PushPush
The rear view monitor system displays an image of the view from the bump\
er of the
rear area of the vehicle. The camera for the rear view monitor system is\
integrated
in the tailgate handle.
To adjust the image on the rear view monitor screen, press the “SETUP\
” button
and select “Display” on the “Setup” screen. Select “Came\
ra” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual and Navigation and Multimedia System Owne\
r’s
Manual for limitations and more details on this system.
Open
Close
Rear
center sensor
Rear corner
sensors
Rear corner
sensors
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right.
Without Smart Key system
Type AType B
142230_MY19_Tacoma_QRG_GUTS.indd 288/13/18 4:07 PM
