TOYOTA TACOMA 2020 (in English) Owner's Manual

19
Refer to the “Navigation and Multimedia System Owner’s Manual” \
or visit www.toyota.com/audio-multimedia for additional resources.
NOTE: Concentrating on the road should always be your first priority whi\
le
driving. Do not use the Audio Multimedia System if it will distract you.
“MODE/HOLD”
Push to change
audio source or
push and hold to
mute or pause
current operation.
Start callEnd call
“>>” Use to
search within the
selected audio feature.
Voice command switch
VolumeOVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

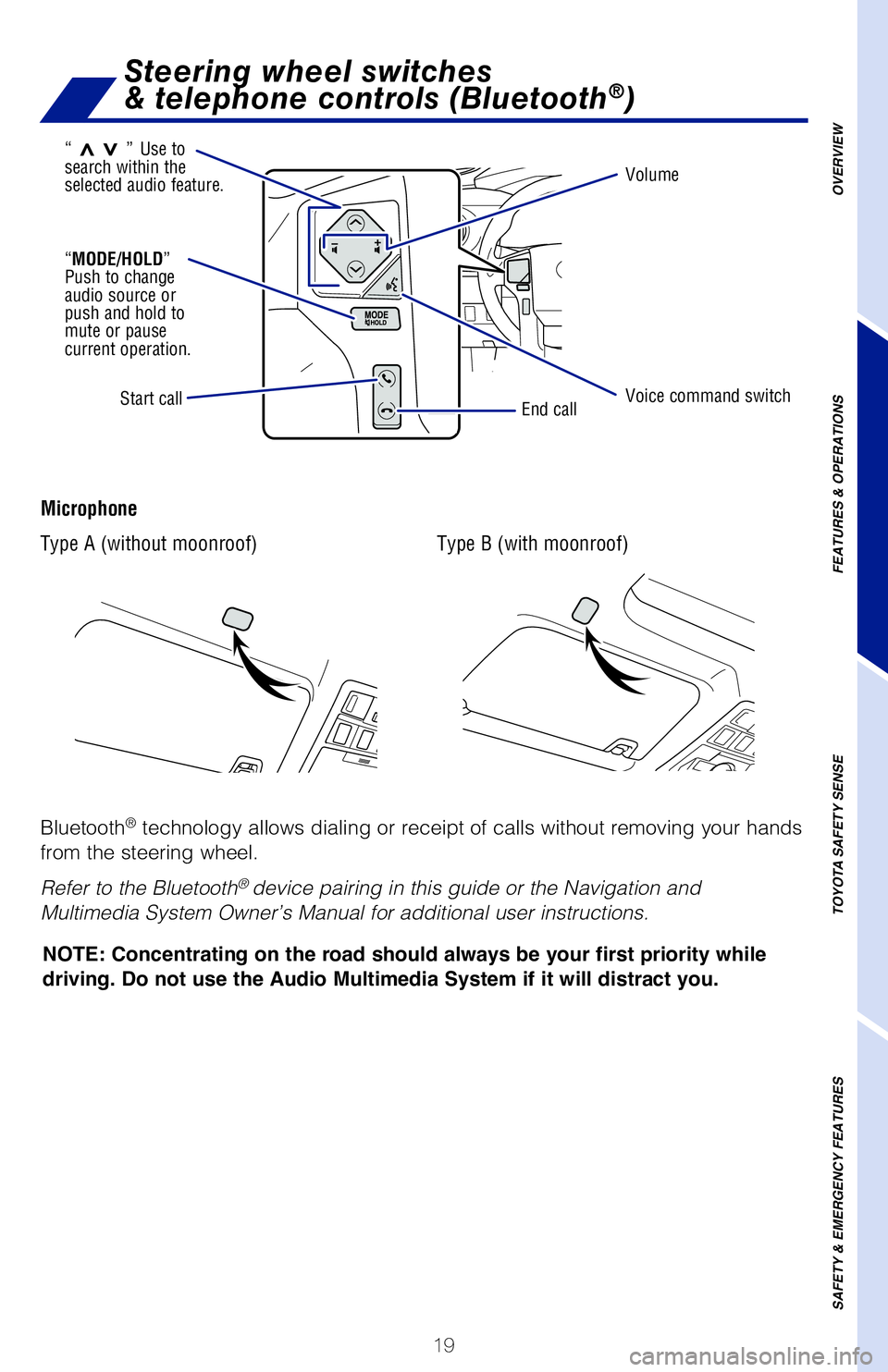

Steering wheel switches
& telephone controls (Bluetooth®)
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Microphone
Type A (without moonroof)Type B (with moonroof)
Seek station/
track/file select
Push to access
Bluetooth hands-
free system
Turn to tune radio stations
manually or select tracks or files Push to display
APPS screen
Audio
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 198/16/19 6:11 AM

20
FEATURES & OPERATIONS

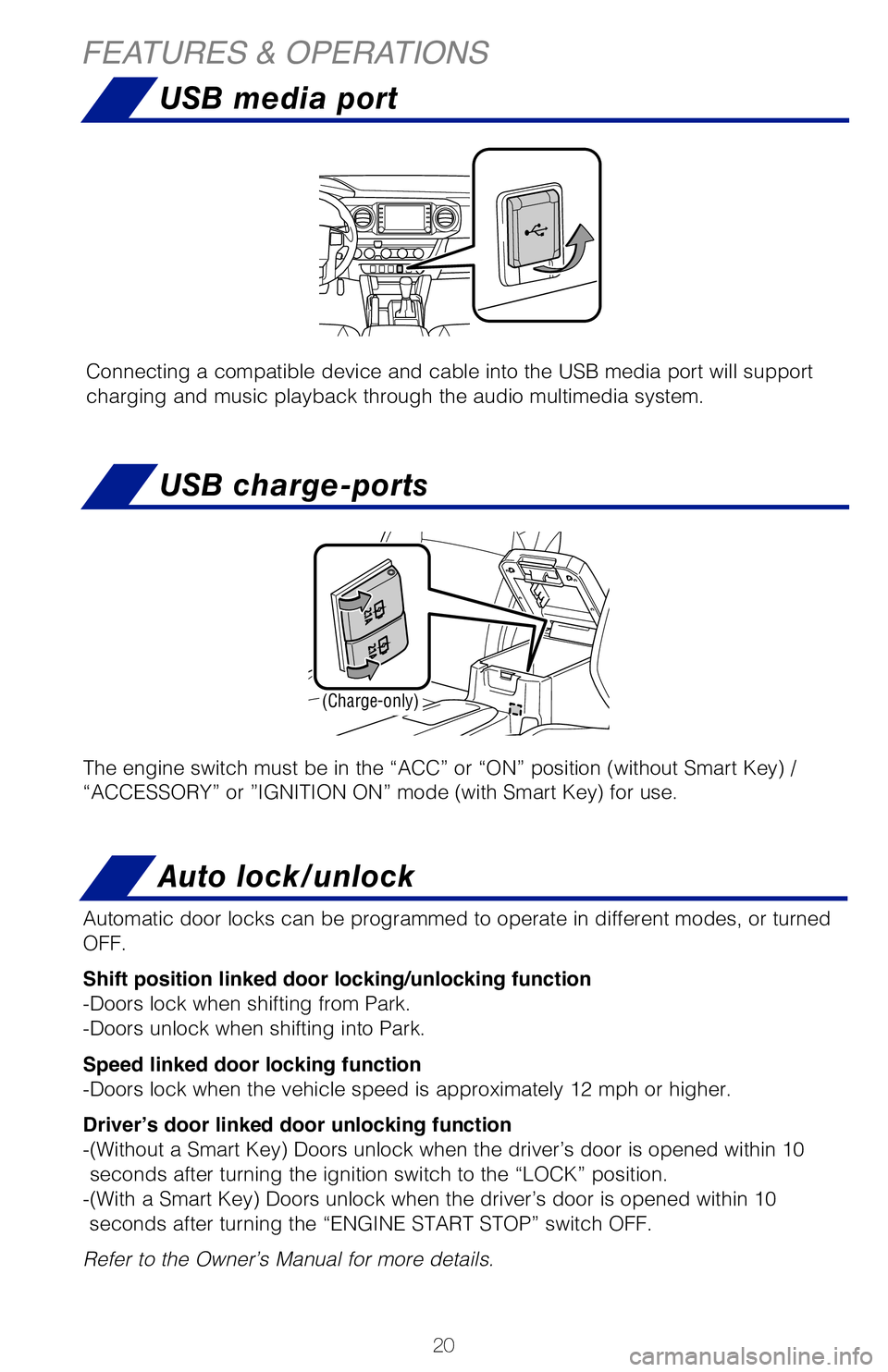

Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
The engine switch must be in the “ACC” or “ON” position (wi\
thout Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use\
.
USB media port
USB charge-ports
(Charge-only)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch. (2) Place a compatible mobile device on the tray as shown
in the illustration. An amber indicator illuminates while charging is in\
progress.
When charging is complete, the indicator illuminates green. Some phones,\
cases or
cover type wireless chargers may not cause the green indicator to illumi\
nate even
though it is fully charged.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.
Charging can only be performed with the engine switch in the “ACC”\
or “ON”
position (without Smart Key)/ ACCESSORY or IGNITION ON mode (with Sma\
rt Key)
and only on mobile devices with the “
” logo.
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
Driver’s door linked door unlocking function
-(Without a Smart Key) Doors unlock when the driver’s door is opened\
within 10 seconds after turning the ignition switch to the “LOCK” position. \
-(With a Smart Key) Doors unlock when the driver’s door is opened w\
ithin 10 seconds after turning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 208/16/19 5:41 AM

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
The engine switch must be in the “ACC” or “ON” position (wi\
thout Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use\
.

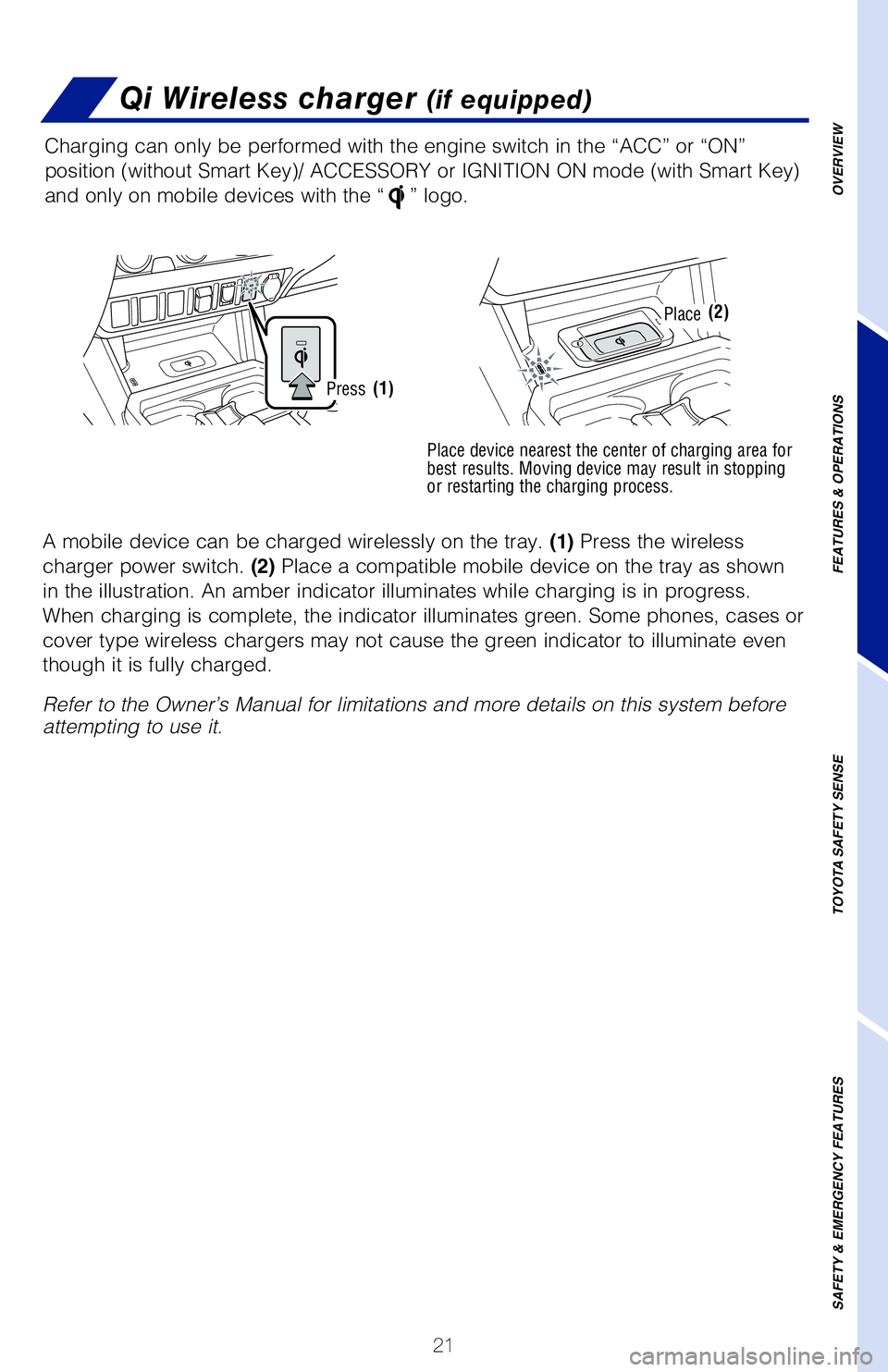

USB media portQi Wireless charger (if equipped)
USB charge-ports
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch. (2) Place a compatible mobile device on the tray as shown
in the illustration. An amber indicator illuminates while charging is in\
progress.
When charging is complete, the indicator illuminates green. Some phones,\
cases or
cover type wireless chargers may not cause the green indicator to illumi\
nate even
though it is fully charged.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.
Charging can only be performed with the engine switch in the “ACC”\
or “ON”
position (without Smart Key)/ ACCESSORY or IGNITION ON mode (with Sma\
rt Key)
and only on mobile devices with the “
” logo.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
(1)
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
Driver’s door linked door unlocking function
-(Without a Smart Key) Doors unlock when the driver’s door is opened\
within 10 seconds after turning the ignition switch to the “LOCK” position. \
-(With a Smart Key) Doors unlock when the driver’s door is opened w\
ithin 10 seconds after turning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
Press
Place(2)
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 218/16/19 5:41 AM

22

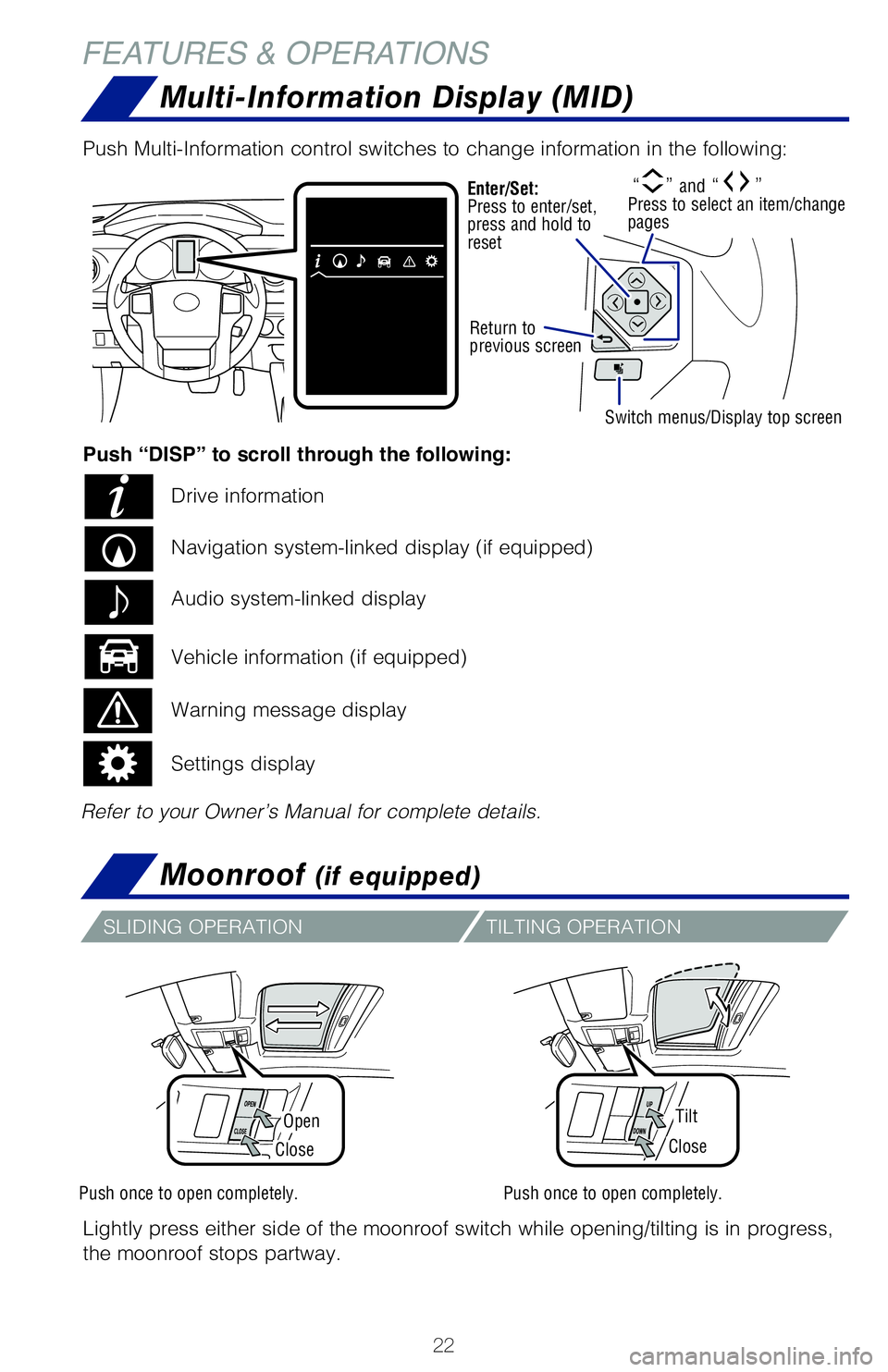

Multi-Information Display (MID)
Moonroof (if equipped)
FEATURES & OPERATIONS
OpenTilt
CloseClose
Lightly press either side of the moonroof switch while opening/tilting i\
s in progress,
the moonroof stops partway. Push Multi-Information control switches to change information in the fol\
lowing:
Push once to open completely.Push once to open completely.
TILTING OPERATIONSLIDING OPERATION
AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
MANUAL AIR CONDITIONING (IF EQUIPPED)
Display
Selectors and switches
“” and “” Press to select an item/change
pagesEnter/Set:
Press to enter/set,
press and hold to
reset
Return to
previous screen
Switch menus/Display top screen
Refer to your Owner’s Manual for complete details.Push “DISP” to scroll through the following:
Drive information
Navigation system-linked display (if equipped)
Vehicle information (if equipped) Audio system-linked display
Warning message display
Settings display
Temperature (driver’s side)
Outside rear view
mirror defogger
Outside rear view
mirror defogger
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 228/16/19 5:41 AM

23
Multi-Information Display (MID)
Moonroof (if equipped)

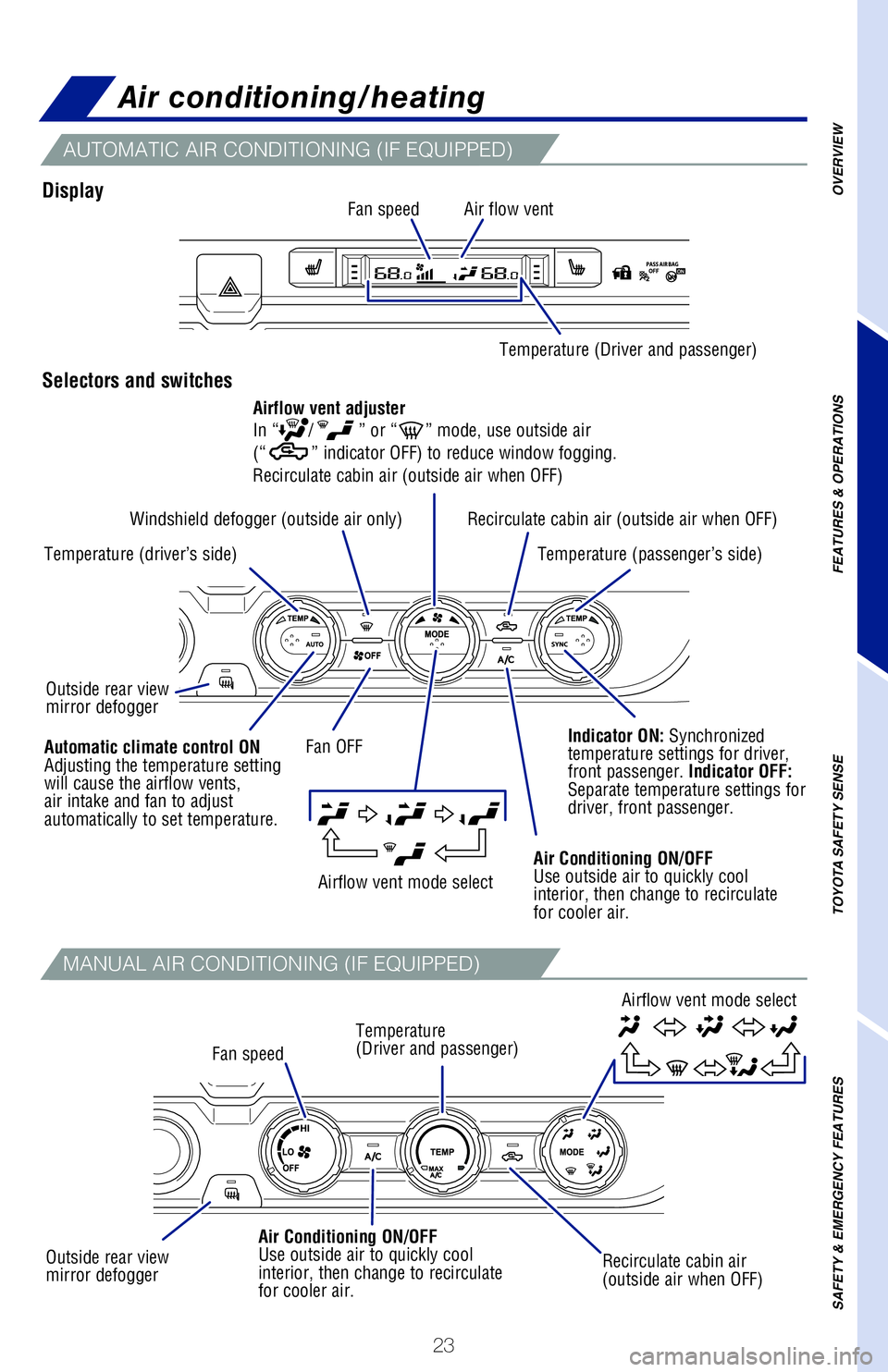

Air conditioning/heating
Lightly press either side of the moonroof switch while opening/tilting i\
s in progress,
the moonroof stops partway. Push Multi-Information control switches to change information in the fol\
lowing:
AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
MANUAL AIR CONDITIONING (IF EQUIPPED)
Display
Selectors and switches
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES “ ” and “ ” Press to select an item/change
pages
Switch menus/Display top screen
Refer to your Owner’s Manual for complete details. Drive information
Navigation system-linked display (if equipped)
Temperature (Driver and passenger)
Temperature (driver’s side) Outside rear view
mirror defogger
Outside rear view
mirror defogger
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Indicator ON: Synchronized
temperature settings for driver,
front passenger. Indicator OFF:
Separate temperature settings for
driver, front passenger.
Air Conditioning ON/OFF
Use outside air to quickly cool
interior, then change to recirculate
for cooler air.
Air Conditioning ON/OFF
Use outside air to quickly cool
interior, then change to recirculate
for cooler air. Temperature (passenger’s side)
Temperature
(Driver and passenger)
Airflow vent mode select
Airflow vent mode select
Windshield defogger (outside air only) Recirculate cabin air (outside air when OFF)
Recirculate cabin air
(outside air when OFF)
Airflow vent adjuster
In “
/” or “” mode, use outside air
(“” indicator OFF) to reduce window fogging.
Recirculate cabin air (outside air when OFF) Fan speed
Fan speed Fan OFF Air flow vent
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 238/16/19 5:41 AM

24

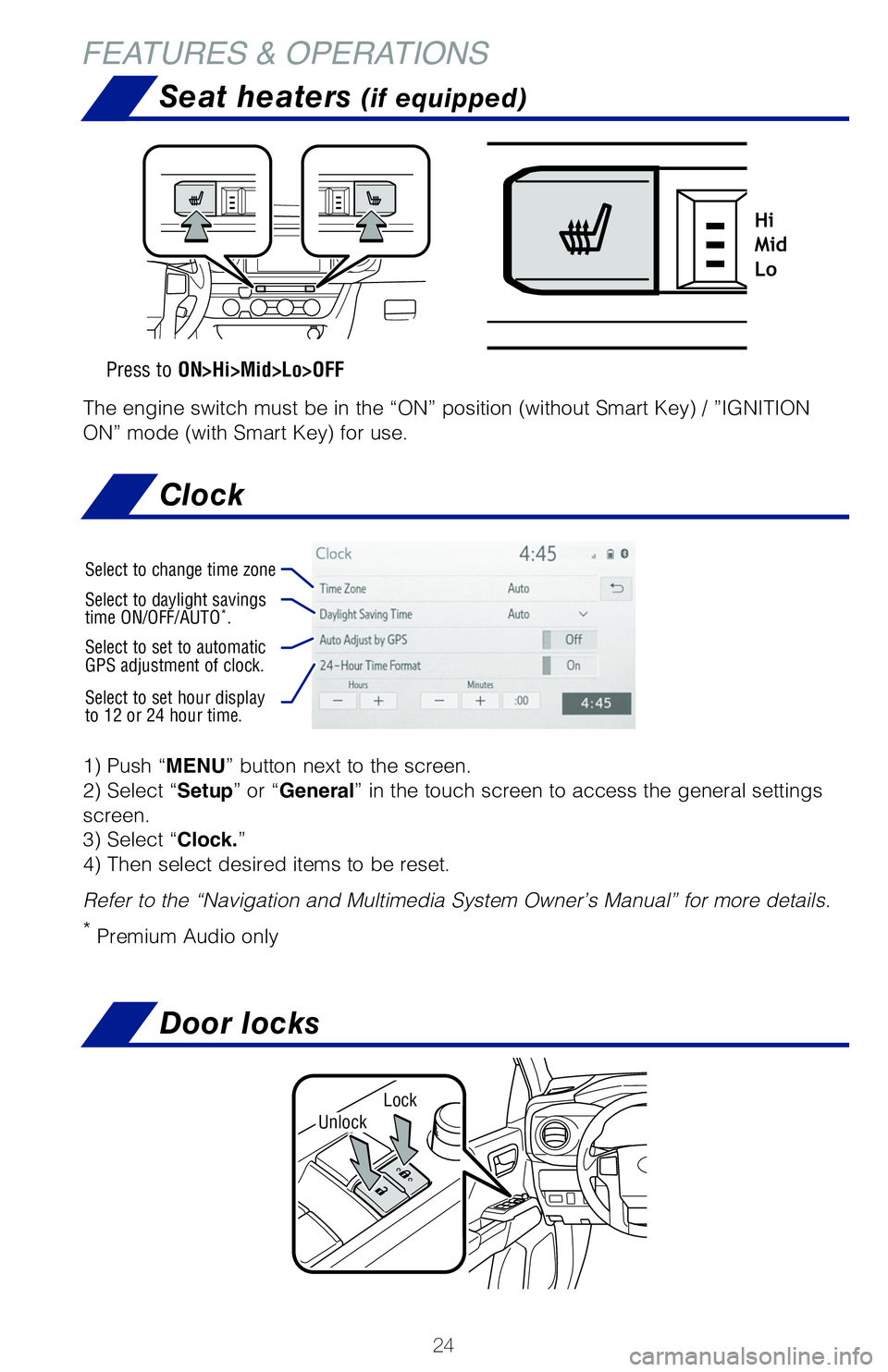

Seat heaters (if equipped)
Clock
FEATURES & OPERATIONS
Press to ON>Hi>Mid>Lo>OFF
Hi
Mid
Lo
The engine switch must be in the “ACC” or “ON” position (wi\
thout Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use\
.
The engine switch must be in the “ON” position (without Smart Key\
) / ”IGNITION
ON” mode (with Smart Key) for use.
Refer to the Owner’s Manual for more details.
The power outlet can be used when the engine is running.
Refer to the Owner’s Manual for more details.
Door locks
LockUnlock
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touch screen to access the general settings
screen.
3) Select “Clock.”
4) Then select desired items to be reset.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Premium Audio only
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO*.
Select to set to automatic
GPS adjustment of clock.
Select to set hour display
to 12 or 24 hour time.
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 248/16/19 6:17 AM

25

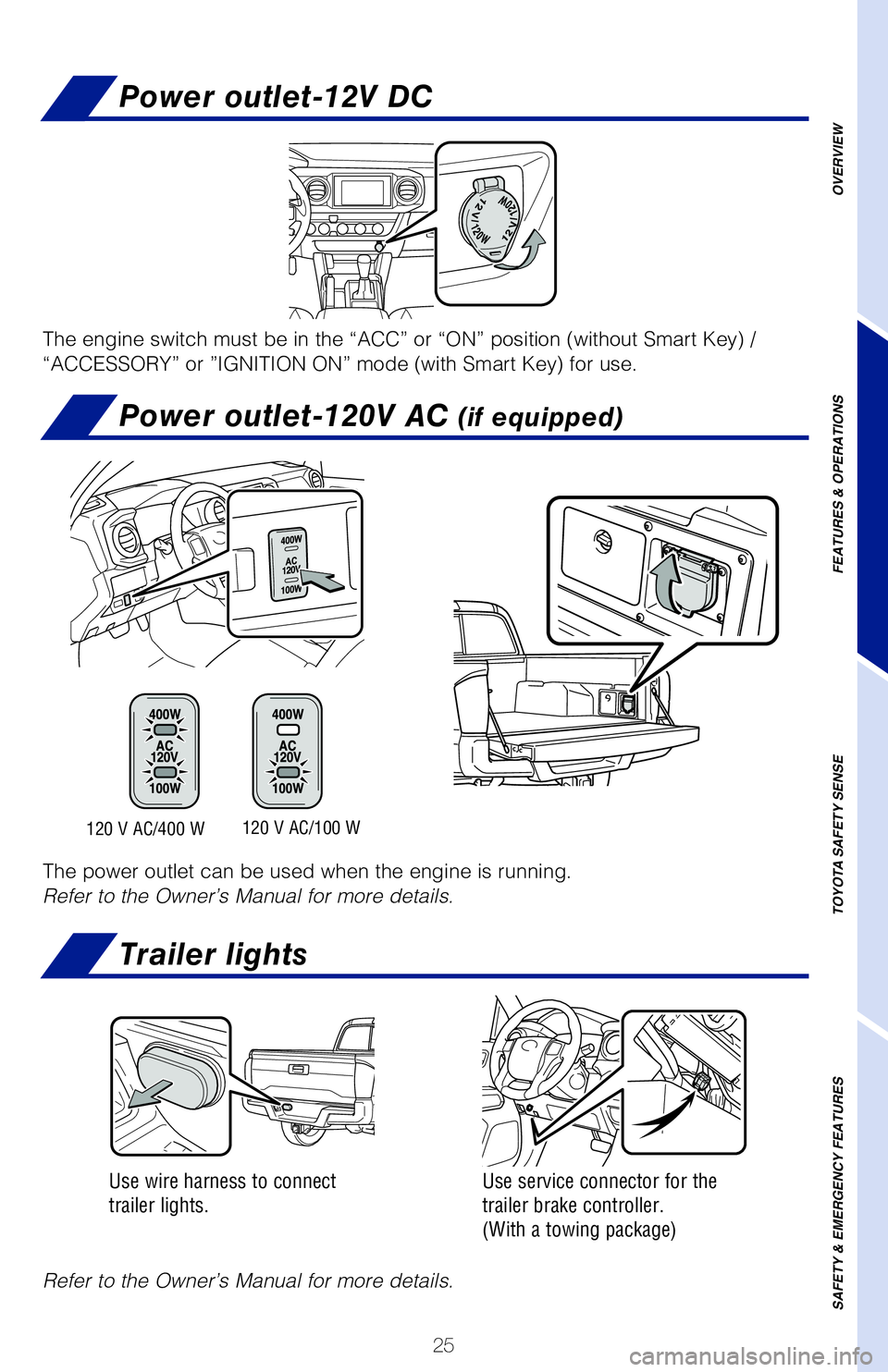

Power outlet-12V DC
Power outlet-120V AC (if equipped)
Trailer lights
Hi
Mid
Lo
The engine switch must be in the “ACC” or “ON” position (wi\
thout Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use\
.
The engine switch must be in the “ON” position (without Smart Key\
) / ”IGNITION
ON” mode (with Smart Key) for use.
Refer to the Owner’s Manual for more details.Use wire harness to connect
trailer lights.
Use service connector for the
trailer brake controller.
(With a towing package)
120 V AC/100 W
120 V AC/400 W
The power outlet can be used when the engine is running.
Refer to the Owner’s Manual for more details.
Door locks
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touch screen to access the general settings
screen.
3) Select “Clock.”
4) Then select desired items to be reset.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
*
Premium Audio only
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 258/16/19 6:17 AM

26

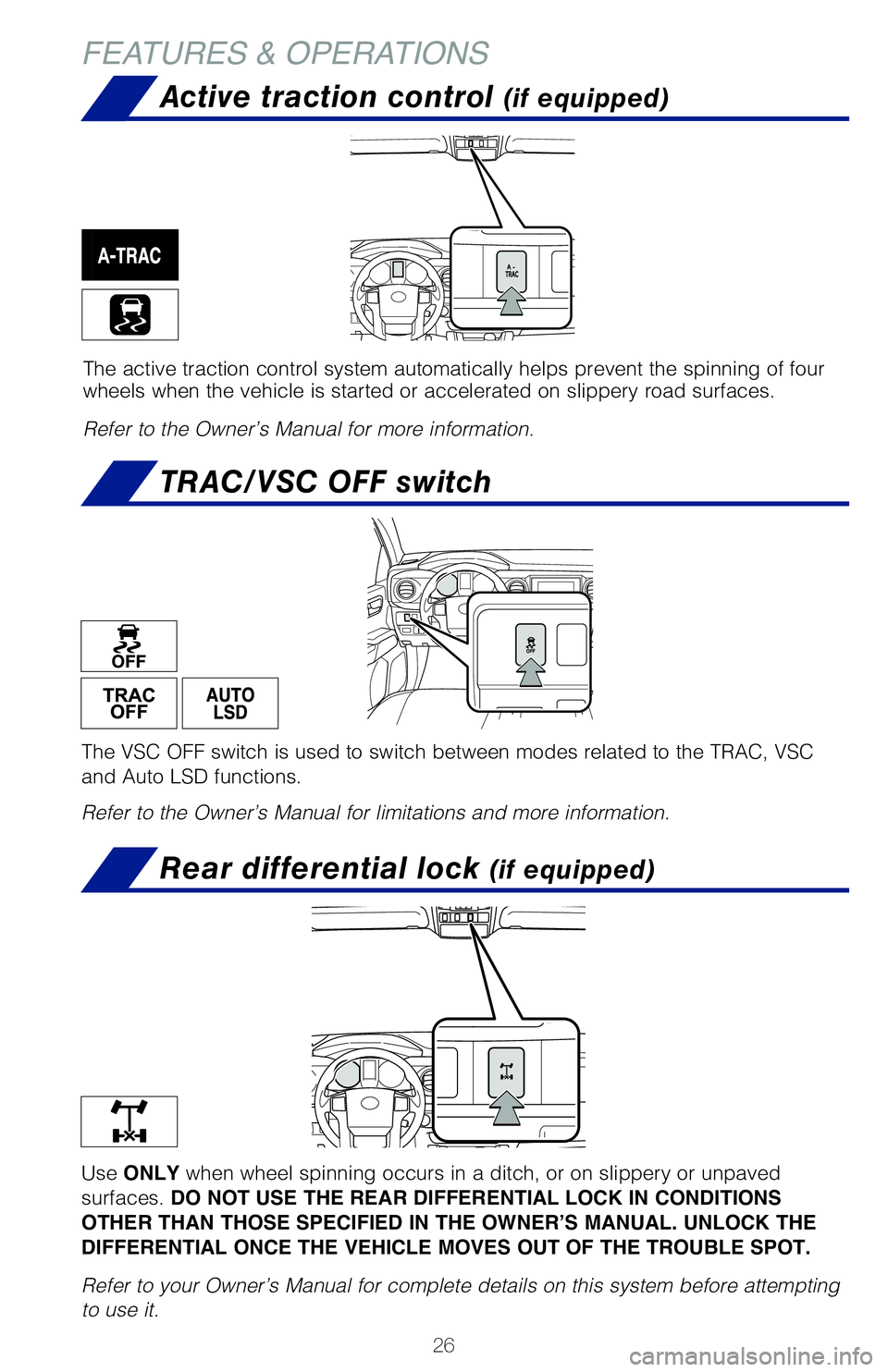

Active traction control (if equipped)
TRAC/VSC OFF switch
Rear differential lock (if equipped)
FEATURES & OPERATIONS
The active traction control system automatically helps prevent the spinn\
ing of four
wheels when the vehicle is started or accelerated on slippery road surfa\
ces.
Refer to the Owner’s Manual for more information.
Use ONLY when wheel spinning occurs in a ditch, or on slippery or unpaved
surfaces. DO NOT USE THE REAR DIFFERENTIAL LOCK IN CONDITIONS
OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL. UNLOCK THE
DIFFERENTIAL ONCE THE VEHICLE MOVES OUT OF THE TROUBLE SPOT.
Refer to your Owner’s Manual for complete details on this system befo\
re attempting
to use it.
The VSC OFF switch is used to switch between modes related to the TRAC, \
VSC
and Auto LSD functions.
Refer to the Owner’s Manual for limitations and more information.
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the \
decision when to change lanes)
• The Rear Cross Traffic Alert function (assists the driver when bac\
king up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Tacoma’s blind spot. If a vehicle is detected, the driver will be ale\
rted via the
outside rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear\
of the
vehicle is detected, the outside rear view mirror indicators flash.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Outside rear view
mirror indicators
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 268/16/19 6:18 AM

27

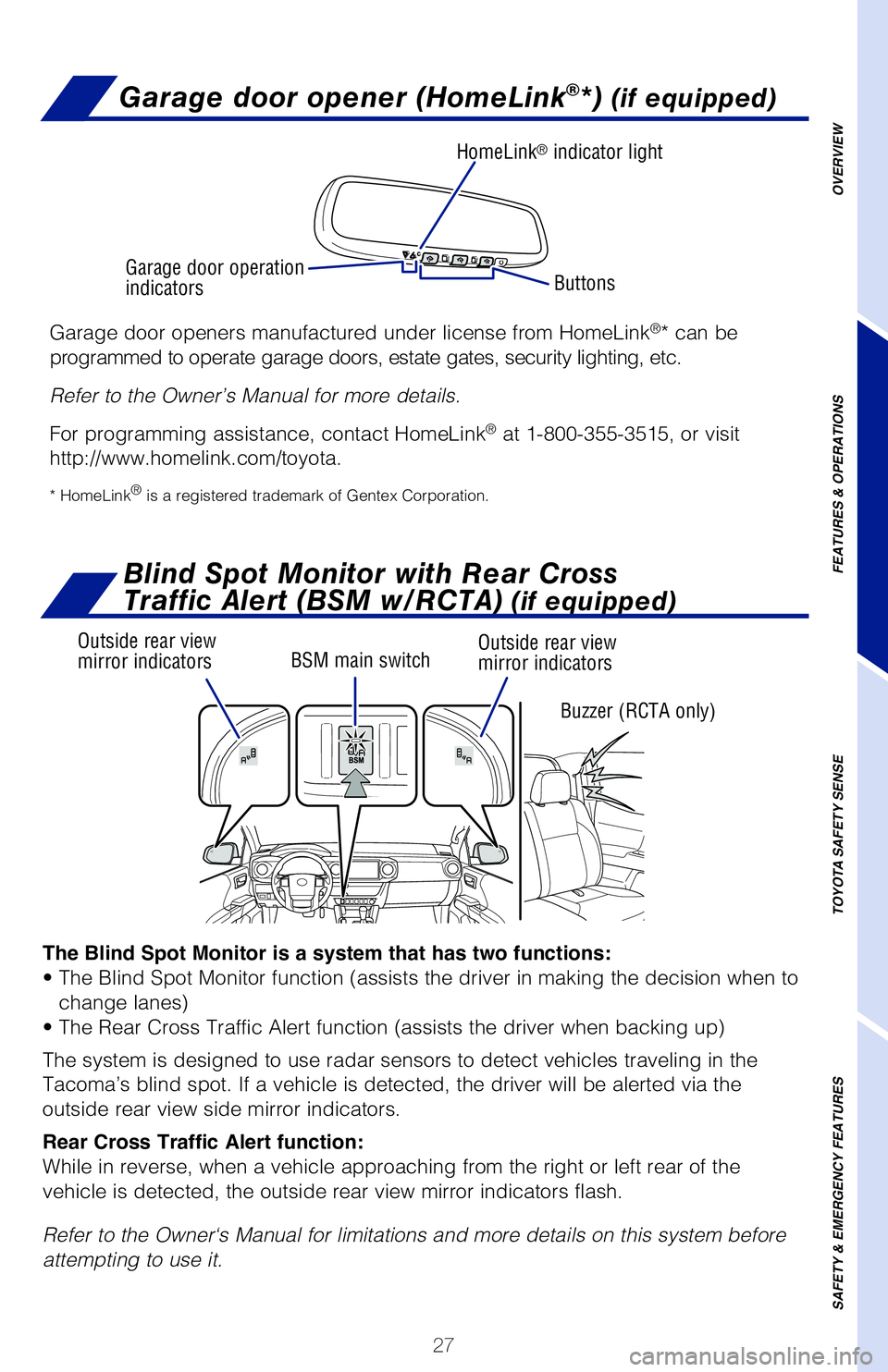

Garage door opener (HomeLink®*) (if equipped)
The active traction control system automatically helps prevent the spinning\
of four wheels when the vehicle is started or accelerated on slippery road surfaces.
Refer to the Owner’s Manual for more information.
Use ONLY when wheel spinning occurs in a ditch, or on slippery or unpaved
surfaces. DO NOT USE THE REAR DIFFERENTIAL LOCK IN CONDITIONS
OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL. UNLOCK THE
DIFFERENTIAL ONCE THE VEHICLE MOVES OUT OF THE TROUBLE SPOT.
Refer to your Owner’s Manual for complete details on this system before at\
tempting

to use it.
The VSC OFF switch is used to switch between modes related to the TRAC, VSC\

and Auto LSD functions.
Refer to the Owner’s Manual for limitations and more information.
Garage door openers manufactured under license from HomeLink®* can be

programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the deci\
sion when to change lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing\
up)
The system is designed to use radar sensors to detect vehicles traveling in\
the
Tacoma’s blind spot. If a vehicle is detected, the driver will be alerted via th\
e
outside rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear of t\
he
vehicle is detected, the outside rear view mirror indicators flash.
Refer to the Owner‘s Manual for limitations and more details on this syste\
m before
attempting to use it.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
BSM main switch HomeLink
® indicator light
Garage door operation
indicators Buttons
Outside rear view
mirror indicators Buzzer (RCTA only)
Outside rear view
mirror indicators
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 278/16/19 6:18 AM

28

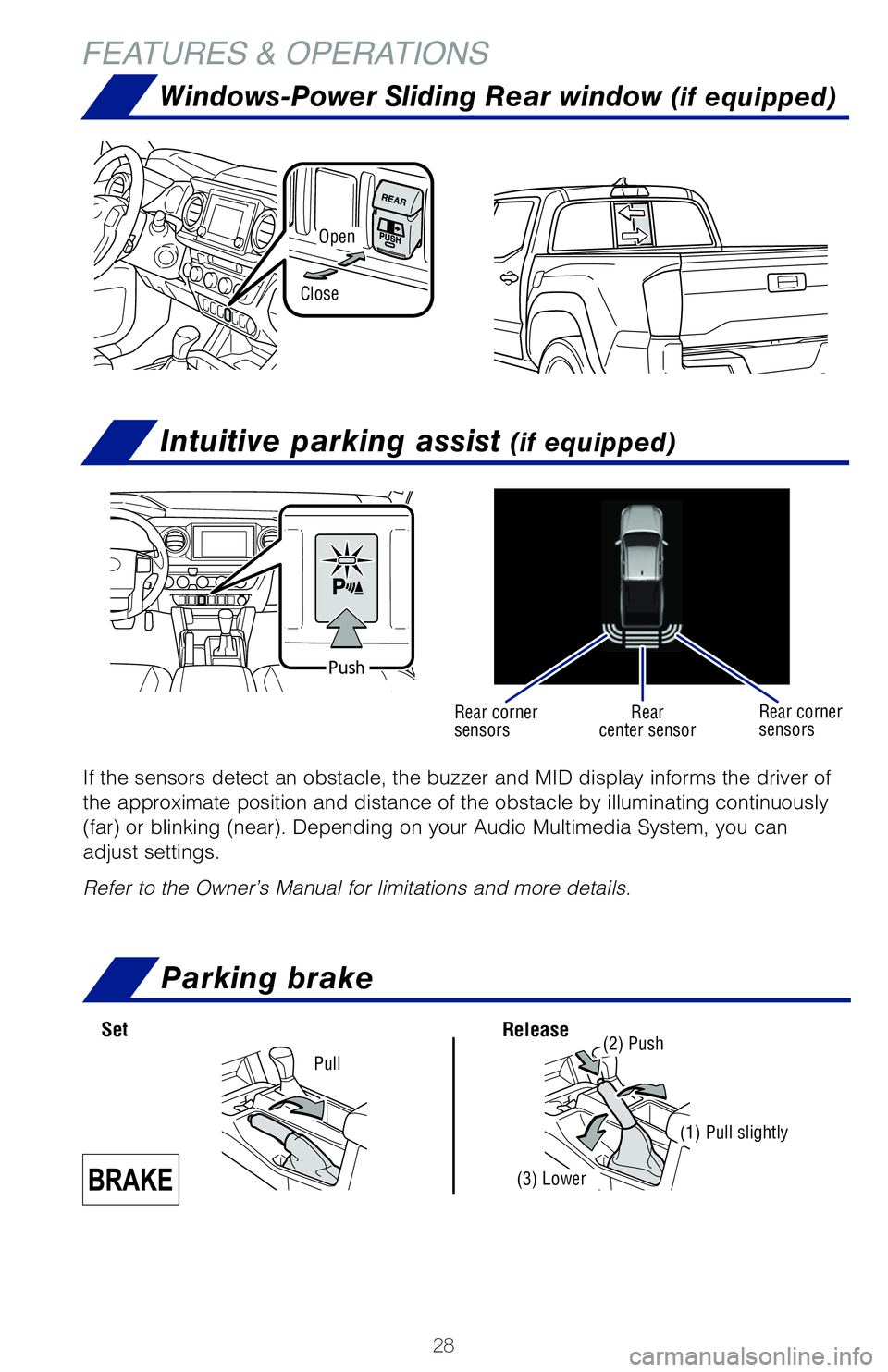

Intuitive parking assist (if equipped)
Windows-Power Sliding Rear window (if equipped)
FEATURES & OPERATIONS
If the sensors detect an obstacle, the buzzer and MID display informs th\
e driver of
the approximate position and distance of the obstacle by illuminating co\
ntinuously
(far) or blinking (near). Depending on your Audio Multimedia System,\
you can
adjust settings.
Refer to the Owner’s Manual for limitations and more details.
Push
The rear view monitor system displays an image of the view from the bump\
er of the
rear area of the vehicle. The camera for the rear view monitor system is\
integrated
in the tailgate handle.
To adjust the image on the rear view monitor screen, press the “SETUP\
” button
and select “Display” on the “Setup” screen. Select “Came\
ra” to adjust the screen
contrast and brightness.
Refer to the Navigation and Multimedia System Owner’s Manual for limi\
tations and
more details on this system.
Open
Close
Rear
center sensor
Rear corner
sensors Rear corner
sensors
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right.
Without Smart Key system
Parking brake
(1) Pull slightly
(3) Lower
SetRelease(2) PushPull
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 288/16/19 6:18 AM
