5017-2. Steps to take in an emergency
7
When trouble arises

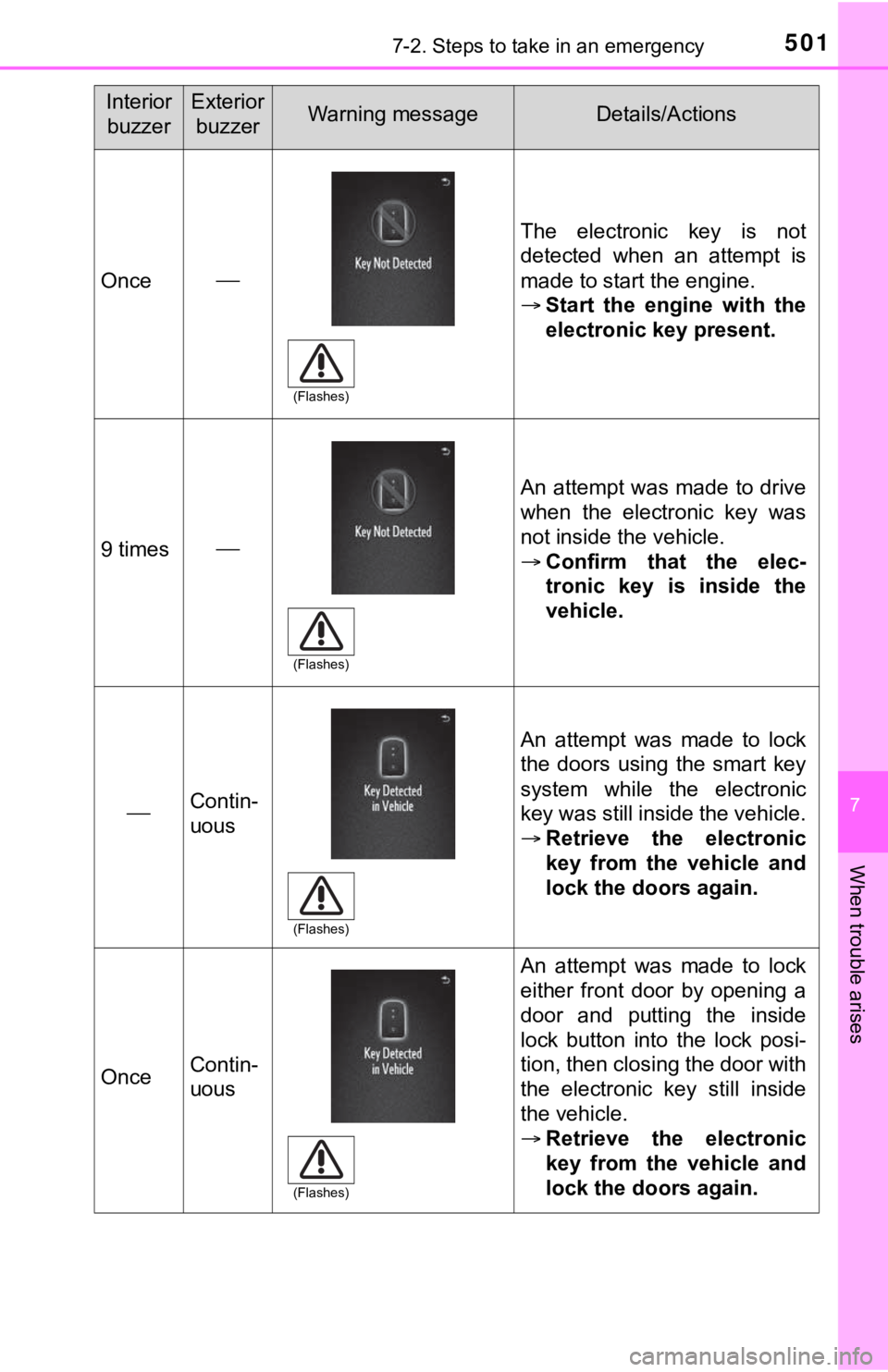

Once
The electronic key is not
detected when an attempt is
made to start the engine.
Start the engine with the
electronic key present.
9 times
An attempt was made to drive
when the electronic key was
not inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
Contin-
uous
An attempt was made to lock
the doors using the smart key
system while the electronic
key was still inside the vehicle.
Retrieve the electronic
key from the vehicle and
lock the doors again.
OnceContin-
uous
An attempt was made to lock
either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door with
the electronic key still inside
the vehicle.
Retrieve the electronic
key from the vehicle and
lock the doors again.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)

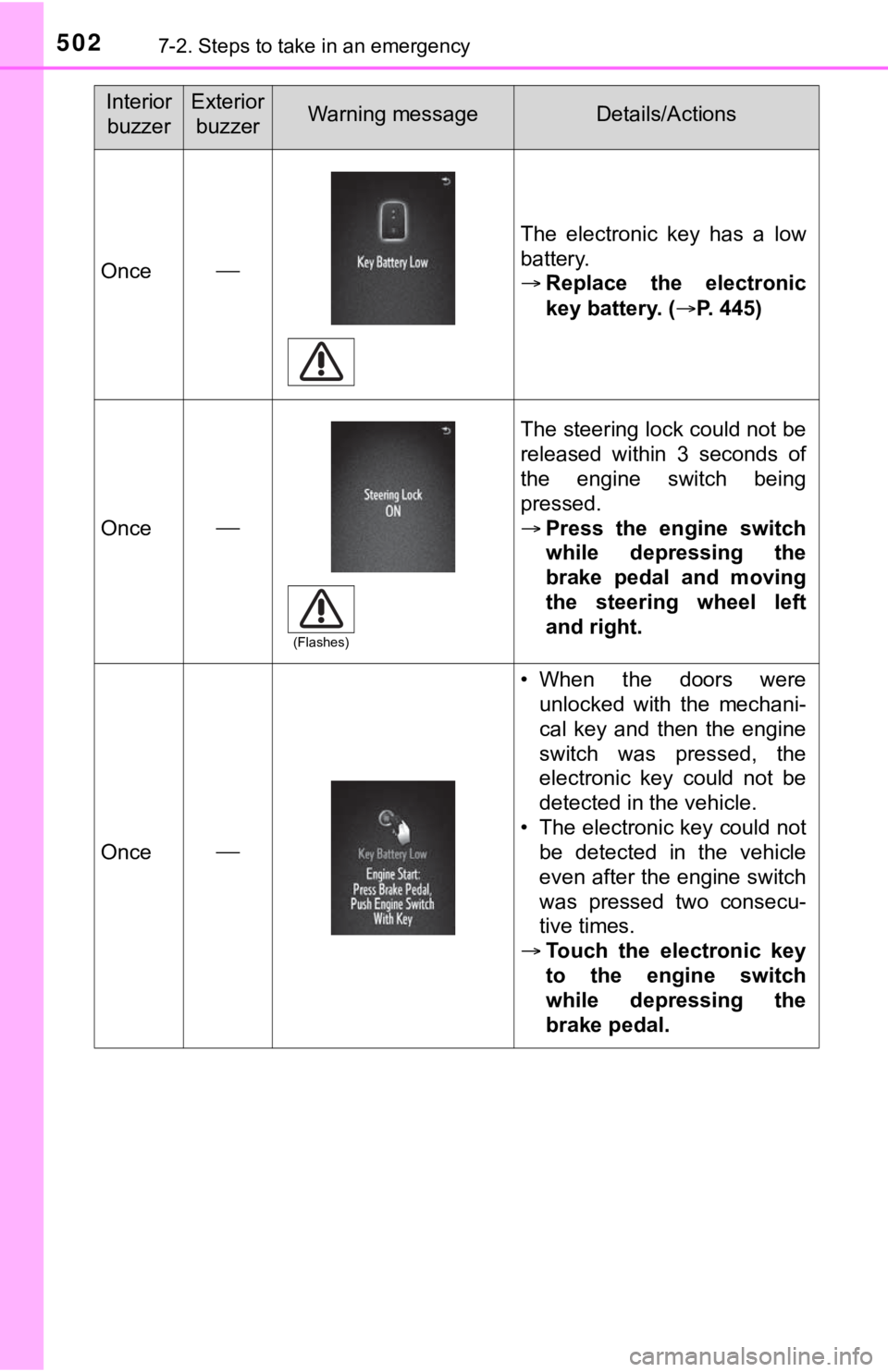

5027-2. Steps to take in an emergency
Once
The electronic key has a low
battery.
Replace the electronic
key battery. ( P. 445)
Once
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the
brake pedal and moving
the steering wheel left
and right.
Once
• When the doors were
unlocked with the mechani-
cal key and then the engine
switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could not be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
 Touch the electronic key
to the engine switch
while depressing the
brake pedal.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)

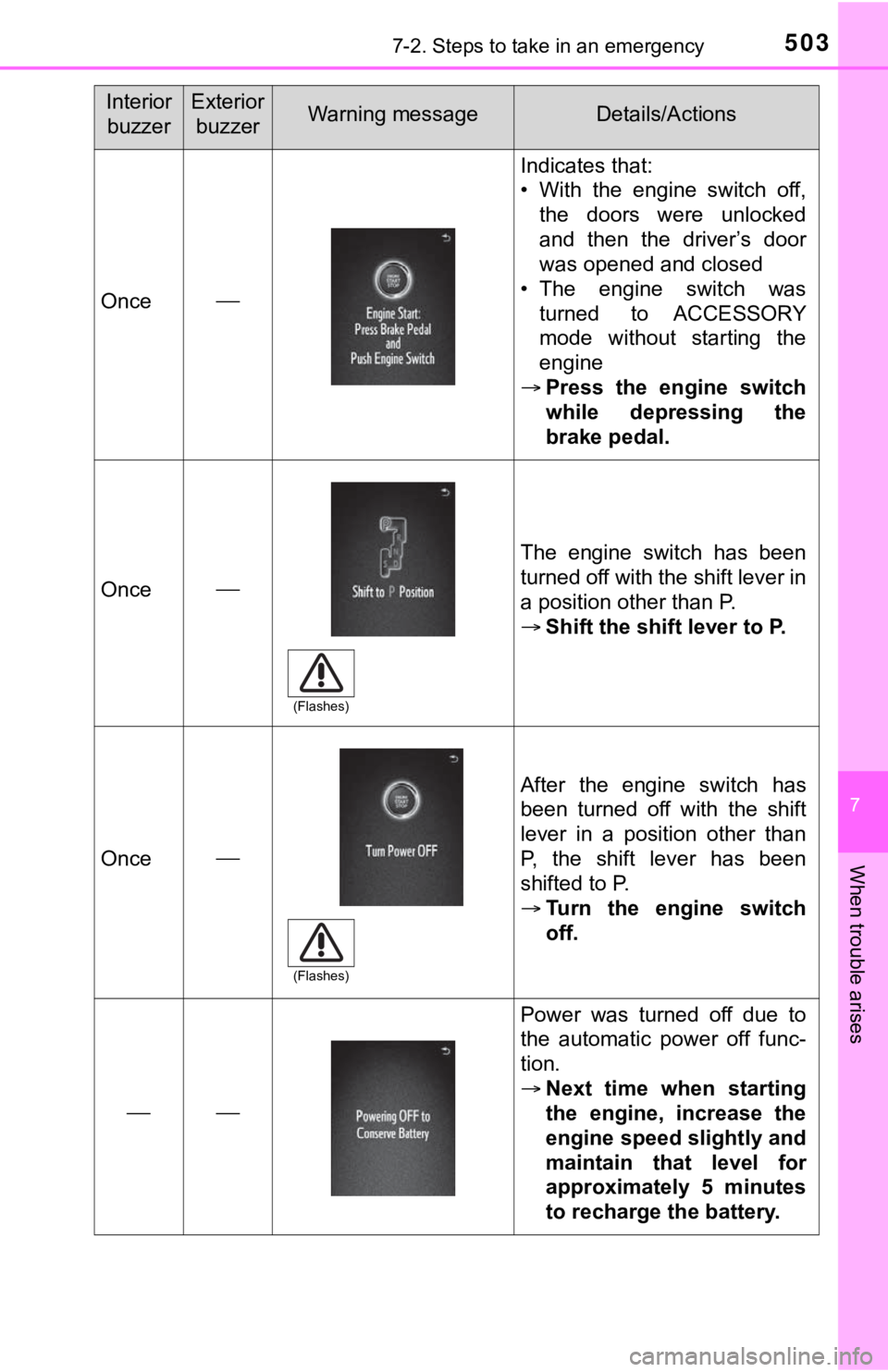

5037-2. Steps to take in an emergency
7
When trouble arises
Once
Indicates that:
• With the engine switch off,the doors were unlocked
and then the driver’s door
was opened and closed
• The engine switch was
turned to ACCESSORY
mode without starting the
engine
 Press the engine switch
while depressing the
brake pedal.
Once
The engine switch has been
turned off with the shift lever in
a position other than P.
Shift the shift lever to P.
Once
After the engine switch has
been turned off with the shift
lever in a position other than
P, the shift lever has been
shifted to P.
Turn the engine switch
off.

Power was turned off due to
the automatic power off func-
tion.
Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

5047-2. Steps to take in an emergency
■Warning buzzer
P. 480
Once
During a engine starting pro-
cedure in the event that the
electronic key was not func-
tioning properly ( P. 522), the
engine switch was touched
with the electronic key.
 Press the engine switch
within 10 seconds of the
buzzer sounding.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)

505
7
When trouble arises
7-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manua l
transmission).
● Stop the engine.
● Turn on the emergency flashers. ( P. 466)
Your vehicle is equipped with a spare tire. The flat tire can b e
replaced with the spare tire.
For details about tires: P. 4 2 5
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance wit h a flat tire can damage the tire and the
wheel beyond repair, which cou ld result in an accident.
Before jacking up the vehicle

5067-2. Steps to take in an emergency
■Spare tire
■Jack and toolsTool bag
Jack
Location of the spare tire, jack and tools
1
2
Access Cab modelsDouble Cab models

5077-2. Steps to take in an emergency
7
When trouble arises
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing t ires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jack s for
replacing tires on this vehicle.
●Put the jack properl y in its jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start the engine or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle w hile someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is nece ssary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearb y, warn them vocally before lowering.
■Using the jack handle
Insert the square head securely until you hear a click to preve nt the
extension parts from com ing apart unexpectedly.

5087-2. Steps to take in an emergency
Vehicles with rear seats:
Pull up the lever and raise the
bottom cushion up.
Turn the knob counterclock-
wise.
Open the lid.
Unhook the rubber band and
remove the tool bag.
Taking out the jack and tool bag (Access Cab models)
1
2
3
4

5097-2. Steps to take in an emergency
7
When trouble arises
Unhook the rubber band and
take out the jack.For loosening
For tightening
Lift up the bottom cushion.
Turn the knob counterclockwise
and open the lid.
Unhook the rubber band and
remove the tool bag.5
1
2
Taking out the jack and tool bag (Double Cab models)
1
2
3

5107-2. Steps to take in an emergency
Unhook the rubber band and
take out the jack.For loosening
For tightening
Assemble the jack handle
extension as shown.
Insert the end of the jack han-
dle extension into the lowering
screw and turn it counterclock-
wise.
After the tire is lowered com-
pletely to the ground, remove
the holding bracket.4
1
2
Taking out the spare tire
1
2
3
