243
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Scion dealer correct it as
soon as possible.

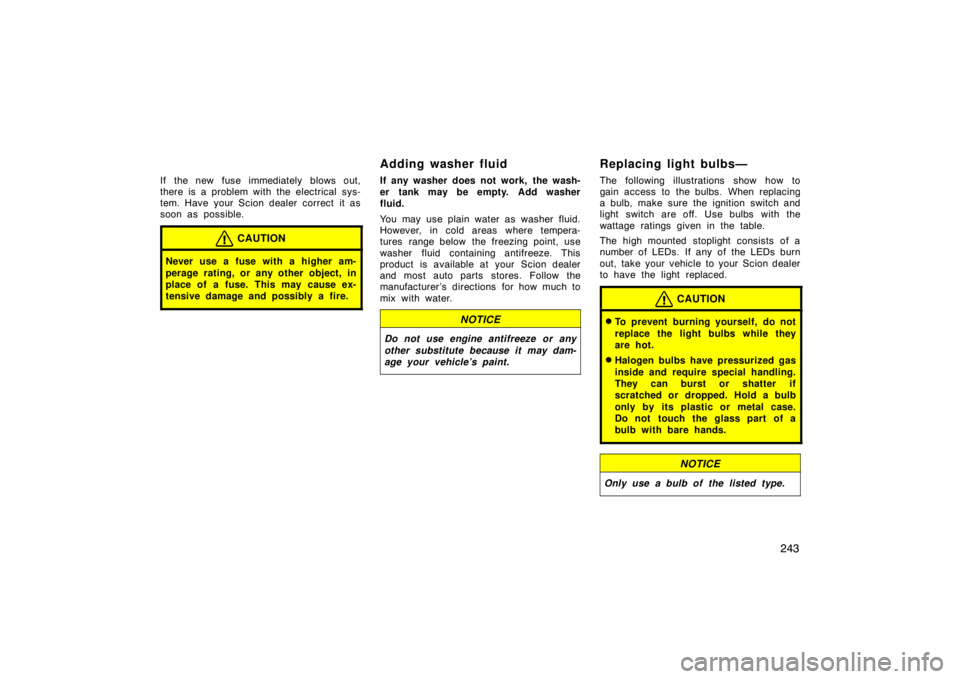

CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work, the wash-
er tank may be empty. Add washer
fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Scion dealer
and most auto parts stores. Follow the
manufacturer’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The high mounted stoplight consists of a
number of LEDs. If any of the LEDs burn
out, take your vehicle to your Scion dealer
to have the light replaced.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.

244
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your Scion
dealer.Light bulbsBulb
No.WTy p e
Headlights (high)900560A
Headlights (low)900651B
Front turn signal
lights—21C
Parking lights—5D
Front side marker
lights—5D
Stop/tail and rear
side marker lights744321/5D
Rear turn signal
lights744021D
Back–up lights92118D
License plate lights1685D
Interior light (Front)—5D
Interior light (Rear)—8D
Personal lights—5D
Luggage
compartment light—5E
A: HB3 halogen
B: HB4 halogen
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs
—Headlights
73T005
High beam
(inside)Low beam
(outside)
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
Left hand head light (high beam) only:
Turn the bulb base clockwise to the front
of the vehicle.

245
73T006
2. Unplug the connector while depress-
ing the lock release.
If the connector is tight, wiggle it.
73T007
3. Plug in a new bulb into the connec-
tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Scion dealer.
73T008
73T009
—Front turn signal lights

246

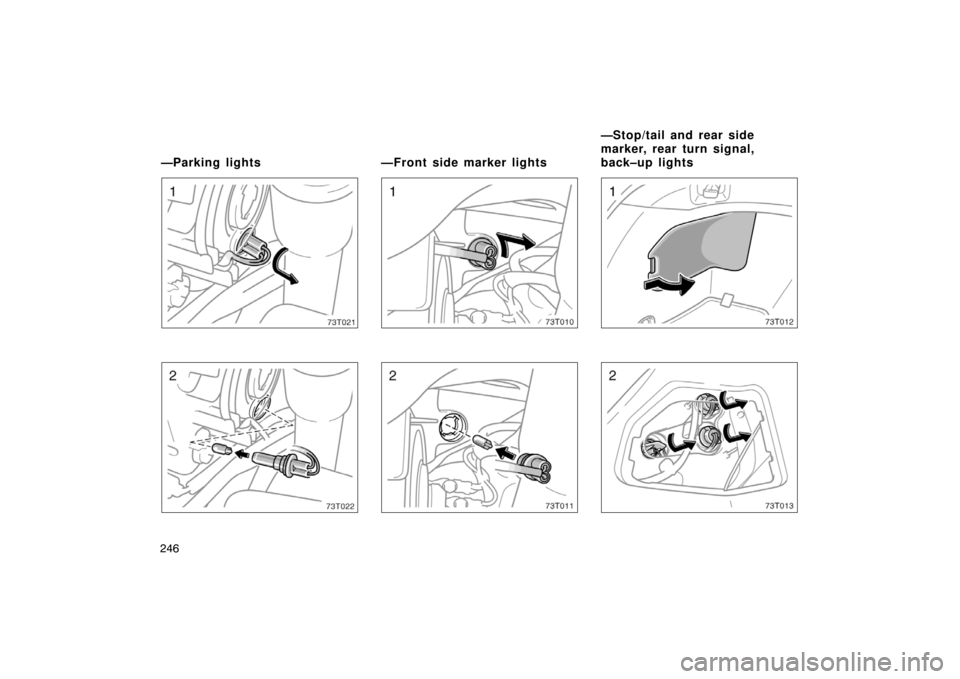

73T021
73T022
73T010
73T011
73T012
73T013
—Parking lights —Front side marker lights—Stop/tail and rear side
marker, rear turn signal,
back–up lights

247

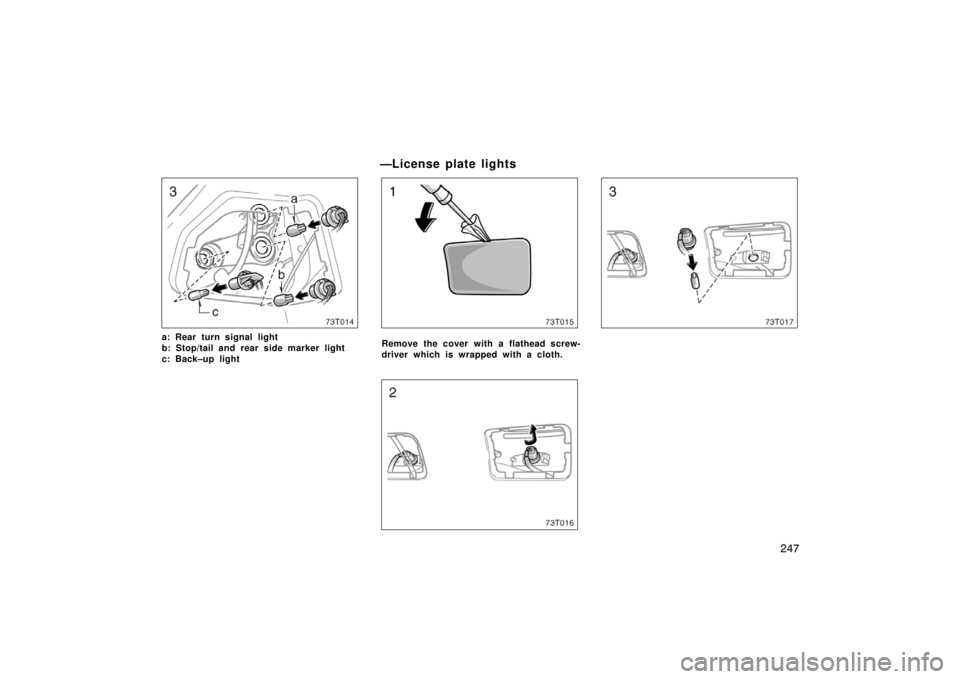

73T014
a: Rear turn signal light
b: Stop/tail and rear side marker light
c: Back–up light
—License plate lights
73T015
Remove the cover with a flathead screw-
driver which is wrapped with a cloth.
73T016
73T017

248

249
SPECIFICATIONS
Specifications
Dimensions and weightss250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications251 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires253 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses254 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8

250
Dimensions and weights
Overall length mm (in.):
4420 (174.0)
Overall width mm (in.):
1755 (69.1)
Overall height mm (in.):
1415 (55.7)
Wheelbase mm (in.):
2700 (106.3)
Front tread mm (in.):
1505 (59.3)
Rear tread mm (in.):
1505 (59.3)
Vehicle capacity weight
(occupants+cargo) kg (lb.):
392 (865)
Engine
Model:
2.4L 4−cylinder (2AZ−FE)
Type:
4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.):
88.5  96.0 (3.48  3.78)
Displacement, cm
3 (cu. in.):
2362 (144.1)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87 (Re-
search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp.gal.):
55 (14.5, 12.1)

251
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.19–0.29 (0.007–0.012)
Exhaust 0.38–0.48 (0.015–0.019)
Spark plug type:
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.):
1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
“Genuine Motor Oil” is used in your Scion
vehicle. Use Scion approved “Genuine Mo-
tor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.Oil grade:
ILSAC multigrade engine oil
Please contact your Scion dealer for fur-
ther details.
Recommended oil viscosity:
SAE 5W−20 or 0W–20
OIL008
Outside temperature
COOLING SYSTEM
Total capacity, L (qt., Imp.qt.):
Manual transmission 6.8 (7.2, 6.0)
Automatic transmission 6.7 (7.1, 5.9)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Scion vehicle at factory fill.
In order to avoid technical problems,
only use “Toyota Super Long Life Cool-
ant” or similar high quality ethylene gly-
col based non–silicate, non–amine,
non–nitrite, and non–borate coolant with
long–life hybrid organic acid technology.
(Coolant with long–life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Scion dealer for fur-
ther details.
BATTERY
Open voltage
∗ at 20C (68F):
12.6–12.8 V Fully charged
12.2–12.4 V Half charged
11.8–12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

252
CLUTCH
Pedal free play, mm (in.):
5–15 (0.2–0.6)
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp.qt.):
2.5 (2.6, 2.2)
Oil type:
Gear oil API GL–4 or GL–5
Recommended oil viscosity:
SAE 75W–90
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp.qt.):
3.5 (3.7, 3.1)
Fluid type:
Toyota Genuine ATF WS
Change automatic transmission fluid only
as necessary.Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF WS” (ATF
JWS3324 or NWS9638) to aid in assuring
optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
90 (3.5)
Pedal free play, mm (in.):
1–6 (0.04–0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
6–9 clicks
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
