8
V573_E
6 Audio/video System
Quick reference ··················\
··················\
··················\
··················\
·· 178
Using your audio/video system ··················\
··················\
··········· 179
Some bas ics··················\
··················\
··················\
··················\
··· 179
Screen adjustment ··················\
··················\
··················\
··········· 191
Radio oper ation ··················\
··················\
··················\
················ 193
CD player operation ··················\
··················\
··················\
········· 202
DVD player operation ··················\
··················\
··················\
······· 210
USB player operation ··················\
··················\
··················\
······· 224
Bluetooth
® audio operation··················\
··················\
················· 231
AUX operation ··················\
··················\
··················\
··················\
245
iPod operation ··················\
··················\
··················\
··················\
247
Video operat ion ··················\
··················\
··················\
················ 256
Audio/video remote controls ··················\
··················\
··················\
· 257
Audio/video system op erating hints ··················\
··················\
········ 259
7 Appendix
Limitations of the navigation system ··················\
··················\
······· 270
Map database information and updates ··················\
··············· 272
Confirming the database version and
SD memory card coverage area ··················\
··················\
········ 273
Changing the map SD memory card ··················\
··················\
·· 273
Specifications ··················\
··················\
··················\
··················\
····· 275
INDEX ··················\
··················\
··················\
··················\
···· 277

OTHER FUNCTIONS
129
V573_E

Hands-free system allows you to
make or receive a call without taking
your hands off the steering wheel by
connecting your cellular phone.
This system supports Bluetooth
®. Blue-
tooth® is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth
®, this system can not function.
CAUTION
Use a cellular phone or connect the
Bluetooth®phone only when safe
and legal to do so.


NOTICE
Do not leave your cellular phone in
the car. The temperature indoor
may be high and damage the phone.

INFORMATION
z
In the following conditions, the
system may not function.
z The cellular phone is turned off.
z The current position is outside
the communication area.
z The cellular phone is not con-
nected.
z The cellular phone has a low
battery.
z If Bluetooth
® devices are used for
hands-free phone and Bluetooth®
audio connections at the same
time, the following may occur.
z The Bluetooth
® connection may
be cut off.
z Noise may occur in the audio
played from the portable player.
z Even if using a cellular phone that
is capable of both hands-free
phone and Bluetooth
® audio
connections, simultaneous con-
nection may not be possible in
some cases.


Hands
−free system
(for cellular phone) —

AUDIO/VIDEO SYSTEM
177
V573_E

SECTION 6
AUDIO/VIDEO SYSTEM
z Quick reference ··················\
··················\
··················\
··················\
········ 178
z Using your audio/video system ··················\
··················\
················ 179
Some basics ··················\
··················\
··················\
··················\
·········· 179
Screen adjus tment ··················\
··················\
··················\
··················\
· 191
Radio operation··················\
··················\
··················\
··················\
······ 193
CD player operation ··················\
··················\
··················\
················· 202
DVD player operation··················\
··················\
··················\
··············· 210
USB player operation ··················\
··················\
··················\
··············· 224
Bluetooth
® audio oper ation ··················\
··················\
··················\
······ 231
AUX operation··················\
··················\
··················\
··················\
········ 245
iPod oper ation ··················\
··················\
··················\
··················\
········ 247
Video operat ion ··················\
··················\
··················\
··················\
······ 256
z Audio/video remo te controls ··················\
··················\
··················\
······· 257
z Audio/video system operating hints ··················\
··················\
·············· 259

AUDIO/VIDEO SYSTEM
178
V573_E





Function button display screen Touch the touch screen buttons dis-
played on the screen to control the
radio, CD/DVD player, USB player,
Bluetooth
® audio, AUX, iPod or
Video. For details, see page 181.
“ OPEN” button
Push this button to open and close
the display, adjust the angle of the
display, and eject discs. For details,
see page 180.
“VOL” button Push “S ” or “T ” button of “VOL”
to adjust the volume. For details,
see page 180.
“AV” button
Push this button to display the “AV
Menu” screen. For details, see
page 181.
“TRACK/TUNE” button Push the “S ” or “T” button of
“TRACK/TUNE” to move up or
down the frequency, track, file or
chapter.
Push and hold the “S ” or “T ”
button of “TRACK/TUNE” to seek
up or down for a station.
For details, see pages 194, 199,
203, 206, 214, 227, 239 and 252.


Quick reference

AUDIO/VIDEO SYSTEM
179
V573_E

Vehicles with smart entry and start sys-
tem—
Your audio/video system works when the
“ENGINE START STOP” switch is in the
ACCESSORY or IGNITION ON mode.
Vehicles without smart entry and start
system—
Your audio/video system works when the
engine switch is in ACC or ON position.

NOTICE
To prevent the battery from being
discharged, do not leave the au-
dio/video system on longer than
necessary when the engine is not
running.
FCC ID: XEMNA08A02
IC ID: 8192A-NA08A02
MADE IN JAPAN
This device complies with Part 15 of
the FCC Rules and RSS −210 of in-
dustry Canada. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must
accept any interference received, in-
cluding interference that may cause
undesired operation.
CAUTION
z Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in con-
struction not expressly approved
by AISIN AW Co., Ltd for compli-
ance could void the user’s au-
thority to operate the equipment.
Radio frequency exposure. This
device is approved for Mobile Ap-
plication only and, to comply with
applicable FCC radio frequency
exposure regulations, must be
used with a distance of at least
7.9 in. (20 cm) between the an-
tenna and the body of any person
at all time during use.
z Laser products
z Do not take this unit apart or at-
tempt to make any changes
yourself. This is an intricate unit
that uses a laser pickup to re-
trieve information from the sur-
face of compact discs. The laser
is carefully shielded so that its
rays remain inside the cabinet.
Therefore, never try to disas-
semble the player or alter any of
its parts since you may be ex-
posed to laser rays and dan-
gerous voltages.
z This product utilizes a laser. Use
of controls or adjustments or
performance of procedures
other than those specified
herein may result in hazardous
radiation exposure.

Using your audio/video
system —
— Some basics

AUDIO/VIDEO SYSTEM
182
V573_E

The selected audio mode will display on
the screen.
The touch screen button of the currently
selected audio mode is highlighted.
Push the “AV” button and touch
“AUDIO” to display the respective audio
mode operation screen.
You can turn off the CD/DVD player by
ejecting the disc. If the audio/video
system was previously off, then the en-
tire audio/video system will be turned off
when you eject the disc. If another
function was previously playing, it will
come on again.

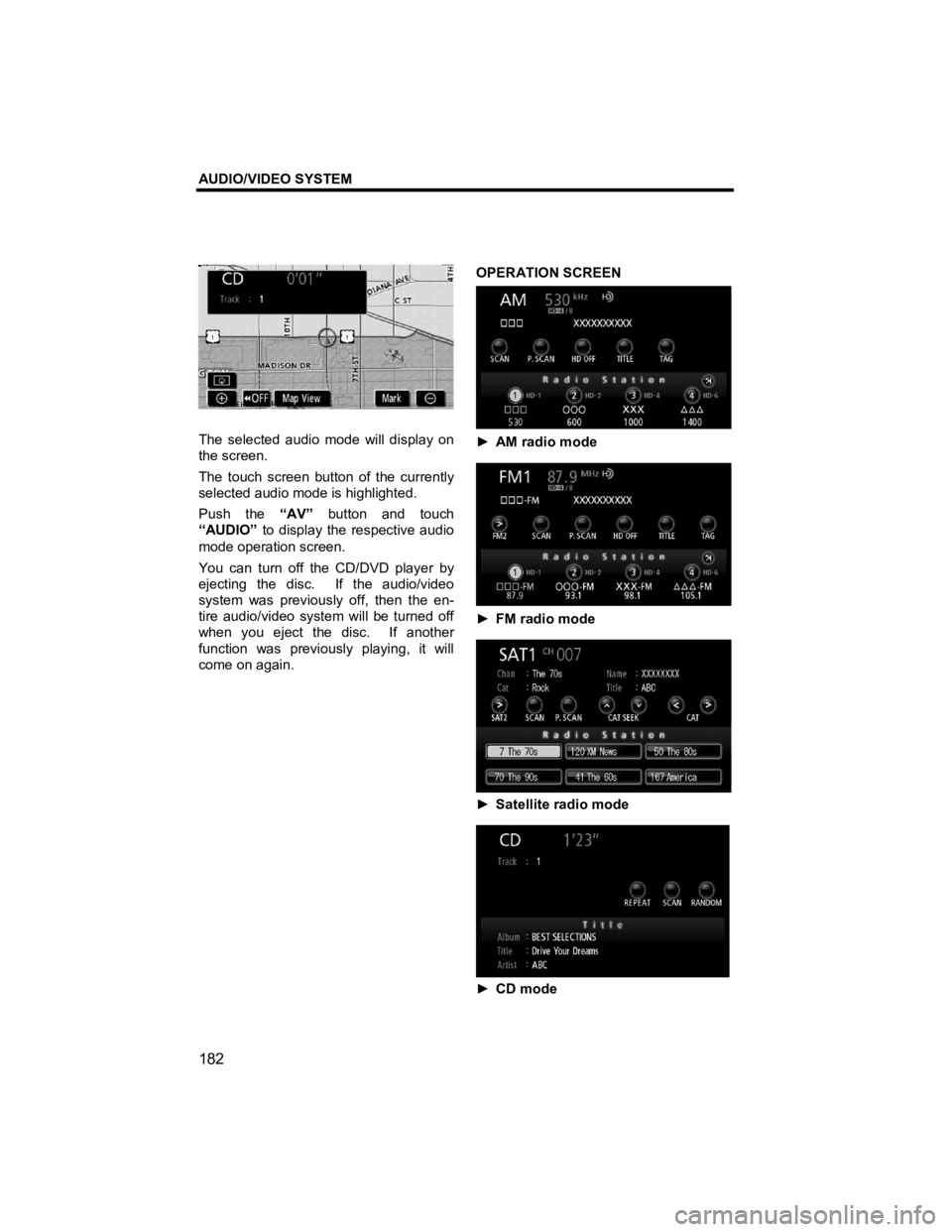

OPERATION SCREEN
►
AM radio mode

► FM radio mode

► Satellite radio mode

► CD mode

AUDIO/VIDEO SYSTEM
184
V573_E
The touch screen buttons for radio,
CD/DVD player, USB player, Bluetooth®
audio, AUX, iPod and Video operation
are displayed on the function button dis-
play screen when the audio operation
mode is selected.
Touch them lightly and directly on the
screen.
The selected touch screen button is
highlighted.

INFORMATION
z If the system does not respond to
a touch of a touch screen button,
move your finger away from the
screen and then touch it again.
z You cannot operate dimmed
touch screen buttons.
z Wipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth.

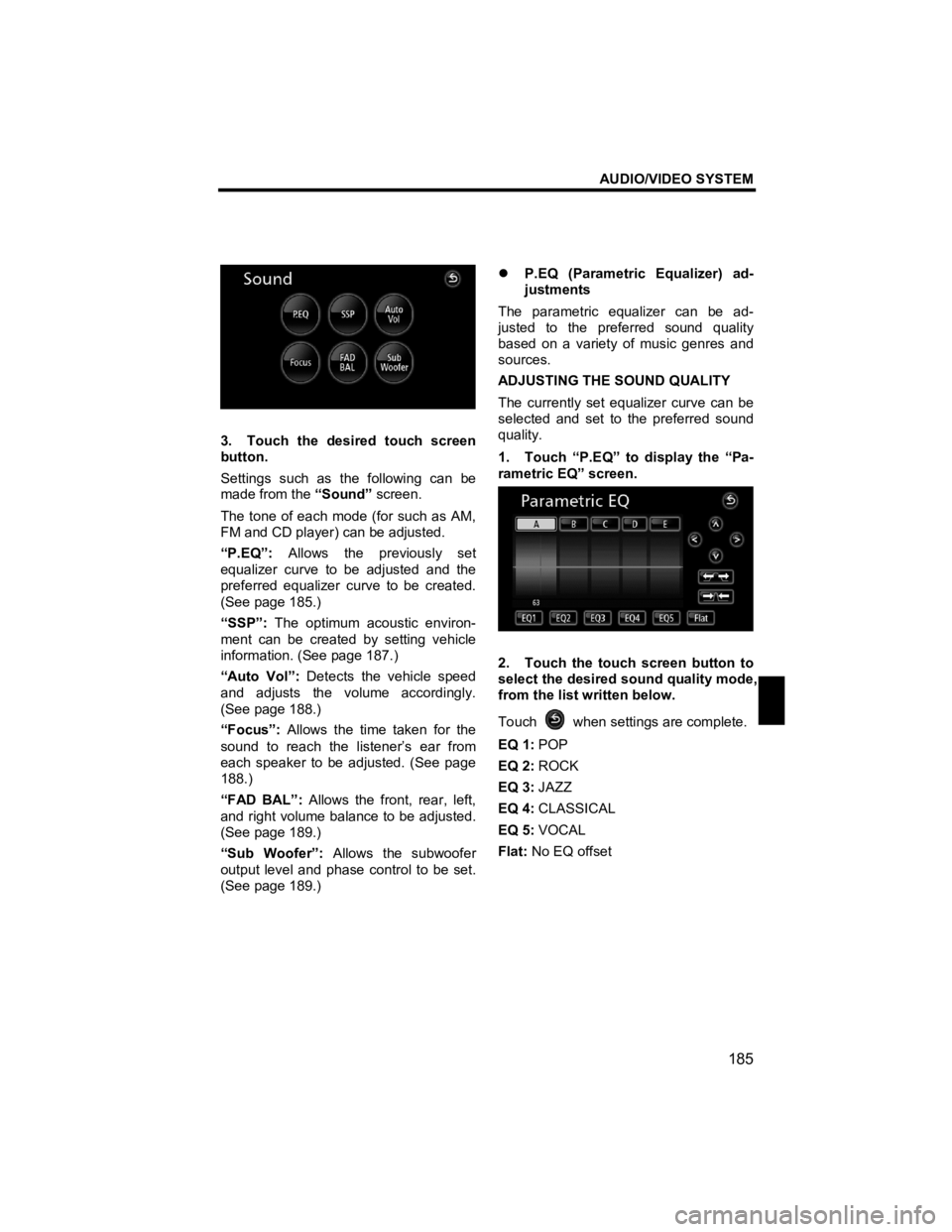

z Sound menu screen display
The sound quality inside the cabin will be
altered greatly by such factors as the
type of media or music used, and the
vehicle body type. This system allows
you to set the most appropriate sound
quality to suit these factors.
1. Push the “AV” button.

2. Touch “SOUND”.

AUDIO/VIDEO SYSTEM
185
V573_E


3. Touch the desired touch screen
button.
Settings such as the following can be
made from the “Sound” screen.
The tone of each mode (for such as AM,
FM and CD player) can be adjusted.
“P.EQ”: Allows the previously set
equalizer curve to be adjusted and the
preferred equalizer curve to be created.
(See page 185.)
“SSP”: The optimum acoustic environ-
ment can be created by setting vehicle
information. (See page 187.)
“Auto Vol”: Detects the vehicle speed
and adjusts the volume accordingly.
(See page 188.)
“Focus”: Allows the time taken for the
sound to reach the listener’s ear from
each speaker to be adjusted. (See page
188.)
“FAD BAL”: Allows the front, rear, left,
and right volume balance to be adjusted.
(See page 189.)
“Sub Woofer”: Allows the subwoofer
output level and phase control to be set.
(See page 189.)
z
P.EQ (Parametric Equalizer) ad-
justments
The parametric equalizer can be ad-
justed to the preferred sound quality
based on a variety of music genres and
sources.
ADJUSTING THE SOUND QUALITY
The currently set equalizer curve can be
selected and set to the preferred sound
quality.
1. Touch “P.EQ” to display the “Pa-
rametric EQ” screen.

2. Touch the touch screen button to
select the desired sound quality mode,
from the list written below.
Touch
when settings are complete.
EQ 1: POP
EQ 2: ROCK
EQ 3: JAZZ
EQ 4: CLASSICAL
EQ 5: VOCAL
Flat: No EQ offset

AUDIO/VIDEO SYSTEM
187
V573_E

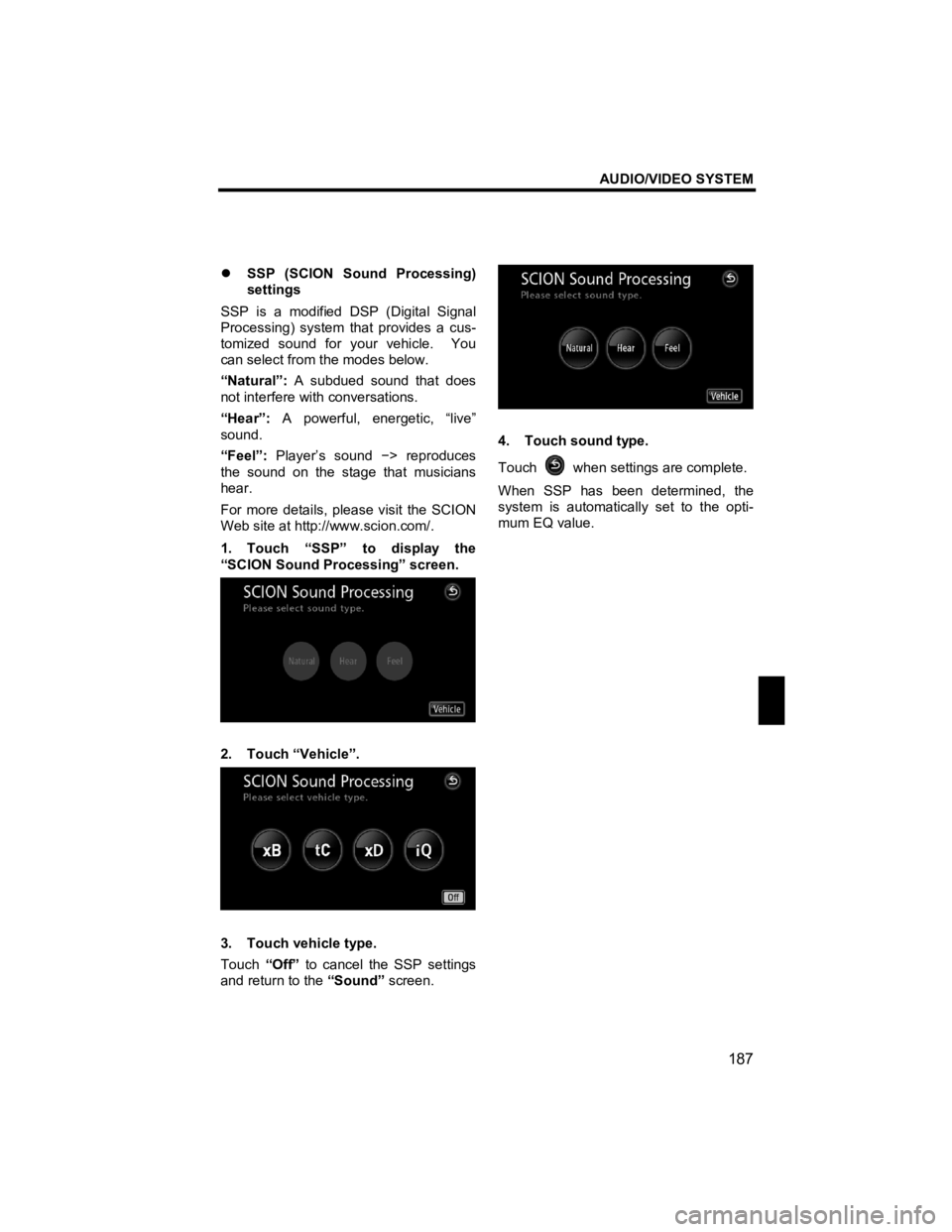

z SSP (SCION Sound Processing)
settings
SSP is a modified DSP (Digital Signal
Processing) system that provides a cus-
tomized sound for your vehicle. You
can select from the modes below.
“Natural”: A subdued sound that does
not interfere with conversations.
“Hear”: A powerful, energetic, “live”
sound.
“Feel”: Player’s sound −> reproduces
the sound on the stage that musicians
hear.
For more details, please visit the SCION
Web site at http://www.scion.com/.
1. Touch “SSP” to display the
“SCION Sound Processing” screen.

2. Touch “Vehicle”.

3. Touch vehicle type.
Touch “Off” to cancel the SSP settings
and return to the “Sound” screen.


4. Touch sound type.
Touch
when settings are complete.
When SSP has been determined, the
system is automatically set to the opti-
mum EQ value.

AUDIO/VIDEO SYSTEM
190
V573_E
z Your CD/DVD player
When you insert a disc, insert it with the
label side up. The CD/DVD player will
play from track 1 through to the end of
the disc. Then it will play from track 1
again.

NOTICE
Never try to disassemble or oil any
part of the CD/DVD player. Do not
insert anything other than discs into
the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.
z Apple Composite AV cable
Using an Apple Composite AV Cable
allows iPod video files to be played.
For details, see page 256.
z Rear Seat LCD Monitor
A commercially available Rear Seat
LCD Monitor can be used by con-
necting it to the RCA Relay cable's
RCA terminals.
For further information and operation
procedures, refer to the device's
manual.
This product incorporates copyright
protection technology that is pro-
tected by U.S. patents and other in-
tellectual property rights. Use of this
copyright protection technology must
be authorized by Rovi Corporation,
and is intended for home and other
limited viewing uses only unless oth-
erwise authorized by Rovi Corpora-
tion. Reverse engineering or disas-
sembly is prohibited. z
External amplifier
A commercially available external
amplifier can be connected to the
RCA Relay cable's RCA terminal to
enable the use of subwoofers etc.
For further information and operation
procedures, refer to the device's
manual.
