TOYOTA tC 2011 (in English) Owner's Guide

31
1-2. Opening, closing and locking the doors
1
Before driving
Unlocking and locking the doors
Side door handles Grip the handle to unlock all the
doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the upper part of
the door handle) to lock all the
doors.

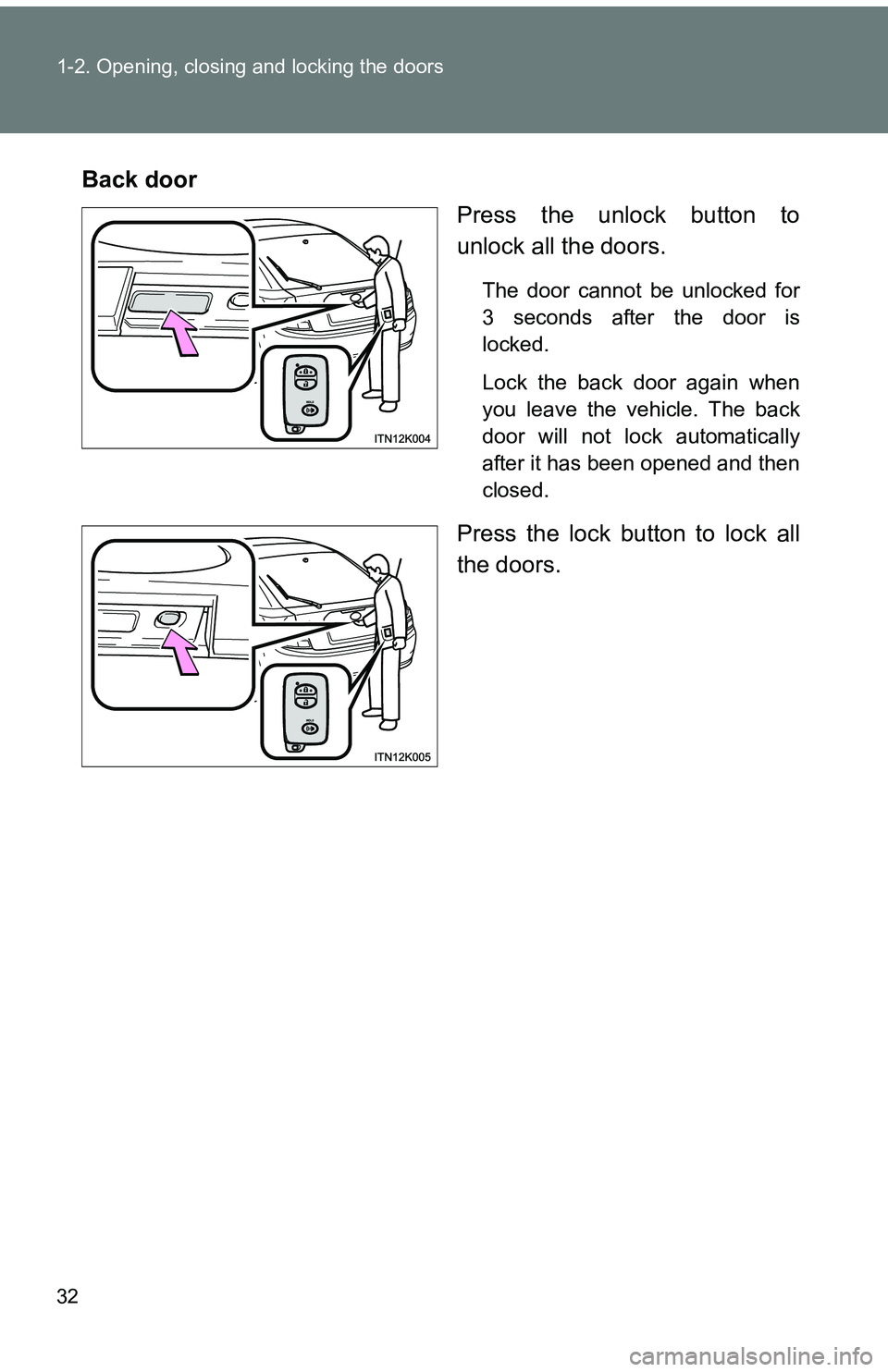

32 1-2. Opening, closing and locking the doors
Back doorPress the unlock button to
unlock all the doors.
The door cannot be unlocked for
3 seconds after the door is
locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and then
closed.
Press the lock button to lock all
the doors.

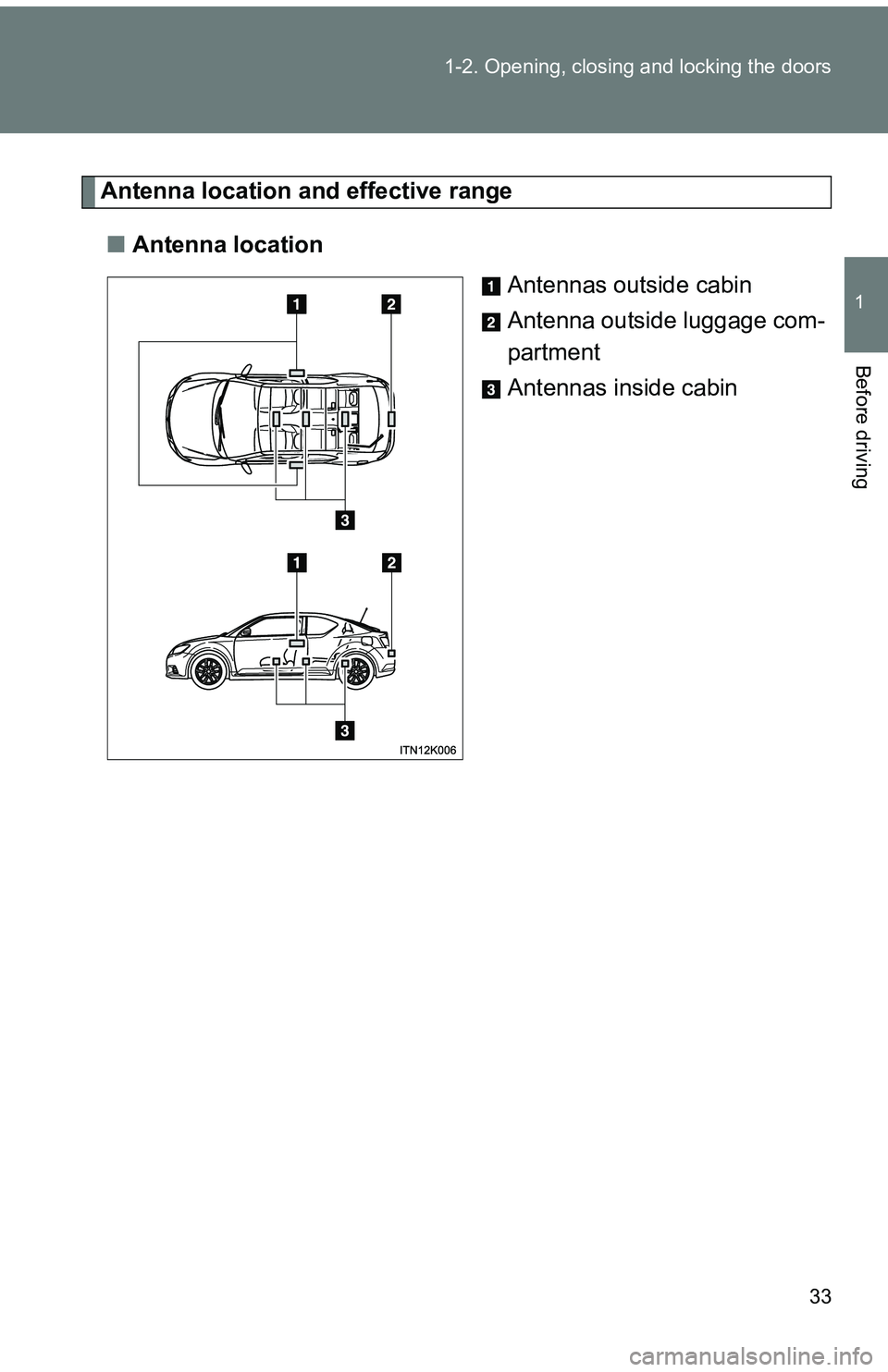

33
1-2. Opening, closing and locking the doors
1
Before driving
Antenna location a
nd effective range
■ Antenna location
Antennas outside cabin
Antenna outside luggage com-
partment
Antennas inside cabin

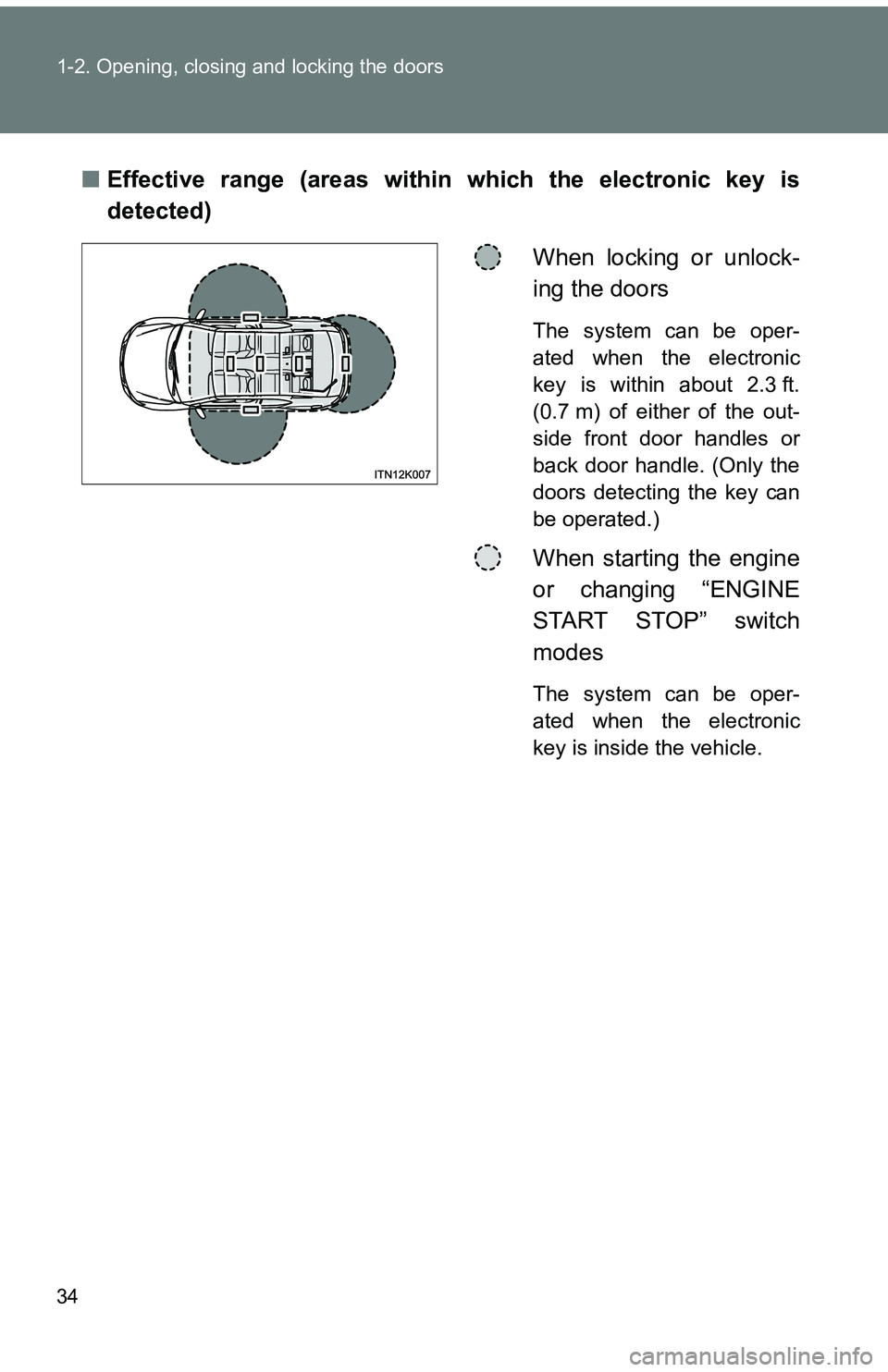

34 1-2. Opening, closing and locking the doors
■Effective range (areas within which the electronic key is
detected)
When locking or unlock-
ing the doors
The system can be oper-
ated when the electronic
key is within about 2.3 ft.
(0.7 m) of either of the out-
side front door handles or
back door handle. (Only the
doors detecting the key can
be operated.)
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be oper-
ated when the electronic
key is inside the vehicle.

35
1-2. Opening, closing and locking the doors
1
Before driving
■
Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ When the door cannot be locked by the lock sensor on the upper part
of the side door handle
Touch both lock sensors on the upper and
lower parts of the side door handle simul-
taneously.

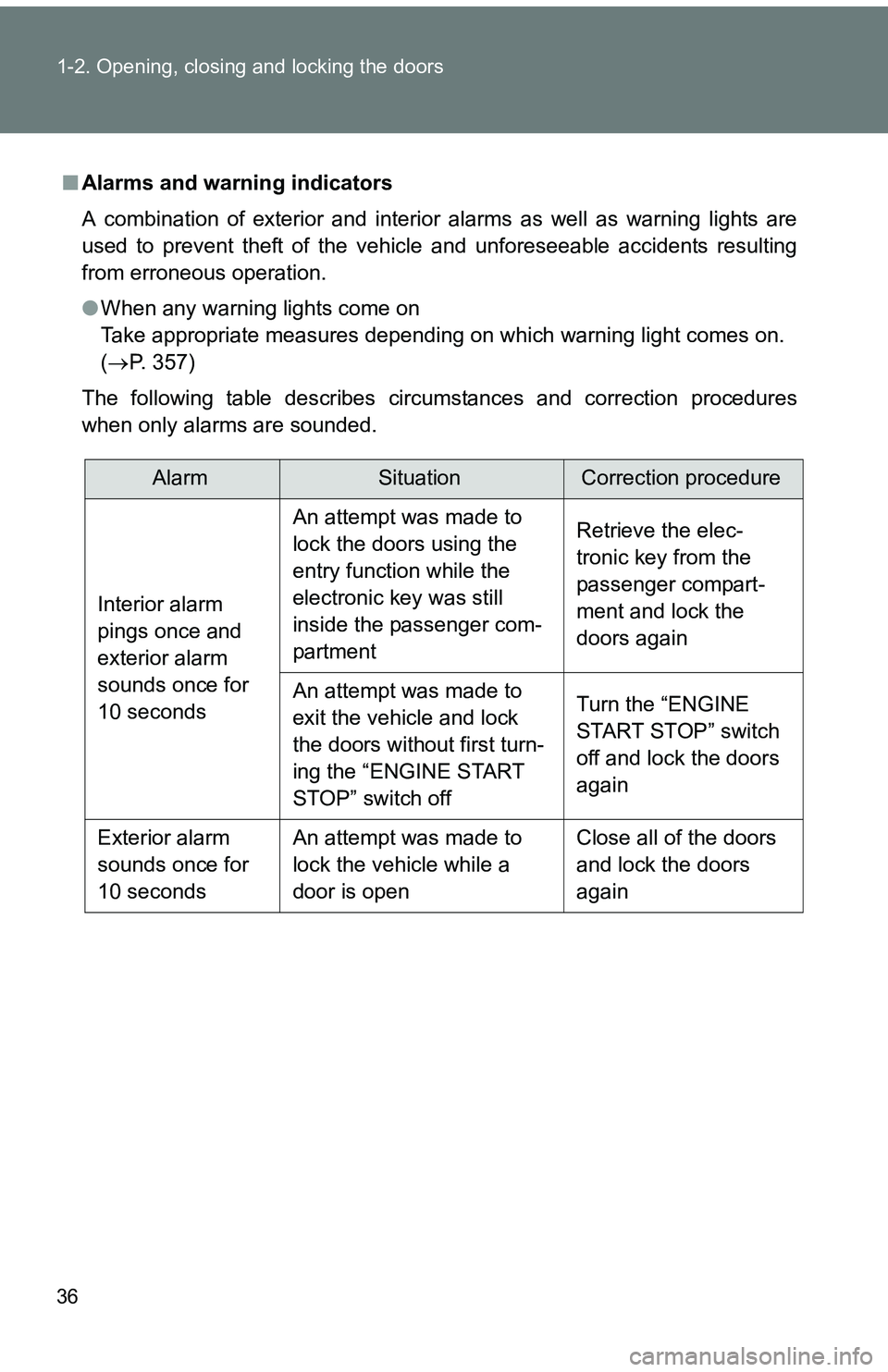

36 1-2. Opening, closing and locking the doors
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warning lights are
used to prevent theft of the vehicle and unforeseeable accidents resulting
from erroneous operation.
●When any warning lights come on
Take appropriate measures depending on which warning light comes on.
( P. 357)
The following table describes circumstances and correction procedures
when only alarms are sounded.
AlarmSituationCorrection procedure
Interior alarm
pings once and
exterior alarm
sounds once for
10 seconds An attempt was made to
lock the doors using the
entry function while the
electronic key was still
inside the passenger com-
partment
Retrieve the elec-
tronic key from the
passenger compart-
ment and lock the
doors again
An attempt was made to
exit the vehicle and lock
the doors without first turn-
ing the “ENGINE START
STOP” switch off Turn the “ENGINE
START STOP” switch
off and lock the doors
again
Exterior alarm
sounds once for
10 seconds An attempt was made to
lock the vehicle while a
door is open Close all of the doors
and lock the doors
again

37
1-2. Opening, closing and locking the doors
1
Before driving
AlarmSituationCorrection procedure
Interior alarm
pings continu-
ously The “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver’s door was
open (or the driver’s door
was opened while the
“ENGINE START STOP”
switch was in ACCES-
SORY mode)
Turn the “ENGINE
START STOP” switch
off and close the
driver’s door
The “ENGINE START
STOP” switch was turned
OFF while the driver’s door
was open Close the driver’s
door
Interior alarm
sounds continu-
ously Vehicles with an auto-
matic transmission only:
When the “ENGINE
START STOP” switch is in
IGNITION ON or ACCES-
SORY mode, an attempt
was made to open the
door and exit the vehicle,
and the shift lever was not
in P Shift the shift lever to
P and turn the
“ENGINE START
STOP” switch off
Interior and exte-
rior alarms sound
continuously Vehicles with an auto-
matic transmission only:
When the “ENGINE
START STOP” switch is in
IGNITION ON or ACCES-
SORY mode, the driver’s
door was closed after the
key was carried outside
the vehicle, and the shift
lever was not in P Shift the shift lever to
P, turn the “ENGINE
START STOP” switch
off and close the
driver’s door again

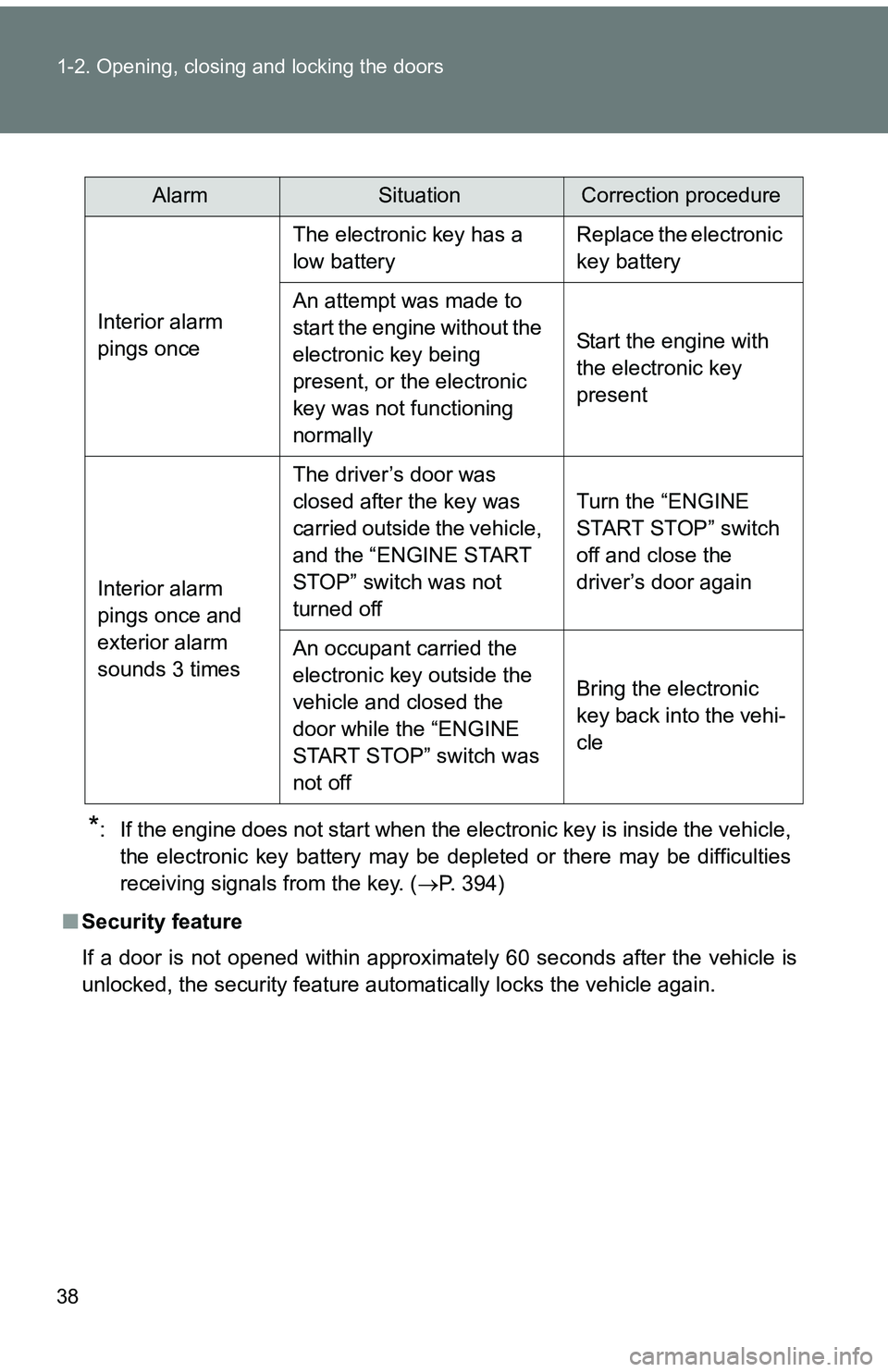

38 1-2. Opening, closing and locking the doors
*: If the engine does not start when the electronic key is inside the vehicle,the electronic key battery may be depleted or there may be difficulties
receiving signals from the key. ( P. 394)
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
AlarmSituationCorrection procedure
Interior alarm
pings once The electronic key has a
low battery
Replace the electronic
key battery
An attempt was made to
start the engine without the
electronic key being
present, or the electronic
key was not functioning
normally Start the engine with
the electronic key
present
Interior alarm
pings once and
exterior alarm
sounds 3 times The driver’s door was
closed after the key was
carried outside the vehicle,
and the “ENGINE START
STOP” switch was not
turned off
Turn the “ENGINE
START STOP” switch
off and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the
door while the “ENGINE
START STOP” switch was
not off Bring the electronic
key back into the vehi-
cle

39
1-2. Opening, closing and locking the doors
1
Before driving
■
Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the “ENGINE START STOP” switch off.
When the indicator on the key surface is not on, press and hold or for about 5 seconds while pressing and holding
.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat .)
STEP 1
STEP 2
STEP 2
Unlocking functionBeep
Holding the driver’s door handle
unlocks only the driver’s door. Exterior: Beeps three times
Interior: Pings once
Holding the front passenger’s door
handle unlocks all doors.
Holding either side door handle
unlocks all doors. Exterior: Beeps twice
Interior: Pings once

40 1-2. Opening, closing and locking the doors
■Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the vehicle battery from discharging and the electronic key battery from
discharging.
●When the entry function has not been used for 5 days or more
● When the electronic key has been left within approximately 6 ft. (2 m) of
the vehicle for 10 minutes or more
● If the entry function has not been used for 14 days or more, the vehicle
cannot be unlocked by a door other than the driver’s door. To unlock the
vehicle, grip the driver’s door handle or use the wireless remote control
or the mechanical key.
The system will resume operation when...
● The vehicle is locked using the lock sensor when carrying the electronic
key on your person.
● The vehicle is locked/unlocked using the wireless remote control.
( P. 4 8 )
● The vehicle is locked/unlocked using the mechanical key. ( P. 394)
