1-2. Opening, closing and locking the doors
1
Before driving
■

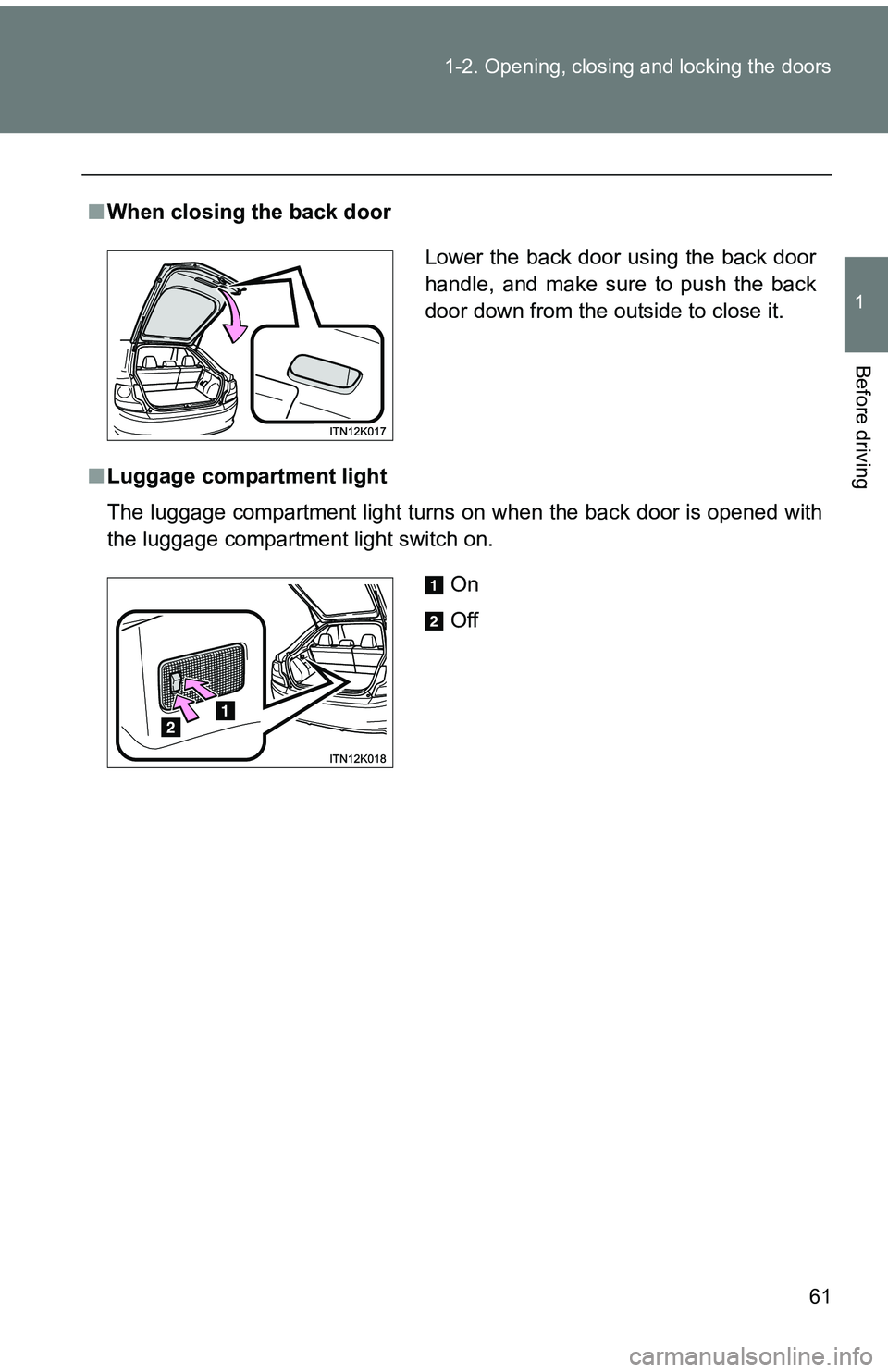

When closing the back door
■ Luggage compartment light
The luggage compartment light turns on when the back door is opened with
the luggage compartment light switch on.
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
On
Off

62 1-2. Opening, closing and locking the doors
■If the back door opener is inoperative
The back door can be opened from the inside.
Remove the cover.
To protect the cover, place a rag
between the flathead screwdriver and
the cover as shown in the illustration.
Move the lever.STEP 1
STEP 2

63
1-2. Opening, closing and locking the doors
1
Before driving

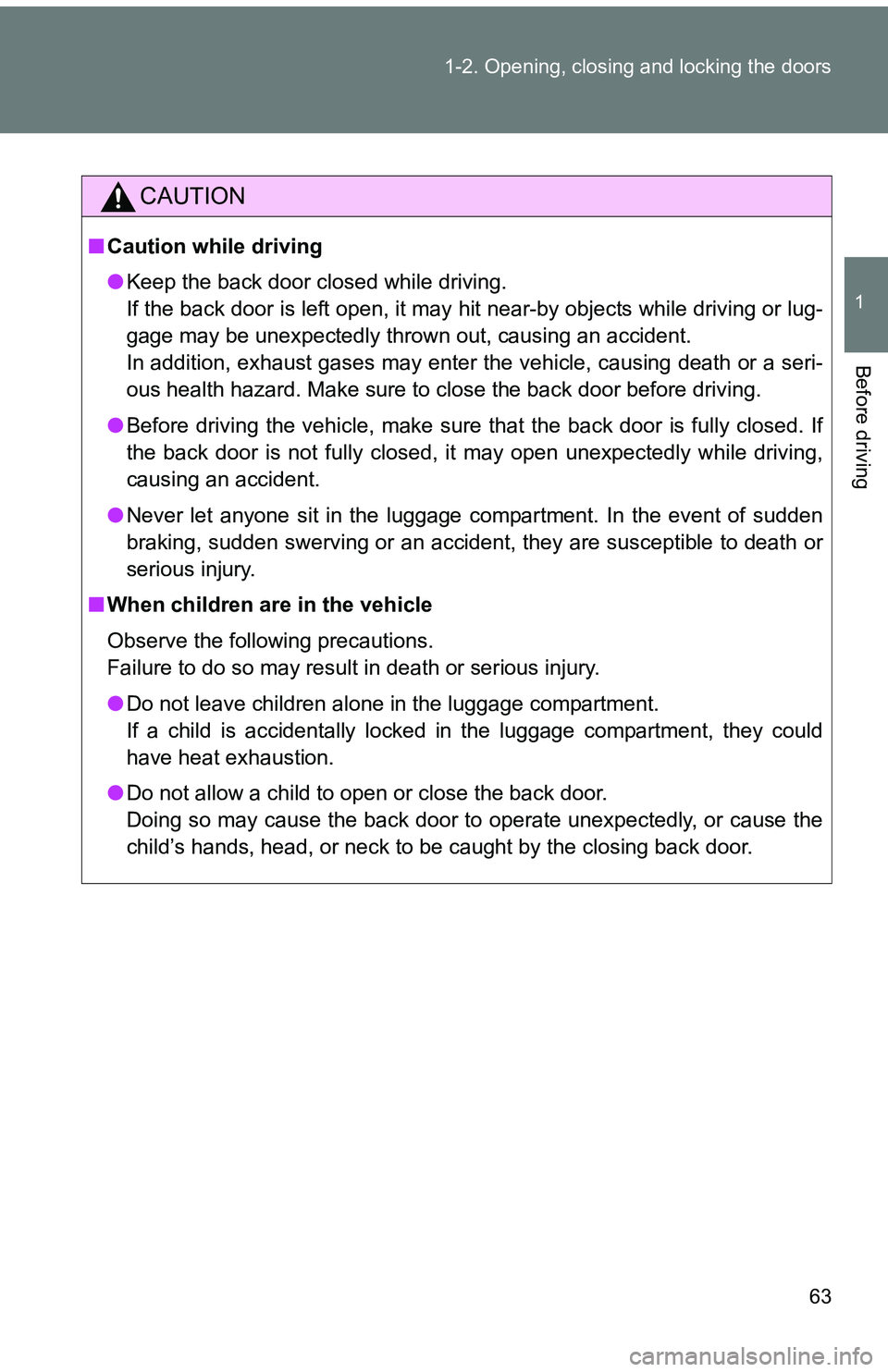

CAUTION
■
Caution while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or an accident, they are susceptible to death or
serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

64 1-2. Opening, closing and locking the doors
CAUTION

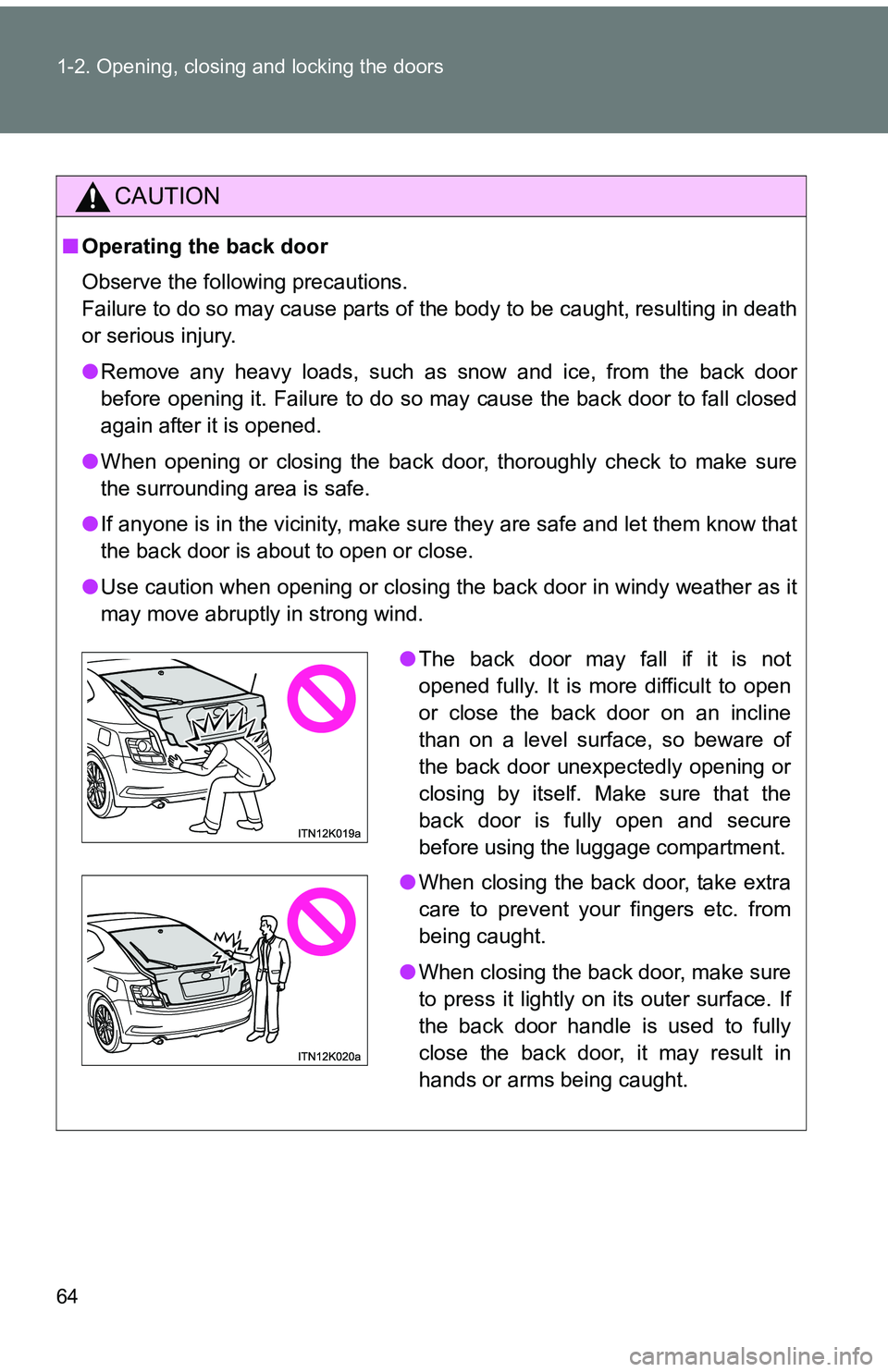

■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to fall closed
again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
●The back door may fall if it is not
opened fully. It is more difficult to open
or close the back door on an incline
than on a level surface, so beware of
the back door unexpectedly opening or
closing by itself. Make sure that the
back door is fully open and secure
before using the luggage compartment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

65
1-2. Opening, closing and locking the doors
1
Before driving
CAUTION
●
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● Do not attach any accessories other than genuine Scion parts to the back
door. Such additional weight on the back door may cause the back door to
fall closed again after it is opened.

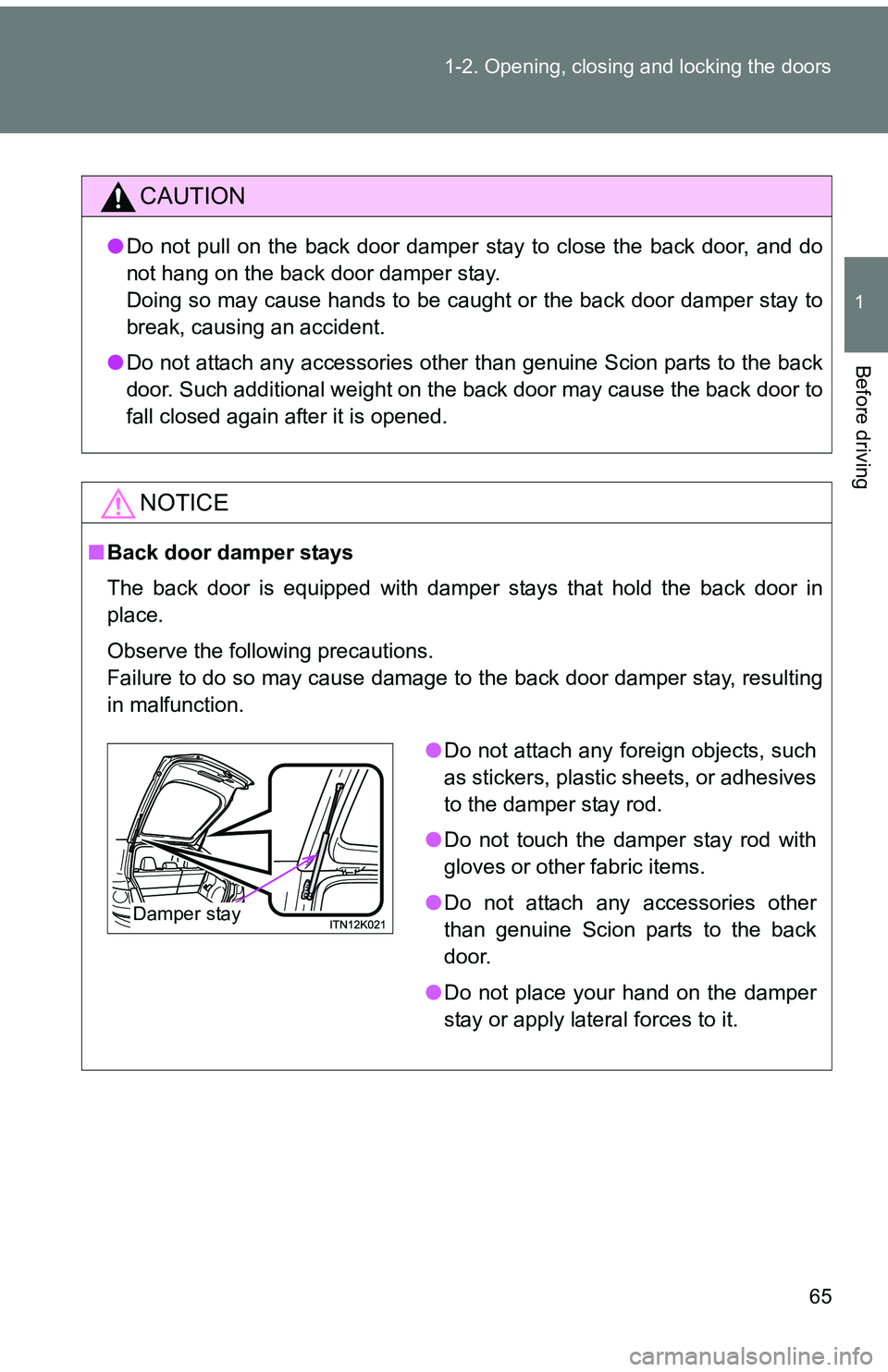

NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Scion parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay

66
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Seatback angle adjustment
lever
Seat position adjustment
lever
Vertical height adjustment
lever (driver’s side only)
Seatback lock release lever

67
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Moving front seats for rear seat entry
■ Getting in the vehicle
Driver’s seat (vehicles with a seat position memory system)
For easy access to the rear seat, use the seatback lock release lever.
When the seatback lock release le ver is used, the seat’s original
position is memorized, so the seat may be returned to that original
position. However, if the seatback angle adjustment lever is used, the
seat will not return to its original position.
Lift the seatback lock release
lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.

68 1-3. Adjustable components (seats, mirrors, steering wheel)
Driver’s seat (vehicles without a seat position memory system)
and front passenger’s seat
For easy access to the rear seat, use either the seatback lock release
lever or the seatback angle adjustment lever.
Lift the seatback lock release
lever or seatback angle adjust-
ment lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.
■ Getting out of the vehicle
Lift the seatback lock release
lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.

69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Active head restraints
When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.
■After passengers have entered the vehicle
Driver’s seat (vehicles with a seat position memory system)
Slide the seat backward and then lift the seatback. The seat will be set and
locked to its previous position automatically. If the seat cannot be slid back to
the previous position due to the rear passenger or luggage, the seat will be
locked in that position, disabling the seat position memory system.
To recall the previous position, lift the seatback lock release lever after
removing the luggage, or after having the passenger get out or sit properly
so that the seat can be slid back to the previous position. However, if you
slide the seat further backwards than previous position using the seat posi-
tion adjustment lever, the memory of previous position will be overwritten.

70 1-3. Adjustable components (seats, mirrors, steering wheel)

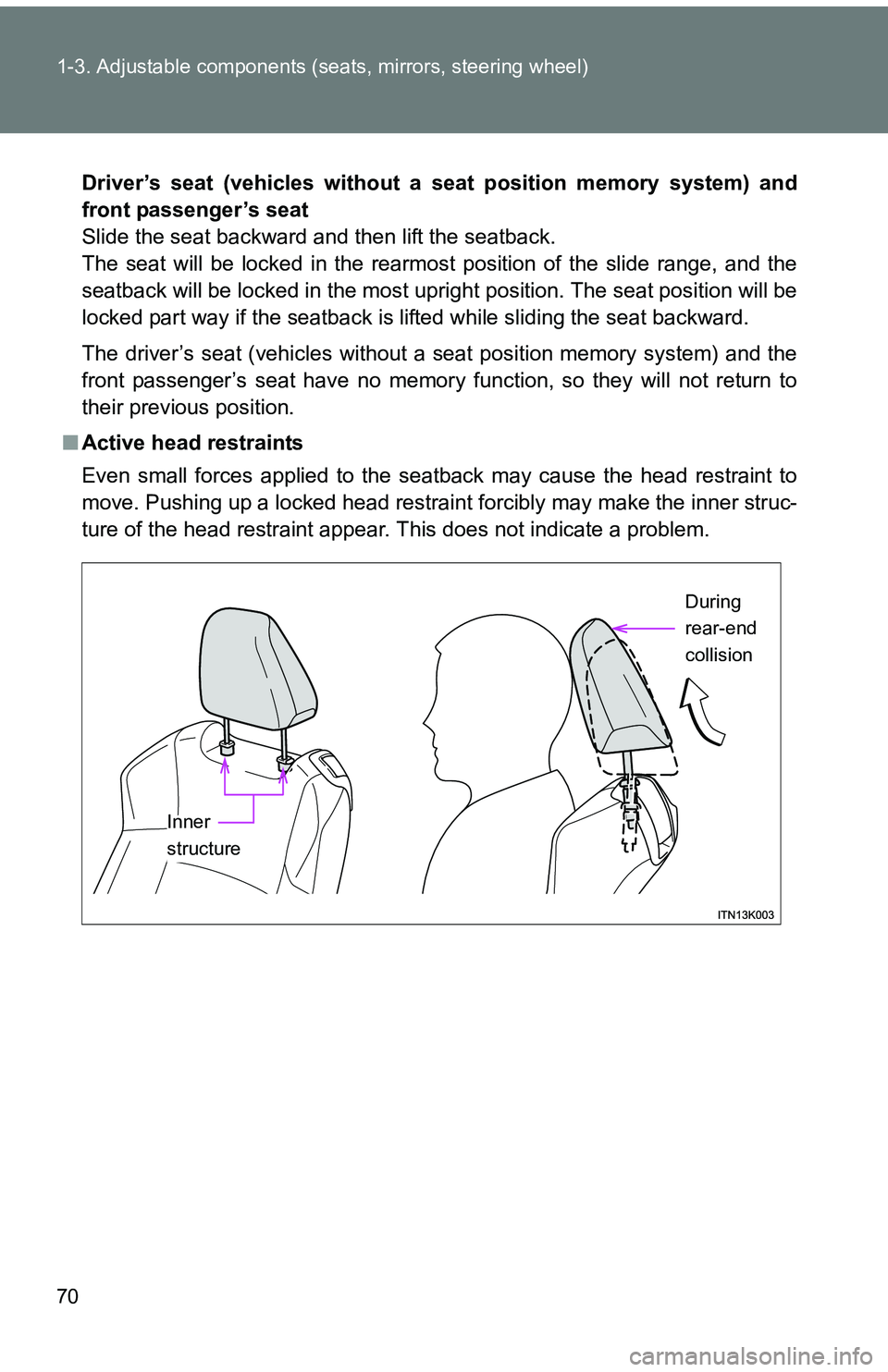

Driver’s seat (vehicles without a seat position memory system) and
front passenger’s seat
Slide the seat backward and then lift the seatback.
The seat will be locked in the rearmost position of the slide range, and the
seatback will be locked in the most upright position. The seat position will be
locked part way if the seatback is lifted while sliding the seat backward.
The driver’s seat (vehicles without a seat position memory system) and the
front passenger’s seat have no memory function, so they will not return to
their previous position.
■ Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may make the inner struc-
ture of the head restraint appear. This does not indicate a problem.
During
rear-end
collision
Inner
structure
