2-1. Driving procedures
2
When driving
■
Shift ranges and their functions
●Automatically selecting gears between 1 and 6 according to
vehicle speed and driving conditions. However, the gear is lim-
ited according to selected shift range.
● You can choose from 6 levels of engine braking force.
● A lower shift range will provide greater engine br aking force than
a higher shift range, and the engine speed will also increase.
■Paddle shift switch (if equipped)
●When the “-” paddle shift switch is operated in the D position, a shift
range will be automatically selected. The highest gear of the first shift
range will be one gear lower than the gear in use during normal D posi-
tion driving.
● Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following
situations:
• The “+” paddle shift switch is held down for a period of time
• When the vehicle comes to a stop
• If the accelerator pedal is depressed for longer than a certain period of
time in one shift range
■ S mode
●When the shift range is 5 or lower, holding the shift lever toward “+” sets
the shift range to 6.
● To prevent excessive engine speed, a function was adopted that auto-
matically selects a higher shift range before the engine speed becomes
too high.
● To protect the automatic transmission, a function is adopted that auto-
matically selects a higher shift range when the fluid temperature is high.

360 5-2. Steps to take in an emergency
Electric power steering system warning light (warning
buzzer)Indicates a malfunction in the EPS system.
(Flashes) Cruise control indicator
light (if equipped)
Indicates a malfunction in the cruise control system.
Automatic transmission flui d temperature warning light
(vehicles with an automatic transmission) Indicates that the automatic transmission fluid temperature
is too high.
Warning lightWarning light/Details

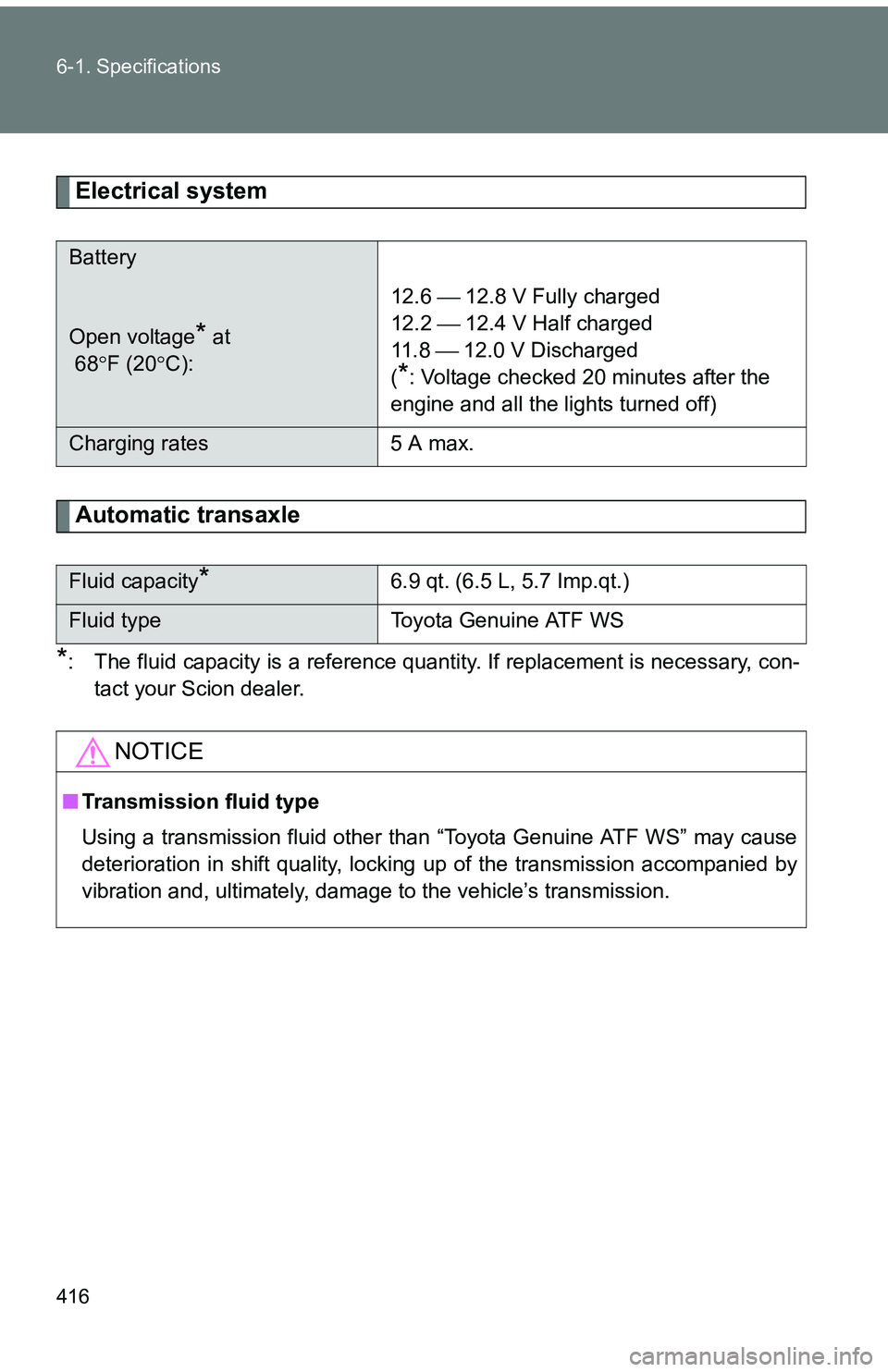

416 6-1. Specifications
Electrical system
Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Scion dealer.
Battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity*6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using a transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.
