Basic Operation
Your audio system works when the
ignition switch is in the “ACC” or
“ON” position.
If the Audio screen does not
display, press [POWER]. (Refer to
page 8.)
NOTICE
To avoid draining the battery,
do not leave the car audio on
longer than necessary when the
engine is not running.
Audio operations are carried out by
either of the operations explained
below.
The touch keys on the Display
screen, touch buttons or the
POWER/MULTI-SELECTOR (Refer
to page 8)
The Steering Switch (Refer to
page 9)
The Display screen touch keys,
touch buttons and POWER/
MULTI-SELECTOR are used by
way of example when explaining
operations in this manual.
•
•

31
31

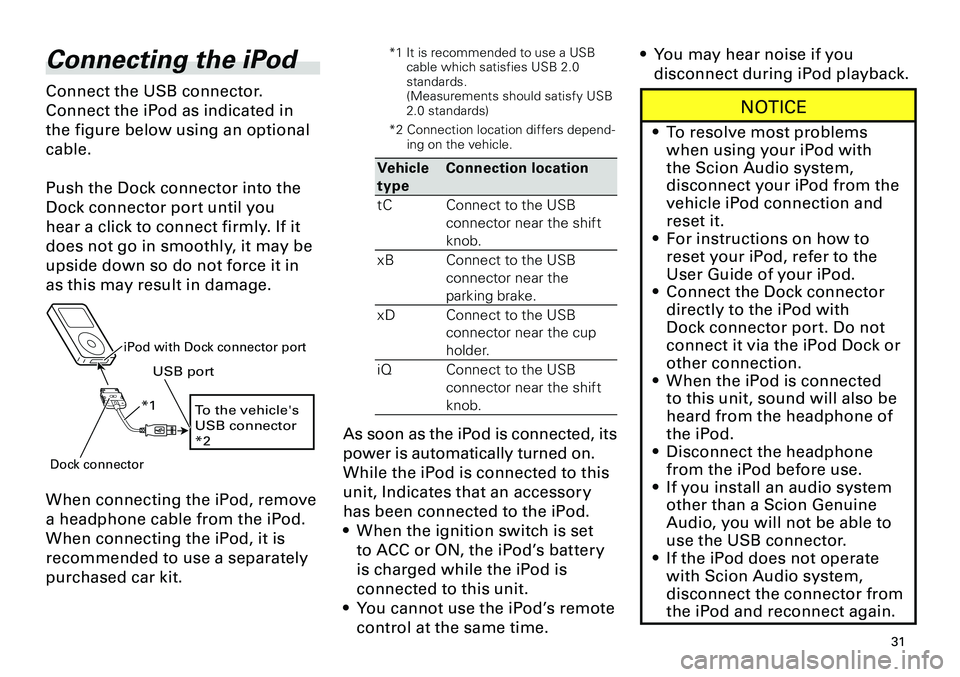

Connecting the iPod
Connect the USB connector.
Connect the iPod as indicated in
the figure below using an optional
cable.
Push the Dock connector into the
Dock connector port until you
hear a click to connect firmly. If it
does not go in smoothly, it may be
upside down so do not force it in
as this may result in damage.
To the vehicle's USB connector *2
*1
USB port
iPod with Dock connector port
Dock connector
When connecting the iPod, remove
a headphone cable from the iPod.
When connecting the iPod, it is
recommended to use a separately
purchased car kit.
*1 It is recommended to use a USB cable which satisfies USB 2.0 standards. (Measurements should satisfy USB 2.0 standards)
*2 Connection location differs depend
-ing on the vehicle.
Vehicle
type
Connection location
tCConnect to the USB
connector near the shift
knob.
xBConnect to the USB
connector near the
parking brake.
xDConnect to the USB
connector near the cup
holder.
iQConnect to the USB
connector near the shift
knob.
As soon as the iPod is connected, its
power is automatically turned on.
While the iPod is connected to this
unit, Indicates that an accessory
has been connected to the iPod.
When the ignition switch is set
to ACC or ON, the iPod’s battery
is charged while the iPod is
connected to this unit.
You cannot use the iPod’s remote
control at the same time.
•
•
You may hear noise if you
disconnect during iPod playback.
NOTICE
To resolve most problems
when using your iPod with
the Scion Audio system,
disconnect your iPod from the
vehicle iPod connection and
reset it.
For instructions on how to
reset your iPod, refer to the
User Guide of your iPod.
Connect the Dock connector
directly to the iPod with
Dock connector port. Do not
connect it via the iPod Dock or
other connection.
When the iPod is connected
to this unit, sound will also be
heard from the headphone of
the iPod.
Disconnect the headphone
from the iPod before use.
If you install an audio system
other than a Scion Genuine
Audio, you will not be able to
use the USB connector.
If the iPod does not operate
with Scion Audio system,
disconnect the connector from
the iPod and reconnect again.
•
•
•
•
•
•
•
•
