TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
Manufacturer: TOYOTA, Model Year: 2012, Model line: tC, Model: TOYOTA tC 2012Pages: 64, PDF Size: 2.41 MB
Page 1 of 64
Owner’s Manual
for AM/FM/HD Radio Broadcast/CD Player with iPod/
USB control/Bluetooth-Audio
Audio System
TOYOTA PART NO. PT546-00120
Page 2 of 64

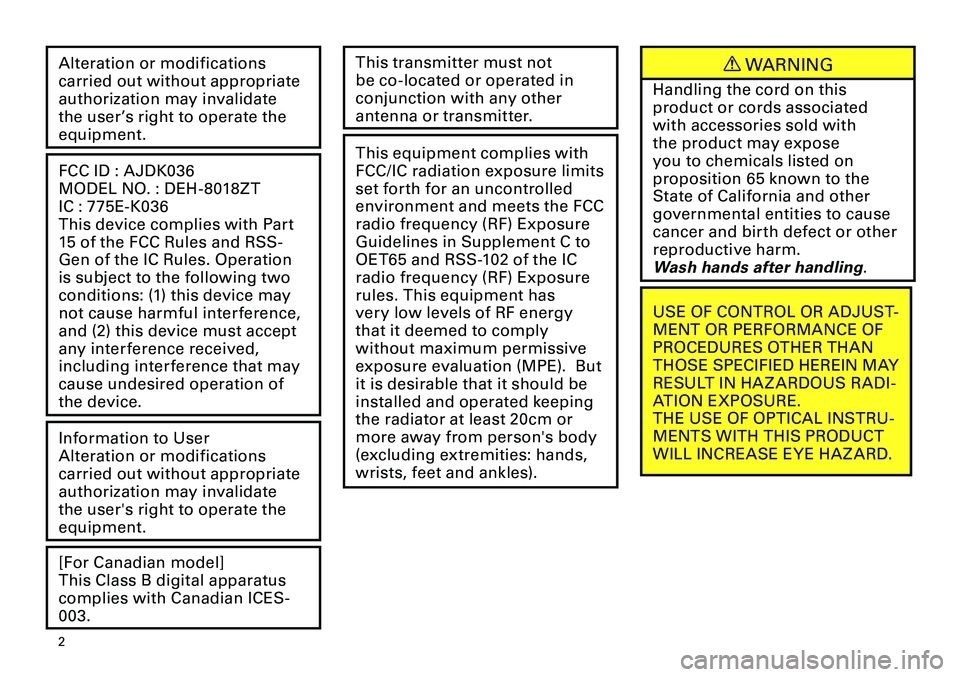

Alteration or modifications
carried out without appropriate
authorization may invalidate
the user’s right to operate the
equipment.
FCC ID : AJDK036
MODEL NO. : DEH-8018ZT
IC : 775E-K036
This device complies with Part
15 of the FCC Rules and RSS-
Gen of the IC Rules. Operation
is subject to the following two
conditions: (1) this device may
not cause harmful interference,
and () this device must accept
any interference received,
including interference that may
cause undesired operation of
the device.
Information to User
Alteration or modifications
carried out without appropriate
authorization may invalidate
the user's right to operate the
equipment.
[For Canadian model]
This Class B digital apparatus
complies with Canadian ICES-
003.
This transmitter must not
be co-located or operated in
conjunction with any other
antenna or transmitter.
This equipment complies with
FCC/IC radiation exposure limits
set forth for an uncontrolled
environment and meets the FCC
radio frequency (RF) Exposure
Guidelines in Supplement C to
OET65 and RSS-10 of the IC
radio frequency (RF) Exposure
rules. This equipment has
very low levels of RF energy
that it deemed to comply
without maximum permissive
exposure evaluation (MPE). But
it is desirable that it should be
installed and operated keeping
the radiator at least 0cm or
more away from person's body
(excluding extremities: hands,
wrists, feet and ankles).
WARNING
Handling the cord on this
product or cords associated
with accessories sold with
the product may expose
you to chemicals listed on
proposition 65 known to the
State of California and other
governmental entities to cause
cancer and birth defect or other
reproductive harm.
Wash hands after handling.
USE OF CONTROL OR ADJUST-
MENT OR PERFORMANCE OF
PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADI-
ATION EXPOSURE.
THE USE OF OPTICAL INSTRU-
MENTS WITH THIS PRODUCT
WILL INCREASE EYE HAZARD.
Page 3 of 64
3

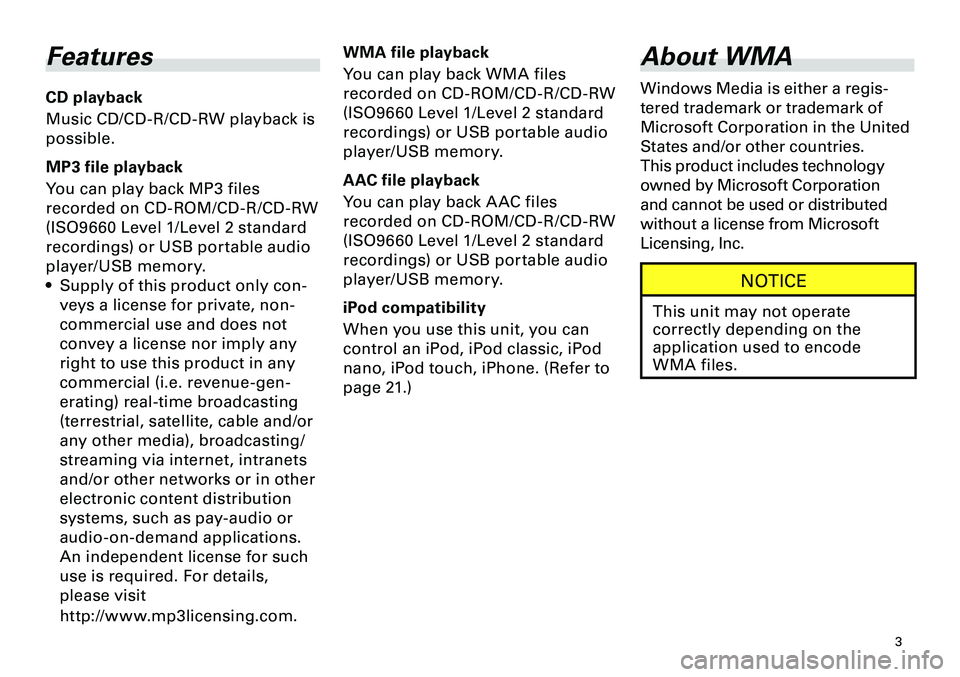

Features
CD playback
Music CD/CD-R/CD-RW playback is
possible.
MP3 file playback
You can play back MP3 files
recorded on CD-ROM/CD-R/CD-RW
(ISO9660 Level 1/Level standard
recordings) or USB portable audio
player/USB memory.
Supply of this product only con-
veys a license for private, non-
commercial use and does not
convey a license nor imply any
right to use this product in any
commercial (i.e. revenue-gen-
erating) real-time broadcasting
(terrestrial, satellite, cable and/or
any other media), broadcasting/
streaming via internet, intranets
and/or other networks or in other
electronic content distribution
systems, such as pay-audio or
audio-on-demand applications.
An independent license for such
use is required. For details,
please visit
http://w w w.mp3licensing.com.
•
WMA file playback
You can play back WMA files
recorded on CD-ROM/CD-R/CD-RW
(ISO9660 Level 1/Level standard
recordings) or USB portable audio
player/USB memory.
AAC file playback
You can play back A AC files
recorded on CD-ROM/CD-R/CD-RW
(ISO9660 Level 1/Level standard
recordings) or USB portable audio
player/USB memory.
iPod compatibility
When you use this unit, you can
control an iPod, iPod classic, iPod
nano, iPod touch, iPhone. (Refer to
page 1.)
About WMA
Windows Media is either a regis-
tered trademark or trademark of
Microsoft Corporation in the United
States and/or other countries.
This product includes technology
owned by Microsoft Corporation
and cannot be used or distributed
without a license from Microsoft
Licensing, Inc.
NOTICE
This unit may not operate
correctly depending on the
application used to encode
WMA files.
Page 4 of 64
4

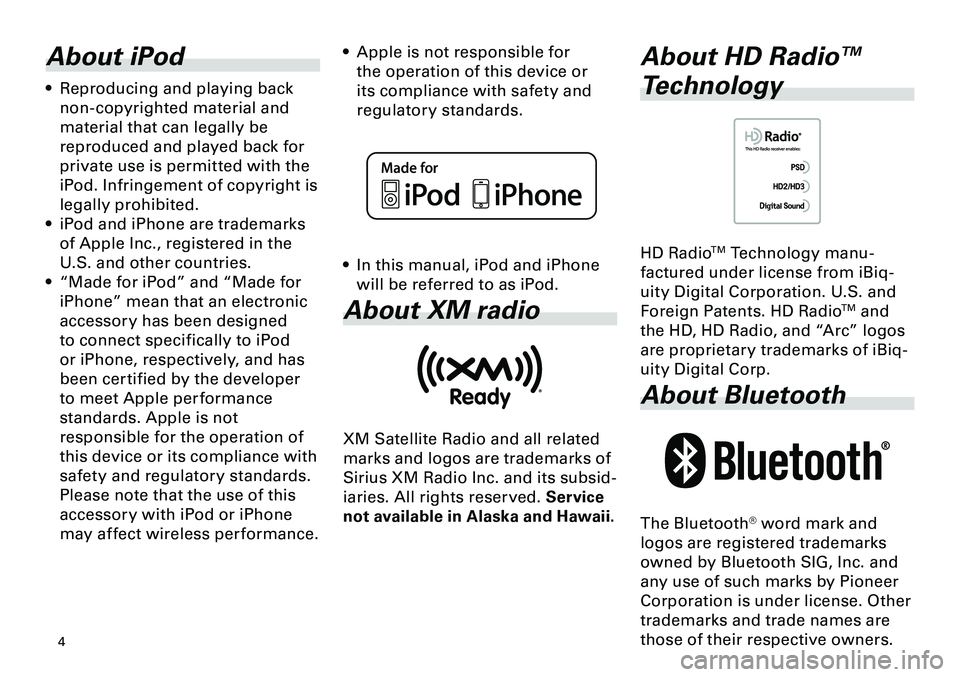

About iPod
Reproducing and playing back
non-copyrighted material and
material that can legally be
reproduced and played back for
private use is permitted with the
iPod. Infringement of copyright is
legally prohibited.
iPod and iPhone are trademarks
of Apple Inc., registered in the
U.S. and other countries.
“Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Apple is not
responsible for the operation of
this device or its compliance with
safety and regulatory standards.
Please note that the use of this
accessory with iPod or iPhone
may af fect wireless performance.
•
•
•
Apple is not responsible for
the operation of this device or
its compliance with safety and
regulatory standards.
In this manual, iPod and iPhone
will be referred to as iPod.
About XM radio
XM Satellite Radio and all related
marks and logos are trademarks of
Sirius XM Radio Inc. and its subsid-
iaries. All rights reserved. Service
not available in Alaska and Hawaii.
•
•
About HD Radio™
Technology
HD RadioTM Technology manu-
factured under license from iBiq-
uity Digital Corporation. U.S. and
Foreign Patents. HD RadioTM and
the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiq-
uity Digital Corp.
About Bluetooth
The Bluetooth® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Pioneer
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.
Page 5 of 64
5

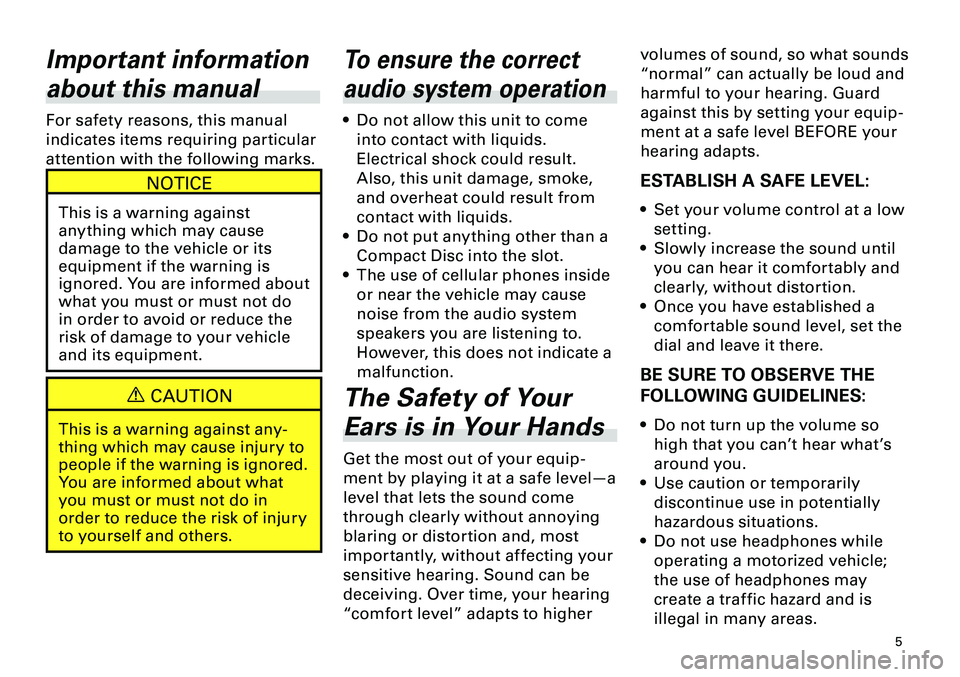

Important information
about this manual
For safety reasons, this manual
indicates items requiring particular
attention with the following marks.
NOTICE
This is a warning against
anything which may cause
damage to the vehicle or its
equipment if the warning is
ignored. You are informed about
what you must or must not do
in order to avoid or reduce the
risk of damage to your vehicle
and its equipment.
CAUTION
This is a warning against any-
thing which may cause injury to
people if the warning is ignored.
You are informed about what
you must or must not do in
order to reduce the risk of injury
to yourself and others.
To ensure the correct
audio system operation
Do not allow this unit to come
into contact with liquids.
Electrical shock could result.
Also, this unit damage, smoke,
and overheat could result from
contact with liquids.
Do not put anything other than a
Compact Disc into the slot.
The use of cellular phones inside
or near the vehicle may cause
noise from the audio system
speakers you are listening to.
However, this does not indicate a
malfunction.
The Safety of Your
Ears is in Your Hands
Get the most out of your equip-
ment by playing it at a safe level—a
level that lets the sound come
through clearly without annoying
blaring or distortion and, most
importantly, without af fecting your
sensitive hearing. Sound can be
deceiving. Over time, your hearing
“comfort level” adapts to higher
•
•
•
volumes of sound, so what sounds
“normal” can actually be loud and
harmful to your hearing. Guard
against this by setting your equip-
ment at a safe level BEFORE your
hearing adapts.
ESTABLISH A SAFE LEVEL:
Set your volume control at a low
setting.
Slowly increase the sound until
you can hear it comfortably and
clearly, without distortion.
Once you have established a
comfortable sound level, set the
dial and leave it there.
BE SURE TO OBSERVE THE
FOLLOWING GUIDELINES:
Do not turn up the volume so
high that you can’t hear what’s
around you.
Use caution or temporarily
discontinue use in potentially
hazardous situations.
Do not use headphones while
operating a motorized vehicle;
the use of headphones may
create a traf fic hazard and is
illegal in many areas.
•
•
•
•
•
•
Page 6 of 64
6
Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3About WMA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3About iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About XM radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About HD Radio Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Impor tant information about this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5To ensure the correct audio system operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5The Safet y of Your Ears is in Your Hands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Main Displays and Possible Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-11Listening to the RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13Listening to the HD Radio broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15Listening to a CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17Listening to MP3/ WMA /A AC DISC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18- 0About handling the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 1Connecting the iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-Disconnecting the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Listening to songs on the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 5ABC SEARCH on an iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6About handling the USB por table audio player/USB memor y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Connecting the USB por table audio player/USB memor y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Listening to USB por table audio player/USB memor y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8How to subscribe to XM Satellite Radio
Page 7 of 64
7

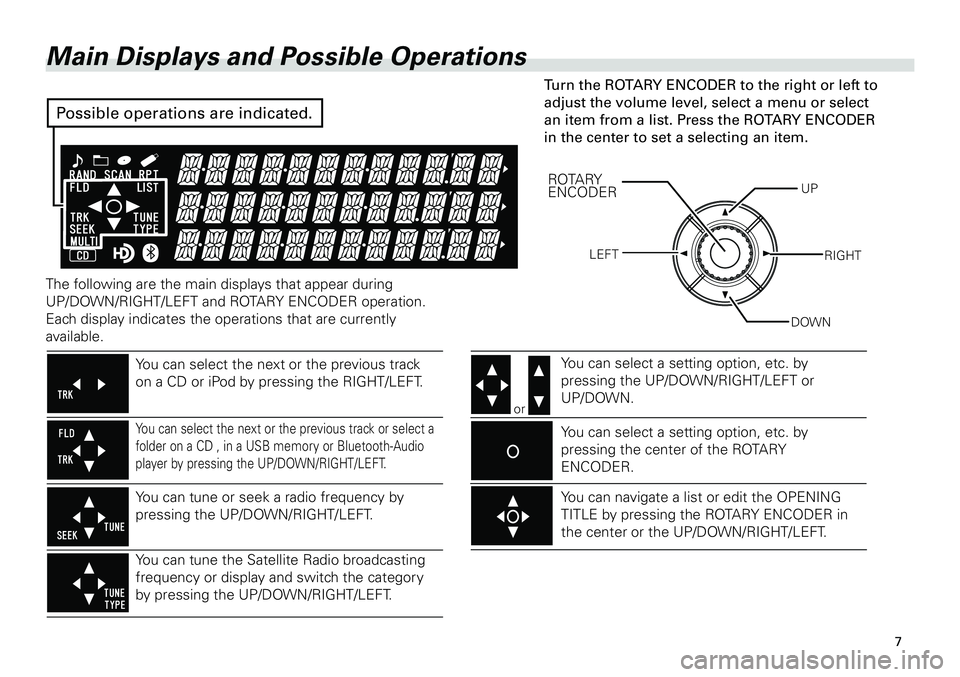

Main Displays and Possible Operations
or
RIGHTLEFT
UP
DOWN
ROTARY ENCODER
Possible operations are indicated.
The following are the main displays that appear during
UP/DOWN/RIGHT/LEFT and ROTARY ENCODER operation.
Each display indicates the operations that are currently
available.
You can select the next or the previous track
on a CD or iPod by pressing the RIGHT/LEFT.
You can select a setting option, etc. by
pressing the UP/DOWN/RIGHT/LEFT or
UP/DOWN.
You can select a setting option, etc. by
pressing the center of the ROTARY
ENCODER.
You can navigate a list or edit the OPENING
TITLE by pressing the ROTARY ENCODER in
the center or the UP/DOWN/RIGHT/LEFT.
You can select the next or the previous track or select a
folder on a CD , in a USB memory or Bluetooth-Audio
player by pressing the UP/DOWN/RIGHT/LEFT.
You can tune or seek a radio frequency by
pressing the UP/DOWN/RIGHT/LEFT.
You can tune the Satellite Radio broadcasting
frequency or display and switch the category
by pressing the UP/DOWN/RIGHT/LEFT.
Turn the ROTARY ENCODER to the right or left to
adjust the volume level, select a menu or select
an item from a list. Press the ROTARY ENCODER
in the center to set a selecting an item.
Page 8 of 64
8

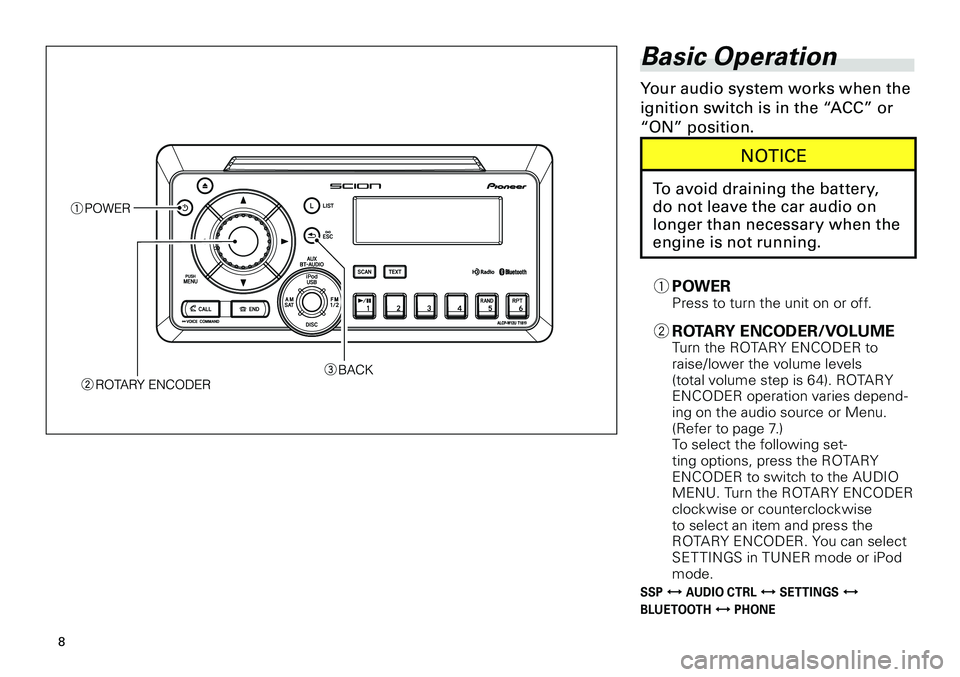

Basic Operation
Your audio system works when the
ignition switch is in the “ACC” or
“ON” position.
NOTICE
To avoid draining the battery,
do not leave the car audio on
longer than necessary when the
engine is not running.
1 POWERPress to turn the unit on or off.
2 ROTARY ENCODER/VOLUMETurn the ROTARY ENCODER to raise/lower the volume levels (total volume step is 64). ROTARY ENCODER operation varies depend-ing on the audio source or Menu. (Refer to page 7.)To select the following set-ting options, press the ROTARY ENCODER to switch to the AUDIO MENU. Turn the ROTARY ENCODER clockwise or counterclockwise to select an item and press the ROTARY ENCODER. You can select SET TINGS in TUNER mode or iPod mode.
SSP AUDIO CTRL SETTINGS
BLUETOOTH PHONE
Page 9 of 64
9

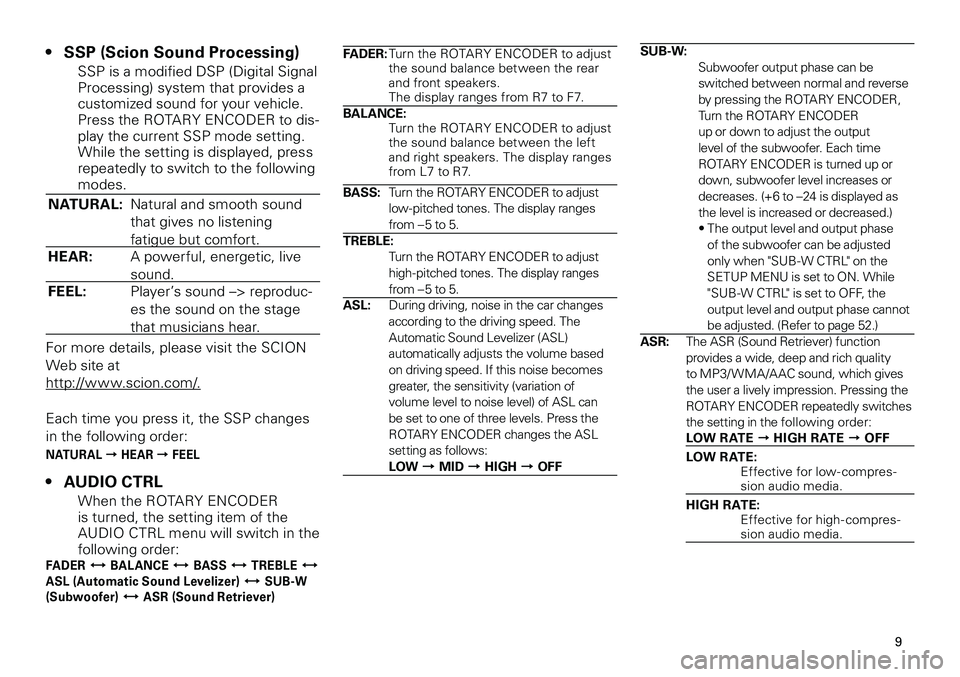

SSP (Scion Sound Processing)
SSP is a modified DSP (Digital Signal Processing) system that provides a customized sound for your vehicle. Press the ROTARY ENCODER to dis-play the current SSP mode setting. While the setting is displayed, press repeatedly to switch to the following modes.
NATURAL:Natural and smooth sound
that gives no listening
fatigue but comfort.
HEAR:A powerful, energetic, live
sound.
FEEL:
Player’s sound –> reproduc-
es the sound on the stage
that musicians hear.
For more details, please visit the SCION
Web site at
http://www.scion.com/.
Each time you press it, the SSP changes
in the following order:
NATURAL HEAR FEEL
AUDIO CTRL
When the ROTARY ENCODER is turned, the setting item of the AUDIO CTRL menu will switch in the following order:FADER BALANCE BASS TREBLE ASL (Automatic Sound Levelizer) SUB -W (Subwoofer) ASR (Sound Retriever)
•
•
FADER: Turn the ROTARY ENCODER to adjust the sound balance between the rear and front speakers. The display ranges from R7 to F7.BALANCE:Turn the ROTARY ENCODER to adjust the sound balance between the left and right speakers. The display ranges from L7 to R7.
BASS: Turn the ROTARY ENCODER to adjust low-pitched tones. The display ranges from –5 to 5.
TREBLE:
Turn the ROTARY ENCODER to adjust high-pitched tones. The display ranges from –5 to 5.ASL: During driving, noise in the car changes according to the driving speed. The Automatic Sound Levelizer (ASL) automatically adjusts the volume based on driving speed. If this noise becomes greater, the sensitivity (variation of volume level to noise level) of ASL can be set to one of three levels. Press the ROTARY ENCODER changes the ASL setting as follows: LOW MID HIGH OFF
SUB-W:
Subwoofer output phase can be
switched between normal and reverse by pressing the ROTARY ENCODER, Turn the ROTARY ENCODER up or down to adjust the output level of the subwoofer. Each time ROTARY ENCODER is turned up or down, subwoofer level increases or decreases. (+6 to –24 is displayed as the level is increased or decreased.)
•
The output level and output phase
of the subwoofer can be adjusted
only when "SUB -W CTRL" on the
SETUP MENU is set to ON. While
"SUB -W CTRL" is set to OFF, the
output level and output phase cannot be adjusted. (Refer to page 52.)
ASR: The ASR (Sound Retriever) function provides a wide, deep and rich quality to MP3/ WMA/AAC sound, which gives the user a lively impression. Pressing the ROTARY ENCODER repeatedly switches the setting in the following order:LOW RATE HIGH RATE OFF
LOW RATE:
Effective for low- compres-sion audio media.
HIGH RATE:
Effective for high- compres-sion audio media.
Page 10 of 64
10
NOTICE
The ASR function can only be
selected when playing MP3/
WMA /A AC from CD and iPod,
USB portable audio player/
USB memory/Bluetooth-
Audio.
The ASR function does not
support external compressed
audio media.
Switching of ASR settings is
disabled in Bluetooth-Audio
mode when no Bluetooth
device is connected or when
settings cannot be switched.
BASS function and TREBLE
function values can be set for
each of the modes (AM, FM,
CD/MP3/ WMA /A AC, iPod/USB
portable audio player/USB
memory, XM Satellite Radio,
Bluetooth audio player, AUX).
When you switch modes, the
settings change to the BASS
and TREBLE values set for the
selected mode.
The ASL function is only
effective when the vehicle is
moving.
•
•
•
•
•
SETTINGS
You can select this item in TUNER mode or iPod mode.If you select SET TINGS, you can set the following items.• HD ON/OFF (in TUNER mode)
• IPOD DIRECT (in iPod mode)
• AUDIO BOOK (in iPod mode)
To select a setting option in iPod mode, turn the ROTARY ENCODER clockwise or counterclockwise and press the ROTARY ENCODER.
IPOD DIRECT AUDIO BOOK
HD ON/OFF:If you set HD ON/OFF to ON, digital broadcasting is preferentially selected. During SCAN or SEEK operations, the tuner searches for all digital and analog broadcasting stations.
If you set HD ON/OFF to OFF, only analog broadcasting is selected. During SCAN or SEEK operations, the tuner searches only for analog broadcasting stations.
When the ROTARY ENCODER is pressed, switches in the following order:
ON OFF
• The setting can only be changed in
RADIO mode.
•IPOD DIRECT:A menu for turning on or off iPod direct control (in iPod mode). If you select ON, you can control iPod operations on the iPod, and you can control only the vol-ume of iPod from this unit. If you select OFF, you can control iPod operations from this unit. When the ROTARY ENCODER is pressed, switches in the following order:
OFF ON
• The setting can only be changed in
iPod mode.
AUDIO BOOK:You can change the iPod Audiobook playback speed.
Pressing the ROTARY ENCODER repeatedly switches the setting in the following order:
NORMAL FASTER SLOWER
• The speed can only be changed in
iPod mode.
• While IPOD DIRECT is set to ON, the
speed cannot be changed.
NOTICE
iPod (5th generation) and iPod
nano (1st generation) do not
support iPod direct control.
