Page 2 of 24

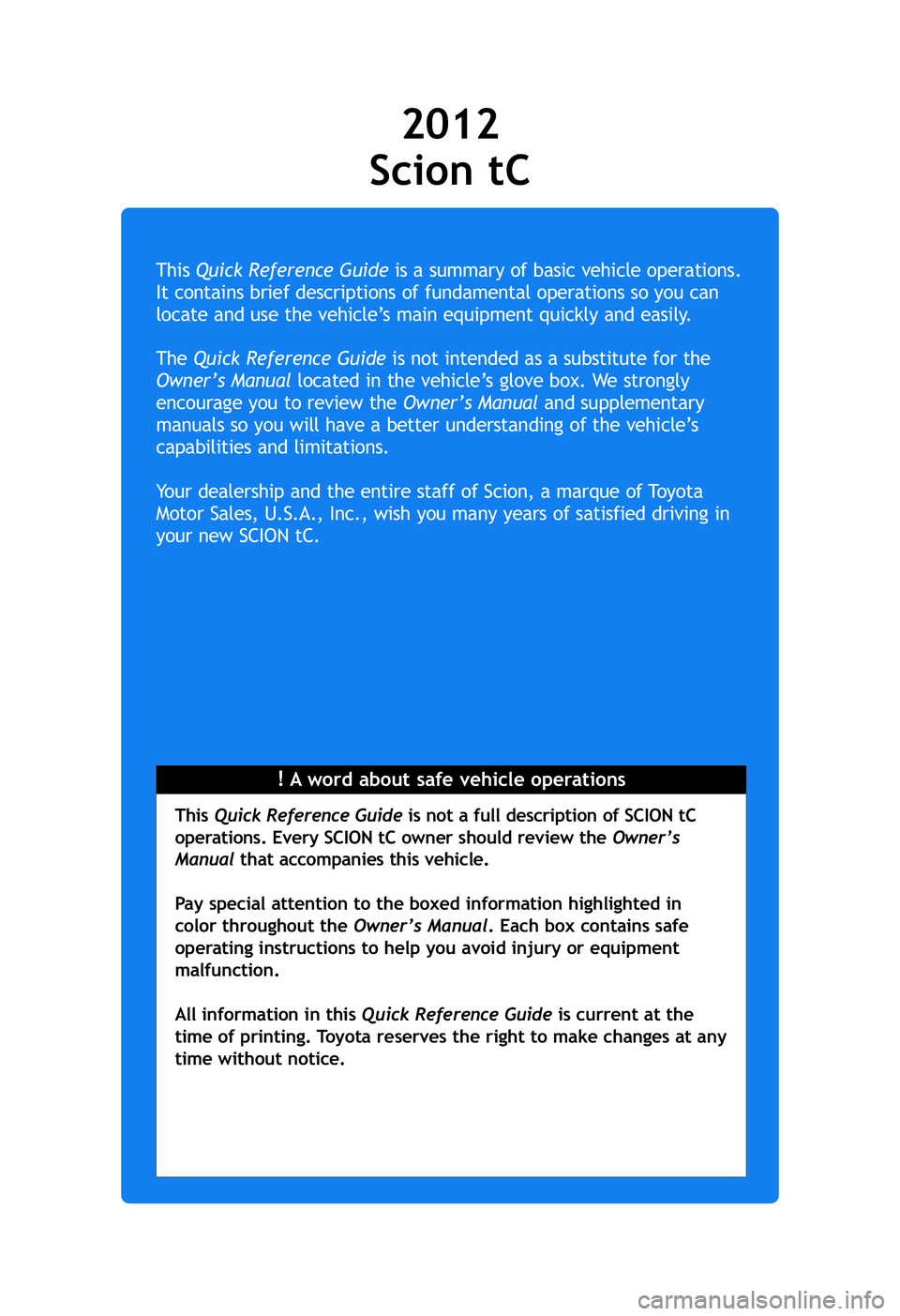

This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Scion, a marque of Toyota
Motor Sales, U.S.A., Inc., wish you many years of satisfied driving in
your new SCION tC.
2012
Scion tC
OVE
FEAT
SAF
EME
IND
!A word about safe vehicle operations
This Quick Reference Guide is not a full description of SCION tC
operations. Every SCION tC owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2012Scion-tC.qxd 5/14/11 9:05 AM Page 2
Page 3 of 24

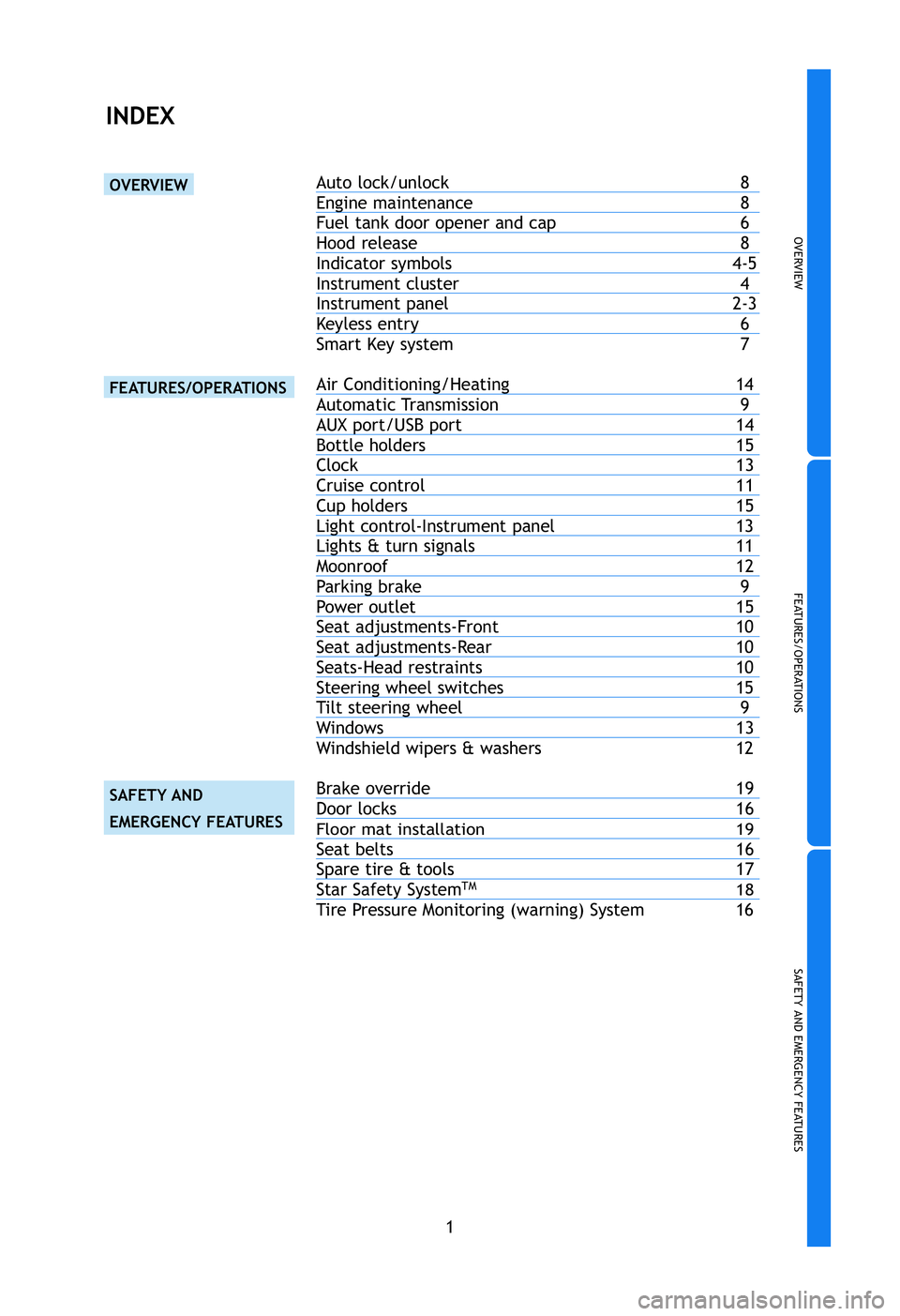

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
Auto lock/unlock8
Engine maintenance8
Fuel tank door openerand cap6
Hood release 8
Indicator symbols4-5
Instrument cluster 4
Instrument panel2-3
Keyless entry 6
Smart Key system 7
Air Conditioning/Heating 14
Automatic Transmission 9
AUX port/USB port14
Bottle holders15
Clock 13
Cruise control11
Cup holders15
Light control-Instrument panel13
Lights & turn signals11
Moonroof 12
Parking brake9
Power outlet 15
Seat adjustments-Front10
Seat adjustments-Rear10
Seats-Head restraints10
Steering wheel switches15
Tilt steering wheel9
Windows 13
Windshield wipers & washers 12
Brake override 19
Door locks 16
Floor mat installation19
Seat belts 16
Spare tire & tools17
Star Safety SystemTM18
Tire Pressure Monitoring (warning) System 16
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCYFEATURES
INDEX
2012Scion-tC.qxd 5/18/11 12:35 PM Page 1
Page 4 of 24
2
OVERVIEW

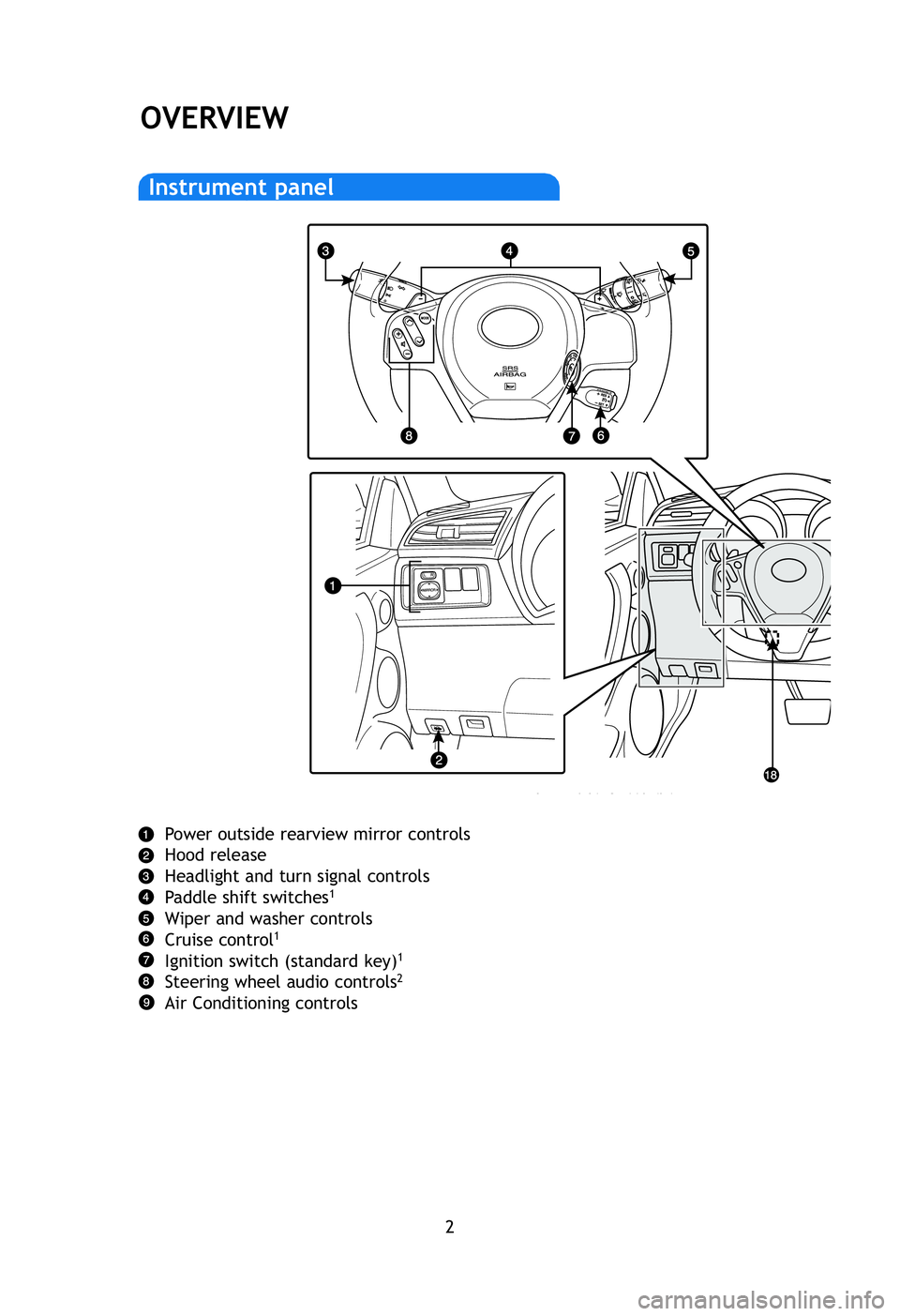

Power outside rearview mirror controls
Hood release
Headlight and turn signal controls
Paddle shift switches
1
Wiper and washer controls
Cruise control1
Ignition switch (standard key)1
Steering wheel audio controls2
Air Conditioning controlsR
E
C
C
F
E
P
“
T
1
2
“
Instrument panel
2012Scion-tC.qxd 5/14/11 8:50 AM Page 2
Page 5 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3

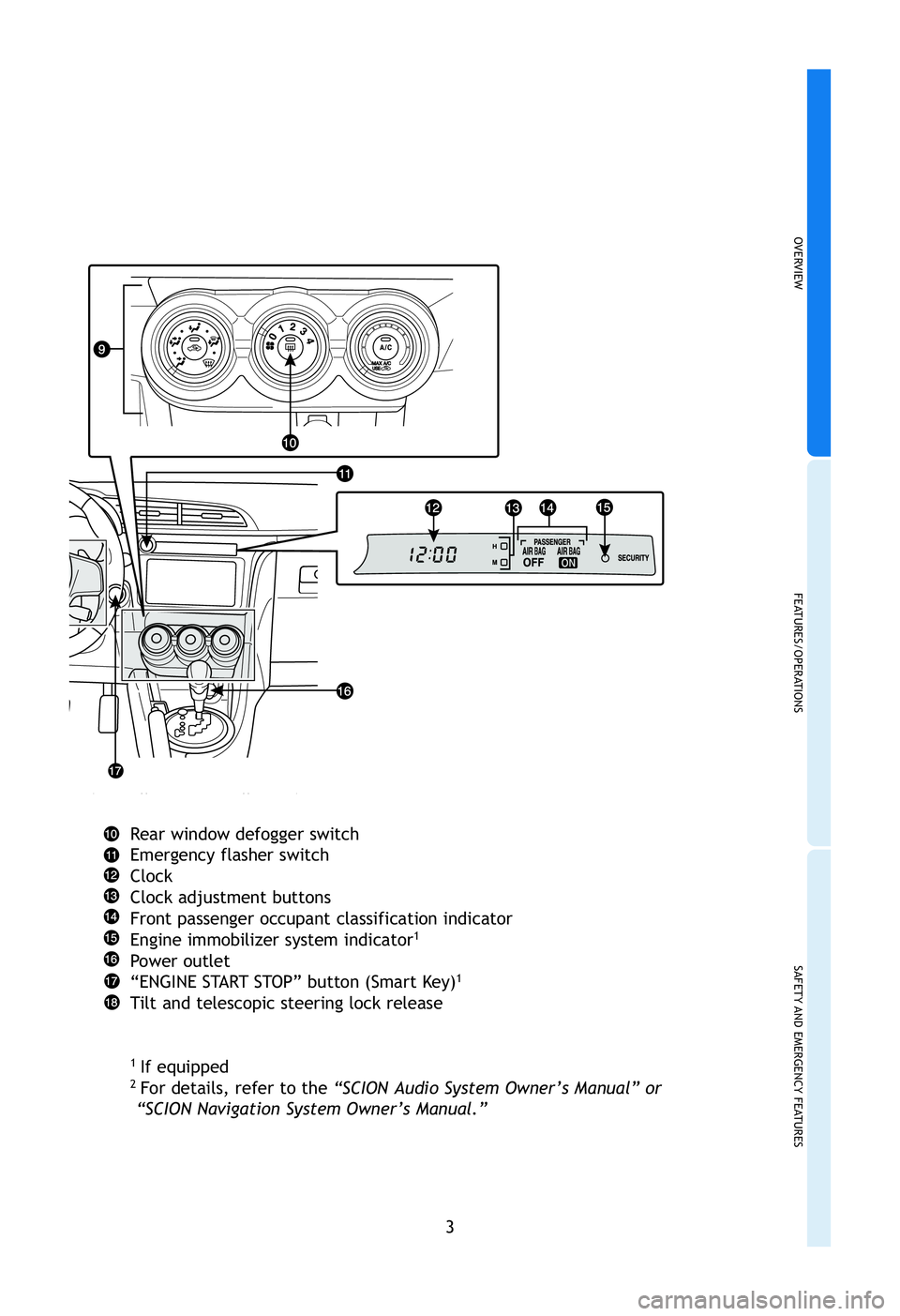

Rear window defogger switch
Emergency flasher switch
Clock
Clock adjustment buttons
Front passenger occupant classification indicator
Engine immobilizer system indicator
1
Power outlet
“ENGINE START STOP” button (Smart Key)1
Tilt and telescopic steering lock release
1If equipped2For details, refer to the “SCION Audio System Owner’s Manual” or
“SCION Navigation System Owner’s Manual.”
2012Scion-tC.qxd 5/14/11 8:46 AM Page 3
Page 6 of 24

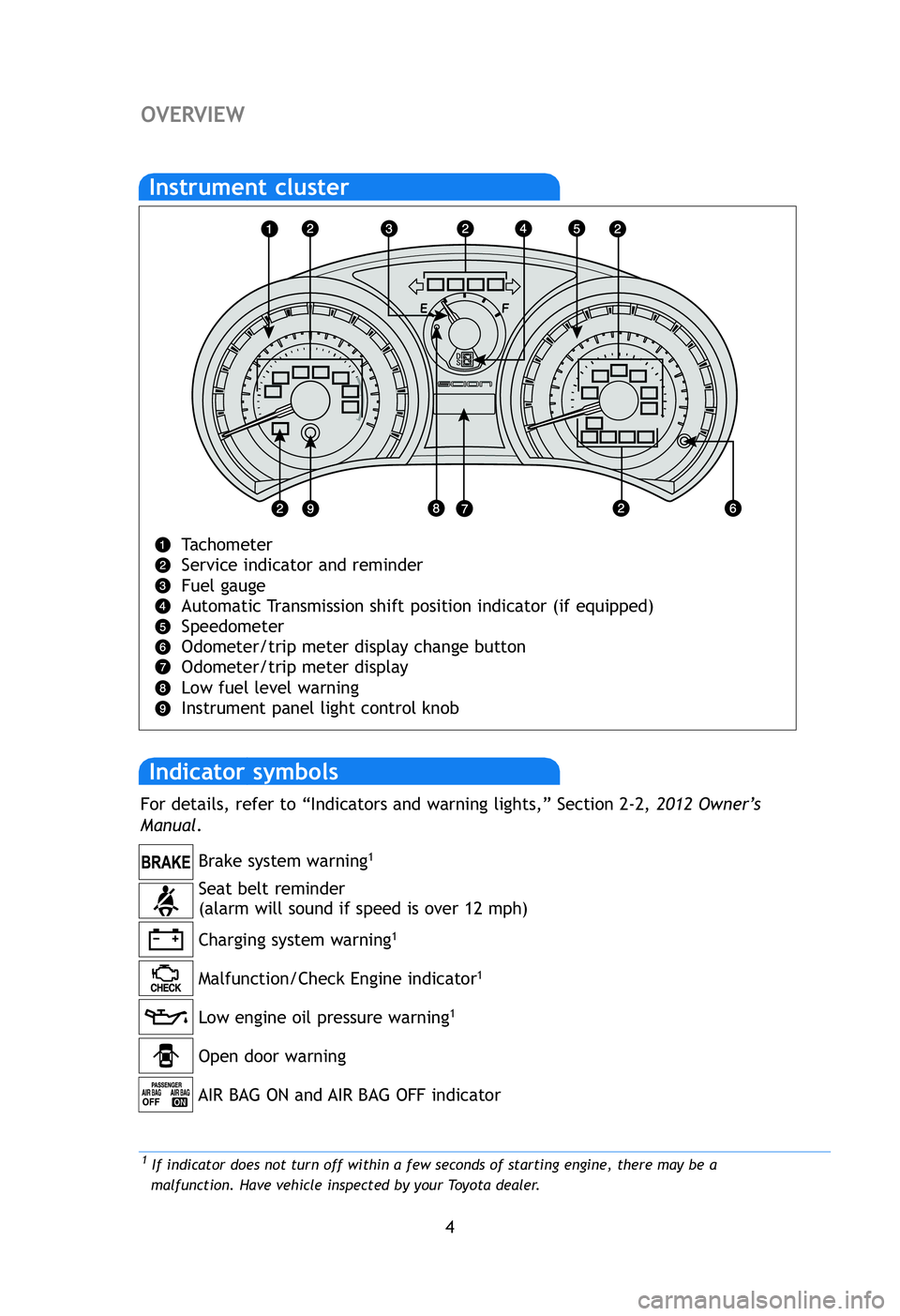

4
OVERVIEW
2If th
Tachometer
Service indicator and reminder
Fuel gauge
Automatic Transmission shift position indicator (if equipped)
Speedometer
Odometer/trip meter display change button
Odometer/trip meter display
Low fuel level warning
Instrument panel light control knob
Instrument cluster
Seat belt reminder
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Indicator symbols
Open door warning
AIR BAG ON and AIR BAG OFF indicator
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2012 Owner’s
Manual .
2012Scion-tC-2ndpg 4_5.qxd:Layout 1 5/17/11 6:32 PM Page 2
Page 7 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
2If this light flashes, refer to “Cruise control” Section 2-4, 2012\
Owner’s Manual.

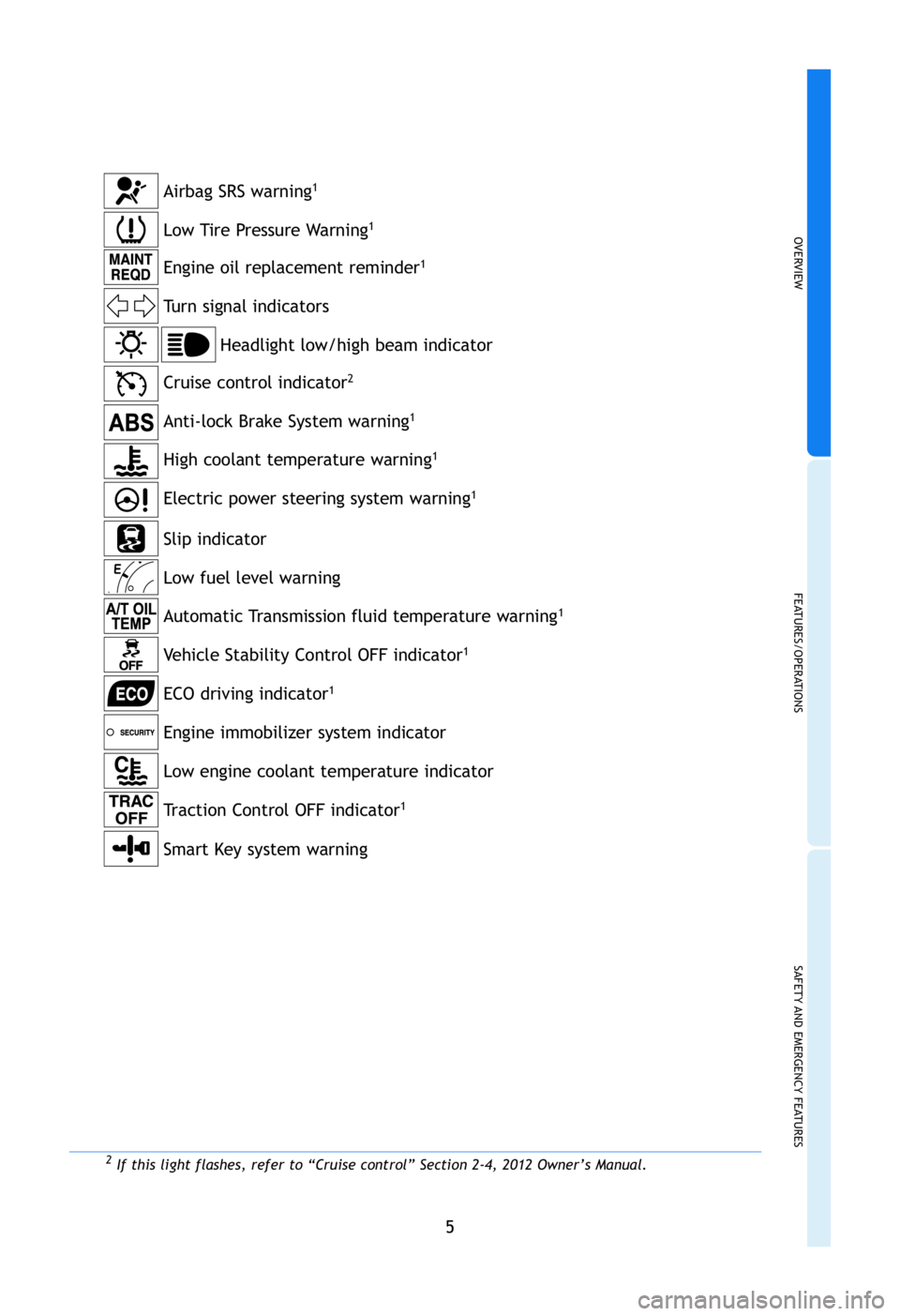

Anti-lock Brake System warning1
Engine oil replacement reminder1
Turn signal indicatorsHeadlight low/high beam indicator
Airbag SRS warning
1
Low Tire Pressure Warning1
Cruise control indicator2
High coolant temperature warning1
Slip indicator
Low fuel level warning
Automatic Transmission fluid temperature warning1
Engine immobilizer system indicator Vehicle Stability Control OFF indicator
1
ECO driving indicator1
Low engine coolant temperature indicator
Traction Control OFF indicator1
Electric power steering system warning1
Smart Key system warning
s
2012Scion-tC.qxd 5/14/11 8:48 AM Page 5
Page 8 of 24
6
OVERVIEW

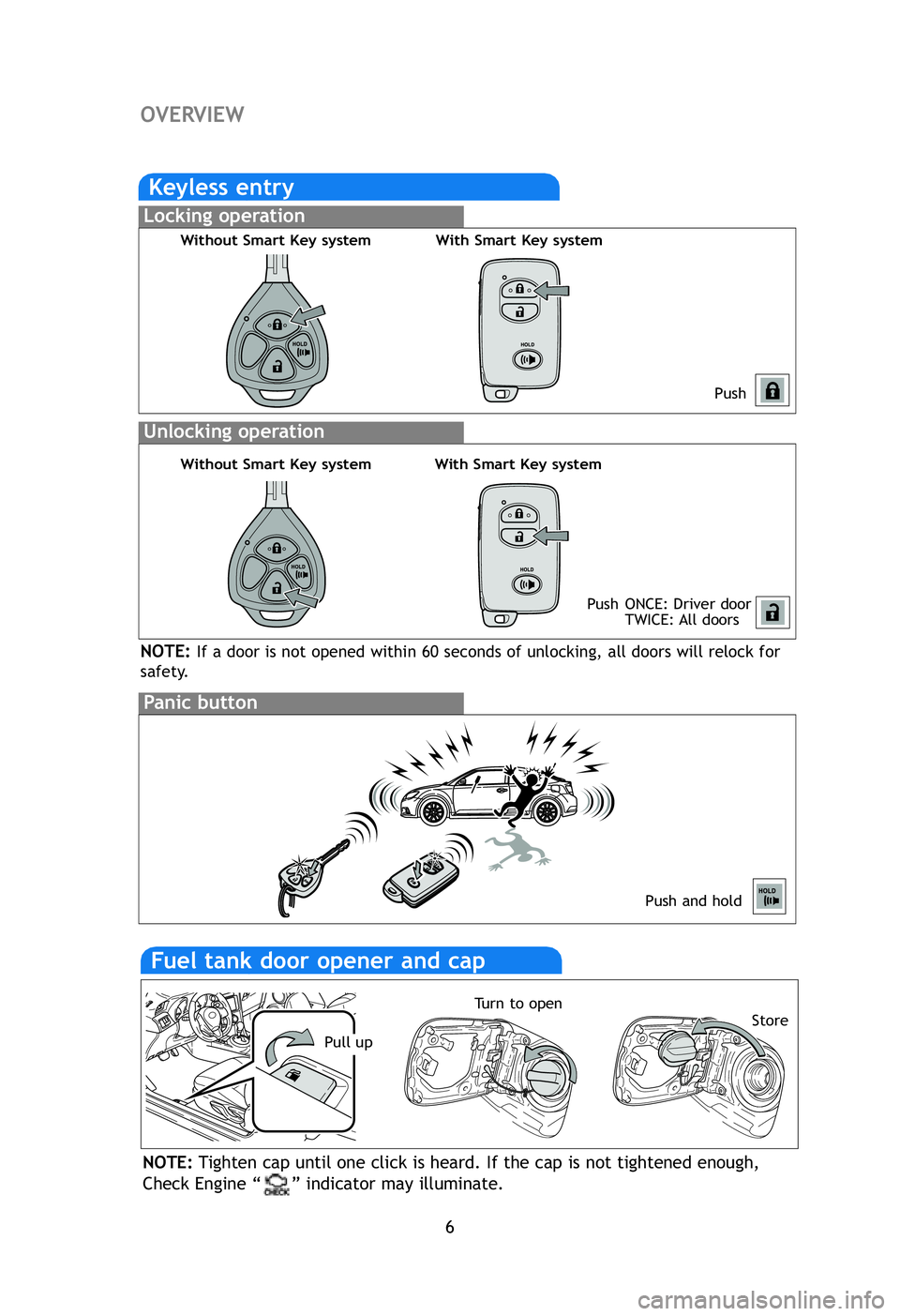

Keyless entry
Push
Push ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will r\
elock for
safety.
Fuel tank door opener and cap
Turn to open Store
Pull up
NOTE:Tighten cap until one click is heard. If the cap is not tightened enough,\
Check Engine “ ” indicator may illuminate.
Without Smart Key system
Without Smart Key system With Smart Key system
With Smart Key system
Sm
Star
AC
ON
OF
With
STAR
NOT
Pow
Bac
Loc
Carr Carr
NOT
2012Scion-tC.qxd 5/14/11 8:50 AM Page 6
Page 9 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
for
tore

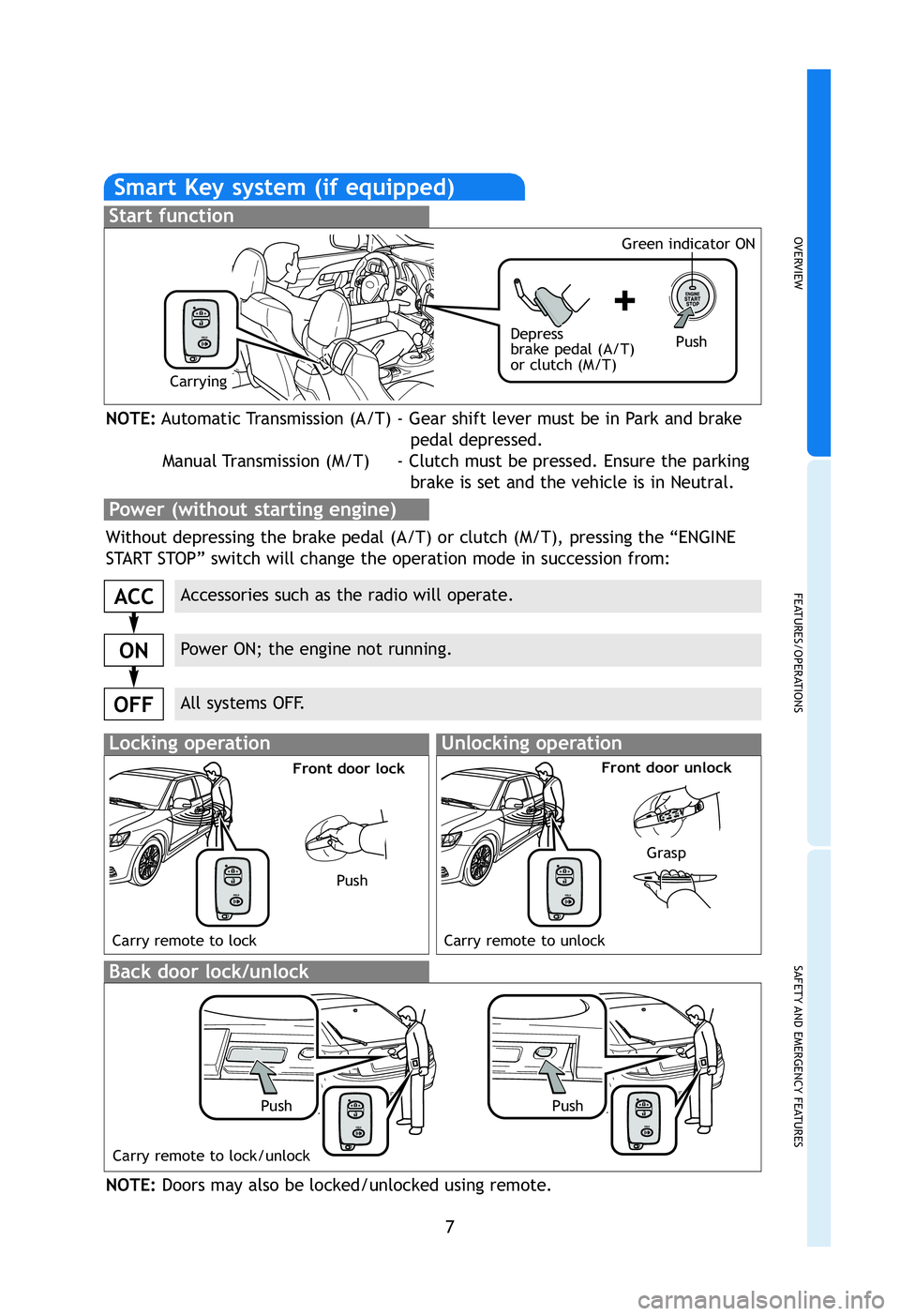

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
Push
Depress
brake pedal (A/T)
or clutch (M/T)
Carrying
Green indicator ON
Without depressing the brake pedal (A/T) or clutch (M/T), pressing th\
e “ENGINE
START STOP” switch will change the operation mode in succession from:
NOTE:
Doors may also be locked/unlocked using remote.
Power (without starting engine)
Back door lock/unlock
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Push
Front door lock
Grasp
Carry remote to lock/unlock
Front door unlock
Push
NOTE: Automatic Transmission (A/T) - Gear shift lever must be in Park and brake
pedal depressed.
Manual Transmission (M/T) - Clutch must be pressed. Ensure the parking brake is set and the vehicle is in Neutral.
2012Scion-tC.qxd 5/14/11 8:51 AM Page 7
Page 10 of 24
8
FE
Au
* Thedep
Dow
For b
leve
Til
Hold
NOT
Pa
Engine maintenance
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Auto lock/unlock
Automatic door locks can be programmed to operate in four different mode\
s, or
turned OFF.
-Doors lock when shifting from Park (Automatic Transmission only.)
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park (Automatic Transmission only.)
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC”\
or “LOCK” anddriver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.

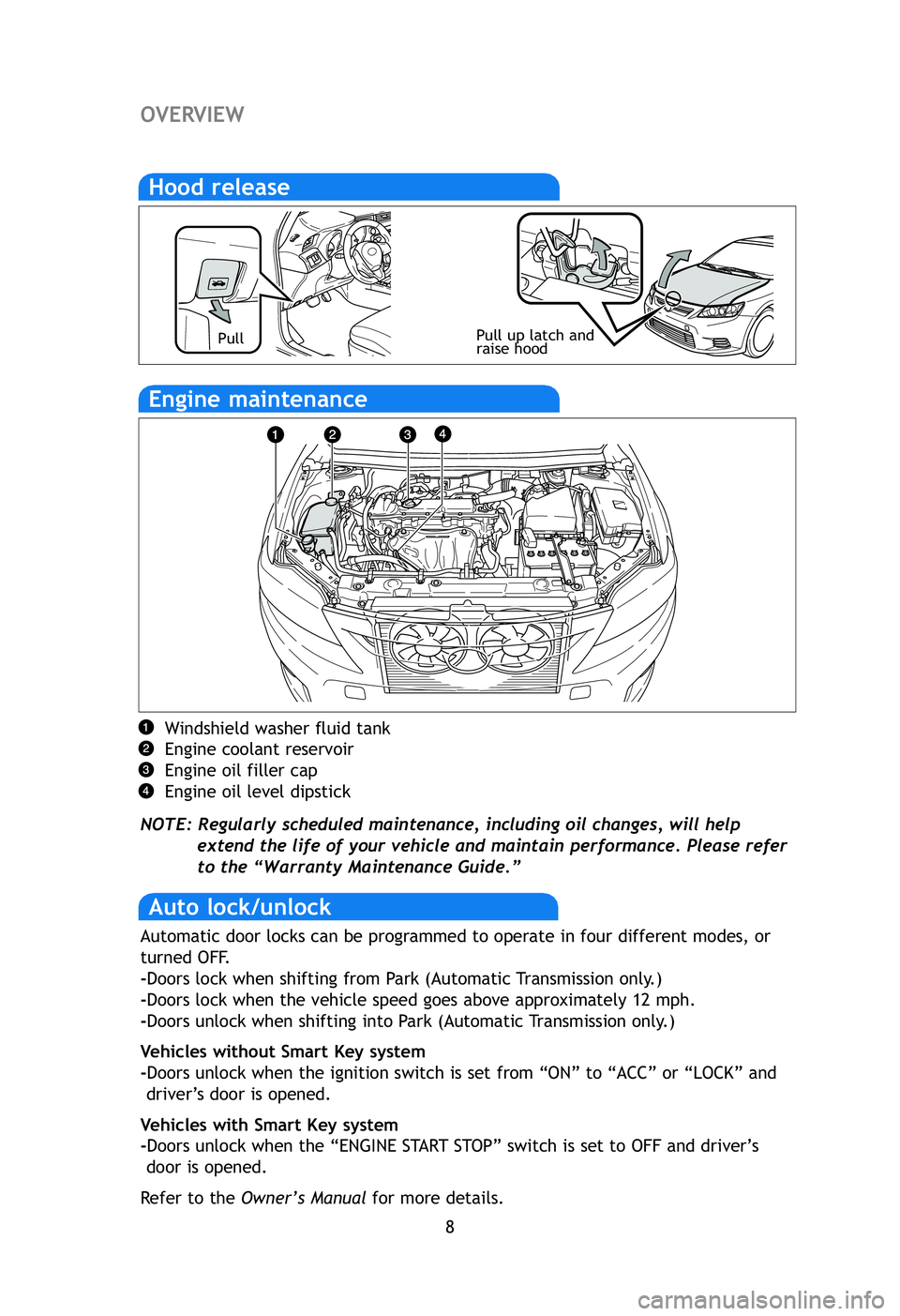

Hood release
Pull Pull up latch and
raise hood
OVERVIEW
2012Scion-tC.qxd 5/14/11 8:51 AM Page 8
