TOYOTA tC 2012 Owners Manual (in English)

131
1-7. Safety information
1
Before driving
Scion_tC_U_(OM21041U)
CAUTION
■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death. 
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restrain t system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use.
Do not store the child restraint system unsecured in the passenger com-
partment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
an accident.

132
1-7. Safety information
Scion_tC_U_(OM21041U)

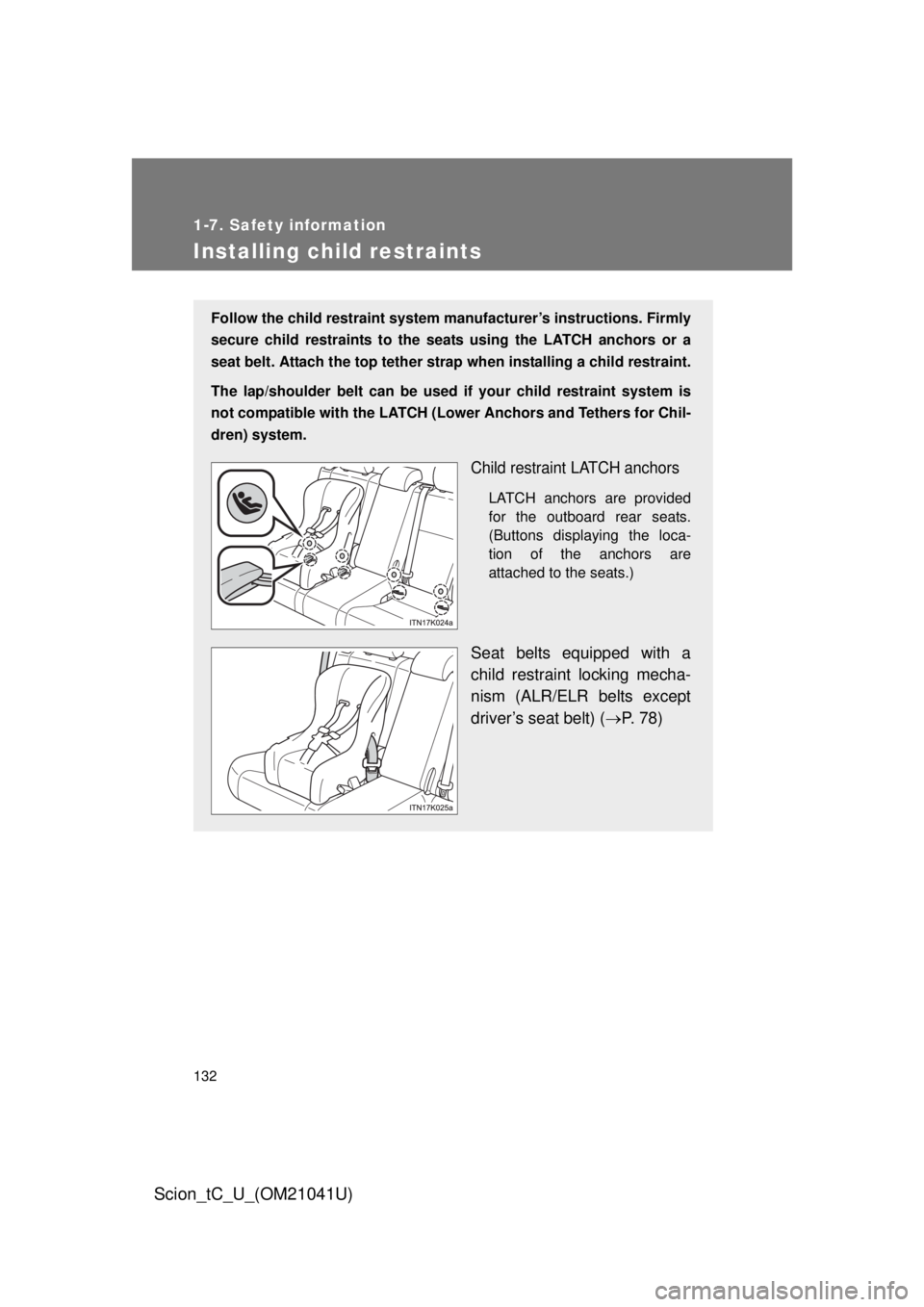

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seat s using the LATCH anchors or a
seat belt. Attach the top tether stra p when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Low er Anchors and Tethers for Chil-
dren) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outboard rear seats.
(Buttons displaying the loca-
tion of the anchors are
attached to the seats.)
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) ( P. 78)

133
1-7. Safety information
1
Before driving
Scion_tC_U_(OM21041U)

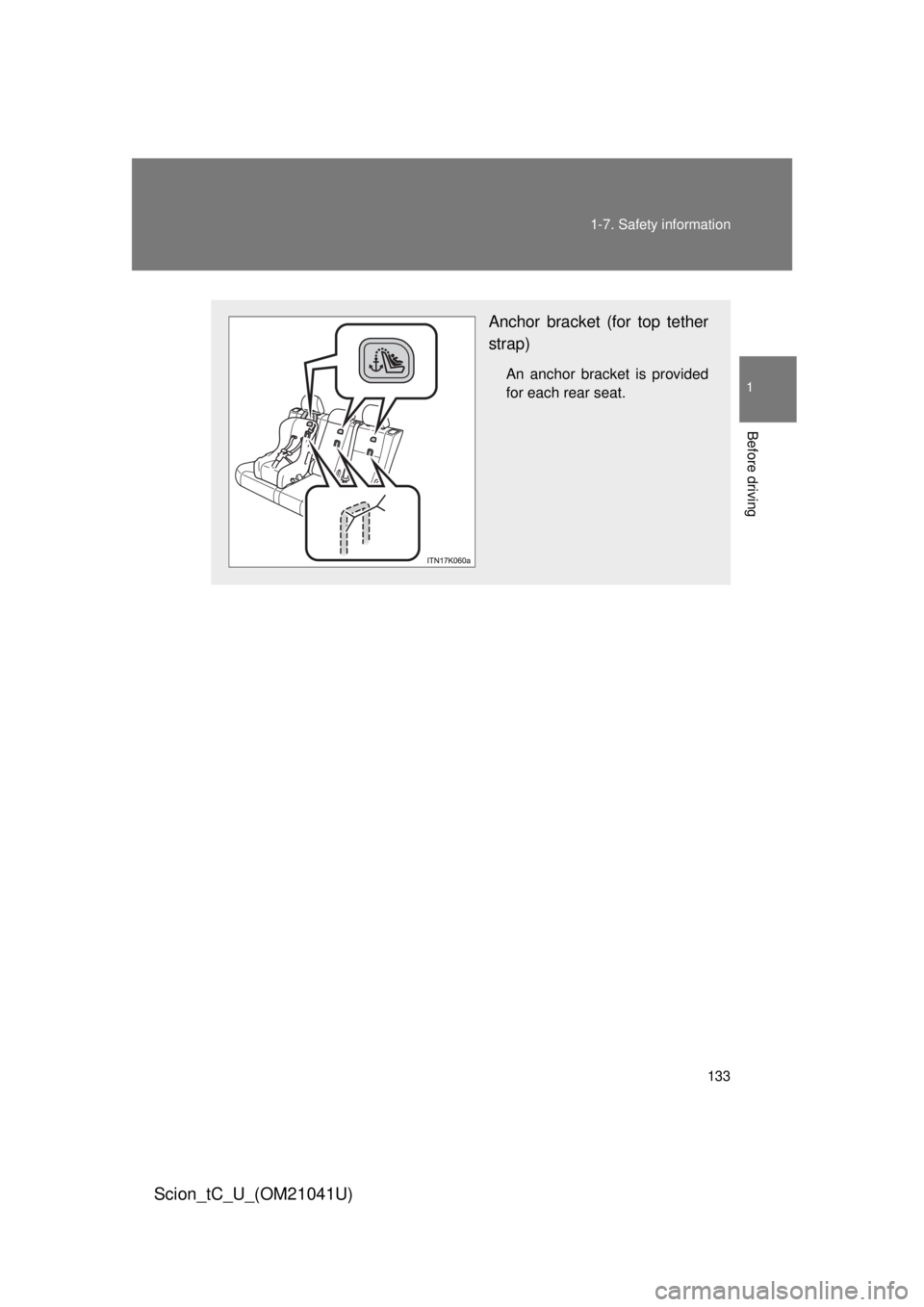

Anchor bracket (for top tether
strap)
An anchor bracket is provided
for each rear seat.

134 1-7. Safety information
Scion_tC_U_(OM21041U)
Installation with LATCH systemFold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position.
Ty p e A Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
STEP 1
Canada only
STEP 2

135
1-7. Safety information
1
Before driving
Scion_tC_U_(OM21041U)
Ty p e B
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only
STEP 2

136 1-7. Safety information
Scion_tC_U_(OM21041U)
Installing child restraints using a seat belt (child restraint lock
function belt)
■ Rear facing Infant seat/convertible seat
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position.
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP 1
STEP 2
STEP 3

137
1-7. Safety information
1
Before driving
Scion_tC_U_(OM21041U)
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
STEP 4
STEP 5

138 1-7. Safety information
Scion_tC_U_(OM21041U)
■Forward facing Convertible seat
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position.
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP 1
STEP 2
STEP 3

139
1-7. Safety information
1
Before driving
Scion_tC_U_(OM21041U)
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top te
ther strap, the top tether strap
should be latched onto the top tether strap anchor. ( P. 142)
STEP 4
STEP 5
STEP 6

140 1-7. Safety information
Scion_tC_U_(OM21041U)
■Booster seat
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position.
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible. 
( P. 78)
STEP 1
STEP 2
STEP 3
