TOYOTA tC 2012 (in English) Repair Manual

61
1-2. Opening, closing and locking the doors
1
Before driving
Scion_tC_U_(OM21041U)
CAUTION
■
To prevent an accident
Observe the following precautions while driving the vehicle. 
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving. 
The doors may be opened and the passengers may be thrown out of the
vehicle, which may result in serious injury or death.
Be especially careful for the side doors, as the doors may be opened even
if the inside lock buttons are in locked position.

62
1-2. Opening, closing and locking the doors
Scion_tC_U_(OM21041U)

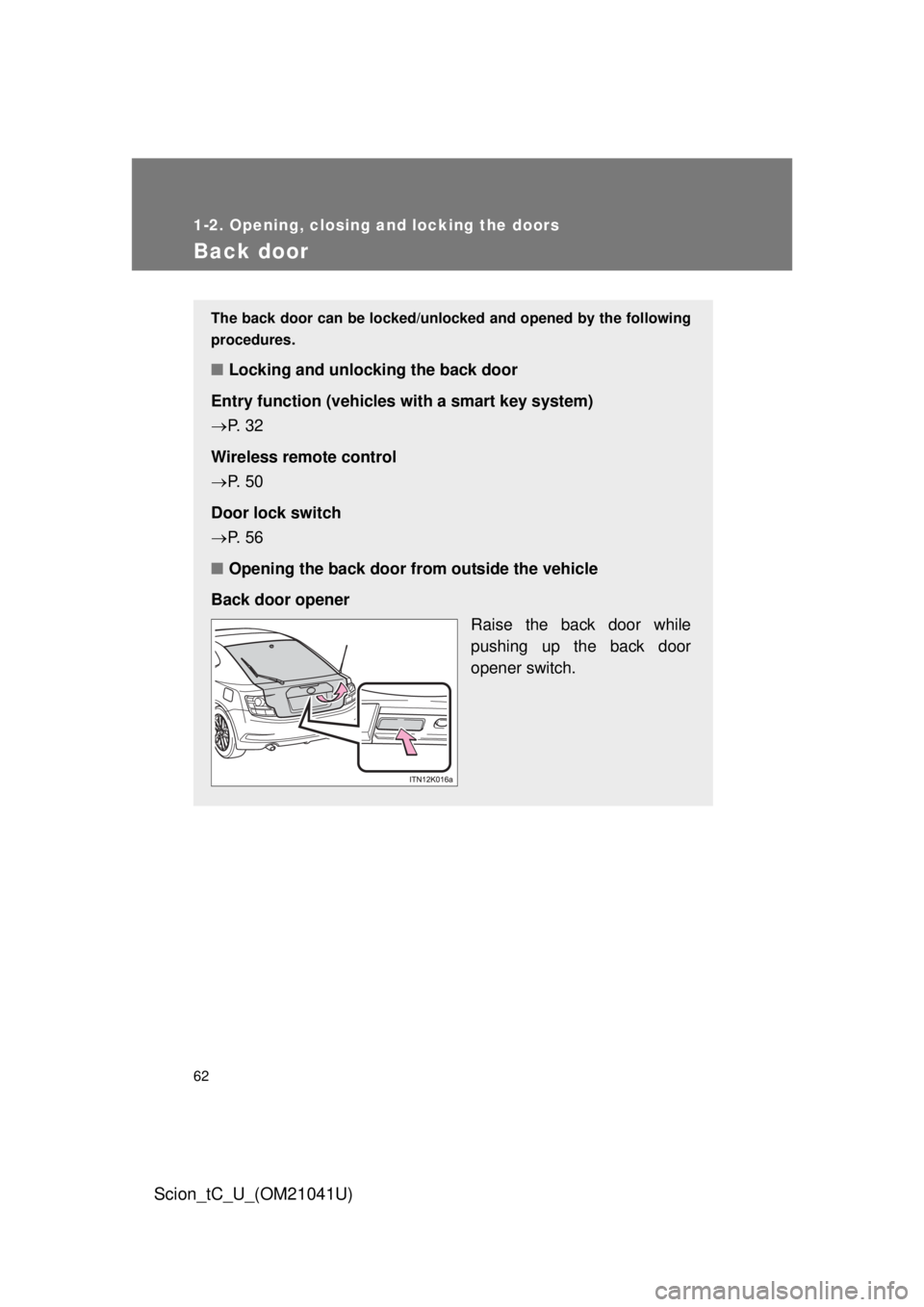

Back door
The back door can be locked/unlocked and opened by the following
procedures.
■ Locking and unlocking the back door
Entry function (vehicles with a smart key system)
 P. 3 2
Wireless remote control
 P. 5 0
Door lock switch
 P. 5 6
■ Opening the back door from outside the vehicle
Back door opener Raise the back door while
pushing up the back door
opener switch.

63
1-2. Opening, closing and locking the doors
1
Before driving
Scion_tC_U_(OM21041U)
■
When closing the back door
■ Luggage compartment light
The luggage compartment light turns on when the back door is opened with
the luggage compartment light switch on.
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
On
Off

64 1-2. Opening, closing and locking the doors
Scion_tC_U_(OM21041U)
■If the back door opener is inoperative
The back door can be opened from the inside.
Remove the cover.
To protect the cover, place a rag
between the flathead screwdriver and
the cover as shown in the illustration.
Move the lever.STEP 1
STEP 2

65
1-2. Opening, closing and locking the doors
1
Before driving
Scion_tC_U_(OM21041U)
CAUTION
■
Caution while driving
● Keep the back door closed while driving. 
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident. 
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or an accident, they are susceptible to death or
serious injury.
■ When children are in the vehicle
Observe the following precautions. 
Failure to do so may result in death or serious injury.
● Do not leave children alone in the luggage compartment. 
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
● Do not allow a child to open or close the back door. 
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

66 1-2. Opening, closing and locking the doors
Scion_tC_U_(OM21041U)
CAUTION
■Operating the back door
Observe the following precautions. 
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to fall closed
again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
●The back door may fall if it is not
opened fully. It is more difficult to open
or close the back door on an incline
than on a level surface, so beware of
the back door unexpectedly opening or
closing by itself. Make sure that the
back door is fully open and secure
before using the luggage compartment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

67
1-2. Opening, closing and locking the doors
1
Before driving
Scion_tC_U_(OM21041U)
CAUTION
●
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay. 
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may fall closed again after being opened, causing someone’s hands, head
or neck to be caught and injured. When installing an accessory part to the
back door, using a genuine Scion part is recommended.
NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions. 
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
● Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Scion parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay

68
Scion_tC_U_(OM21041U)
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Seatback angle adjustment
lever
Seat position adjustment
lever
Vertical height adjustment
lever (driver’s side only)
Seatback lock release lever

69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Scion_tC_U_(OM21041U)
Moving front seats for rear seat entry
■ Getting in the vehicle
Driver’s seat (vehicles with a seat position memory system)
For easy access to the rear seat, use the seatback lock release lever.
When the seatback lock release leve r is used, the seat’s original
position is memorized, so the seat may be returned to that original
position. However, if the seatback angle adjustment lever is used, the
seat will not return to its original position.
Lift the seatback lock release
lever.
The seatback will fold forward,
and the seat’s slide lock will be
released. 
Move the seat all the way for-
ward.

70 1-3. Adjustable components (seats, mirrors, steering wheel)
Scion_tC_U_(OM21041U)
Driver’s seat (vehicles without a seat position memory system)
and front passenger’s seat
For easy access to the rear seat, use either the seatback lock release
lever or the seatback angle adjustment lever.
Lift the seatback lock release
lever or seatback angle adjust-
ment lever. 
The seatback will fold forward,
and the seat’s slide lock will be
released. 
Move the seat all the way for-
ward.
■ Getting out of the vehicle
Lift the seatback lock release
lever.
The seatback will fold forward,
and the seat’s slide lock will be
released. 
Move the seat all the way for-
ward.
