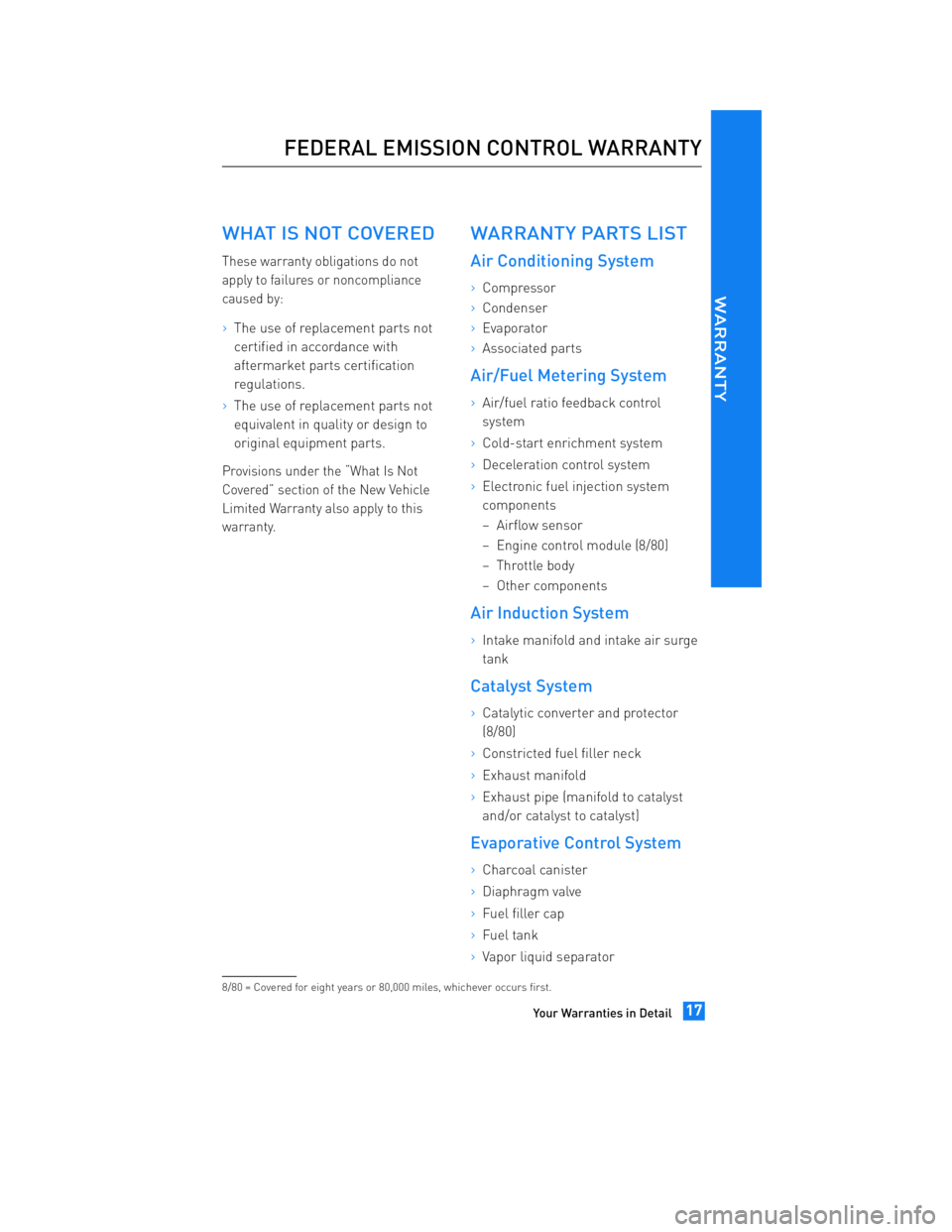

JOBNAME: 934373-2012-stc-toyw PAGE: 17 SESS: 17 OUTPUT: Thu May 5 16:26:12 2011
/tweddle/toyota/sched-maint/934373-en-stc/wg
WHAT IS NOT COVERED
These warranty obligations do not
apply to failures or noncompliance
caused by:
>The use of replacement parts not
certified in accordance with
aftermarket parts certification
regulations.
>The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
WARRANTY PARTS LIST
Air Conditioning System
>Compressor
>Condenser
>Evaporator
>Associated parts
Air/Fuel Metering System
>Air/fuel ratio feedback control
system
>Cold-start enrichment system
>Deceleration control system
>Electronic fuel injection system
components
– Airflow sensor
– Engine control module (8/80)
– Throttle body
– Other components
Air Induction System
>Intake manifold and intake air surge
tank
Catalyst System
>Catalytic converter and protector
(8/80)
>Constricted fuel filler neck
>Exhaust manifold
>Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
>Charcoal canister
>Diaphragm valve
>Fuel filler cap
>Fuel tank
>Vapor liquid separator
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
FEDERAL EMISSION CONTROL WARRANTY
WARRANTY
Your Warranties in Detail17

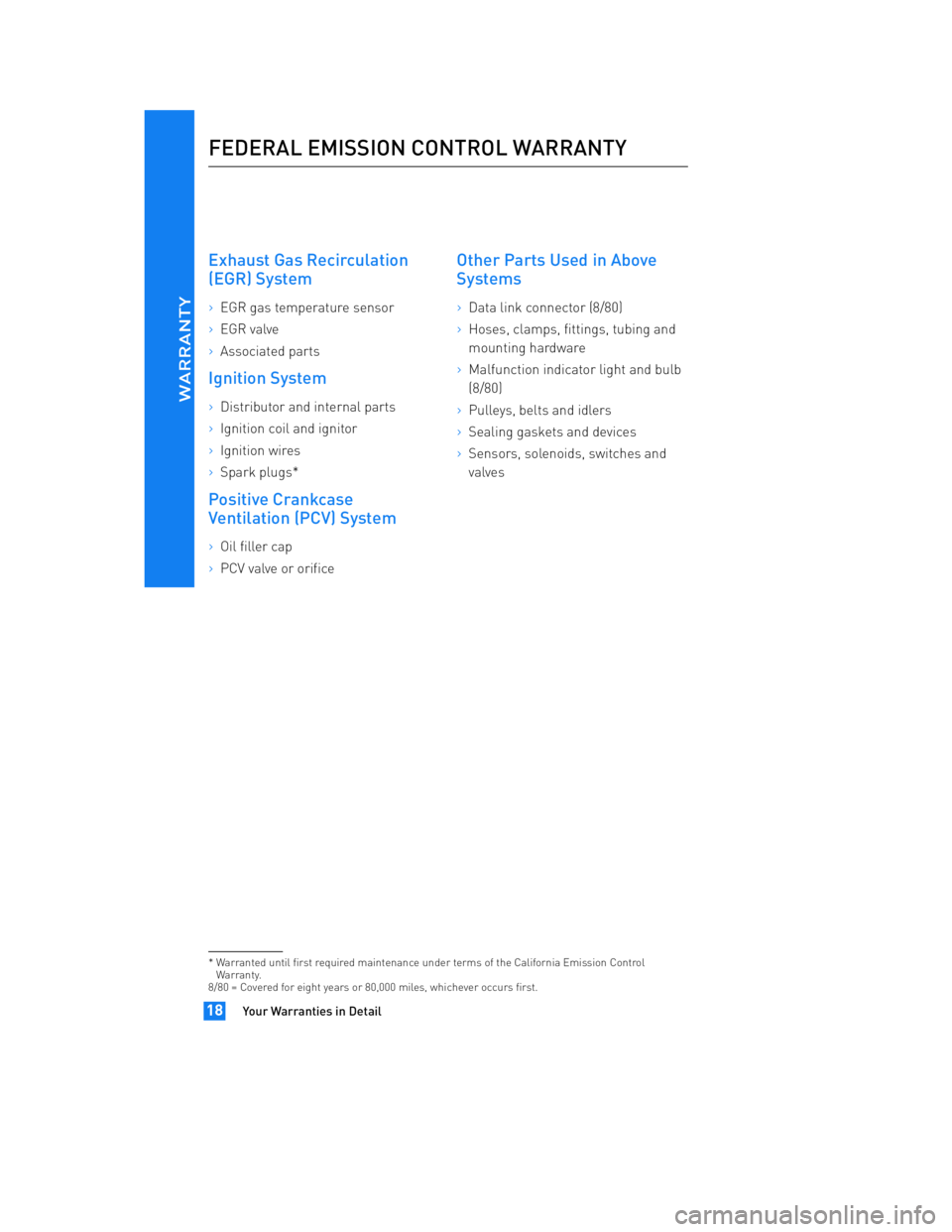

JOBNAME: 934373-2012-stc-toyw PAGE: 18 SESS: 12 OUTPUT: Thu Apr 14 14:28:37 2011
/tweddle/toyota/sched-maint/934373-en-stc/wg
Exhaust Gas Recirculation
(EGR) System
>EGR gas temperature sensor
>EGR valve
>Associated parts
Ignition System
>Distributor and internal parts
>Ignition coil and ignitor
>Ignition wires
>Spark plugs*
Positive Crankcase
Ventilation (PCV) System
>Oil filler cap
>PCV valve or orifice
Other Parts Used in Above
Systems
>Data link connector (8/80)
>Hoses, clamps, fittings, tubing and
mounting hardware
>Malfunction indicator light and bulb
(8/80)
>Pulleys, belts and idlers
>Sealing gaskets and devices
>Sensors, solenoids, switches and
valves
* Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
FEDERAL EMISSION CONTROL WARRANTY
WARRANTY
Your Warranties in Detail18

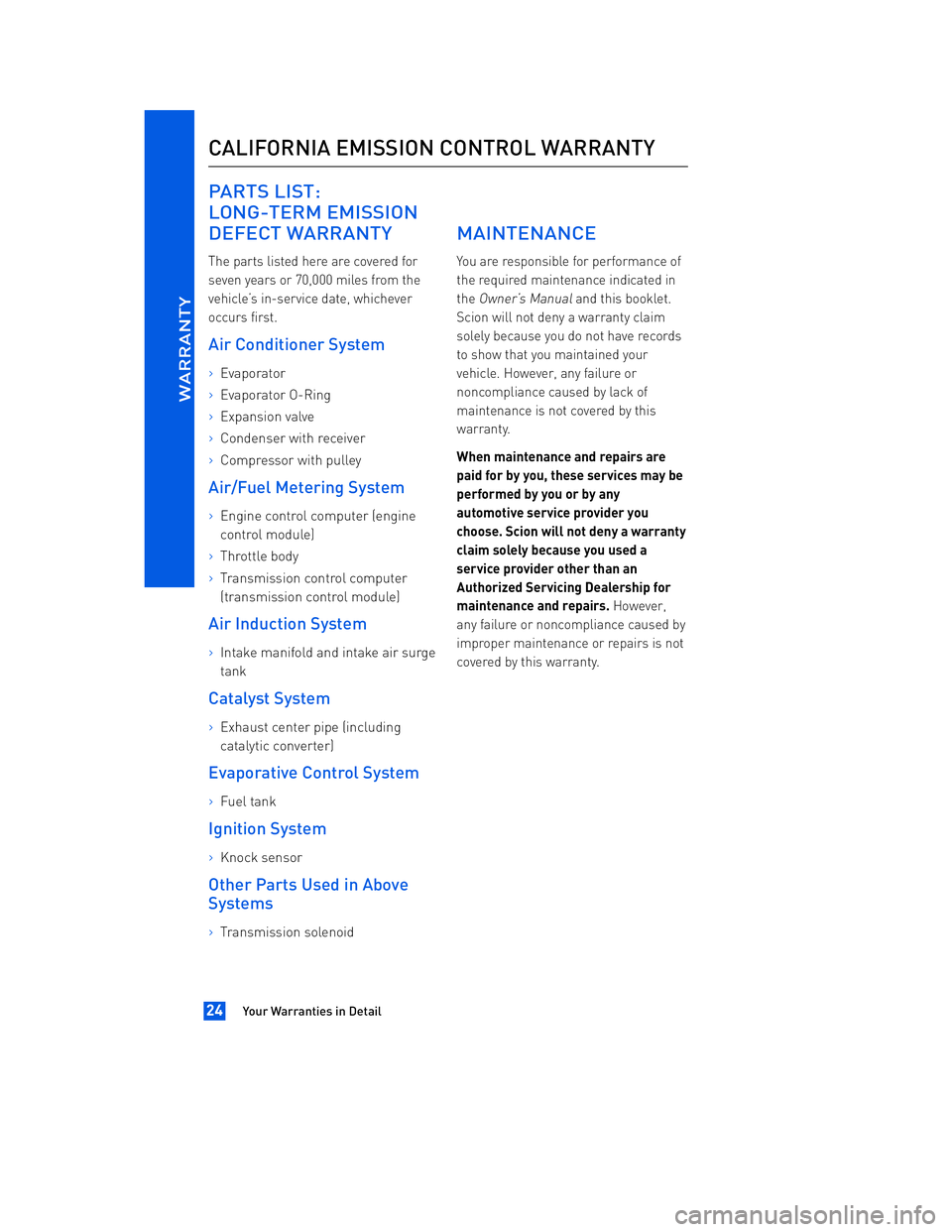

JOBNAME: 934373-2012-stc-toyw PAGE: 24 SESS: 12 OUTPUT: Thu Apr 14 14:28:37 2011
/tweddle/toyota/sched-maint/934373-en-stc/wg
PARTS LIST:
LONG-TERM EMISSION
DEFECT WARRANTY
The parts listed here are covered for
seven years or 70,000 miles from the
vehicle’s in-service date, whichever
occurs first.
Air Conditioner System
>Evaporator
>Evaporator O-Ring
>Expansion valve
>Condenser with receiver
>Compressor with pulley
Air/Fuel Metering System
>Engine control computer (engine
control module)
>Throttle body
>Transmission control computer
(transmission control module)
Air Induction System
>Intake manifold and intake air surge
tank
Catalyst System
>Exhaust center pipe (including
catalytic converter)
Evaporative Control System
>Fuel tank
Ignition System
>Knock sensor
Other Parts Used in Above
Systems
>Transmission solenoid
MAINTENANCE
You are responsible for performance of
the required maintenance indicated in
the
Owner’s Manualand this booklet.
Scion will not deny a warranty claim
solely because you do not have records
to show that you maintained your
vehicle. However, any failure or
noncompliance caused by lack of
maintenance is not covered by this
warranty.
When maintenance and repairs are
paid for by you, these services may be
performed by you or by any
automotive service provider you
choose. Scion will not deny a warranty
claim solely because you used a
service provider other than an
Authorized Servicing Dealership for
maintenance and repairs. However,
any failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
CALIFORNIA EMISSION CONTROL WARRANTY
WARRANTY
Your Warranties in Detail24
