TOYOTA tC 2013 Accessories, Audio & Navigation (in English)

41
1. AUDIO SYSTEM OPERATION
2
AUDIO SYSTEM

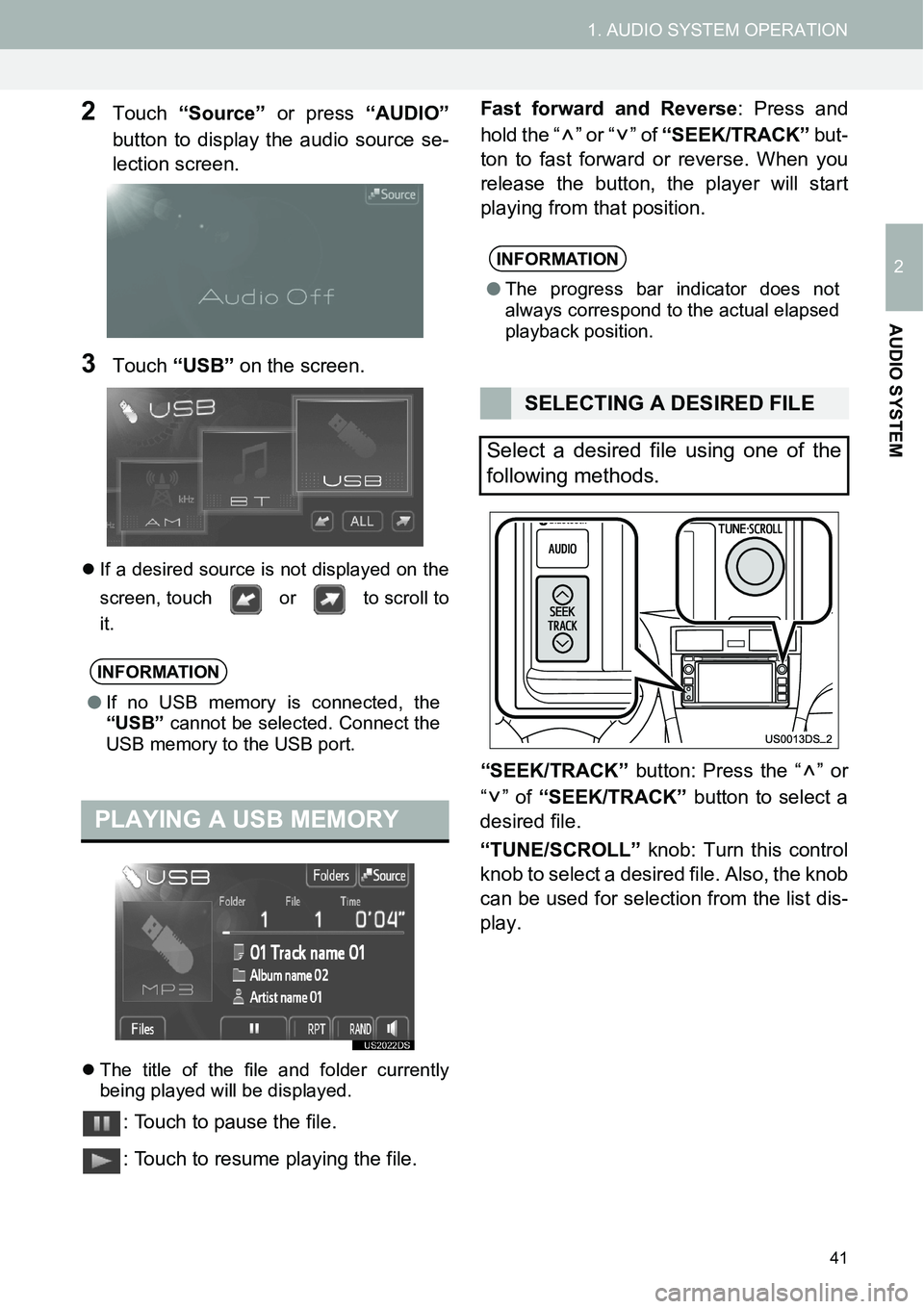

2Touch “Source” or press “AUDIO”
button to display the audio source se-
lection screen.
3Touch “USB” on the screen.
zIf a desired source is not displayed on the
screen, touch or to scroll to
it.
zThe title of the file and folder currently
being played will be displayed.
: Touch to pause the file.
: Touch to resume playing the file.Fast forward and Reverse: Press and
hold the “ ” or “ ” of “SEEK/TRACK” but-
ton to fast forward or reverse. When you
release the button, the player will start
playing from that position.
“SEEK/TRACK” button: Press the “ ” or
“” of “SEEK/TRACK” button to select a
desired file.
“TUNE/SCROLL” knob: Turn this control
knob to select a desired file. Also, the knob
can be used for selection from the list dis-
play.
INFORMATION
●If no USB memory is connected, the
“USB” cannot be selected. Connect the
USB memory to the USB port.
PLAYING A USB MEMORY
INFORMATION
●The progress bar indicator does not
always correspond to the actual elapsed
playback position.
SELECTING A DESIRED FILE
Select a desired file using one of the
following methods.

42
1. AUDIO SYSTEM OPERATION

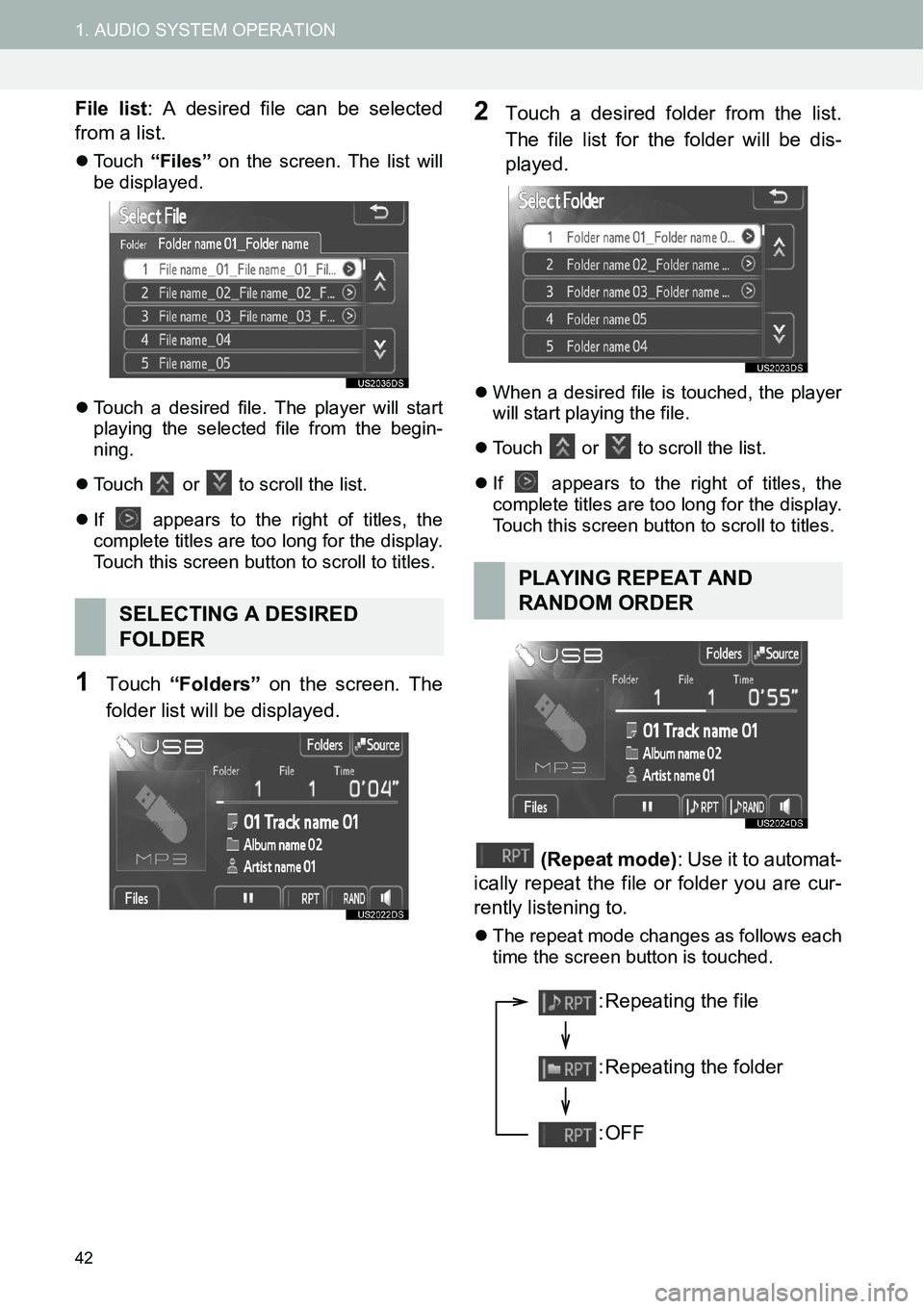

File list: A desired file can be selected
from a list.
zTouch “Files” on the screen. The list will
be displayed.
zTouch a desired file. The player will start
playing the selected file from the begin-
ning.
zTouch
or to scroll the list.
zIf
appears to the right of titles, the
complete titles are too long for the display.
Touch this screen button to scroll to titles.
1Touch “Folders” on the screen. The
folder list will be displayed.
2Touch a desired folder from the list.
The file list for the folder will be dis-
played.
zWhen a desired file is touched, the player
will start playing the file.
zTouch
or to scroll the list.
zIf
appears to the right of titles, the
complete titles are too long for the display.
Touch this screen button to scroll to titles.
(Repeat mode): Use it to automat-
ically repeat the file or folder you are cur-
rently listening to.
zThe repeat mode changes as follows each
time the screen button is touched.
SELECTING A DESIRED
FOLDER
PLAYING REPEAT AND
RANDOM ORDER
: Repeating the file
: Repeating the folder
:OFF

43
1. AUDIO SYSTEM OPERATION
2
AUDIO SYSTEM

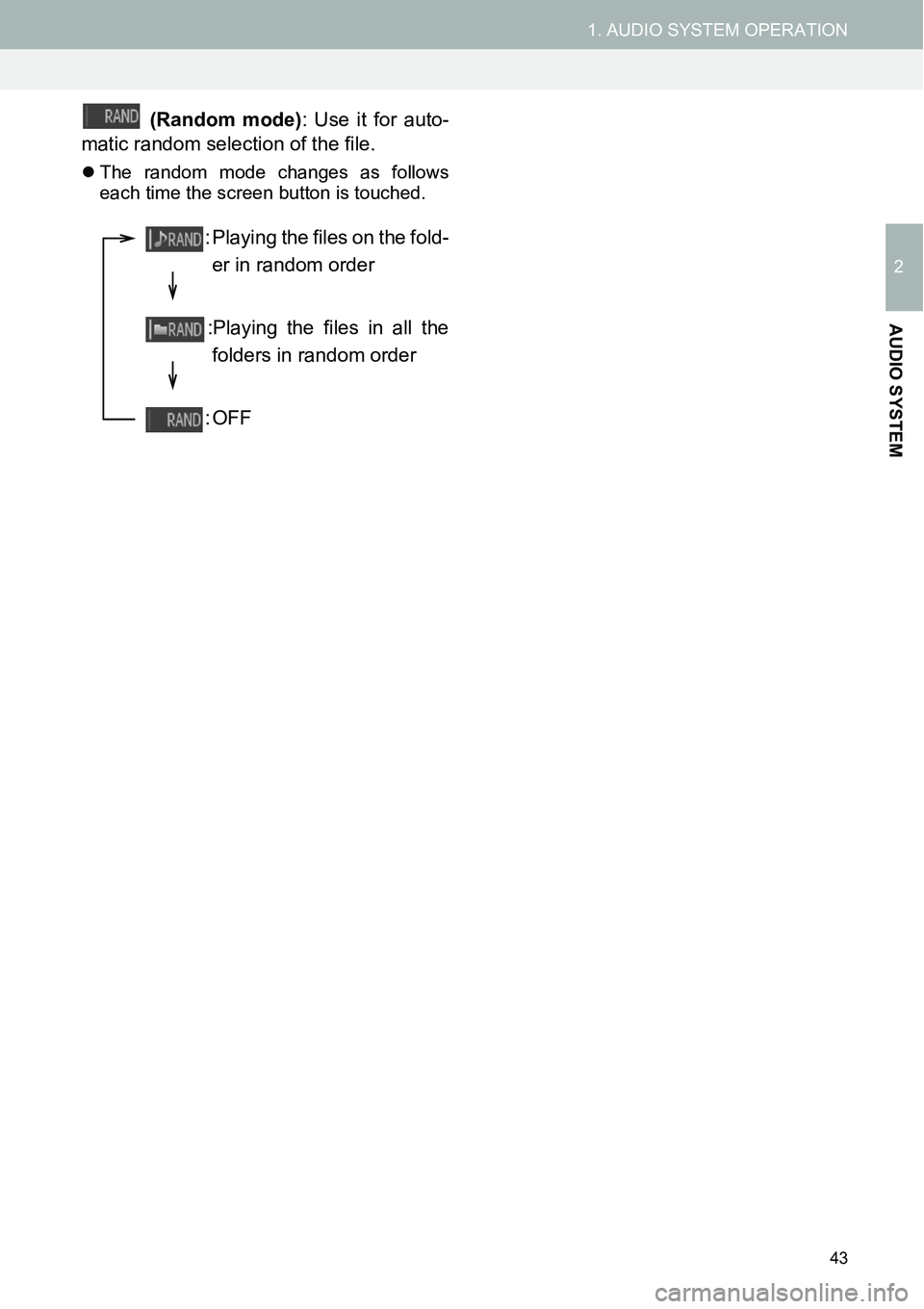

(Random mode): Use it for auto-
matic random selection of the file.
zThe random mode changes as follows
each time the screen button is touched.
: Playing the files on the fold-
er in random order
:Playing the files in all the
folders in random order
:OFF

44
1. AUDIO SYSTEM OPERATION

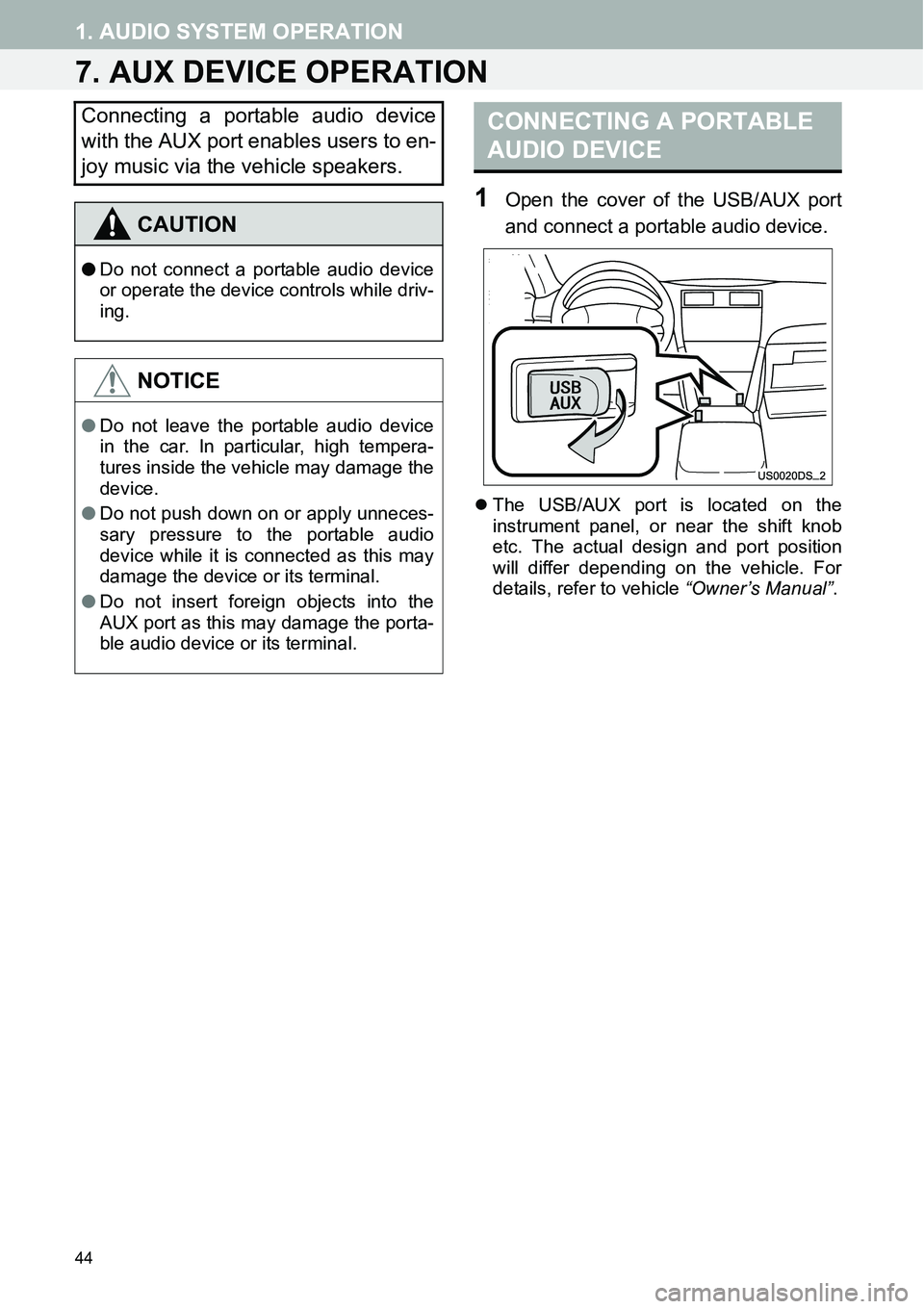

7. AUX DEVICE OPERATION
1Open the cover of the USB/AUX port
and connect a portable audio device.
zThe USB/AUX port is located on the
instrument panel, or near the shift knob
etc. The actual design and port position
will differ depending on the vehicle. For
details, refer to vehicle “Owner’s Manual”.
Connecting a portable audio device
with the AUX port enables users to en-
joy music via the vehicle speakers.
CAUTION
●Do not connect a portable audio device
or operate the device controls while driv-
ing.
NOTICE
●Do not leave the portable audio device
in the car. In particular, high tempera-
tures inside the vehicle may damage the
device.
●Do not push down on or apply unneces-
sary pressure to the portable audio
device while it is connected as this may
damage the device or its terminal.
●Do not insert foreign objects into the
AUX port as this may damage the porta-
ble audio device or its terminal.
CONNECTING A PORTABLE
AUDIO DEVICE

45
1. AUDIO SYSTEM OPERATION
2
AUDIO SYSTEM

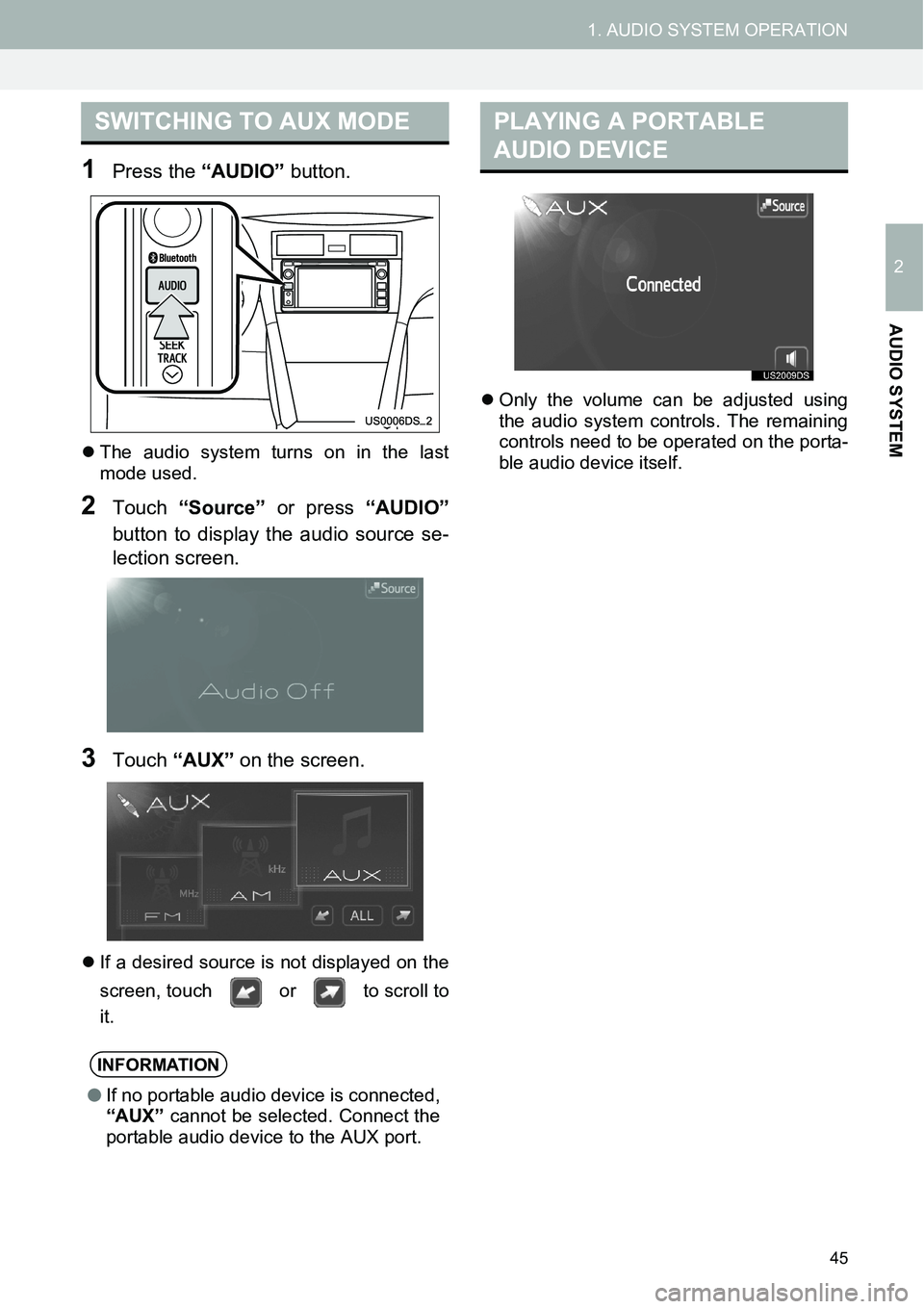

1Press the “AUDIO” button.
zThe audio system turns on in the last
mode used.
2Touch “Source” or press “AUDIO”
button to display the audio source se-
lection screen.
3Touch “AUX” on the screen.
zIf a desired source is not displayed on the
screen, touch or to scroll to
it.zOnly the volume can be adjusted using
the audio system controls. The remaining
controls need to be operated on the porta-
ble audio device itself.
SWITCHING TO AUX MODE
INFORMATION
●If no portable audio device is connected,
“AUX” cannot be selected. Connect the
portable audio device to the AUX port.
PLAYING A PORTABLE
AUDIO DEVICE

46
1. AUDIO SYSTEM OPERATION

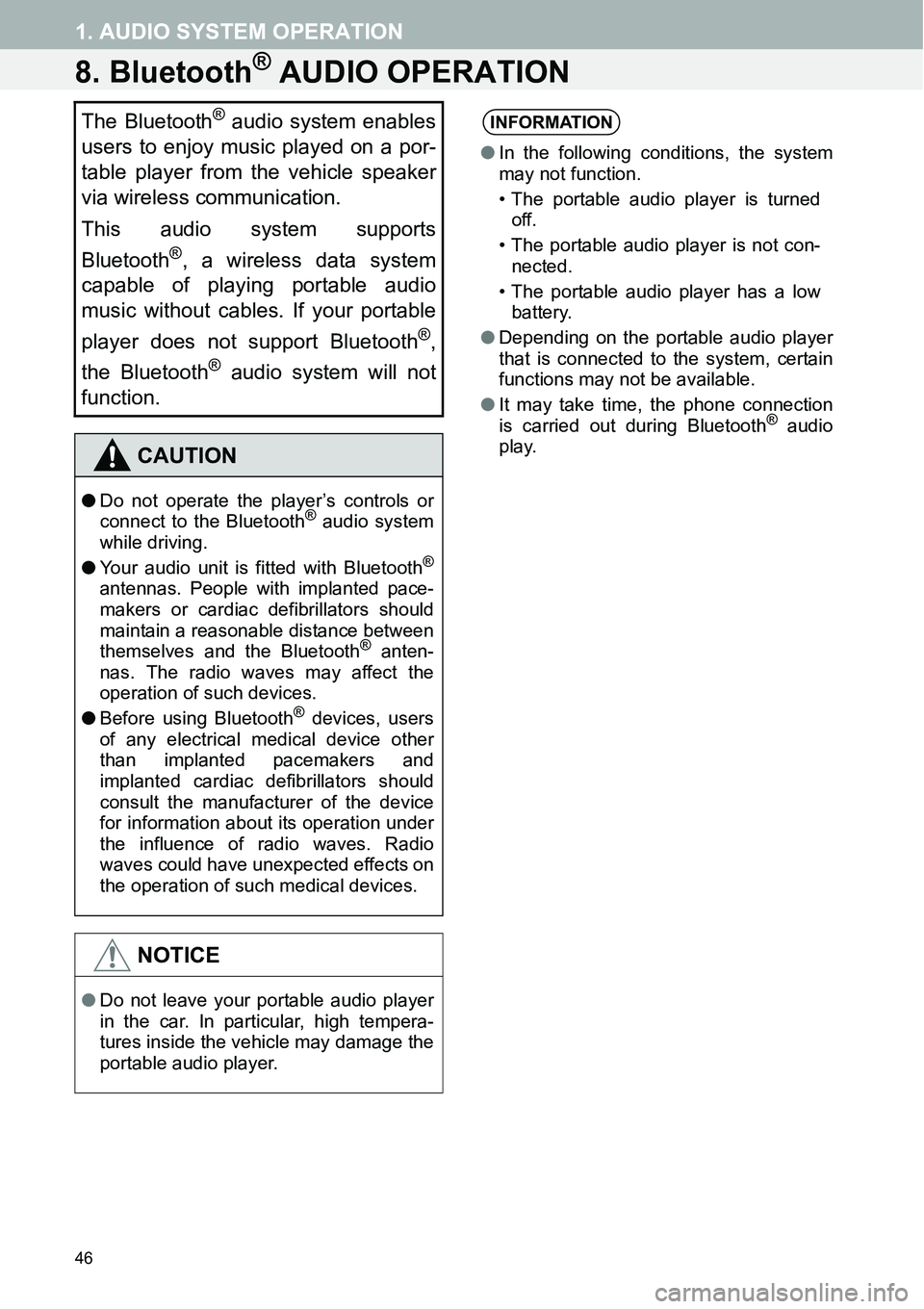

8. Bluetooth® AUDIO OPERATION
The Bluetooth® audio system enables
users to enjoy music played on a por-
table player from the vehicle speaker
via wireless communication.
This audio system supports
Bluetooth
®, a wireless data system
capable of playing portable audio
music without cables. If your portable
player does not support Bluetooth
®,
the Bluetooth
® audio system will not
function.
CAUTION
●Do not operate the player’s controls or
connect to the Bluetooth® audio system
while driving.
●Your audio unit is fitted with Bluetooth
®
antennas. People with implanted pace-
makers or cardiac defibrillators should
maintain a reasonable distance between
themselves and the Bluetooth
® anten-
nas. The radio waves may affect the
operation of such devices.
●Before using Bluetooth
® devices, users
of any electrical medical device other
than implanted pacemakers and
implanted cardiac defibrillators should
consult the manufacturer of the device
for information about its operation under
the influence of radio waves. Radio
waves could have unexpected effects on
the operation of such medical devices.
NOTICE
●Do not leave your portable audio player
in the car. In particular, high tempera-
tures inside the vehicle may damage the
portable audio player.
INFORMATION
●In the following conditions, the system
may not function.
• The portable audio player is turned
off.
• The portable audio player is not con-
nected.
• The portable audio player has a low
battery.
●Depending on the portable audio player
that is connected to the system, certain
functions may not be available.
●It may take time, the phone connection
is carried out during Bluetooth
® audio
play.

47
1. AUDIO SYSTEM OPERATION
2
AUDIO SYSTEM

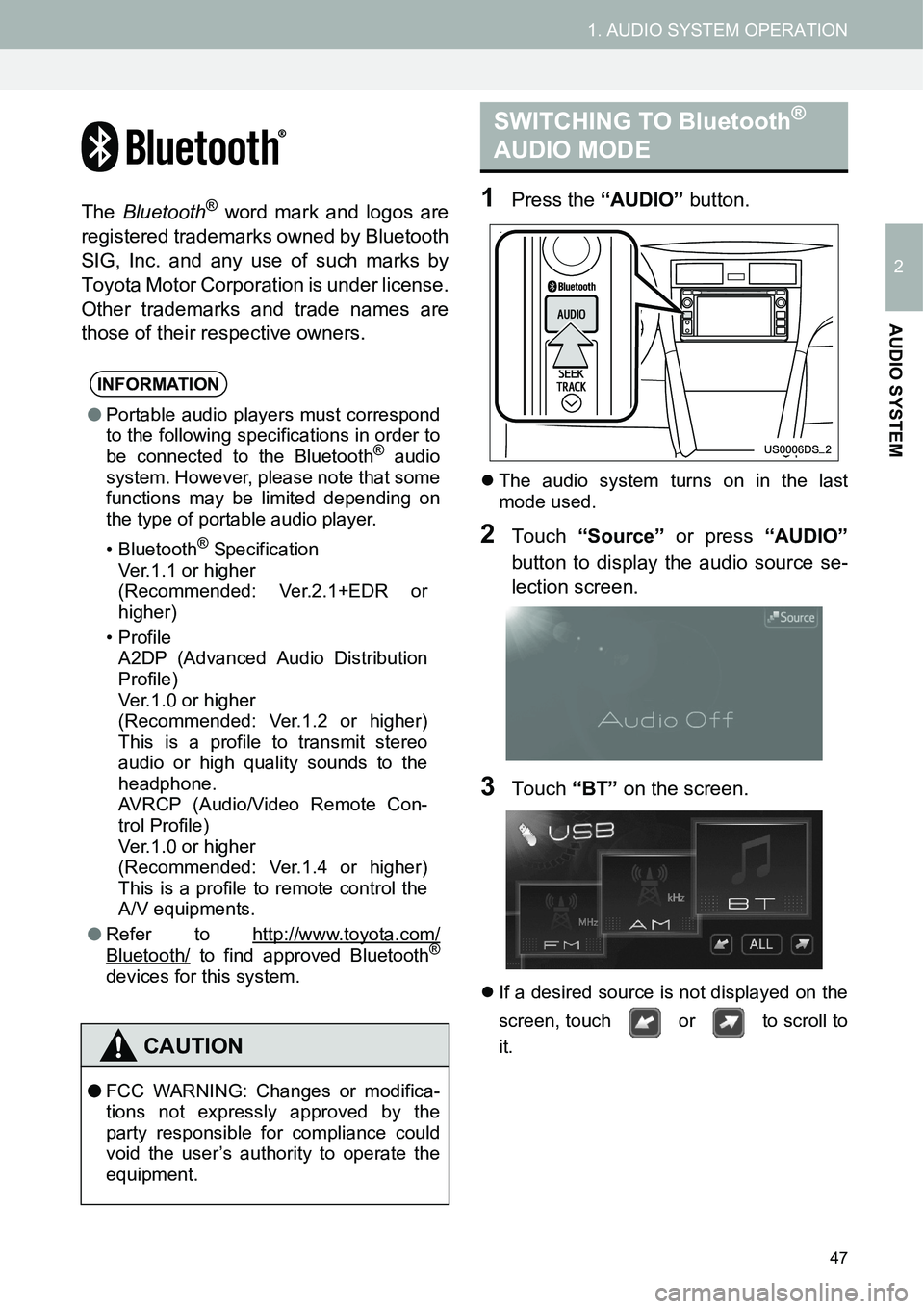

The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
Toyota Motor Corporation is under license.
Other trademarks and trade names are
those of their respective owners.1Press the “AUDIO” button.
zThe audio system turns on in the last
mode used.
2Touch “Source” or press “AUDIO”
button to display the audio source se-
lection screen.
3Touch “BT” on the screen.
zIf a desired source is not displayed on the
screen, touch or to scroll to
it.
INFORMATION
●Portable audio players must correspond
to the following specifications in order to
be connected to the Bluetooth
® audio
system. However, please note that some
functions may be limited depending on
the type of portable audio player.
• Bluetooth
® Specification
Ver.1.1 or higher
(Recommended: Ver.2.1+EDR or
higher)
•Profile
A2DP (Advanced Audio Distribution
Profile)
Ver.1.0 or higher
(Recommended: Ver.1.2 or higher)
This is a profile to transmit stereo
audio or high quality sounds to the
headphone.
AVRCP (Audio/Video Remote Con-
trol Profile)
Ver.1.0 or higher
(Recommended: Ver.1.4 or higher)
This is a profile to remote control the
A/V equipments.
●Refer to http://www.toyota.com/
Bluetooth/ to find approved Bluetooth®
devices for this system.
CAUTION
●FCC WARNING: Changes or modifica-
tions not expressly approved by the
party responsible for compliance could
void the user’s authority to operate the
equipment.
SWITCHING TO Bluetooth®
AUDIO MODE

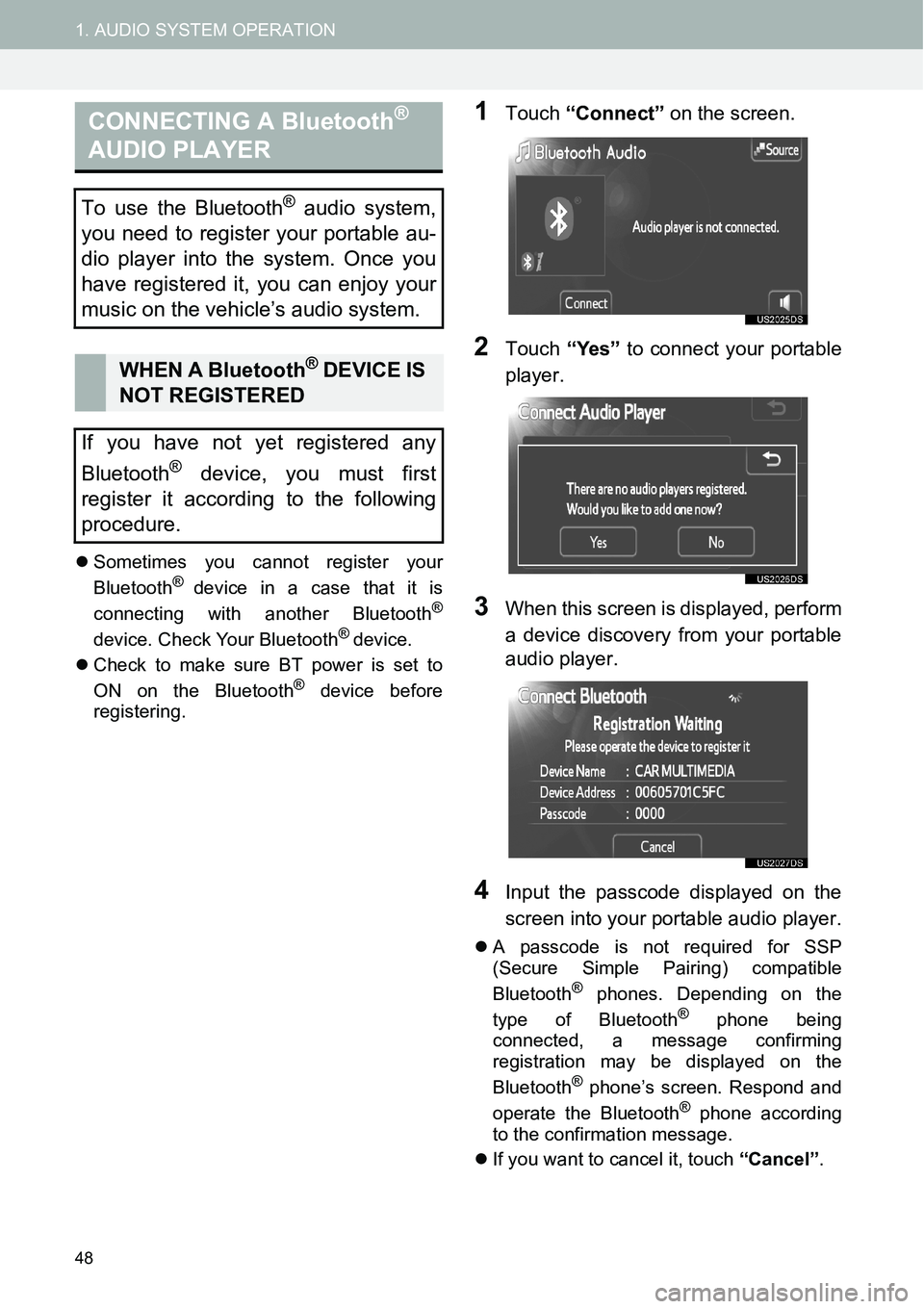

48
1. AUDIO SYSTEM OPERATION
zSometimes you cannot register your
Bluetooth® device in a case that it is
connecting with another Bluetooth®
device. Check Your Bluetooth® device.
zCheck to make sure BT power is set to
ON on the Bluetooth
® device before
registering.
1Touch “Connect” on the screen.
2Touch “Yes” to connect your portable
player.
3When this screen is displayed, perform
a device discovery from your portable
audio player.
4Input the passcode displayed on the
screen into your portable audio player.
zA passcode is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® phones. Depending on the
type of Bluetooth® phone being
connected, a message confirming
registration may be displayed on the
Bluetooth
® phone’s screen. Respond and
operate the Bluetooth® phone according
to the confirmation message.
zIf you want to cancel it, touch “Cancel”.
CONNECTING A Bluetooth®
AUDIO PLAYER
To use the Bluetooth® audio system,
you need to register your portable au-
dio player into the system. Once you
have registered it, you can enjoy your
music on the vehicle’s audio system.
WHEN A Bluetooth® DEVICE IS
NOT REGISTERED
If you have not yet registered any
Bluetooth
® device, you must first
register it according to the following
procedure.

49
1. AUDIO SYSTEM OPERATION
2
AUDIO SYSTEM

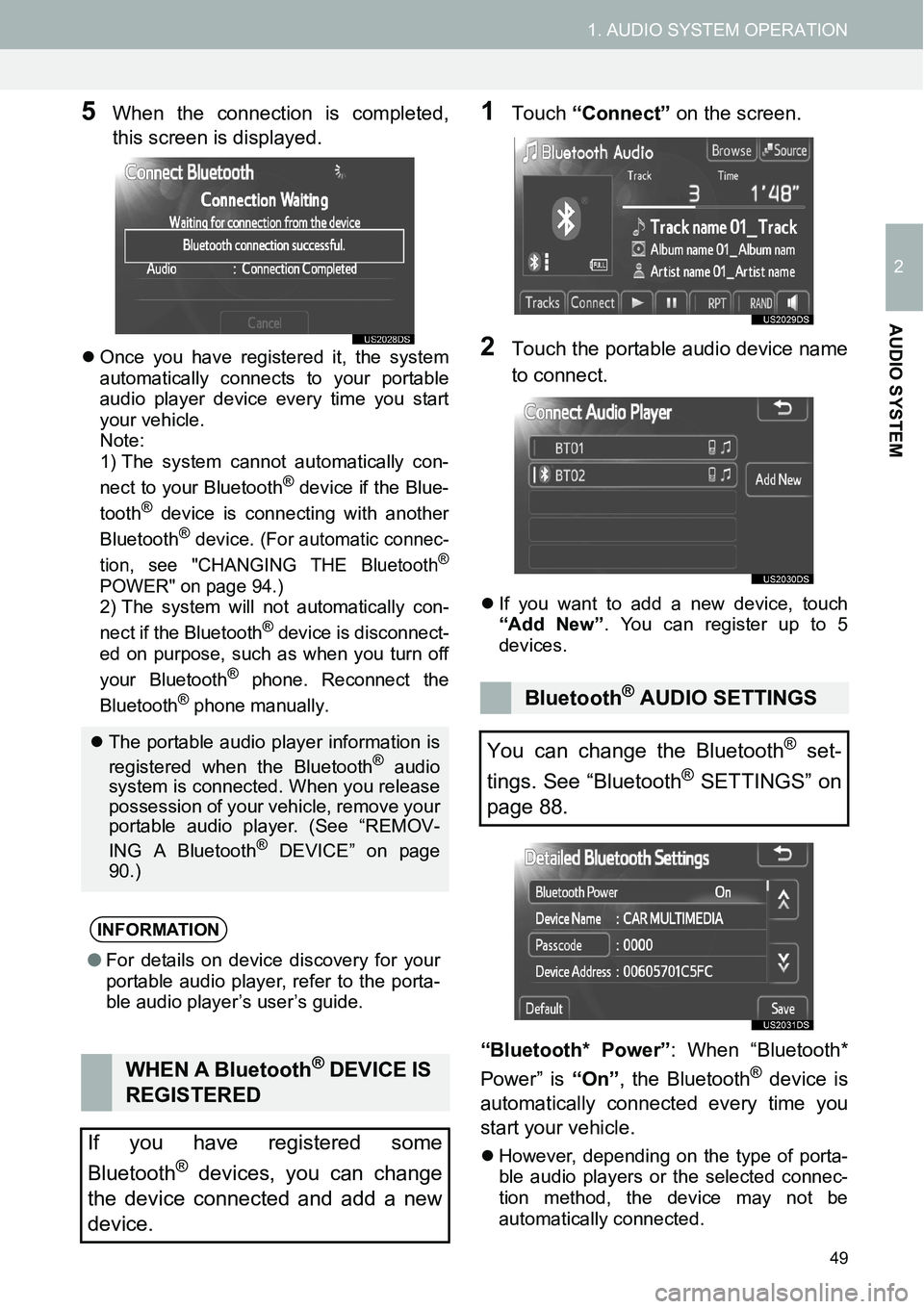

5When the connection is completed,
this screen is displayed.
zOnce you have registered it, the system
automatically connects to your portable
audio player device every time you start
your vehicle.
Note:
1) The system cannot automatically con-
nect to your Bluetooth
® device if the Blue-
tooth® device is connecting with another
Bluetooth® device. (For automatic connec-
tion, see "CHANGING THE Bluetooth®
POWER" on page 94.)2) The system will not automatically con-
nect if the Bluetooth® device is disconnect-
ed on purpose, such as when you turn off
your Bluetooth
® phone. Reconnect the
Bluetooth® phone manually.
1Touch “Connect” on the screen.
2Touch the portable audio device name
to connect.
zIf you want to add a new device, touch
“Add New”. You can register up to 5
devices.
“Bluetooth* Power”: When “Bluetooth*
Power” is “On”, the Bluetooth® device is
automatically connected every time you
start your vehicle.
zHowever, depending on the type of porta-
ble audio players or the selected connec-
tion method, the device may not be
automatically connected.
zThe portable audio player information is
registered when the Bluetooth® audio
system is connected. When you release
possession of your vehicle, remove your
portable audio player. (See “REMOV-
ING A Bluetooth
® DEVICE” on page
90.)
INFORMATION
●For details on device discovery for your
portable audio player, refer to the porta-
ble audio player’s user’s guide.
WHEN A Bluetooth® DEVICE IS
REGISTERED
If you have registered some
Bluetooth
® devices, you can change
the device connected and add a new
device.
Bluetooth® AUDIO SETTINGS
You can change the Bluetooth
® set-
tings. See “Bluetooth
® SETTINGS” on
page 88.

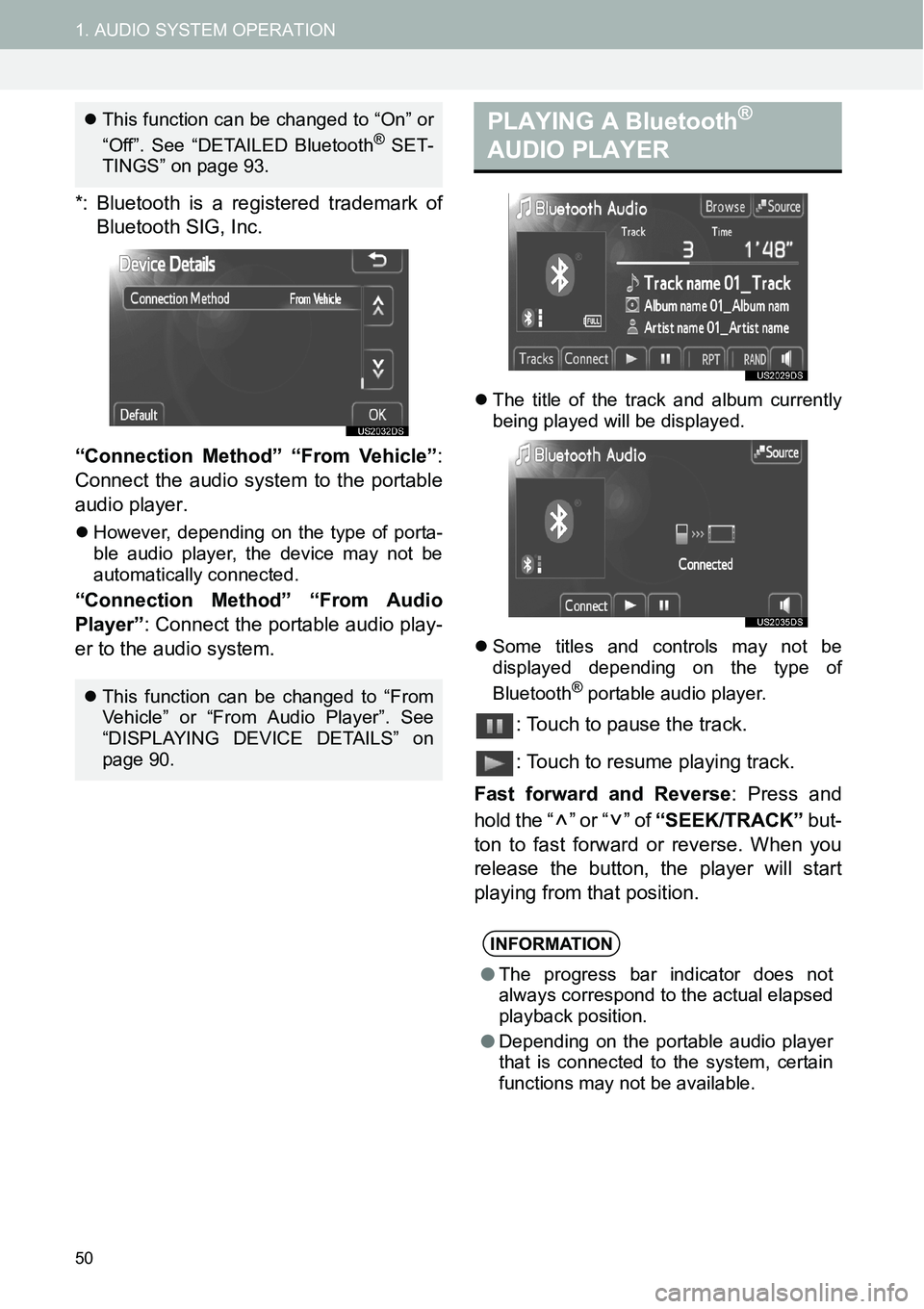

50
1. AUDIO SYSTEM OPERATION
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
“Connection Method” “From Vehicle”:
Connect the audio system to the portable
audio player.
zHowever, depending on the type of porta-
ble audio player, the device may not be
automatically connected.
“Connection Method” “From Audio
Player”: Connect the portable audio play-
er to the audio system.
zThe title of the track and album currently
being played will be displayed.
zSome titles and controls may not be
displayed depending on the type of
Bluetooth
® portable audio player.
: Touch to pause the track.
: Touch to resume playing track.
Fast forward and Reverse: Press and
hold the “ ” or “ ” of “SEEK/TRACK” but-
ton to fast forward or reverse. When you
release the button, the player will start
playing from that position.
zThis function can be changed to “On” or
“Off”. See “DETAILED Bluetooth® SET-
TINGS” on page 93.
zThis function can be changed to “From
Vehicle” or “From Audio Player”. See
“DISPLAYING DEVICE DETAILS” on
page 90.
PLAYING A Bluetooth®
AUDIO PLAYER
INFORMATION
●The progress bar indicator does not
always correspond to the actual elapsed
playback position.
●Depending on the portable audio player
that is connected to the system, certain
functions may not be available.
