1-4. Opening and closing the windows and moon roof
Before driving
tC_OM_OM21042U_(U)

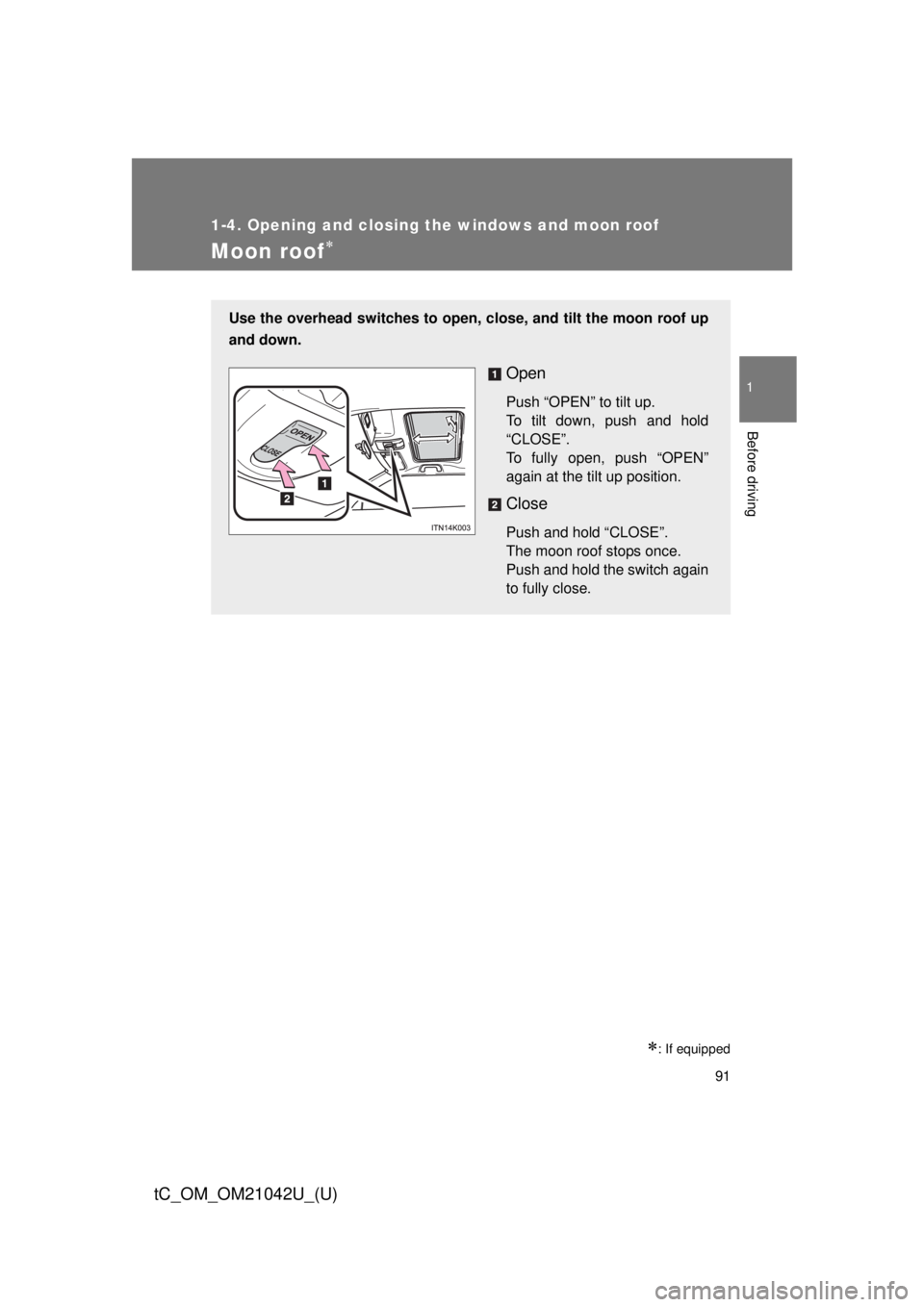

Moon roof
: If equipped
Use the overhead switches to open, close, and tilt the moon roof up
and down.
Open
Push “OPEN” to tilt up. 
To tilt down, push and hold
“CLOSE”. 
To fully open, push “OPEN”
again at the tilt up position.
Close
Push and hold “CLOSE”. 
The moon roof stops once. 
Push and hold the switch again
to fully close.

92 1-4. Opening and closing the windows and moon roof
tC_OM_OM21042U_(U)
■The moon roof can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Operating the moon roof af ter turning the engine off
Vehicles without a smart key system
The moon roof can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. It cannot, however,
be operated once either side door is opened.
Vehicles with a smart key system
The moon roof can be operated for approximately 45 seconds after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned
off. It cannot, however, be operated once either side door is opened.
■ Jam protection function
If an object is detected between the moon roof and the frame while closing
or tilting down, travel is stopped and the moon roof opens slightly.
■ If the moon roof cannot be closed
If the moon roof cannot be closed, such as when the jam protection function
activates accidentally due to a malfunction, pressing and holding the
“CLOSE” switch closes the moon roof. 
After this, to make the automatic opening function and jam protection func-
tion available again, press and hold the “CLOSE” switch until the moon roof
closes fully and then opens slightly. 
If the functions do not activate, contact your Scion dealer.

93
1-4. Opening and closing the windows and moon roof
1
Before driving
tC_OM_OM21042U_(U)
■
To reduce moon roof wind noise
Drive with the moon roof opened to slightly before the fully open position as
driving with the moon roof opened fully will cause wind noise.
■ Sunshade
The sunshade can be opened and closed manually. ( P. 262)
CAUTION
■Opening the moon roof
Observe the following precautions. 
Failing to do so may cause death or serious injury.
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
Observe the following precautions. 
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the moon roof is being
operated.
● Do not allow children to operate the moon roof. 
Closing the moon roof on someone can cause death or serious injury.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.

94 1-4. Opening and closing the windows and moon roof
tC_OM_OM21042U_(U)
NOTICE
■Operating the moon roof
● There is the possibility that water or rain will get into the vehicle if you
operate the moon roof after a rainfall, snowfall or car wash. Wipe the moon
roof dry with a cloth before operating it.
●When the deflector is dirty, wipe it with
the brush etc.Deflector

95
1
Before driving
tC_OM_OM21042U_(U)
1-5. Refueling

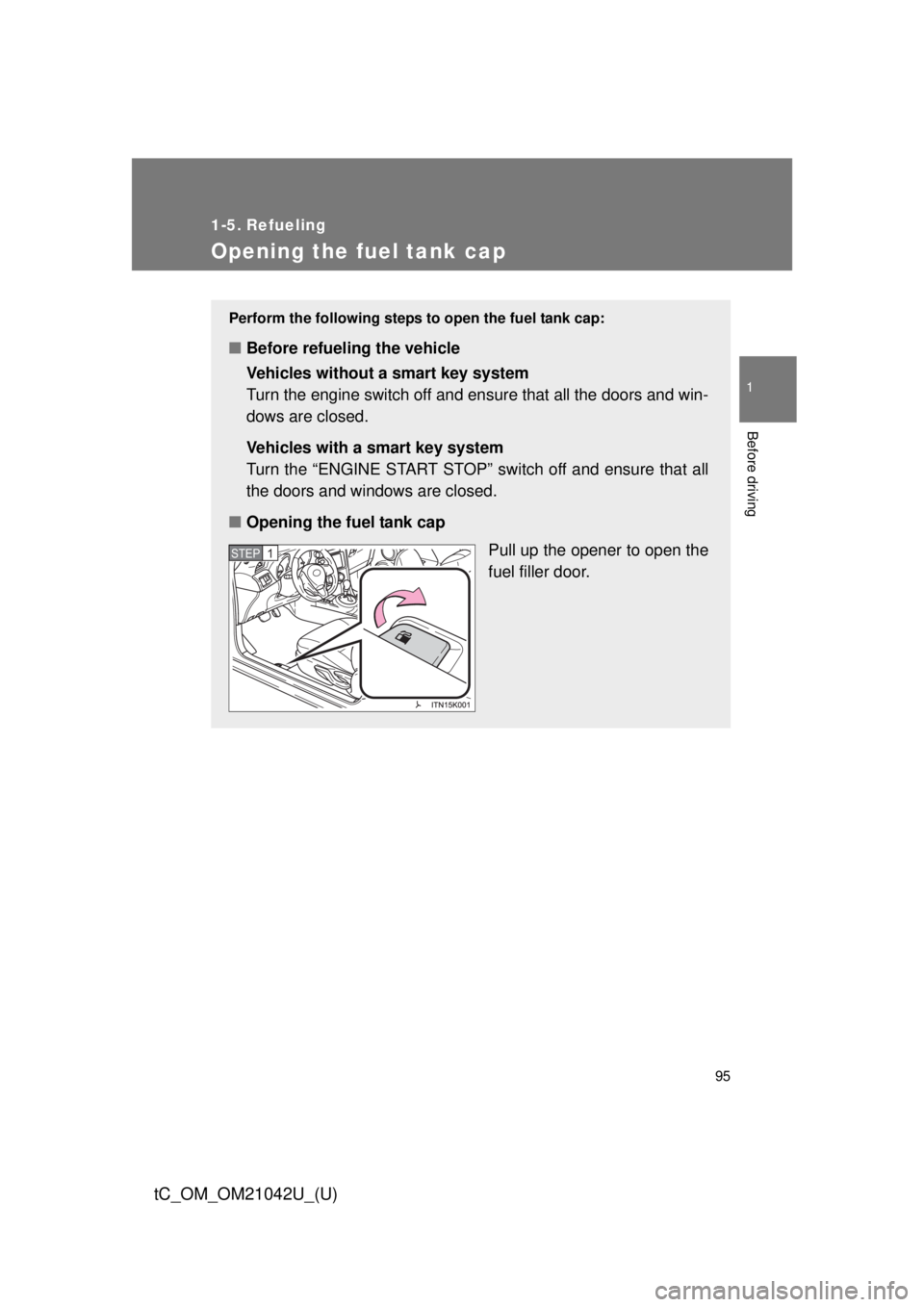

Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
■Before refueling the vehicle
Vehicles without a smart key system 
Turn the engine switch off and ensure that all the doors and win-
dows are closed.
Vehicles with a smart key system 
Turn the “ENGINE START STOP” switch off and ensure that all
the doors and windows are closed.
■ Opening the fuel tank cap
Pull up the opener to open the
fuel filler door.
STEP 1

96 1-5. Refueling
tC_OM_OM21042U_(U)

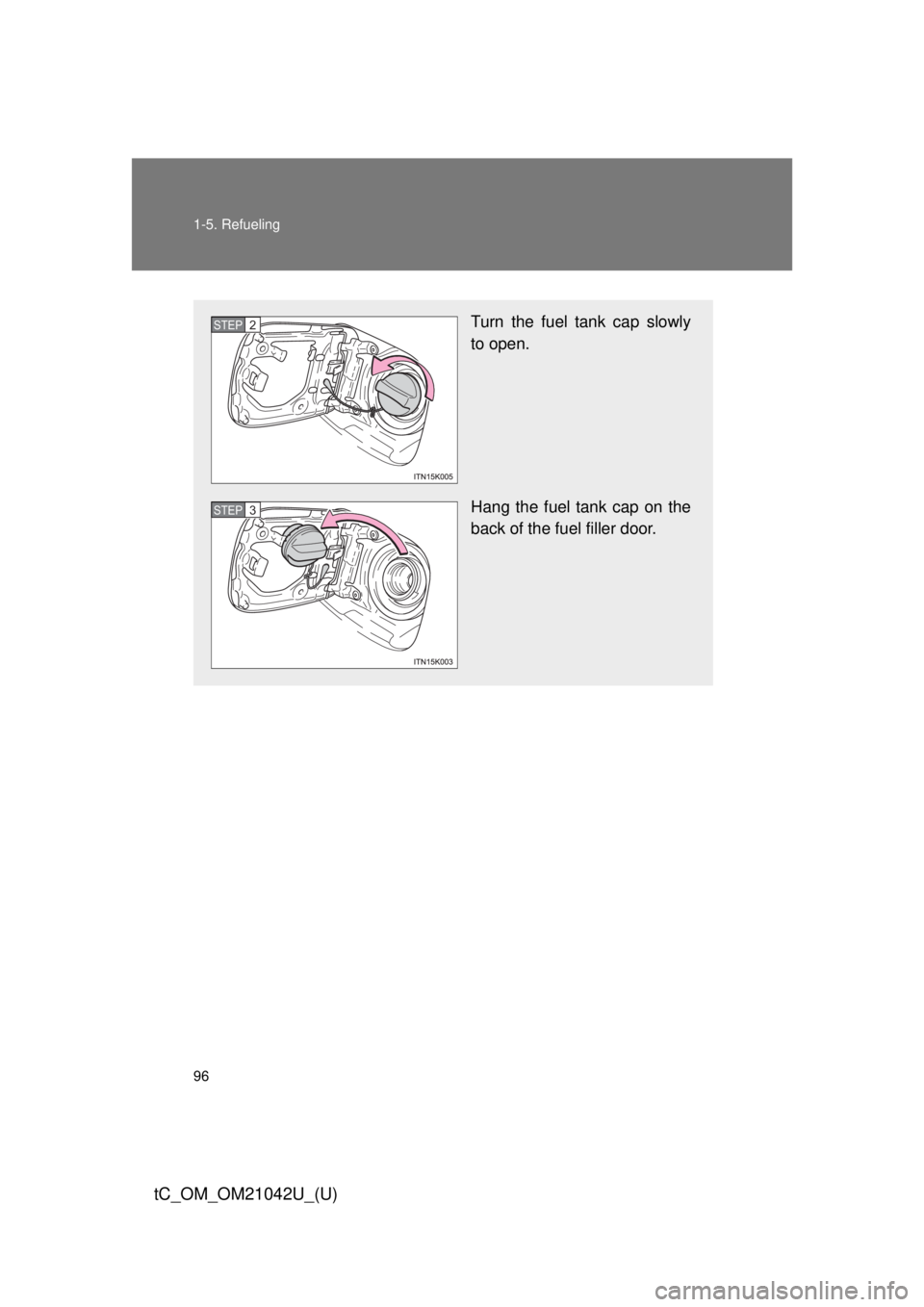

Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.STEP 2
STEP 3

97
1-5. Refueling
1
Before driving
tC_OM_OM21042U_(U)
Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
■Fuel types
Use unleaded gasoline. (Octane Rating 87 [Research Octane Number 91] or
higher)
■ Fuel tank capacity
Approximately 14.5 gal. (55 L, 12.1 Imp.gal.)

98 1-5. Refueling
tC_OM_OM21042U_(U)
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. 
Failure to do so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it. 
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. 
In hot weather, pressurized fuel may spray out the filler neck and cause
injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel. 
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle. 
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged. 
This may cause static electricity to build up, resulting in a possible ignition
hazard.

99
1-5. Refueling
1
Before driving
tC_OM_OM21042U_(U)
CAUTION
■
When refueling
Securely insert the fuel nozzle into the fuel filler neck. If fuel is added with
the nozzle slightly lifted away from the fuel filler neck, the automatic shut off
function may not operate, resulting in fuel overflowing from the tank.
■ When replacing the fuel cap
Do not use anything but a genuine Scion fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
NOTICE
■Refueling
Do not spill fuel during refueling. 
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

100
tC_OM_OM21042U_(U)

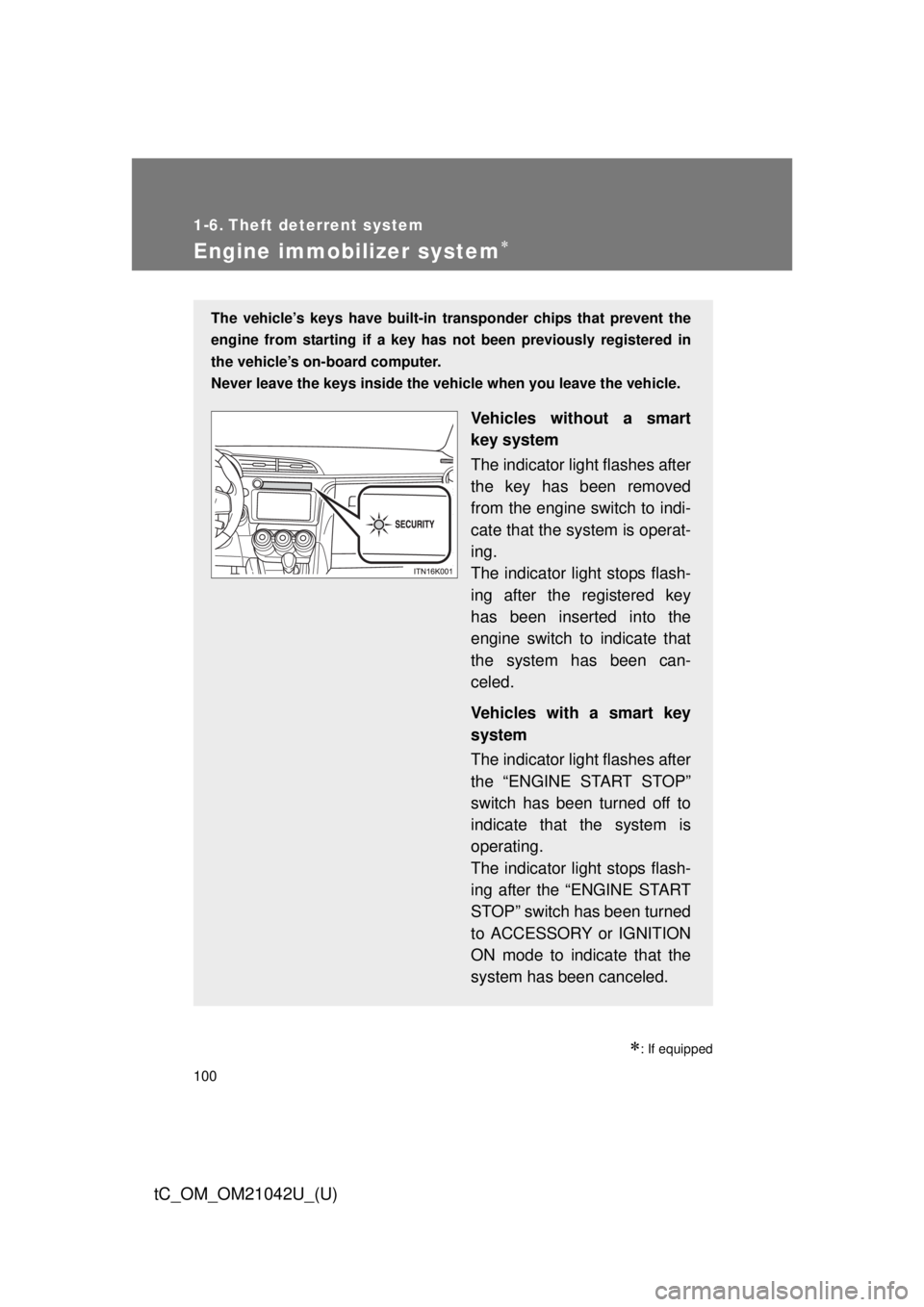

1-6. Theft deterrent system
Engine immobilizer system
: If equipped
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not been previously registered in
the vehicle’s on-board computer. 
Never leave the keys inside the vehicle when you leave the vehicle.
Vehicles without a smart
key system
The indicator light flashes after
the key has been removed
from the engine switch to indi-
cate that the system is operat-
ing. 
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.
Vehicles with a smart key
system
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned off to
indicate that the system is
operating. 
The indicator light stops flash-
ing after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.
