TOYOTA tC 2013 Owners Manual (in English)

231
2-5. Driving information
2
When driving
tC_OM_OM21050U_(U)
Dinghy towing (manual transmission)
Towing your vehicle with 4 wheels on the groundTo prevent damage to your vehicle, perform the following procedures
before towing:
Shift the shift lever to N.
Vehicles without a smart key system
Turn the engine switch to the “ACC” position. ( P. 163)
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch to ACCESSORY
mode. ( P. 167)
Ensure that the audio system and other powered devices are turned
off.
Release the parking brake.
After towing, leave the engine in idle for at least 3 minutes before
driving the vehicle.
■Necessary equipment and accessories
Specialized equipment and accessories are required for dinghy towing. Con-
tact the service branch of the motor home manufacturer regarding recom-
mended equipment.
Your vehicle can be dinghy towed in a forward direction (with 4
wheels on the ground) behind a motor home.
STEP 1
STEP 2
STEP 3

232 2-5. Driving information
tC_OM_OM21050U_(U)
NOTICE
■Dinghy towing direction
■ To prevent the steering from locking
Vehicles without a smart key system
Ensure the engine switch is in the “ACC” position.
Vehicles with a smart key system
Ensure the “ENGINE START STOP” switch is in ACCESSORY mode.
Do not tow the vehicle backward.
Doing so may cause serious damage.

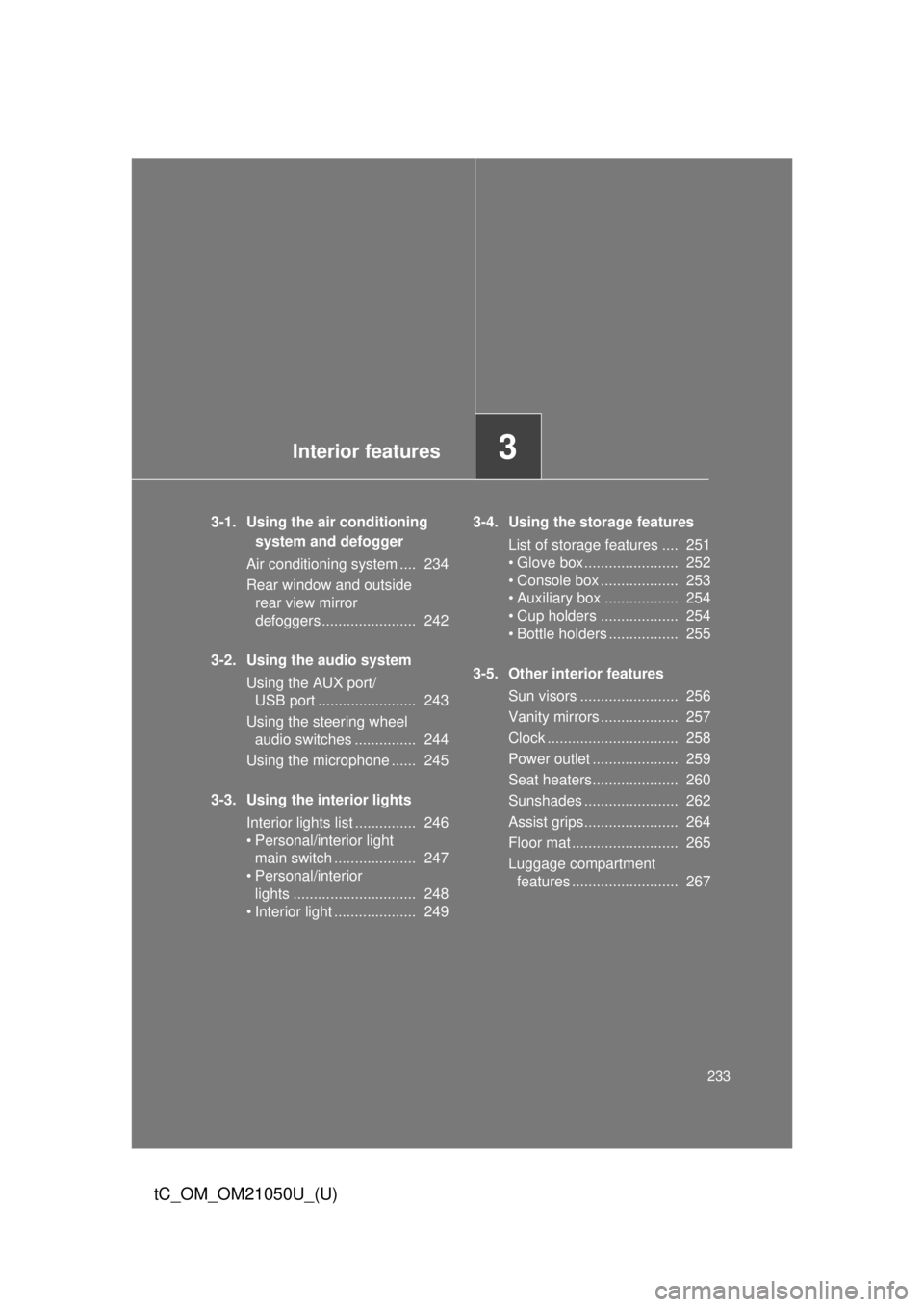

Interior features3
233
tC_OM_OM21050U_(U)
3-1. Using the air conditioning system and defogger
Air conditioning system .... 234
Rear window and outside rear view mirror
defoggers ....................... 242
3-2. Using the audio system Using the AUX port/USB port ........................ 243
Using the steering wheel audio switches ............... 244
Using the microphone ...... 245
3-3. Using the interior lights Interior lights list ............... 246
• Personal/interior light main switch .................... 247
• Personal/interior lights .............................. 248
• Interior light .................... 249 3-4. Using the storage features
List of storage features .... 251
• Glove box....................... 252
• Console box ................... 253
• Auxiliary box .................. 254
• Cup holders ................... 254
• Bottle holders ................. 255
3-5. Other interior features Sun visors ........................ 256
Vanity mirrors ................... 257
Clock ................................ 258
Power outlet ..................... 259
Seat heaters..................... 260
Sunshades ....................... 262
Assist grips....................... 264
Floor mat .......................... 265
Luggage compartment features .......................... 267

234
tC_OM_OM21050U_(U)
3-1. Using the air conditioning system and defogger
Air conditioning system
Fan speed control knob
Air outlet selector knob
Outside/recirculated air mode button Cooling and dehumidification
function on/off buttonTemperature control knob

235
3-1. Using the air conditioning system
and defogger
3
Interior features
tC_OM_OM21050U_(U)
Adjusting the settings
■ Basic setting
To turn on the air conditioning system and adjust the fan
speed, turn the fan speed control knob clockwise (increase) or
counterclockwise (decrease).
Turning the knob to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control
knob clockwise (warm) or counterclockwise (cool).
If is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set th e air outlet selector knob to the
desired position.
The positions between the air outlet selections shown in the follow-
ing illustrations can also be selected for more delicate adjustment.
STEP 1
STEP 2
STEP 3

236 3-1. Using the air conditioning system and defogger
tC_OM_OM21050U_(U)
Air flows to the upper body.
Air flows to the upper body and
feet.
: Canada only
Air flows mainly to the feet.
: Canada only

237
3-1. Using the air conditioning system
and defogger
3
Interior features
tC_OM_OM21050U_(U)
Air flows to the feet and the
windshield defogger operates.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode even by pressing
.
Pressing to turn the cooling
and dehumidification function on
clears the windshield and side
windows faster.
: Canada only
Air flows to the windshield and
side windows.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode even by pressing
.
Pressing to turn the cooling
and dehumidification function on
clears the windshield and side
windows faster.

238 3-1. Using the air conditioning system and defogger
tC_OM_OM21050U_(U)
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from out-
side the vehicle) (indicator off) and recirculated air mode (recycles air
inside the vehicle) (indicator on) each time the button is pressed.

239
3-1. Using the air conditioning system
and defogger
3
Interior features
tC_OM_OM21050U_(U)
Adjusting the position of the air outlets
Center outlets Direct air flow to the left or right,
up or down.
Left side outlets Direct air flow to the left or right,
up or down.
Right side outlets Direct air flow to the left or right,
up or down.

240 3-1. Using the air conditioning system and defogger
tC_OM_OM21050U_(U)
Opening and closing the air outlets
Left side outlets Open the vent.
Close the vent.
Right side outlets Open the vent.
Close the vent.
