TOYOTA tC 2013 (in English) Owner's Manual

21
tC_OM_OM21050U_(U)
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multi-port fuel injection system/sequential multi-port fuel injection system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Scion dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.

22
tC_OM_OM21050U_(U)
Vehicle data recordings
Your Scion is equipped with several sophisticated computers that will record
certain data, such as:
• Engine speed
• Accelerator status
• Brake status
• Vehicle speed
• Shift position (except manual transmission)
The recorded data varies according to the vehicle grade level and options
with which it is equipped. Furthermore, these computers do not record con-
versations, sounds or pictures.
●Data usage
Scion may use the data recorded in these computers to diagnose malfunc-
tions, conduct research and development, and improve quality.
Scion will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a govern- ment agency
• For use by Scion in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle owner

23
tC_OM_OM21050U_(U)
Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-tened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.

24
tC_OM_OM21050U_(U)
●Disclosure of the EDR data
Scion will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained
• In response to an official request by the police, a court of law or a govern- ment agency
• For use by Scion in a lawsuit
However, if necessary, Scion may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing information about the specific vehicle or vehicle owner
Scrapping of your Scion
The SRS airbag and seat belt pretensioner devices in your Scion contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Scion dealer
before you scrap your vehicle.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbags, seat belt pretensioners, and wireless remote con-
trol batteries.

25
tC_OM_OM21050U_(U)
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

26
tC_OM_OM21050U_(U)
Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Scion and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. moving a front seat).

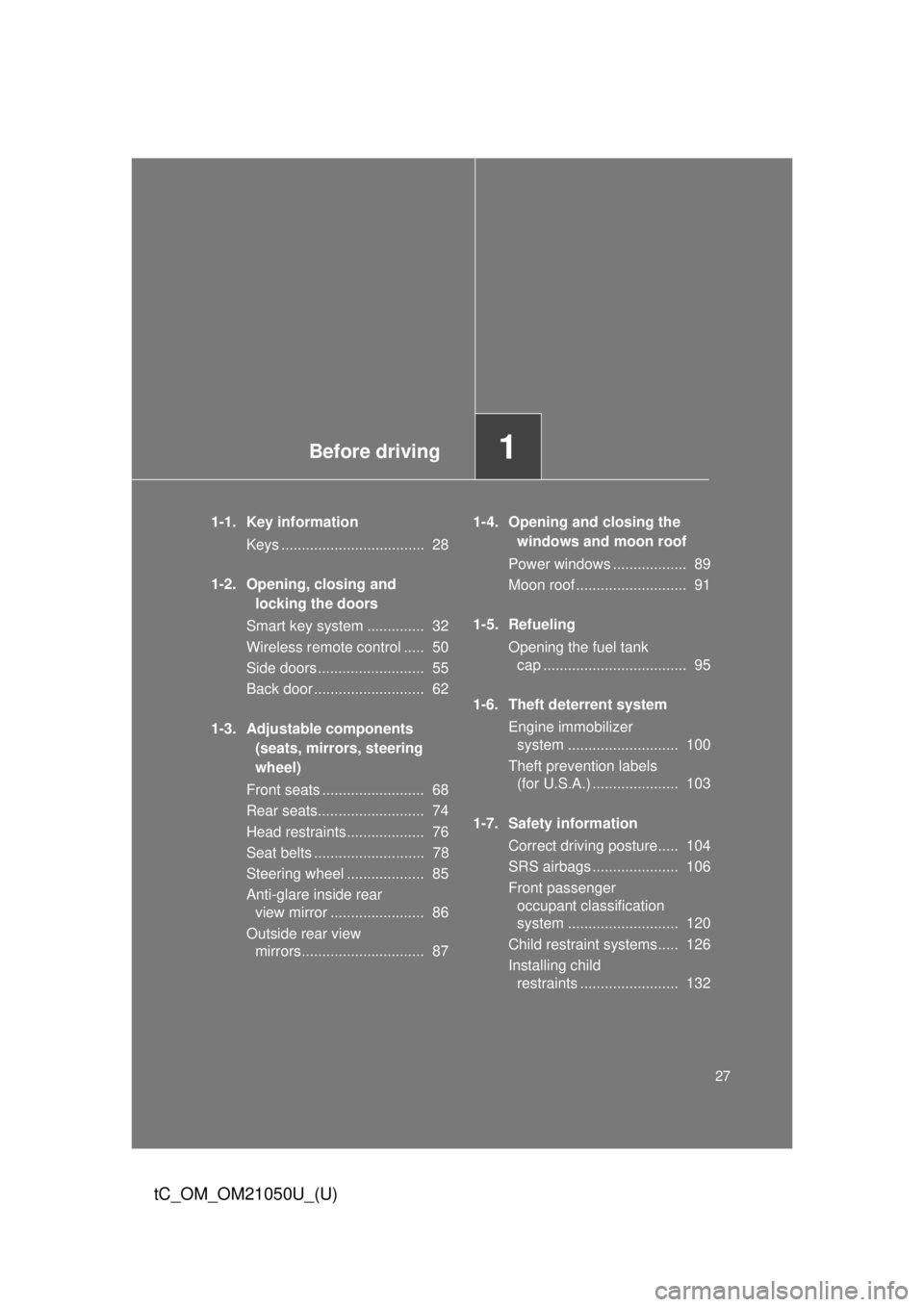

Before driving1
27
tC_OM_OM21050U_(U)
1-1. Key informationKeys ................................... 28
1-2. Opening, closing and locking the doors
Smart key system .............. 32
Wireless remote control ..... 50
Side doors .......................... 55
Back door ........................... 62
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ......................... 68
Rear seats.......................... 74
Head restraints................... 76
Seat belts ........................... 78
Steering wheel ................... 85
Anti-glare inside rear view mirror ....................... 86
Outside rear view mirrors.............................. 87 1-4. Opening and closing the
windows and moon roof
Power windows .................. 89
Moon roof ........................... 91
1-5. Refueling Opening the fuel tank cap ................................... 95
1-6. Theft deterrent system Engine immobilizer system ........................... 100
Theft prevention labels (for U.S.A.) ..................... 103
1-7. Safety information Correct driving posture..... 104
SRS airbags ..................... 106
Front passenger occupant classification
system ........................... 120
Child restraint systems..... 126
Installing child restraints ........................ 132

28
tC_OM_OM21050U_(U)

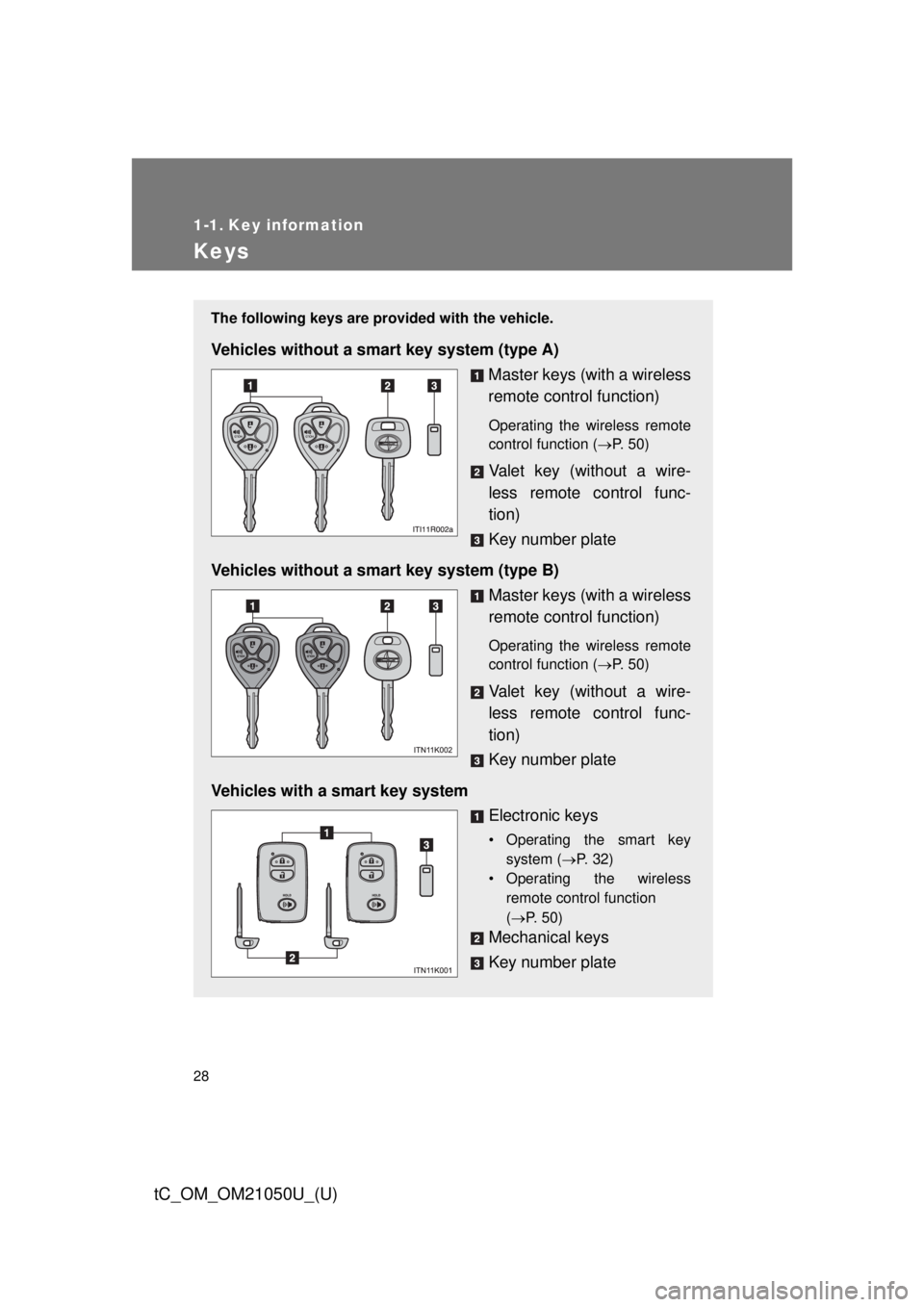

1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without a smart key system (type A)
Master keys (with a wireless
remote control function)
Operating the wireless remote
control function (P. 50)
Valet key (without a wire-
less remote control func-
tion)
Key number plate
Vehicles without a smart key system (type B) Master keys (with a wireless
remote control function)
Operating the wireless remote
control function (P. 50)
Valet key (without a wire-
less remote control func-
tion)
Key number plate
Vehicles with a smart key system Electronic keys
• Operating the smart keysystem ( P. 32)
• Operating the wireless remote control function
(P. 50)
Mechanical keys
Key number plate

29
1-1. Key information
1
Before driving
tC_OM_OM21050U_(U)
Using the mechanical key (vehicles with a smart key system)
To take out the mechanical key,
push the release button and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (P. 405)

30 1-1. Key information
tC_OM_OM21050U_(U)
■When required to leave the vehic le’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 252)
On vehicles without the smart key system, provide the attendant with the
valet key.
On vehicles with the smart key system, remove the mechanical key for your
own use and provide the attendant with the electronic key only.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key (without a smart key system) or mechanical key (with a
smart key system) is lost, a new key can be made by your Scion dealer
using the key number plate. ( P. 404)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircra\
ft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the a\
ircraft.
