TOYOTA tC 2013 (in English) User Guide

11
tC_OM_OM21050U_(U)
Power window switches P. 89
Door lock switch P. 55
Inside lock button P. 55
Window lock switch P. 89
B

12
tC_OM_OM21050U_(U)
Vehicles with an automatic transmission
Power outlet P. 259
Shift lever P. 176
Seat heater switches
P. 260
AUX port/USB port P. 243
Shift lock override button
P. 403
Pictorial indexInterior
C
Cup holders P. 254
Parking brake lever P. 186
VSC OFF switch P. 213
Auxiliary box P. 254

13
tC_OM_OM21050U_(U)
Vehicles with a manual transmission
C
Power outlet P. 259
Shift lever P. 183
Seat heater switches
P. 260
AUX port/USB port P. 243
Cup holders P. 254
Parking brake lever P. 186
: If equipped
VSC OFF switch P. 213
Auxiliary box P. 254

14
tC_OM_OM21050U_(U)
Instrument panel
Emergency flasher switch P. 356
Engine (ignition) switch
(vehicles with a smart key system)
P. 167
Clock P. 258
Tilt and telescopic steering lockrelease lever
P. 85
Fuel filler door opener P. 95
Pictorial index

15
tC_OM_OM21050U_(U)
Air conditioning system P. 234
Rear window and outside rear view mirror
defogger switch
 P. 242
A
: If equipped

16
tC_OM_OM21050U_(U)
Paddle shift switches P. 176
Headlight switch
Turn signal lever P. 197
P. 185
Steering wheel audio switches
P. 244
SRS driver airbag
Horn P. 106
P. 187
Cruise control switch
P. 208
Engine (ignition) switch (vehicleswithout a smart key system)
P. 163
Windshield wipers and washer switch
Rear window wiper and washer switch

P. 201
P. 205
B
Instrument panelPictorial index

17
tC_OM_OM21050U_(U)
Outside rear view mirror
switches
P. 87
Hood release lever P. 292
C
: If equipped

18
tC_OM_OM21050U_(U)

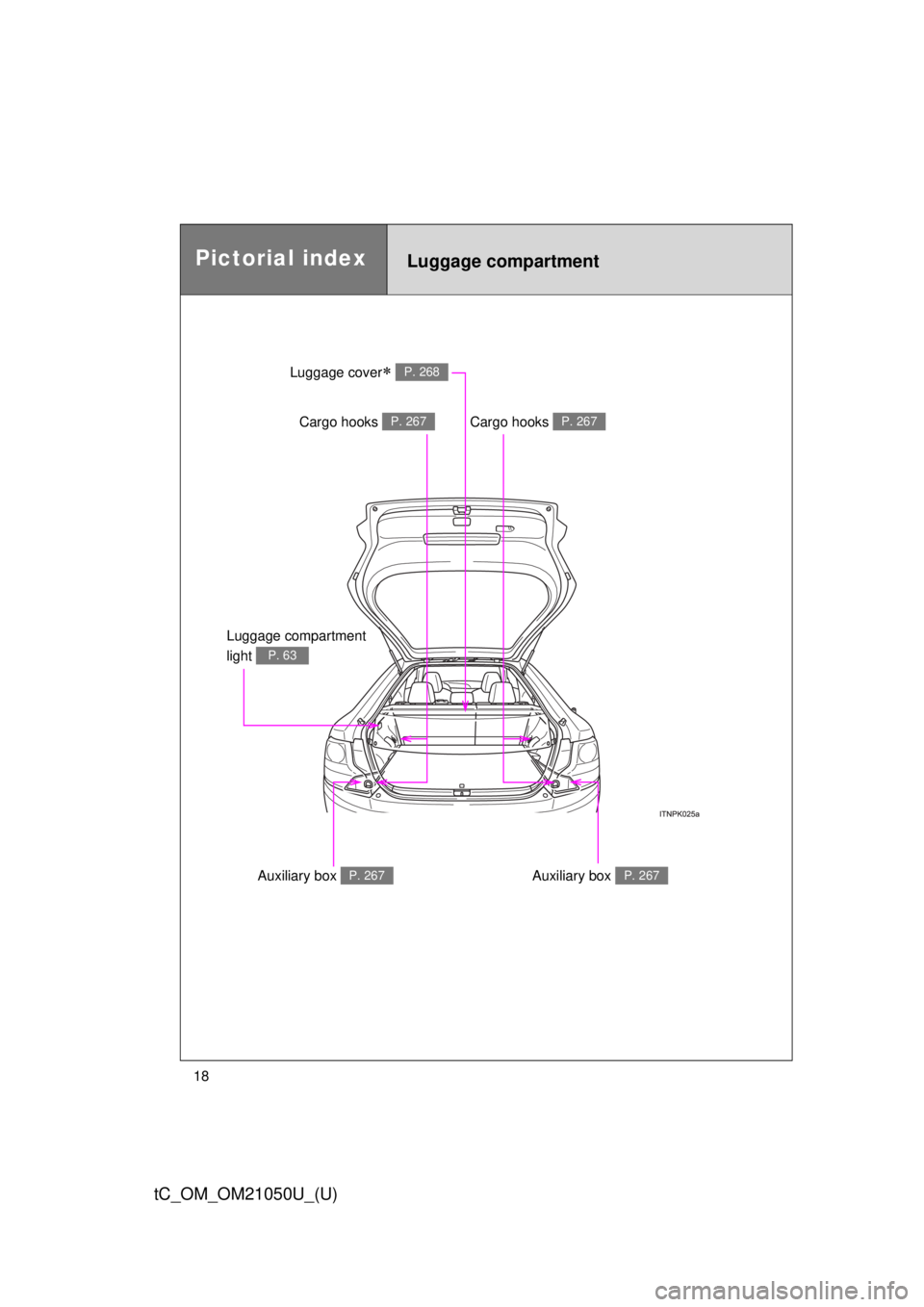

Luggage compartment
Luggage compartment
light
P. 63
Cargo hooks P. 267Cargo hooks P. 267
Auxiliary box P. 267Auxiliary box P. 267
Luggage cover P. 268
Pictorial index

19
tC_OM_OM21050U_(U)
: If equipped

20
tC_OM_OM21050U_(U)
For your information
Main Owner’s Manual
Please note that this manual applies to all models and all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Scion policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Scion
A wide variety of non-genuine spare parts and accessories for Scion vehicles
are currently available on the market. You should know that Scion does not
warrant these products and is not responsible for their performance, repair,
or replacement, or for any damage they may cause to, or adverse effect they
may have on, your Scion vehicle.
This vehicle should not be modified with non-genuine Scion products.
Modification with non-genuine Scion products could affect its performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
