TOYOTA TUNDRA 2000 Owners Manual

TUNDRA (34413U)
151
Defrosting
The outside of the windshield
For best results, set controls to:Fan speedÐ Any setting except OFFº
TemperatureÐ To w a r d s WARM
(red zone)
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Turning the air flow selector to windshield
position turns on the defroste to clear the
front view more quickly.
Vehicles with A/Cº buttonÐ
Press the A/Cº button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.
ÐInstrument panel vents
Side vents
Lower vent
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
ProCarManuals.com

TUNDRA (34413U)
152
ProCarManuals.com

TUNDRA (34413U)
153
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 9
Other equipment

Clock

Cigarette lighter and ashtray

P ower out let s

G lov e box

Garage door opener box

Auxiliary boxes

Cup holders

Floor mat
Clock
The digital clock indicates the time.
The key must be in the ACCº or ONº
position.
To reset the hour: Push the Hº button.
To reset the minutes: Push the Mº button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o'clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Cigarette lighter and ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
When it becomes heated, it automatical-
ly pops out ready for use.
If the engine is not running, the key must
be in the ACCº position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ProCarManuals.com

TUNDRA (34413U)
154
ASHTRAY
To use the ashtray, pull it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always push the ash-
tray back in completely after using.
Power outlets
The power outlets are designed for
power supply for car accessories.
The key must be in the ACCº or ONº
position for the power outlets to be used.
NOTICE

To prevent the fuse from beingblown, do not use the electricityover the total vehicle capacity of12V/120W.

To prevent the battery from beingdischarged, do not use the poweroutlets longer than necessary when
the engine is not running.

Close the power outlet lids whenthe power outlets are not in use.Inserting a foreign object other thanthe appropriate plug that fits the
outlet, or allowing any liquid intothe outlet may cause electrical fail-ure or short circuits.
ProCarManuals.com

TUNDRA (34413U)
155
Glove box
To open the glove box door, pull the
lever.
On some models, the glove box light will
come on when the glove box is opened
with the headlight switch on.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Garage door opener box
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
square.Remove the paper strip covering the adhe-
sive on back side of square and adhere
the square to back side of the transmitter
near the center.
ProCarManuals.com

TUNDRA (34413U)
156
Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.Place the transmitter with Velcro square
facing inside of box into the box. Make
sure the transmitter button is located
above button pins.Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.
ProCarManuals.com

TUNDRA (34413U)
157
When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.If the center panel does not contact with
your garage door opener transmitter:

Check to see if spacer is on the cor-
rect pin.

Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION

To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.

Keep the remained spacers away
from children.
ProCarManuals.com

TUNDRA (34413U)
158
The auxiliary box (stored in the glove
box) and garage door opener box are
interchangeable.

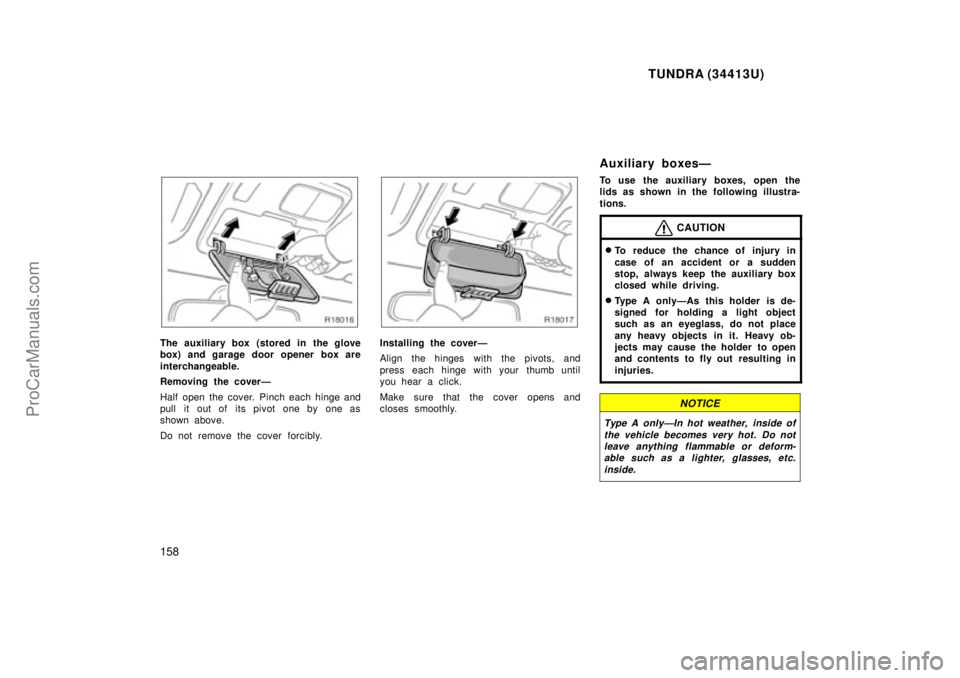

Removing the coverÐ
Half open the cover. Pinch each hinge and
pull it out of its pivot one by one as
shown above.
Do not remove the cover forcibly.Installing the coverÐ
Align the hinges with the pivots, and
press each hinge with your thumb until
you hear a click.
Make sure that the cover opens and
closes smoothly.
Auxiliary boxesÐ
To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION

To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.

Type A onlyÐAs this holder is de-
signed for holding a light object
such as an eyeglass, do not place
any heavy objects in it. Heavy ob-
jects may cause the holder to open
and contents to fly out resulting in
injuries.
NOTICE
Type A onlyÐIn hot weather, inside of
the vehicle becomes very hot. Do notleave anything flammable or deform-able such as a lighter, glasses, etc.
inside.
ProCarManuals.com

TUNDRA (34413U)
159

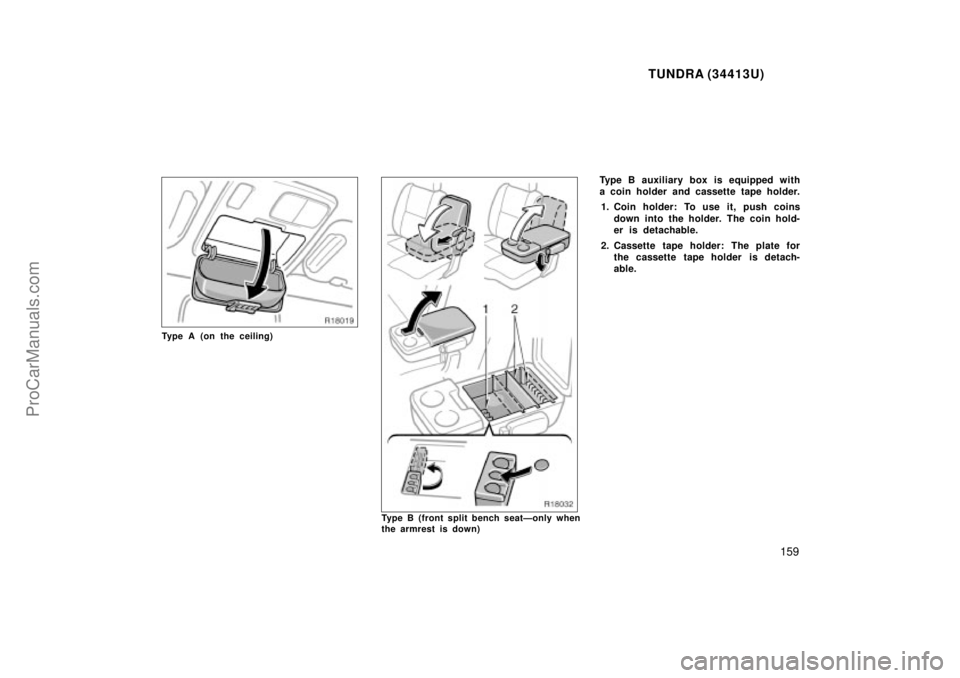

Type A (on the ceiling)
Type B (front split bench seatÐonly when
the armrest is down)
Type B auxiliary box is equipped with
a coin holder and cassette tape holder.1. Coin holder: To use it, push coins down into the holder. The coin hold-
er is detachable.
2. Cassette tape holder: The plate for the cassette tape holder is detach-
able.
ProCarManuals.com

TUNDRA (34413U)
160

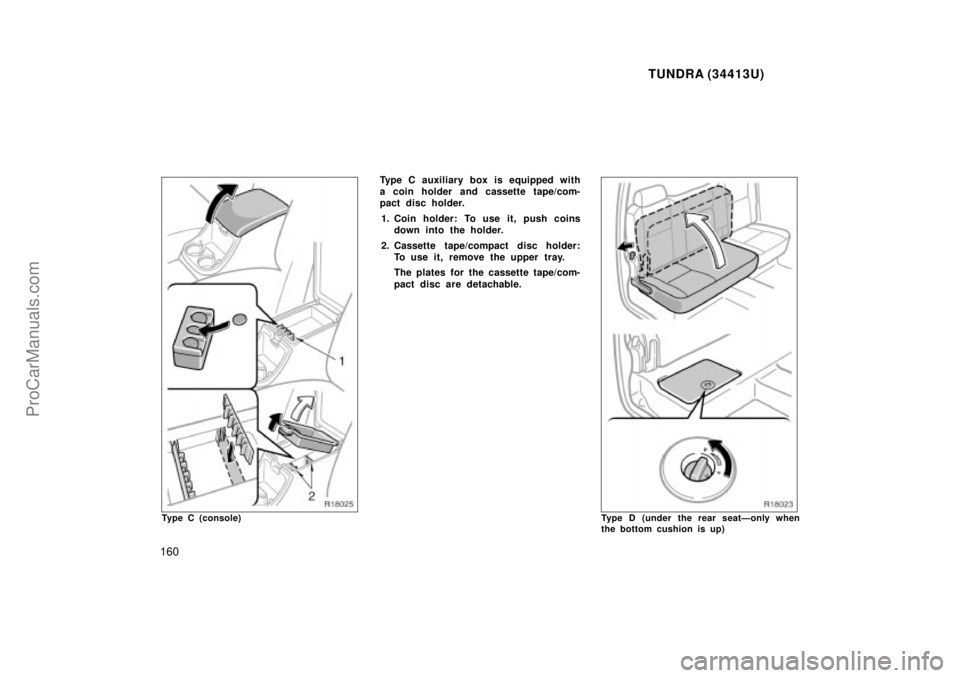

Type C (console)
Type C auxiliary box is equipped with
a coin holder and cassette tape/com-
pact disc holder.1. Coin holder: To use it, push coins down into the holder.
2. Cassette tape/compact disc holder: To use it, remove the upper tray.
The plates for the cassette tape/com-
pact disc are detachable.
Type D (under the rear seatÐonly when
the bottom cushion is up)
