TOYOTA TUNDRA 2000 Owners Manual

TUNDRA (34413U)
161
Cup holders
The cup holder is designed for holding
cups or drink- cans securely in its
holes. To use them, observe the follow-
ing illustrations.
CAUTION

Do not place anything else other
than cups or drink- cans on the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.

To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.
NOTICE
Type A onlyÐAs this holder is de-signed for holding soft cups only, donot place too heavy a cup, drink- canor bottle in it.
Type A (instrument panel)
To fold down the armrest
with the cup holder
To return the armrest with the cup
holder to the original position
Type B (front split bench seatÐonly when
the armrest is down)
ProCarManuals.com

TUNDRA (34413U)
162

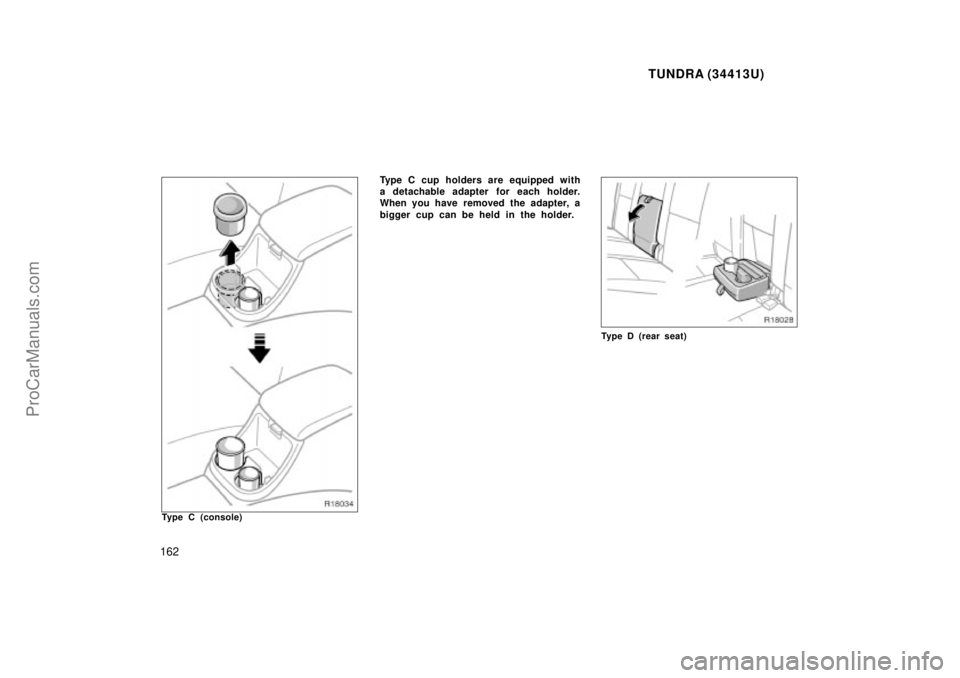

Type C (console)
Type C cup holders are equipped with
a detachable adapter for each holder.
When you have removed the adapter, a
bigger cup can be held in the holder.
Type D (rear seat)
ProCarManuals.com

TUNDRA (34413U)
163

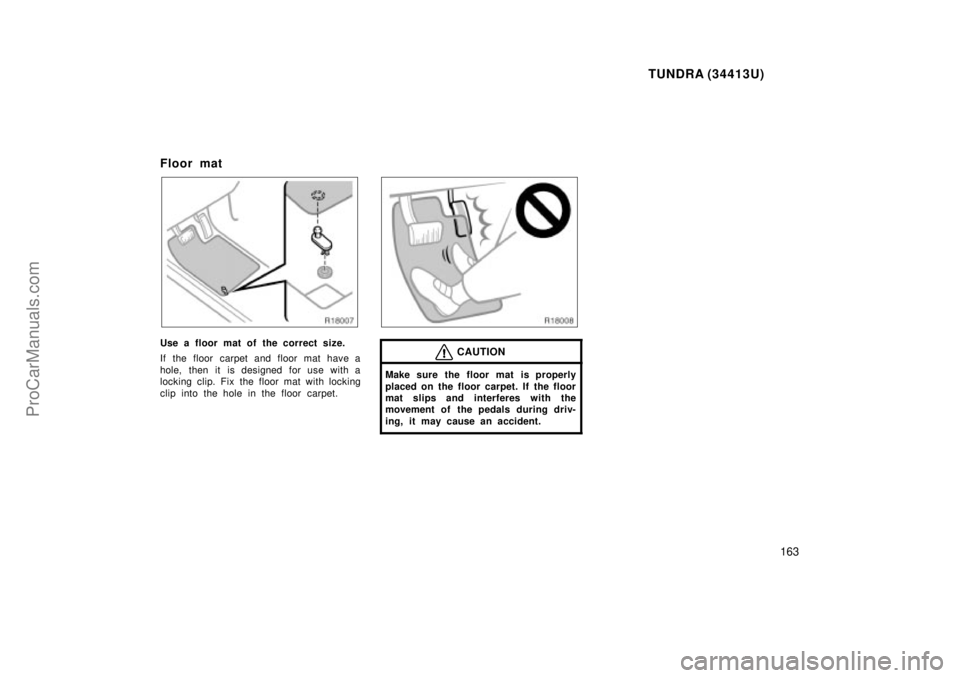

Floor mat
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
ProCarManuals.com

TUNDRA (34413U)
164
ProCarManuals.com

TUNDRA (34413U)
165
Part 2
INFORMATION
BEFORE DRIVING
YOUR TOYOTA

Off- road vehicle precautions

Break- in period

Fuel

Operation in foreign countries

Three- way catalytic converters

Engine exhaust cautions

Facts about engine oil
consumption

Twin ground electrode spark
plugs

Brake system

Brake pad wear limit indicators

Luggage stowage precautions

Rear step bumper

Your Toyota's identification

Theft prevention labels

Suspension and chassis

Types of tires
This vehicle is one of the class of ve-
hicles which have higher ground clear-
ance and narrower tread in relation to
the height of their center of gravity to
make them capable of performing in a
wide variety of off- road applications.
Specific design characteristics give it a
higher center of gravity than ordinary
cars. An advantage of the higher
ground clearance is a better view of the
road allowing you to anticipate prob-
lems. It is not designed for cornering
at the same speeds as conventional
two- wheel drive vehicles any more than
low- slung sports cars are designed to
perform satisfactorily under off- road
conditions.
Off- road vehicle precautions
(four- wheel drive models
only)
ProCarManuals.com

TUNDRA (34413U)
166
CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:

Avoid sharp turns or abrupt maneu-
vers, if at all possible. As with oth-
er vehicles of this type, failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover.

Avoid loading any items on the roof
that will make the center of gravity
even higher.

Always slow down in gusty cross-
winds. Because of its high center of
gravity, your vehicle is more sensi-
tive to side winds than an ordinary
passenger car. Slowing down will
allow you to have much better con-
trol.

Do not drive horizontally across
steep slopes. Driving straight up or
straight down is preferred. Your ve-
hicle (or any similar off- road ve-
hicle) can tip over sideways much
more easily than forward or back-
ward.

When driving off- road or in rugged
terrain, do not drive at excessive
speeds, jump the vehicle, or strike
objects, etc. This may cause loss of
control or vehicle rollover. You are
also risking expensive damage to
your vehicle's suspension and chas-
sis.
Break- in period
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break- in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:

Do not drive over 88 km/h (55 mph).

Run the engine at moderate speed be-
tween 2000 and 4000 rpm.

Avoid full- throttle starts.

Try to avoid hard stops during the first
300 km (200 miles).

Do not drive slowly with the manual
transmission in a high gear.

Do not drive for a long time at any
single speed, either fast or slow.

Do not tow a trailer during the first 800
km (500 miles).
ProCarManuals.com

TUNDRA (34413U)
167
Fuel
FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix- ups, your
Toyota has a new smaller fuel tank open-
ing. The special nozzle on pumps with
unleaded fuel will fit it, but the larger
standard nozzle on pumps with leaded gas
will not.
At a minimum, the gasoline you use
should meet specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5- M93
in Canada.
NOTICE
Do not use leaded gasoline. Use ofleaded gasoline will cause the three-way catalytic converter to lose its ef-fectiveness and the emission control
system to function improperly. Also,this can increase maintenance costs.
OCTANE RATING
Select Octane Rating 87 (Research Oc-
tane Number 91) or higher.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, now and then, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is no need
of concern.
GASOLINES CONTAINING DETERGENT
ADDITIVES
Toyota recommends use of gasolines
that contain detergent additives to
avoid build- up of engine deposits.
For further details, ask your Toyota dealer
or a local gasoline retailer. IMPROVED GASOLINES
The American Automobile Manufacturers
Association (AAMA) has developed a
specification of improved gasolines. The
AAMA specification offers optimal fuel
information for better vehicle perfor-
mance and better protection of your en-
gine.
Toyota recommends the use of gasolines
that meet the AAMA specification, if avail-
able, for improved driveability and emis-
sion control system.
GASOLINES CONTAINING MTBE
Gasolines that contain MTBE (Methyl
Tertiary- Butyl Ether) are available in the
market. If you use a gasoline mixed
with MTBE, make certain that it does
not contain more than 15% of MTBE.
GASOLINES CONTAINING MMT
Some gasolines contain an octane- en-
hancing additive called MMT (methylcy-
clopentadienyl manganese tricarbonyl).
ProCarManuals.com

TUNDRA (34413U)
168
Toyota does not recommend the use of
gasolines that contain MMT. If fuels con-
taining MMT are used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINES CONTAINING ALCOHOL
If you use gasohol in your Toyota, be
sure that it is unleaded, has an octane
rating no lower than 87 and does not
contain more than 10% ethanol.
Gasohol is a mixture of gasoline and etha-
nol.
Toyota does not recommend the use of
gasolines containing methanol. If you use
gasoline containing methanol, use only
gasoline meeting the requirements above
and also containing less than 5% metha-
nol with cosolvents and corrosion inhibi-
tors for methanol.
GASOLINES QUALITY
In a very few cases, you may experience
driveability problems caused by the partic-
ular gasoline that you are using. If you
continue to have unacceptable driveability,
try changing gasoline brands. If that does
not rectify your problem, then consult your
Toyota dealer.NOTICE

Do not use gasohol other thanstated above. It will cause fuel sys-tem damage or vehicle performanceproblems.

If driveab ility problems occur (poor
hot starting, vaporizing, engine knock, etc.), discontinue the use.

Take care not to spill gasohol dur-ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
100 L (26.4 gal., 22.0 Imp. gal.)
Operation in foreign countries
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
ProCarManuals.com

TUNDRA (34413U)
169

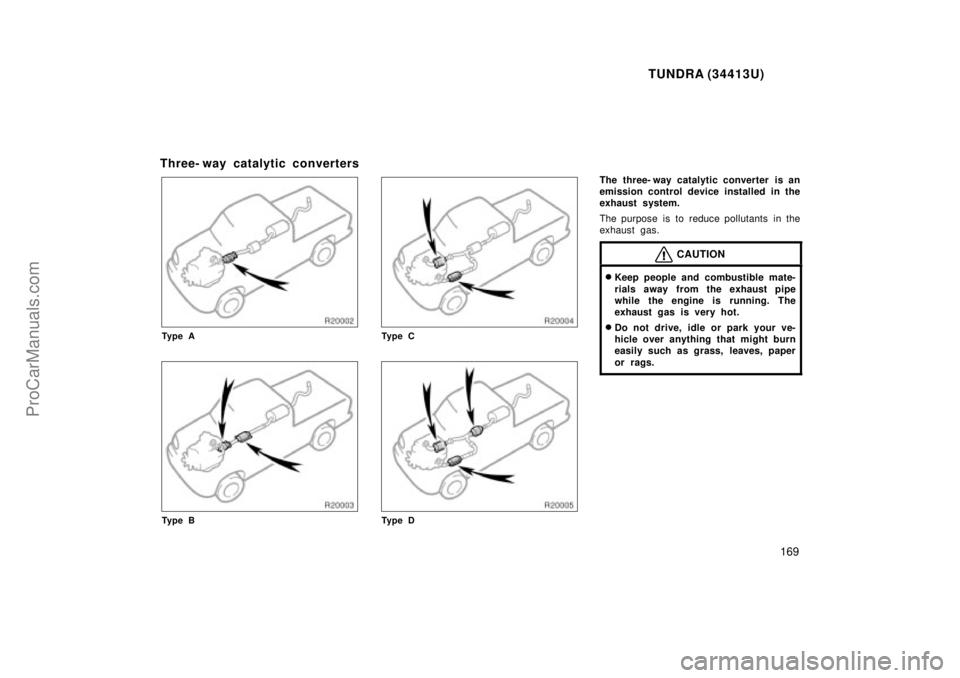

Three- way catalytic converters
Ty p e A
Ty p e B
Ty p e C
Ty p e D
The three- way catalytic converter is an
emission control device installed in the
exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION

Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.

Do not drive, idle or park your ve-
hicle over anything that might burn
easily such as grass, leaves, paper
or rags.
ProCarManuals.com

TUNDRA (34413U)
170
NOTICE
A large amount of unburned gasesflowing into the three- way catalyticconverter may cause it to overheatand create a fire hazard. To prevent
this and other damage, observe thefollowing precautions:

Use only unleaded gasoline.

Do not drive with an extremely lowfuel level; running out of fuel could
cause the engine to misfire, creat-ing an excessive load on the three-way catalytic converter.

Do not allow the engine to run atidle speed for more than 20 minu-
tes.

Avoid racing the engine.

Do not push- start or pull- start yourvehicle.

Do not turn off the ignition while
the vehicle is moving.

Keep your engine in good runningorder. Malfunctions in the engineelectrical system, electronic ignitionsystem/distributor ignition system
or fuel systems could cause an ex-tremely high three- way catalyticconverter temperature.

If the engine becomes difficult tostart or stalls frequently, take yourvehicle in for a check- up as soon
as possible. Remember, your Toyotadealer knows your vehicle and itsthree- way catalytic converter sys-
tem best.

To ensure that the three- way cata-lytic converter and the entire emis-sion control system operate proper-ly, your vehicle must receive the
periodic inspections required by theToyota Maintenance Schedule. Forscheduled maintenance information,
refer to the separate ScheduledMaintenance Guideº or Owner'sManual Supplementº.
Engine exhaust cautions
CAUTION

Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.

Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.

Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.

Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
