TUNDRA (34413U)
81
Cargo lamp
DOOR LINKED OPERATION
Cargo lamp comes on when any of the
doors are opened and the indicator light
on the CARGO LAMPº switch will illumi-
nate to indicate the lamp is on.
If the lamp stays on with the ignition
switch in the ACCº or LOCKº position,
the lamp will automatically cut off after 60
minutes.
To turn off:

Close all of the doors.
When the ignition switch is in the
ACCº or LOCKº positionÐThe lamp
remains on for about 20 seconds and
then goes off.
When the ignition switch is in the ONº
positionÐThe lamp will turn off immedi-
ately.

Push the CARGO LAMPº switch.MANUAL OPERATION
To turn on: Stop the vehicle and push the
CARGO LAMPº switch.
The indicator light on the CARGO LAMPº
switch will illuminate to indicate the lamp
is on.
When the ignition switch is in the ACCº
or LOCKº positionÐThe lamp will auto-
matically cut off after 60 minutes.
When the ignition switch is in the ONº
positionÐThe lamp stays on until you turn
it off.
To turn off: Push the switch once again.
The lamp turns off automatically when the
vehicle speed exceeds about 5 km/h (3
mph).
ProCarManuals.com

TUNDRA (34413U)
82
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ONº position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
The INT TIMEº band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it. To squirt washer fluid, pull the lever
toward you and release it.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see Adding washer fluidº in Chapter 7- 3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch theglass.
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ONº position.
Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
To squirt washer fluid, pull the lever
toward you and release it.
For instructions on adding washer fluid,
see Adding washer fluidº in Chapter 7- 3.
Windshield wipers and washer
(intermittent type) Windshield wipers and washer
(mist type)
ProCarManuals.com

TUNDRA (34413U)
83
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-shield is dry. It may scratch theglass.
ProCarManuals.com

TUNDRA (34413U)
84
ProCarManuals.com

TUNDRA (34413U)
85
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 5
Gauges, Meters and
Service reminder
indicators

Fuel gauge

Engine coolant temperature
gauge

Oil pressure gauge

Volt m et er

Tachometer

Odometer and two trip meters

Service reminder indicators and
warning buzzers

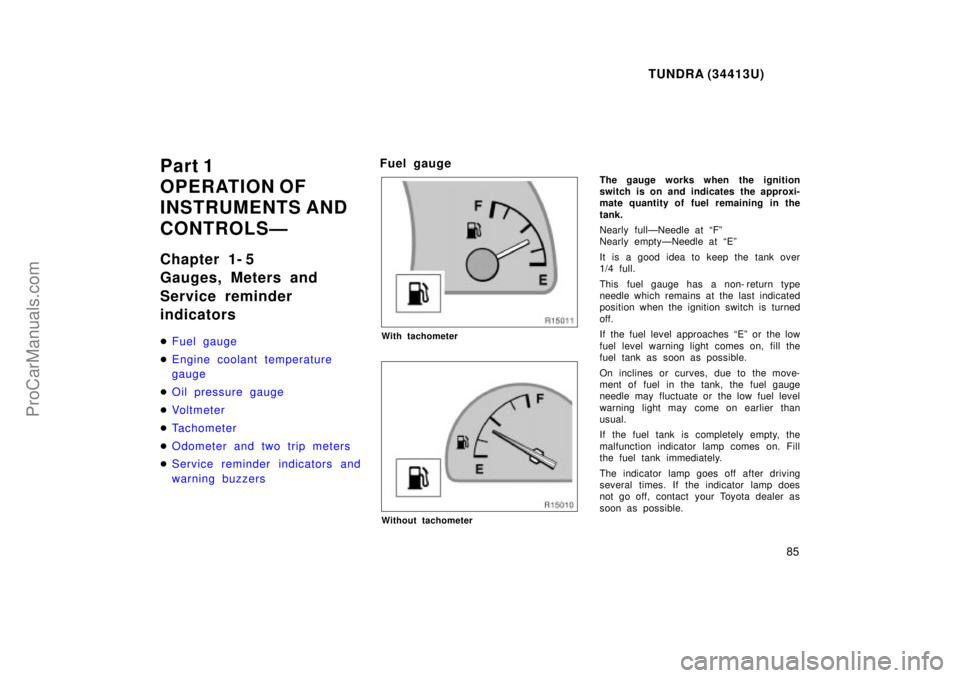

Fuel gauge
With tachometer
Without tachometer
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly fullÐNeedle at Fº
Nearly emptyÐNeedle at Eº
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a non- return type
needle which remains at the last indicated
position when the ignition switch is turned
off.
If the fuel level approaches Eº or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
ProCarManuals.com

TUNDRA (34413U)
86
With tachometer
Without tachometer
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:

Driving up a long hill on a hot day.

Reducing speed or stopping after high
speed driving.

Idling for a long period with the air
conditioning on in stop- and- go traffic.

Towing a trailer.
NOTICE

Do not remove the thermostat inthe engine cooling system as thismay cause the engine to overheat.The thermostat is designed to con-
trol the flow of coolant to keep thetemperature of the engine withinthe specified operating range.

Do not continue driving with anoverheated engine. See If your ve-hicle overheatsº in Part 4.
Engine coolant temperature
gauge
ProCarManuals.com

TUNDRA (34413U)
87
Oil pressure gauge
IdlingNormal
driving
The oil pressure gauge indicates engine
oil pressure when the ignition switch is
on. Check it while driving to make sure
that the needle is in the proper range.
If the oil pressure should stay below the
normal range, pull off the road to a safe
place and stop the engine immediately.
Call a Toyota dealer or qualified repair
shop for assistance.
Oil pressure may not build up when the
oil level is too low. The oil pressure
gauge is not designed to indicate oil level,
and the oil level must be checked using
the level dipstick.
NOTICE
Do not drive the vehicle with the oil
pressure below the normal range untilthe cause is fixedÐit may ruin theengine.
Vo l t m e t e r
The voltmeter tells whether the battery
is charged or discharged. Check it
while the engine is runningÐthe needle
should always indicate as shown above.
If the needle reads below or above the
normal range while the engine is running,
it indicates the charging system needs im-
mediate repair.
However, it is normal for the needle to
drop below the normal range during en-
gine starting.
ProCarManuals.com

TUNDRA (34413U)
88
Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle getinto the red zone. This may causesevere engine damage.
Odometer and two trip meters
This meter displays the odometer and
two trip meters.
1. OdometerÐIt shows the total distance the vehicle has been driven.
2. Two trip metersÐThey show two differ- ent distances independently driven
since the last time each trip meter was
set to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knobÐIt can reset the
two trip meters to zero, and also
change the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
ProCarManuals.com

TUNDRA (34413U)
89
(a)If parking brake is
off, stop and
check.
(b) Fasten driver 's
seat belt.
(d) Stop and check.
(In the instrument
clusterÐindicator
and buzzer) If the indicator
or buzzer
comes on...
Do this.
(c)
Fasten front
passenger 's seat
belt.
(Right side of the air
conditioning controlsÐ
indicator only)
(h)Take vehicle to
Toyota dealer.Do this.
(type B)
(type A)
If the indicator
or buzzer
comes on...
(g) Fill up tank.
(i)
Close all doors.
(f) Take vehicle to
Toyota dealer.
(e)Stop and check.
(n)Remove key.
Key reminder
buzzer Do this.
If the indicator
or buzzer
comes on...
(l) Stop and check.
(m) Add washer fluid.
(o) Shift the transfer
mode again,
correctly.
Four- wheel
drive system
warning
buzzer
(k)
Shift front drive
control lever out of
Nº.
(j)Take vehicle to
To y o t a
d ealer
immediately.
Service reminder indicators
an d warn in g bu zzers
ProCarManuals.com

TUNDRA (34413U)
90
(a) Brake System Warning Light
This light has the following functions:
Parking brake reminder
If this light is on, make sure the parking
brake is fully released. The light should
go off.
Low brake fluid level warning
If this light comes on and stays on while
you are driving, slow down and pull off
the road. Then stop the vehicle carefully.
Remember that stopping distance and ped-
al effort may be increased. There may be
a problem somewhere in the brake sys-
tem. Check the fluid level of the see-
through reservoir.
To make sure the parking brake has not
caused the warning light to come on,
check to see that the parking brake is
fully released.
If the brake fluid level is low...
At a safe place, test your brakes by start-
ing and stopping.

If you judge that the brakes still work
adequately, drive cautiously to your
nearest dealer or shop for repairs.

If the brakes are not working, have the
vehicle towed in for repairs. (For tow-
ing information, see Part 4.)
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
If the brake fluid level is correct...
Have the warning system checked by your
Toyota dealer.
(b) Driver's Seat Belt Reminder Lightand Buzzer
This light and buzzer remind you to
buckle up the driver's seat belt.
Once the ignition key is turned to ONº or
STARTº, the reminder light flashes and
buzzer sounds if the driver 's seat belt is
not fastened. Unless the driver fastens the
belt, the light keeps flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Front Passenger 's Seat Belt Re- minder Light
This light reminds you to buckle up the
front passenger 's seat belt. Once the ignition key is turned to ONº or
STARTº, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Unless
the front passenger fastens the belt, the
light keeps flashing.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, built- in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
keep flashing.
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
ProCarManuals.com
