TOYOTA TUNDRA 2001 Owners Manual
Manufacturer: TOYOTA, Model Year: 2001, Model line: TUNDRA, Model: TOYOTA TUNDRA 2001Pages: 297, PDF Size: 3.21 MB
Page 1 of 297
'01 TUNDRA_U (L/O 0008)
i2001 TUNDRA (OM 34416U)
Foreword
Welcome to the growing group of value±conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner 's Manual explains the operation of your new Toyota. Please read
it thoroughly and have all the occupants follow the instructions carefully.
Doing so will help you enjoy many years of safe and trouble±free motoring.
For important information about this manual and your Toyota, read the follow-
ing pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle
best and is interested in your complete satisfaction. He will provide quality mainte-
nance and any other assistance you may require.
Please leave this Owner 's Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of printing.
However, because of Toyota's policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
W2000 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.
ProCarManuals.com
Page 2 of 297
'01 TUNDRA_U (L/O 0008)
ii2001 TUNDRA (OM 34416U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warningis ignored. You are informed about what you must ormust not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: ªDo not...º;
ªDo not do thisº; or ªDo not let this
happenº.
ProCarManuals.com
Page 3 of 297
'01 TUNDRA_U (L/O 0008)
iii2001 TUNDRA (OM 34416U)
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the ªOwner's
Warranty Information Bookletº or ªOwner 's Manual
Supplementº.
Your responsibility for maintenance
It is the owner 's responsibility to make sure that the
specified maintenance is performed. Section 6 gives de-
tails of these maintenance requirements. Also included
in Section 6 is general maintenance. For scheduled
maintenance information, please refer to the ªScheduled
Maintenance Guideº or ªOwner 's Manual Supplementº.
Accessories, spare parts and modification of your Toyota
A wide variety of non±genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Toyota vehicle.
This vehicle should not be modified with non±genuine
Toyota products. Modification with non±genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
ProCarManuals.com
Page 4 of 297
'01 TUNDRA_U (L/O 0008)
iv2001 TUNDRA (OM 34416U)
Spark ignition system of your
To y o t a
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference±Causing Equip-
ment Standard.
Installation of a mobiletwo±way radio system
As the installation of a mobile two±way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti±lock brake
system, SRS airbag system and seat belt pretensi oner
system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by a qualified
service shop or by your Toyota dealer before you dis-
pose of your vehicle.
ProCarManuals.com
Page 5 of 297
'01 TUNDRA_U (L/O 0008)
v2001 TUNDRA (OM 34416U)
On±pavement and off±road
driving tips
This vehicle will handle and maneuver differently from
an ordinary passenger car because it is designed for
off±road use also. It has a significantly higher rollover
rate than other types of vehicles. In addition, this ve-
hicle has a higher ground clearance and center of gravi-
ty than that of an ordinary passenger car. This vehicle
design feature causes this type of vehicle to be more
likely to rollover. Failure to operate this vehicle correctly
may result in loss of control, accidents or vehicle rol-
lover causing death or serious injury. Be sure to read
ªOff±road vehicle precautionsº in Section 2 and ªOff±
road driving precautionsº in Section 3.
ProCarManuals.com
Page 6 of 297
'01 TUNDRA_U (L/O 0008)
vi2001 TUNDRA (OM 34416U)
ProCarManuals.com
Page 7 of 297
'01 TUNDRA_U (L/O 0008)
vii2001 TUNDRA (OM 34416U)
Model code
Check the model code to see what type of model your vehicle is.
± D
The model code appears on the manufacturer 's plate with the heading ªMODELº.
See ªYour Toyota's identificationº in Section 2 for the manufacturer 's plate location.
Grade
D: Standard grade
S: SR5 grade
L: Limited grade
ProCarManuals.com
Page 8 of 297
'01 TUNDRA_U (L/O 0008)
12001 TUNDRA (OM 34416U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Instrument cluster overview 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 7
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 1
ProCarManuals.com
Page 9 of 297
'01 TUNDRA_U (L/O 0008)
22001 TUNDRA (OM 34416U)

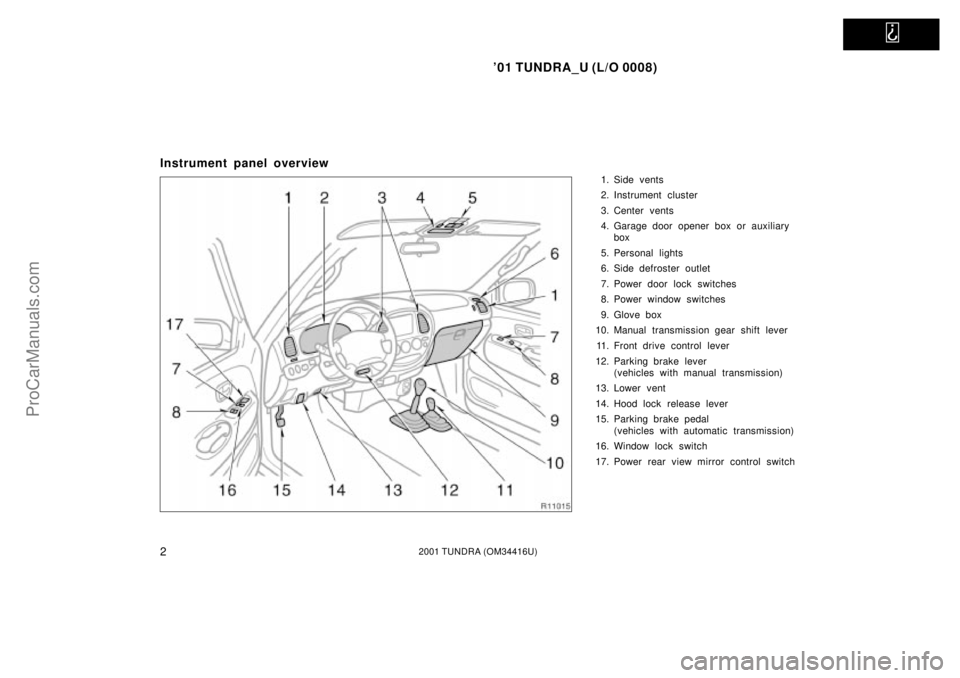

Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Garage door opener box or aux iliary
box
5. Personal lights
6. Side defroster outlet
7. Power door lock switches
8. Power window switches
9. Glove box
10. Manual transmission gear shift lever
11. Front drive control lever
12. Parking brake lever (vehicles with manual transmission)
13. Lower vent
14. Hood lock release lever
15. Parking brake pedal (vehicles with automatic transmission)
16. Window lock switch
17. Power rear view mirror control switch
ProCarManuals.com
Page 10 of 297
'01 TUNDRA_U (L/O 0008)
32001 TUNDRA (OM 34416U)

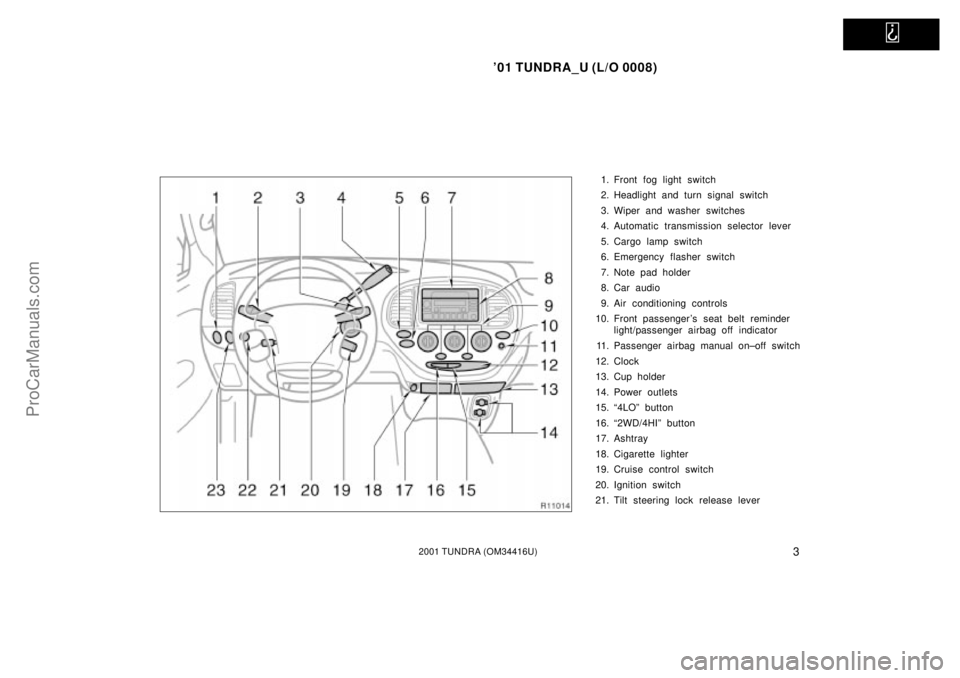

1. Front fog light switch
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Automatic transmission selector lever
5. Cargo lamp switch
6. Emergency flasher switch
7. Note pad holder
8. Car audio
9. Air conditioning controls
10. Front passenger 's seat belt reminder light/passenger airbag off indicator
11. Passenger airbag manual on±off switch
12. Clock
13. Cup holder
14. Power outlets
15. ª4LOº button
16. ª2WD/4HIº button
17. Ashtray
18. Cigarette lighter
19. Cruise control switch
20. Ignition switch
21. Tilt steering lock release lever
