TOYOTA TUNDRA 2001 Service Manual
Manufacturer: TOYOTA, Model Year: 2001, Model line: TUNDRA, Model: TOYOTA TUNDRA 2001Pages: 297, PDF Size: 3.21 MB
Page 41 of 297
'01 TUNDRA_U (L/O 0008)
342001 TUNDRA (OM 34416U)
ÐFront seat belt pretensioners
The driver and front passenger 's seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractors so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are acti-
vated even with no passenger in the front
seat.
Collisions occurring at certain s peeds and
angles may cause the seat belt preten-
sioners and SRS airbags not to operate
all together.This indicator comes on when the igni-
tion key is turned to the ªACCº or
ªONº position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating proper-
ly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
ªService reminder indicators and warning
buzzersº in Section 1±5.)The front seat belt pretensioner system
mainly consists of the following compo-
nents and their locations are shown in the
illustration.
1. Front airbag sensors
2. SRS warning light
3. Front seat belt pretensioner assemblies
4. Airbag sensor assembly
The front seat belt pretensioners are con-
trolled by the airbag sensor assembly. The
airbag sensor assembly consists of a saf-
ing sensor and airbag sensor.
ProCarManuals.com
Page 42 of 297
'01 TUNDRA_U (L/O 0008)
352001 TUNDRA (OM 34416U)
When the front seat belt pretensioners are
activated, an operating noise may be
heard and a small amount of smoke±like
gas may be released. This gas is harm-
less and does not indicate that a fire is
occurring.
Once the front seat belt pretensioners
have been activated, the seat belt retrac-
tors remain locked.

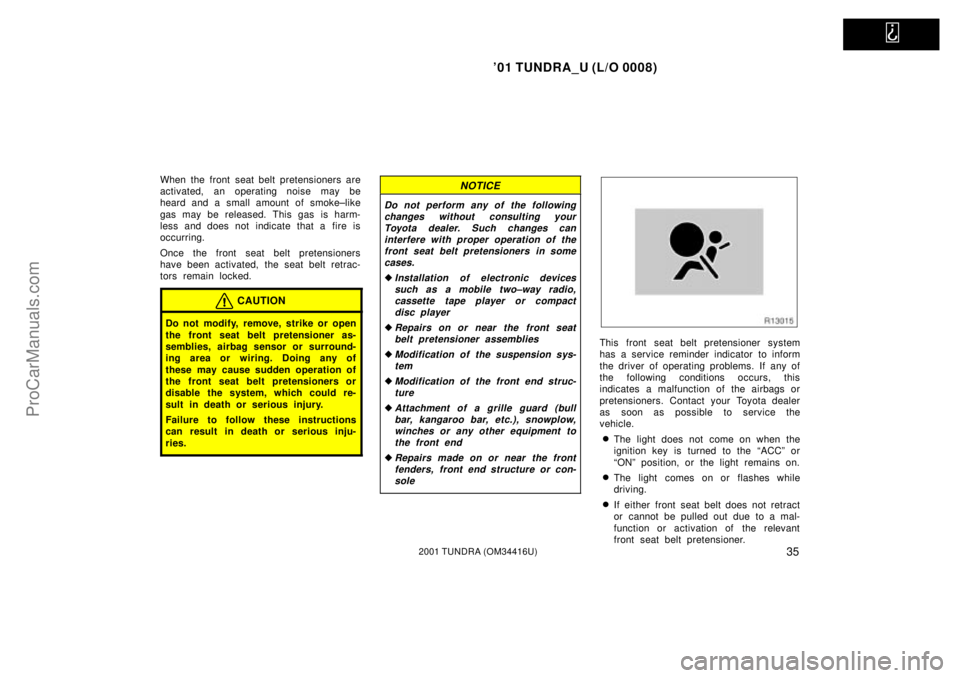

CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could re-
sult in death or serious injury.
Failure to follow these instructions
can result in death or serious inju-
ries.
NOTICE
Do not perform any of the following
changes without consulting yourToyota dealer. Such changes caninterfere with proper operation of thefront seat belt pretensioners in somecases.
Installation of electronic devicessuch as a mobile two±way radio,cassette tape player or compactdisc player
Repairs on or near the front seatbelt pretensioner assemblies
Modification of the suspension sys-tem
Modification of the front end struc-ture
Attachment of a grille guard (bullbar, kangaroo bar, etc.), snowplow,winches or any other equipment tothe front end
Repairs made on or near the frontfenders, front end structure or con-sole
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If any of
the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the ªACCº or
ªONº position, or the light remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or cannot be pulled out due to a mal-
function or activation of the relevant
front seat belt pretensioner.
ProCarManuals.com
Page 43 of 297
'01 TUNDRA_U (L/O 0008)
362001 TUNDRA (OM 34416U)
In the following cases, contact your Toyota
dealer as soon as possible:
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the front seat belt pretensioners
to operate.
Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise dam-
aged.
The SRS (Supplemental Restraint Sys-
tem) airbags are designed to provide
further protection for the driver and
right front passenger in addition to the
primary safety protection provided by
the seat belts.
Vehicles with separate front seatsÐThe
SRS airbags are designed to protect
the driver and front passenger.
Vehicles with bench type front seatsÐ
The SRS airbags are designed to pro-
tect the driver and right±front passen-
ger. They are not designed to protect
occupant in the center position. In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help reduce injury by inflat-
ing. The SRS airbags help to reduce inju-
ries mainly to the driver's or right front
passenger 's head or chest caused by di-
rectly hitting the steering wheel or dash-
board. The front passenger airbag is acti-
vated even with no passenger in the front
seat.
Be sure to wear your seat belt properly.
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and right front pas-
senger when the SRS airbags are inflated.
SRS driver and front
passenger airbags
ProCarManuals.com
Page 44 of 297
'01 TUNDRA_U (L/O 0008)
372001 TUNDRA (OM 34416U)
CAUTION
A driver or front passengers too
close to the steering wheel or dash-
board during airbag deployment can
be killed or seriously injured. Toyota
strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passengers sit as far
back as possible from the dash-
board.
All vehicle occupants be properly
restrained using the available seat
belts.

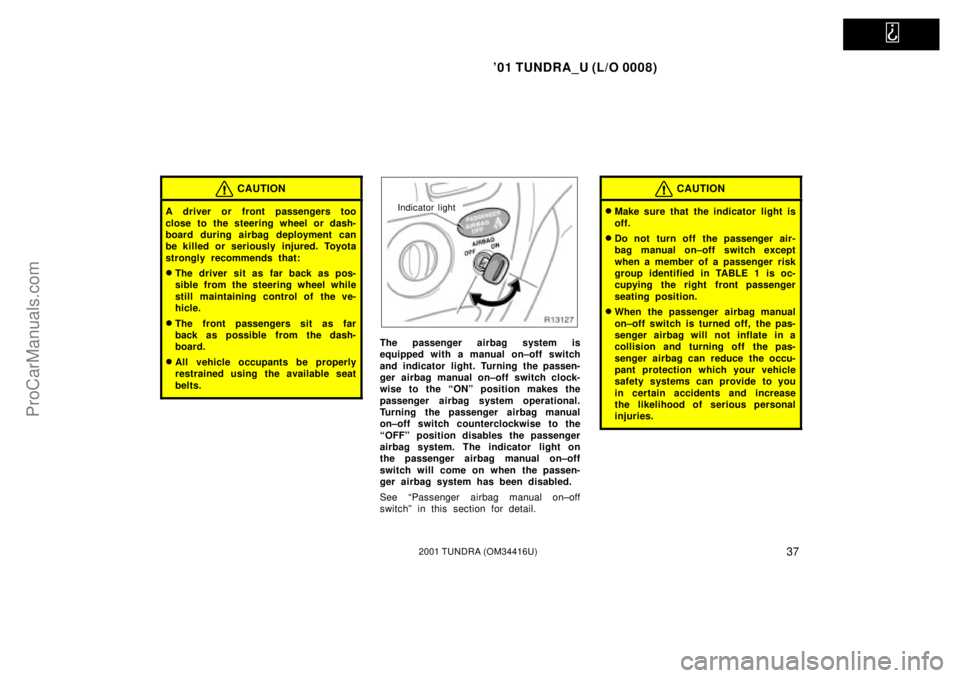

Indicator light
The passenger airbag system is
equipped with a manual on±off switch
and indicator light. Turning the passen-
ger airbag manual on±off switch clock-
wise to the ªONº position makes the
passenger airbag system operational.
Turning the passenger airbag manual
on±off switch counterclockwise to the
ªOFFº position disables the passenger
airbag system. The indicator light on
the passenger airbag manual on±off
switch will come on when the passen-
ger airbag system has been disabled.
See ªPassenger airbag manual on±off
switchº in this section for detail.
CAUTION
Make sure that the indicator light is
off.
Do not turn off the passenger air-
bag manual on±off switch except
when a member of a passenger risk
group identified in TABLE 1 is oc-
cupying the right front passenger
seating position.
When the passenger airbag manual
on±off switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.
ProCarManuals.com
Page 45 of 297
'01 TUNDRA_U (L/O 0008)
382001 TUNDRA (OM 34416U)
This indicator comes on when the igni-
tion key is turned to the ªACCº or
ªONº position. It goes off after about
6 seconds. This means the SRS airbags
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, inflators, warning light, interconnect-
ing wiring and power sources. (For details,
see ªService reminder indicators and
warning buzzersº in Section 1±5.)
TABLE 1: A PASSENGER RISK GROUP
Infant. An infant (less than 1 year old) who must ride in the front seat because:
Vehicle has no rear seat;
Vehicle has a rear seat too small to accommodate a rear±facing infant seat;
or
The infant has a medical condition which, according to the infant's physician,
makes it necessary for the infant to ride in the front seat so that the driver
can constantly monitor the child's condition.
Child age 1 to 12. A child age 1 to 12 must ride in the front seat because:
Vehicle has no rear seat:
Although children ages 1 to 12 ride in the rear seat(s) whenever possible,
children ages 1 to 12 sometimes must ride in the front because no space is
available in the rear seat(s) of vehicle; or
The child has a medical condition which, according to the child's physician,
makes it necessary for the child to ride in the front seat so that the driver can
constantly monitor the child's condition.
Medical condition. A passenger has a medical condition which according to his
or her physician:
Causes the passenger airbag to pose a special risk for the passenger: and
Makes the potential harm from the passenger airbag in a crash greater than the
potential harm from turning off the airbag and allowing the passenger, even if
belted, to hit the dashboard, or windshield in a crash.
For more detailed information concerning about the passenger risk group, please
contact NHTSA at 1±800±424±9393 or Transport Canada at 1±800±333±0371.
ProCarManuals.com
Page 46 of 297
'01 TUNDRA_U (L/O 0008)
392001 TUNDRA (OM 34416U)
The SRS airbag system is designed to
activate in response to a severe frontal
impact within the shaded area between
the arrows in the illustration.
The SRS airbags will deploy if the severi-
ty of the impact is above the designed
threshold level, comparable to an approxi-
mate 25 km/h (15 mph) collision when
impacting straight into a fixed barrier that
does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS airbags
may not deploy. However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if it is involved in an underride
collision (e.g. a collision in which the nose
of the vehicle ªunderridesº, or goes under,
the bed of a truck, etc.).
It is possible that in some collisions at the
lower zone of airbag sensor detection and
activation the SRS airbags and seat belt
pretensioners will not operate all together.
For the safety of all occupants, always
wear your seat belts properly.
Collision from the rear
Collision from the side Vehicle rollover
The SRS airbags are not designed to
inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or
if it is involved in a low±speed frontal
collision.
ProCarManuals.com
Page 47 of 297
'01 TUNDRA_U (L/O 0008)
402001 TUNDRA (OM 34416U)
Hitting a curb,
edge of pavement
or hard material Falling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS airbags may deploy if a seri-
ous impact occurs to the underside of
your vehicle. Some examples are shown
in the illustration.The SRS airbag system consists mainly of
the following components, and their loca-
tions are shown in the illustration. 1. Front airbag sensors
2. SRS warning light
3. Airbag module for right front passenger (airbag and inflator)
4. Passenger airbag manual on±off switch
5. Airbag sensor assembly
6. Airbag module for driver (airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor. In a severe frontal impact, the sensors
detect deceleration and the system trig-
gers the airbag inflators. Then a chemical
reaction in the inflators quickly fills the
airbags with non±toxic gas to help restrain
the forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non±toxic gas. This
does not indicate a fire. This gas is nor-
mally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once.
ProCarManuals.com
Page 48 of 297
'01 TUNDRA_U (L/O 0008)
412001 TUNDRA (OM 34416U)
A crash severe enough to inflate the air-
bags may break the windshield as the
vehicle buckles. In vehicles with a pas-
senger airbag the windshield may also be
damaged by absorbing some of the force
of the inflating airbag.CAUTION
The SRS airbag system is designed
only as a supplement to the prima-
ry protection of the driver side and
right front passenger side seat belt
systems. The front seat occupants
can be killed or seriously injured by
the inflating airbags if they do not
wear the available seat belts prop-
erly. During sudden braking just be-
fore a collision, an unrestrained
driver or front passenger can move
forward into direct contact with or
close proximity to the airbag which
may then deploy during the colli-
sion. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wear-
ing a seat belt properly during an
accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For
instructions and precautions con-
cerning the seat belt system, see
ªSeat beltsº in this section.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. As to access
cab models, Toyota recommends
that all infants and children be
placed in the rear seat of the ve-
hicle and properly restrained. The
rear seat is the safest for infants
and children. For instructions con-
cerning the installation of a child
restraint system, see ªChild re-
straintº in this section.
ProCarManuals.com
Page 49 of 297
'01 TUNDRA_U (L/O 0008)
422001 TUNDRA (OM 34416U)

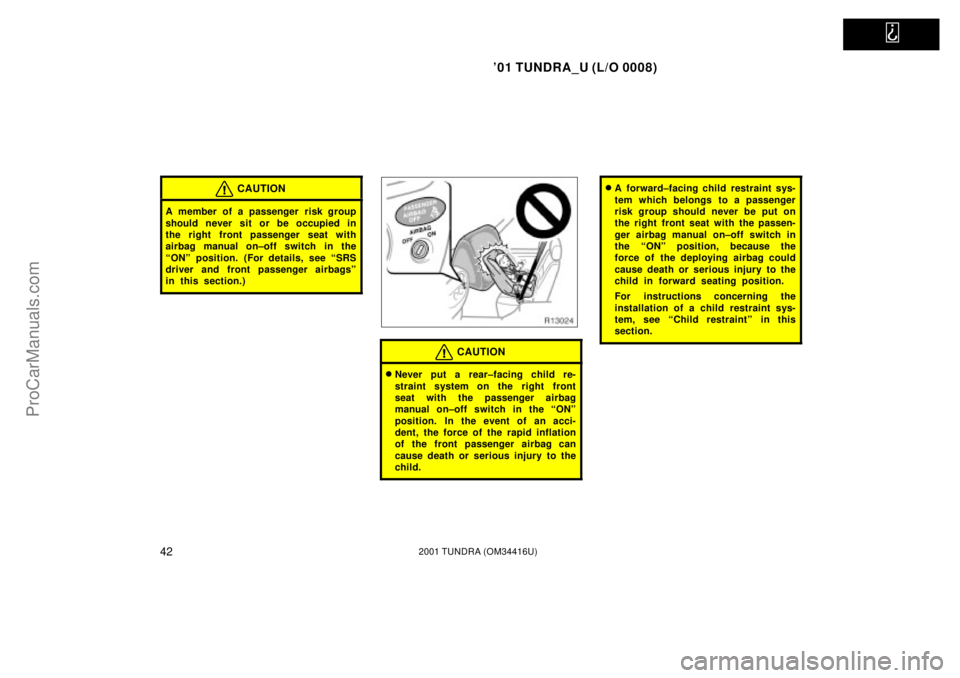

CAUTION
A member of a passenger risk group
should never sit or be occupied in
the right front passenger seat with
airbag manual on±off switch in the
ªONº position. (For details, see ªSRS
driver and front passenger airbagsº
in this section.)
CAUTION
Never put a rear±facing child re-
straint system on the right front
seat with the passenger airbag
manual on±off switch in the ªONº
position. In the event of an acci-
dent, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child.
A forward±facing child restraint sys-
tem which belongs to a passenger
risk group should never be put on
the right front seat with the passen-
ger airbag manual on±off switch in
the ªONº position, because the
force of the deploying airbag could
cause death or serious injury to the
child in forward seating position.
For instructions concerning the
installation of a child restraint sys-
tem, see ªChild restraintº in this
section.
ProCarManuals.com
Page 50 of 297
'01 TUNDRA_U (L/O 0008)
432001 TUNDRA (OM 34416U)

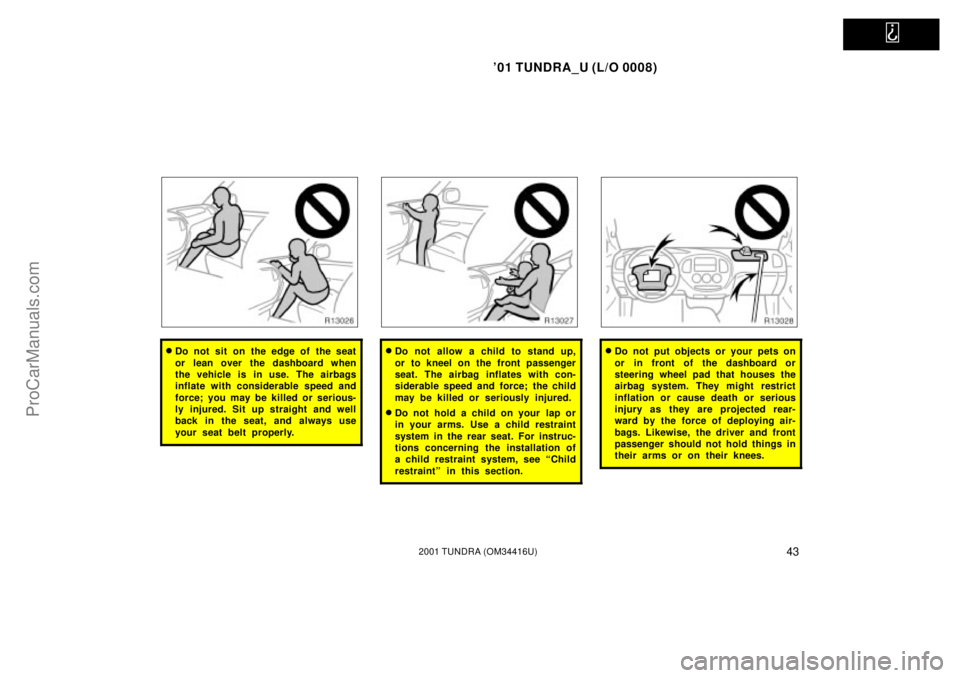

Do not sit on the edge of the seat
or lean over the dashboard when
the vehicle is in use. The airbags
inflate with considerable speed and
force; you may be killed or serious-
ly injured. Sit up straight and well
back in the seat, and always use
your seat belt properly.Do not allow a child to stand up,
or to kneel on the front passenger
seat. The airbag inflates with con-
siderable speed and force; the child
may be killed or seriously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see ªChild
restraintº in this section.
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
airbag system. They might restrict
inflation or cause death or serious
injury as they are projected rear-
ward by the force of deploying air-
bags. Likewise, the driver and front
passenger should not hold things in
their arms or on their knees.
ProCarManuals.com
