TOYOTA TUNDRA 2007 2.G Navigation Manual

58

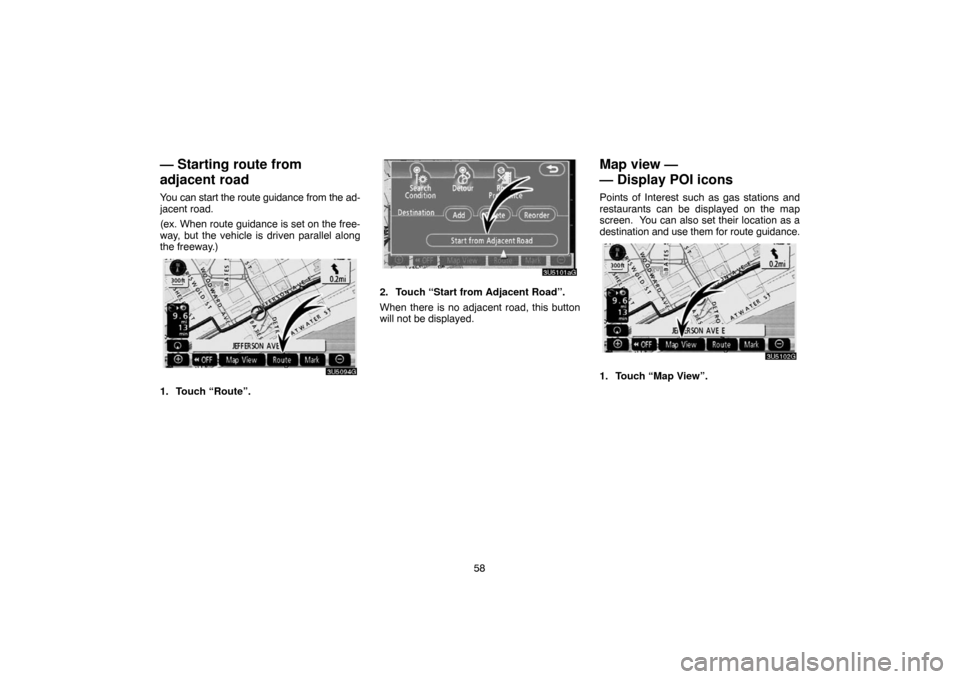

— Starting route from
adjacent road
You can start the route guidance from the ad-
jacent road.
(ex. When route guidance is set on the free-
way, but the vehicle is driven parallel along
the freeway.)
3U5094G
1. Touch “Route”.
3U5101aG
2. Touch “Start from Adjacent Road”.
When there is no adjacent road, this button
will not be displayed.
Map view —
— Display POI icons
Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as a
destination and use them for route guidance.
3U5102G
1. Touch “Map View”.

59
3U5103G

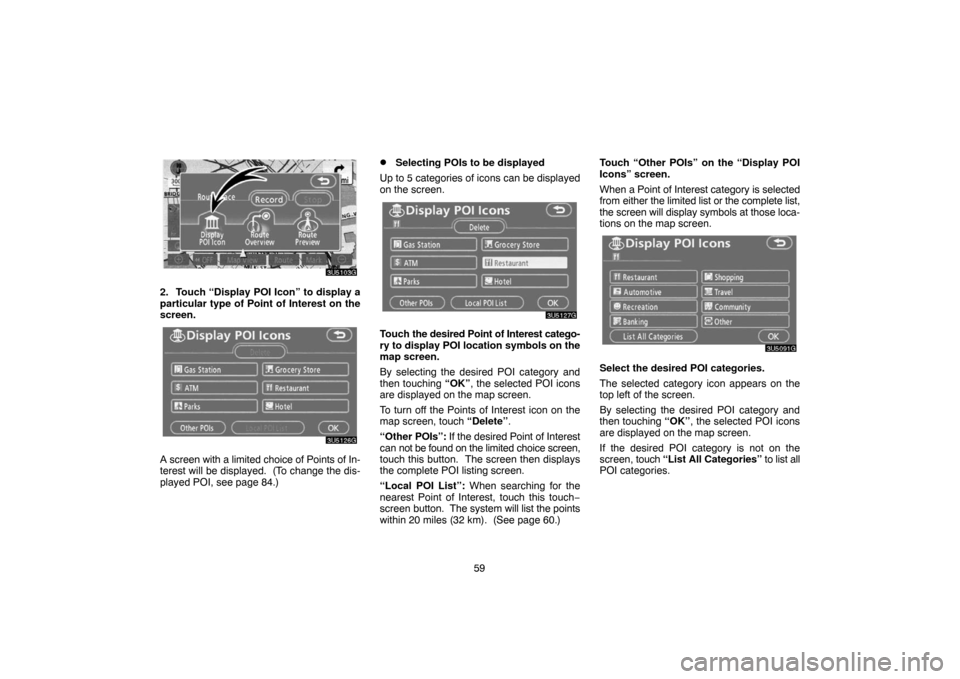

2. Touch “Display POI Icon” to display a
particular type of Point of Interest on the
screen.
3U5126G

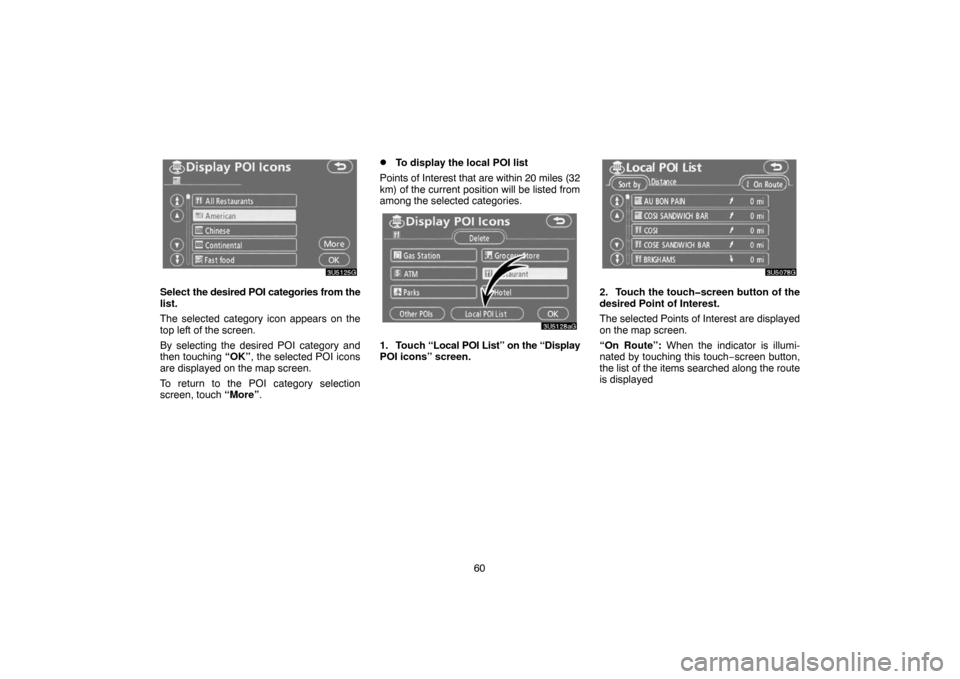

A screen with a limited choice of Points of In-
terest will be displayed. (To change the dis-
played POI, see page 84.)
Selecting POIs to be displayed
Up to 5 categories of icons can be displayed
on the screen.
3U5127G
Touch the desired Point of Interest catego-
ry to display POI location symbols on the
map screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
To turn off the Points of Interest icon on the
map screen, touch “Delete”.
“Other POIs”: If the desired Point of Interest
can not be found on the limited choice screen,
touch this button. The screen then displays
the complete POI listing screen.
“Local POI List”: When searching for the
nearest Point of Interest, touch this touch−
screen button. The system will list the points
within 20 miles (32 km). (See page 60.)Touch “Other POIs” on the “Display POI
Icons” screen.
When a Point of Interest category is selected
from either the limited list or the complete list,
the screen will display symbols at those loca-
tions on the map screen.
3U5091G
Select the desired POI categories.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list all
POI categories.

60
3U5125G
Select the desired POI categories from the
list.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
To return to the POI category selection
screen, touch “More”.
To display the local POI list
Points of Interest that are within 20 miles (32
km) of the current position will be listed from
among the selected categories.
3U5128aG
1. Touch “Local POI List” on the “Display
POI icons” screen.
3U5078G
2. Touch the touchscreen button of the
desired Point of Interest.
The selected Points of Interest are displayed
on the map screen.
“On Route”: When the indicator is illumi-
nated by touching this touch−screen button,
the list of the items searched along the route
is displayed

61

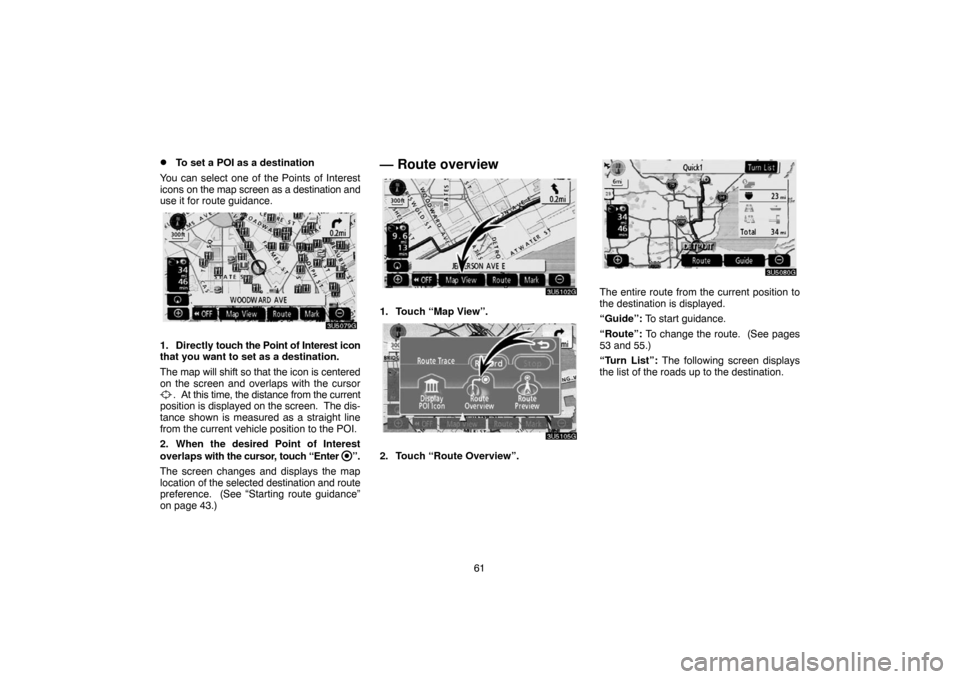

To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination and
use it for route guidance.
3U5079G
1. Directly touch the Point of Interest icon
that you want to set as a destination.
The map will shift so that the icon is centered
on the screen and overlaps with the cursor
. At this time, the distance from the current
position is displayed on the screen. The dis-
tance shown is measured as a straight line
from the current vehicle position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and route
preference. (See
“Starting route guidance”
on page 43.)
— Route overview
3U5102G
1. Touch “Map View”.
3U5105G
2. Touch “Route Overview”.
3U5080G
The entire route from the current position to
the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (See pages
53 and 55.)

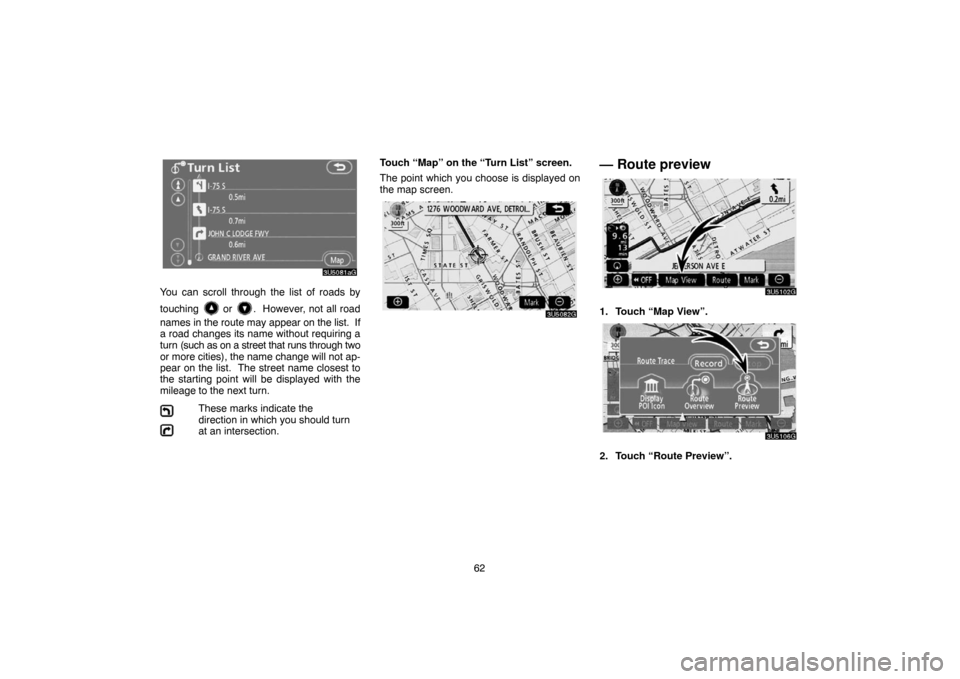

“Turn List”: The following screen displays
the list of the roads up to the destination.

62
3U5081aG
You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap-
pear on the list. The street name closest to
the starting point will be displayed with the
mileage to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.
Touch “Map” on the “Turn List” screen.
The point which you choose is displayed on
the map screen.
3U5082G

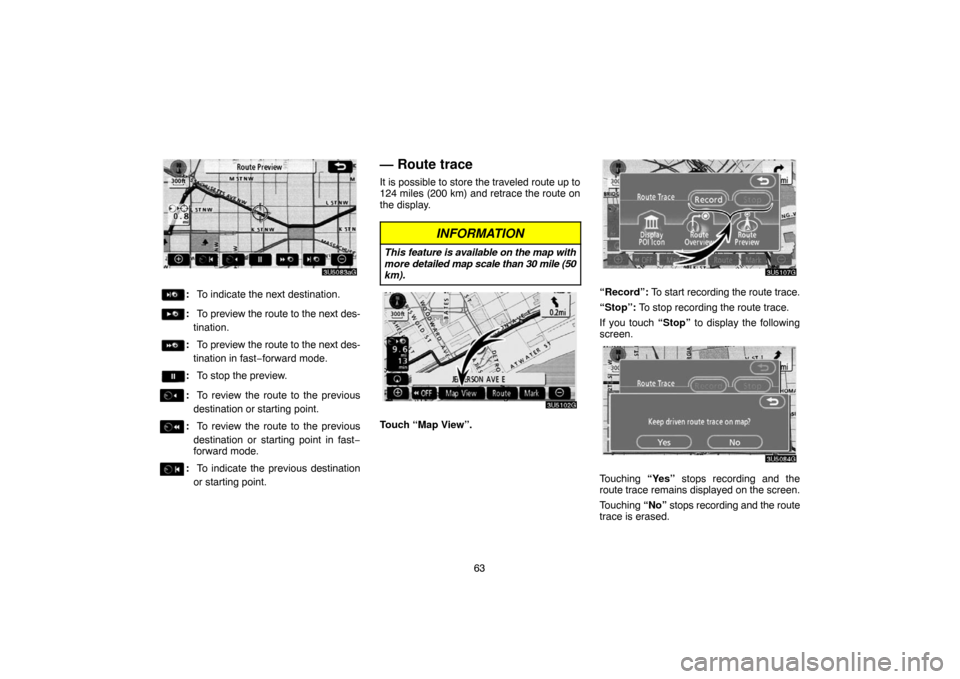

— Route preview
3U5102G
1. Touch “Map View”.
3U5106G
2. Touch “Route Preview”.

63
3U5083aG
:To indicate the next destination.
:To preview the route to the next des-
tination.
:To preview the route to the next des-
tination in fast−forward mode.
:To stop the preview.
:To review the route to the previous
destination or starting point.
:To review the route to the previous
destination or starting point in fast−
forward mode.
:To indicate the previous destination
or starting point.
— Route trace
It is possible to store the traveled route up to
124 miles (200 km) and retrace the route on
the display.
INFORMATION
This feature is available on the map with
more detailed map scale than 30 mile (50
km).
3U5102G
Touch “Map View”.
3U5107G
“Record”: To start recording the route trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
3U5084G
Touching “Yes” stops recording and the
route trace remains displayed on the screen.
Touching “No” stops recording and the route
trace is erased.

64

65
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
Suspending and resuming guidance66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Volume67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User selection67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
My places69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering memory points70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing memory points71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting memory points75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering home75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting home76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering area to avoid76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing area to avoid77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting area to avoid79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous points80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION IV

66

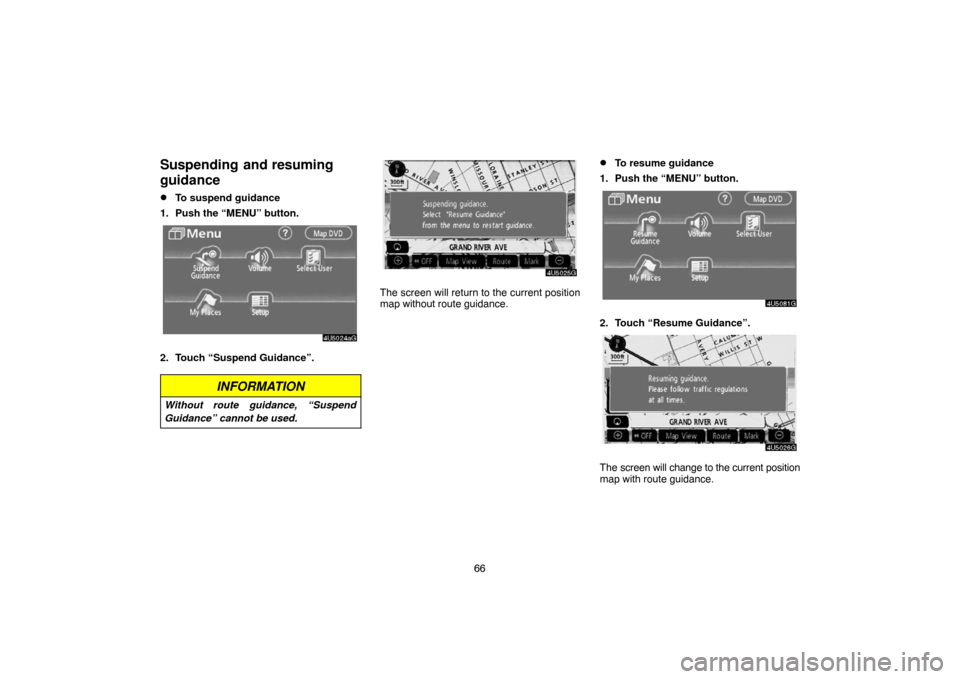

Suspending and resuming
guidance
To suspend guidance
1. Push the “MENU” button.
4U5024aG
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
4U5025G
The screen will return to the current position
map without route guidance.
To resume guidance
1. Push the “MENU” button.
4U5081G
2. Touch “Resume Guidance”.
4U5026G
The screen will change to the current position
map with route guidance.

67

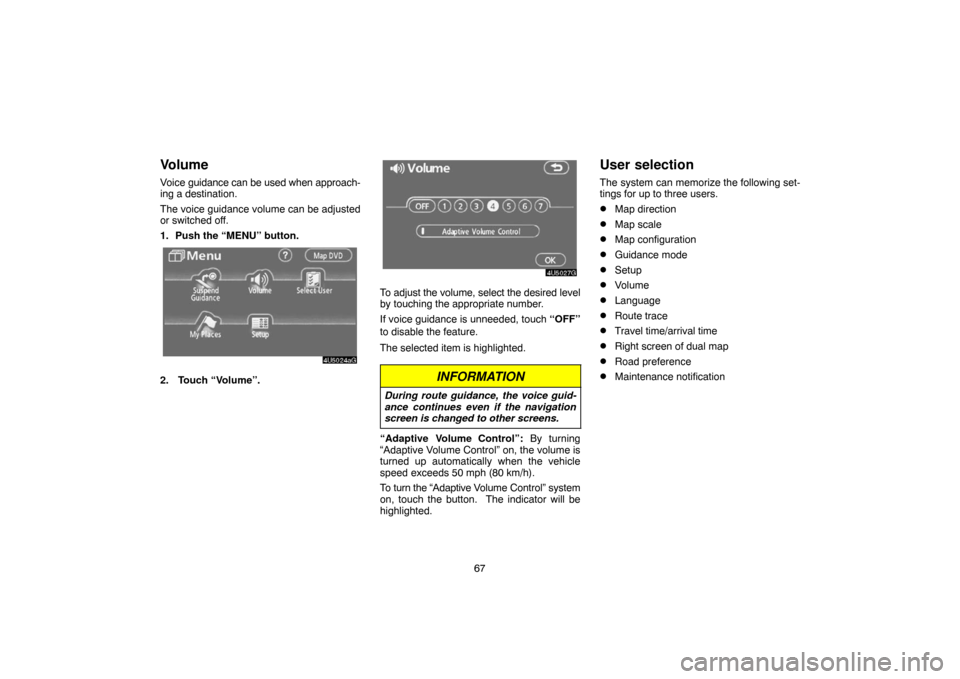

Volume
Voice guidance can be used when approach-
ing a destination.
The voice guidance volume can be adjusted
or switched off.
1. Push the “MENU” button.
4U5024aG
2. Touch “Volume”.
4U5027G
To adjust the volume, select the desired level
by touching the appropriate number.
If voice guidance is unneeded, touch “OFF”
to disable the feature.
The selected item is highlighted.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: By turning
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the button. The indicator will be
highlighted.
User selection
The system can memorize the following set-
tings for up to three users.
Map direction
Map scale
Map configuration
Guidance mode
Setup
Volume
Language
Route trace
Travel time/arrival time
Right screen of dual map
Road preference
Maintenance notification
