TOYOTA TUNDRA 2007 2.G Navigation Manual

38
2U5031G
By touching the touch−screen button of the
desired item, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 43.)
“On Route”: When the indicator is illumi-
nated by touching this touch−screen button,
the list of the items searched along the route
is displayed.
— Destination search by
“Emergency”
1. Touching “Emergency” on the
“Destination” screen.
The display changes to a screen to select po-
lice stations, dealers, hospitals or fire sta-
tions. While driving, only nearby police sta-
tions, dealers, hospitals, or fire stations are
shown. The current position is shown with an
address, and the latitude and the longitude at
the top of the screen.
2U5033aG
2. Touch the desired emergency catego-
ry.
The selected emergency category list is dis-
played.
2U5034aG
3. Touch the touchscreen button of the
desired destination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 43.)
INFORMATION
The navigation system does not guide in
areas where route guidance is unavail-
able. (See page 211.)

39
— Destination search by
“Memory”
1. Touch “Memory” on the “Destination”
screen.
A list of registered memory points is dis-
played. (To register or edit memory points,
see “My places” on page 69.)
2U5035G
2. Touch the touchscreen button of your
desired memory point.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 43.)
— Destination search by
“Previous”
1. Touch “Previous” on the “Destination”
screen.
2U5037G
The previous starting point and up to 100 pre-
viously set destinations are displayed on the
screen.
2. Touch the touchscreen button of the
desired destination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 43.)
INFORMATION
The list of previous destinations can be
deleted while the vehicle is stopped, if
these destinations are no longer neces-
sary. (See “ — Deleting previous points”
on page 80.)

40
— Destination search by
“Map”
Touch “Map” on the “Destination” screen.
2U5039aG
The screen changes and displays the map
location that was previously displayed just
before the destination input operation and the
route preference. (See “Starting route
guidance” on page 43.)
INFORMATION
Guidance starts if “Enter” is touched
even while driving. However, the cursor
cannot be moved.
— Destination search by
“Intersection”
1. Touch “Intersection” on the
“Destination” screen.
2U5040G
2. Input the name of the two intersecting
streets which are located near the destina-
tion to be set.
2U5041G
3. Touch the touchscreen button of the
desired item.
After inputting the two intersecting streets,
the screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 43.)

41
2U5105a
If the same two streets cross at more than one
intersection, the screen changes and dis-
plays the menu to select the city name where
the streets intersect. Select the city, and the
map location of the selected destination and
the route preference. (See “Starting route
guidance” on page 43.)
— Destination search by
“Freeway Ent./Exit”
1. To input a freeway entrance or exit,
touch “Freeway Ent./Exit” on the
“Destination” screen.
2U5042aG
Be sure to use the complete name of the free-
way or highway, including the hyphen, when
entering the destination. Freeways and inter-
states use an “I” (I−405). US highways use
the state designation before the number
(CA−118).
2U5043aG
2. Select the desired freeway by touching
the touchscreen button.
2U5044aG
3. Either a freeway “Entrance” or “Exit”
can be selected.

42
2U5045aG
4. Touch the touchscreen button of the
desired entrance or exit name.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 43.)
“Input Name”: An applicable list is displayed
by touching this touch−screen button and in-
putting the name.
— Destination search by
“Coordinates”
1. Touch “Coordinates” on the
“Destination” screen.
2U5046G
2. Input the latitude and the longitude.
3. When the input is finished, touch
“OK”.
By touching touch−screen the button of the
desired point, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 43.)
— Destination search by
“Phone #”
1. Touch “Phone #” on the “Destination”
screen.
2U5047G
2. Input a telephone number.
3. After inputting a telephone number,
touch “OK”.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 43.)
If there is more than one site having the same
number, the following screen will be dis-
played.

43
2U5048G
INFORMATION
If there is no match for the telephone
number inputted, a list of identical
numbers with different area codes
will be displayed.
To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 75.)
Starting route guidance
After inputting the destination, the screen
changes and displays the map location of the
selected destination and the route prefer-
ence.
2U5049aG
1. When an arrow facing the desired
point is touched, the map scrolls in that di-
rection.
Releasing the finger from the arrow will stop
the scrolling.2. Touch “Enter”.
The system starts route search and displays
recommended routes.
If there is already a set destination, “Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
“Route Preference”: To change the route
preference. (See page 45.)
“Info.”: If this touch−screen button is dis-
played on the top of the screen, touch it to
view items such as name, address, and
phone number.

44
2U5050aG
1Current position
2Destination point
3Type of the route and the distance
4Distance of the entire route
3. To start guidance, touch “Guide”.
“3 Routes”: To select the desired route from
three possible routes. (See page 45.)
“Route”: To change the route. (See pages
53 and 55.)
INFORMATION
Guidance can be suspended or
resumed. (See “Suspending and
resuming guidance” on page 66.)
If “Guide” is touched until a beep
sounds, Demo mode will start. Push
the “MAP/VOICE” button to finish
Demo mode.
The route for returning may not be the
same as that for going.
The route guidance to the destination
may not be the shortest route nor a
route without traffic congestion.
Route guidance may not be available
if there is no road data for the speci-
fied location.
When setting the destination on a
map with a scale larger than 0.5 miles
(800 m), the map scale changes to 0.5
miles (800 m) automatically. Set the
destination again.
If a destination is entered, the road
nearest to the point you selected is
set as the destination.
CAUTION
Be sure to obey traffic regulations and
keep road conditions in mind while
driving. If a traffic sign on the road
has been changed, the route guidance
may provide wrong information.

45
To change the route before starting
guidance
ROUTE PREFERENCE
2U5098aG
1. You can change route preference by
touching “Route Preference”.
2U5051G
2. Turn the indicator on or off by touching
the touchscreen button.
When searching for a route, the system func-
tions to avoid routes where the indicator is
dimmed.3. After choosing conditions, touch
“OK”.
INFORMATION
Even if the “Allow Freeway” indicator
is dimmed, the route cannot avoid in-
cluding a freeway in some cases.
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.
3 ROUTES SELECTION
2U5099G
1. To select the desired route from three
routes, touch “3 Routes”.
2U5052G
2. Touch “Quick1”, “Quick2” or “Short”
to select the desired route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Other route.
This route is indicated by a purple line.

46 “Short”: A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.

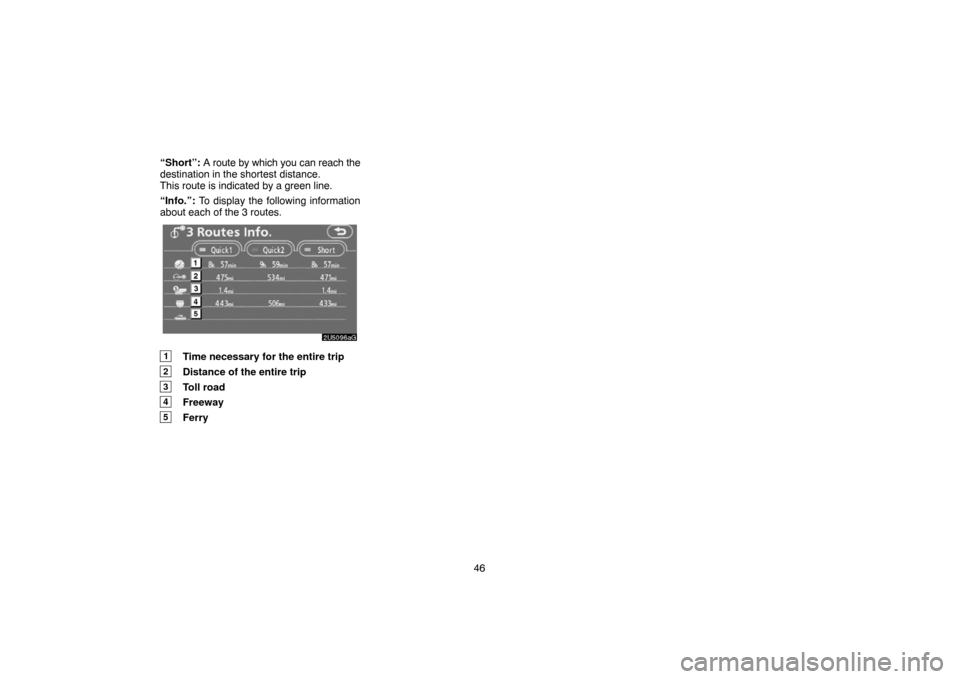

“Info.”: To display the following information
about each of the 3 routes.
2U5096aG
1Time necessary for the entire trip
2Distance of the entire trip
3Toll road
4Freeway
5Ferry

47
ROUTE GUIDANCE
Route guidance
Route guidance screen48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical voice guidance prompts50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance and time to destination52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destination53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reordering destinations54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting route55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Search condition55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preference57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route from adjacent road58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map view58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display POI icons58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preview62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route trace63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
