TOYOTA TUNDRA 2007 2.G User Guide

22007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. Side defroster outlet
2. Instrument panel vents (side vents)
3. Instrument cluster
4. Automatic transmission selector lever
5. Instrument panel vents (center vents)
6. Glove boxes
7. Power door lock switches
8. Power window switches
9. Auxiliary boxes
10. Bottle holders
11. Instrument panel light control dial
12. Interior light/personal light main switch
13. Roll sensing of curtain shield airbags off switch (“RSCA OFF” switch)
14. Power back window switch (Crew Max models)
15. Cargo lamp switch
16. Hood lock release lever
17. Parking brake pedal
18. Power rear view mirror control switch
19. Window lock switch

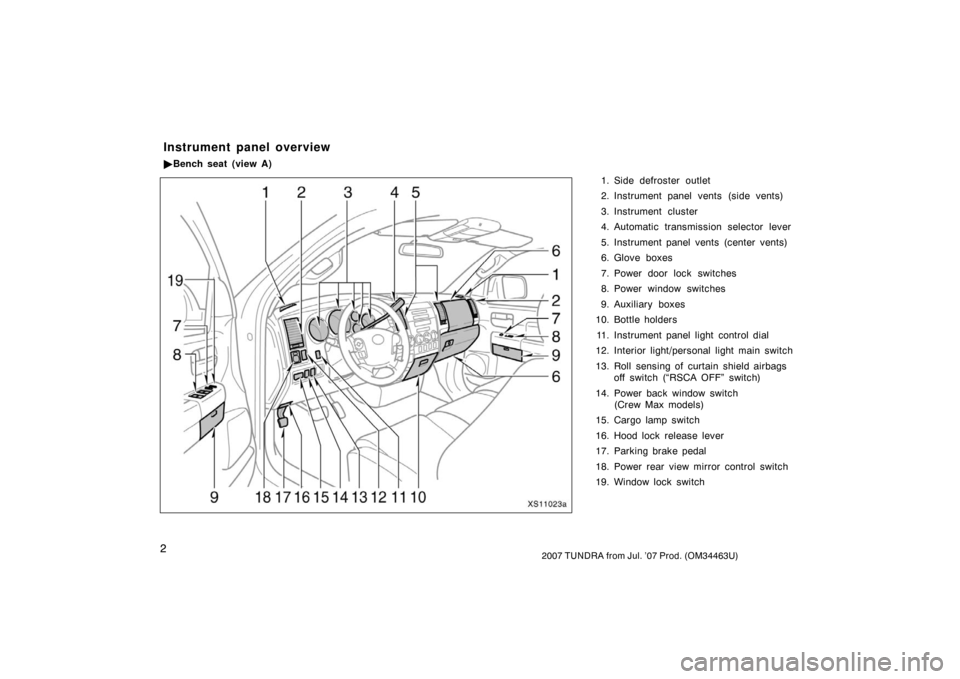

Instrument panel overview
 Bench seat (view A)
XS11023a

32007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. Side defroster outlet
2. Instrument panel vents (side vents)
3. Instrument cluster
4. Instrument panel vents (center vents)
5. Glove boxes
6. Power door lock switches
7. Power window switches
8. Auxiliary boxes
9. A/V input adapter (with rear seat entertainment system)
10. Power outlet
11. Rear vents (Crew Max models)
12. Center console box
13. Ashtray
14. Cup holders
15. Automatic transmission selector lever
16. Instrument panel light control dial
17. Interior light/personal light main switch
18. Roll sensing of curtain shield airbags off switch (“RSCA OFF” switch)
19. Power back window switch (Crew Max models)
20. Cargo lamp switch
21. Hood lock release lever
22. Parking brake pedal

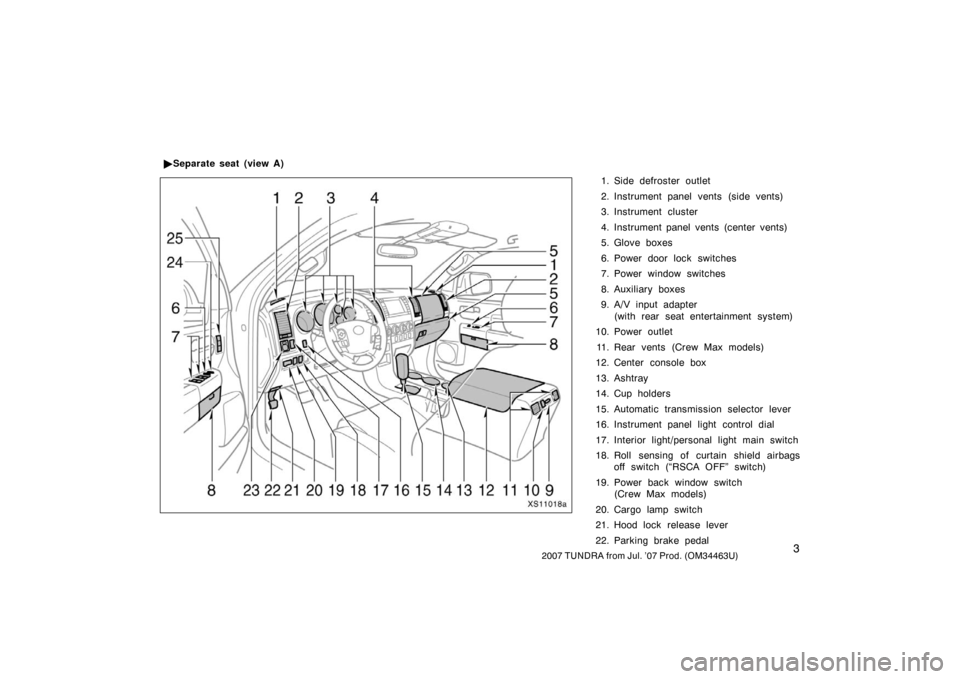

Separate seat (view A)
XS11018a

42007 TUNDRA from Jul. ’07 Prod. (OM34463U)
23. Power rear view mirror control switch
24. Window lock switch
25. Driving position memory switch

52007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Accessory meter control switch
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
7. Air conditioning controls
8. Outside rear view mirror defogger switch/Back window and outside rear
view mirror defogger switch
9. Front passenger ’s seat belt reminder light
10. Passenger airbag on −off indicator light
11. Passenger airbag off switch (Regular cab models)
12. AUX adapter
13. Ashtray
14. Power outlet
15. Cigarette lighter
16. Front drive control switch knob (four −wheel drive models)
17. Tire pressure warning reset switch

Bench seat (view B)
XS11022

62007 TUNDRA from Jul. ’07 Prod. (OM34463U)
18. “VSC OFF” switch
19. Power outlet main switch (with rear seat entertainment system)
20. Cruise control switch
21. Ignition switch
22. Accessory meter
23. Engine immobilizer/theft deterrent system indicator light
24. Intuitive parking assist indicator lights

72007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Accessory meter control switches
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
7. Air conditioning controls
8. Outside rear view mirror defogger switch/Back window and outside rear
view mirror defogger switch
9. Front passenger ’s seat belt reminder light
10. Passenger airbag on −off indicator light
11. Passenger airbag off switch (Regular cab models)
12. Power outlet
13. AUX adapter
14. Cigarette lighter
15. “TOW/HAUL” switch
16. Front drive control switch knob (four −wheel drive models)
17. Tire pressure warning reset switch

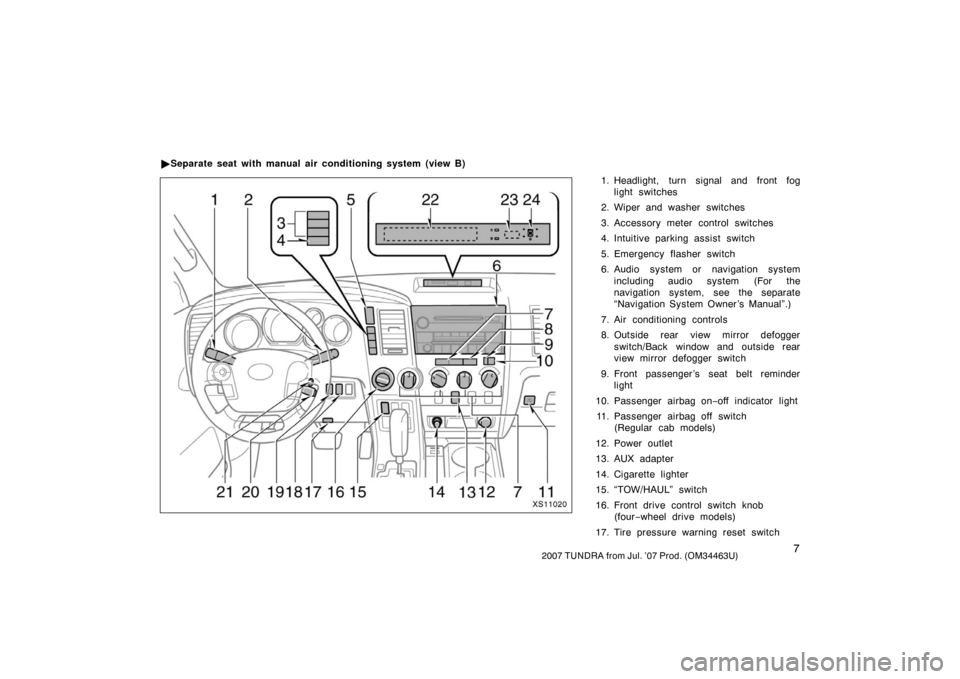

Separate seat with manual air conditioning system (view B)
XS11020

82007 TUNDRA from Jul. ’07 Prod. (OM34463U)
18. “VSC OFF” switch
19. Power outlet main switch(with rear seat entertainment system)
20. Cruise control switch
21. Ignition switch
22. Accessory meter
23. Engine immobilizer/theft deterrent system indicator light
24. Intuitive parking assist indicator lights

92007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Multi −information display/accessory me-
ter control switches
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
7. Outside rear view mirror defogger switch/Back window and outside rear
view mirror defogger switch
8. Front passenger ’s seat belt reminder light
9. Passenger airbag on −off indicator light
10. Seat heater dials 11. Air conditioning controls
12. Power outlet
13. AUX adapter
14. Cigarette lighter
15. “TOW/HAUL” switch
16. Front drive control switch knob (four −wheel drive models)
17. Tire pressure warning reset switch

Separate seat with automatic air conditioning system (view B)
XS11021

102007 TUNDRA from Jul. ’07 Prod. (OM34463U)
18. “VSC OFF” switch
19. Power outlet main switch(with rear seat entertainment system)
20. Cruise control switch
21. Ignition switch
22. Accessory meter
23. Engine immobilizer/theft deterrent sys- tem indicator light
24. Intuitive parking assist indicator lights
XS10010a
1. Audio remote control switches
2. Telephone switches
3. Talk switch
XS11007a
Ty p e A
XS11024
Ty p e B
Steering switches and
overhead console overview
 Steering switches
Overhead console

112007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS11009e
Ty p e C
1. Card holder
2. Interior light switch
3. Interior light
4. Sunglass holder
5. Microphone
6. Personal lights
7. Auxiliary boxes
8. Moon roof switches(on some Crew Max models)
