122007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS11002c
1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer
4. Fuel gauge 5. Voltmeter
6. Oil pressure gauge
7. Engine coolant temperature gauge
8. Trip meter reset knob
9. Odometer and two trip meters10. Automatic transmission shift position
indicator lights
11. Automatic transmission shift range display
12. Automatic transmission fluid temperature gauge
Instrument cluster overview
Ty p e A
Page 22 of 611
132007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS11003c

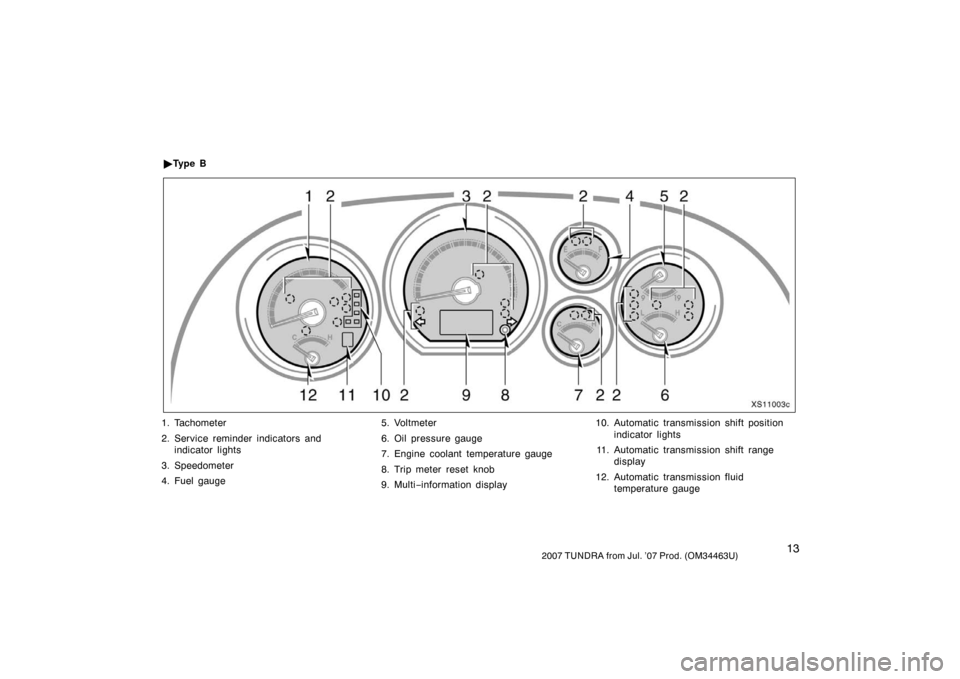

1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer
4. Fuel gauge 5. Voltmeter
6. Oil pressure gauge
7. Engine coolant temperature gauge
8. Trip meter reset knob
9. Multi
−information display 10. Automatic transmission shift position
indicator lights
11. Automatic transmission shift range display
12. Automatic transmission fluid temperature gauge
Ty p e B
Page 23 of 611
142007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Driver ’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Brake system warning light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
or
Front passenger ’s seat belt reminder light∗1
Passenger airbag on −off indicator light
Engine oil replacement reminder light∗
1
(for vehicles sold in U.S.A.)
Open door warning light∗ 1
Tire pressure warning light∗1
Automatic transmission fluid temperature
warning light∗1
Engine immobilizer/theft deterrent system
indicator lightLow fuel level warning light∗1
Master warning light∗1
Low windshield washer fluid level warning light∗1
or
Indicator symbols on the instrument panel
Page 24 of 611
152007 TUNDRA from Jul. ’07 Prod. (OM34463U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 197 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 259 in
Section 1 −7.
∗
3: If this light flashes, see “Four −wheel drive system” on page
239 in Section 1 −7.
∗
4: For details, see “—Roll sensing of curtain shield airbags off
switch” on page 113 in Section 1 −3.

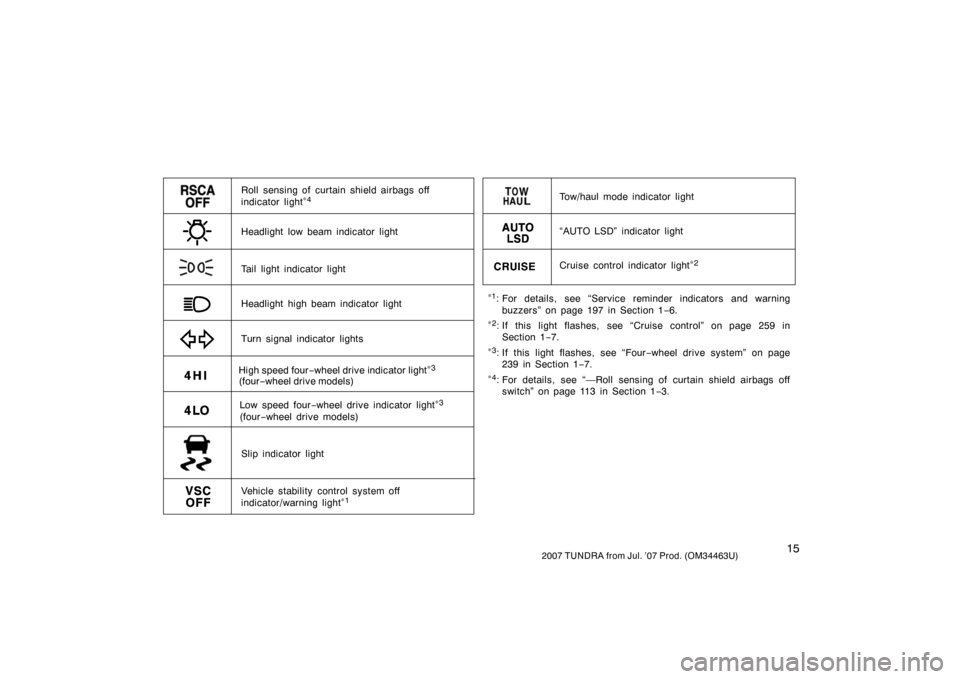

Cruise control indicator light
∗
2
Slip indicator light
Vehicle stability control system off
indicator/warning light
∗1
“AUTO LSD” indicator light
Headlight high beam indicator light
Turn signal indicator lights
Tail light indicator light
Low speed four −wheel drive indicator light∗
3
(four −wheel drive models) Tow/haul mode indicator light
Headlight low beam indicator light
High speed four
−wheel drive indicator light∗
3
(four −wheel drive models)
Roll sensing of curtain shield airbags off
indicator light∗
4
Page 25 of 611
162007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Page 26 of 611
172007 TUNDRA from Jul. ’07 Prod. (OM34463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back window 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Power back window 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Tailgate 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Hood 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 27 of 611
182007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS12045
These keys work in every lock.
Your vehicle is supplied with two kinds
of keys.1. Master keys—These keys work in ev- ery lock.
2. Sub key—This key will not work in the glove box and tailgate.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
XS12046
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
XS12049
Your vehicle is supplied with the two
kinds of keys.
1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key will not work in the glove box and tailgate.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)
Page 28 of 611
192007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
LS12040
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
LS12041
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
Page 29 of 611
202007 TUNDRA from Jul. ’07 Prod. (OM34463U)
LS12042

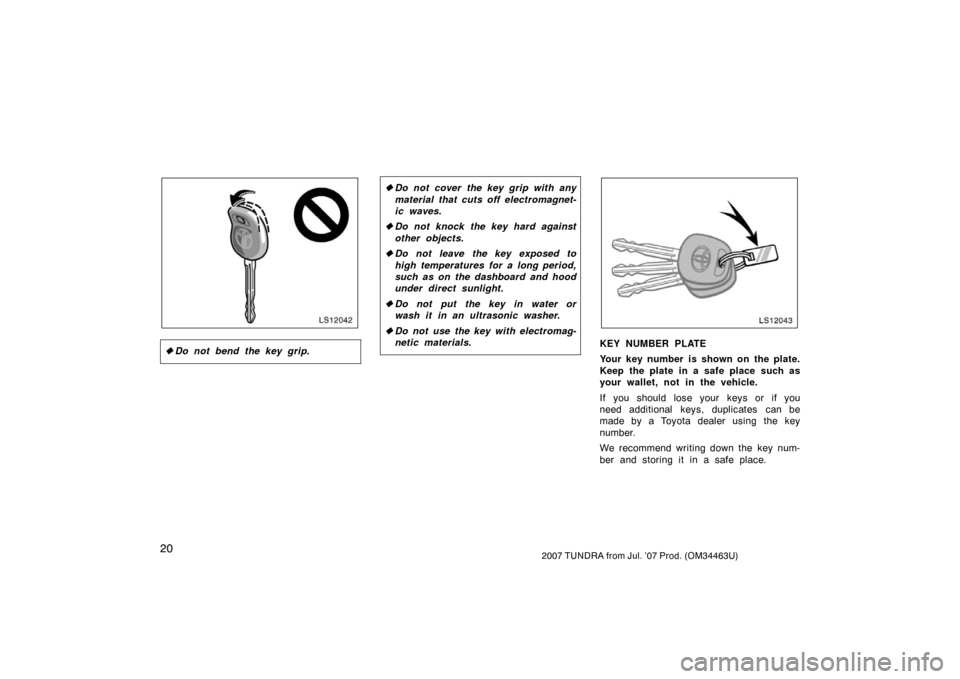

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
LS12043
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Page 30 of 611
212007 TUNDRA from Jul. ’07 Prod. (OM34463U)

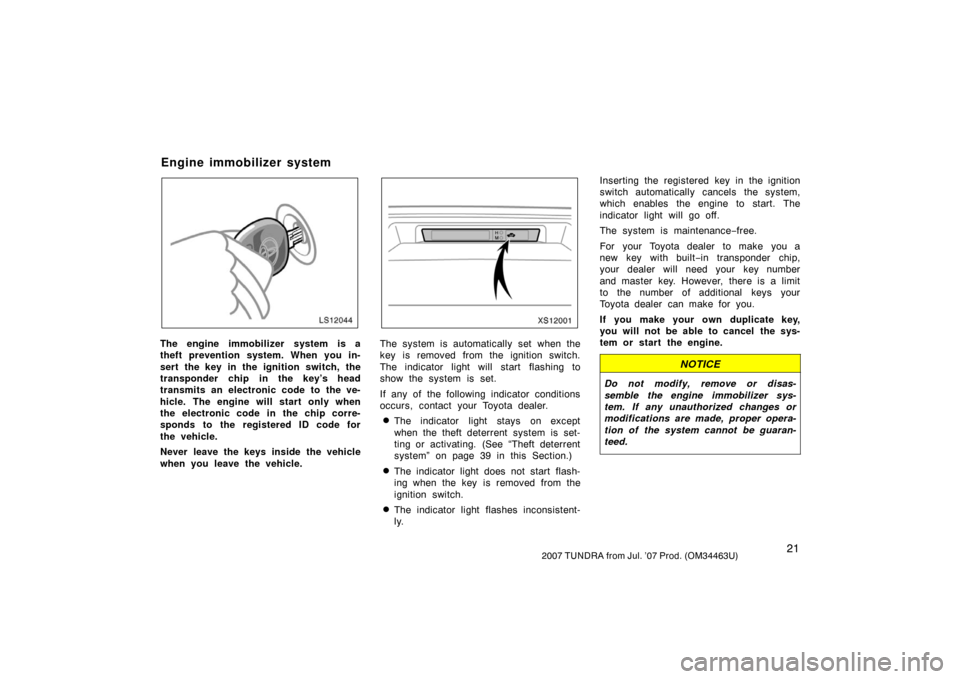

LS12044
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
Never leave the keys inside the vehicle
when you leave the vehicle.
XS12001
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 39 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
The system is maintenance−
free.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
Engine immobilizer system
