TOYOTA TUNDRA 2007 2.G Repair Manual

522007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13003f
Bench seats (Double cab and Crew Max
models)
1. SIDE SEAT POSITION ADJUSTINGLEVERS
Hold the center of the lever and pull
it up. Then slide the seat to the de-
sired position with slight body pres-
sure and release the lever.
2. SIDE SEATBACK ANGLE ADJUSTING LEVERS
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
3. CENTER SEAT SEATBACK ANGLE ADJUSTING LEVER
Pull the lever up. Then lean back to
the desired angle and release the
lever.
4. DRIVER’S SEAT CUSHION ANGLE ADJUSTING KNOB
To change the angle of the seat
cushion on the front side, turn the
knob either way.
5. DRIVER’S SEAT HEIGHT ADJUSTING LEVER
To change the height of the seat,
pull up or push down the lever.CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.

532007 TUNDRA from Jul. ’07 Prod. (OM34463U)

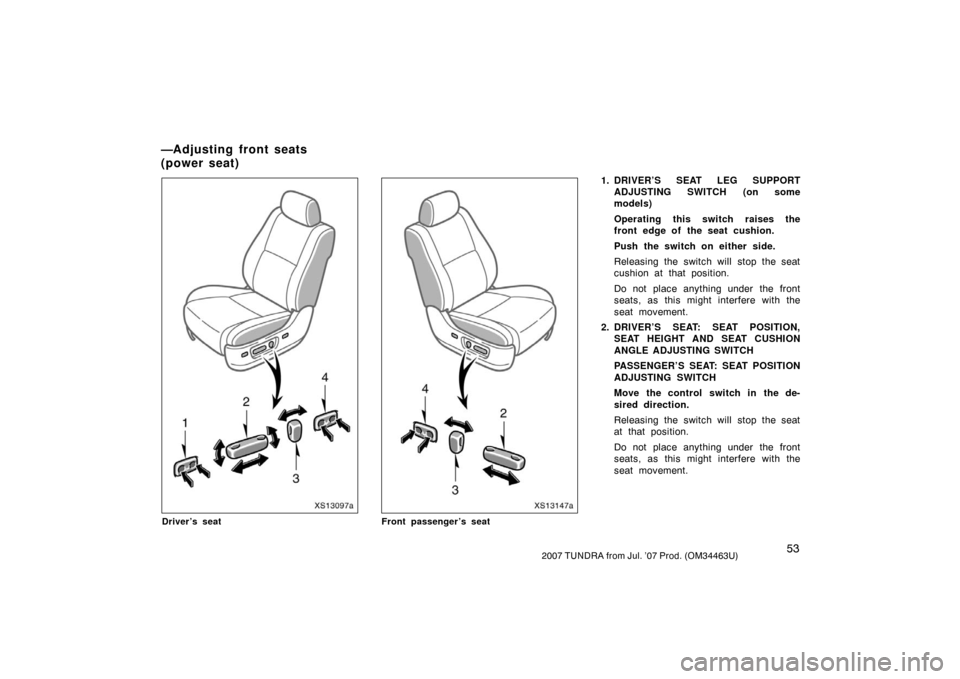

XS13097a
Driver’s seat
XS13147a
Front passenger’s seat
1. DRIVER’S SEAT LEG SUPPORTADJUSTING SWITCH (on some
models)
Operating this switch raises the
front edge of the seat cushion.
Push the switch on either side.
Releasing the switch will stop the seat
cushion at that position.
Do not place anything under the front
seats, as this might interfere with the
seat movement.
2. DRIVER’S SEAT: SEAT POSITION, SEAT HEIGHT AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
PASSENGER’S SEAT: SEAT POSITION
ADJUSTING SWITCH
Move the control switch in the de-
sired direction.
Releasing the switch will stop the seat
at that position.
Do not place anything under the front
seats, as this might interfere with the
seat movement.
—Adjusting front seats
(power seat)

542007 TUNDRA from Jul. ’07 Prod. (OM34463U)
3. SEATBACK ANGLE ADJUSTINGSWITCH
Move the control switch in the de-
sired direction.
Releasing the switch will stop the seat-
back at that position.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
4. SEAT LUMBER SUPPORT ADJUSTINGSWITCH
Push the switch on either side.
The amount of lumbar support will
change while the switch is pushed.

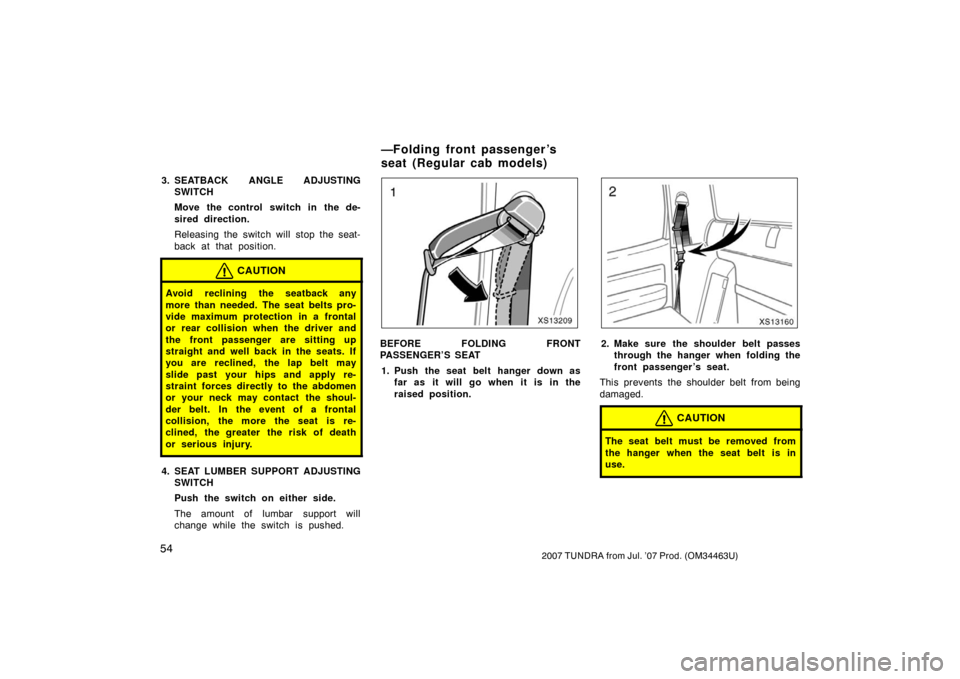

XS13209
BEFORE FOLDING FRONT
PASSENGER’S SEAT
1. Push the seat belt hanger down as far as it will go when it is in the
raised position.
XS13160
2. Make sure the shoulder belt passesthrough the hanger when folding the
front passenger ’s seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
—Folding front passenger ’s
seat (Regular cab models)

552007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13004a
1. Pull the seatback angle adjusting le-ver and raise the seatback to its up-
right position.
XS13005a
2. Pull the seatback folding lever andfold the seatback down.
XS13006
You should use the seatback as a tempo-
rary table only when the vehicle is
stopped.
CAUTION
To avoid death or serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the front passenger ’s
seat is securely locked in sliding
position when you set the seat as
a temporary table.

562007 TUNDRA from Jul. ’07 Prod. (OM34463U)
NOTICE
To prevent damage to the seat, avoid
putting heavy loads on the temporary
table.
This system can memorize the position
of the driver’s seat, the tilt and tele-
scopic steering and outside rear view
mirrors, and recall them at the touch of
a button.
Buttons “1” and “2” can memorize two
separate positions.
XS13098a
SETTING THE DRIVING POSITION
The ignition switch must be in the “ON”
position and the selector lever is in the
“P” position.1. Adjust the driver ’s seat, tilt and telescopic steering and outside rear
view mirrors to the desired position.
2. While pushing the “SET” button, push button “1” or “2” until a beep
in heard.
The system can memorize up to 2 posi-
tions by repeating the above steps. If step
2 is performed when both buttons “1” and
“2” are memorized, the previous position
will be erased and a new position will be
set.
Driving position memory
system (on some models)

572007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
XS13099a
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The ignition switch is in the “ON” posi-
tion and the selector lever is in the “P”
position.
The key is not in the ignition switch
and less than 30 seconds have passed
since opening the driver ’s door.
To stop the operation, push any driving
position memory button. To reactivate the system, push the button
“1” or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustment are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.

582007 TUNDRA from Jul. ’07 Prod. (OM34463U)
CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Be careful not to get your hands or
feet pinched in the seat.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or
sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Folding down the rear seatbacks will en-
large the luggage compartment. See
“—Stowage precautions” on page 464 in
Section 2 for precautions when loading
luggage.

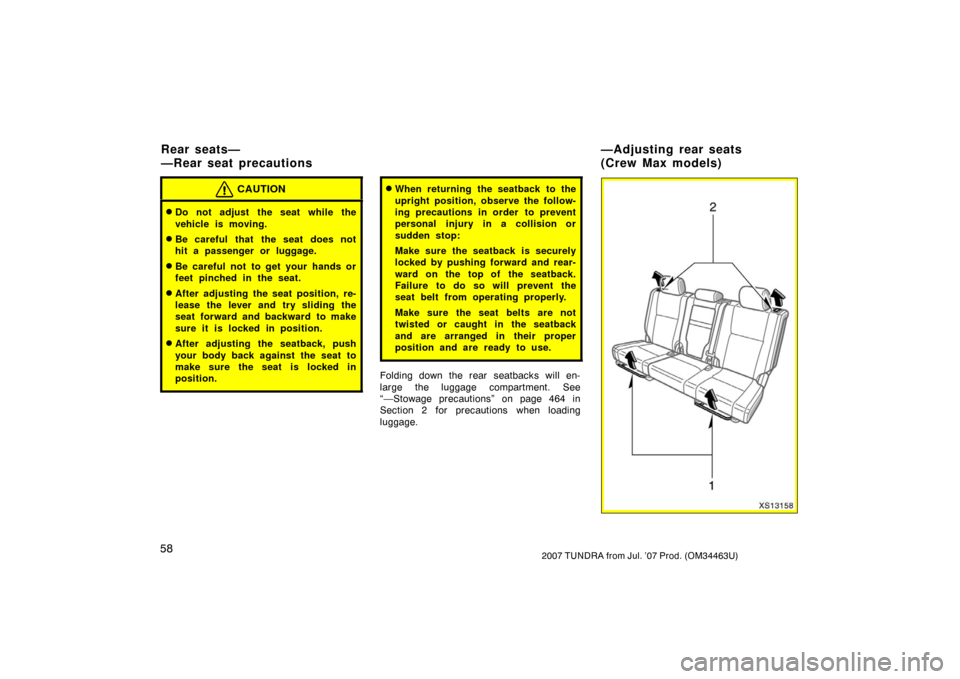

XS13158
Rear seats—
—Rear seat precautions—Adjusting rear seats
( C rew Max mo d els)

592007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. SEAT POSITION ADJUSTING LEVERS
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVERS
Pull the lever up. Then lean back to the
desired angle and release the lever.
CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen or
your neck may contact the shoulder
belt. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of death or se-
rious injury.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
NOTICE
Do not fold the rear seat seatback
forward with the luggage cover hooks
attached.
XS13146b
BEFORE RAISING REAR SEAT CUSHION 1. Stow the rear seat belt buckles as shown in the illustration.
This prevents the seat belt buckles from
falling out when you fold the seatback.
NOTICE
The seat belt and buckles must be
stowed before you raise the rear
seats cushion.
—Raising rear seat cushion
(Double cab models)

602007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13122
2. Make sure the shoulder belt passesthrough the hanger when folding the
rear seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
XS13007
3. Raising rear seat cushion.
Pull the lever on the side of the bottom
cushion and lift up the cushion until it
locks.
When returning the rear seat, pull the le-
ver on the back of the bottom cushion
and pull the cushion downward until it
locks.
Folding down the rear seats will enlarge
the luggage compartment. See “—Stowage
precautions” on page 464 in Section 2 for
precautions when loading luggage.
NOTICE
To prevent damage to the box under
the seat, do not sit on the box when
the bottom cushion is in the raised
position.
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent death or
serious injury in a collision or sud-
den stop:
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the bottom cushion.
Failure to do so will prevent the
seat belt from operation properly.
Make sure the seat belts are not
twisted or caught under the bottom
cushion and are arranged in their
proper position and are ready to
use.

612007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13157
BEFORE FOLDING DOWN REAR SEATS1. Stow the rear seat belt buckles as shown in the illustration.
This prevents the seat belt buckles from
falling out when you fold the seatback.
NOTICE
To prevent damage to the seat belt
buckles, the seat belt buckles must
be stowed before you fold the seat-
back.
XS13161
2. Make sure the shoulder belt passes through the hanger when folding the
rear seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
XS13159
FOLDING DOWN REAR SEATS
Pull the seatback angle adjusting lever
to unlock the seatback and fold the
seatback down until it locks.
CAUTION
Be careful that the seat does not hit
a passenger or luggage.
NOTICE
Do not fold the rear seat seatback
forward with the luggage cover hooks
attached.
—Folding down rear seats
( C rew Max mo d els)
