TOYOTA TUNDRA 2008 2.G Navigation Manual

ROUTE GUIDANCE
772008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
3U5103G
2. Touch “Display POI Icon” to display a
particular type of Point of Interest on the
screen.
3U5126G
A screen with a limited choice of Points of In-
terest will be displayed. (To change the dis-
played POI, see page 107.)

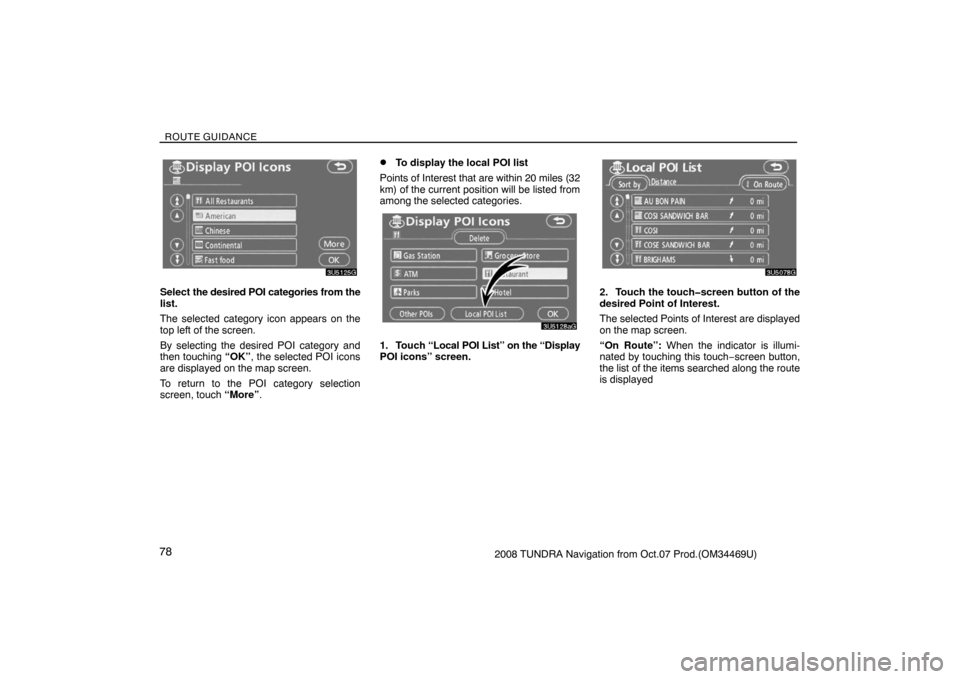

Selecting POIs to be displayed
Up to 5 categories of icons can be displayed
on the screen.
3U5127G
Touch the desired Point of Interest catego-
ry to display POI location symbols on the
map screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
To turn off the Points of Interest icon on the
map screen, touch “Delete”.
“Other POIs”: If the desired Point of Interest
can not be found on the limited choice screen,
touch this button. The screen then displays
the complete POI listing screen.
“Local POI List”: When searching for the
nearest Point of Interest, touch this touch−
screen button. The system will list the points
within 20 miles (32 km). (See page 78.)Touch “Other POIs” on the “Display POI
Icons” screen.
When a Point of Interest category is selected
from either the limited list or the complete list,
the screen will display symbols at those loca-
tions on the map screen.
3U5091G
Select the desired POI categories.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list all
POI categories.

ROUTE GUIDANCE
782008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
3U5125G
Select the desired POI categories from the
list.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
To return to the POI category selection
screen, touch “More”.
To display the local POI list
Points of Interest that are within 20 miles (32
km) of the current position will be listed from
among the selected categories.
3U5128aG
1. Touch “Local POI List” on the “Display
POI icons” screen.
3U5078G
2. Touch the touchscreen button of the
desired Point of Interest.
The selected Points of Interest are displayed
on the map screen.
“On Route”: When the indicator is illumi-
nated by touching this touch−screen button,
the list of the items searched along the route
is displayed

ROUTE GUIDANCE
792008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

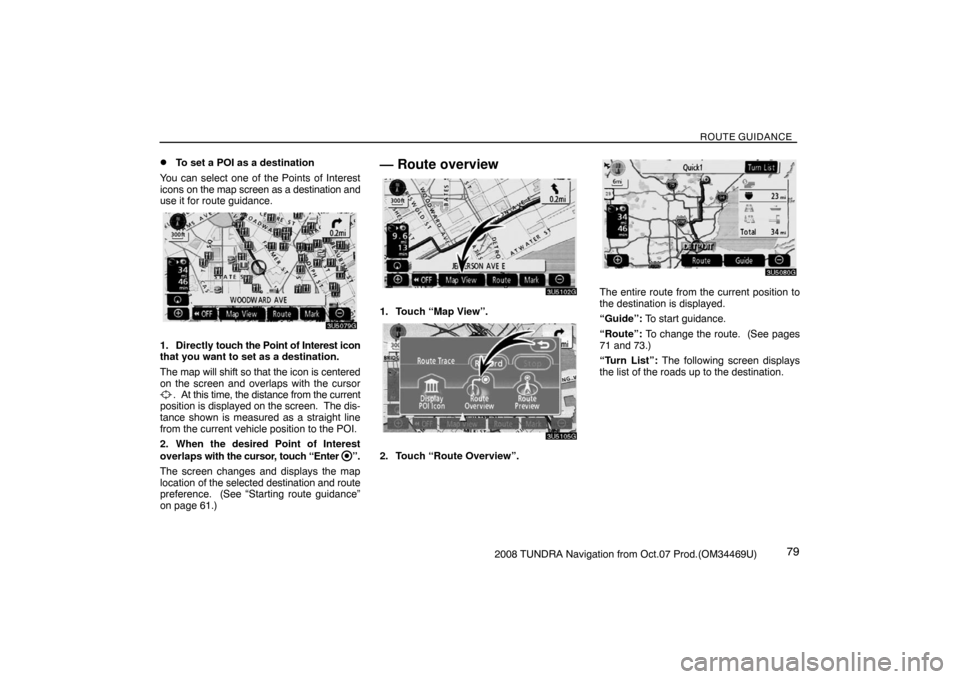

To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination and
use it for route guidance.
3U5079G
1. Directly touch the Point of Interest icon
that you want to set as a destination.
The map will shift so that the icon is centered
on the screen and overlaps with the cursor
. At this time, the distance from the current
position is displayed on the screen. The dis-
tance shown is measured as a straight line
from the current vehicle position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and route
preference. (See
“Starting route guidance”
on page 61.)
— Route overview
3U5102G
1. Touch “Map View”.
3U5105G
2. Touch “Route Overview”.
3U5080G
The entire route from the current position to
the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (See pages
71 and 73.)

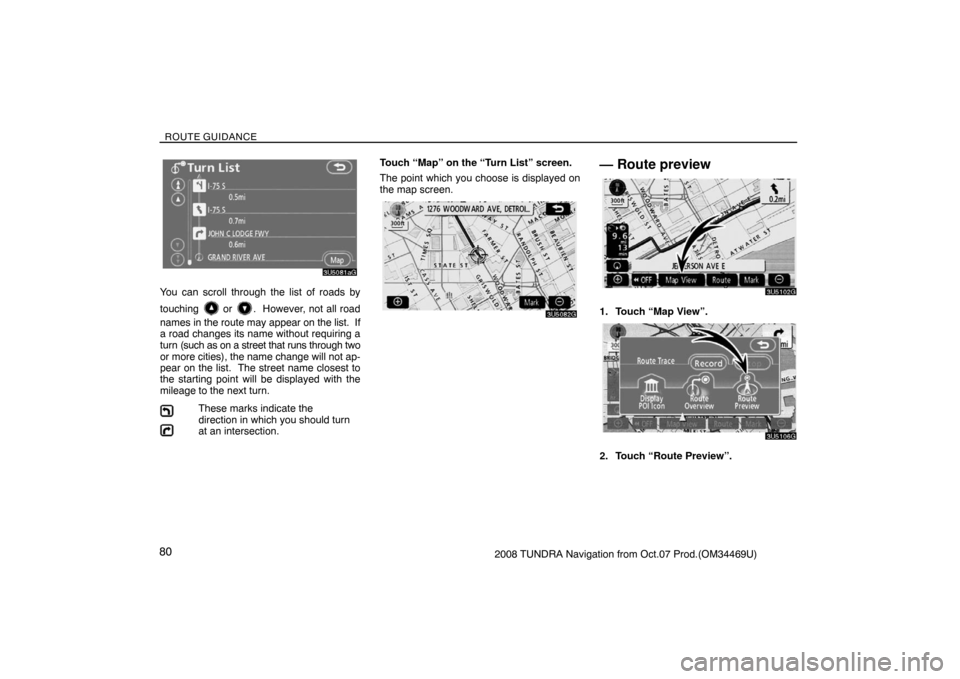

“Turn List”: The following screen displays
the list of the roads up to the destination.

ROUTE GUIDANCE
802008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
3U5081aG
You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap-
pear on the list. The street name closest to
the starting point will be displayed with the
mileage to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.
Touch “Map” on the “Turn List” screen.
The point which you choose is displayed on
the map screen.
3U5082G
— Route preview
3U5102G
1. Touch “Map View”.
3U5106G
2. Touch “Route Preview”.

ROUTE GUIDANCE
812008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
3U5083aG
:To indicate the next destination.
:To preview the route to the next des-
tination.
:To preview the route to the next des-
tination in fast−forward mode.
:To stop the preview.
:To review the route to the previous
destination or starting point.
:To review the route to the previous
destination or starting point in fast−
forward mode.
:To indicate the previous destination
or starting point.
— Route trace
It is possible to store the traveled route up to
124 miles (200 km) and retrace the route on
the display.
INFORMATION
This feature is available on the map with
more detailed map scale than 30 miles
(50 km).
3U5102G
Touch “Map View”.
3U5107G
“Record”: To start recording the route trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
3U5084G
Touching “Yes” stops recording and the
route trace remains displayed on the screen.
Touching “No” stops recording and the route
trace is erased.

ROUTE GUIDANCE
822008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

ADVANCED FUNCTIONS
832008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
Quick reference (“Menu” screen)84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspending and resuming guidance87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Volume88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User selection89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
My places91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering memory points92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing memory points93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting memory points97 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering home98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting home98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering area to avoid99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing area to avoid100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting area to avoid102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous points103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 4

ADVANCED FUNCTIONS
842008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)The “Menu” screen allows effective use of the
navigation system. To display the “Menu”
screen, push the “MENU” button.
1“Resume Guidance”
Resumes guidance 88. . . . . . . . . . . . . . . . . .
2“Suspend Guidance”
Suspends guidance. 87. . . . . . . . . . . . . . . . .
3“Volume”
Sets the volume for voice guidance.
88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4“?”
Function help for the “Menu” screen can be
viewed on this screen. 23. . . . . . . . . . . . . . .
5“Map DVD”
Displays information regarding the disc ver-
sion or covered area. 236. . . . . . . . . . . . . . . .
6“Select User”
Up to 3 different settings for different users
can be memorized. 89. . . . . . . . . . . . . . . . . .
7“Setup”
Enables various settings for the navigation
system. 86,103. . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Menu” screen)

ADVANCED FUNCTIONS
852008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
8“My Places”
Enables changes to “Memory points”, “Home”
and “Areas to avoid”. Enables deletion of the
previous point. 91. . . . . . . . . . . . . . . . . . . . . .

ADVANCED FUNCTIONS
862008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)The items shown on the “Setup” screen can
be set. To display the “Setup” screen, push
the “MENU” button and touch “Setup”.
1“Distance”
The distance units “km” or “miles” can be
selected. 104. . . . . . . . . . . . . . . . . . . . . . . . . .
2“Estimated Travel Time”
The system to display the travel time and the
arrival time to the destination on the route
guidance screen can be set. 104. . . . . . . . .
3“Keyboard Layout”
Key layout can be changed. 105. . . . . . . . . .
4“Time Zone”
The desired time zone can be selected.
106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“ Function”
The choice whether to display each touch−
screen button and current street name on the
map screen can be set. 107. . . . . . . . . . . . . .
6“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possible.
107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)
