Page 401 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 391
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. The
“AUTO” button will turn on, indicating that

Page 402 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 392
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS19016a
Air flow selector
Turn the knob to select the vents used for
air flow.
In automatic operation,  you do not have
to select the air  flow unles

Page 403 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 393
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditionin

Page 404 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 394
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
:Independent setting
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the h

Page 405 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 395
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
If following another  vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporaril

Page 406 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 396
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Ventilation
For best results, set controls to:
For automatic operation—
Press in the “AUTO” button.
Temperature— Towards low temperature
Air i

Page 407 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 397
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.

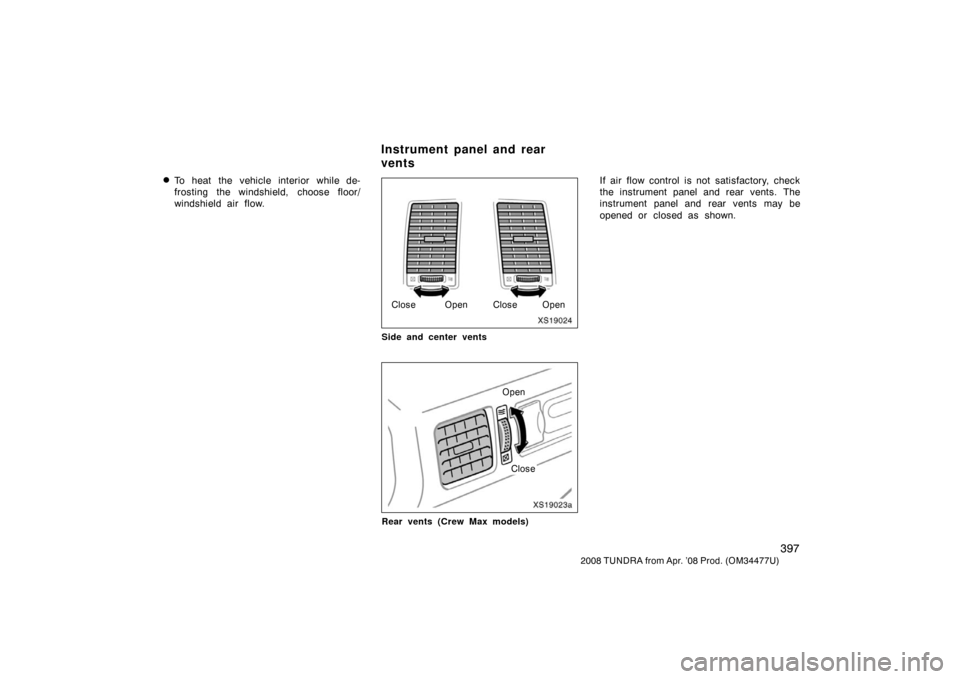

XS19024
OpenCloseOpenClose
Side and center vents
X

Page 408 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 398
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

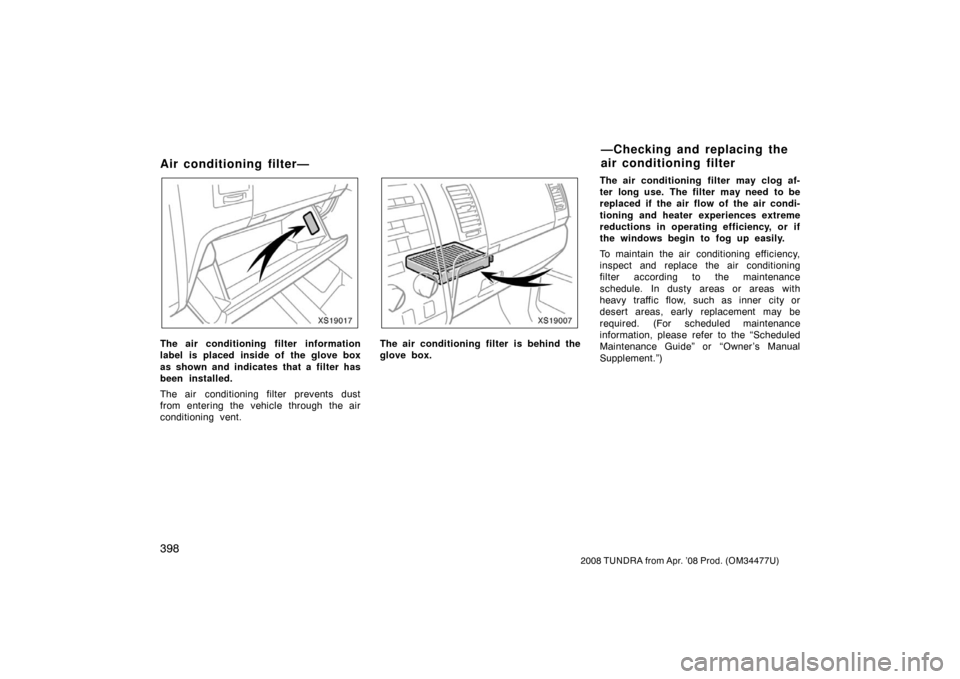

Air conditioning filter—
XS19017
The air conditioning filter information
label is placed inside of the glove box
as shown and indicates that a filte

Page 409 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 399
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS19008
1. Open the glove box, and slide off
the damper as shown.
XS19009c
2. Push in each side of the glove boxto disconnect the claws.
XS19010a
3. R

Page 410 of 621

TOYOTA TUNDRA 2008 2.G Owners Manual 400
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS19011a
4. Pull the filter out of the filter outlet.
Inspect the filter on the surface.
If it is dirty, it should be replaced.
XS19012
When installin
